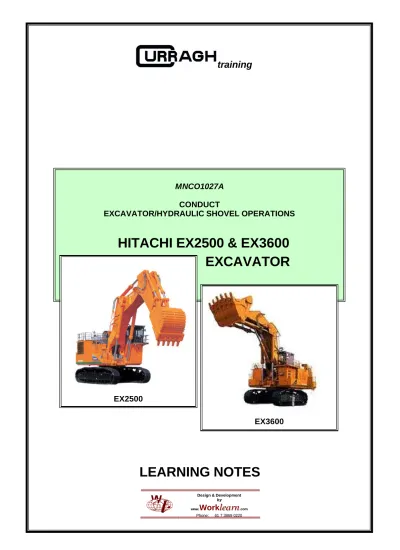

LEARNING NOTES

Design & Development

by www.Work

l

e

a

r

n

.com Phone: 61 7 3869 0220

training

MNCO1027A CONDUCT

EXCAVATOR/HYDRAULIC SHOVEL OPERATIONS

HITACHI EX2500 & EX3600

EXCAVATOR

EX2500

(2)

Curragh Queensland Mining Pty Ltd is part of Wesfarmers Energy 1

Work

l

e

a

r

n

DISCLAIMER

Whilst a sincere effort has been made to ensure the accuracy of the information described in this manual, Work

learn

makes no warranty, express or implied, with respect to the quality, correctness, reliability, currency, accuracy or freedom from error of this manual, or the products, procedures and process it describes.

Work

learn

makes no representation or warranty with respect to

the contents hereof and specifically disclaim any implied warranties of fitness for any particular purpose.

Work

learn

disclaims all lability for any direct, or indirect,

incidental or consequential, special or exemplary damages that may result from the use of this manual, or from the use of any products, procedures or processes described herein.

NOTE TO LEARNERS, FACILITATORS & ASSESSORS

This document is designed to align with the Performance Criteria from the Unit of Competency MNCO1027A Conduct Hydraulic Shovel/Excavator Operations However, in the interests of an easier learning sequence for learners, facilitators and

assessors we have placed Performance Criteria, EX 2.4 Conduct, Control & Monitor Tasks (covers operation of controls ) before EX 2.3 Select Loading Method

(3)

DOCUMENT CONTROL SHEET

Hitachi EX2500/EX3600

Excavator

Contact for Enquiries and Proposed Changes

If you have any questions regarding this document contact:

Name: Steve Ward

Designation: RTO Coordinator

Phone: 49 869 247

Approved: ………..………..

Date: ………

Record of Issues

Issue No Issue Date Nature of Amendment

(4)

Curragh Queensland Mining Pty Ltd is part of Wesfarmers Energy 3 MNCO1027A

CONDUCT HYDRAULIC SHOVEL/EXCAVATOR OPERATIONS

EXPECTED OUTCOMES OF ASSESSMENT Information for Assessors and Candidates

The skills assessment for this unit of competency must be conducted in the workplace under controlled and/or real work conditions.

The assessment may be conducted over a period of time, as formative assessment of the elements and not necessarily at one time (although this may be possible). Competency requires that the operator will be capable of carrying out expected day to day tasks operating an Excavator to the required National Competency Standard (see above) and expected CQMPL productivity standards.

Tasks that an Excavator operator will be expected to perform when assessed as competent:

• Start of shift walk around inspection using a provided check list

• Start up, park-up and shut-down

• Work with/in mobile plant and equipment teams; and

• Direct trucks into position

• Conduct loading operations including: - topsoil

- overburden - coal

- interburden or partings

• Carry out loading: - over the side - through the gate - drive by

- above trucks; and - at the same level

• Action alarms and communicating maintenance issues

• Recognise and dealing with particular hazards associated with the operation of the Excavator

• Carry out operational servicing, lubrication and housekeeping

• Provide support for major maintenance

(5)

Topic Abbreviations/Acronyms

Code Explanation

CT Mining Department Area Specific Induction

(6)

OPEN CUT PRODUCTION COMPETENCIES

Hitachi EX2500/EX3600 Excavator

Section Page

Competency Elements & Performance Criteria - Flow Chart

7

Element 1027.1 PLAN & PREPARE FOR OPERATIONS (Refer Mining Department Area Specific Induction)

9

Element 1027.2 OPERATE HYDRAULIC SHOVEL/EXCAVATOR

CT 2.1 Resolve Coordination Activities with Others (Refer Mining Department

Area Specific Induction)

11 Walk-around Inspection Checklist 12 EX25/36 2.2 Carry Out Pre-start, Start Up , park-up and Shutdown Procedures 16 EX25/36 2.3 Select Loading Method for Excavator 46 EX25/36 2.4 Conduct, Control and Monitor Dig Procedures 29 EX25/36 2.5 Act on or Report Monitoring Systems & Alarms 53 EX25/36 2.6 Recognise & Respond to Hazardous & Emergency Situations 59 CT 2.7 Complete Work to Planned Outcomes (Refer Mining Department Area

Specific Induction)

69 Formative Assessment

Element 1027.3 RELOCATE EXCAVATOR

CT 3.1 Receive & Confirm Route & Location Plan (Refer Mining Department Area

Specific Induction)

71

EX25/36 3.2 Complete and/or Follow Ground Preparation 72 CT 3.3 Resolve Co-ordination Issues, Support Equipment & Personnel (Refer

Mining Department Area Specific Induction)

72

EX25/36 3.4 Relocate Excavator 73 Formative Assessment

CONTENTS

2.3 & 2.4 are reversed in the Learning Notes & Assessment

(7)

OPEN CUT PRODUCTION COMPETENCIES

Hitachi EX2500/EX3600 Excavator

Section Page

Element 1027.4 CARRY OUT OPERATOR MAINTENANCE

EX25/36 4.1 Carry Out Inspections & Fault Finding 75 EX25/36 4.2 Carry Out Routine Operational Servicing, Lubrication, Maintenance &

Housekeeping

76 EX25/36 4.3 Carry Out Minor Maintenance 78 EX25/36 4.4 Provide Support for Major Maintenance 81 CT 4.5 Process Maintenance Records (Refer Mining Department Area Specific

Induction)

81

Formative Assessment CONTENTS (Continued)

(8)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 7

HITACHI EX2500/EX3600 EXCAVATOR

GREEN sections coded :

EX25/36 relates to the Hitachi EX2500 and EX3600

EXCAVATOR

WHITE sections coded CT relates to Mining

Department Area Specific Induction

1027.1

PLAN & PREPARE FOR OPERATIONS 1027.3 RELOCATE EXCAVATOR 1027.2 OPERATE EXCAVATOR CT 1.1

Obtain, Interpret & Clarify Work Requirements

CT 1.2

Access, Interpret & Apply Geological & Survey Data

CT 1.3

Access & Apply Safety Information

EX25/36 2.2

Carry out Pre-start, Start Up, Park-up & Shutdown Procedures

EX25/36 2.5

Act on or Report Monitoring Systems & Alarms

EX25/36 3.2

Complete and/or Follow Ground Preparation

CT 3.3

Resolve Co-ordination Issues, Support Equipment &

Personnel

EX25/36 3.4

Relocate Excavator

CT 2.1

Resolve Co-ordination Requirements with Others

CT 2.7

Complete Work to Agreed Planned Outcomes Formative Assessment Formative Assessment Formative Assessment CT 1.4 Co-ordinate Preparation of Work Area EX25/36 2.6

Recognise & Respond to Hazardous and Emergency Situations

EX25/36 2.3

Select Loading Method

1027.4

OPERATOR MAINTENANCE

EX25/36 4.1

Carry out Inspections & Fault Finding

EX25/36 4.2

Carry out Routine Operational Servicing, Maintenance, Lubrication & Housekeeping

EX25/36 4.4

Provide Support for Major Maintenance

CT 4.5

Process Maintenance Records

EX25/36 4.3

Carry out Minor Maintenance

Formative Assessment

EX25/36 2.4

Conduct, Control & Monitor Dig Procedures

CT 3.1

Receive & Confirm Route & Location Plan

2.3 & 2.4 are reversed in the Learning Notes

(9)

PLAN & PREPARE FOR OPERATIONS

(10)

MNCO1027A Conduct Hydraulic Shovel/Excavator Operations

Hitachi EX2500/EX3600 Excavator

Element 1027.1 Plan and Prepare for Operations

Performance Criteria

1027.1.1 Obtain, interpret and clarify/confirm work requirements in the form of shift briefings, handover details or work orders before proceeding. 1027.1.2 Access, interpret and apply basic geological and survey data required

to complete the allocated task in accordance to site procedures.

1027.1.3 Access and apply safety information and procedures throughout the work.

1027.1.4 Coordinate work area preparation, including floor clean up and level and grade requirements with others and carry out to job specifications.

CT 1.1 OBTAIN, INTERPRET & CONFIRM WORK REQUIREMENTS

(Refer Mining Department Area Specific Induction)

CT 1.2 ACCESS, INTERPRET & APPLY GEOLOGICAL AND SURVEY DATA

CT 1.3 ACCESS & APPLY SAFETY INFORMATION

(Refer Mining Department Area Specific Induction)

CT 1.4 PREPARE WORK AREA

Mining Department Area Specific

Induction Assessment

(11)

OPERATE EXCAVATOR

(12)

MNCO1027A Conduct Hydraulic Shovel/Excavator Operations

Hitachi EX2500/EX3600 Excavator

Element 1027.2 Operate Excavator/Hydraulic Shovel

Performance Criteria

1027.2.1 Resolve coordination activities with others at the site prior to commencement of, and during, the work activity.

1027.2.2 Carry out pre-start, start-up, park-up and shutdown procedures in accordance with manufacturer’s and site procedures.

1027.2.3 Select required loading method, single-sided, double sided or other appropriate method and position the equipment and trucks to meet this requirement.

1027.2.4 Conduct, control and monitor dig procedures, fill and load in accordance with manufacturer’s instructions and site procedures including those covering truck loading.

1027.2.5 Act on or report monitoring systems and alarms are in accordance with manufacturer’s instructions and site procedures.

1027.2.6 Recognise and respond to hazardous and emergency situations are in accordance with manufacturer instructions and site procedures.

1027.2.7 Complete work in accordance with the agreed plan and outcomes and within the operating capacities of the allocated equipment.

CT 2.1 CO-ORDINATE ACTIVITIES WITH OTHERS

(13)

WALK-AROUND INSPECTION - GROUND Hitachi EX2500/EX3600 Excavator

Commence the inspection, starting at the bucket and working in an anti-clockwise direction.

Check boarding steps for “Danger”, “Out of Service” or “Information Tags”. Check for the following:

Ground Level

q Bucket, bucket teeth, adaptors and pins (wear and damage)

q Bucket cylinders, arms/arm cylinders (leaks and condition of hoses) q Level cylinder, arm and boom cylinder (leaks or damage)

q Lights (damage lens, blown globes) q Front idler (wear)

q Left track for correct adjustment (ie tracks resting on centre wear plate) q Track rollers and pins (wear and oil leaks)

q Grousers (wear and/or loose bolts) q Chains (wear or damage)

q Boarding ladder (wear or damage) q Remote fire suppression activator

q Position and function of emergency stop button

q Rear sprocket (loose segments, wear and/or damage) q Track frame (dirt build up around carry rollers)

q Slew ring (adequate grease) q Fuel tanks (leaks and/or damage)

q Service point (damage and leaking hoses/connections) q Slew ring (adequate grease)

q Rear sprocket (loose segments, wear and/or damage)

q Right track for correct adjustment (ie tracks resting on centre wear plate) q Track rollers and pins (wear and oil leaks)

q Grousers (wear and/or loose bolts) q Chains (wear or damage)

q Track frame (dirt build up around carry rollers) q Front idler (wear)

(14)

Upper Level Inspection (Use three point access technique – one hand/two feet, two hands/one foot)

q Rotary connection (leaks, wear and tear) q Hydraulic oil level and condition of tank q Engine oil level (top up if necessary)

q Engine bay (fluid leaks, rubbish, excessive dust) q Pump drives (oil leaks)

q Alternator and fan belts (adjustment, wear and/or damage) q Coolant level (top up if necessary)

WARNING

System pressurised; serious burns may result from releasing radiator cap on hot engines.

q Hydraulic pumps (oil leaks)

q Windscreen washer reservoir level (top up if necessary)

q Automatic Fire Suppression reservoirs (above counterweight) q Swing gear box (oil level and leaks/damage)

q Main valve block (leaks)

q Pre-cleaner (clean if necessary) q Fuel tank (level and condition) q Auto lube system

q Battery

q Radiator cores (leaks and/or trash build up) q Clean offside mirror

q Emergency escape system (worn/damaged rope, worn/damaged hanger or case) q Hydraulic cylinders, valves and hydraulic lines around the main boom area (leaks) q All boom grease lines (damage)

q Boom pins (wear and lubrication)

Clean Test and Adjust as necessary

q Operating controls, horn, gauges q Seat and seat belt

q Air conditioner and filters q Mirrors and windows q Operating pedals q Floor

q Fire Suppression System

(15)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 14 Level Cylinder Boom Cab Arm Bucket Bucket Cylinder Arm Cylinder Front Idler Track Adjuster Upper Roller Lower Roller Side Frame Accumulator Swing Bearing Swing Device Travel Device Radiator Control Valve Engine Counterweight Hydraulic Oil Tank Pump

Oil Cooler

High Pressure Strainer By Pass Filter

Hydraulic Oil Tank Swing Device

Lubricator Emergency Escape Device Hangar

Emergency Escape Device Centre Joint

(16)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 15 Level Cylinder Boom Cylinder Boom Cab Swing Device Lubricator Oil Cooler Hydraulic Tank Muffler Battery Arm Bucket Dump Cylinder Bucket Cylinder Arm Cylinder Washer Tank Fuel Tank Front Idler Track Adjuster Upper Roller

Side Frame Accumulator

Ladder Lower Roller Travel Device Radiator Control Valve Engine Counterweight Pump Air Cleaner

(17)

EX25/36 2.2 CARRY OUT PRE-START, START-UP, PARK-UP AND SHUTDOWN PROCEDURES

2.2.1 Pre-Start Procedure

It is recommended that you commence the inspection at the bucket and move around the machine in an anticlockwise direction, carrying out the checks. Check boarding ladder for “Out of Service” and/or “Danger” tags and use three point boarding techniques.

The access ladder may be operated from either ground level or from the upper level.

• To lower from the upper level – pull the “T” handle up to release the lock and gently push down on the ladder until it locks into place.

• To lower from ground level – stand clear of the ladder, pull down on the hanging rings to release the lock and gently pull down on the handle until the ladder locks into place.

WARNING

Ensure body parts are kept clear of the path of the ladder when raising the ladder from the upper level.

The ladder may spring up after the lock is released.

• To raise from the upper level – stand clear of the ladder, pull the “T” handle up and exert upwards pressure on the ladder until it locks into place.

• To raise from ground level – pull down on the hanging rings as you push the ladder up until it locks into place.

Hanging Rings Ground Level “T” Handle

(18)

2.2.2 Walk Around Information

• Check the Coolant (engine shut down)

Check the coolant at the reservoir located in the engine bay. Coolant must be between the MIN and MAX marks located on the outside of the container. If the coolant is below the MIN mark, top up the coolant in the reservoir only.

To fill the radiator:

- remove the radiator cap - top up with coolant - check the coolant level - check for any leaks - replace the cap securely

WARNING

• Only remove the radiator cap when the engine is cool.

• Relieve any pressure by removing the cap slowly

• Use PPE (ie gloves, glasses)

• Use gloves; and

• Cover the cap with heavy rag or other protection

EX2500

EX3600

Radiator Cap Coolant Level

(19)

• Engine Oil Level

Check the oil level before starting the engine or 15 minutes (or more) after stopping the engine. This allows the oil to drain from the engine cavities and provides a more accurate reading.

Check the level as follows:

- ensure the excavator is parked on a level surface

- check the oil burn reservoir under the excavator (the level should

show at least half in the sight glass)

- open the inspection door at the rear left of the unit - remove the dipstick in the first engine

- wipe the dipstick with a clean rag - re-insert the dipstick

- remove the dipstick

- read the level (level should be between the two marks)

EX2500 EX3600

Oil Filler Cap

Oil Dipstick

(20)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 19 Fuel

• Fuel Level (for pre start inspection) Check using the

sight glass located on the side of the fuel tank, add fuel as necessary

• Swing Reduction Gearbox Oil Level Ensure the excavator is parked on a level surface with the engine off:

- remove dipstick

- wipe the dipstick on a clean rag - reinsert the dipstick

- remove dipstick again - check the oil level

The oil must be maintained between the upper and lower marks on the dipstick.

EX3600

Dipstick

(21)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 20 Sight Glass

• Hydraulic Oil Reservoir Level

Ensure the excavator is parked on a level surface with the boom, stick and bucket in the position shown in the photo opposite. The engine should be stopped. Check the level using

the sight glass located on the wall beside the cab steps. The

oil level should be between the two marks, if the level is below the bottom mark add oil. Do not overfill.

2.2.3 Operator’s Seat

• Adjust Backrest

Pull the Back-rest Adjustment lever up while applying or relieving pressure on the back-rest.

• Cushion Angle

Both the front and rear sections of the base cushion can be adjusted by either lifting or lowering the cushion angle lever eg:

- to adjust the rear part of the cushion, pull the lever up while

either applying or relieving pressure on the rear of the seat base.

- to adjust the front part of the cushion, push the lever down

while either applying or relieving pressure on the front of the seat base. Seat Fore/Aft Adjustment Cushion Angle Seat Damper Back-rest Adjustment Console Fore/Aft Adjustment

(22)

• Suspension Adjustment (dampening)

To adjust the ride or dampening effect of the seat turn the Seat Damper dial clockwise to increase the dampening effect, or anti-clockwise to decrease the dampening effect. As a guide, you may turn the dial to set your own body weight (in kilograms).

• Console/Seat Fore/Aft adjustment

The seat and/or the seat and console (control levers and seat) may be adjusted forward or backward to suit your needs.

- to adjust the seat only, lift the Seat Fore/Aft Adjustment bar

while pushing or pulling the seat in the direction required.

- to adjust the seat and console together, lift the Console

Fore/Aft adjustment lever while pulling or pushing the unit in the direction required.

• Lumbar Support Adjustment

Lower back lumbar support may be adjusted by turning the dial located on the left side of the back rest. Turning the dial anti-clockwise will increase lumbar support.

• Headrest adjustment

The headrest can be adjusted both in angle and height.

- to raise or lower the height of the headrest, grasp it firmly with

both hands and pull up or push down to the desired position.

- to tilt the headrest, hold the headrest while tilting it forward or

backwards to suit your requirements.

• Armrest Height adjustment

The height of the armrests may be adjusted by turning the dials located on the underside of the armrest.

NOTE

Adjust the seat so that you can easily depress the foot pedals.

(23)

2.2.4 Seat Belt

WARNING

Before fastening the seat belt, inspect

• The securing brackets and belt for abnormal conditions.

• The bolts and fittings on the chassis for tightness

Fasten the belt as follows:

• Adjust the seat so that the brake pedal can be depressed all the way with your back against the back rest

• Position the seat belt across your body

• Secure the belt by placing the tongue into the socket attached to the seat

WARNING

Check that there are no kinks in the belt.

• Check that the belt has locked by pulling it

Unbuckle the seat belt as follows:

• Depress the red button on top of the seatbelt socket

• Allow the seat belt to retract

WARNING

If the seat belt is scratched or frayed or if any of the fittings are broken or deformed or loose. Contact Maintenance

(24)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 23 Hydraulic Oil

Coolant Engine Oil Pilot Control Shut Off

2.2.5 Pre Start Instrument Check

• Place pilot control shut-off lever in the LOCK position

• Check that all control levers are in neutral (N)

• Turn the ignition switch ON

• Check that the following lights are ON: - alternator indicator

- pump transmission oil pressure indicator - engine warning indicator

- engine stop indicator

• Press indicator light check switch; AND

• Hold (indicator light check switch)

• Check that all monitor lamps are ON

If any indicator fails to light, the bulb may be burned out. Call Maintenance for advice/assistance

2.2.6 Fluid Level Check

Wait 15 seconds after the ignition has been switched ON and check the fluid levels using the test switch on the operator’s console.

The fluid level lights will glow if the fluids are at operating levels. All three lights should glow before you start the engines.

NOTE

The level check function does not replace the need for operator pre-start checks.

(25)

Pilot Control Shut

Engine Speed Control

Emergency Stop Ignition Key

2.2.7 Start-up (Normal)

Start the unit as follows:

• Adjust the operators seat

• Check that the Pilot Control Shut Off lever is in the LOCK position.

• Check that all levers are in NEUTRAL (N)

• Place the Engine Speed Control in LOW

• Sound horn once (wait five seconds)

• Turn the ignition key to the ON position

• Check warning lights

• Turn the ignition key to the START position

• Crank the e ngine

• Release the key once the engine has started, or after ten seconds with out starting.

NOTE

Crank engine for a maximum of 15 seconds.

If the engine does not start, wait for three minutes before attempting another start.

• Check that the warning lights glow for approximately two seconds after the ignition key is turned to the ON position

NOTE

Contact maintenance if any of the warning lights above fail to glow.

• Ensure that all the monitor lamps on the operator control panel go out. If any lights fail to go out, stop the machine and check for the cause (Refer 2.5 - Act on or Report Monitoring Systems & Alarms).

(26)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 25 Ether Container Holder

2.2.8 Starting In Cold Weather

EX2500

• Install an ether container on holder located in the engine room

• Move the engine speed control lever to the LOW position.

• Turn the ignition switch to START; AND

• Crank the engine

WARNING

• Starting fluid (ether) is highly flammable.

• The container may explode if not handled correctly.

• Keep the container away from heat, sparks, and open flame.

• Contents of the starting fluid container are pressurized. Do not puncture or incinerate the container.

• Remove container from the excavator if the engine does not need starting fluid.

The Pre-lube indicator will glow and the starter will rotate to start the engine , approximately 3 seconds after the pre-lube indicator light goes out. A shot of ether will be injected into the engine.

• Release the ignition key after the engine starts (It will return to the

ON position)

• Remove the ether container after the engine has started

NOTE

(27)

ON

OFF

Pre-heat Cut Off Switch

Relay Box

Pre-heat Cover & Switch

Pre-heat Indicator

Starting In Cold Weather

EX3600

When the preheat switch is turned ON, preheating is continuously performed for approximately one (1) minute with the ignition key in the ACC position. If the ignition key is turned to a position other tha n the ACC position before preheating is complete, preheating will be automatically stopped (the preheat indicator will go out). If preheating is operated for longer than one (1) minute, the preheat indicator will go out, automatically switching off preheating.

• Remove the Relay Box cover

• Turn the preheat cut-off switch ON.

• Turn the ignition key switch the ACC position.

• Open the preheat switch cover

• Turn the preheat switch ON (the p reheat indicator

will glow) to indicate:

- preheating of the engine intake air

- setting the fuel injection for starting in cold weather.

• Wait one minute after starting the preheating

• Turn the ignition key to the START position

• Crank the engine until it starts (Maximum 10 seconds). Preheating will automatically be complete and preheat indicator will go out

NOTE

The preheating system will only operate if the ignition key is in the ACC position.

If preheating is required again:

• Turn the preheat switch OFF

• Wait for 5 minutes

(28)

2.2.9 After Start-up Checks

• Warm up the engine for no less than five (5) minutes, under no load and at mid range engine speed

• Check the monitor lamps for operation

WARNING

If the monitor lamps do not go out after starting the engine :

• Stop the engine immediately

• Call Mainte nance for assistance

• Run the engine under light load until the engine coolant and hydraulic oil gauges are in the green or white range

• Ensure the alternator monitor lamp is OFF

• Ensure the transmission pump oil pressure lamp is OFF

• Ensure the e ngine oil pressure lamp is OFF

• Ensure the e ngine stop lamp is OFF

• Operate the excavator controls with no load applied to circulate warm oil through the hydraulic system

• Check for:

- normal exhaust colour - abnormal vibration - abnormal noise

Hydraulic Oil Temperature Engine Oil Temperature

Alternator Transmission Oil Pump Engine Oil Pressure Engine Stop

Exhaust Gas Colour - Quick Check

C

CCooolllooouuurrrllleeessssssooorrrfffaaaiiinnntttbbbllluuueee: normal (proper

combustion)

Black: abnormal (improper combustion)

W

Whhiittee: abnormal (worn oil rings, or :

(29)

2.2.10 Park Up and Shut Down

• Check the distance from other plant/equipment

• Park the excavator on a level surface

WARNING

if you must park on a grade:

• Thrust the bucket teeth into the ground

• Block both tracks

• Lower the bucket to the ground

• Turn the auto -idle switch OFF

NOTE

The turbocharger may be damaged if the engine is not correctly shut down.

• Move the engine speed control lever to the slow idle position

• Run the engine for 5 minutes to cool the Engine

• Turn the ignition key to OFF

• Pull the pilot control shut-off lever to the LOCK position

• Close the windows, roof vent, and cab door

NOTE

Protect electrical components in the cab from bad weather. Always close windows, roof vent and cab door when parking the excavator

Ignition Key

(30)

EX25/36 2.4 CONDUCT, CONTROL & MONITOR DIG PROCEDURES

2.4.1 Foot Controls. The foot/centre front hand controls are used to manage the travel movements of the excavator.

NOTE

The travel directions below are described with the track idlers positioned at the front of the excavator and the travel motors at the rear. (If the tracks are facing in

the opposite direction the control movements must be reversed)

• The Travel Direction Pedals operate as follows : - Forward – Push the top of both pedals down

- Reverse – Push the bottom of both pedals down

- Turn Right – Push the top of the left pedal down

- Turn Left – Push the top of the right pedal down

- Turn on Track Radius – Push the top of the right pedal down

while pushing down on the bottom of the left pedal, or vice versa.

WARNING

Avoid changing direction in high speed.

Before changing direction check for hazards and people. When driving over rough terrain, reduce engine speed to lessen possibility of undercarriage damage.

Neutral FORWARD REVERSE Right Left Footrest Footrest Right Left

(31)

• Working Lights Dip Switch - A dip switch has been fitted to the excavator to allow the operator to turn off the lower work lights when trucks are approaching. The switch is located on the side of the operator cabinet, adjacent to the left foot rest.

2.4.2 Hand Controls

The Travel Directional Levers – Follow the operation of the pedals as

follows:

• Forward – Push both levers forward

• Neutral – Centralise the levers

• Reverse – Pull both levers back

• Turn Right – Push the left lever forward

• Turn Left – Push the right lever forward

• Turn on Track Radius – Push the right lever forward while pulling back on the left lever, or vice versa.

NEUTRAL FORWARD

REVERSE

Left Right

(32)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 31 Pilot Control Shut Off

• Engine Speed Control Lever – Allows the operator to regulate speed of the engine.

To operate:

Move the lever FORWARD for LOW and BACKWARDS for HIGH

NOTE

The Engine Speed Control lever should be in the LOW (idle) position to start the engine.

• Pilot Control Shut Off Lever – prevents the accidental operation of controls when leaving the operators seat or cab

To activate the Pilot Control Shut Off Lever

When stopping the excavator:

- park the excavator on a firm, level surface - lower the bucket to the ground

- place all controls NEUTRAL - shut down the engine.

- pull the Pilot Control Shut Off lever up into the LOCK position

Before starting the excavator:

- Confirm that Pilot Control Shut Off lever is in the LOCK position

After starting the engine:

- confirm that all control levers and pedals are in NEUTRAL - confirm that no part of the machine is in motion

- push the Pilot Control Shut Off le ver down to the UNLOCK position

WARNING

Ensure that the Pilot Control Shut Off lever is moved fully into the lock position before leaving the operator’s seat. Shut down the excavator and Contact Maintenance if any part of the machine (any actuator) moves when the Pilot Control Shut Off lever is lowered to the UNLOCK position.

LOW HIGH

(33)

2.4.3 Bucket Controls

• Left Hand Control (Upper Deck)

- Slew LEFT – Move the top of

the lever left

- Slew RIGHT – Move the top of

the lever right

- Arm (stick) OUT – Push the

top of the lever forward

- Arm (stick) IN – Pull the top of

the lever back

• Right Hand Control (Bucket)

- Boom UP – Push the lever

forward

- Boom DOWN – Pull the lever

back

- Bucket ROLL OUT – Move

the top of the lever left

- Bucket ROLL IN – Move the top of the lever right

NOTE

The lever will return to the HOLD/NEUTRAL position if released in any selected position.

Arm IN Bucket Roll OUT Slew RIGH T Arm OUT Slew LEF T Bucket Roll IN Boom UP Boom DOWN NEUTRA L

(34)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 33 Starter Switch Emergency Stop

2.4.4 Buttons and Switches

• Emergency Stop Switch (Cab) – located on the back of the right hand bucket control, above the start keys.

To stop the engine in an emergency, turn the emergency stop switch from NORMAL to EMERGENCY STOP. This will stop the engine and the Emergency Engine Stop monitor lamp will glow.

Other emergency stop switches are located in the pump room and at the bottom of the main access ladder.

NOTE

Return the emergency stop switches to the normal position before trying to restart engines.

Emergency stop switches are also located in the:

- EX2500 (Engine and Hydraulic Pump Compartments)

- EX3600 (Engine, Pump, Oil Cooler and Radiator Compartments) When the engine stop switch is turned to the EMERG. STOP position, the engine will not start with the ignition key. The Engine Emergency Stop indicator will glow and a buzzer will sound.

WARNING

The engine will stop when the switch is turned to EMERG. STOP. HOWEVER, air pressure will not be purged from the hydraulic oil tank.

Engine Emergency Stop Switches

EX2500

Engine Emergency Stop

(35)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 34 Microphone Button

Microphone

• Engine Ignition (Starter) Switch – used to start the engine and activate the electrical circuits. There are four (4) positions:

- START – turn the key(s) to this position to start the engine(s). The key(s) will return to the ON position when released.

- ACC - supplies power to the radio, horn and two-way

- ON - after starting, the engine(s) will continue to run with the key(s) in this position

- OFF - turns the engine(s) off and isolates the electrical systems

• Two Way Radio – The microphone on the two way radio is controlled by the button on top of the left hand bucket control lever.

To talk on the radio:

DEPRESS the button on top of the control and HOLD down until you have finished speaking.

OFF (engine) ACC (horn, radio etc) ON (Engine electrical) START (engine) IGNITION SWITCH EMERGENCY STOP

(36)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 35 Wiper Switch

Wiper Delay Switch

Washer Button

• Wiper Switch

- OFF - wipers are parked.

- INT - wipers operate intermittently

- LO - wipers operate at a slow speed (continuously) - HI - wipers operate at a high speed (continuously)

• Wiper Delay Selector – activated when the wiper switch is turned to INT. The Wiper Delay Selector switch allows the delay to be adjusted to one of four settings:

- SHORT - allows a delay period of approximately four (4) seconds between wiper operation

- Position TWO - allows a delay period of approximately eight (8) seconds between wiper operation

- Position THREE - allows a delay period of approximately fifteen (15) seconds between wiper operations

- LONG - allows a delay period of approximately twenty-five (25) seconds between wiper operations

• Washer – depress the button to operate the windscreen washers. The wiper will operate for approximately four (4) seconds after the button is released.

WARNING

Damage will occur to the washer system if operated for periods longer than twenty (20) seconds or if operated continuously while the reservoir is empty.

(37)

• Auxiliary Switch – spare

• Fast fill Switch – operates the service point arm located under the back of the excavator.

- OUT (normal position) service point is stowed. - IN (light on) service point is in the down position

NOTE

The excavator will not slew while the service point is down.

• Auto Idle Switch – has two (2) positions:

- ON - press the button IN. The engine speed will drop to idle after the bucket controls have been neutralised for four seconds.

- OFF – press the button a second time to release the switch and turn off the AUTO IDLE.

An indicator light will glow while the AUTO IDLE system is activated.

NOTE

Before stopping the engines, turn the AUTO IDLE switch OFF. Working Lights Fast Fill Auto Idle Travel Speed Entrance Light

Engine Room Light

Interior Light EX2500

Auxiliary EX3600 Preheat

(38)

• Travel Speed Switch – a two position switch used to control the speed of the excavator when travelling. An indicator lamp will glow to identify the speed selected:

- IN position – slow speed (turtle indicating light) - OUT position – fast speed (rabbit indicating light)

• Entrance Light Switch – two (2) positions: - ON – press the button in

- OFF– press the button a second time

The entrance light (located externally at the top rear of the cab) comes on when the entrance light switch is depressed. An indicator light will glow while the button is in the ON position. To switch the light OFF, press the button a second time.

• Engine Room Light Switch – two (2) positions:

- ON – press the button IN. (The engine room light comes on when

the switch is depressed). An indicator light will glow while the

button is in the down position.

- OFF – press the button a second time

• Interior Light Switch – Two (2) positions:

- ON – press the button IN. (The interior light comes on when the

switch is depressed)

- OFF – press the button a second time

• Working Lights Switch – Two (2) positions:

- ON – press the button IN. (When this button is depressed all

exterior working lights will come on and the instrument gauge backlights and air conditioner illumination will glow)

(39)

• Warning Lights Test Switch (fault monitor lamps)

To check the operation of the fault monitor lamps:

- turn the key switches to ON

- check that the alternator, transmission pump pressure, engine stop, engine warning and engine protection lights are glowing (nine lights).

- press the Warning Lights Test switch and check that the remainder of the lights are glowing

• Fluid Level Check Switch

To check that the fluid levels are adequate for operation:

- press the Fluid Level Check switch. The corresponding light on the display will glow for each fluid level checked and correct

• Buzzer Stop Switch - use this button to reset the warning buzzer after an alarm event. The buzzer will sound again at the next event.

• Dimmer Switch (instrument cluster) – dial type switch used to change the intensity of the instrument back lighting

- turn the switch clockwise to increase the intensity of the back lighting

- turn the switch anticlockwise to decrease the intensity of the back lighting

NOTE

The Fluid Level Check switch is not a substitute for manual/visual pre start checks.

Warning Lights Test Fluid Level Check

Buzzer Stop

(40)

• Air Conditioner Controls

The air conditioner system fitted to the EX2500/EX3600 is split into three separate systems each controlled separately. The three systems are Rear, Side and Front.

The air conditioner controls for each system operate as follows :

- Fan Control - the fan speed is

adjusted up or down by pushing the black buttons shown below. The status of the fan will be shown by a LED behind the corresponding fan speed (OFF, I, II, III).

- Air Conditioner On/Off - the air conditioner may be

switched off independently of the fan to allow for fan only operation without cooling. The on/off button for this feature is the blue button marked AC. The status of the air conditioner will be shown by an LED glowing behind the snowflake emblem.

- Temperature Control - The temperature output of the air

conditioner can be adjusted by pressing the black buttons shown below. The temperature setting will be shown by an LED glowing above the colour scale.

(41)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 40 Horn Button

• Horn Button – is located on top of the left hand bucket control lever. To sound the horn press down on this button for the duration required.

2.4.5 Move the Excavator

After the engine has been started allow 5 minutes (minimum) warm up.

To move the excavator:

• Check that all the warning lights have gone out

• Unlock the Pilot Control Shut Off lever

• Lift the bucket

• Turn the park brake switch to OFF (to release the park brake)

• Select travel speed using the Travel Speed Switch. Slow speed (turtle) or fast speed (rabbit) can be selected by pushing the travel speed switch regardless of engine speed.

• Sound the horn (twice (2) for forward) (three (3) times for reverse) – pause five (5) seconds

WARNING

Always stop the excavator before changing the travel mode speed.

To decrease the travel speed, for travelling on a slope or in a tight space, press the switch to the turtle position.

NOTE

Select a route that is as flat as possible. Steer the excavator as straight as possible making small, gradual changes in direction.

(42)

Curragh Queensland Mining Pty Ltd is part of Westfarmers Energy 41 Select the direction of travel as follows:

• Forward Travel - Push down on the front of both pedals or, push forward on both of the travel levers

• Reverse Travel - push down on the rear of both pedals or, pull back on both of the travel levers

• Neutral Position - when the travel pedals or, levers are placed in the neutral (central) position, the travel brakes will automatically stop and/or hold the machine

• Left Turn - push down on the front of the left pedal or, push the left travel lever forward

• Right Turn - push down on the front of the right pedal or, push the right travel lever forward

• Short (spin) Turn - push down on the front of one pedal and the rear of the other or, alternatively push/pull both travel levers in opposite directions

WARNING

The travel directions above are described with the track idlers positioned at the front of the excavator and the travel motors at the rear. (If the tracks are

facing in the opposite direction the control movements must be reversed)

Be sure to confirm the position of the travel motors before travelling

(43)

2.4.6 Filling the bucket

Before moving the bucket into the face it should be levelled and lowered to the floor. The bucket can be levelled by pulling/pushing the bucket control lever to the left or to the right.

Once the bucket has reached a point where the floor of the bucket is of a similar angle to that of the material being excavated, lower the bucket to the floor and check the bucket level, adjust the level if required. With the bucket levelled and lowered to the floor, move the bucket arm towards the face to the point where the excavator has

started to labour, at this stage pull the bucket control back towards the operator seat to start to roll (tilt) the bucket slowly until it’s full whilst slowly raising the boom(hoist).

Always keep the bucket floor parallel to the face when digging. When the bucket is full, continue to hoist to the required level while also slewing towards the loading position.

(44)

2.4.7 Working on Inclines (Slopes)

It is usually safer and more efficient to work from the tops of an incline to the bottom (rather than from the bottom up to the top). The weight of the excavator (and gravity) will assist in pushing the load ahead of the blade. You will need to communicate and understand the angle of an incline before you can work on it. Inclines are generally referred to in ratios (e.g. 2:1, 4:1).

2:1, means that if you walk for two metres up an incline you will rise one metre from your starting point. A ratio will also relate to the angle of the incline. The drawings below show the relative steepness of inclines and approximate angle in degrees.

At Curragh, ramp angles are usually referred to in percentages (e.g. most pit ramps are 8%. Dragline ramps are 10% maximum). Highwalls are usually referred to in ratios (i.e. 1:1 or 1:2)

2:1 Slope 27° Off Horizontal 51% 3:1 Slope 18° Off Horizontal 32.5% 4:1 Slope 14° Off Horizontal 24.9% WARNING

Avoid travelling across (right angles) a slope. If you must walk across a slope:

• Keep the bucket close to the ground (.5 – 1 metre)

• Do not swing downward on a slope

2 M 1 M 3 M 1 M 4 M 1 M

(45)

DEGREES – PERCENT - SLOPE

Degrees Percent Degrees Percent Degrees Percent

1 2 3 4 5 1.8 3.5 5.2 7.0 8.8 16 17 18 19 20 28.7 30.6 32.5 34.4 36.4 31 32 33 34 35 60.0 62.5 64.9 67.4 70.0 6 7 8 9 10 10.5 12.3 14.0 15.8 17.6 21 22 23 24 25 38.4 40.4 42.4 44.5 46.6 36 37 38 39 40 72.7 75.4 78.1 81.0 83.9 11 12 13 14 15 19.4 21.3 23.1 24.9 26.8 26 27 28 29 30 48.8 51.0 53.2 55.4 57.7 41 42 43 44 45 86.9 90.0 93.3 96.6 100.0 100 90 80 70 60 50 40 30 20 10 0 90 80 70 60 50 40 30 20 10 0

(46)

Excavators may tip forward when travelling up or down a slope (dip) always keep the bucket low to the ground (500mm to 1 metre)

Avoid turning on slopes. If you must turn ensure the ground is firm and the slope angle is not excessive. Never traverse slopes of more than 15 degrees longitudinally or 15 degrees across the fall.

It is important to select the correct digging technique with regard to the steepness of the slope.

WARNING

Avoid working across a slope (eg at right angles). If you must work across a slope:

• Start at the top

• Maintain a windrow on the low side of the excavator to provide stability

(47)

EX25/36 2.3 SELECT LOADING METHOD

2.3.1 Loading Tasks – includes both haulers and rear dump trucks.

There may also be times when loading is in conjunction with other type of loading units eg loader.

Loading materials may include:

• Topsoil

• Overburden

• Coal

• Interburden or partings

Whatever type of unit you are loading, you must work with the operator as part of a team by:

• Maintaining communication with the operator of the equipment being loaded. This may be via two way radio, by horn signals (eg one horn

signal by the excavator operator to tell the truck to stop) or visually

using hand signals

• Ensuring the truck is positioned for safe, easy and productive loading

2.3.2 Loading Preparation

• Carry out an inspection of the area where loading is to be carried out for any hazards

• Communicate your movements to any other operators in the area

(48)

2.3.3 Loading Operation

Study the area that the loading operation will be carried out and decide on the best approach to loading eg:

• Develop a plan of how to work the face and the loading method to be employed (eg drive by, through the gate)

• Inspect the area/material to be loaded and decide if any additional preparation is required (eg grader/dozer to prepare floor/bench)

• Set up the loading bench. Check the following as you go:

- keep the bench height as close as possible to the stick length or equal to the gate height of the truck.

- set the angle of the bench to suit the material being excavated. Loose material will need a lower angle while compacted earth may stand near vertical.

• Load trucks using the most productive method (eg drive by, over the

side)

When trucks are fully loaded and the area is clear of other traffic, sound the horn once to signal that loading is completed.

NOTE

Some rear dump trucks have a load weight system, as the excavator operator you should familiarise yourself with the system fitted to the trucks you are loading. The Komatsu system fitted is as follows:

One Green light for a load between 56-67 ton Two Green lights for a load between 67-85 ton Three Green lights for a load between 85-91 ton One Yellow light for a load between 91-96 ton One Red light for a load o ver 96 ton

Do Not Overload

Komatsu 785 Rear Dump Trucks are rated at 85 ton (three green lights)

(49)

2.3.4 Positioning Trucks/Loading Techniques

The excavator operator is the ‘spotter’ and it is his/her role to direct the truck to the loading position. The excavator operator usually has the bucket full and in position so that the truck can reverse under it for loading.

Loading may be carried out using a number of techniques to satisfy safety, job or production needs. Some of the more common techniques include:

• Over the side

• Off the same level

• Through the gate

• Drive by

Factors to consider when setting up for loading include:

• Bench height

• Material stability

(50)

2.3.5 Loading Over the Side

The excavator is positioned parallel to the face with the right track lined up along the cut line.

Trucks are positioned at right angles to the face or they may also be positioned at an angle to the face (see diagram below)

The excavator swings from the dig zone to the left carrying the bucket over the side (rails) of the truck before placing the material in the body of the truck.

The basic operation for loading over the side is as follows:

• The excavator raises the load and positions it at right angles to the face

• The truck operator backs under the bucket

• The excavator sounds the horn when the truck is in the correct position or has reversed back sufficiently

(51)

2.3.6 Through the Gate Loading

Trucks are positioned at an angle to the bench face and facing away to the left of the excavator.

The excavator swings from the dig zone to the left carrying the bucket through the gate of the truck before placing the material in the truck body.

The basic operation for through the gate loading is as follows:

• The excavator raises the load and positions it next at about 45o from the cut line

(52)

2.3.7 Drive By Loading

Trucks are positioned parallel to the bench face, preferably with the operator’s cabin on the excavator side. It is the responsibility of the

excavator operator to ensure that the truck is positioned so that the

counter weight clears the truck when the excavator is swinging.

The excavator swings from the dig zone to the left carrying the bucket through the trucks gate or over the side before placing the material in the truck body.

The basic operation for through drive by loading is as follows:

• The truck operator drives into position along the bench with the truck about 2.5 metres from the crest of the face

• The e xcavator sounds the horn when the truck is in the correct position

• The excavator raises the load and swings it over the trucks side

(53)

2.3.8 Loading Trucks Off the Same Level

The excavator is positioned at floor level. Tracks can be facing either directly into the heap or at an angle across the face depending on the width of the bench.

Trucks are positioned at an angle to the to the bench face (if conditions

allow).

The excavator swings from the dig zone to left and right carrying the bucket through the gate before placing the material in the truck body.

WARNING

Although truck loading can be carried out from either side, to prevent the excavator counter weight striking a truck, o nly one truck at a time should be positioned

The basic operation for loading trucks off the same level is as follows:

• The excavator raises the load and positions it to the left or right of the digger as close to the face as possible. Excavator operator must ensure that the truck is not in the path of the excavators counter weight when slewing

(54)

EX25/36 2.5 ACT ON OR REPORT MONITORING SYSTEMS AND ALARMS

2.5.1 Check Monitors

When the ignition is turned ON the monitoring system will self-test. Monitoring lamps will glow for about two seconds except for the

alternator and pump transmission indicators, these two will stay on until

the engine has started.

• Fuel Gauge

Indicates the amount of fuel in the fuel tank.

The E mark indicates there is less than 250 litres in the tank.

• Hydraulic Oil Temperature Gauge

Green zone indicates normal operating range. If the needle goes into the red zone, stop operation and run the engine at LOW IDLE until the needle returns to the green zone.

Fuel

Oil Temperature Water Temperature

Tachometer

Fuel Level

Engine Oil Pressure Overheat

Pump Transmission Oil Pressure Alternator

(55)

E N G I N E

• Water Temperature

Start the engine. Run at slow idle until the needle enters the green zone, indicating normal operating temperature.

If the needle enters the red zone, reduce the load

immediately and run the engine at slow idle. If the problem continues, contact Maintenance.

WARNING

To prevent damage to the engine:

• Stop excavator to reduce load on the engine; and

• Run engine at slow idle

DO NOT stop the engine when the needle enters the red zone, this will cause the temperature to increase.

• Tachometer-Indicates engine speed in min

-1

x1000

• Alternator Indicator - Glows red when the alternator output is low. Contact Maintenance

• Pump Transmission Oil Pressure Indicator (Warning) - Indicator will glow red on low pressure. Stop the engine and immediately contact Maintenance.

• Engine Oil Pressure (Warning) - Indicator will glow red on low pressure. Stop the engine and immediately contact Maintenance.

• Overheat Indicator - Indicates overheating of mechanical components. Stop the engine and immediately contact Maintenance.

• Hydraulic Oil Level Indicator - Indicates that the hydraulic oil level is low

• Fuel Level Indicator - will glow red when approximately 250 litres remain in the fuel tank.

(56)

• Engine Oil Level Indicator - When the level check switch is pushed, the green indicator will light if the engine oil level is adequate for operation.

NOTE

This check does NOT take the place of manual daily inspection.

Download

Engine Oil Level

Hydraulic Oil Level (Warning)

Coolant Level

Travel Mode (Fast) Travel Mode (Slow)

Pre-lube Entrance Light Engine Room Light Auto Idle

Coolant Level (Warning)

Auto-lube

Engine Stop (Warning)

Engine Warning Ladder Position (Warning)

Fast Fill (Warning) Emergency Engine Stop

(Warning) Pump Contamination (Warning) Stop Valve (Warning) Air Cleaner Restriction (Warning)

(57)

• Coolant Level Indicator - When the level check switch is pushed, the green indicator will light if the engine coolant level is adequate for operation.

NOTE

This check does NOT take the place of manual daily inspection.

• Download Indicator - The green indicator comes ON if the system memory is fully occupied. If the indicator comes ON, download the data.

• Hydraulic Oil Level Indicator (Warning)

Red light glows and buzzer sounds to indicate low hydraulic oil level. If this light is activated stop the engine immediately and contact Maintenance.

• Auto Idle - Glows when the auto -idle device is turned ON

• Engine Room Light Indicator - Glows when the lights in the engine room and pump room are switched on.

• Entrance Light Indicator - Glows when the entrance lights are switched on.

• Pre-lube Indicator - When the ignition is turned to the START position, the pre-lube pump is operated between five and 45 seconds before the engine starts. The indicator glows during the pre-lube pump operation.

WARNING

If you need to remove the radiator cap when the coolant is hot, take the following precautions, as hot coolant may spurt out:

i) Use Personal Protective Equipment (PPE) (eg gloves, face shield)

ii) Cover the radiator cap with a rag

iii) Release the pressure slowly (some caps have a pressure release button)

(58)

• Travel mode Indicator Slow speed - Lights up when slow travel speed is selected.

• Travel mode indicator Fast speed - Lights up when fast travel speed is selected

• Coolant Level (Warning) - If the coolant level is lower than the recommended level, the red indicator light comes ON and the buzzer sounds.

- stop the engine immediately

- check the coolant system for leaks and the coolant level. - refill the coolant as necessary.

If the red indicator comes ON and the buzzer continues sounding for 120 seconds, the engine will stop automatically.

WARNING

As soon as the warning light comes ON, stop the

engine.

If the engine is operated with the coolant level lower than the recommended level, damage to the engine and/or radiator may result.

• Auto Lubrication Indicator - Glows red to indicate faults in the auto grease circuit. The indicator will also light if the grease mode switch in the battery compartment is turned to MANUAL or OFF.

• Engine Stop (Warning) - Glows red if any abnormality in the engine or systems occur. The engine may also stop automatically, or slow, depending on the severity of the fault. If this monitor lights up, park the machine and contact Maintenance.

(59)

• Engine Warning Indicator - Glows yellow if any abnormality in the engine(s) or system(s) occur. The excavator may be operated while the yellow light is glowing, however, engine performance may be restricted. Contact Maintenance if this indicator comes on.

• Air Cleaner Restriction Indicator - Glows red when the air flowing through the filters is restricted. Contact Maintenance.

• Pump Contamination Indicator - Indicates faults within any of the six pumps required for equipment operation. Contact Maintenance if the indicator glows.

• Emergency Stop Indicator - This indicator will glow when any of the engine stop switches, located in either the cab or pump room, have been turned to EMERG STOP position. Indicator will go out once the switch/s return to the NORMAL position.

• Ladder Position Indicator - Any time the ladder is down or partially down the Ladder Position indicator will glow red and the machine slew will be disabled.

(60)

EX25/36 2.6 RECOGNISE & RESPOND TO HAZARDOUS AND EMERGENCY SITUATIONS

2.6.1 Fire – Check the following at the beginning of every shift:

• All extinguishers are fully charged

• Automatic Fire Suppression Warning System is working 2.6.2 Fire Suppression System –

operates the mobile equipment’s fire control system.

An indicator panel is mounted in the cab and provides an audible and visual indication of any fire.

If a fire is detected the, engine will automatically shutdown after 10 seconds.

The panel should be tested daily, as follows:

• Check that the green, power ON light, is lit (NORMAL) • Press the ALARM TEST button:

- the red ALARM TEST

indicator should glow

- after a short alarm verification delay the red FIRE indication will flash

- the audible alarm will sound - after the time delay period the

engine will shut down

• Press the ISOLATE and RESET button twice after the test. To return the panel to normal.

The ISOLATE button will silence the audible alarm during a test or an alarm but will not extinguish the alarm FIRE indicator. By pressing the

RESET button during a test or an alarm the 10 seconds delay will start

again.

NOTE

A fault condition can occur if the battery voltage drops below the required supply voltage
