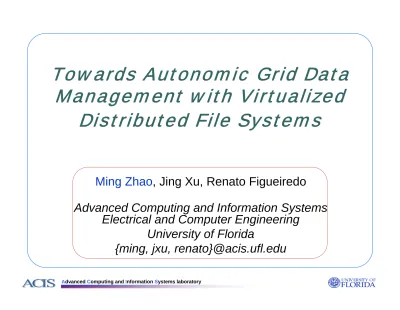

Towards Autonomic Grid Data Management with Virtualized Distributed File Systems

(1)

Towards Autonomic Grid Data

Management with Virtualized

Distributed File Systems

Ming Zhao

, Jing Xu, Renato Figueiredo

Advanced Computing and Information Systems

Electrical and Computer Engineering

University of Florida

(2)

GRID

z

Grid data provisioning

• Wide-area latency/bandwidth, dynamism of resources …

• How to provide data with application-tailored optimizations?

Motivation

Data server

data

Data server

data

job job job job job job

job job job

Compute server Sparse file access Highly reliable access Virtual machine Compute server Compute server Genome sequence Aggressive prefetching Simulation

(3)

GRID

Motivation

Data server data Data server data

job job job job job job

job job job

Compute server Sparse file access Highly reliable access Virtual machine Compute server Compute server Genome sequence Aggressive prefetching Simulation

z

Grid data management

• Dynamic data access, resource sharing, changing resource availability …

• How to manage data provisioning in dynamically changing environments?

(4)

Overview

z

Goal:

• Efficient data management in heterogeneous, dynamic

and large-scale Grid environments

z

Challenges:

• Application-tailored data provisioning

• Data management in dynamically changing environment

z

Contribution: Autonomic Grid data management

• Virtualized Grid-wide file systems

for user-transparent

Grid data access with application-tailored enhancements

• Autonomic data management services

for self-managing,

(5)

Outline

z

Background

•

Grid virtual file system and data management

z

Architecture

•

Autonomic data management services

z

Evaluation

•

Experiments and analysis

z

Summary

(6)

GRID

Grid Virtual File Systems

GVFS Sessi on II job C1 $ Proxy $ Proxy C2 $ Proxy $ Proxy

GVFS Session I Proxy Proxy_S1

data S2 Proxy Proxy data job job job

[Cluster Computing, Vol 9/1, 2006]

z

_G

_rid

_V

_irtual

_F

_ile

_S

_{ystem (GVFS)}

•

Distributed file system virtualization through user-level NFS proxies

•

Enhancements for Grid environment (disk caching, secure tunneling)

•

Dynamic, independent, application-tailored GVFS sessions

(7)

GRID

Data Management Services

GVFS Sessi on II C1 FSS M GVFS Session I Proxy Proxy C2 FSS Proxy Proxy S1 FSS Proxy Proxy S2 FSS Proxy Proxy DRS DSS z

D

ata

S

cheduler

S

ervice (DSS)

•

Scheduling and customization of GVFS sessions

z

D

ata

R

eplication

S

ervice (DRS)

•

Management of application data sets and their replicas

z

Server-side

F

ile

S

ystem

S

ervice (FSS)

•

Management of server-side GVFS proxies

z

Client-side

F

ile

S

ystem

S

ervice (FSS)

•

Management of client-side mount points, GVFS proxies and disk caches

[HPDC’2005]

(8)

GRID

Analyze

z Response z Reassign z Load balance Autonomic Server-side

File System Service

z Performance Plan Execute Monitor Analyze z Storage z Replicate z Replication Autonomic Data Replication

Service z Reliability Plan Execute Monitor

Autonomic Services

GVFS Sessi on II C1 Analyze z Response z Redirect z Prim-server Autonomic Client-side

File System Service

z Performance Plan Execute Monitor M Analyze z Storage z Reconfigure z Configuration Autonomic Data Scheduler

Service z Performance Plan Execute Monitor GVFS Session I Proxy Proxy FSS C2 Proxy Proxy FSS Proxy Proxy FSS Proxy Proxy FSS S2 S1 DRS DSS

(9)

z

Manages concurrent GVFS

sessions on shared resources

• Considers both application performance

and resource utilization policy

• Session

i

’s utility:

U

_i

= Performance

_i

* Priority

_i

• Configures sessions to maximize

z

E.g. Disk cache management

• Hit rate is important in wide-area environment

• Allocates client-side storage among sessions

• Monitors storage usage via client-side FSS

• Configures the sessions’ caches to maximize global utility

• Applies configurations via client-side FSS

Autonomic Data Scheduler Service

Analyze zStorage zReconfigure zConfiguration zPerformance job C1 $ FSS Proxy S2 Proxy FSS Monitor Plan Execute job $ Proxy

∑

i i

U

S1 Proxy FSS

(10)

z

Replication degree and placement

• Increases reliability against server-side

failures (crash, network partitioning)

• The reliability of a session’s data set

d

:

Reliability

_d

> R

_min

• Reduces replication overhead

• The cost of creating replicas for data set

d

Cost

_d

< C

_max

• Replaces replicas based on utility

• U

_d

= Value

_d

* Reliability

_d

,

maximizes

z

Replica regeneration

• Monitors server status via server-side FSS

• Reconfigures sessions’ replicas after a failure

• Generates replicas via server-side FSSs

Autonomic Data Replication Service

Analyze zStorage zReplicate zReplication zReliability C1 FSS FSS S2 Proxy FSS Monitor Plan Execute Proxy Proxy S1 replica

∑

i d

U

(11)

z

Fail-over against server failures

• Minimizes impact on the application

• Non-interrupt session redirection

• Monitors server response time

• Detects failure when request times out

• Redirects session to backup server

• Regenerate replicas via DSS/DRS

z

Primary server selection

• Maximizes performance against dynamic environment

• Monitors connections with effective, low-overhead mechanism:

Small random writes to a hidden file on the mounted partition

• Predicts performance with simple effective forecasting algorithm

• Chooses the best connection and switches transparently

Autonomic File System Service

C1 FSS S2 Proxy FSS Analyze zResponse zRedirect zConfiguration zPerformance Monitor Plan Execute job $ Proxy Proxy FSS S1

(12)

Experimental Setup

z

File system clients and servers

• VMware-based virtual machines

z

Wide-area networks

• NIST Net emulated links

z

I/O part of Grid applications

• IOzone file system benchmark

z

Grid data management

• User-level NFS v3 based GVFS proxies

(13)

C1 FSS Proxy S1 FSS Proxy S2 FSS Proxy 0.03 0.04 0.05 0.06 0.07 0.08 0.09 10 110 210 310 410 510 610 710 810 Time (second) R e spons e Ti m e ( s ec) Server 1 0.03 0.04 0.05 0.06 0.07 0.08 0.09 10 110 210 310 410 510 610 710 810 Time (second) R e spons e Ti m e ( s ec ) Server 1 Server 2 0.03 0.04 0.05 0.06 0.07 0.08 0.09 10 110 210 310 410 510 610 710 810 Time (second) R e spons e Ti m e ( s ec )

Server 1 Server 2 Autonomic session redirection

Autonomic Session Redirection

z

Scenario (I)

• Data transfer under

network fluctuation

• E.g. caused by parallel TCP transfers

z

Setup

• Client connected to two servers with

independently emulated WAN links

• Randomly applied latencies with values

from a real wide-area measurement

z

Autonomic session redirection achieves the best performance by adapting

to the changing network condition

20 30 40 50 60 70 80 0 2 4 8 N e t w o r k R T T ( m s)

(14)

Autonomic Session Redirection

0 0.1 0.2 0.3 0.4 0.5 0.6 60 180 300 420 540 660 780 900 1020 1140 1260 Time (second) R e spons e Ti m e ( s ec) Server 1 0 0.1 0.2 0.3 0.4 0.5 0.6 60 180 300 420 540 660 780 900 1020 1140 1260 Time (second) R e s pons e Ti m e ( s ec) Server 1 Server 2 0 0.1 0.2 0.3 0.4 0.5 0.6 60 180 300 420 540 660 780 900 1020 1140 1260 Time (second) R e s pons e Ti m e ( s ec ) Server 1 Server 2

Autonomic session redirection

z

Scenario (II)

• Data transfer under

server load variation

z

Setup

• Randomly generated background load

applied on the data servers

C1 FSS Proxy S1 FSS Proxy S2 FSS Proxy

z

Autonomic session redirection achieves the best performance by adapting

(15)

Autonomic Data Replication

z

Scenario

• Data transfer and replication under

dynamic server failures

z

Setup

• Replica degree: 2 (1 primary + 1 backup)

• Failures randomly injected on the servers

• Consecutive executions of the benchmark

z

Case I:

Independent sessions

(different inputs)

primary server failed

new replica created

new replica created primary server failedprimary server failed

backup server failed

redirected to backup

1st run done

1st run done 2nd run done_{2nd run done}

3rd run done

3rd run done 4th run done_{4th run done}

180 309 884 1015 1077 1213 2020 2159 198 676 1329 1996 2642 redirected to backup redirected to backup 1096 0 time (s) C1 FSS Proxy S1 FSS Proxy S2 FSS Proxy

(16)

z

Scenario

• Data transfer and replication under

dynamic server failures

z

Setup

• Replica degree: 2 (1 primary + 1 backup)

• Failures randomly injected on the servers

• Consecutive executions of the benchmark

z

Case II:

Dependent sessions

: same input, cache reuse

Autonomic Data Replication

C1 FSS Proxy S1 FSS Proxy S2 FSS Proxy

primary server failed

redirected to backup

180 311

201 675

884

1011 715 754 793 833 873 913 953 993 1033 7th run do ne 8th run do ne 9th run do ne 10 th r un don e 2nd r un don e 3rd r un don e 4th run do ne 5th run do ne 6th run do ne time (s): 0 1st ru n do n e

(17)

Related Work

z

Data management in Grid environment

• GridFTP, GASS, Condor, Legion

z

Middleware control over Grid data transfers

• Batch-Aware Distributed File System [NSDI’04]

• Self-optimizing, fault-tolerant bulk data transfer

framework based on Condor and Stork [ISPDC’03]

z

Replication and storage management

• Wide-area data replication based on Globus RFT

(18)

Summary

z

Problem:

• Efficient data management in heterogeneous,

dynamic and large-scale Grid environments

z

Solution:

• Autonomic data management system based on

GVFS and self-managing, goal-driven services

z

Future work:

• Autonomic session checkpointing and migration

(19)
