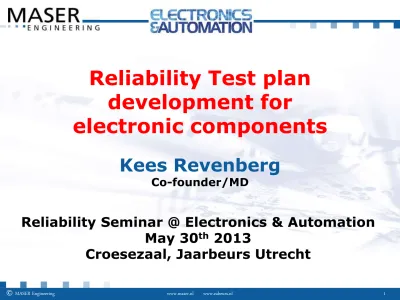

Reliability Test plan
development for
electronic components
Kees Revenberg
Co-founder/MD
Reliability Seminar @ Electronics & Automation
May 30
th2013
Outline
Introduction
Test plan development
Environments and applications
Test methods and standards
Execution and data processing
Examples
Introduction
Independent Test & Diagnostics of Microelectronics
Services cover component to module & small system level
Large IDM, Fabless Semi, Design Centers, OEM and R&D
Founded in 1993, ISO-9001 certified by Lloyds Register
First RvA ISO-17025 accreditation on electronics test (L388)
1750m² central lab & offices at Kennispark Enschede
41 employees with gen/Tech/BSc*/MSc*/PhD* (*=>60%)Introduction
Electronic component penetration ongoing
Highly complex product to manufacture
Millions/week of devices at sub 100nm precision
100+ devices per system at 100k+/week
Strict manufacturing process control
Big impact of application environment
Unknown customer handling activity
Good pro-active test planning
Test plan development
Product description
Manufacturing Flow and Supply Chain
Application Environments and Mission
FME(C)A and design robustness analysis
Design for tests implementation
Test program preparation
Organization and Responsibilities
Test plan description
Customer feedback / approvalTest plan development
Product description
Detailed functional description
DC/AC parametric specification
Package Outline Drawing + pin list
Manufacturing Flow and Supply Chain
Detailed description of manufacturing process
Detailed description of materials and suppliers
SPC program definition for process controlTest plan development
Application Environments and Mission
Definition of worse case End User environment
Definition of product mission and expected life
FME(C)A and design robustness analysis
Product split in all essential blocks and assembly steps
List of potential hazards and/or failure modes
Consequences of malfunction with grade
Prime test methods to show or stress the hazards
List of necessary tools and techniquesTest plan development
Design for tests implementation
On chip / On board features for with JTAG/SPI test
Support electronics for stress test status monitoring
Health monitoring during stress test and operation
Test program preparation
Organization and Responsibilities
Test plan description
Standard vs. Custom stress tests
Customer feedback / approvalEnvironments and applications
Application environments has big impact
User skills can destroy a product
Certain applications may result in life
threatening situations
Health: pacemaker / narcosis equipment
Automotive: airbag / steering control
Aerospace: motor control / fly-by-wire
There is an uncertainty in the final product
Test methods and standards
ISO
IEC
MILSTD883/750/202
JEDEC / J-STD
JIS – EN – NEN
AEC-Q100/101/200
IPC600/610
Customer based
Application based
Other
Detailed description of method and tools
Intra lab exchange of results
Joint Electron Devices Engineering Council
Founded in 1958
Part of Electronic Industries Alliance
1999
independent organization
JEDEC Solid State Technology Association
Detailed test method description
Better focus on micro-electronics
World Wide acceptance in industry
Good correlation with accredited labs
Methods and programs defined
Joint standards with ESDA and IPC
www.jedec.org
Stress test driven qualification of IC’s
Required stress test
Pass/Fail criteria acc. LTPD table
Qualification and Re-qualification after change
Device specific tests
ESD
Latch Up
Parametric
Device qualification requirements
Hermetic package requirement
AEC test standards
AEC-Q100-Q101-Q200
Automotive Industry driven
1995 Q100 version A issued
Free on www.aeccouncil.com
J1879
Handbook for Robustness Validation of Semiconductor Devicesin Automotive Applications
Joint SAE-ZVEI-JSAE-AEC plan
Info on www.sae.orgAEC-Q100 founders, left to right:
Earl Fisher (FORD)
Gerald Servais (Delco/GM) Jerry Jennings (Chrysler) Robert Knoell (FORD)
AEC Q100 test standards
Test Group A: Chip + Package related stress THB HAST; PC UHAST; PreConditioning stress prior to GpA tests
Power Temperature Cycling for multiple hot/cold starts, linear K-ramp
Test Group B: Chip accelerated life test + Safe Launch Functional reliability in an accelerated test environment
Due to new operational temperatures temperatures go up to +175°C
Test Group C: Assembly related tests Lot by Lot selection for destructive mechanical properties
Test Group D: Wafer process related tests Metal and Via structure EM stress
Gate Oxide stability TDDB
AEC Q100 test standards
Test Group E1: Electrical parametric tests Statistical review of DC and AC parameters
Test Group E2: Electrical parametric tests ESD/LU phenomena protection circuitry, strong relation to JEDEC/ESDA
Dedicated test for CMOS under lightning strike effects FIGL test
Test Group F: Design process related tests Review of statistical device data
Test Group G: Hermetic package tests Drop, Shock and Vibration stress tests
J1879 Robustness Validation
J1879 Matrix
Subsystem
Material
Failure Mechanism
Failure Cause
Failure Mode
Detection Mode
Char. of Degradation
Affecting Ops Cond.
Required Test structure
Mitigation Technique
Stress Method
Stress Method standard
Acceleration Model
Acc. Model standard ref. The vertical axis is a list of wide range of potential defectsExecution and data processing
Representative samples
Sample size
Fixture / Stress test setup utilities
Internal facilities vs External facilities
ISO 17025 requirements
Result reporting
Statistics
Examples
Power Temperature Cycling JEDEC JESD22-A105C
1000 cycles -40°C to +85°C, 6.25K/min, operational, power on/off
1000 cycles -40°C to +125°C, 5.5K/min, operational, power on/off
Examples
ElectroThermally Induced Parasitic Gate Leakage test AEC-Q100 testmethod 006
High Voltage arcing field during board assembly
12kV inducing 400V at device
HV Power on at +155°C
