A Mobile Open Infrastructure Network Protocol (MOIN) for
Localization and Data Communication in UWB Based Wireless
Sensor Networks
2014 IEEE International Conference on Ultra-Wideband (ICUWB) Paris, France
Manuel Janssen, Andreas Busboom, Udo Schoon, Gerd von Cölln, Carsten Koch
Hochschule Emden/Leer, Germany
University of Applied Sciences, Department of Electronics and Informatics Email: {Manuel.Janssen, Carsten.Koch, Gerd.von.Coelln}@hs-emden-leer.de
Introduction
Related protocols MOIN Protocol Evaluation Summary and outlook
Outline Context
Outline
Outline
I motivation and context I related protocols I MOIN protocol I performance evaluation I summary and outlook
Introduction
Related protocols MOIN Protocol Evaluation Summary and outlook
Outline Context
Motivation
Context
I Oshore operations: part of research project SOOP
-Safe Oshore OPerations
I the aim is the contribution to the industrialization of
oshore wind energy
I today: manual process monitoring (TETRA radio,
visual, . . . )
I the goal was to develop a system architecture as base
to generate an overview of the operation
I wireless sensor network (WSN) for communication
Introduction
Related protocols MOIN Protocol Evaluation Summary and outlook
Outline Context
Motivation
Wireless Sensor Network
I most available protocols either focus on:
I localization or I communication
I required is a combination of both; with following requirements
I high precise ranging measurements
I data communication for collected sensor data I dealing with harsh environments
I implementation of a suitable network protocol for localization and communication
I due to harsh environments
I the decision was made to use Ultra Wideband (UWB) as the right radio technology [4]
I approach can be easily mapped to a great number of similar problems and
Introduction
Related protocols
MOIN Protocol Evaluation Summary and outlook
IEEE 802.15.3 MAC PULSERS MAC
Related protocols
IEEE 802.15.3 MAC
I supports additional physical
layers such as Ultra Wideband (UWB)
I centralized beacon enabled
protocol [1]
I based on a time-slotted
superframe structure [3]
Superframe n-1 Superframe n Superframe n+1
Beacon period Contention access period (CSMA/CA)
Channel time allocation period
MCTA
1 MCTA2 CTA1 CTA2 CTAk
Figure : the IEEE 802.15.3 time-slotted superframe structure
Introduction
Related protocols
MOIN Protocol Evaluation Summary and outlook
IEEE 802.15.3 MAC PULSERS MAC
Related protocols

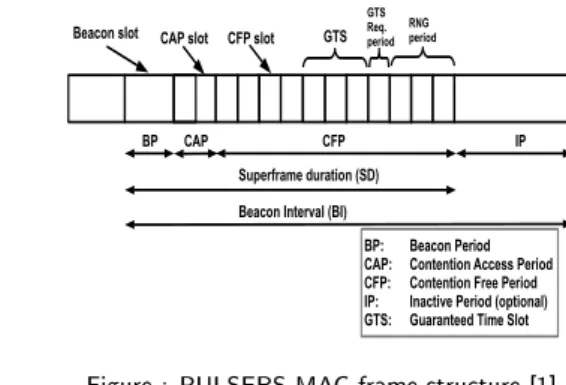

PULSERS MAC (cf. [1],[3]) I supports peer-to-peer communication I fulll guaranteedrequests with low latency
I ranging functionality
with low power consumption BP CAP CFP IP GTS GTS Req. period RNG period Superframe duration (SD) Beacon Interval (BI) Beacon slot CAP slot CFP slot
BP: Beacon Period CAP: Contention Access Period CFP: Contention Free Period IP: Inactive Period (optional) GTS: Guaranteed Time Slot Figure : PULSERS MAC frame structure [1]
Introduction Related protocols
MOIN Protocol
Evaluation Summary and outlook
Topology overview Protocol description Slot conguration of MOIN Communication ow
Network topology
Components
I Master
I congures and coordinates the whole network via related Coordinators
I Coordinators
I act as relay stations for their respective sensor domain
I mobile nodes (slave)
I execute ranging
measurements to calculate their positions and collect sensor data (temperature, acceleration etc.)
I anchor nodes
I provide ranging
measurements for mobile nodes MOIN-Coordinator Slave Anchor Anchor MOIN-Coordinator Anchor Anchor Slave Slave Slave Slave Slave Slave MOIN-Master Anchor Anchor Anchor
Introduction Related protocols
MOIN Protocol
Evaluation Summary and outlook
Topology overview Protocol description Slot conguration of MOIN Communication ow
Protocol frame structure
Properties
I replaced contention access
period by contention free period
I cause CSMA/CA could be a
dicult task in UWB-WSNs [2]
I also it is not deterministic and
unsuitable for time critical applications
I fully collision free and
predictable multiple access
I combines TDMA and CDMA I enables simultaneous channel
access
I adaptive slot assignment
Superframe n-1 Superframe n Superframe n+1
Beacon-period
Channel time allocation period
CTA 3 CTA4 CTAk CTA 2 CTA 1 Contention free access (CDMA/TDMA)
Ranging period Data period
Figure : modied time-slotted superframe structure from the IEEE 802.15.3 MAC
Introduction Related protocols
MOIN Protocol
Evaluation Summary and outlook
Topology overview Protocol description Slot conguration of MOIN Communication ow
Slot conguration
Structure
I two-dimensional slot
conguration
I m-time slots∗n-code
channels
I Control channels for
Coordinators
I handover between sensor
domains
Dierent stages 1. beacon period 2. ranging period and
registration process 3. data period beacon code channel (c) time (t) c0 c4 c5 c3 c2 c1 c6 t0 t1 t2 t3 t4 t5 t6 t7 t8 ranging measurements data communication registration process
beacon registration process data communication
Control channel for coordinator 2 Control channel for coordinator 1
Data period
Beacon period
Ranging period and registration process
Slot duration
I ranging slot= 45ms
Introduction Related protocols
MOIN Protocol
Evaluation Summary and outlook
Topology overview Protocol description Slot conguration of MOIN Communication ow
Example: Communication sequence
MOIN-Master Coordinator 1
MOIN-MM_MSG_LOGIN_BEAC MM_MSG_LOGIN_BEAC
MM_MSG_LOGIN_ ACK MM_MSG_LOGIN_ ACK MM_MSG_LOGIN_ ACK MM_MSG_LOGIN_ACK MM_MSG_LOGIN_ACK MM_MSG_LOGIN_ACK
MM_MSG_MAC_BEAC MM_MSG_MAC_BEAC
MM_MSG_MAC_
ACK MM_MSG_MAC_
ACK MM_MSG_MAC_
ACK
Slave 1 Slave 2 Slave N
MM_MSG_MAC_ACK MM_MSG_MAC_ACK MM_MSG_MAC_ACK MM_MSG_COORD_SYNC MM_MSG_DISCOVERY _RESPONSE MM_SET_COORD_CHANNEL
Introduction Related protocols MOIN Protocol
Evaluation
Summary and outlook
Evaluation results
Evaluation results
Network setup
I one Master I one Coordinator
I ve mobile nodes (slaves) I four anchor nodes
Results
I totaltime of564ms
I update frequency of≈1.8Hz
received MAC frame
switch code channel and send range requests
select channel 0 and send data back to gateway TX RX 0 2 4 6 8 10 12 0 200 400 600 800 1000 1200
Superframe duration by 4 anchor nodes
Number of slaves Ti m e (m s. )
Introduction Related protocols MOIN Protocol Evaluation
Summary and outlook
Summary and outlook Literature
Summary and outlook
The aim of the paper was to present a new ecient MAC protocol for UWB based WSNs which combines localization and data communication for industrial applications
Summary
I propose of an ecient MAC
layer for industrial applications
I possibility of simultaneous
channel access
I overcomes limitations of related
MAC protocols
I scalable depending on the
network conguration
I verication of performance by
comparison to established methods (pure TDMA)
Outlook
I decreased power consumption
by extended sleep modes in unused slots
I optimization of slot duration by
faster channel switch and new available API of used radio modules
I integrate load balancing
between sensor domains to decrease the duration of the data period
Introduction Related protocols MOIN Protocol Evaluation
Summary and outlook
Summary and outlook Literature
Literature
[1] L.X. Cai, Xuemin Shen, and J. Mark.
Ecient MAC protocol for ultra-wideband networks. Communications Magazine, IEEE, 47(6):179 185, june 2009.
[2] Fabrice Legrand, Isabelle Bucaille, Serge Héthuin, Luca De Nardis, Guerino Giancola, Maria gabriella Di Benedetto, Ljubica Blazevic, and et al.
U.C.A.N.'s Ultra Wide Band System: MAC and Routing protocols, 2003. [3] Mohd Shahril and Izuan Mohd.
Finding the Optimal MAC Protocol for Low-Power High Data Rate Ultra-Wideband (UWB) Networks.
cms.livjm.ac.uk, pages 1924, 2008.
[4] Thorsten Wehs, Manuel Janssen, Carsten Koch, and Gerd von Cölln.
System architecture for data communication and localization under harsh environmental conditions in maritime automation.
A Mobile Open Infrastructure Network Protocol (MOIN) for
Localization and Data Communication in UWB Based Wireless
Sensor Networks
2014 IEEE International Conference on Ultra-Wideband (ICUWB) Paris, France
Manuel Janssen, Andreas Busboom, Udo Schoon, Gerd von Cölln, Carsten Koch
Hochschule Emden/Leer, Germany
University of Applied Sciences, Department of Electronics and Informatics Email: {Manuel.Janssen, Carsten.Koch, Gerd.von.Coelln}@hs-emden-leer.de
Introduction Related protocols MOIN Protocol Evaluation
Summary and outlook
Summary and outlook Literature
Duration of each superframe
The total time of each superframe is:
I tsf=B+R+D
I B is the duration of the beacon period(≈40ms) I R is the duaration of the ranging period
tr= ( ((mdivr) + 1)∗r∗trslot , m6=r m r ∗r∗trslot , (m modr) = 0 (1) I D is the duration of the data period:
Introduction Related protocols MOIN Protocol Evaluation
Summary and outlook
Summary and outlook Literature
Example of slot assignment
time (t) code channel (c) 1 1 1 1 1 2 2 2 2 3 3 3 4 4 5 2 3 3 4 4 4 5 5 5 5 c0 c1 c2 c3 c4 c5 c6 t0 t1 t2 t3 t4 t5 t6 t7 t8 t9
reserved for registration reserved for registration
1 2 3 4 5 2 3 3 4 4 4 5 5 5 5
