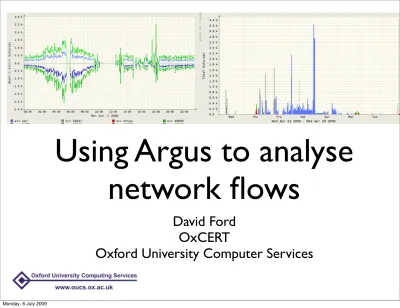

Using Argus to analyse
network flows
David Ford OxCERT
What are network flows?
•
A convenient way of representing traffic on your network•
Contain a timestamp, the source/destination IP, protocol/port, traffic
volumes, and a status (eg RST, CON, TIM)
•
One flow may represent many packetsWhy would I want to
use them?
•
Good for understanding network incidents•
Can help you to identify suspicious/abusive behaviour•
Can help in tracing other network issues (eg tracing the source of load on aparticular link)
What is argus?
•
Which Argus? we mean:(http://www.qosient.com/argus) -
Audit Record Generation and Utilisation System
•
It can capture from a live interface (eg amirror/span port, or a fibre tap), or from a Cisco netflow source, or from a pcap file, and indirectly from other sources such as sFlow (note some features require a live
What is argus (2)
•
It stores data in its own record format, and contains tools to extract data as required•
Most of the tools for using it are command line driven, but can easily be automated to produce useful reports, or to extract the data you needWhere to capture?
•
Depends largely on your network topology, what you want to see, and how much data you wish to collect•
Things to consider include:•
locations of NATs - do you want to see traffic before, or after NATing•
firewalling - do you want to see traffic that gets through the firewall, or traffic that doesn’tA warning about NATs
•
even having flows from before and after NATing does not guarantee you can trace the source of a malicious flow•
If a single destination host has both malicious and non-malicious connections from behind the NAT, it may not be possible to distinguish these without logs of NAT translationsHow much data
•
Argus records can be compressed (using gzip) - our experience suggests this can cut the sizerequirements by a factor of 5-10 (or more in some cases - particularly for regular scanners)
•
Data size will depend a lot on how many sources and how many flows you are recording - for our systems - based on a typical unit this might beUnderstanding your
data sources
•
It’s important to understand how various different types of packet flows are handled by your flowcapturing devices
•
Dependent on network configuration, theequipment/protocol you are using to capture
flows. For example a scan of unresponsive hosts may be recorded as INT, or TIM/RST this
data sources (part 2)
•
How do your capture devices cope if they receive too many flows to process, do they sample the data - if so, how?, do they stop passing packets in the case of a router, or do they stop recording flows•
Remember the point where you receive unexpectedly large numbers of flows isWhat can you do with
the flows?
•
Incident investigation - how did a machine get hacked, from where?•
Spotting malicious hosts, P2P, other rogue trafficIncident Investigation
•
Starting point here is that we know that a particular machine has been compromised (possibly throughother flow analysis, or possibly because we’ve been alerted to it from elsewhere)
•
We want to know:-
how was it compromised, and when-
did the attackers get in anywhere else?-Spotting malicious
traffic as it happens
•
We’ve so far been looking at data that’s been collected and archived•
We can also analyse live data to identify unexpected traffic patterns such as scanners, P2P users, botnets etc.•
Older Argus versions (2.0.5) came with an example perl script to do this - you may wish to write your•
The aim is to import argus data as it is recorded and to look for patterns such as repeatedconnections out to different hosts on a single port (scanning), or huge numbers of inbound
connections
•
The “holy grail” could be some way to trackconnection behaviour for hosts against past traffic patterns, however I’m not aware of any such
scripts for argus
Use of Argus
•
You can read and process Argus data in one of a number of ways:-
Connections via a TCP socket-
Reading flat filesArgus tools
•
Argus server (typically called argus)collects argus data from a mirrored port or a pcap file
•
ra - Read Argusa tool to read argus data from a socket, file or netflow, this can be used for filtering and basic processing
•
racount - a simple tool to count total packets, and bytes from an argus file•
ranonymize - a tool to make dataanonymous (ie replace IPs that might be identifiable)
•
rastrip - remove certain data from argus files to make file sizes smaller (eg MAC addresses)•
rasplit - split argus file into smaller files based on number of entries•
racluster - merge data based on certain criteria - this is useful for reporting,graphing, and many other tasks -
understanding the basics of racluster is key to getting the most out of argus data
•
ragraph - a perl script designed to graph argus data - we’ll see this later•
rasort - sort a list of flows•
ratop - show top traffic - useful for livetraffic (similar to iftop, but lower overhead if already using argus - you might wish to combine with multitail for nicely coloured output
•
there are other tools included, these are the most common ones I useSocket Based Argus
•
Argus provides a socket based interface for reading live or near to live flow based data•
You can use this for live flow analysis, for example you might wish to identify when machines are connecting to a knownmalicious or forbidden site, or hosts generating certain traffic patterns
Processing Argus data
from files
•
There are command line argus tools that you can use to process argus data, and to extract the data you need•
We consider now a few common cases of data you may needExtracting data for a
particular host/port
•
Often you will need to hunt for trafficflowing to/from a particular host to identify what traffic they have been generating.
•
You may also need to know what traffic is flowing on a particular port:ra -nnr /var/log/argus.log - host 192.168.1.3 The ra command is used
for reading argus data
The arguments define whether to resolve IPs to
hostnames (first n), whether to resolve protocols to names (second n), and instructs argus to read from a
file
The - indicates the argus filter
Alternatively, for a port:
Aggregating data
•
Argus stores the full set of flows generated by a system.•
For some purposes you may get more useful information by aggregating data together•
Argus can produce results aggregated by number of flows and by traffic volumesExamples (Based on
Argus 3)
•
Top talkers (well, actually, traffic total by IP):•
Top talkers using port 22racluster -M rmon -m saddr -r inputfle
•
If you store MAC addresses:•
Top ports in use:racluster -M rmon -m smac -r inputfle
•
Statistics by protocol:•
traffic by host pairs:•
to convert to top N:racluster -M rmon -m proto -r inputfile
racluster -M matrix -r inputfile
racluster -M matrix -r inputfile -w - | rasort -m bytes -w - -r - |
Traffic graphs
•
Argus comes with some scripts designed to perform graphing functions•
Alternatively you can extract data and pass them to whatever graphing libraries youragraph
•
a perl script supplied with Argus foraggregating data into a sensible format and then graphing it
•
quite powerful, however be warned it can take lots of RAM - also there is often more than one way to get a particular graph, the earlier aggregation is performed the moreSimple examples:
Traffic in a day
Simple examples:
Packets in a day
ragraph dbytes sbytes -M 30s -r /var/log/argus.yesterday
Now lets go crazy:
Or perhaps not
Performance
•
In the latter examples, we’re not being very efficient - we can add the option-m proto dport
to speed them up - this means the
aggregation of the data happens initially, rather than when the data is passed to
Malicious DNS
(a case study)
•
I’m sure lots of you have had notifications for hosts talking to “malicious DNSservers”
•
Servers set up by malware authors to redirect legitimate sites to their own version•
Graphing traffic to the known malicious DNS servers is interesting:•
The large spikes are noticeable, and correspond with malware setting up malicious DHCP servers•
Filtering by groups of DNS server is even more interesting:•
We can start to suspect that the incidents are connected (especially when we takeaccount timing of router blocks)
•
In fact, we discover we can begin to seeactual infected hosts, and collateral caused by the rouge DHCP server
•
This fact only becomes clear after the malware has been analysedHow are graphs useful
•
visualisation of traffic use at particular point on your network - if you’re capturing flows from routers/switches you may havevisibility at several places
•
what proportion of traffic at a particular point is from what class of user•
can help your planning for capacity upgrades•
visual check for sudden unexpected surges•
you may find abusive users are very visible on certain graphs•
visualisations of incidents - can tell us something newArgus and Perl
•
You can easily automate lots of tasks with Argus•
Here I will look at a short simple alerting script to read live argus data and alertevery 100 flows (this script is designed to be over simplified)
#!/usr/bin/perl use strict;
my $argus_host='127.0.0.1:8887';
open (RA, "/usr/bin/ra -c, -nn -S $argus_host |") || die "Failed to start /usr/bin/ra"; while (<RA>)
{
chomp($_);
my ($time,$opts,$proto,$sip,$sport,$dir,$dip,$dport,$pkts,$bytes,$stat) = split(',', $_);
# do something clever and interesting here
print "received a flow from $sip:$sport going to $dip:$dport, $bytes were transferred \n";
}
•
Perl (or other similar language) scripts that use argus are very helpful to automaterepetitive or boring tasks
•
You may wish to write scripts to output graphs, or to produce summaries, ordetermine flows with certain patterns (eg certain types of P2P traffic)
GUIs
•
It can be helpful to use a GUI for some sorts of interactive analysis•
one of the great benefits of Argus in our opinion is the ability to easily combine•
The tool ArgusEye allows an Argus 3 user to use a graphical interface to process and filter argus data•
The interface is superficially like wireshark, however it is distinctly less powerful, and earlier in development•
The version on the web has some criticalbugs - I have a version with some fixes (also to be sent upstream)
Argus Issues
•
Dataformat issues in argus 2.0.6 - designed for32-bit platforms only - don’t switch platform and expect data to be reliably readable, and don’t use argus 2.0.6 on AMD64
•
For a new deployment you almost certainly want to use argus 3 - the datafiles are much sanerArgus Issues (2)
•
With large amounts of data, such as OxCERT’s monitoring, processing the logs is slow•
If we discover a new host we need to investigate it could take 20-30 minutes to get all the flows extracted we needUse of a database
•
We find it helpful to put some of our argus data into a relational database•
Tables can get quite large so being selective as to what is most useful is important•
We are using a system with Postgres as an SQL backend, with some perl/PHP scripts•
Our model is to use one table per day•
Even with these restrictions expect large tables - We find 4-6GB to be typical (but only include certaindata), yours will undoubtedly be smaller
•
You may wish to consider removing UDP as it generates lots of noise•
We import data every 30 minutes (when we rotateargus data files), and index only when the day’s table is filled (indexed on ip and port)
•
Once indexed tables exist you can extract other data and do other analysis eg. packet counts, volumes per IP•
you may wish to store this data in your database for longer than the full flow data•
graphing, trend analysis etc. (we will post notes about this on the web)•
In fact, the Argus developers have been working on SQL support. Initial code was released in early March 2009•
Their code deals with some potential issues with ICMP flows (which we’ve never dealt with in our DB)•
Their code currently targets MySQLhowever in either case the benefits of using a database should be similar
Other potentially useful
Argus related tools/features
•
Flowscan - can produce graphs fromvarious types of network flow sources. Reportedly supports Argus
•
GeoIP/AS based matching - new in Argus 3.0.2Conclusions
•
Network flow analysis is useful for both security and other purposes•
Argus can help capture, collate and process flow data•
For large volumes of data you may find storing your data in a database improves performanceQuestions?
