4. Rear View. Function Switches 1. Fixed IP 2. DHCP Floating IP 3. Auto IRIS (DC Driver LENS) 4. Fixed LENS (AES)

(1)

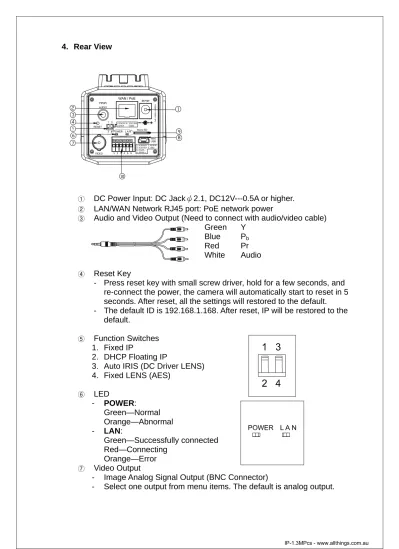

4. Rear View

Mini USB

5. RS485 - 1. ALM-RST　2. ALM-IN 3. ALM-OUT 4. GND 6. RS485 + 3.DC IRIS 1.STATIC IP 2.DHCP

5

1 2 3 4 5 6

① DC Power Input: DC Jackψ2.1, DC12V---0.5A or higher.

② LAN/WAN Network RJ45 port: PoE network power

③ Audio and Video Output (Need to connect with audio/video cable) Green Y

Blue Pb

Red Pr White Audio

④ Reset Key

- Press reset key with small screw driver, hold for a few seconds, and re-connect the power, the camera will automatically start to reset in 5 seconds. After reset, all the settings will restored to the default.

- The default ID is 192.168.1.168. After reset, IP will be restored to the default.

⑤ Function Switches 1. Fixed IP

2. DHCP Floating IP

3. Auto IRIS (DC Driver LENS) 4. Fixed LENS (AES)

⑥ LED

- POWER:

Green—Normal Orange—Abnormal

(2)

IP-1.3MPcs - www.allthings.com.au

⑧ USB Port: For the information of the network status

⑨ Micro SD Slot: For inserting Micro SD/HC to Timer Record, Network Disconnect and Alarm Record.

⑩ DI/DO port:

1. ALM-RST (Alarm Reset): The system will force the alarm input to cancel.

2. ALM-IN (Alarm Input): When ② activate, the alarm will be triggered.

(You may also set the input controlled by DAY/NIGHT program.) 3. ALM-OUT (Alarm Output): Triggered when the alarm outputted (TTL

Level)(You may also set the alarm to output while the DAY/NIGHT Mode is activated.)

4. GND (Ground)

5. RS-485○^- Output: Controlled by RS-485 signal sent by the network part.

6. RS-485○⁺ Input: Controlled by RS-485 signal sent by the network part.

(3)

1.6 Installation

1. Fast Install (Direct Install)

①. Set the function key 1 as fixed IP: 192.168.1.168. If LENS is fixed LENS, set 4, for AUTO IRIS, set 3.

②. Use the network cable (both Direct Ethernet cable and Network cable docking are working) to connect the camera, the network RJ45 port0, and the computer network port.

③. Plug in the power DC12V---C---+500mA↑, and the POWER LED will displayed as green, LAN as red, and the system will start once the power in transmitted. When both LED are green, the connection is completed.

④. Set the computer IP to the same network as IP CAM.

Ex: 192.168.1.100 255.255.255.0

⑤. Start IE browser, key in 192.168.1.168 to connect with IP CAM.

⑥. IP CAM Homepage screen will be displayed.

⑦. If it is the first time to install IP CAM, the computer will download ActiveX decode program via IP CAM, please press YES to download it.

NOTE:

If fail to download the decode program, the images will not be displayed on the screen. If the download is prohibited by the system, please lower the network secure level. Some antivirus applications may restrict the image stream, please shut them down temporarily.

⑧. The screen will display Homepage and request for account and password.

The default is, Account: admin, and Password: 9999.

⑨. Installation completed.

(4)

2. Install via HUB

3. Install via POE HUB

比例

直接線

直接線 direct cable

direct cable

(5)

4. Install via DHCP

①. Set the function key to DHCP.

②. Set the computer IP to automatically access IP address. IP will be assigned by DHCP Router.

③. Start the system as instructed in 1.Fast Install (Direct Install).

④. Once the installation completed, the IP CAM address will be displayed IP CAM item in Network Neighborhood. The address is assigned by DHCP Router.

NOTE:

Upon the system startup, DHCP Router will assign IP address to the device (the

computer or IP CAM). The addresses assigned are not necessarily the same upon every startup.

比例

(6)

2. USER INTERFACE

2.1 Login

1. Start the browser, and input http://192.168.1.168/ in the address field, and press Enter.

2. Enter User Name and Password in the prompt window, and click Connect.

NOTE:

The default User Name and Password is admin and 9999. You will need to enter the account and password every time you restart the application or reconnect.

(7)

2.2 Interface Overview

When successfully login to the system, the image will be displayed as the following:

Select the left side of the window to bring up the sub window and edit the settings.

Once the editing completed, click Submit to save and submit the settings.

(8)

1. Live

Main page. Display the image captured by the camera.

(9)

2. Image

 Stream

Adjust the settings of Stream.

 Picture

Adjust the settings of Picture.

(10)

 Engine

Adjust the settings of Engine: Shutter, Image Quality, and Wide Dynamic etc.

(11)

3. Network

 IP

 FTP

Adjust the settings of FTP: FTP Host, FTP Host Port, User Name, Password, and File Upload Path.

NOTE:

1. In the field of User Name and Password, please enter the ones used upon login.

2. File formats allowed by the system are: AVI and JPEG.

(12)

 SMTP

Adjust the settings of SMTP: Account Name, Password, Sender, SMTP Server, and Email Address.

NOTE:

1. If your SMTP Server needs the authentication, tick the entry: My Server Require Authentication.

2. File formats allowed by the system are: AVI and JPEG.

 SNTP

Adjust the settings of SNTP.

\

(13)

 RTSP

Adjust the settings of RTSP.

(14)

4. System

 D&T

Adjust the settings of Date and Time.

 OSD

Adjust the settings of On-Screen Display.

(15)

 USER

Adjust the settings of USER: User Name, Password, Authority, and User List.

 DI/O

Adjust the settings of DI/O: Input and Output Port.

(16)

 Audio

Adjust the settings of Audio.

 Update

Update the Firmware.

Click Browse Button, select the firmware, and click Update.

After the update has completed, click restart to complete the update procedure.

Browse

(17)

 Event

Adjust the settings of Event.

(18)

5. Application

 Video File

Adjust the settings of Video.

 FTP

Adjust the settings of FTP.

(19)

 SD

Details of SD Card inserted.

 SMTP

Adjust the settings of SMTP.

(20)

 Record

Adjust the settings of Record.

 Schedule

Adjust the settings of Schedule.

(21)

 Alarm

Adjust the settings of Alarm.

 Motion

Adjust the settings of Motion Detection.

(22)

6. SD Card

Adjust the settings of SD Card.

(23)

7. PTZ

 PTZ CMD

Adjust the settings of PTZ CMD.

 PTZ CFG

Adjust the settings of PTZ CFG.
