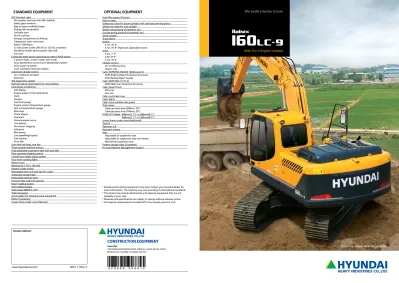

*Photo may include optional equipment.
We build a better future
With Tier 3 Engine installed
PLEASE CONTACT
www.hyundai-ce.com
2012. 11 Rev 3
ISO Standard cabin All-weather steel cab with 360Ovisibility Safety glass windows
Rise-up type windshield wiper Sliding side window(LH) Lockable door Hot & cool box
Storage compartment & Ashtray Transparent cabin roof-cover Radio / USB Player
12 volt power outlet (24V DC to 12V DC converter) Handsfree mobile phone system with USB Sun visor
Computer aided power optimization (New CAPO) system 3-power mode, 2-work mode, User mode
Auto deceleration & one-touch deceleration system Auto warm-up system
Auto overheat prevention system
Automatic climate control Air conditioner & heater
Defroster
Self-diagnostics system Starting Aid (air grid heater) for cold weather Centralized monitoring LCD display
Engine speed or Trip meter/Accel. Clock
Gauges Fuel level gauge
Engine coolant temperature gauge Hyd. oil temperature gauge Warnings
Check Engine Overload
Communication error Low battery Air cleaner clogging Indicators Max power
Low speed/High speed Fuel warmer Auto idle
Door and cab locks, one key Three outside rearview mirrors Fully adjustable suspension seat with seat belt Pilot-operated slidable joystick Console box height adjust system Four front working lights Electric horn Batteries (2 x 12V x 100 AH) Battery master switch Removable clean-out dust net for cooler Automatic swing brake Removable reservoir tank Fuel pre-filter with fuel warmer Boom holding system Arm holding system Track shoes (600mm, 24”) Track rail guard Accumulator for lowering work equipment Electric transducer Lower frame under cover (Normal)
STANDARD EQUIPMENT
Fuel filler pump (35 L/min) Beacon lamp Safety lock valve for boom cylinder with overload warning device Safety lock valve for arm cylinder Single-acting piping kit (breaker, etc.) Double-acting piping kit (clamshell, etc.) Quick coupler Travel alarm Booms 5.1m, 16’ 9”
5.1m, 16’ 9” (Hydraulic adjustable boom)
Arms 2.2m, 7’ 3”
2.6m, 8’ 6” 3.1m, 10’ 2”
Climate control Air conditional only
Heater only
Cabin FOPS/FOG (ISO/DIS 10262-Level II) FOPS (Falling Object Protective Structure)
FOG (Falling Object Guard)
Cabin ROPS (ISO 12117-2) ROPS (Roll-over Protective Structure)
Cabin Guard front Wire net
Fine net
Cabin roof-steel cover Cabin lights Cabin front window rain guard Track shoes Triple grousers shoe (500mm, 20”)
Triple grousers shoe (700mm, 28”)
R160LCD-9 Blade : 640mm(2’ 1”) x 2,490mm(8’ 2”) 640mm(2’ 1”) x 2,590mm(8’ 6”) Lower frame under cover(Additional) Tool kit Operator suit Rearview camera Seat Adjustable air suspension seat
Adjustable air suspension seat with heater Mechanical suspension seat
Pattern change valve (2 patterns) Hi-mate (Remote Management System)
optional EQUipMEnt
* Standard and optional equipment may vary. Contact your Hyundai dealer for more information. The machine may vary according to International standards. * The photos may include attachments and optional equipment that are not available in your area.
Hyundai Heavy Industries strives to build state-of-the art earthmoving equipment to give every
operator maximum performance, more precision, versatile machine preferences, and proven quality.
Take pride in your work with Hyundai!
Sealed track chain (urethane seals) / Standard track rail guard / Comfortable bolt-on steps
Large upper roller cut-outs for debris clean-out / Tapered side frames for debris clean-out / Grease-type track tensioner
Undercarriage
New patented hydraulic control for improved controllability / Improved control valve design for added efficiency and
smoother operation / New auto boom and swing priority system for optimum speed / New auto power boost feature for
additional power when needed / Improved arm-in and boom-down flow regeneration system for added speed and efficiency
Hydraulic System Improvements
Proven / reliable, fuel efficient Mitsubishi Tier III D04FD-TAA engine
Electronically controlled for optimum fuel to air ratio and clean, efficient combustion
Low noise / Auto engine overheat feature / Anti-restart feature
Engine Technology
Industry-leading, powerful, reliable Kawasaki designed, variable volume in-line axial piston pumps
New compact solenoid block equipped with 3 solenoid valves, 1 EPPR valve, 1 check valve accumulator and pilot
filter controls 2 speed travel, power boost, boom priority, safety lock
Pump Compartment
Improved Visibility
Enlarged cab with improved visibility / See-through upper skylight for visibility and ventilation
Larger right-side glass, now one piece, for better right visibility
Safety glass windows on all sides - less expensive than (polycarbonate) and won’t scratch or fade
Closeable sunshade for operator convenience / Reduced front window seam for improved operator view
Improved Cab Construction
New steel tube construction for added operator safety, protection and durability
New window open/close mechanism designed with cable and spring lift assist and single latch release
Improved Suspension Seat / Console Assembly
Ergonomic joysticks with auxiliary control buttons for attachment use. Now with new sleek styling
Heated suspension (standard) or optional air ride suspension with heat
New joystick consoles - now adjustable in height by way of dial at bottom
Adjustable arm rests - turn dial to raise or lower for optimum comfort
Advanced 7” Color Cluster
New Color LCD Display with easy to read digital gauges for hydraulic oil temperature, water temperature, and fuel.
Simplified design makes adjustment and diagnostics easier. Also, new enhanced features such as rear-view camera are
integrated into monitor.
3 power modes : (P) Power, (S) Standard, (E) Economy, 2 work modes : Dig & Attachment, (U) User mode for operator preference
Enhanced self-diagnostic features with GPS download capability
One pump flow or two pump flow for optional attachment is now selectable through the cluster / New anti-theft system
with password capability
Boom speed and arm regeneration are selectable through the monitor.
Auto power boost is now available - selectable (on/off) through the monitor.
Powerful air conditioning and heat with auto climate control, 20% more heat and air output than 7A series!
RMS (Remote Management System) works through GPS/satellite technology to ultimately provide better customer service
and support.
Enhanced Operator Cab
Machine Walk-Around
Pride at Work
Preference
Operating a 9 series is unique to every operator. Operators can fully customize their work
environment and operating preferences to fit their individual needs.
*Photo may include optional equipment.
The advanced new cluster with 7 inch wide color LCD screen and toggle switch
allows the operator to select his personal machine preferences. Power and work
mode selection, self diagnostics, optional rear-view camera, maintenance check
lists, start-up machine security, and video functions were integrated into the
cluster to make the machine more versatile and the operator more productive.
Operator - Friendly Cluster
Work is stressful enough. Your work environment should be stress free. Hyundai's 9 series provides
improved cab amenities, additional space and a comfortable seat to minimize stress to the
operator. A powerful climate control system provides the operator with optimum air temperature.
An advanced audio system with USB player, AM/FM stereo and, plus remotely located controls is
perfect for listening to music favorites.
Operators can even talk on the phone with the hands-free cell phone feature.
Reduced Stress
In 9 series cabin you can easily adjust the seat, console and
armrest settings to best suit your preferred comfort level. Seat
and console position and height can be set together and
independent from each other. Other preference settings that add to overall operator comfort
include the full automatic high capacity airconditioning system and the Radio / USB player.
Operator Comfort
Wide Cabin with Excellent Visibility
The engine horsepower and hydraulic horsepower together in unison through the advanced CAPO(Computer Aided
Power Optimization) system, flow for the job at hand. Operator can set their own preferences for boom or swing
priority, power mode selection and optional work tools at the touch of a button.
The CAPO system also provides complete self diagnostic features and digital gauges for important information like
hydraulic oil temperature, water temperatures and fuel level. This system interfaces with multiple sensors placed
throughout the hydraulic system as well as the electronically controlled engine to provide the optimum level of
engine power and hydraulic flow.
Computer Aided Power
Improved Hydraulic System
Precision
To achieve optimum precision, Hyundai redesigned the
hydraulic system to provide the operator with super fine
touch and improved controllability. Improved pump flow
control reduces flow when controls are not being used to
minimize fuel consumption.
Improved spool valves in the control valve are engineered
to provide more precise flow to each function with less
effort.
Improved hydraulic valves, precision-designed variable
volume piston pumps, fine-touch pilot controls, and
enhanced travel functions make any operator running a 9
series look like a smooth operator. Newly improved features include arm-in and boom-down flow regeneration,
improved control valve technology and innovative auto boom and swing priority for optimal performance in any
application.
Innovative hydraulic system technologies make the 9 series excavator fast,
smooth and easy to control.
P (Power Max) mode maximizes machine speed and power for mass production.
S (Standard) mode provides a reduced, fixed rpm for optimum performance and improved
fuel economy. For maximum fuel savings and improved control, E (Economy) mode
provides precise flow and engine power based on load demand. Three unique power
modes provide the operator with custom power, speed and fuel economy.
Power Mode
Some jobs require more precise machine settings. Using the versatile U (User) mode, the
operator can customize engine speed, pump output, idle speed and other machine
settings for the job at hand.
User Mode
The work mode allows the operator to select single flow attachments like a hydraulic
breaker or bi-directional flow attachments like a crusher. Flow settings unique to each
attachment can be programmed from within the cluster.
Work Mode
Auto Boom-swing Priority
This smart function automatically and continuously looks the ideal
hydraulic flow balance for the boom and swing motions of the
machine. The advanced CAPO system monitors the hydraulic system
and adjusts its settings to maximize performance and productivity.
9 series is designed for maximum performance to keep
the operator working productively.
Performance
Structure Strength
Easy to maintain engine components
The 9 series cabin structure has been fitted with stronger but
slimmer tubing for more safety and improved visibility.
Low-stress, high strength steel is integrally welded to form a
stronger, more durable upper and lower frame. Structural
integrity was tested by way of FEM (Finite Elements Method)
analysis and long-term durability tests.
The optional ROPS(Roll Over Protective Structure) cab can be
equipped to enhance operator safety.
The cooling and preheating system are provided for optimum
and immediate operation, guaranteeing longer life for the
engine and hydraulic components.
Servicing of the engine and hydraulics is considerably
simplified due to total accessibility.
Heavy-duty strength
Everyone who’s ever worked on construction equipment knows, there
is no substitute for power and durabilty. The D04FD-TAA handles the
toughest loads and the roughest work conditions.
At the same time, it delivers better fuel economy, has better cold
starting capability and is up to 50% quieter in operation. Plus, the
heavy-duty design of the D04FD-TAA engine block and components
add reliability and durability you can count on every day, year after
year.
Both fuel-efficiency and response are significantly enhanced with the
Mitsubishi high pressure common rail fuel system. The system delivers
high pressure injection, independent of engine speed, for optimum
performance and flexibility at every rpm.
Mitsubishi D04FD-TAA
The Tier III, four cylinder, 4 cycle, turbo-charged, charge air cooled,
Mitsubishi D04FD-TAA engine provides maximum power, reliability,
optimum fuel economy, and reduced emissions. Electronically
controlled fuel injection and diagnostic capabilities add to the engines
efficiency and serviceability.
Durable track rail
guards keep track
links in place. Track
adjustment is made easy with standard grease cylinder track adjusters and
shock absorbing springs.
Track Rail Guard & Adjusters
Profitability
9 series is designed to maximize profitability through improved efficiencies,
enhanced service features and longer life components.
*Photo may include optional equipment.
Easy Access
Ground-line access to filters, lube fittings, fuses, machine computer
components and wide open compartments makes service more
convenient on the 9 series.
Hi-mate
(Remote Management System)
Hi-mate, Hyundai's proprietary remote management system,
provides operators and dealer service personnel access to
vital service and diagnostic information on the machine from
any computer with internet access. Users can pinpoint
machine location using digital mapping and set machine
work boundaries, reducing the need for multiple service
calls. Hi-mate saves time and money for the owner and
dealer by promoting preventative maintenance and reducing
machine downtime.
Fuel Efficiency
9 series excavators are engineered to be extremely fuel efficient. New
innovations like fan clutch, the variable speed remote fan, two-stage
auto decel system and the new economy mode help to conserve fuel
and reduce the impact on the environment.
Long-Life Components
Capacity m3 (yd3) Boom Length Weight Length Weight mm (ft.in) kg (lb) mm (ft.in) kg (lb) 2,200 (7’ 3”) 750 (1,560) 107.9 [117.2] 11,000 [11,940] 24,250 [26,330] 123.6 [134.2] 12,600 [13,680] 27,780 [30,160] 87.2 [94.7] 8,890 [9,650] 19,600 [21,280] 91.0 [98.8] 9,280 [10,080] 20,460 [22,210] 107.9 [117.2] 11,000 [11,940] 24,250 [26,330] 123.6 [134.2] 12,600 [13,680] 27,780 [30,160] 77.3 [83.9] 7,880 [8,560] 17,370 [18,860] 80.3 [87.2] 8,190 [8,890] 18,060 [19,600] 107.9 [117.2] 11,000 [11,940] 24,250 [26,330] 123.6 [134.2] 12,600 [13,680] 27,780 [30,160] 69.0 [74.9] 7,030 [7,630] 15,500 [16,830] 71.4 [77.5] 7,280 [7,900] 16,050 [17,430] [ ]: Power Boost 2,600 (8’ 6”) 810 (1,790) 3,100 (10’ 2”) 890 (1,960) 5,100 (16’ 9”) 1,250 (2,760) Remarks Arm Bucket digging force SAE kN kgf lbf ISO kN kgf lbf SAE kN kgf lbf ISO kN kgf lbf Arm crowd force
Note: Boom weight includes arm cylinder, piping, and pin Arm weight includes bucket cylinder, linkage, and pin SAE heaped CECE heaped Without sidecutters With sidecutters Width mm (in) Weight kg (lb) Recommendation mm (ft.in)
5,100 (16’ 9”) Mono Boom 5,100 (16’ 9”) Hydraulic Adjustable Boom
2,200 (7’ 3”) Arm 2,600 (8’ 6”) Arm 3,100 (10’ 2”) Arm 2,200 (7’ 3”) Arm 2,,600 (8’ 6”) Arm
0.39(0.51) 0.50(0.65) 0.64(0.84) 0.70(0.92) 0.89(1.16) 0.69(0.90) 0.34(0.44) 0.44(0.58) 0.55(0.72) 0.60(0.78) 0.77(1.01) 0.62(0.81) 620(24.4) 760(29.9) 920(36.2) 990(39.0) 1,220(48.0) 990(39.0) 740(29.1) 880(34.6) 1,040(40.9) 1,110(43.7) 1,340(52.8) -410(900) 470(1,040) 510(1,120) 540(1,190) 610(1,340) 700(1,540) ▣ SAE heaped m3 (yd3) 0.39(0.51) 0.50(0.65) 0.64(0.84) 0.70(0.92) 0.89(1.16) ▣ 0.69(0.90) ● ● ● ● ■ ● ● ● ● ■ ▲ ■ ● ● ■ ▲ -▲ ● ● ● ■ ▲ ■ ● ● ■ ▲ -▲
Booms and arms are welded, a low-stress, full-box section design. 5.1m(16’ 9”) boom, 5.1m(16’ 9”) hydraulic adjustable boom and 2.20m(7’ 3”), 2.60m(8’ 6”), 3.10m(10’ 2”) arms are available.
▣ Heavy duty bucket ● : Applicable for materials with density of 2,000 kg /m3 (3,370 lb/ yd3) or less ■ : Applicable for materials with density of 1,600 kg /m3 (2,700 lb/ yd3) or less
▲: Applicable for materials with density of 1,100 kg /m3 (1,850 lb/ yd3) or less
attachment
All buckets are welded with high-strength steel.
Buckets
Digging force
Specifications
Model
Type Rated flywheel horse power Max. torque Bore X stroke Piston displacement Batteries Starting motor Alternator 47.7 kgf.m(345 lbf.ft)/ 1,800 rpm 102 x 130 mm (4.01” x 5.12”) 4,249cc (259.3 in3) 2 X 12V X 100AH 24V- 5.0kW 24V- 50Amp DIN SAE J1995 (gross) J1349 (net) 6271/1 (gross) 6271/1 (net)Water cooled, 4 cycle Diesel, 4-cylinders in line, direct injection, turbocharged charger and air cooled 126 HP (94 kW)/ 2,000 rpm 120 HP (90 kW)/ 2,000 rpm 128 PS (94 kW)/ 2,000 rpm 122 PS (90 kW)/ 2,000 rpm
Mitsubishi D04FD-TAA
EnginE
Main puMp
Type Rated flowSub-pump for pilot circuit
Cross-sensing and fuel saving pump system.
Variable displacement piston pumps 2 X 160L /min (44.4 US gpm / 37.0 UK gpm) Gear pump
Hydraulic system
Drives & Brakes
Hydraulic motors
TravelSwing
Two speed axial pistons motor with brake valve and parking brake Axial piston motor with automatic brake
Hydraulic cylinders
No. of cylinder bore X stroke Boom: 2-115 X 1,090 mm (4.5”X 42.9”) Arm: 1-120 X 1,355 mm (4.7” X 53.3”) Bucket: 1-110 X 995 mm (4.3” X 39.2”) Blade: 2-110 X 320 mm (4.3” X 12.6”) 2PCS 1st: 2-115 X 960 mm (4.5” X 37.8”) 2nd: 1-160 X 650 mm (6.3” X 25.6”)Relief valve setting
Implement circuits Travel
Power boost (boom, arm, bucket) Swing circuit Pilot circuit Service valve 350 kgf/cm2 (4,980 psi) 350 kgf/cm2 (4,980 psi) 380 kgf/cm2 (5,410 psi) 285 kgf/cm2 (4,050 psi) 40 kgf/cm2 (570 psi) Installed
Major coMponent weight
Upperstructure5.1m (16’ 9”)mono boom(with arm cylinder) Hydraulic adjustable boom(with arm cylinder)
4,980 kg (10,980 lb) 1,250 kg (2,760 lb) 1,780 kg (3,920 lb)
Operating weight
Shoes Type Triple grouser Operating weight kg(lb) 17,550 (38,690) 18,550 (40,900) 17,800 (39,240) 18,800 (41,450) 18,050 (39,790) 19,050 (42,000) Width mm(in) 500 (20”) 600 (24”) 700 (28”) R160LC-9 R160LCD-9 R160LC-9 R160LCD-9 R160LC-9 R160LCD-9 Ground pressure kgf/cm2(psi) 0.51 (7.25) 0.54 (7.68) 0.43 (6.11) 0.46 (6.54) 0.38 (5.40) 0.40 (5.69) Drive method Drive motor Reduction system Max. drawbar pullMax. travel speed(high) / (low) Gradeability
Parking brake
Fully hydrostatic type
Axial piston motor, in-shoe design Planetary reduction gear 17,000 kgf (37,500 lbf)
5.5 km/hr (3.4 mph) / 3.2 km/hr (2.0 mph) 300 (58 %)
Multi wet disc
Swing SyStem
Swing motorSwing reduction Swing bearing lubrication Swing brake
Swing speed
Two fixed displacement axial pistons motor Planetary gear reduction
Grease-bathed Multi wet disc 11.3 rpm
Coolant & lubriCant CapaCity
RefillingFuel tank Engine coolant Engine oil
Swing device-gear oil Final drive(each)-gear oil Hydraulic system(including tank) Hydraulic tank liter 270 15.5 17.5 5.0 5.8 240 160 US gal 71.3 4.1 4.6 1.3 1.5 63.4 42.3 UK gal 59.4 3.4 3.8 1.1 1.3 52.8 35.2
Control
Pilot pressure operated joysticks and pedals with detachable lever provide almost effortless and fatigueless operation.
Pilot control Traveling and steering Engine throttle Lights
Two joysticks with one safety lever (LH): Swing and arm, (RH): Boom and bucket(ISO) Two levers with pedals
Electric, Dial type
Two lights mounted on the boom Two on the upper frame
Undercarriage
The X-leg type center frame is integrally welded with reinforced box-section track frames. The undercarriage includes lubricated rollers, idlers, track adjusters with shock absorbing springs and sprockets, and a track chain with double or triple grouser shoes.
Center frame Track frame
No. of shoes on each side No. of carrier roller on each side No. of track roller on each side No. of rail guard on each side
X - leg type Pentagonal box type
49 2 7 1
Operating weight (apprOximate)
Operating weight, including 5,100mm (16’ 9”) boom, 2,600mm (8’ 6”) arm, SAE heaped 0.70m3 (0.92 yd3) bucket, lubricant, coolant, full fuel tank, full hydraulic tank,
Dimensions & Working Range
Dimensions & Working Range
Boom length Arm length Max. digging reach Max. digging reach on ground Max. digging depth Max. digging depth (8' level) Max. vertical wall digging depth Max. digging height Max. dumping heightMin. swing radius
Boom length Arm length Max. digging reach Max. digging reach on ground Max. digging depth Max. digging depth (8' level) Max. vertical wall digging depth Max. digging height Max. dumping height
Min. swing radius A A’ B B’ C D E F A A’ B B’ C D E F 2,200 (7’ 3”) 2,200 (7’ 3”) 8,690 (28’ 6”) 8,760 (28’ 9”) 8,530 (27’ 12”) 8,590 (28’ 2”) 5,660 (18’ 7”) 5,430 (17’ 10”) 5,430 (17’ 10”) 5,330 (17’ 6”) 5,120 (16’ 10”) 4,630 (15’ 2”) 8,750 (28’ 8”) 9,420 (30’ 11”) 6,110 (20’ 1”) 6,710 (22’ 0”) 3,180 (10’ 5”) 3,100 (10’ 2”) 2,600 (8’ 6”) 2,600 (8’ 6”) 9,020 (29’ 7”) 9,110 (29’ 11”) 8,860 (29’ 1”) 8,950 (29’ 4”) 6,060 (19’ 11”) 5,830 (19’ 2”) 5,850 (19’ 2”) 5,730 (18’ 10”) 5,380 (17’ 8”) 4,980 (16’ 4”) 8,840 (29’ 0”) 9,610 (31’ 6”) 6,220 (20’ 5”) 6,910 (22’ 8”) 3,170 (10’ 5”) 2,970 (9’ 9”) 5,100 (16’ 9”) 5,100 (16’ 9”) 3,100 (10’ 2”) 9,450 (31’ 0”) 9,300 (30’ 6”) 6,560 (21’ 6”) 6,370 (20’ 11”) 5,710 (18’ 9”) 8,980 (29’ 6”) 6,390 (21’ 0”) 3,170 (10’ 5”) Tumbler distance
Overall length of crawler Ground clearance of counterweight Tail swing radius
Rear-end length
Overall width of upperstructure Overall height of cab Min. ground clearance Track gauge
Tumbler distance Overall length of crawler Ground clearance of counterweight Tail swing radius
Rear-end length
Overall width of upperstructure Overall height of cab Min. ground clearance Track gauge A B C D D’ E F G H A B C D D’ E F G H 3,170 (10 ’5”) 3,960 (13’ 0”) 1,055 (3’ 6”) 2,530 (8’ 4”) 2,480 (8’ 2”) 2,475 (8’ 1”) 2,980 (9’ 9”) 460 (1’ 6”) 1,990 (6’ 6”) 3,170 (10’ 5”) 3,960 (13’ 0”) 1,055 (3’ 6”) 2,530 (8’ 4”) 2,480 (8’ 2”) 2,475 (8’ 1”) 2,980 (9’ 9”) 460 (1’ 6”) 1,990 (6’ 6”)
mm (ft.in) mm (ft.in) mm (ft.in) mm (ft.in)
mm (ft.in) mm (ft.in) Boom length Arm length Overall length Overall height of boom Boom length Arm length Overall length Overall height of boom I J I J 2,200 (7’ 3”) 2,200 (7’ 3”) 8,660 (28’ 5”) 8,610 (28’ 3”) 500 (20”) 500 (20”) 3,010 (9’ 11”) 3,040 (9’ 12”) 2,490 (8’ 2”) 2,490 (8’ 2”) 2,600 (8’ 6”) 2,600 (8’ 6”) 8,650 (28’ 5”) 8,610 (28’ 3”) 600 (24”) 600 (24”) 2,990 (9’ 10”) 3,060 (10’ 0”) 2,590 (8’ 6”) 2,590 (8’ 6”) 3,100 (10’ 2”) 8,650 (28’ 5”) 700 (28”) 700 (28”) 3,150 (10’ 4”) 2,690 (8’ 10”) 2,690 (8’ 10”) 5,100(16’ 9”) 5,100(16’ 9”)
Track shoe width Overall width
Track shoe width Overall width
R160LC-9 Dimensions
R160LC-9 2-pieCe boom Dimensions
R160LC-9 WoRking Range
R160LC-9 2-pieCe boom WoRking Range
Dimensions & Working Range
Dimensions & Working Range
Boom length Arm length Max. digging reach Max. digging reach on ground Max. digging depth Max. digging depth (8' level) Max. vertical wall digging depth Max. digging height Max. dumping heightMin. swing radius
Boom length Arm length Max. digging reach Max. digging reach on ground Max. digging depth Max. digging depth (8' level) Max. vertical wall digging depth Max. digging height Max. dumping height
Min. swing radius A A’ B B’ C D E F A A’ B B’ C D E F 2,200 (7’ 3”) 2,200 (7’ 3”) 8,690 (28’ 6”) 8,760 (28’ 9”) 8,530 (27’ 12”) 8,590 (28’ 2”) 5,660 (18’ 7”) 5,430 (17’ 10”) 5,430 (17’ 10”) 5,330 (17’ 6”) 5,120 (16’ 10”) 4,630 (15’ 2”) 8,750 (28’ 8”) 9,420 (30’ 11”) 6,110 (20’ 1”) 6,710 (22’ 0”) 3,180 (10’ 5”) 3,100 (10’ 2”) 2,600 (8’ 6”) 2,600 (8’ 6”) 9,020 (29’ 7”) 9,110 (29’ 11”) 8,860 (29’ 1”) 8,950 (29’ 4”) 6,060 (19’ 11”) 5,830 (19’ 2”) 5,850 (19’ 2”) 5,730 (18’ 10”) 5,380 (17’ 8”) 4,980 (16’ 4”) 8,840 (29’ 0”) 9,610 (31’ 6”) 6,220 (20’ 5”) 6,910 (22’ 8”) 3,170 (10’ 5”) 2,970 (9’ 9”) 5,100 (16’ 9”) 5,100 (16’ 9”) 3,100 (10’ 2”) 9,450 (31’ 0”) 9,300 (30’ 6”) 6,560 (21’ 6”) 6,370 (20’ 11”) 5,710 (18’ 9”) 8,980 (29’ 6”) 6,390 (21’ 0”) 3,170 (10’ 5”)
mm (ft.in) mm (ft.in) mm (ft.in)
mm (ft.in) mm (ft.in)
Tumbler distance Overall length of crawler Ground clearance of counterweight Tail swing radius
Rear-end length
Overall width of upperstructure Overall height of cab Min. ground clearance Track gauge
Ground clearance of blade up Depth of blade down Height of blade A B C D D’ E F G H M N O 3,170 (10’ 5”) 3,960 (13’ 0”) 1,055 (3’ 6”) 2,530 (8’ 4”) 2,480 (8’ 2”) 2,475 (8’ 1”) 2,980 (9’ 9”) 460 (1’ 6”) 1,990 (6’ 6”) 615 (2’ 0”) 675 (2’ 3”) 640 (2’ 1”) Tumbler distance Overall length of crawler Ground clearance of counterweight Tail swing radius
Rear-end length
Overall width of upperstructure Overall height of cab Min. ground clearance Track gauge
Ground clearance of blade up Depth of blade down Height of blade A B C D D’ E F G H M N O 3,170 (10’ 5”) 3,960 (13’ 0”) 1,055 (3’ 6”) 2,530 (8’ 4”) 2,480 (8’ 2”) 2,475 (8’ 1”) 2,980 (9’ 9”) 460 (1’ 6”) 1,990 (6’ 6”) 615 (2’ 0”) 675 (2’ 3”) 640 (2’ 1”) Boom length Arm length Overall length Overall height of boom Boom length Arm length Overall length Overall height of boom I J I J 2,200 (7’ 3”) 2,200 (7’ 3”) 9,110 (29’ 11”) 9,080 (29’ 9”) 500 (20”) 500 (20”) 3,010 (9’ 11”) 3,040 (9’ 12”) 2,490 (8’ 2”) 2,490 (8’ 2”) 2,600 (8’ 6”) 2,600 (8’ 6”) 9,100 (29’ 10”) 9,080 (29’ 9”) 600 (24”) 600 (24”) 2,990 (9’ 10”) 3,060 (10’ 0”) 2,590 (8’ 6”) 2,590 (8’ 6”) 3,100 (10’ 2”) 9,100 (29’ 10”) 700 (28”) 700 (28”) 3,150 (10’ 4”) 2,690 (8’ 10”) 2,690 (8’ 10”) 5,100(16’ 9”) 5,100(16’ 9”)
Track shoe width Overall width
Track shoe width Overall width
R160LCd-9 dimensions
R160LCd-9 2-pieCe boom dimensions
R160LCd-9 WoRking Range
R160LCd-9 2-pieCe boom WoRking Range
Lifting Capacity
Lifting Capacity
R160LC-9
Rating over-front Rating over-side or 360 degreeR160LC-9 2-pieCe boom
Rating over-front Rating over-side or 360 degreeBoom : 5.10 m (16’ 9”) / Arm : 2.20 m (7’ 3”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) Capacity Reach m (ft) At max. reach 7.5 m (25.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) *7010 *15450 *11210 *24710 *7010 *15450 *11210 *24710 *9120 *20110 *7100 *15650 *11130 *24540 *9650 *21270 *6300 *13890 8860 19530 *7100 *15650 7780 17150 7930 17480 *6300 *13890 *4590 *10120 *5810 *12810 *7050 *15540 7170 15810 7100 15650 *6690 *14750 *4590 *10120 4720 10410 4360 9610 4150 9150 4090 9020 4150 9150 *4130 *9110 *4620 *10190 4680 10320 4550 10030 4500 9920 3120 6880 2990 6590 2830 6240 2710 5970 2670 5890 *3770 *8310 *3690 *8140 3240 7140 2930 6460 2850 6280 2980 6570 3390 7470 *3780 *8330 3660 8070 2460 5420 1980 4370 1770 3900 1700 3750 1770 3900 2030 4480 2700 5950 5.60 (18.4) 6.98 (22.9) 7.76 (25.5) 8.15 (26.7) 8.20 (26.9) 7.94 (26.0) 7.31 (24.0) 6.19 (20.3) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 2.60 m (8’ 6”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) Capacity Reach m (ft) At max. reach 7.5 m (25.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) *6690 *14750 *9970 *21980 *6690 *14750 *9970 *21980 *7930 *17480 *8090 *17840 *7880 *17370 *10670 *23520 *10310 *22730 *7500 *16530 *7930 *17480 8060 17770 7700 16980 7660 16890 7780 17150 *7500 *16530 *5330 *11750 *6680 *14730 7150 15760 7030 15500 *6990 *15410 *4980 *10980 4770 10520 4380 9660 4130 9110 4020 8860 4050 8930 4230 9330 *3040 *6700 *3790 *8360 *4320 *9520 4670 10300 4520 9960 4440 9790 4470 9850 *3040 *6700 3150 6940 2990 6590 2820 6220 2680 5910 2610 5750 2640 5820 *2830 *6240 3250 7170 3190 7030 2020 4450 1940 4280 1880 4140 *3410 *7520 *3380 *7450 3000 6610 2730 6020 2650 5840 2750 6060 3090 6810 *3770 *8310 3190 7030 2240 4940 1820 4010 1630 3590 1560 3440 1620 3570 1830 4030 2350 5180 6.11 (20.0) 7.37 (24.2) 8.11 (26.6) 8.48 (27.8) 8.53 (28.0) 8.28 (27.2) 7.69 (25.2) 6.64 (21.8) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 2.60 m (8’ 6”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Boom : 5.10 m (16’ 9”) / Arm : 2.20 m (7’ 3”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load point height m (ft) Load radius Load radius 1.5 m (5.0 ft) 1.5 m (5.0 ft) 3.0 m (10.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) 7.5 m (25.0 ft) Capacity Capacity Reach Reach m (ft) m (ft) At max. reach At max. reach 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) *6030 *13290 *9490 *20920 *6200 *13670 *6030 *13290 *9490 *20920 *6200 *13670 *6980 *15390 *7040 *15520 *9960 *21960 *9860 *21740 *6840 *15080 *6200 *13670 *10330 *22770 *9150 *20170 *6980 *15390 *7040 *15520 7580 16710 7730 17040 *6840 *15080 *6200 *13670 7710 17000 7900 17420 *6660 *14680 7160 15790 7040 15520 *6740 *14860 *4560 *10050 *5860 *12920 *7010 *15450 7180 15830 7110 15670 *6410 *14130 4350 9590 4080 8990 3970 8750 4010 8840 4220 9300 4710 10380 4330 9550 4100 9040 4040 8910 4120 9080 *4350 *9590 4690 10340 4530 9990 4450 9810 4490 9900 *4170 *9190 *4630 *10210 4700 10360 4560 10050 4510 9940 2980 6570 2790 6150 2650 5840 2580 5690 2610 5750 3120 6880 2970 6550 2800 6170 2680 5910 2640 5820 *3250 *7170 3260 7190 3190 7030 3270 7210 2000 4410 1920 4230 1850 4080 1930 4250 *3450 *7610 2950 6500 2680 5910 2610 5750 2710 5970 3050 6720 *3350 *7390 2160 4760 1760 3880 1570 3460 1510 3330 1570 3460 1780 3920 2290 5050 *3750 *8270 3190 7030 2890 6370 2820 6220 2950 6500 3360 7410 *3300 *7280 7.48 (24.5) 8.20 (26.9) 8.57 (28.1) 8.62 (28.3) 8.37 (27.5) 7.78 (25.5) 6.76 (22.2) 2390 5270 1920 4230 1710 3770 1650 3640 1730 3810 1990 4390 2650 5840 7.06 (23.2) 7.83 (25.7) 8.21 (26.9) 8.27 (27.1) 8.01 (26.3) 7.39 (24.2) 6.28 (20.6) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 3.10 m (11’ 1”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) Capacity Reach m (ft) At max. reach 7.5 m (25.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
1. Lifting capacity is based on SAE J1097, ISO 10567.
2. Lifting capacity of the Robex Series does not exceed 75% of the tipping load with the machine on firm, level ground or 87% of full hydraulic capacity. 3. The load point is a hook located on the back of the bucket.
4. (*) indicates the load limited by hydraulic capacity.
1. Lifting capacity is based on SAE J1097, ISO 10567.
2. Lifting capacity of the Robex Series does not exceed 75% of the tipping load with the machine on firm, level ground or 87% of full hydraulic capacity. 3. The load point is a hook located on the back of the bucket.
4. (*) indicates the load limited by hydraulic capacity.
Lifting Capacity
Lifting Capacity
R160LCd-9
Rating over-front Rating over-side or 360 degreeR160LCd-9 2-pieCe boom
Rating over-front Rating over-side or 360 degreeBoom : 5.10 m (16’ 9”) / Arm : 2.20 m (7’ 3”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) Capacity Reach m (ft) At max. reach 7.5 m (25.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 2.60 m (8’ 6”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) Capacity Reach m (ft) At max. reach 7.5 m (25.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) *6690 *14750 *9970 *21980 *6690 *14750 *9970 *21980 *7930 *17480 *8090 *17840 *7880 *17370 *10670 *23520 *10310 *22730 *7500 *16530 *7930 *17480 *8090 *17840 *7880 *17370 8080 17810 8200 18080 *7500 *16530 *5330 *11750 *6680 *14730 *7520 *16580 *7650 *16870 *6990 *15410 *4980 *10980 5000 11020 4620 10190 4360 9610 4260 9390 4280 9440 4460 9830 *3040 *6700 *3790 *8360 *4320 *9520 *4950 *10910 5010 11050 4930 10870 *4900 *10800 *3040 *6700 3310 7300 3160 6970 2980 6570 2840 6260 2780 6130 2800 6170 *2830 *6240 3620 7980 *3490 *7690 2140 4720 2070 4560 2010 4430 *3410 *7520 *3380 *7450 3340 7360 3040 6700 2960 6530 3080 6790 3450 7610 *3770 *8310 3350 7390 2370 5220 1940 4280 1730 3810 1670 3680 1730 3810 1950 4300 2500 5510 6.11 (20.0) 7.37 (24.2) 8.11 (26.6) 8.48 (27.8) 8.53 (28.0) 8.28 (27.2) 7.69 (25.2) 6.64 (21.8) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 2.60 m (8’ 6”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) Capacity Reach m (ft) At max. reach 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) *6030 *13290 *9490 *20920 *6030 *13290 *9490 *20920 *6980 *15390 *7040 *15520 *9960 *21960 *9860 *21740 *6840 *15080 *6980 *15390 *7040 *15520 8010 17660 8150 17970 *6840 *15080 *6660 *14680 *7420 *16360 *7480 *16490 *6740 *14860 *4560 *10050 4590 10120 4310 9500 4210 9280 4250 9370 4460 9830 *4350 *9590 *4920 *10850 5020 11070 4940 10890 *4700 *10360 3150 6940 2960 6530 2810 6190 2740 6040 2780 6130 *3250 *7170 3630 8000 3560 7850 2120 4670 2040 4500 1980 4370 *3450 *7610 3280 7230 2990 6590 2920 6440 3030 6680 3400 7500 *3350 *7390 2280 5030 1870 4120 1680 3700 1620 3570 1680 3700 1900 4190 2430 5360 7.48 (24.5) 8.20 (26.9) 8.57 (28.1) 8.62 (28.3) 8.37 (27.5) 7.78 (25.5) 6.76 (22.2) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 2.20 m (7’ 3”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) Capacity Reach m (ft) At max. reach 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) *6200 *13670 *6200 *13670 *6200 *13670 *10330 *22770 *9150 *20170 *6200 *13670 8130 17920 8320 18340 *5860 *12920 *7010 *15450 *7590 *16730 *7430 *16380 *6410 *14130 4950 10910 4560 10050 4340 9570 4280 9440 4350 9590 *4170 *9190 *4630 *10210 *5140 *11330 5050 11130 5000 11020 3280 7230 3130 6900 2970 6550 2840 6260 2800 6170 *3450 *7610 2060 4540 *3750 *8270 3540 7800 3220 7100 3140 6920 3290 7250 *3710 *8180 *3300 *7280 2520 5560 2040 4500 1830 4030 1760 3880 1840 4060 2120 4670 2800 6170 7.06 (23.2) 7.83 (25.7) 8.21 (26.9) 8.27 (27.1) 8.01 (26.3) 7.39 (24.2) 6.28 (20.6) kg lb kg lb kg lb kg lb kg lb kg lb kg lb
Boom : 5.10 m (16’ 9”) / Arm : 3.10 m (11’ 1”) / Bucket : 0.70 m3 (0.92 yd3) SAE heaped / Shoe : 600mm(24”) triple grouser
Load point height m (ft) Load radius 1.5 m (5.0 ft) 3.0 m (10.0 ft) 4.5 m (15.0 ft) 6.0 m (20.0 ft) 7.5 m (25.0 ft) Capacity Reach m (ft) At max. reach 7.5 m (25.0 ft) 6.0 m (20.0 ft) 4.5 m (15.0 ft) 3.0m (10.0 ft) 1.5 m (5.0 ft) Ground Line -1.5 m (-5.0 ft) -3.0 m (-10.0 ft) -4.5 m (-15.0 ft) *6290 *13870 *8930 *19690 *12410 *27360 *6290 *13870 *8930 *19690 *12410 *27360 *10240 *22580 *8650 *19070 *10300 *22710 *10930 *24100 *8670 *19110 8720 19220 8130 17920 7990 17610 8050 17750 8270 18230 *4730 *10430 *6180 *13620 *7240 *15960 *7610 *16780 *7230 *15940 *5820 *12830 *4730 *10430 4670 10300 4360 9610 4210 9280 4190 9240 4310 9500 *2890 *6370 *3370 *7430 *3950 *8710 *4640 *10230 4990 11000 4880 10760 4870 10740 *2890 *6370 3340 7360 3180 7010 2980 6570 2820 6220 2730 6020 2710 5970 *2150 *4740 *3110 *6860 3610 7960 3520 7760 *3250 *7170 *2150 *4740 2140 4720 2050 4520 1970 4340 1930 4250 *3030 *6680 *3050 *6720 3040 6700 2790 6150 2710 5970 2800 6170 3090 6810 *3660 *8070 *3390 *7470 2850 6280 2090 4610 1740 3840 1560 3440 1500 3310 1540 3400 1720 3790 2130 4700 3290 7250 6.73 (22.1) 7.88 (25.9) 8.57 (28.1) 8.91 (29.2) 8.96 (29.4) 8.73 (28.6) 8.17 (26.8) 7.21 (23.7) 5.59 (18.3) kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb kg lb
1. Lifting capacity is based on SAE J1097, ISO 10567.
2. Lifting capacity of the Robex Series does not exceed 75% of the tipping load with the machine on firm, level ground or 87% of full hydraulic capacity. 3. The load point is a hook located on the back of the bucket.
4. (*) indicates the load limited by hydraulic capacity.
1. Lifting capacity is based on SAE J1097, ISO 10567.
2. Lifting capacity of the Robex Series does not exceed 75% of the tipping load with the machine on firm, level ground or 87% of full hydraulic capacity. 3. The load point is a hook located on the back of the bucket.
4. (*) indicates the load limited by hydraulic capacity.
