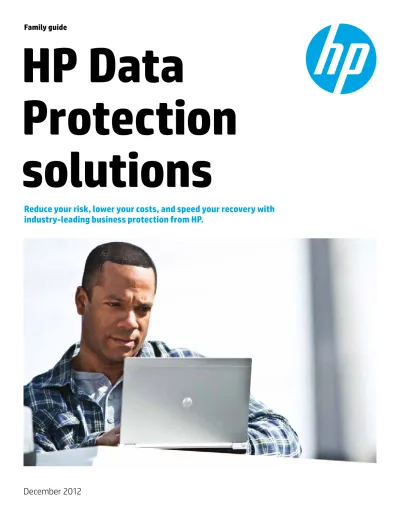

HP Data
Protection
solutions
Table of contents
3 Data protection equals business protection
4 HP StoreOnce Backup systems
5 HP StoreOnce Backup systems (contd.)
6 HP StoreOnce Backup systems
7 HP RDX Removable Disk Backup System
8 HP RDX Removable Disk Backup System (contd.)
9 HP StoreEver LTO Ultrium Tape Drives
10 HP StoreEver LTO Ultrium Tape Drives (contd.)
11 HP StoreEver DAT Tape Drives
12 HP StoreEver LTO Ultrium Tape Blades
13 Rackmount Kit for HP Tape Drives
14 HP Tape Autoloaders
15 HP Business Class Tape Libraries
16 HP Enterprise Class Tape Libraries
17 HP Storage Media
18 HP Backup and Recovery software
• HP Data Protector software
19 HP Enterprise Backup Solutions
• Key features and benefits
19 Leverage integrated service solutions for better business outcomes
20 HP Factory Express
20 Customer technical training
20 HP Financial Services
You already know about exponential data growth—digital information is doubling every
18 months or faster in some cases. Information assets are invaluable to your company, and
data loss can impact your revenue, customers, and reputation. In fact, businesses can even fail
because of data loss or prolonged downtime.
A proactive approach to business protection requires an understanding of your application
availability requirements, recovery objectives, and broader IT infrastructure. As a longtime
leader in data protection solutions, and with innovations such as dynamic deduplication,
HP TapeAssure and HP StoreOpen with LTFS, HP understands your immediate requirements
and strategic business direction. With an integrated approach to comprehensive business
protection, we can help you protect the integrity of your data and regain access whenever,
wherever, and however you need it.
When looking for data protection solutions, customers tell us that scalability and flexibility are
their key storage requirements. HP provides a range of interoperable solutions—from portable
single server tape and disk backup to fully automated multi-tier protection for the enterprise
data center. Looking across the technology landscape, there are a variety of ways to meet your
recovery point objectives (RPO) and recovery time objectives (RTOs). HP covers the full business
continuum, including:
• Traditional backup for protection against viruses, data corruption, and user error
• Long term data retention for archiving and compliance
• Backup automation to improve efficiency and lower costs
• Multi-tier backup with disk and tape to increase performance and speed recovery
• Deduplication solutions to help reduce the impact of data growth and keep data available
longer for quick recovery
HP StoreOnce Backup systems
HP StoreOnce Backup 2620
Backup system provides consolidated, disk-based data protection in an intelligent, self-managing 1U rack-mountable solution HP StoreOnce Backup 4200 Backup system provides scalable, consolidated, disk-based data protection for small and medium size data centers in an intelligent, self-managing 2U rack-mountable solution HP StoreOnce Backup 4400 Backup system provides scalable, consolidated, disk-based data protection for small and medium size data centers in an intelligent, self-managing 4U rack-mountable solution, plus 2U upgrade kits for scalability HP StoreOnce B6200 Backup Second-generation data deduplication, scale-out architecture, high performance, and high availability
Models HP StoreOnce 2620i HP StoreOnce 4210i HP StoreOnce 4210fc HP StoreOnce 4220
HP StoreOnce 4420 HP StoreOnce 4430
HP StoreOnce B6200
Form factor 1U 2U scalable 4U scalable Up to 42U
Total raw capacity 4 TB 6 TB (HP StoreOnce 4210) 12 TB (HP StoreOnce 4220)
12 TB (HP StoreOnce 4420) 24 TB (HP StoreOnce 4430)
48 to 768 TB
Total usable capacity 2.5 TB 4.5 TB (HP StoreOnce 4210) 9 TB (HP StoreOnce 4220) 9 TB (HP StoreOnce 4420) 18 TB (HP StoreOnce 4430) 32 to 512 TB Transfer rate VTL (maximum) Up to 670 GB/hr, Up to 800 GB/hr (HP StoreOnce 4210i) Up to 2.9 TB/hr (HP StoreOnce 4210fc) Up to 3.3 TB/hr (HP StoreOnce 4220) Up to 4.8 TB/hr (HP StoreOnce 4420) Up to 4.7 TB/hr (HP StoreOnce 4430) Up to 40 TB/hr
Transfer rate StoreOnce Catalyst (maximum) Up to 1.1 TB/hr Up to 2.2 GB/hr (HP StoreOnce 4210i) Up to 2.2 TB/hr (HP StoreOnce 4210fc) Up to 2.2 TB/hr (HP StoreOnce 4220) Up to 10.8 TB/hr (HP StoreOnce 4420) Up to 12.5 TB/hr (HP StoreOnce 4430) Up to 100 TB/hr
HP StoreOnce Backup 2620
Backup system provides consolidated, disk-based data protection in an intelligent, self-managing 1U rack-mountable solution HP StoreOnce Backup 4200 Backup system provides scalable, consolidated, disk-based data protection for small and medium size data centers in an intelligent, self-managing 2U rack-mountable solution HP StoreOnce Backup 4400 Backup system provides scalable, consolidated, disk-based data protection for small and medium size data centers in an intelligent, self-managing 4U rack-mountable solution, plus 2U upgrade kits for scalability HP StoreOnce B6200 Backup Second-generation data deduplication, scale-out architecture, high performance, and high availability Drive type 1 TB 3G 7.2K LFF MDL SATA 4 included 1 TB 3G 7.2K LFF MDL SATA 12 included 1 TB 3G 7.2K LFF MDL SATA 12 included (HP StoreOnce 4420) 2 TB 3G 7.2K LFF dual-port MDL SAS included (HP StoreOnce 4430) 2 TB 3G 7.2K LFF dual-port MDL SAS
Number of drives (in base unit)
4 12 12 24
RAID support Hardware RAID 5 Hardware RAID 6 Hardware RAID 6 Hardware RAID 6
Data deduplication HP StoreOnce deduplication HP StoreOnce deduplication HP StoreOnce deduplication HP StoreOnce deduplication
Data replication Replication license for each target that uses VTL or NAS replication Replication license for each target that uses VTL or NAS replication Replication license for each target that uses VTL or NAS replication Replication license for each target that uses VTL or NAS replication
Storage expansion options None StoreOnce 4200 capacity upgrade kit HP StoreOnce 4210 Upgrade Kit HP StoreOnce 4220/4420 Backup Upgrade Kit HP B6200 24 TB capacity upgrade kit; HP B6200 48 TB capacity upgrade kit HP StoreOnce B6200 24/48 TB Upgrade Kits
HP StoreOnce Backup systems
HP StoreOnce 2620 Backup
system provides consolidated, disk-based data protection in an intelligent, self-managing 1U rack-mountable solution
HP StoreOnce 4200 Backup
system provides scalable, consolidated, disk-based data protection for small and medium size data centers in an intelligent, self-managing 2U rack-mountable solution HP StoreOnce 4300 Backup system provides scalable, consolidated, disk-based data protection for small and medium size data centers in an intelligent, self-managing 4U rack-mountable solution, plus 2U upgrade kits for scalability HP StoreOnce B6200 Backup Second-generation data deduplication, scale-out architecture, high performance, and high availability
Number of virtual tape libraries and NAS targets
8 (StoreOnce 2620) 16 (StoreOnce 4210) 24 (StoreOnce 4220)
50 (StoreOnce 4420) 50 (StoreOnce 4430)
384
Number of virtual tape cartridges emulated 384 (StoreOnce 2620) 1,536 (StoreOnce 4210) 3,456 (StoreOnce 4220) 51,200 (StoreOnce 4420) 51,200 (StoreOnce 4430) 1,572,864
Targets for backup applications StoreOnce Catalyst Virtual Tape Libraries NAS (CIFS/NFS) OST StoreOnce Catalyst Virtual Tape Libraries NAS (CIFS/NFS) OST StoreOnce Catalyst Virtual Tape Libraries NAS (CIFS/NFS) OST StoreOnce Catalyst Virtual Tape Libraries NAS (CIFS/NFS) OST Warranty 1-year parts, 0-year labor, 0-year onsite 1-year parts exchange, labor, onsite, next business day response
1-year parts exchange, labor, onsite, next business day response
1-year parts exchange, labor, onsite, next business day response
Maximum number of source appliances 8 (StoreOnce 2620) 24 (StoreOnce 4210) 24 (StoreOnce 4220) 50 (StoreOnce 4420) 50 (StoreOnce 4430) 38477
Provide disk-based data protection for data centers and remote offices. Automate and consolidate the backup of multiple servers onto a single,
rack-mountable device while improving reliability by reducing errors caused by media handling.
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, our 3-year combined reactive support service delivers
integrated onsite hardware/software support services available 24x7x365, including access to HP technical resources, 4-hour response, onsite hardware support and software updates.
HP Installation and Startup Service for StoreOnce Backup System: For efficient deployment and integration into your environment, this service
provides the necessary activities required to deploy your D2D Backup System.
HP Backup and Recovery Solution Service: To help you design an architecture that meets your requirements, this service deploys backup software,
HP RDX Removable Disk Backup System
HP RDX 1 TB Removable Disk Backup System
Budget-conscious micro or small businesses with little or no IT resources who currently have no or only rudimentary backup processes in place
Capacity 2 TB compressed 2:1 1 TB native
Transfer rate 108 MB/sec or is 650 GB/hour Compressed 2:1
Load/unload cycles 5,000 minimum cartridge usage life
Media compatibility HP RDX320 GB Cartridge, HP RDX500 GB Cartridge, HP RDX 1 TB Cartridge
Modules Internal, external, and HP ProLiant DL380/DL385 G6 rack-optimized server 160 GB native storage capacity
Host interface USB 3.0 (1) port
Cartridge robustness RDX320 GB, RDX500 GB, and RDX 1 TB—1 m; 39.4 in. (3 ft.) drop to tile over concrete floor
Form factor 5.25 in., half height (internal module)
Warranty 1-year, next-day, parts exchange, limited warranty, plus 9x5 phone support for the duration of the warranty
Delivers an easy-to-use, affordable, and rugged removable backup solution for small businesses with limited time, knowledge, or experience to
dedicate to data protection.
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive
support option delivers integrated onsite hardware or software support services available 24x7.
HP Installation Service: For smooth startup and better business outcomes, this service provides initial hardware
installation of your product into your technology environment (system configuration is not included).
Included software Hands-free RDX Continuous Data Protection software: The HP RDX Removable Disk Backup System offers free HP
HP RDX Removable Disk Backup System (contd.)
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option
delivers integrated onsite hardware or software support services available 24x7.
HP Installation Service: For smooth startup and better business outcomes, this service provides initial hardware installation of your
product into your technology environment (system configuration is not included).
Included software Hands-free RDX Continuous Data Protection software: The HP RDX Removable Disk Backup System offers free HP RDX Continuous
Data Protection software for nearly continuous, automatic, and complete server and workstation backup protection. The key features include nearly continuous data protection, file deduplication, bare metal restore, seamless cartridge rotation, and archiving support; simple file recovery, complete backup coverage (unlimited file versions, open files, application data user settings, and the complete operating system are all automatically backed up), and comprehensive backup status updates.
HP RDX500 Removable Disk Backup System
Budget-conscious micro or small businesses with little or no IT resources who currently have no or only rudimentary backup processes in place
HP RDX320 Removable Disk Backup System
Budget-conscious micro or small businesses with little or no IT resources who currently have no or only rudimentary backup processes in place Capacity 1 TB compressed 500 GB native 640 GB compressed 320 GB native Transfer rate 60 MB/s Compressed 2:1 60 MB/s Compressed 2:1
Load/unload cycles (cartridge) 5,000 minimum cartridge usage life 5,000 minimum cartridge usage life
Media compatibility HP RDX160 GB Cartridge, HP RDX320 GB Cartridge, HP RDX500 GB Cartridge, HP RDX 1 TB Cartridge HP RDX160 GB Cartridge, HP RDX320 GB Cartridge, HP RDX500 GB Cartridge, HP RDX 1 TB Cartridge Modules Internal, external, and HP ProLiant DL380/DL385 G6 rack-optimized server 500 GB native storage capacity Internal, external, and HP ProLiant DL380/DL385 G6 rack-optimized server 320 GB native storage capacity
Host interface USB 2.0 (1) port USB 2.0 (1) port
Cartridge robustness RDX160 GB, RDX320 GB, RDX500 GB, and RDX 1 TB—1 m; 39.4 in. (3 ft.) drop to tile over concrete floor
RDX160 GB, RDX320 GB, RDX500 GB, and RDX 1 TB—1 m; 39.4 in. (3 ft.) drop to tile over concrete floor
Form factor 5.25 in., half height (internal module) 5.25 in., half height (internal module)
Warranty 1-year, next-day, parts exchange, limited warranty, plus 9x5 phone support for the duration of the warranty
1-year, next-day, parts exchange, limited warranty, plus 9x5 phone support for the duration of the warranty
HP LTO-6 Ultrium 6650 Tape Drives
Sixth generation of LTO tape drive technology setting new standards for capacity, performance, usability and manageability HP LTO-6 Ultrium 6250 Tape Drives Sixth generation of LTO tape drive technology setting new standards for capacity, performance, usability and manageability HP LTO-5 Ultrium 3280 Tape Drives Fifth generation of LTO tape drive technology designed for high-performance backup and archive solutions HP LTO-5 Ultrium 3000 Tape Drives Fifth generation of LTO tape drive technology designed for high-performance backup and archive solutions HP LTO-4 Ultrium 1840 Tape Drives Fourth generation of LTO tape drive technology designed for small and medium markets in direct attached storage HP LTO-4 Ultrium 1760 Tape Drives Fourth generation of LTO tape drive technology designed for small and medium markets in direct attached storage
Recording technology LTO-6 Ultrium LTO-6 Ultrium LTO-5 Ultrium LTO-5 Ultrium LTO-4 Ultrium LTO-4 Ultrium
Capacity 6.25 TB Compressed 2.5:1 6.25 TB Compressed 2.5:1 3 TB Compressed 2:1 3 TB Compressed 2:1 1.6 TB Compressed 2:1 1.6 TB Compressed 2:1 Transfer rate 1.44 TB/hr Compressed 2.5:1 1.44 TB/hr Compressed 2.5:1 1 TB/hr Compressed 2:1 1 TB/hr Compressed 2:1 864 GB/hr Compressed 2:1 576 GB/hr Compressed 2:1
Buffer size 512 MB included 512 MB included 256 MB included 256 MB included 128 MB included 128 MB included
Host interface 6 Gb/s SAS 6 Gb/s SAS 6 Gb/s SAS 6 Gb/s SAS 3 Gb/s SAS Ultra320 LVD SCSI
3 Gb/s SAS Ultra320 LVD SCSI
Form factor 5.25 in., full height 5.25 in., half height 5.25 in., full height 5.25 in., half height 5.25 in., full height 5.25 in., half height
Encryption capability Yes Yes Yes Yes Yes Yes
WORM capability Yes Yes Yes Yes Yes Yes
LTFS support Yes Yes Yes Yes No No
Warranty 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support
HP StoreEver LTO Ultrium Tape Drives
Sets new standards for capacity, performance, manageability, and usability in the midsize and enterprise markets.
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option delivers
integrated onsite hardware or software support services available 24x7.
HP Installation Service: For smooth startup and better business outcomes, this service provides initial hardware installation of your product
into your technology environment (system configuration is not included).
HP StoreEver LTO Ultrium Tape Drives (contd.)
Sets new standards for capacity, performance, manageability, and security in the midsized and enterprise markets.
HP LTO-3 Ultrium 920 Tape Drives HP LTO-2 Ultrium 448 Tape Drives Recording technology LTO-3 Ultrium LTO-2 Ultrium
Capacity 800 GB Compressed 2:1 400 GB Compressed 2:1 Transfer rate 432 GB/hr Compressed 2:1 173 GB/hr Compressed 2:1
Buffer size 64 MB included 64 MB included
Host interface 3 Gb/s SAS Ultra320 LVD SCSI 3 Gb/s SAS Ultra320 LVD SCSI
Form factor 5.25 in., half height 5.25 in., half height
Encryption capability No No
WORM capability Yes No
LTFS support No No Warranty 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option delivers
integrated onsite hardware or software support services available 24x7.
HP Installation Service: For smooth startup and better business outcomes, this service provides initial hardware installation of your product
into your technology environment (system configuration is not included).
HP StoreEver DAT Tape Drives
Protect your small or medium business with a dependable range of DAT drives that balance price and performance.
HP DAT 160 Tape Drive
High-performance backup solution
HP DAT 72 Tape Drive
Dependable backup solution
Models available SCSI internal tape drive SCSI external tape drive SCSI array module USB internal tape drive USB external tape drive USB (1) in 1U rack-mount kit SAS internal tape drive SAS external tape drive SCSI internal tape drive SCSI external tape drive SCSI array module USB internal tape drive USB external tape drive USB (1) in 1U rack-mount kit
Host interface Ultra160 LVD SCSI USB 2.0 3 Gb/s SAS
Ultra160 LVD SCSI USB 2.0
Recording technology DAT 160 DAT
Buffer size 16 MB included 8 MB included
Encryption capability No No
OBDR support Yes Yes
Capacity 160 GB maximum Compressed 2:1
72 GB maximum Compressed 2:1
Form factor 5.25 in., full height 5.25 in., full height
Transfer rate 49.3 GB/hr maximum Compressed 2:1
21.6 GB/hr Compressed 2:1
Write-Once, Read-Many (WORM) capability Yes No
Warranty 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option delivers
integrated onsite hardware or software support services available 24x7.
HP Installation Service: For smooth startup and better business outcomes, HP Hardware Installation—this service provides initial hardware
installation of your product into your technology environment (system configuration is not included).
HP StoreEver LTO Ultrium Tape Blades
Set new standards for capacity, performance, manageability, and security in the midsized and enterprise markets.
HP LTO-5 SB3000c Tape Blade
Integrated data protection for HP BladeSystem c-Class
HP LTO-4 SB1760c Tape Blade
Integrated data protection for HP BladeSystem c-Class
Recording technology LTO-5 Ultrium LTO-4 Ultrium
Capacity 3 TB Compressed 2:1 1.6 TB Compressed 2:1 Transfer rate 1 TB/hr Compressed 2:1 576 GB/hr Compressed 2:1
Buffer size 256 MB included 128 MB included
Host interface 6 Gb/s SAS 6 Gb/s SAS
LTFS support Yes No
Form factor Half-height blade Half-height blade
Encryption capability Yes Yes
Form factor 5.25 in., full height 5.25 in., full height
WORM capability Yes Yes
Warranty 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support 3-year, next-day, product exchange, limited warranty, plus 9x5 phone support
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option delivers
integrated onsite hardware or software support services available 24x7.
HP Installation Service: For smooth startup and better business outcomes, this service provides initial hardware installation of your product
into your technology environment (system configuration is not included).
Rackmount Kit for HP Tape Drives
Provides a compact and flexible way to rack-mount DAT, LTO Ultrium tape drives, or RDX removable disk backup systems that install
quickly and easily in your HP rack without any tools.
The HP Rack-mount Kits provide a high-density, rack-mountable tape drive, and RDX removable disk drive solution for direct-attach SCSI, USB, or
SAS backup and archiving applications.
The HP 1U Rack-mount Kit supports DAT and LTO Ultrium internal tape drives, and RDX internal removable disk backup systems. It is available in
SCSI, SAS, and USB interfaces. With two LTO-6 Ultrium 6250 tape drives, the 1U SAS enclosure can provide a maximum compressed capacity of
12.5 TB with a data transfer rate up to 2.9 TB/hr.
The HP 3U Rack-mount Kit holds two full-height internal tape drives, four half-height internal tape drives, or a combination of one full-height and
two half-height tape drives. It is available in both SCSI and SAS interfaces. With four HP LTO-6 Ultrium 6250 SAS drives, this enclosure solution can
provide a maximum compressed capacity of 25 TB.
HP Rack-mount Kits Drive type LTO-6 Ultrium 6250/6650LTO-5 Ultrium 3000/3280 LTO-4 Ultrium 1760/1840 LTO-3 Ultrium 920 LTO-2 Ultrium 448 DAT 320/160/72 RDX 1 TB/500/320/160 Removable Disk Drive (2-4) 5.25 in., half-height; or (1-2) 5.25 in., full-height supported, depending on model Capacity 25 TB compressed 2.5:1 Depending on drive type
Host interface 6 Gb/s SAS or
Ultra320 LVD SCSI or USB 2.0
Encryption capability AES 256-bit
Depending on drive type
Form factor 1U or 3U
Warranty 3-year, parts only
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive
support option delivers integrated onsite hardware or software support services available 24x7.
HP Install Storage Autoloader/Tape Drive Array Service: For smooth startup and better business outcomes, this
service provides initial hardware installation of your product into your technology environment (system configuration is not included).
HP Tape Autoloaders
HP 1/8 G2 Tape Autoloader
Automate your backup with a tape autoloader that provides a choice of LTO Ultrium tape drives, remote management, data encryption, and proactive drive and media health monitoring.
Tape drives supported 1 LTO-6 Ultrium 6250 1 LTO-5 Ultrium 3000 1 LTO-4 Ultrium 1760 1 LTO-3 Ultrium 920
Number of cartridge slots 8
Capacity 50 TB compressed 2.5:1 15 TB native
Maximum, with the LTO-6 drive
Transfer rate 1.4 TB/hr maximum,
Compressed 2.5:1, with the LTO-6 drive Form factor 1U Interface 8 Gb Fibre Channel 6 Gb/s SAS 3 Gb/s SAS Ultra320 LVD SCSI
Encryption capability AES 256-bit
With LTO-4, LTO-5 or LTO-6 drives
Warranty Includes 1-year, next business day, parts exchange
Provide a choice of LTO Ultrium tape drives, remote management, data encryption, and proactive drive and media health monitoring.
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service
HP Autoloader and MSL SCSI/SAS Hardware Installation (system configuration is not included) HP Proactive Select Service
HP Business Class Tape Libraries
HP MSL2024 Tape Library HP MSL4048 Tape Library HP MSL8048 Tape Library HP MSL8096 Tape Library Number and types of tape
drives supported 1-2 LTO-6 Ultrium 6250 1 LTO-5 Ultrium 3280 1–2 LTO-5 Ultrium 3000 1 LTO-4 Ultrium 1840 1–2 LTO-4 Ultrium 1760 1–2 LTO-3 Ultrium 920 1-4 LTO-6 Ultrium 6250 1–2 LTO-5 Ultrium 3280 1–4 LTO-5 Ultrium 3000 1–2 LTO-4 Ultrium 1840 1–4 LTO-4 Ultrium 1760 1–4 LTO-3 Ultrium 920 No drives included 2-4 LTO-6 Ultrium 6250 2–4 LTO-5 Ultrium 3280 2–4 LTO-5 Ultrium 3000 2–4 LTO-4 Ultrium 1840 2–4 LTO-4 Ultrium 1760
Number of cartridge slots 24 48 48 96
Maximum capacity LTO-6 Ultrium 6250 150 TB compressed 2.5:1 60 TB native LTO-6 Ultrium 6250 300 TB compressed 2.5:1 120 TB native LTO-6 Ultrium 6250 300 TB compressed 2.5:1 120 TB native LTO-6 Ultrium 6250 600 TB compressed 2.5:1 240 TB native
Maximum transfer rate LTO-6 Ultrium 6250 2.88 TB/hr compressed 2.5:1 LTO-6 Ultrium 6250 5.76 TB/hr compressed 2.5:1 LTO-6 Ultrium 6250 5.76 TB/hr compressed 2.5:1 LTO-6 Ultrium 6250 5.76 TB/hr compressed 2.5:1
Host interface 8 Gb Fibre Channel 4 Gb native Fibre Channel 6 Gb/s SAS
3 Gb/s SAS or Ultra320 LVD SCSI Depends on drive type
8 Gb Fibre Channel 4 Gb native Fibre Channel 6 Gb/s SAS
3 Gb/s SAS or Ultra320 LVD SCSI Depends on drive type
8 Gb Fibre Channel 4 Gb native Fibre Channel 6 Gb/s SAS
3 Gb/s SAS or Ultra320 LVD SCSI Depends on drive type
8 Gb Fibre Channel 4 Gb native Fibre Channel 6 Gb/s SAS
3 Gb/s SAS or Ultra320 LVD SCSI Depends on drive type
Form factor 2U 4U 8U 8U
Encryption capability AES 256-bit with LTO-6, LTO-5 and LTO-4 drives AES 256-bit with LTO-6, LTO-5 and LTO-4 drives AES 256-bit with LTO-6, LTO-5 and LTO-4 drives AES 256-bit with LTO-6, LTO-5 and LTO-4 drives Warranty 1-year parts exchange, next business day 1-year parts exchange, next business day 1-year onsite, next business day 1-year onsite, next business day
Meet demanding storage requirements of businesses needing unattended backup, disaster recovery, or archive capability. Web-based remote
management makes the Midrange Storage Libraries (MSLs) easily managed from across the room or across the globe, reducing the need for
remote office IT staff.
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option delivers integrated
onsite hardware or software support services available 24x7.
HP ESL, MSL, EML Tape Libraries Installation and Startup: To get your Fibre Channel-based HP Tape Library up and running fast, this service provides
HP Enterprise Class Tape Libraries
Provide highly reliable backup and restore solutions addressing the mission-critical data storage requirements of
high-end enterprise customers.
HP EML E-Series Tape Library HP ESL G3 Tape Library Tape drives supported LTO-5 Ultrium 3280
LTO-4 Ultrium 1840 16 maximum, supported depending on model LTO-6 Ultrium 6650 LTO-5 Ultrium 3280 LTO-4 Ultrium 1840 96 maximum drives, 12 drives per frame supported
Number of cartridge slots 505 maximum, depending on model 100–7,104 maximum LTO Ultrium Cartridges
Capacity 3 PB, compressed 2.5:1 Maximum depending on model
325 TB Min. (Compressed 2.5:1) 44.4 PB Max. (Compressed 2.5:1)
Depends on library model and tape media used
Transfer rate 23 TB/hr compressed 2:1 Maximum, depending on model
138 TB/hr Compressed 2.5:1
Maximum, depending on model and drive type
Host interface 8 Gb Fibre Channel port and 4 Gb Fibre Channel port per controller or,
4 Gb Fibre Channel port and 4 Gb Fibre Channel port per controller
Depending on drive type selected
8 Gb Fibre Channel 4 Gb Fibre Channel
Depending on drive type selected
Form factor 12U
Note: Can scale to 24U, 32U, and 40U by adding additional drive or cartridge expansion module
Free-standing, each control module or expansion module equals a 19-inch rack form factor
Encryption capability AES 256-bit AES 256-bit
Warranty 1-year parts exchange, 1-year labor, and 1-year onsite support, next business day response
1-year parts exchange, 1-year labor, and 1-year onsite support, next business day response
HP related offerings
Recommended services 3-Year HP Support Plus 24 Service: For a higher return on your storage technology, this 3-year combined reactive support option delivers
integrated onsite hardware or software support services available 24x7.
HP ESL, MSL, EML Tape Libraries Installation and Startup: To get your Fibre Channel-based HP Tape Library up and running fast, this service
HP Storage Media
The best hardware deserves the best media. If you are choosing an HP storage solution, HP-branded media is the logical choice for optimal
performance and reliability: for backup, disaster recovery, and data archival.
Here are some facts:
• Before LTO-6 was launched, HP had already completed over half a million hours of testing for Metal Particle and Barium Ferrite media, pulling
over 500,000 miles of tape.
• In 2011, we conducted over 2.6 million hours of quality control testing for HP LTO Ultrium branded media.
• In a typical year, we use over 15,000 drives and 8,500 pieces of media
• In 2011, we pulled over 150,000 miles of new LTO-4 and LTO-5 “green tape” through HP and non-HP devices
Whilst these figures are impressive, it’s important to remember that they are not “just” numbers. Every hour spent in the lab, and every mile of
tape examined, is driven by the key objective of making HP storage media the most reliable.
LTO Ultrium Exhaustively tested, HP LTO Ultrium cartridges meet all your demands for increased reliability when restoring data. In addition, they offer high storage density, ease of management, and scalable storage and backup performance. There is an offering to suit every need and budget, with capacities covering six generations, and with transfer speeds of up to 1.4 TB/hr for LTO-6. Every generation brings with it new and improved features—for example, from LTO-3 onwards, LTO Ultrium WORM cartridges enable the creation of compliant, permanent, and tamperproof archives. Similarly, from LTO-4 onwards, secure AES-256 encryption provides even higher levels of data security, and compliance with the most stringent industry regulations to prevent unauthorized data access. Additionally, from LTO-5 onwards, LTO Ultrium Linear Tape File System makes using tape as easy, flexible, portable, and intuitive as using other removable and sharable media, such as a USB drive. RDX The HP RDX Removable Disk Cartridge provides an easy-to-use, affordable, and rugged data cartridge for workstations and entry-level servers in your micro or small business. DDS Tested to durability specifications twice as rigorous as those required by the DDS logo tests, an HP DDS cartridge can consistently do an excellent job. HP DAT 320 GB data cartridges provide a compressed capacity of up to 320 GB and are exhaustively tested for increased reliability and restore performance. SDLT and DLT HP also supplies highly reliable Super DLT Tape and DLT Tape IV media.
HP Ultra Density and Magneto Optical
5.25 in. HP Magneto Optical and Ultra Density Optical comes with a 100-year, defect-free warranty, and is engineered to meet and surpass International Organization for Standardization (ISO)/International Electrotechnical Commission (IEC)/American National Standards Institute (ANSI) standards.
Custom labeled media With HP Custom Labeled Media, you no longer have to label your own cartridges, saving you time and the risk of retrieval errors. For no extra charge, cartridges can be supplied with barcode labels bearing your own specified sequences.
HP rigorously tests its precision-engineered, high-resolution barcode labels using software unique to the HP Automation Group to evaluate and warrant the performance of its labels.
For those customers who value the added security that RFID offers, they have the option to integrate it into each label at a reduced cost. The RFID tag is embedded into the back of the customized label and offers tracking, audit, and security advantages for those with IT asset tracking systems.
Non-custom labeled media With HP Non-custom Labeled LTO Ultrium media, you no longer have to label your own cartridges, saving you time and the risk of retrieval errors. Barcode
sequences are unique to each batch ordered—no codes are repeated.
HP Backup and Recovery software
HP Data Protector software
HP Data Protector is the industry’s first unified meaning-based data protection solution, delivering universal backup and recovery for medium,
large, and enterprise-class organizations. It utilizes an intelligent data management approach to seamlessly protect and harness data based on its
meaning from edge to data center across premise, hybrid, and cloud environments.
Based on the industry’s most advanced deduplication engine HP StoreOnce, HP Data Protector is the only solution that offers the flexibility of
tri-location deduplication—application source, backup server, and target device—helping organizations to meet their most demanding business
SLAs while reducing the overall infrastructure cost. HP Data Protector’s meaning-based data protection functionality allows utilization of powerful
information governance tools including eDiscovery and legal hold to perform contextual search on backup data, and find and recover data by its
actual content, meeting your legal discovery and compliance related needs. From a single pane of glass, HP Data Protector allows you to fully
leverage your data asset investment to decrease backup and recovery windows and increase business application performance. Simple yet
powerful snapshot functionality fully automates recovery down to the exact second, and frees you from restrictive backup windows. Delivering
enterprise-class edge to cloud protection, one touch setup offers cloud based protection on the world’s largest and most secure private cloud
helping reduce CAPEX and OPEX.
Increase performance and storage efficiency Based on the industry’s most advanced deduplication technology, HP Data Protector offers flexible deduplication deployment strategies that seamlessly transfer deduplicated information enabling you to meet most demanding business SLAs while decreasing infrastructure cost. Increase operational effectiveness HP Data Protector software automates and simplifies the management of heterogeneous hardware and software platforms by utilizing an intelligent policy-driven data management approach and single-pane-of-glass administration.
Help ensure business continuity Utilizing Zero Downtime Backup (ZDB) and Instant Recovery (IR), HP Data Protector software increases application uptime, in both physical and virtual environments, and meets the demands of the most complex enterprises for strict RTO/RPO requirements, enabling business critical data to be recovered within minutes. Zero Downtime Backup and Instant Recovery supports HP XP, EVA, P4000, and 3PAR to respond to your needs for 24x7 application availability. Extended platform support for disaster recovery
Recover your system with one of the six different BMDR methods, which are uniquely integrated into HP Data Protector software. These methods allow you to boot from a CD, DVD, or tape, and they can be easily deployed with simple, onscreen instructions. HP Data Protector software provides extensive support for all major operating systems, applications, databases, drives, libraries, and disk arrays to help create solutions that meet your unique and changing infrastructure requirements.
