(1)

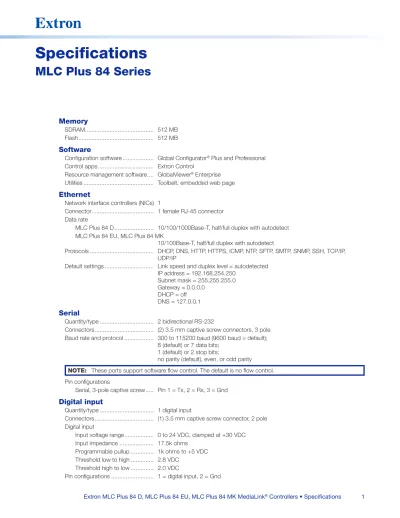

MLC Plus 84 Series

Memory

SDRAM ������������������������������������������ 512 MB Flash ���������������������������������������������� 512 MB

Software

Configuration software ������������������� Global Configurator® Plus and Professional Control apps ���������������������������������� Extron Control

Resource management software ���� GlobalViewer® Enterprise Utilities ������������������������������������������� Toolbelt, embedded web page

Ethernet

Network interface controllers (NICs) 1

Connector �������������������������������������� 1 female RJ-45 connector Data rate

MLC Plus 84 D ������������������������ 10/100/1000Base-T, half/full duplex with autodetect MLC Plus 84 EU, MLC Plus 84 MK

10/100Base-T, half/full duplex with autodetect

Protocols ��������������������������������������� DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Default settings ������������������������������ Link speed and duplex level = autodetected IP address = 192�168�254�250

Subnet mask = 255�255�255�0 Gateway = 0�0�0�0

DHCP = off DNS = 127�0�0�1

Serial

Quantity/type ��������������������������������� 2 bidirectional RS-232

Connectors ������������������������������������ (2) 3�5 mm captive screw connectors, 3 pole Baud rate and protocol ������������������ 300 to 115200 baud (9600 baud = default);

8 (default) or 7 data bits;

1 (default) or 2 stop bits;

no parity (default), even, or odd parity

NOTE: These ports support software flow control� The default is no flow control�

Pin configurations

Serial, 3-pole captive screw ����� Pin 1 = Tx, 2 = Rx, 3 = Gnd

Digital input

Quantity/type ��������������������������������� 1 digital input

Connectors ������������������������������������ (1) 3�5 mm captive screw connector, 2 pole Digital input

Input voltage range ������������������ 0 to 24 VDC, clamped at +30 VDC Input impedance ��������������������� 17�5k ohms

Programmable pullup �������������� 1k ohms to +5 VDC Threshold low to high �������������� 2�8 VDC

(2)

2 Extron MLC Plus 84 D, MLC Plus 84 EU, MLC Plus 84 MK MediaLink® Controllers • Specifications

IR

Quantity/type ��������������������������������� 1 TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz Connectors ������������������������������������ (1) 3�5 mm captive screw connector, 2-pole

Pin configurations �������������������������� Pin 1 = signal, 2 = Gnd IR output carrier frequency ������������� 30 kHz to 300 kHz

Relay

Quantity/type ��������������������������������� 2 normally open relays

Relay control connectors ��������������� (1) 3�5 mm captive screw connector, 3 pole Relay control contact rating ������������ 24 VDC, 1 A

Volume control

Quantity/type ��������������������������������� 1 volume control (compatible with select Extron amplifiers) Connectors ������������������������������������ (1) 3�5 mm captive screw connector, 5 pole

Pin configuration ���������������������������� Pin 1 = ≤10 VDC reference voltage input, pin 2 = 0 to +10 VDC control voltage output, pin 3 = Gnd

Control voltage output range ���������� 0 to +10 VDC (±0�2 volts), adjustable

General

Power supply ��������������������������������� External (not included) Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0�5 A, 6 watts

Or Power over Ethernet (PoE) (complies with PoE 802�3af, class 3), 48 VDC, 0�35 A, 16�8 watts

Power consumption MLC Plus 84 D

Device ������������������������������� 3�1 watts, 12 VDC

Device and power supply ��� 4�1 watts, 100-240 VAC, 50-60 Hz Device and PoE injector ����� 7�3 watts

MLC Plus 84 EU, MLC Plus 84 MK

Device ������������������������������� 2�6 watts, 12 VDC

Device and power supply ��� 3�5 watts, 100-240 VAC, 50-60 Hz Device and PoE injector ����� 6�8 watts

Temperature/humidity �������������������� Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing Cooling ������������������������������������������ Convection, no vents

Thermal dissipation MLC Plus 84 D

Device ������������������������������� 10�5 BTU/hr Device and power supply ��� 13�7 BTU/hr Device and PoE injector ����� 24�9 BTU/hr MLC Plus 84 EU, MLC Plus 84 MK

Device ������������������������������� 8�9 BTU/hr Device and power supply ��� 11�8 BTU/hr Device and PoE injector ����� 23�0 BTU/hr Mounting

Rack mount ����������������������������� No Furniture or wall mount

MLC Plus 84 D ������������������ Yes, with a US 2-gang junction box or mud ring mounting bracket and the included decorator-style wallplate, or with an optional AAP 424 panel MLC Plus 84 EU ���������������� Yes, with an EU 2-gang electrical junction box and included EU 2-gang frame MLC Plus 84 MK ��������������� Yes, with an MK 2-gang electrical junction box and included MK 2-gang frame

(3)

Enclosure type ������������������������������� Plastic faceplate and high-impact plastic rear enclosure Enclosure dimensions

MLC Plus 84 D

Faceplate ��������������������������� Fits the openings in a 2 gang decorator-style wallplate�

Device ������������������������������� 2�75" H* x 3�52" W x 1�80" D (70 mm H* x 90 mm W x 46 mm D) (Depth excludes buttons� Fits most 2 gang US boxes or mud rings�

Allow at least 1�8" [46 mm] depth in the wall or furniture�)

*Overall height is 4�1" (104 mm) including mounting tabs�

MLC Plus 84 D Rear

4.56"

(116 mm)

2.75"

(70 mm)

0.26"

(7 mm)

3.52"

(90 mm) 3.59"

(91 mm)

1.52"

(39 mm)

4.50"

(114 mm)

1.80"

(46 mm)

(4)

4 Extron MLC Plus 84 D, MLC Plus 84 EU, MLC Plus 84 MK MediaLink® Controllers • Specifications

MLC Plus 84 EU

Faceplate ��������������������������� 3�17" H x 5�96" W x 0�39" D (81 mm H x 152 mm W x 9�9 mm D) Device ������������������������������� 1�88" H x 4�37" W x 1�55" D (48 mm H x 111 mm W x 39 mm D) (Depth excludes buttons� Fits many 2 gang EU junction boxes�

Allow at least 1�6" [40 mm] depth in the wall or furniture�)

MLC Plus 84 EU Rear

5.96"

(152 mm)

1.88"

(48 mm)

1.55"

(39 mm)

3.17"

(81 mm)

0.39"

(9.9 mm)

4.37"

(111 mm) (includes tabs)

(5)

MLC Plus 84 MK

Faceplate ��������������������������� 3�38" H x 5�79" W x 0�39" D (86 mm H x 147 mm W x 9�9 mm D) Device ������������������������������� 1�88" H x 4�37" W x 1�55" D (48 mm H x 111 mm W x 39 mm D) (Depth excludes buttons� Fits many 2 gang MK junction boxes�

Allow at least 1�6" [40 mm] depth in the wall or furniture�)

MLC Plus 84 MK Rear

5.79"

(147 mm)

1.88"

(48 mm)

4.37"

(111 mm) (includes tabs)

1.55"

(39 mm)

3.38"

(86 mm)

0.39"

(9.9 mm)

Product weight ������������������������������ 0�4 lbs (0�2 kg)

Regulatory compliance ������������������� CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI

Complies with the appropriate requirements of RoHS, WEEE, and of Section 508 of the Rehabilitation Act (29 U�S�C� 794d)�

Product warranty ��������������������������� 3 years parts and labor NOTE: All nominal levels are at ±10%�

NOTE: Specifications are subject to change without notice�

NOTE: Shipping weights and dimensions are available at www.extron.com�

4474-D5-040819
