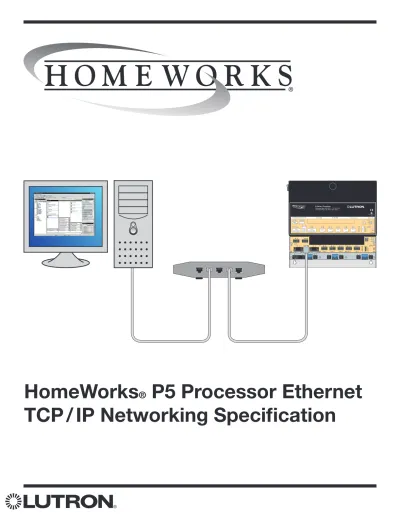

HomeWorks P5 Processor Ethernet TCP / IP Networking Specification

(1)

(2)

Revision History

Revision 1.1, 8 / 2007

Pertains to HomeWorks IlluminationTM software version 1.22 or newer. The upper port range

for Telnet, FTP, and HTTP has been increased from 32767 to 65535. Revision 1.0 (Initial Release), 8 / 2007

(3)

Overview

Configuring the HomeWorks® P5 processor to communicate over a network takes not only

knowl-edge of the HomeWorks system, but of networking as well. HomeWorks installers with limited net-working knowledge are advised to contact a netnet-working professional before attempting to connect to HomeWorks processors via a network. This specification will help a HomeWorks installer commu-nicate the P5 processor configurations to a network professional.

The HomeWorks installer will make any necessary changes to the P5 processor and the network professional can make any necessary changes to the networking equipment. Use the worksheet at the end of this document to record the P5 processor configuration(s).

This specification applies to the current (non-beta 1.22) or newer versions of the HomeWorks IlluminationTM software.

Single Ethernet Port

• IEEE® 802.3 Auto-Sensing 10BaseT / 100BaseTX

• Female 8P8C “Computer RJ-45” socket • Green Connect LED, Amber Activity LED • Use Cat 5 cabling or better

Protocols Used

• TCP, UDP, IP, ARP, DHCP, ICMP, TELNET, FTP, NBNS

TCP / IP Settings

• DHCP or static* configuration <factory default = DHCP> • IP Address*: <static or dynamic configuration>

• Subnet Mask*: < static or dynamic configuration> • Gateway*: <static or dynamic configuration> • Telnet Port: <factory default = 23>

• FTP Port: <factory default = 21> • HTTP Port: <factory default = 80>

• Ping Response: Enabled <factory default = Enabled, can be Disabled> • NetBIOS Name: <factory fixed to = HOMEWORKS>

• NetBIOS Name is case insensitive

* If DHCP is set to Disabled, the following are the default values: IP Address: 192.168.250.<processor address = 1 through 16> Subnet: 255.255.255.0

(4)

Overview—Continued

Telnet Server

• Used by HomeWorks® IlluminationTM software and/or third party equipment (i.e. touch screen)

• Limited to transferring 7bit ASCII characters

• Telnet Port number is user modifiable <factory default = 23> • Telnet Port range is 1 through 65535

• Maximum of five simultaneous sessions

• One session is reserved for Illumination terminal interaction • The password is user definable <factory default = jetski>

• Four user definable user names and passwords for third party equipment

• The login names and passwords are limited to a maximum of 32 characters each • The characters used for login and password are limited to characters: a-z,A-Z,0-9 • Ability to suppress prompt and or command replies on each login

• Telnet service can be disabled by setting the port number to zero

FTP Server

• Used during HomeWorks Illumination database uploads and database extractions • Non-modifiable login, used exclusively by the Illumination software

• Active mode FTP server, does not support Passive mode FTP transfers • FTP Command Port number is user modifiable <factory default = 21>

• FTP Data Port number is always the Command Port value minus one <factory default = 20> • FTP Command Port range is 2 through 65535

• Used to store HomeWorks Illumination data, no user storage capability • Single session only

• FTP service can be disabled by setting the port number to zero

HTTP Server

• Used to display Web Keypads only

• Works with Microsoft® Internet Explorer® 6.0 or higher, Mozilla® Firefox®,

and Apple® SafariTM web browsers

• Requires web browser Cookies to be enabled • Requires Java Script 1.2 or better to be enabled

• Requires web browser support for Cascading Style Sheets • Display resolution should be 800 x 600 or better

• HTTP Port is user modifiable. <factory default = 80> • Modifiable range for the port is 1 through 65535

• Only one processor in a multiprocessor system hosts Web Keypads

• Web Browser can use NetBIOS name or IP Address of HTTP enabled processor • Web keypad access can be password protected

• Sixteen user definable web keypad user names and passwords

(5)

(6)

(7)

Credits

Microsoft and Internet Explorer are either registered trademarks or trademarks of Microsoft Corpora-tion in the United States and / or other countries.

Mozilla and Firefox are registered trademarks of the Mozilla Foundation.

Apple is a registered trademark and Safari is a trademark of Apple, Inc. This document is an inde-pendent publication and has not been authorized, sponsored, or otherwise approved by Apple Inc. IEEE is a registered trademark of The Institute of Electrical and Electronics Engineers, Inc.
