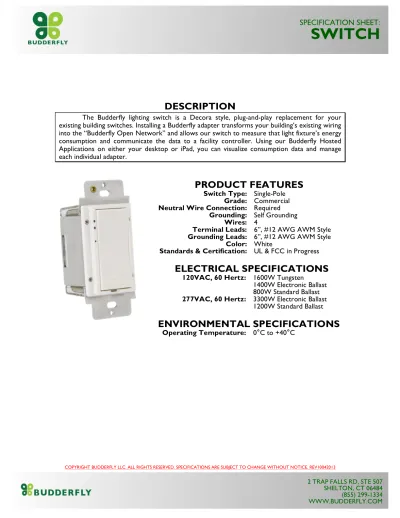

DESCRIPTION
The Budderfly lighting switch is a Decora style, plug-and-play replacement for your existing building switches. Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows our switch to measure that light fixture’s energy consumption and communicate the data to a facility controller. Using our Budderfly Hosted Applications on either your desktop or iPad, you can visualize consumption data and manage each individual adapter.
PRODUCT FEATURES
Switch Type: Single-Pole Grade: Commercial Neutral Wire Connection: Required
Grounding: Self Grounding Wires: 4
Terminal Leads: 6”, #12 AWG AWM Style Grounding Leads: 6”, #12 AWG AWM Style
Color: White
Standards & Certification: UL & FCC in Progress
ELECTRICAL SPECIFICATIONS
120VAC, 60 Hertz: 1600W Tungsten
1400W Electronic Ballast 800W Standard Ballast 277VAC, 60 Hertz: 3300W Electronic Ballast
1200W Standard Ballast
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +40°C
!
SWITCH !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
!
DESCRIPTION
The Budderfly lighting RF switch is a Decora style, plug-and-play replacement for your existing building switches. The Budderfly RF switch presents a battery-powered solution to replace installed switches that lack the presence of a neutral wire. It creates an RF link to communicate with the dual band Budderfly RF outlets, transforming your building’s existing wiring into the “Budderfly Open Network”. Using our Budderfly Hosted Applications on either your desktop or iPad, you can manage each individual adapter.
PRODUCT FEATURES
Part No: S0311010 Switch Type: Single-Pole
Grade: Commercial Neutral Wire Connection: NOT Required
Grounding: Self Grounding Wires: 3
Terminal Leads: 6”, #12 AWG THHN Grounding Leads: Bare stranded copper cable
Color: White RF Operating Range: 15 meters
Battery: 3V – 2 x 1.5V AAA Lithium Frequency: 915 MHz
Standards & Certification: UL and FCC Compliant
ELECTRICAL SPECIFICATIONS
120VAC, 60 Hertz: 1600W Tungsten
1400W Electronic Ballast 800W Standard Ballast 277VAC, 60 Hertz: 3300W Electronic Ballast
1200W Standard Ballast
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +40°C
RF SWITCH !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
DESCRIPTION
The Budderfly 3-4 Ways lighting switch is a Decora style, plug-and-play replacement for your existing building switches. Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows our switch to measure that light fixture’s energy consumption and communicate the data to a facility controller. Using our Budderfly Hosted Applications on either your desktop or iPad, you can visualize consumption data and manage each individual adapter.
PRODUCT FEATURES
Switch Type: Single-Pole Grade: Commercial Neutral Wire Connection: Required
Grounding: Self Grounding Wires: 5
Terminal Leads: #12 AWG & 18 AWG THHN Grounding Leads: Yellow & Green 12 AWG
Color: White
Standards & Certification: UL Compliant
ELECTRICAL SPECIFICATIONS
120VAC, 60 Hertz: 1600W Tungsten
1400W Electronic Ballast 800W Standard Ballast 277VAC, 60 Hertz: 3300W Electronic Ballast
1200W Standard Ballast
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +40°C
!
3-WAY SWITCH !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
!
DESCRIPTION
The Budderfly Power Strip is a 6-outlet mains power extension. Using the Budderfly Power Strip, which is compatible with “Budderfly Open Network,” it allows the measurement of the plugged-in devices' energy consumption and communicates the data to a facility controller.
All plugged in devices are surge protected. 3 plugs can be remotely controlled from the facility controller. The Budderfly Power Strip also contains 4 USB ports for charging mobile devices. 2 of the USB ports can be controlled from the facility controller.
PRODUCT FEATURES
Part No: R0620301 Number of Outlets: 6
Outlet Configuration: NEMA 5-15R Grade: Commercial Grounding: Self-Grounding Termination: NEMA 5-15P
Color: Black
Standards & Certification: UL Compliant
ELECTRICAL RATINGS
Mains Voltage: 120VAC, 60 Hertz Mains Current: 15A/outlet, 15A Total Surge Protection Energy: 540 joules live to neutral
95 joules live to ground 95 joules neutral to ground USB Voltage: 5VDC
USB Current: 2A Total
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +40°C
!
POWER STRIP !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
DESCRIPTION
The Budderfly Controllable outlet is a Decora style, plug-and-play replacement for your existing building outlets. Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows our adapter to measure the plugged-in device’s energy consumption and communicate the data to a facility controller. Using our Budderfly Hosted Applications on either your desktop or iPad will allow you to view consumption data for this outlet as well as manage and control the adapter.
!
PRODUCT FEATURES
Part No: R0610401
Switch Type: 2-Pole (1 controllable) Grade: Commercial
Grounding: Self Grounding Wires: 3
Terminal Leads: 6”, #12 AWG THHN Grounding Leads: Yellow & Green 12 AWG
Color: White
Standards & Certification: UL Compliant
ELECTRICAL SPECIFICATIONS
120VAC, 60 Hertz: 20A (max) 1.0 HP for non- controllable plug
15A (resisitive) 0.5HP for controllable plug
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +40°C
!
CONTROLLABLE OUTLET !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
!
DESCRIPTION
The Budderfly Dual Band outlet is a Decora style, plug-and-play replacement for your existing building outlets. Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows our adapter to measure the plugged-in device’s energy consumption and communicate the data to a facility controller. Using our Budderfly Hosted Applications on either your desktop or iPad will allow you to view consumption data for this outlet as well as manage and control the adapter. Because this outlet is dual-band, it also acts as an access point for the battery powered Budderfly RF switches to the Budderfly network.
PRODUCT FEATURES
Part No: R0710021 Switch Type: 2-Pole
Grade: Commercial Grounding: Self Grounding
Wires: 3
Terminal Leads: 6”, #12 AWG AWM Style Grounding Leads: 6”, #12 AWG AWM Style
Color: White RF Operating Range: 15 meters
Frequency: 915 MHz
Standards & Certification: UL and FCC Compliant
ELECTRICAL SPECIFICATIONS
120VAC, 60 Hertz: 2400 Watts 20A (max)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 10°C to +40°C
!
DUAL BAND OUTLET !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
!
!
DESCRIPTION
The Budderfly Power Meter is intended to monitor the activity of Budderfly no-neutral light switches and report the cumulative energy to the “Facility Controller” when user selectable power change is detected.
PRODUCT FEATURES
Part No: M0021501 Grade: Commercial Grounding: No
Termination: 12 AWG wire leads for hot, load, and neutral terminals Color: Black
Standards & Certification: UL Compliant
ELECTRICAL RATINGS
Mains Voltage: 100-277VAC RMS, 60 Hertz Supply Current: 80mA
Measured Current: 16A max Current Resolution: 0.8mA
Accuracy: 1% over full measurement rng.
Data Retention Period: 1 month
MECHANICAL DATA
Mounting: 4 holes for wall mounting Dimensions: 108 x 58 x 43mm
COMMUNICATION
Power Line: Budderfly OPEN Network Radio Frequency: Budderfly OPEN Network
ENVIRONMENTAL SPECIFICATIONS
Relative Humidity: 80% up to 31°C, decreasing linearly to 50% relative humidity at 40°C Altitude: 2000m
Operating Temperature: 0°C to +40°C
POWER METER !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
DESCRIPTION
The Budderfly Power Pack is a plug-and-play replacement for your existing building Power Packs (Occupancy Sensing Interface). It provides low voltage power and line voltage control for the occupancy sensors.
PRODUCT FEATURES
Part No: C0021031 Grade: Commercial Wires: 7
Terminal Leads: #12 AWG AWM (Line Volt.)
#16 AWG AWM (Class 2) Color: Black
Standards & Certification: UL Compliance in Progress
ELECTRICAL RATINGS
DC Output: Isolated 1.44W 12/24VDC Load Ratings, 60 Hz: 120VAC
16A Electronic Ballast 20A Standard ballast
240VAC:5000W Tungsten
277VAC:16A Electronic Ballast
20A Standard ballastENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 0°C to +40°C
!
POWER PACK !
COPYRIGHT BUDDERFLY LLC. ALL RIGHTS RESERVED. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. REV10042013
2 TRAP FALLS RD, STE 507 SHELTON, CT 06484 (855) 299-1334 WWW.BUDDERFLY.COM
!
