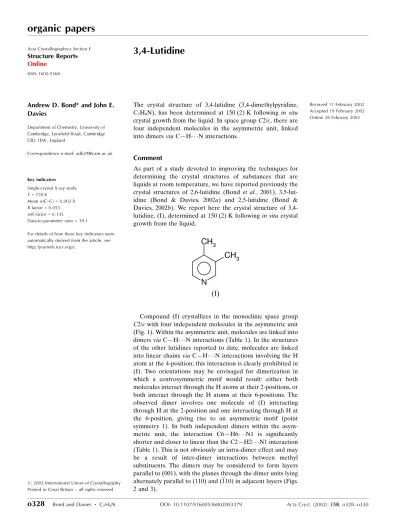

3,4-Lutidine

Andrew D. Bond* and John E. Davies

Department of Chemistry, University of Cambridge, Lensfield Road, Cambridge CB2 1EW, England

Correspondence e-mail: [email protected]

Key indicators Single-crystal X-ray study T= 150 K

Mean(C±C) = 0.002 AÊ Rfactor = 0.053 wRfactor = 0.135

Data-to-parameter ratio = 19.1

For details of how these key indicators were automatically derived from the article, see http://journals.iucr.org/e.

#2002 International Union of Crystallography Printed in Great Britain ± all rights reserved

The crystal structure of 3,4-lutidine (3,4-dimethylpyridine, C7H9N), has been determined at 150 (2) K followingin situ

crystal growth from the liquid. In space groupC2/c, there are four independent molecules in the asymmetric unit, linked into dimersviaCÐH N interactions.

Comment

As part of a study devoted to improving the techniques for determining the crystal structures of substances that are liquids at room temperature, we have reported previously the crystal structures of 2,6-lutidine (Bond et al., 2001), 3,5-lut-idine (Bond & Davies, 2002a) and 2,5-lutidine (Bond & Davies, 2002b). We report here the crystal structure of 3,4-lutidine, (I), determined at 150 (2) K followingin situ crystal growth from the liquid.

Compound (I) crystallizes in the monoclinic space group

C2/cwith four independent molecules in the asymmetric unit (Fig. 1). Within the asymmetric unit, molecules are linked into dimersviaCÐH N interactions (Table 1). In the structures of the other lutidines reported to date, molecules are linked into linear chainsviaCÐH N interactions involving the H atom at the 4-position; this interaction is clearly prohibited in (I). Two orientations may be envisaged for dimerization in which a centrosymmetric motif would result: either both molecules interact through the H atoms at their 2-positions, or both interact through the H atoms at their 6-positions. The observed dimer involves one molecule of (I) interacting through H at the 2-position and one interacting through H at the 6-position, giving rise to an asymmetric motif (point symmetry 1). In both independent dimers within the asym-metric unit, the interaction C6ÐH6 N1 is signi®cantly shorter and closer to linear than the C2ÐH2 N1 interaction (Table 1). This is not obviously an intra-dimer effect and may be a result of inter-dimer interactions between methyl substituents. The dimers may be considered to form layers parallel to (001), with the planes through the dimer units lying alternately parallel to (110) and (110) in adjacent layers (Figs. 2 and 3).

Experimental

The sample (99%) was obtained from the Aldrich company and used without further puri®cation. The crystal was grown in a 0.3 mm glass capillary tube atca235 K (a temperature only slightly less than the melting point of the solid in the capillary) using a technique described earlier (Davies & Bond, 2001). Once grown, the crystal was cooled to 150 (2) K for data collection. The length of the cylindrical crystal was not estimated, but it exceeded the diameter of the collimator (0.35 mm).

Crystal data

C7H9N Mr= 107.15

Monoclinic,C2=c a= 20.9006 (8) AÊ

b= 20.6112 (9) AÊ

c= 12.9921 (3) AÊ

= 115.135 (2)

V= 5066.9 (3) AÊ3 Z= 32

Dx= 1.124 Mg mÿ3

MoKradiation Cell parameters from 9883

re¯ections

= 1.0±27.5 = 0.07 mmÿ1 T= 150 (2) K Cylinder, colourless 0.15 mm (radius)

Data collection

Nonius KappaCCD diffractometer Thin-slice!and'scans Absorption correction: none 9752 measured re¯ections 5740 independent re¯ections 4041 re¯ections withI> 2(I)

Rint= 0.026 max= 27.5 h= 0!26

k= 0!26

l=ÿ16!15

Re®nement

Re®nement onF2 R[F2_{> 2(F}2_{)] = 0.053} wR(F2_{) = 0.135} S= 1.03 5740 re¯ections 301 parameters

H-atom parameters constrained

w= 1/[2_(F

o2) + (0.0488P)2

+ 2.9233P]

whereP= (Fo2+ 2Fc2)/3

(/)max< 0.001

max= 0.20 e AÊÿ3

min=ÿ0.16 e AÊÿ3

Table 1

Hydrogen-bonding geometry (AÊ,_).

DÐH A DÐH H A D A DÐH A

C6AÐH6A N1B 0.95 2.48 3.368 (2) 156

C2BÐH2B N1A 0.95 2.83 3.630 (2) 143

C6CÐH6C N1D 0.95 2.45 3.339 (2) 156

C2DÐH2D N1C 0.95 2.88 3.661 (2) 140

H atoms were placed geometrically and re®ned with isotropic

Figure 2

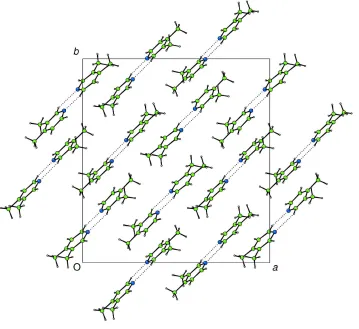

Projection on to (001) of a single layer in (I), showing dimers linked by

Figure 3

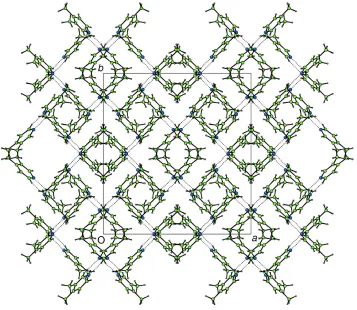

Projection on to (001) of the entire structure of (I), showing layers of dimers oriented alternately parallel to (110) and (110) (CAMERON; Watkinet al., 1996).

Figure 1

The asymmetric unit and atom-labelling scheme in (I), showing displacement ellipsoids (C/N atoms) at the 50% probability level (XP; Sheldrick, 1993). Independent molecules are denoted by the suf®xesA,B,

organic papers

o330

chemically equivalent H atoms (one parameter for all methyl H atoms, four parameters in total). Each methyl group was allowed to rotate about its local threefold axis.

Data collection:COLLECT(Nonius, 1998); cell re®nement:HKL SCALEPACK(Otwinowski & Minor, 1997); data reduction:HKL DENZO and SCALEPACK (Otwinowski & Minor, 1997); program(s) used to solve structure:SIR-92 (Altomareet al., 1994); program(s) used to re®ne structure:SHELXL97 (Sheldrick, 1997); molecular graphics:XP(Sheldrick, 1993) andCAMERON(Watkinet al., 1996); software used to prepare material for publication:

SHELXL97.

We thank the EPSRC for ®nancial assistance towards the purchase of the Nonius CCD diffractometer.

References

Altomare, A., Cascarano, G., Giacovazzo, C., Guagliardi, A., Burla, M. C., Polidori, G. & Camalli, M. (1994).J. Appl. Cryst.27, 435.

Bond, A. D., Davies, J. E. & Kirby, A. J. (2001).Acta Cryst.E57, o1242±o1244. Bond, A. D. & Davies, J. E. (2002a).Acta Cryst.E58, o5±o7.

Bond, A. D. & Davies, J. E. (2002b).Acta Cryst.E58, o326±o327. Davies, J. E. & Bond, A. D. (2001).Acta Cryst.E57, o947±o949. Nonius (1998).COLLECT. Nonius BV, Delft, The Netherlands.

Otwinowski, Z. & Minor, W. (1997). Methods in Enzymology, Vol. 276,

Macromolecular Crystallography, Part A, edited by C. W. Carter and R. M. Sweet, pp. 307±326. London: Academic Press.

Sheldrick, G. M. (1993).XP. University of GoÈttingen, Germany. Sheldrick, G. M. (1997).SHELXL97. University of GoÈttingen, Germany. Watkin, D. J., Prout, C. K. & Pearce, L. J. (1996).CAMERON. Chemical

supporting information

Acta Cryst. (2002). E58, o328–o330 [doi:10.1107/S1600536802003379]

3,4-Lutidine

Andrew D. Bond and John E. Davies

S1. Comment

As part of a study devoted to improving the techniques for determining the crystal structures of substances that are

liquids at room temperature, we have reported previously the crystal structures of 2,6-lutidine (Bond et al., 2001),

3,5-lutidine (Bond & Davies, 2002a) and 2,5-lutidine (Bond & Davies, 2002b). We report here the crystal structure of

3,4-lutidine, (I), determined at 150 (2) K following in situ crystal growth from the liquid.

Compound (I) crystallizes in the monoclinic space group C2/c with four independent molecules in the asymmetric unit

(Fig. 1). Within the asymmetric unit, molecules are linked into dimers via C—H···N interactions (Table 1). In the

structures of the other lutidines reported to date, molecules are linked into linear chains via C—H···N interactions

involving the H atom at the 4-position; this interaction is clearly prohibited in (I). Two orientations may be envisaged for

dimerization in which a centrosymmetric motif would result: either both molecules interact through the H atoms at their

2-positions, or both interact through the H atoms at their 6-positions. The observed dimer involves one molecule of (I)

interacting through H at the 2-position and one interacting through H at the 6-position, giving rise to an asymmetric motif

(point symmetry 1). In both independent dimers within the asymmetric unit, the interaction C6—H6···N1 is significantly

shorter and closer to linear than the C2—H2···N1 interaction (Table 1). This is not obviously an intra-dimer effect and

may be a result of inter-dimer interactions between methyl substituents. The dimers may be considered to form layers

parallel to (001), with the planes through the dimer units lying alternately parallel to (110) and (110) in adjacent layers

(Figs. 2 and 3).

S2. Experimental

The sample (99%) was obtained from the Aldrich company and used without further purification. The crystal was grown

in a 0.3 mm glass capillary tube at ca 235 K (a temperature only slightly less than the melting point of the solid in the

capillary) using a technique described earlier (Davies & Bond, 2001). Once grown, the crystal was cooled to 150 (2) K

for data collection. The length of the cylindrical crystal was not estimated, but it exceeded the diameter of the collimator

(0.35 mm).

S3. Refinement

H atoms were placed geometrically and refined with isotropic displacement parameters, with common parameters

assigned to chemically equivalent H atoms (one parameter for all methyl H atoms, four parameters in total). Each methyl

supporting information

sup-2

Figure 1

The asymmetric unit and atom-labelling scheme in (I), showing displacement ellipsoids (C/N atoms) at the 50%

Figure 2

Projection on to (001) of a single layer in (I), showing dimers linked by C—H···N interactions orientated parallel to (110)

supporting information

sup-4

Figure 3

Projection on to (001) of the entire structure of (I), showing layers of dimers oriented alternately parallel to (110) and

(110) (CAMERON; Watkin et al., 1996).

3,4-dimethylpyridine

Crystal data

C7H9N Mr = 107.15

Monoclinic, C2/c a = 20.9006 (8) Å

b = 20.6112 (9) Å

c = 12.9921 (3) Å

β = 115.135 (2)°

V = 5066.9 (3) Å3 Z = 32

F(000) = 1856

Dx = 1.124 Mg m−3 Melting point: 261 K

Mo Kα radiation, λ = 0.7107 Å Cell parameters from 9883 reflections

θ = 1.0–27.5°

µ = 0.07 mm−1 T = 150 K

Cylinder, colourless 0.15 mm (radius)

Data collection

Nonius KappaCCD diffractometer

Radiation source: fine-focus sealed tube Thin–slice ω and φ scans

9752 measured reflections 5740 independent reflections

4041 reflections with I > 2σ(I)

Rint = 0.026

θmax = 27.5°, θmin = 3.7° h = 0→26

k = 0→26

Refinement

Refinement on F2 Least-squares matrix: full

R[F2 _{> 2σ(F}2_{)] = 0.053} wR(F2_{) = 0.135} S = 1.03 5740 reflections 301 parameters 0 restraints

Primary atom site location: structure-invariant direct methods

Secondary atom site location: difference Fourier map

Hydrogen site location: inferred from neighbouring sites

H-atom parameters constrained

w = 1/[σ2_(F

o2) + (0.0488P)2 + 2.9233P] where P = (Fo2 + 2Fc2)/3

(Δ/σ)max < 0.001 Δρmax = 0.20 e Å−3 Δρmin = −0.16 e Å−3

Special details

Experimental. Crystal grown in situ in a 0.30 mm Lindemann tube.

Geometry. All e.s.d.'s (except the e.s.d. in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell e.s.d.'s are taken into account individually in the estimation of e.s.d.'s in distances, angles and torsion angles; correlations between e.s.d.'s in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell e.s.d.'s is used for estimating e.s.d.'s involving l.s. planes.

Refinement. Refinement of F2 _{against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F}2_, conventional R-factors R are based on F, with F set to zero for negative F2_{. The threshold expression of F}2 _{> σ(F}2_{) is used} only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2₎

x y z Uiso*/Ueq

N1A 0.23300 (7) 0.60065 (6) 0.01432 (10) 0.0421 (3)

C2A 0.26063 (8) 0.64157 (7) −0.03603 (12) 0.0394 (3)

H2A 0.2424 0.6398 −0.1166 0.048 (2)*

C3A 0.31361 (7) 0.68629 (7) 0.01988 (11) 0.0323 (3)

C4A 0.33999 (7) 0.68930 (7) 0.13817 (11) 0.0329 (3)

C5A 0.31180 (8) 0.64716 (7) 0.19112 (12) 0.0363 (3)

H5A 0.3287 0.6478 0.2715 0.050 (2)*

C6A 0.25910 (8) 0.60414 (7) 0.12734 (12) 0.0375 (3)

H6A 0.2406 0.5758 0.1657 0.047 (2)*

C7A 0.34097 (8) 0.72962 (8) −0.04567 (13) 0.0432 (4)

H7AA 0.3154 0.7205 −0.1271 0.0730 (13)*

H7AB 0.3915 0.7215 −0.0214 0.0730 (13)*

H7AC 0.3338 0.7751 −0.0312 0.0730 (13)*

C8A 0.39661 (9) 0.73682 (8) 0.20617 (14) 0.0498 (4)

H8AA 0.4119 0.7284 0.2874 0.0730 (13)*

H8AB 0.3780 0.7811 0.1884 0.0730 (13)*

H8AC 0.4370 0.7320 0.1871 0.0730 (13)*

N1B 0.15531 (6) 0.49769 (6) 0.18226 (10) 0.0391 (3)

C2B 0.12057 (7) 0.48533 (7) 0.07082 (12) 0.0355 (3)

H2B 0.1335 0.5098 0.0206 0.048 (2)*

C3B 0.06718 (7) 0.43973 (7) 0.02281 (11) 0.0319 (3)
