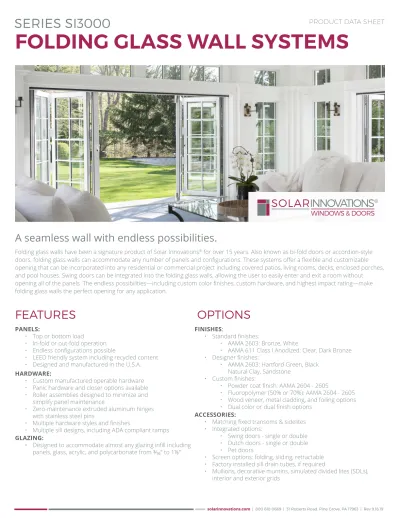

A seamless wall with endless possibilities.
Folding glass walls have been a signature product of Solar Innovations® for over 15 years. Also known as bi-fold doors or accordion-style doors, folding glass walls can accommodate any number of panels and configurations. These systems offer a flexible and customizable opening that can be incorporated into any residential or commercial project including covered patios, living rooms, decks, enclosed porches, and pool houses. Swing doors can be integrated into the folding glass walls, allowing the user to easily enter and exit a room without opening all of the panels. The endless possibilities—including custom color finishes, custom hardware, and highest impact rating—make folding glass walls the perfect opening for any application.
PANELS:
• Top or bottom load
• In-fold or out-fold operation • Endless configurations possible
• LEED friendly system including recycled content • Designed and manufactured in the U.S.A. HARDWARE:
• Custom manufactured operable hardware • Panic hardware and closer options available • Roller assemblies designed to minimize and
simplify panel maintenance
• Zero-maintenance extruded aluminum hinges with stainless steel pins
• Multiple hardware styles and finishes
• Multiple sill designs, including ADA compliant ramps GLAZING:
• Designed to accommodate almost any glazing infill including panels, glass, acrylic, and polycarbonate from 3⁄16″ to 1⅛"
FINISHES:
• Standard finishes:
• AAMA 2603: Bronze, White
• AAMA 611 Class I Anodized: Clear, Dark Bronze • Designer finishes:
• AAMA 2603: Hartford Green, Black Natural Clay, Sandstone
• Custom finishes:
• Powder coat finish: AAMA 2604 - 2605
• Fluoropolymer (50% or 70%): AAMA 2604 - 2605 • Wood veneer, metal cladding, and foiling options • Dual color or dual finish options
ACCESSORIES:
• Matching fixed transoms & sidelites • Integrated options:
• Swing doors - single or double • Dutch doors - single or double • Pet doors
• Screen options: folding, sliding, retractable • Factory installed sill drain tubes, if required
• Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids
FEATURES
OPTIONS
FOLDING GLASS WALL SYSTEMS
solarinnovations.com | 800 618 0669 | 31 Roberts Road, Pine Grove, PA 17963 | Rev 9.16.19 White
HARDWARE
A
:
Handles
A
B
(on reverse)B
C
D
Finish Options White Black Matte BlackSatin Nickel* Satin Chrome
Additional handle styles, colors, and back plate options available upon request. Non-standard handle options may increase lead times and/or cost. All handles available with thumbturn
interior lock with lever exterior, lever interior and exterior, and thumbturn interior lock with keyed exterior options.
Finish Options Frankfurt London
STANDARD OPTIONS ALUMINUM - INLAND APPLICATIONS
Toronto Allegro Satin Chrome Antique Brass Polished Chrome Dark Bronze White Polished Brass Pewter Black Polished Chrome* Rustic Umber Oil Rubbed Brass
White Satin Nickel* Brushed Chrome* Matte Black Brass* Antique Nickel* Pure White Pure Silver Venice
Capri Ródos München New Orleans Dallas
BRASS - INLAND APPLICATIONS SOLID BRASS - COASTAL APPLICATIONS*
Verona
C
:
Hinges
D
:
Locks
Closer, Catch, & Limiter
B
:
Pull Hardware
Wire Pull Hinge (Out-Fold) Recessed Pull (In-Fold)Door Closer Finishes: Aluminum Painted, Bronze, Black
Custom color options are also available with engineer approval.
Adjustable Door Catch Finishes:
Clear Anodized, Dark Bronze Anodized, White Painted, and Bronze Painted.
Semi-Concealed Hinge
Door Limiter Adjustable
Door Catch
Commercial Panic Hardware Options
Passive Hardware Sets
Exterior Entry Trim SQUARE Mortise Panic Wire Pulls Square Commercial Toronto
Push/Pull Push Only
Concealed vertical rod available on commercial panic hardware.
D Series 7414
Door Closer D Series TS93 Door Closer C Series PR82Door Closer
Surface Mount Hinge Low Profile
Handle
SI Bronze
SI White Class I Clear Anodized
Dark Bronze Anodized
Pull Hardware, Hinge, and Lock Finish Options
Two Point
Locking Handle Keyed LockTwo Point Thumb TurnLock Flush BoltStandard
CONFIGURATIONS
W P = W a l l P a n e l S D = S i n g l e D o o r D D = D o u b l e D o o r D A = D o o r A d a p t e r F J = F l o a t i n g J a m b W P W P A L L W A L L W P W P W P S P L I T W A L L W P W P W P W P W P W P W P W P W P W P W P F J W P D O U B L E D O O R W P W P W P W P D D D D W P W P S I N G L E D O O R W P W P W P W P S D S D D A W P W P S D 1 3 5 ˚ N O P O S T 9 0 ˚ N O P O S T S E G M E N T E D R A D I U S W P W P W P W P W P S D W P D D W P W P S D W P W P W P W P W P W P S D S D D D W P W P D D S D D DCustom configurations available upon request.
W P C E N T E R P I V O T W P W P W P W P
Please Note: All hardware is subject to vendor availability. Custom finishes may be available upon request at additional lead time and/or cost. Solar Innovations® reserves the right to discontinue
any hardware option at any time. Please be sure to visit our website for additional product information: www.solarinnovations.com Impact Panic
solarinnovations.com | 800 618 0669 | 31 Roberts Road, Pine Grove, PA 17963 | Rev 9.16.19
GRID OPTIONS
Colonial Grid Detail on Monolithic Glass Low Profile Grid
with SDL Ogee Gridwith SDL Traditional Gridwith SDL
Low profile grids can be used on all systems. Colonial, Ogee, and Traditional grids cannot be used on sliding glass doors, windows, or walls. Please visit www.solarinnovations.com for additional decorative options. English Grid
Arched Grid Gothic Grid Double Gothic Grid Traditional Grid Cross Grid
Interior Muntin Grid Detail
on Insulated Glass 1 ¼" Traditional Gridwith SDL
To find out more about the features and options of our folding glass walls, visit our website at solarinnovations.com/folding-glass-walls/
or contact one of our sales representatives at 800 618 0669.
FINISH OPTIONS
SI Bronze SI Bronze SI White SI White Class I ClearAnodized Dark Bronze Anodized
Paint STANDARD - AAMA 2603 (5 year warranty). Finishes available while in stock.
Paint DESIGNER - AAMA 2604 (5 year warranty), AAMA 2605 (10 year; up to 20 year warranty). Scratch & fade resistant; contains no VOCs.*
SI Sandstone SI Sandstone SI Black SI Black SI Natural Clay SI Natural Clay SI Hartford Green SI Hartford Green Copper Rheinzink
Bright Rolled Rheinzink Blue Gray Graphite GrayRheinzink Brass
#4 Polished
Stainless Steel Bronze
Metal Clad STANDARD* Metal Clad DESIGNER*
Anodized Additional cost
Dark Walnut 1802 DS 733 Textured DS 403 Smooth Knotty Pine 2103 DS 716 Textured DS 402 Smooth Acacia 1001 DS 716 Textured DS 402 Smooth Acacia 1001 DS 733 Textured DS 403 Smooth Douglas Fir 1501 DS 716 Textured DS 402 Smooth Cherry 1402 DS 716 Textured DS 402 Smooth Oak Assi 2501 DS 733 Textured DS 403 Smooth Cherry 1402 DS 733 Textured DS 403 Smooth Teak 2601 DS 706 Textured Mahogany Finish
Decoral Finishes (Powder Coat)*
National Walnut 1806 DS 706 Textured Mahogany Finish Copper Burgundy SRSL 62487 FRSL 62496 Bone White SRSL 82520 FRSL 82909 Fashion Gray SRSL 74008 FRSL 74652 Colonial Gray SRSL 74009 FRSL 74653 Apollo White SRSL 82519 FRSL 82908 Ivory SRSL 45891 FRSL 46646 Hartford Green SRSL 32545 FRSL 32872 Sandstone SRSL 45892 FRSL 46647 Seawolf SRSL 46636 FRSL 46645 Black SRSL 11386 FRSL 11390 Antique Bronze SRSL 45893 FRSL 46648 Military Light Blue SRSL 21708 FRSL 21709 Champagne Charcoal SRSL 74007 FRSL 74654 Pewter
Powder Coat Solids AAMA 2604 (10 year warranty), AAMA 2605 (10 year; up to 20 year warranty). Scratch & fade resistant; contains no VOCs.*
Powder Coat Metallics AAMA 2604, AAMA 2605*
Silver Sparkle
Note: Depending upon color selection, additional charges and increased lead times may apply. Extended warranties and service plans are available for an additional charge. Examples are shown as accurate as
photography and printing processes allow. Final finish selection should be made from a physical sample; contact Solar Innovations® for samples. Product and finish options are subject to vendor availability. Solar
Innovations® reserves the right to discontinue any option at any time without notice. Additional options, including custom color match, are available; contact Solar Innovations® for details. FSC options available.
White Ash Hard Maple
Red Oak White Oak Douglas Fir Cherry Sapele Mahogany Walnut
Wood/GlulamDESIGNER*
Wood/GlulamSTANDARD*
White Oak Ponderosa (White) Pine Pecan Pine
Wood Veneering (Unfinished)STANDARD* Wood Veneering (Unfinished)DESIGNER*
Cherry Honduran
Mahogany
Douglas Fir Walnut
• Designed to accommodate almost any monolithic, insulated, laminated, decorative, polycarbonate, or solid panel infill from 3⁄16″ to 1¼″
G2 Aluminum Folding Glass Wall Systems are a great way to open your environment. The frame uses a thermal strut system that separates the interior metal from the exterior metal. By including a thermal break, the temperature transfer between the outdoors and indoors is minimized.
The frames are available in two vertical stile widths: narrow and standard. The widths can be combined over multiple units for a unique style or kept consistent throughout. This flexibility allows multiple sightline and bottom rail configurations that can be retrofitted to match an existing opening or accommodate specific structural requirements.
G2 Thermal System
G2 Nonthermal Aluminum Folding Glass Wall Systems
are ideal for mild climates and indoor uses. This system is popular for conference rooms, interior commercial entryways, classrooms, as well as residential and commercial room dividers. Frames are available in two vertical stile widths: narrow and standard. These can be combined over multiple units for a unique style or kept consistent throughout.
G2 Nonthermal System
G2 FOLDING GLASS WALLS
• Water performance up to 15psf, depending on sill choice and configuration
• Structurally tested up to a design pressure of 80psf
• Higher design pressure ratings available with engineering approval • Test results available upon request • Minimum panel size: 18" wide;
smaller panels may be available upon engineering approval • Panel size up to 3′ x 10';
larger panel options may be available depending on application
Panels
Glazing
Performance
National Fenestration Rating Council®
NFRC
solarinnovations.com | 800 618 0669 | 31 Roberts Road, Pine Grove, PA 17963 | Rev 9.16.19
33/8″ 33/8″ 43/8″
61/8″
10″
27/16″ 27/16″ 25/8″ 31/2″
REGULAR JAMB - REGULAR FRAME NARROW JAMB - REGULAR FRAME NARROW JAMB - NARROW FRAME
Regular G2 Jamb & Frame
63/8" 7" 63/8" 21/4" Recessed Standard* Water: 12.0psf outfold, 9.0psf infold Standard* Water: 12.0psf outfold, 9.0psf infold Recessed Flush* Water: 9.0psf
Recessed with Ramps*
Limited air & water performance similar to commercial door because of tank
ADA Surface Mount Surface Mount Recessed
Flush Hat
REGULAR JAMB - REGULAR FRAME NARROW JAMB - REGULAR FRAME NARROW JAMB - NARROW FRAME REGULAR JAMB - REGULAR FRAME NARROW JAMB - REGULAR FRAME NARROW JAMB - NARROW FRAME
Narrow G2 Jamb & Regular G2 Frame Narrow G2 Jamb & Frame
41/2"
57/16"
Top and bottom horizontals unable to utilize narrow framing. Options dependent upon desired size and engineering requirements.
7" 57/16" 51/8" 41/2"
21/4"
21/4"
Top & Bottom Load Sill Options
Top Load Only Sill Options
Vertical & Horizontal Rail Options
Mullion Options
Head
Detail StandardThermal ThermalNarrow Narrow Mullion Standard Mullion
21/4"
Heavy
Thermal 10″ BottomRail Standard
Nonthermal NonthermalNarrow StretchRail
(True Divided Lites)
Please note: All mullions offered by
Solar Innovations® include thermal break, regardless of the system.
Jamb Details
33/8″ 33/8″ 27/8″ 33/8″ 21/4″ 7/8″ 27/16″ 145/16″ 21/8″ 27/8″ 25/8″ 27/32″ 1/2″ 3/4″ 3/4″ 21/8″ 17/8″ 27/8" 21/4" 21/4" 21/4" 21/4" 21/4" 21/4" 21/4" 21/4"*Florida Impact Tested Options
*G2 Center Pivot Folding Glass Walls will get limited air and water performance.
The G3 nonthermal system is ideal for applications that do not require thermal performance, including mild climates and indoor uses—this system is popular for interior entryways and room dividers.
Our G3 Extra Narrow Marine Glazed Folding Glass Wall System uses a patented design to combine vertical marine glazing with horizontal stop glazing in order to create a much narrower vertical frame than conventional stop glazed doors. The G3 Extra Narrow
Marine Glazed System is the narrowest four-sided thermally broken glazed bi-fold door in the market.
G3 Nonthermal System
G3 Marine Glazed System
G3 Aluminum Folding Glass Wall Systems are designed forcommercial and residential applications that require higher design pressures. This system has been designed to support larger sizes with ease of operation and offers exceptional air, water, structural, and thermal performance. The frame uses a thermal strut system that separates the interior metal from the exterior metal. By including this thermal break, the temperature transfer between the outdoors and indoors is limited.
Frames are available in three vertical stile widths: standard, narrow, and xtra narrow. You can select a consistent vertical width or mix and match the three stile widths to create a truly unique product. This system was created with similar sightlines to the G2 systems so that the two could be used together if desired. The flexibility of both systems allows multiple sightline and bottom rail configurations that can be retrofitted to match an existing opening or accommodate specific structural requirements.
G3 Thermal System
G3 FOLDING GLASS WALLS
• Water performance up to 15psf, depending on sill choice and configuration
• Structural tested up to a design pressure of 100psf
• Higher water and structural
performance available with engineering approval
• Test results available upon request • Minimum panel width: 24″;
smaller panels may be available based upon engineering
• Panel size up to 3' x 15'; larger panel options may be available depending on application
• Designed to accommodate almost any monolithic, insulated, laminated, decorative, polycarbonate, or solid panel infill from ¼″ to 1½″
Panels
Glazing
Performance
Performance does not apply to G3 Marine Glazed System.
SOLAR
solarinnovations.com | 800 618 0669 | 31 Roberts Road, Pine Grove, PA 17963 | Rev 9.16.19 Stretch Rail Marine Glazed Horizontals Head Detail 10" Bottom Rail Marine Glazed Verticals Stretch Rail Stretch Rail Marine Glazed Horizontals Head Detail 10" Bottom Rail Marine Glazed Verticals Stretch Rail Marine Glazed Horizontals Head Detail 10" Bottom Rail Marine Glazed Verticals Stre tch R ail Mar ine G laz ed Hor izo nta ls Hea d D eta il 10" B otto m R ail Mar ine G laz ed Ver tic als G3 Standard Sill Water: Air: Water:
Air: Water: 12.0psfAir: Water: 12.0psfAir:
G3 Recessed Flush Dual Wheel
FGW Sill
G3 Recessed Dual Wheel FGW Sill With
Ramps G3 Recessed Standard Dual Wheel FGW Sill Standard Thermal Head
Detail NonthermalStandard ThermalNarrow Xtra NarrowThermal 10" Bottom Rail Xtra NarrowMullion Door MullionG3 Terrace G3 Mullion 275
Narrow G3 Jamb & Frame Xtra Narrow G3 Jamb & Frame Narrow G3 Jamb & Standard G3 Frame
Standard G3 Jamb & Frame
Top & Bottom Load Sill Options
Top Load Only Sill Options
Vertical & Horizontal Rail Options
Jamb Details
Gen 3 Regular Frame Non-Thermal RailG3 Regular G3 LT FGW Frame G3 LT Non-ThermalFrame Gen 3 LT G3 Mullion 275 1-13/16" Frame G3 Heavy 1-13/16"Frame Gen 3 TerraceDoor Mullion
Gen 3 Regular Frame Non-Thermal RailG3 Regular G3 LT FGW Frame G3 LT Non-Thermal G3 Mullion 275
Frame 1-13/16" FrameGen 3 LT G3 Heavy 1-13/16"Frame Gen 3 TerraceDoor Mullion
Gen 3 Reg ula r F ram e G3 Mul lio n 2 75 e ram W F FG LT G3 G3 Reg ula r al R erm -Th Non ail G3 LT Non -Th erm al me Fra Gen 3 LT 6" F 3/1 1-1 ram e Gen 3 Ter rac
en ullio r M Doo 6" 3/1 1-1me vy Fra Hea G3 Gen 3 Reg ula r F ram e G3 Mul lio n 2 75 e ram W F FG LT G3 G3 Reg ula r al R erm -Th Non ail G3 LT Non -Th erm al me Fra Gen 3 LT 6" F 3/1 1-1 ram e Gen 3 Ter rac
en ullio r M Doo 6" 3/1 1-1me vy Fra Hea G3 e ram r F ula Reg 3 Gen G3 Mul lio n 2 75 e ram W F FG LT G3 G3 Reg ula r al R erm -Th Non ail G3 LT Non -Th erm al me Fra Gen 3 LT 6" F 3/1 1-1 ram e Gen 3 Ter rac
en ullio r M Doo 6" 3/1 1-1me vy Fra Hea G3
NARROW JAMB XTRA NARROW VERTICAL -NARROW HORIZONTAL FRAMENARROW JAMB XTRA NARROW VERTICAL
-NARROW HORIZONTAL FRAME
63/8" 7" 7 5/8" 57/16" 7" 611/16" 41/2" 5 1/8" 5 3/4" 311/16" 31/2" 5 3/4"
3" 3" 3" 3"
Mullion Options
(True Divided Lites)Please note: All mullions offered by
Solar Innovations® include thermal break, regardless of the system.
(Vertical)
Top and bottom horizontals unable to utilize narrow or xtra narrow framing. Options dependent upon desired size and engineering requirements. 33/8" 37/8" 27/32" 1/2" 10″ 53/8" 31/2" 31/8" 35/16" 41/4" 31/2" 29/16" 15/8" 3" 3" 3" 3" 3" 3" 3" 3" 3" 31/2"
*Florida Impact Tested Options
G3 Standard Sill Water:
Air: Water:
Air: Water: 12.0psfAir: Water: 12.0psfAir:
G3 Recessed Flush Dual Wheel
FGW Sill
G3 Recessed Dual Wheel FGW Sill With
Ramps G3 Recessed Standard Dual Wheel FGW Sill G3 Standard Sill Water: Air: Water:
Air: Water: 12.0psfAir: Water: 12.0psfAir:
G3 Recessed Flush Dual Wheel
FGW Sill
G3 Recessed Dual Wheel FGW Sill With
Ramps G3 Recessed Standard Dual Wheel FGW Sill G3 Standard Sill Water: Air: Water:
Air: Water: 12.0psfAir: Water: 12.0psfAir:
G3 Recessed Flush Dual Wheel
FGW Sill
G3 Recessed Dual Wheel FGW Sill With
Ramps G3 Recessed Standard Dual Wheel FGW Sill Standard* Water: 12.0psf outfold, 9.0psf infold Recessed Standard* Water: 12.0psf outfold, 9.0psf infold Recessed Flush* Water: 9.0psf 4" 31/2" 31/2" 33/8" 37/8" 27/8" 25/8" 21/8" 21/8" 17/8"
ADA Surface Mount Surface Mount Recessed Flush Hat 21/4″ 7/8″ 27/16″ 145/16″ 3/4″ 3/4″
*G3 Center Pivot Folding Glass Walls will get limited air and water performance.
55/8″
Recessed with Ramps*
Limited air & water performance similar to commercial door because of tank
