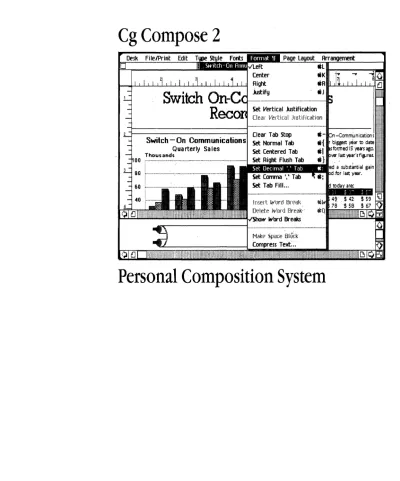

CgCompose 2
Clear Tab Stop
Set Normal Tab
CgCompose2
Personal Composition System
©
March 1985Compugraphic Corporation 200 Ballardvale Street Wilmington, Mass. 01887
Prepared by:
Course Development, Educational Services
Compugraphic Personal Composition System is a trademark of Compugraphic Corporation.
Apple, Lisa, and ProFile are trademarks of Apple Computer, Inc.
This manual describes the configurations and operating procedures of Cg Compose 2 software and the Personal Composition System. Due to the many forms of applications, the recommended procedures should be adhered to.
This document is an instruction aid in the operation of this system. Compugraphic Corporation shall not be responsible for any claims or damages resulting from any errors or omissions. Please report any errors or omissions to Course Development, Educational Services.
Contents
7 Using the Manuals 8 Introducting Compose8 About This Manual
9 Chapter 1: Learning Cg Compose 2
11 Introduction
11 Seeing What's on a Disk
12 To Open the Disk Icon
13
Opening a Document15 The Compose Document
16 Practice with Cg Compose 2 21 Making a Compartment 22 Duplicating a Compartment 22 Aligning Compartments 23 Locking in Place
23 Moving a Figure to a Page 24 Formatting Text in a Galley 25 Linking Compartments
26 Merging Text into a Compartment 27 Entering Text into a Compartment 27 Changing Typestyle
28 Kerning Text 29 Cutting Text 30 Inserting Rules
31 Changing Composition Defaults 32 Using Vertical Justification 33 Making a Space Block
34
Inserting Word Breaks 35 Making a Header 35 Making a Footer 36 Inserting a Page Number 37 Accept and Design a Page 40 Setting Tabs43 Output on the ImageWriter
44 Output on '!Ypesetter or EP 308 Printer
46 Putting Your Document Away
50 Introduction
51 The Cg Compose 2 Window
52 Text and Figures 52 About Menus 54 Pointers 54 Selecting 55 Compose Paper 56 The Compose Page 56 Linking Compartments 57 Page Size
57 Group and Lock Objects 57 Entering And Editing Text 58 Format Text
59 Tabs 60 Page layout 60 Design Page 60 Rulers 61 Scrolling 63 Output
Typeset a Memo 64 Making a Stationery Pad
66 Page Size
67 Composition Defaults 68 Default Printer 68 Making a Galley 69 Making Compartments 69 Entering Text
71 Copying a Source Document 72 Pasting a Figure
72 Making a Rule 73 Placing Rules
74 Making a Stationery Pad 74 Creating a Source Document 76 Pasting Text onto a Galley 77 Changing Fonts
78 Output Memo on Typesetter 79 Putting a Document Away
Prepare a News Release 82 Preparing a Source Document
86 Changing Linespace
87 Changing Fonts
89 Setting Vertical Justification
90 Changing Wordbreaks
90 Inserting Space Blocks
Create a Brochure 93 The Landscape Mode
94 Editing in the Source Tool
97 Page Size
99 Matching Compartments
100 Change Fonts in Galley
101 Making a Space Block
103 Placing Rules
104 Merging Text
105 Moving Compartments Filled with Text
106 Placing Compartments Within Compartments
107 Shading a Compartment
109 Typeset the Brochure
III Chapter 3: Cg Compose 2 Reference
Il3 Introduction
Il3 Desk Menu
114 File/Print Menu
119 Edit Menu
121 Type Style Menu
122 Fonts Menu
125 Format
1
Menu127· Page Layout Menu
130 Arrangement Menu
133 Chapter 4: System Setup
135 Introduction
135 System Set Up
136 Install Cg Compose 2 Tool
137 Install Cg Compose Software
138 Install Cg Device Driver Software
141 Examples Folder
142 Repair the Disk
143 Diskettes
145 Chapter 5: Font Librarian
147 Introduction
147 Environments Window
148 Font Librarian
149 Font Librarian Menu Items
150 Cg Fonts Library
152 Representative Fonts Library
153 Diskette Masters
154 Installing Fonts
156 Changing the Font Library
159 Chapter 6: Compugraphic EP 308
161 Introduction
162 Hardware Components
165 Essentials
166 Installing the System
167 Overview of Installing Intellifonts and Application Program
168 Command File
170 Sample Command File
171 Installing Intellifonts and the Application Program
176 Powering Up the EP 308
177 Copy Counter
177 Toner Cartridges
184 Procedure to Print
189 Troubleshooting
195 Introduction
195 System Components
197 Software Components
198 8400 Font Setup
199 Assigning UID Numbers
200 Font Librarian Utilities
204 Status Messages
205 Font Dump Utility
206 Loading the 8400 Program For Daily Operation
206 Format for Printer
207 Typesetting a Document on the 8400
208 Troubleshooting
211 Chapter 8: Compugraphic 8600
213 Introduction
213 Hardware Components
214 Essentials
215 Assigning 8600 Font Position Numbers
216 Installing Fonts on the 8600 Hard Disk
217 Messages and Meanings
217 Font Directory
218 Using the 8600 For Daily Operation
218 Format for Printer
219 Typesetting a Document On the 8600
220 Troubleshooting
221 Appendix
223 Cg Compose 2 and Other Tools
225 Apple Key Combinations
226 Personal Composition System Available Type Styles
227 Keyboard Layout
Using the Manuals
Cg Compose 2 Manual
Getting Started
Your Personal Composition System will be installed following the procedures in Chapter 6, Setting Up Your System, in the Lisa Office System Manual. Each of the Personal Composition System software tools has a manual that teaches how to use the tool.
This manual will teach you to use of Cg Compose 2 software. It also includes a separate chapter on each one of the output devices and a quick reference section describing the set up of output devices. If you are already familiar with the Personal Composition System you may want to turn to Chapter 3:Cg Compose 2 Reference, to learn about the software enhancements. If you are new to the Personal Composition System, you should follow the steps listed below.
1 Go through Chapters 1 and 2 in the Lisa Office System Manual for an
introduction to the Lisa. This includes booting the system with Lisa Guide and completing the interactive training.
2 The Lisa Office System Manual also contains other information about how to use your System. For example, it has a trouble shooting section to help you solve problems when the System is not working as it should. As you become more familiar with the System and need more information, check the Table of Contents or the Index for assistance. This may include installing software, setting Preferences, using the calculator, tips on caring for the Lisa, and other desktop management activities.
3 When you are familiar with Personal Composition System basic operating procedures, turn to each of the tool manuals to learn the essentials of using that tool. To learn Compose you will have to know at least the LisaWrite and LisaDraw tools.
~ Go to Chapter 1 of each tool manual to learn about a tool.
~ Go to Chapter 2 for self-paced instructions on using a tool.
~ Go to Chapter 3 for specific instructions for performing a task with a tool.
4 When you feel confident that you can create documents in LisaWrite and LisaDraw you will be ready to learn Cg Compose 2. Go to Chapter 1 of this manual to begin learning about the Compose tool.
Introducing Compose
About This Manual
With Cg Compose 2 you can merge text with all kinds of drawings, such as organization charts, diagrams, flowcharts, and graphics for slide presentations. You can assemble page layouts for reports, brochures, pamphlets, and small newspaper productions. The page on your Personal Composition System screen is displayed as it will appear on the printed page.
Compose (Cg Compose 2) can assist you in communicating information with professional looking graphics. It is a tool that makes it easy to merge text with figures. After you
copy
andpaste
in information from other document tools, youCompose
them so they can be output on a typesetter or EP 308. You use the mouse to produce compartments for text, create rules, and move information around on the screen. Text can be added in your choice of size and style to complete the page.This manual contains three approaches for learning to use Compose:
• Chapter
1:Learning Cg Compose
2, gives you practice with the basic skills of Compose by taking you step by step through a typical example.• Chapter
2:Using Cg Compose
2, contains detailed instructions forperforming specific tasks with Compose. This Chapter'is also a step-by-step guide. It includes three sample jobs that demonstrate how to apply Compose efficiently and effectively.
• Chapter
3:
Cg Compose
2Reference,
summarizes the functions of Compose menus and menu items. It covers how each menu item and dialog box works. Chapters 4 through 8 of this manual contain reference information about specific procedures to set up and operate your Personal Composition System.Chapter 4:
System Set up,
contains preventive maintenance, dilly operating procedures, and trouble shooting information that will be of specific help to all PersonalComposition System users. Chapter
5
covers installing fonts on to the System. You may only need to use the information in this chapter when you first purchase your fonts. Some of the chapters may refer to the configuration of equipment that is not part of your system.Chapter 1
Contents
11 Introduction11 Seeing What's on a Disk
12
To Open the Disk Icon13 Opening a Document
15
The Compose Document16
Practice with Cg Compose 221
Making a Compartment22
Duplicating a Compartment22
Aligning Compartments 23 Locking in Place23
Moving a Figure to a Page24
Formatting Text in a Galley25
Linking Compartments26
Merging Text into a Compartment27
Entering Text into a Compartment27
Changing '!Ypestyle28
Kerning Text29
Cutting Text30
Inserting Rules31
Changing Composition Defaults32
Using Vertical]ustification33
Making a Space Block34
Inserting Word Breaks35
Making a Header35
Making a Footer36
Inserting a Page Number37
Accept and Design a Page40
Setting Tabs43
Output on the ImageWriter44
Output on '!Ypesetter or EP 308 PrinterIntroduction
Have you gone through LisaGuide?
What You'll Need To Get Started
Seeing What's
On A Disk
This Chapter gives you actual hands-on experience with Compose. By going step-by-step through an easy example, you will become familiar with the basic Compose operations. Use this example to experiment with each menu item. Try out several ways to change the text with each new function you learn. Use this time to gain experience and understanding of how Compose works.
It's OK if your screen is a little different than the pictures in the manual, especially if you are developing confidence in using the tool. After completing this chapter you will be able to create, edit, store, and print Compose documents.
The material in this manual assumes that you have gone through LisaGuide, which teaches you the fundamentals of using the Lisa. The LisaGuide diskette comes in the Lisa 717 package. Instructions for using LisaGuide appear in Chapter 1 of the Lisa Office System manual. Important background information about the desktop is found in Chapter 2 of that manual. Make sure you understand the concepts in that section before going on with this manual.
1 A Personal Composition System set up and plugged in.
2 The Disk set up with Lisa Office System and tools, Compugraphic fonts, and Cg Compose 2 software installed.
3 The system turned on.
4 A basic understanding of tool operations, especially LisaDraw and LisaWrite.
5 About
45
minutes.Note: If Your System is not set up, or if you need to install tbe Cg Compose 2 tool, tbe Cg Compose 2 Examples Folder, or tbe Cg Compose 2 Software, see Cbapter 4 System Set Up, in tbis manual.
To get the document you'll work with, you first need to have a duplicate of the Examples Folder copied on your Disk. An explanation of how to duplicate the folder is in Chapter 4. Open the Disk icon as described in the steps below. The icon you will open may be called the ProFile, Internal Hard Disk, Disk, or you may have already named it something else. When you open the Disk you access information stored on the hard disk.
The way you open the Disk will illustrate the most general principle of your Personal Composition System:
• First you select something .
To Open the Disk Icon 1 Select (highlight) the Disk icon by placing the tip of the pointer on it and clicking the mouse button. (Icon not highlighted? Try again.)
2 To open the Disk icon, choose Open "Disk" from the File/Print menu.
~ Press and hold down the mouse button with the tip of the pointer on File/Print in the menu bar.
~ Move the pointer down and release when Open "Disk" is highlighted. (Is the Open menu item dim? You probably clicked somewhere else on the gray part of the screen and deselected the Disk icon. Go back to step 1 and make sure the Disk icon is selected.)
Edit Housek
Set Hside !'.vel'!jt.hinfJ
Set nsidt,~
•••
Duplicate 'I ItO 'f en!' OH Stnti(mel'!l
MnKe stnt:iom?I'!! P(l()
Monitor the Printer •••
3 Notice the Disk window zooms open on your Lisa's desktop. Your Disk is like a very large file drawer-it's where you 'II perform most of your work.
r- Desk file/Print Edit
~
m
~
LJ
~~
LisaWrite Paper LisaDraw Paper lisaTerminal Paper Cg Compose 2 E~amples Lisaproject Paper
lliJ
~
II
. ::LJ
LisaCalc paper LisaLis! Piper LisiGraph Paper cg Compose 2 Paper Empty folders
Opening a Document
To Open the Compose Examples Folder
Inside the Disk window you should see several stationery pads and folders. The Compose Examples folder contains the example you'll be working on here. In the steps below, you will:
• Open the Compose Examples folder.
• Tear off a sheet from the Getting Started stationery pad.
• Move the new sheet, or document, to a clear spot in the folder.
• Give the new document the name Annual Report.
• Open the document.
1 Select the Compose Examples folder by clicking on it.
2 Choose Open Compose Examples from the FilelPrint menu.
Notice the window to the Compose Examples folder and its contents zooms open, as shown. In the folder one of the icons is a stationery pad that has column patterns to indicate it is a Compose icon. This Stationery pad is entitled Getting Started. It contains an example document you will use to learn Cg Compose 2.
,.. Desk File/Print Edit
~
m
[t!J
•
~
LisaWrite Paper LisaDraw Paper LisaTerminal Paper Cg compose 2 Examples LisaProjec\ Paper
II
ffiI
~
II
L:J
LisaCalC paper LisaList Paper Lisa Graph Paper cg compose 2 Paper Empl~ Folders
To Tear off Stationery
To Rename the New Document
1 Select the Getting Started stationery pad icon.
2 Choose Tear Off Stationery from the File/Print menu and wait a moment until the new document appears, as shown.
3 Move the new icon out of the way to a clear spot in the folder:
... Place the pointer on the icon.
... Press and hold down the mouse button and move the icon as shown .
... Release the mouse button.
1 Make sure the new document icon is still selected (highlighted). If you've deselected the icon by clicking elsewhere on the screen, select it again by clicking on it once.
2 Type the name Annual Report. (Typing mistake? Use the IBackspacelkey to correct it.)
,.. Desk File/Print Edit
~
m
~
II
~
lisaWrite Paper lisa Draw Paper lisaTerminal Paper Cg Compose 2 Examples lisaProject Paper
lliJ
~
iD
==L:J
To Open the Annual Report
rulers
compartment with text
1 Make sure the document icon is selected (highlighted).
2 Choose Open ''Annual Report" from the File/Print menu.
Notice how the icon zooms open into a window. Wait a minute-the hourglass means wait-until the Compose tool displays the Annual Report document.
The Compose document is made up of several items that may be new to you. Study the Annual Report document below before going to work on it.
. . ...
:
...:
...:
... : :... :
... : ...
~.... . ... .. ... i "... .. ...
~... : ..
... : ... ; ... :.
galley with a figure
J.~I-.:;k~~==~===:=~~
i ~pasted on it • • • • • • • • D~i
galley with text
Compose Document The Annual Report document is now open on your desktop.
Across the menu bar at the top of the screen are the Compose menu names. Each menu contains a list of actions you can use in a Compose document.
The Compose tool combines the writing and text editing features of Lisa Write with the drawing capabilities of LisaDraw. Text, spreadsheets, lists, drawings, and other graphics can be cut or copied from other Lisa tools and stored ongaUeys that are created at the bottom of the Compose window.
Practice with Compose
Once the page layout is displayed the way that you want it, you may choose to accept the page from the Edit menu. This prohibits any changes to that page unless you choose to edit it again from the Edit menu.
When possible you should make stationery pads out of your most commonly used page layouts and store them on micro diskettes. This will greatly reduce your production time and minimize the time you will have to spend setting up your documents.
Without pressing the mouse button, move the pointer around the screen and notice that it is shaped like an arrow. In Compose this is how it appears when you move compartments and galleys and select menu items.
You will see other kinds of pointers as you go through Getting Started. To enter text into a compartment you will create a the text insertion point by placing the change pointer into the compartment, holding down the~key, and clicking the mouse button. The shape of the pointer changes to a drawing symbol when you draw a rule or choose Make A Compartment from the Page Layout menu.
Imagine you work for a fictional company called Switch-On Communications, Inc. You will put the finishing touches on last year's Annual Report for the big annual meeting.
Text for the Annual Report has been written, edited, and copied as a LisaWrite document. A galley has been created at the bottom of the Compose document on your screen, and the text has been pasted on it through the clipboard.
Two graphs and the company logo have been completed in LisaDraw and copied onto three other galleys at the bottom of the Compose document. You will assemble these components into the Annual Report.
In the next several pages you will learn to:
• Make compartments.
• Move a figure to a page.
• Format text in a galley.
• Merge text from the galley into a compartment.
• Enter text into a compartment.
• Change the typestyle of text.
• Kern text.
• Insert a rule into the report.
• Change the Composition Defaults.
• Use Verticaljusification.
• Make a Space Block.
• Insert Word Breaks.
• Make a Header and Footer
• Insert a page number.
• Accept a page.
• Design a new page.
• Align and Match
• Set Tabs
• Output the report on an ImageWriter
• Output the report on a Typesetter or EP 308.
• Change the selected printer
• Put Your Document Away.
The Annual Report
Page 1
SWITCH-ON COMMUNICATIONS Annual Report
To The Shareholders:
During fiscal 1984, operating results at
Switch-On Communications were substan-tially improved and the Company's financial position was significantly strengthened. The return to profitability in 1984 was the result of the successful completion of four major
and compatibility. A computer that performs one kind of information processing very often will not perform another, and even computers of similar design and function often will not communicate with each other. The Company met this need with new software and hardware products.
corporate initiatives: , -_ _ _ _ _ _ _ _ _ _ _ _ _ _ ---, Software
Comparison of Costs vs Revenues the Software Products 1984 was the year Division began full scale marketing and
Profits on the Rise
In Millions of Dollars Revenues manufucturing. When • The introduction of a
number of options and en-hancements for the new Switch-On Teleport Pro-ducts (STEP Tm).
300 , - - - , D it was formed in 1981,
we projected that it • The improvement of
productivity through cost reduction programs, con-solidation of operations and more efficient use of personnel and facilities.
• The improvement of the corporate financial posi-tion through the purchase of two component supply houses that were respon-sible for 75 % of our finished product costs.
• The improvement of office communications us-ing a Personal Composi-tion System.
200
100
o
1982 1983 1984
Fiscal Year
II1II
Costs would develop, license and sell telephone and communication products for systems. This year, our plans reached fruition when the division began to manufucture and deliv-er the new Memory Re-Dial Option for STEP Systems.
Hardware The company has developed important hardware compatibili-ty enhancements as
New Options
well. This year, for ' - - - ' example, the STEP
Throughout 1984, we continued to expand the number of system configurations for the new product, and also to develop and intro-duce add -on options and enhancements de-signed to broaden the applications and :he price range of this product fiunily.
Within the business environment, equipment can be of limited utility if it lacks versatility
System's ability to "listen to," or accept, in-formation from other computers was upgrad-ed to a two-way, "listen and talk ," to receive information from word and data processing systems and convert it into typesetting keys-trokes. It can also transmit information back to the orginal workstation for additional edit-ing. This is called "telecommunications," because it can occur over ordinary telephone
The Annual Report
Page 2
SWITCH-ON COMMUNICATIONS Annual Report
~
'~. ,linesorbydirectcable . : . . . . . : It makes STEP capable •~.,
S ',.. of complete interaction, ,with the multifunction
: - • networks and systems
: 0 : in modem businesses.
'... ...••• • • • • . All of the Company's telecommunications devices are supported by the Communications Assistance Center, which expanded its staff and resources this year. The center offers na-tionwide set-up and diagnostic assistance to customers with telecommunications.
Cost Control And Productivity
During the first half of 1984, our manufac-turing organization met a steadily accelerat-ing STEP production schedule while syste-matically phasing out our obsolete products. With the purchase of A -I Radio Supply and Eastern Data Bits, we now have direct control
over the price of the microchips that are used in the STEP System.
Cost Reduction Programs
The overall proouctivity of our employees has improved as a result of the hiring freeze and reduction of the work force. It has be-come apparent that our new company motto "Get Serious Or Get Out" has indeed been taken seriously. With this new program, each employee's salary will correspond directly to the meeting of department objectives.
Inter-Office Communication
The communication requirements to meet department objectives have been satisfied by the purchase of Personal Composition Sys-terns for each department. The reduction of typing, filing and copying activities has increased the amount of time available for project goals and customer problems. The economy of typeset communications has
Employee Productivity
We're Getting Serious
Hundreds No of Employees
5000 D
4000 Average
..
salary3000 Units Produced
2000 EJ
1000
0
1982 1983 1984
Fiscal Year
The Annual Report
Page 3
SWITCH-ON COMMUNICATIONS Annual Report
~
:~.: proven itself. Our cus-: . . . . . ' tomers have responded•
~.:
S ':-: positively to theprofes-: : sional approach of our
: - : fiscal 1984 "Are You
• 0 • Really Satisfied" cam-: '. . .... 'paign. The concept : . ... : was bold and
unortho-.... unortho-... unortho-....unortho-....unortho-....unortho-... dox; but backed up with the excellent brochure and return ques-tionnaire, response was an incredible 54 % re-turn by customers. The graph on the preced-ing page shows the increase of productivity, performance and income.
Market reception to the STEP System and its growing number of options and upgrades has been quite favorable. The underlying po-pularity and programmability features of this line of systems give our customers the latest communication capabilities. Yet STEP Sys-tems are sufficiently flexible to allow
up-grades and system expansion when we deve-lop new capabilities or when the customer's needs change. This versatile system is the foundation to our continued growth.
Total Number of Units
1983 1984
Hardware ... 240 ... 320
Software .... 150 ... 850
Support ... 57.. .. ... 980
Making A Compartment The Annual Report requires finishing touches. To layout your page you must make compartments. Compartments control the position of the text on the page. You make a compartment by drawing a rectangle, just like in LisaDraw.
1 Choose Make a Compartment from the Page Layout menu. Notice how the pointer changes to a drawing pointer when the menu item is chosen.
2 Use the pointer to draw the compartment beginning 1 Y2 inches from the top of the page, and 1 inch from the left side of the page. Draw the compartment to the 4 inch mark on the top margin ruler and down to the 9 Y2 inch mark on the side, page ruler.
~ Place the pointer where the upper-left corner of the compartment will be located (see the figure).
~ Press and hold down the mouse button as you move the pointer down to the 9 V2 inch mark and to the right to the 4 inch mark. A box will appear.
~ Release the mouse button when you reach the correct size.
,.. Desk File/Print Edit Type Style Fonts Format 1f Page layout Arrangemert
EI • . .,.
L I 11 I I I 21 I I I 31 I I I I 4 I I I sl I I I I
~
I I i I I~ ~
-. • ...•... ['SWITCB='ON'''COlBlUNlCATIQNSn'l' ....•..
m;
J-= .. :
.
.
...!, ~ : m_ :
,H;:~.~.. ;
_ . ~. _ _ u • • • • • • • _. __ • • __ • • _._ • • _ • • _ • • • • • • • • _ • • • • • • • • • _ • • _ • • • • • _ _ _ • • • _ _ ... _ • • • _ _ _ • • • _ . _ _ _ _ ~--.-...J. ..
_ ... !' .. ---.--.-... --.---.~ ... -.--. .a.-••.. --.. -~.-.... ---_ ... _---", ..
-
i
i
2: j :
=--"'Hi
i
- . ~ +
- . " j : ..
- . 1 1
j : . . \J
L ... j i ... ~
~ To The ShaIeholdelS:
4J!
The company has made great strides inDuplicating a Compartment
Aligning Compartments
The text for the report will be set in dual columns so the compartment that you just made must be duplicated and the new compartment must be placed correctly on the page. Follow the steps below to duplicate the compartment and position it on the right side of the page.
I With the compartment selected, choose Duplicate from the Edit menu. (Pull down the menu, point to the menu item, and release the mouse button.)
2 Place the duplicate compartment 4lh inches from the left margin. Align the top edges of both compartments. (Box not in the right spot? Place the pointer into the box and move it into position.)
If you have trouble aligning the top edges of the compartments, you may choose a menu item to help you. Notice what happens when you select a compartment. Handles appear on the edge of the drawing, showing that it's selected. You can change the shape of the compartment by selecting and moving the handles. You may choose more than one compartment at a time by holding down the IShiftl
key as you select another compartment.
I Press down and hold the IShiftl key and select both compartments.
~ Place the pointer on a compartment.
~ Click the mouse button as you continue holding down the IShiftl key.
~ Select the other compartment.
2 Choose Align Objects ... from the Arrangement menu.
3 Choose Align ... Tops from the dialog box that appears .
Locking In Place
Moving a Figure to the Page
You will find that it is easier to work with compartments if they are locked to the page. Then you will not accidentally move them around when you are trying to perform other functions.
1 With both compartments still selected choose Lock in Place from the Arrangement menu. You will notice that this places a check mark in front of the item on the menu. If you were to select the menu item again, the check mark would be removed and you could again move the compartments.
'::, n ;"
Bring To Front
---~ ~~&d
._---1 Repeat on all Pages
AU", IJljeds ...
Shade IJljeds ...
The galley is the mechanism for entering documents into Compose. A figure can be copied from LisaDraw, LisaProject, or Lisa Graph and pasted onto a galley. It
will remain on the galley until you merge it into the Compose document. You will take the graphic from the galley and move it into the Annual Report. It can be placed anywhere on the page. The most dramatic position will be to place it in the middle of the page so it slightly overlaps both columns of text.
1 You may change the rulers to help you with your layout.
~ Choose Customize Rulers ... from the Page Layout menu.
~ Choose Adjustable Zero-Point: On from the dialog box that appears.
~ ChooseOK.
Formatting Text in a Galley
2 Move the graph figure from the galley to the page.
~ Place the pointer in the upper left corner of the galley with the graph. Press and hold down the mouse button to select it.
~ Move the pointer to drag the galley onto the page. Release the mouse button when the figure is centered between the compartments. The upper left corner will be positioned automatically where the mouse button was released. You may move it around by selecting it.
Note: The figure should be correctly sized before it is brought into Compose. You can not change the size or content of a figure after it has been pasted on a Compose galley.
Text that is created in LisaWrite, LisaCalc, and LisaList can be copied and pasted into a Compose document by placing it first in a galley. While it is being stored in the galley you may change the typestyle, point size, and
compress
the text by addingcharacter compensation
orkerning.
By applying these format attributes to text when it is in the galley you can determine how it will appearbefore
it is placed into a compartment. You can always select blocks of text on the page and change them after you have merged it into Compartments.Linking Compartments
2 Choose Change Fonts in Galley from the Fonts menu. Select the following items to format the text:
~ Change from Apple Classic
~ 12 point
~ Change to Cg Times
~ With a point size of: 12
~ Kerning: Text
~ Character Compensation: Book
3 Click OK. The text on the galley will now change.
,.. Desk Fllt!lPrlnt Edit
Change Fonts in Galley ...
Change From:
o
8 pt,20 pitch 08 pt,15 pitchChange To:
DIlRUSIt
o
AOCKliELL lID ITDlIIll.I1VIM~IIDIT
o
co TIlE! lID ITTIP! Stull! Fonts
DApple MOOERN
o
10 pt,12 pitcho
12 pt,10 pitcho
ROCKVELL I'Do
IIIILIIVIMTE• co TIlE!
o
co MGAIt1th point size of:
f1il
L..-J
Kerning: 0 off • text 0 dl!slgner
Format If PaQI! Layout Rrr~
( (anrel ) • Apple a.ASSI(
.12 point
o
18 point 014 point 024 point( (IeIII' Entry
J
o
ROCKWELL I'D IT DROCKIIfLLIIDo
TRIL!tVIMTE ITo
TRILllVIMTE lIDo
co TIlE! ITALICo
co TIIEI BOLDCharlll±er (OII1M!flSIItion: 0 none • book set 0 ad set 0 tight set
I
Merging Text into Compartments
1 Create a galley at the bottom of the Compose document.
~ Place the pointer in an open space in the lower part of the document.
~ Draw a rectangle at least 1 inch by 1 inch.
2 Drag the galley into the compartment at the top left side of the page.
~ Place the pointer on the empty compartment. Press down and hold the mouse button.
~ Move the pointer to the compartment on the left side of the page and release the mouse button.
~ Select the galley again. This time move it to the right compartment and release the mouse button. These two compartments are now linked so that text will flow from left to right. Changes in the size or content in one of the compartments will ripple through both of them to keep them full .
...
1 Select the galley that shows text on the top two lines by placing the pointer on it. Press and hold down the mouse button. Drag the galley up to the first compartment that you made and release the mouse button.
Entering Text Into A Compartment
Changing Typestyle
3 Choose Save and Continue from the File/Print menu. Then if you want to come back to this arrangement of your document, you can choose Revert to Previous Version.
To work on any text that is in a compartment you must use the ~ key before you perform an operation. Otherwise, you will only select the compartment that holds the text. In the next few pages you will make use of this principle. First, you will add to the title of your document.
1 To select an insertion point.
~ Press down and hold the ~ key.
~ Place the pointer at the end of the title after the
"s"
in COMMUNICATIONS. ~ Press down, then release the mouse button, and the ~ key~ The pointer will become a blinking insertion mark.
2 Type the text you want to enter.
~ IReturnl
~ Annual Report
Kerning Text
1 First select the text.
~ Press down and hold the ~key.
~ Place the pointer in front of the "T" in To the Shareholders:.
~ Press down and hold the mouse button.
~ Drag the pointer through the colon":" at the end ofthe sentence.
2 Choose Cg Times Bd It (Bold Italic) from the Fonts menu.
Note: Tbis text assumes tbat you bave tbe true fonts Cg Times Bold and Cg Times Bold Italic. You sbould use tbe true fonts wben tbey are available. You may use tbe pseudo Bold and Italic from the 'IJlpstyle menu if you do not have the true fonts.
3 Choose Other Cg Pt. Size ... from the Typestyle menu.
4 Type: 14 point in the dialog box that appears. Click OK.
To kern the report title (remove extra white space from certain letter pairs), you will select all of the title and apply designer kerning. (If you do not have Designer Kerning, choose Text)
1 Select all of the text in the title.
~ Press and hold down the ~key.
Cutting Text
~ Press and hold down the mouse button.
~ Drag the pointer through the text.
~ Release the mouse button.
2 Choose Compress Text from the Format
1
menu.3 Choose Designer from the dialog box that appears. Click OK.
...
To cut the first sentence of the Annual Report, The Company made great strides in fiscal 1984, you must also use the~key.
1 Press and hold down the~key.
2 To select the entire first sentence of the Annual Report, press the mouse button before the "T" in The and release after the" . "at the end of the sentence. It will highlight when selected.
If you have trouble selecting the sentence, remember to hold the ~ key before each attempt. If you did not lock the compartment to the page, you may accidently move the entire compartment. If so choose Undo "Move
Fig./Comp." (the last change) from the Edit Menu and try again.
4
Choose Cut from the Edit menu when the entire sentence and the space up to the next sentence is highlighted.Inserting Rules Next you need to place rules (lines) on the page to set off the title from the rest of the text. A rule is placed in a document the same way that a line is made in LisaDraw.
1 Activate the rule size you will draw by selecting 2.0 pt. Rule from the Page Layout menu.
2 Move the pointer on to the page below the compartment that contains the title SWITCH-ON COMMUNICATIONS. Place the pointer at the far left side of the page and begin the rule at the left edge of the text compartment.
3
Press the mouse button and move the pointer horizontally across the page.4 Release the mouse when the rule is at the edge of the right compartment.
Note: Notice how handles appear on ends of the line. The length can be changed by moving one of the handles. The position can be changed by placing the pointer on the line between the handles, pressing down the mouse button and dragging the rule.
,.. Desk FllelPrlnt Edit T
: • • •• _"'!' ,
. ~~~ .. ,,-.-.-:..--j ... nw-pe;r0Mii5~Cme lii~i";l-.;rmaioiiproi .
L
.000i,. fiocal I9a4, operalirlc ... ull ••1
X
f ...
mg very citen will n~ P!'';CI'II! ~herJ ... P1llitch -On CommuuicatiOll5 we%I! IUbstan' ... jaDd rmt comp\llel'S ri SImilar d •• Ign an~.. ,)Changing Composition Defaults
Text is positioned on the page by information that is entered in the Composition
Defaults dialog box in the Edit menu. Word, letter and line spacing,
hyphenation, and several other features are controlled by checking or pointing to items in the box. The defaults that you set will apply to an entire page of the document. After you become familiar with positioning text on the whole page with Composition Defaults, you will learn how to manipulate the location of individual lines and paragraphs of text.
1 Choose Save and Continue from the File/Print menu.
2 Choose Composition Defaults from the Edit Menu.
3 In the Line Spacing item choose 1. This will make the line spacing tighter.
4 In the Word Spacing item move both the Pref pointer and the pointer on the right of the matrix to the left. This will close the space between words as text is justified on a line.
5 In the Point Sizes item, replace the 36 with the number 14. The 14 will now show in the last position on the 1)rpestyle menu. Choose OK to bring your document back to the screen and see the changes.
Note: 7ry other settings and see how the text is displayed on the page. When you select the box
Set Compugraphic Defaults at the lower left of the dialog box the settings will revert to the automatic defaults.
r' Desk FIII!/Prltt Edit 1i II! Forts FIII1IIIII: U P
LIlli! Spacing
Poltt Sizes
FUI! ~1ItJ
[In palrts]
o •
Letter splICingOff on
0 . 0 0 0 0 0 0 0
I Loose
11I11111111111111111111111111 11th t ..tc ..
Pref "I"
lL!J
Using Vertical Justification If you want to change the line spacing of selected amounts of text on the page, you can manipulate the vertical justification. This can be done over a few lines or over an entire compartment of text.
1 First you must select the text. Select the section of text on the left side of the graph. Select all of the paragraphs that begin with (.) bullets.
• Place the pointer in front of the first bullet.
• Press and hold down the ~key.
• Press and hold down the mouse button as you drag the pointer through the text. The amount of text can be two or more lines. In this case select the text through the end of the word System.
2 Choose Set Vertical Justification from the Format Text menu. Small arrows will appear on the page ruler pointing to the top and bottom of the selected text.
3 Select the bottom arrow and pull it upward about 1f.I inch on the ruler. Gray dotted lines will connect the arrows with the selected text. The text will compress and you will see less space between each line.
[,Iei,~' Tab Stop
Sl:~t Normlll T.11J Sd: C!.'tlt.~,·n.~d Ti,lb
S~,>I:, fli(lht: Flush Ti,lh
Sf,~: I)t~dm'll ',' Ti,lb
Sl:!t. COlYlfni,\',' Ti,lb
o
Sf,~t: '!'ilb Fill ...Insert W01'(.! f:ln~ill\
Making a Space Block
Final Editing
You can add extra line space between paragraphs by making a space block at the end of a paragraph.
1 To make a space block you must place an insertion point at the end of sentence on a paragraph return.
~ Place the pointer after the: colon at the end of the first paragraph.
~ Press and hold down the ~key.
~ Click the the mouse button.
2 Choose Make Space Block from the Format Text menu. A double line will appear in the text between the paragraphs.
3 Scroll through the document and put a space block between each paragraph and subheading. Tme space block can be made larger by holding down the ~ key, selecting the bottom line of the space block, and pulling it downward. If you accidently move the compartment while you are selecting an insertion point, you can always choose to Undo"Move Fig.lComp." from the Edit menu.
As you go through the text adding space blocks, you can put the finishing touches on this page before you make the next page. You should change each subheading and improve the hyphenation if line endings are unsatisfactory.
~ Choose Cg Times Bold and 14 point type for each of the subheadings: New Options, Software, Hardware
Inserting Word Breaks In some cases you may want to change the hyphenation that occurs
automatically. You can insert a word break manually to change the automatic hyphenation of a particular line. You can turn off the automatic hyphenation for the whole page in the Composition Defaults dialog box.
1 As you scroll through the Annual Report look at each line and choose a hyphenated word, or a sentence that has a large gap and could be improved if a hyphen were placed differently. Because there are so many factors that determine line endings, it will be difficult to say where the unstisfactory word breaks may be in your Annual Report. Place an insertion point at another place in the word where it might be better to make the hyphen.
~ Press down and hold the ~key.
~ Click the mouse button.
2 Choose Insert Word Break from the Format Text menu. The word will now hyphenate where you have chosen. There are certain limits to how much you can change the hyphenation. The control you have over these limits is in the word and letter space settings that you make in the Composition Defaults. If
you choose to allow more word and letter space, you have a wider range of control. If you do not want a word to hyphenate, you may place a word break before or after a word. If the entire word will fit on the line, the word will not be hyphenated.
3 To remove the word breaks you've inserted, choose Delete Word Break
from the Edit menu.
tie. TIb stCJp
Set NormIII TIb
Set Ce!temI TIb Set RI,,* FIUItI TIb Set Decirnill '.' TIb
Making A Header
Making A Footer
Thus far we have been working with a one page document. In the next few pages you will learn how to carry the page design through a longer document. A header will carry the title and the rule to all other pages of the document.
1 Select the compartment that contains the title by placing the pointer on it and clicking the mouse button.
2 Press and hold the Shift key.
3 Select the rule so that both the compartment and the rule are highlighted at the same time.
4 Choose Repeat on all Pages from the Arrangement menu.
The objects will now appear on each page of the document.
r- Desk FilelPrint Edit Fonts Format
IIIIII Annual Report IIIIII Bring To Front
Send To Back Group Db jects
At the bottom of the page you can place a footer that will appear on all pages of your document. Next to the footer compartment you can insert a page number that will increase by one on each page.
1 Scroll to the bottom of the page and draw a compartment in the middle of the page about V2 inch wide and V2 inch deep.
~ Choose Make a Compartment from the Page Layout menu.
Inserting Page Number
2 Insert the word Page into the compartment by placing the pointer in the compartment, pressing down the ~ key, and clicking the mouse button. A blinking insertion point will appear. Type the word Page.
3 To format the footer
~ choose Right from the Format Text menu.
~ Choose Cg Times Bold from the Fonts menu.
~ Choose 18 point from the Typestyle menu.
4 Select the Page compartment and choose Repeat on all Pages from the Arrangement menu.
A page number can be inserted anywhere on the page except in a compartment. Once a page number is inserted on a page, it will repeat on all pages and appear in the same place on subsequent pages.
1 Click to place an insertion mark to the right of the Page compartment you just made.
2 Choose Insert Page Number from the Page Layout menu.
3 While the unique page number compartment is still highlighted, choose Cg Times Bold from the Fonts menu.
~ Choose 18 point from the Typestyle menu.
r Desk Edit Fonts Format
ill I i Rnnua I Repor t ',II
Accept and Design a Page
Page 2 Layout
Once you have finished working on a page you must accept it to be able to work on the next page.
1 Choose Accept page 1 from the Edit menu. The grid lines will disappear. 2 Choose Design Page from the Page Layout menu. When the dialog box
appears, choose Style next page" like last page. Click OK. This will draw compartments in the same position as the first page. You will automatically scroll to the next page.
,. Desk flll!lPrlrt Edit T II! forts fDmllll: If pagr
.,
IESIGN PI& ...
Stull! next page
- III!!! last page • - • an cllpbDlrd 0
- III!!! page before last - frft-qll! 0
SbJII! IIId Fill next page
- like last page 0 - • an cllpbDlrd 0 - like page before last
Stull! IIId fill all pages
- IIkI! last peg!! 0 - • an cllpbDlrd 0 - aItmlatlll\l
3 The compartments and text of the repeating header and footer, including the page number 2 will appear on the page. Click on the page to activate it. You will perform work on page 2 as you did on the first page. You will arrange the compartments and figures. Then you will pour text from the galley into the compartments. Finally you will scroll through and edit the page placing space blocks, making the subheadings bold, and inserting other editing touches to finish up the page.
1 A graph will be placed at the bottom of the page that will occupy approximately one third of the page.
~ Scroll down so that you can see the 6 inch mark on the side page ruler.
~ Select the galley by placing the pointer in the upper left corner.
~ Press and hold down the mouse button.
~ Drag the galley to the far left side of the page just outside the left text column about 5 Y2 inches down from the top of the page and release the mouse button. Center the figure on the page. The lower line in the figure should be even with bottom of the compartments.
2 In the galley area you will see the company logo. It is a small figure with an S/O on it. You will place the logo in the upper left corner of this page, and format it to repeat on the remaining pages.
~ Place the pointer in the upper left corner of the figure. Press and hold down the mouse button. Drag the figure to the upper left corner of the
compartment on the page. When the pointer is on the corner, release the mouse button.
3 Take the text galley and place it in the left compartment.
~ Place the pointer on the galley.
~ Press and hold the mouse button.
~ Drag the galley into the compartment and release the mouse button.
4 Scroll through the text and edit it like the first page.
~ Place Space Blocks at the end of each paragraph.
~ Choose Cg Times Bold and choose 14 point type for each of the
subheadings: Cost Control and Productivity, Cost Reduction Programs.
~ Check the hyphenation and insert word breaks where needed.
5 After going through this page, you should accept it and begin to design the final page.
~ Choose Accept Page from the Edit menu.
~ Choose Design Page from the Page Layout menu.
Page 3 Layout
Setting Tabs
The third page will have two short columns with a table placed at the end of the text. You will go to the bottom of the third page and make the compartments smaller by dragging them up the page.
1 Scroll to the bottom of the page.
2 Select both compartments using the IShiftlkey.
3 Choose Lock in Place from the Arrangement menu. This will remove the check mark and unlock the compartments.
4 Place the pointer on the center handle at the base of one of the compartments.
~ Press down and hold the mouse button
~ Drag the bottom of the compartments up to the 5 V2 inch mark on the page.
One method for organizing a list of numbers is to place them in a table using tab stops. In Compose, tabs are inserted into text the same way that they are used in LisaWrite. If tabs are already in your LisaWrite source document they will appear in Compose.
Insert the table in the lower part of the right column at the end of the text in the compartment.
~ Place the pointer into the compartment.
~ Press down and hold the ~ key.
~ Click the mouse button. You will see a blinking insertion point where you can begin to enter text.
2 Press the IReturnl key twice.
3 You will enter text in Cg Times Bold 18 point.
~ Choose Cg 18 point from the Typestyle menu.
~ Choose Cg Times Bold from the Fonts menu.
~ Type: Total Number of Units.
~ Press [RetUm]IReturnIIReturnl.
5 To set up the first tab stop.
~ Place the pointer on the ruler at the 2 inch mark. Click the mouse button.
~ Choose Set Centered Tab from the Format' menu.
~ Choose Set Tab Fill from the Format' menu.
~ Place a . (period) in the dialog box. Check OK.
6
To set the second tab stop.~ Place the pointer on the ruler at the 1 inch mark. Click the mouse button.
~ Choose Set Centered Tab from the Format' menu.
~ Choose Set Tab Fill from the Format' menu.
~ Place a . (period) in the dialog box. Check OK.
5 Choose 14 point from the Typestyle menu.
~ PresslTablType: 1983
~ Press ITablType: 1984
~ Press IReturnllReturn~
6 Choose Cg Times (This text will be 14 point not bold)
~ lYpe: Hardware
~ Press the ITabl key.
~ Type: 240 ~ 320
~ Press IReturnllReturnl.
7 lYpe: Software
~ Press the ITabl key.
~ lYpe:150 ~ 850
~ Press [RetUm]IReturn~ 8 Type: Support
~ Press the ITabl key
~ Type: 57 ITabl 980
Final Editing
~ Place the pointer on the left side of the left compartment above the dates and draw the rule to the right side of the compartment.
~ Release the mouse button
~ Click the mouse on a blank place on the page.
~ Follow the same proceedure to place a rule below the table.
BI3 1984
lBudalNil ••• 240 ... 320
~_ .... 150 ... 850
.... ST ... !180
At this time you have worked through the Annual Report and it is almost ready to print. You should scroll to the bottom of the text compartments and adjust them so that the last lines in both compartments are the same depth on the page. If
necessary change the depth of the compartments or use vertical justification to make them even.
Output On the ImageWriter Printer
For proofing purposes it is a good idea to first print your document on a Dot Matrix printer before you send it to the typesetter. Follow the steps below to output your document on the ImageWriter printer. If you don't have a Dot Matrix printer, skip ahead to a section covering an output device that you do have connected to your Personal Composition System.
1 To be certain that the information displayed on the screen is stored on your disk for future retrieval, pull down the File/Print menu and select Save and Continue.
2 To select the device on which you will output your report, you must have that device physically connected to your Personal Composition System and have the device indicated in the Format for Printer menu.
3 Choose Format for Printer from the File/Print menu. A dialog box will appear to allow format choices. The information in this dialog box must agree with choices that you've already made in the Page Size dialog box. You will learn more about these choices in Chapter 2, Using Compose.
4 The title at the top of the page should be Format for ImageWriter Printer-serial port B. If the title is something else, check New Printer .•. and from the dialog box that appears check ImageWriter.
r Desk 'iI1flml Edit Type Style Fonts· Format 11 Format for ImageWfiter Printer - serial port B
Paper Size
• Letter (8.5 x 11") o Legal (8.5 x 14") . DComputer (14 x 1 j")
DA4 (210 x 297mm) D210mm x 12" D310mm x 8"
Paper/Printing Drientation
D8rnEJ
- . E::JD E::JD E::Ja
Printing Quality
o High Resolution. Low Resolution
Page layolt Iffangemert
( New Printer...) ( (I( )
cpt
~ The Printing orientation should be portrait. This means the person icon is straight up and not on it's side. (Landscape printing rotates the image
900 sideways.)
~ Choose High Resolution for the Printing Quality.
Output on Typesetter
orEP 308
5 Select Print from the File/Print menu. The Print dialog box willIet you specify some final details concerning the output of your Annual Report.
~ Check Finished Quality, Fanfold, 1, and All Pages.
~ Check OK.
,.. Desk , . , • • Edit Type Style fonts format 11 Page Layout Frrangement ..,
Print on lmagekotiter Printer - serial port B ( [ancel
• Finished Quality 0 Quick Draft (text only) Paper feed
• Fanfold 0 Single Sheets Number of Copies
.[D000ITJ0[D0~
Pages to Print ,._ .... _ ... _ ... , , ... _ ... ..
• All Pages 0 Only pages: L ... __
.!
Through: L. ... _ .. ... J... :.. .~ ... :.. .... .. ... ~ ... .
If you have trouble printing your document, turn to the ImageWriter printer section of the Office System manual for more information.
Check over the proof copy of your document. Make any needed corrections. You may go to a specific page in your document by choosing Go to Page. .. from the Edit menu and type the page number into the dialog box. Remember, to edit a new page, you must accept the current page on which you are working. Once everything is OK you may output your document on the typesetter or EP 308.
After making the appropriate corrections to your draft, you will output it on the typesetter or EP 308 by following the steps listed below.
1 If you make corrections, save the corrections by choosing Save and Continue from the FileIPrint menu.
2 You must have the Cg Printer connected at Serial A to output on that device. You must also have Device Driver software installed through your
Preferences. Instructions for installing this software are found in Chapter 4 of this manual. You must also have the output device listed at the top of the Format for Printer dialog box.
4 The title at the top of the dialog box should be your finished quality output device. Let's assume that device is the EP 308. Then the dialog box should read: Format for EP 308 - serial port A. If the title is something else, check New Printer ... and check EP 308 from the dialog box that appears.
Note: If EP 308 is not on tbe list, you must install tbe Device Driver software
r Desk
'i1Ifl#llll'
Edit Type Style Fonts Format If Page Layout Arrangemert Format for Compugraphic EP308 - serial port APaper Size
• Letter (8.5" x 11 ") o Legal (8.5" x14") o A4 (210 x 297mm)' D210mm x 12"
Printing Orientation
o
El
~
_ . c::J'
( New Printer ...
,
~ The Printing orientation should be portrait. This means the person icon is straight up and not on it's side. (Landscape printing rotates the image 900 sideways)
~ The Printing Quality High Resolution is automatically selected for the EP
308. Click OK
5 Select Print from the File/Print menu. The Print dialog box will let you specify some final details concerning the output of your Annual Report.
~ For the EP 308 check All Pages, 1 Copy, Pages Collated, Automatic Feed
r Desk
'i1IfljMl1'
Edit Type Style Fonts Format If Page layout Arrangement,
Print on Compugraphic EP30a serial port A Cancel
Pages to Print
.AII Pages DOnly pages: Through:, ... .. Number of Copies
.ITJ[}]ITlmm[!Jm!il~ 0 Other:
l
[ollationo
Pages Collated • Pages Not Collated Media Input• Automatic Feed 0 Manual Feed
Format and Print for Typesetter
Putting Your Document Away
Trouble With Printing?
For the 8400 or 8600 '!Ypesetter check Printing Orientation Portrait (click on the upright person)
~ Check Print Quality High Resolution.
~ Check OK.
,. Desk
W
hi Edit· T!II!! Style Format Ir PiII!l.a!pt Format for ~aphic 8400 Tpsetter - serial port A Paper Size• Letter (8.5 x 11 ")
o
Legal (8.5 x 14")DA4 (210 x 297mm) D210mm x 12"
o
Special Paper Size Prlrting lKierUl:iOllag
Printing ~lIb.I
• High Resolution 0 Low Resolution
Seardl Spelling
~. ( New Printer...)
CJiCl
~ To print check All Pages
~ Check OK.
,. Desk . . . Edit T!II!! Style Fonts Format Ir Pape Leyout Arranpemert
Print 011 [arqJlqaphlc 8400 T~ - serial port A PI!!!. to Print
.AII Pages DOnly pages:! IThrough:C""1
cancel
II(
Click twice on the document icon in the upper left corner of your page. Your document will take a minute as it is being saved and then it will zoom back into the icon form that you saw before you opened it. It will return to the same spot where you opened it.
~ If you have trouble printing and receive an alert message, try to determine what is causing the error. Make sure that your device is connected in the Preferences, and that the device driver software is also installed. Check all of the cable connections and make sure each component of the System is powered up and in good operating order.
This manual has several chapters that can help you with problems. There are also specific chapters in the Lisa Office System Manual that can help with various aspects of your System's performance. Look in the table of contents or the index for the Chapter which seems to best describe your problem.
~ If you see any other alert message, follow the instructions on the Personal Composition System screen.
Chapter 2
Contents
50
Introduction51
The Cg Compose 2 Window52
Text and Figures52
About Menus54
Pointers54
Selecting55
Compose Paper56
The Compose Page56
Linking Compartments57
Page Size57
Group and Lock Objects57
Entering And Editing Text58
Format Text59
Tabs60
Page layout60
Design Page60
Rulers61
Scrolling63
OutputTypeset a Memo
64
Making a Stationery Pad66
Format a Blank Piece of Stationery66
Page Size67
Composition Defaults68
Default Printer68
Making a GaUey69
Making Compartments69
Entering Text71 Copying a Source Document 72 Pasting a Figure
72 Making a Rule
73
Placing Rules74
Making a Stationery Pad74
Creating a Source Document76
Pasting Text onto a GaUey77
Changing Fonts78
Output Memo on Typesetter79
Putting a Document AwayPrepare a News Release
82
Preparing a Source DocumentCreate a Brochure
84 Matching a Compartment 85 Establish Compartment Links 85 Merging Text into Compartments 86 Changing Linespace
87 Cut and Paste Text 87 Changing Fonts
89 Setting Verticaljustification 90 Changing Wordbreaks 90 Inserting Space Blocks 91 Output Your Document
93 The Landscape Mode 94 Editing in the Source Tool 97 Page Size
97 Making Compartments 99 Matching Compartments 100 Change Fonts in Galley 101 Meerging Text
101 Making a Space Block 103 Placing Rules 104 Merging Text
105 Moving Compartments Filled with Text 106 Placing Compartments Within Compartments 107 Shading a Compartment
Introduction
Before you Begin
This Chapter explains Cg Compose 2 concepts, describes the screen, menus, pointers and general working environment. It also guides you, step-by-step, through several real-life examples. To get the maximum value from the chapter, you should tryout the examples on your Personal Composition System as you go through it. Major Compose features are covered in the examples.
A complete description of each Compose operation can be found in Chapter
3:
Compose 2 Reference in this manual.
Before you begin this chapter, be sure you have completed the interactive LisaGuide, and Chapter 1: Learning Cg Compose 2 in this manual. Chapter 1 introduces you to Compose Operations.
To complete this tutorial, you will need:
• The Cg Compose 2 Stationery paper that is on the Disk.
• The sample documents in the Examples Folder.
You should have duplicated the Cg Compose 2 Examples Folder onto the Disk. Instructions for this procedure are found in Chapter 4: System Set Up. When you have finished learning Compose, you will probably want to throw the Examples Folder into the Wastebasket to make room on your Disk. If you need it again, you can duplicate the original folder that is on the micro diskette.
You should understand the following procedures before beginning this chapter:
• How to move the pointer around the screen using the mouse.
• How to open menus and choose menu items.
• How to select text or objects on the screen.
• How to open and save documents.
• How to change the size of a window and move it around on the desktop.
• How to prepare text in LisaWrite.
• How to make LisaDraw figures.
• How to copy and paste documents.
• How to scroll the window to see different parts of the document.
-The arrow symbol appears before each activity in the chapter and indicates "Do something." For example,
The Cg Compose 2
Window
Cg Compose 2 Terms
This Chapter is divided into two parts. The first part briefly explains basic Compose concepts. The second part contains three examples of work you might perform on your Personal Composition System. Each example gives directions for accomplishing specific tasks. These tasks illustrate important points. You may use Chapter 2 as a reference guide when you want a reminder on how to do a specific task or when you want more information about a particular subject. You can look for specific topics and procedures in the index.
To use Cg Compose 2 you must understand the basic concepts and terminology associated with the Compose document. The basic operations that you perform in Compose, such as selecting, scrolling, entering text, changing text and formatting text, are similar to those you have learned in LisaWrite and LisaDraw. With Compose you will take these operations several steps farther. You will learn to have even more control over the final product-your document.
When you create and edit Cg Compose 2 documents, the desktop looks something like the figure below.
Fonts
[erter
Right .kIstiFy
····~g··COiii"jiose·Lr~-··r: Sf't VelticiJl .k~tificati()n
, , . Clear Vertir:al Justif'iCiltirlrl
i
!
·I·d ...•i i Cledr TalJ Stop
: i Set. Normi.,j 'r ~'.Ib
····L __
~j ::::~;:
~'.~. COlY~l\i.1 '.' ri~.\
" ' , i,;.'
.: ::i ': 1: :: ii m ii ii :ii i: " '; : " .... Si.~: lab fill,,,
Icon
Window
Menu bar
Insert Word Break
Word Breaks
A graphic symbol representing something on the Desktop.
Displays the contents of an open document.
