GENERAL
The ANR-275 Hone has been designed to hone bores
from 2.50 to 21.00 in. (64 - 533 mm) diameter.
NOTE:
For light work in bores larger than 10 in.
(254 mm) in diameter.
INSTALLATION

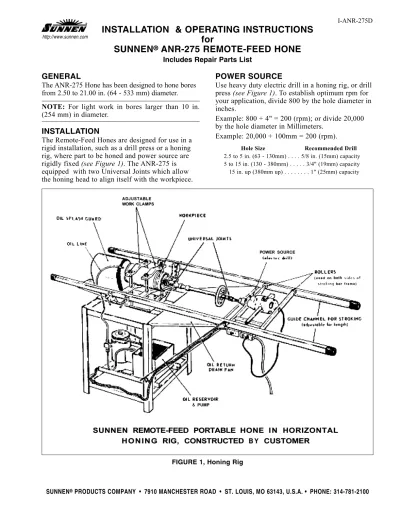

The Remote-Feed Hones are designed for use in a
rigid installation, such as a drill press or a honing
rig, where part to be honed and power source are
rigidly fixed
(see Figure 1)
. The ANR-275 is
equipped with two Universal Joints which allow
the honing head to align itself with the workpiece.
POWER SOURCE
Use heavy duty electric drill in a honing rig, or drill
press
(see Figure 1)
. To establish optimum rpm for
your application, divide 800 by the hole diameter in
inches.
Example: 800 + 4" = 200 (rpm); or divide 20,000
by the hole diameter in Millimeters.
Example: 20,000 + 100mm = 200 (rpm).
Hole Size
Recommended Drill
2.5 to 5 in. (63 - 130mm) . . . . 5/8 in. (15mm) capacity
5 to 15 in. (130 - 380mrn) . . . 3/4" (19mm) capacity
15 in. up (380mm up) . . . 1" (25mm) capacity
I-ANR-275D
INSTALLATION & OPERATING INSTRUCTIONS
for
SUNNEN
®
ANR-275 REMOTE-FEED HONE
Includes Repair Parts List
http://www.sunnen.com
HONING OIL
Use a continuous and ample flow of Sunnen
Industrial Honing Oil to ensure accurate, fast honing
and freedom from galling or scratches. Do not
dilute the oil. Do not use lubricating oil, cutting oil,
or water soluble oil; consistent results cannot be
expected unless the full-strength recommended oil
is used.
ASSEMBLY OF STONES AND GUIDES
1. Pull back Release Ring and tilt hone body as
shown
(see Figure 2)
.
2. Pull the ANR-210 Pinion all the way out.
3. Place the racks of the stone and guide assemblies
in holes marked "X" as shown.
4. Put ANR-2l0 Pinion back in place.
5. Pull back Release Ring, line up hone body, and
allow Release Ring to return to engaged position.
CAUTION
Do not mix used stones and guides from different
sets - the guides will be either too tight or too loose,
causing chatter, poor cutting, or other undesirable
results.
TO HONE HOLE
To hone workpiece, proceed as follows
(see Figure
3)
:
1. Place hone in work.
2. Expand stones by rotating handwheel in a
counterclockwise direction (opposite to direction of
hone rotation). When hone contacts wall of work,
back handwheel off one-half turn clockwise.
CAUTION
Hone must rotate in a clockwise direction (as viewed
from power source end).
3. Start hone rotating in work in a clockwise
direction and apply very light stopping pressure to
handwheel as hone is stroked through length of bore.
4. Localize honing in any tight spots and gradually
lengthen stroke as bore becomes straighter.
5. As bore diameter gets larger and stones become
loose, a light braking on the handwheel will keep
the stones cutting.
STROKING
Stroke the hone fast enough to produce a crosshatch
pattern in the hole. At the end of each stroke the
stones should extend approximately one inch (25mm)
out of the cylinder.
FIGURE 3, Handwheel
FIGURE 2, Assembly
Standard Sunnen Tooling and Procedures will satisfy all ordinary honing requirements. If problems are encountered, they can usually be solved by following procedure suggested below. For detailed information on difficult or unusual honing problems contact your local Sunnen Field Engineer or Sunnen Customer Service Department in St. Louis, Missouri, USA.
CONDITION TO BE CORRECTED STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 CHATTER Very RPM and Relieve Guides Reduce cutting Switch to guideless stone
stroke rate 1/32” (1mm) pressure set, unless bore has keyway or is larger than 8” (203mm) in diameter
STONE GLAZED* Sharpen A or J stone Increase cutting Increase stroking Use a softer stone Check oil to be STONE Stone surface looks with MAN-700 pressure speed (one with a lower sure you are using NOT clean but cutting diamond dresser; use hardness number) Sunnen Industrial CUTTING grains are dulled LBN-700 dressing stick Honing Oil*
on all other stones
(Honing dial STONE LOADED* Clean stone with Increase stroking Use a softer stone Use a coarser grit Check oil to be needle moves Stone surface looks LBN-700 dressing pressure (one with a lower stone (one with a sure you are using too slowly) smeared and stick hardness number) lower grit number) Sunnen Industrial
clogged with chips Honing Oil*
SLOW STOCK REMOVAL* Increase spindle speed Increase cutting Check oil to be Use a softer stone Use a coarser grit (Honing dial needle moves too slowly) pressure sure you arc using (one with a Lower stone (one with a
Sunnen Industrial hardness number) lower grit number) Honing Oil*
POOR STONE LIFE* Decease cutting Use faster spindle (one with higher stone (one with lower Check oil to be sure (Honing dial needle moves too fast) pressure speed hardness number grit number) you are using Sunnen
Industrial Honing Oil* BELLMOUTH True stone and shoes Use softer stone If Bore is LONGER Shorten STONE only If bellmouth persists
with truing sleeve (OK with lower than 2/3 stone length: (or row of stones) shorten stones still If part is short or hardness number) slightly on both ends more but do not shorten unbalanced, shorten shoes any further stroke length If Bore is SHORTER Shorten STONES and CAUTION:
than 2/3 stone length: SHOES equally to Overcorrection of 1-1/2 times bore bellmouth will lead length to barrel condition BARREL True stone and shoes Use finer grit stone Use longer stone or Use mandrel with CAUTION:
with truing sleeve (one with higher grit shorten guide shoes longer stone and shoe Overcorrection of number) on both ends barrel will lead
to bellmouth condition
TAPER IN True stone and shoes Change stroke so tight Reverse work on If power stroking, make OPEN HOLE with truing sleeve end of bore is stroked mandrel more often sure spindle and stroker
over stone further are in alignment
TAPER IN Shorten stone and True stone and shoes If hole has insufficient Provide sufficient Provide adequate oil BLIND HOLE shoes to about 3/4 frequently with truing or no relief at bottom, relief at bottom of flow at bottom of hole
shorten stone more sleeve use hard tip stone hole to wash cutting out if taper persists
OUT-OF-ROUND Make sure honing Thoroughly true stone If thin wall part, If stone stops cutting If power stroking tool is recommended and shoes to exact decrease cutting at decreased pressure make sure spindle size for diameter to hole diameter pressure use stone with lower and stroker are in be honed hardness number alignment WAVINESS Use honing tool with sufficient stone length to bridge waviness
(or Iands and ports in bore)
RAINBOW Use L, BL, or multi-stone mandrel. Stone Use shorter stroke Use stone with lower length should be at least 1-1/2 times the length hardness number to length of bore for best bow correction (less overstroke) avoid part flexing
FINISH TOO ROUGH* Decrease cutting Use finer grit stone Check oil to be sure Thoroughly true shoes For extremely fine pressure (one with higher grit you are using Sunnen to exact hole diameter finishes in soft or
number) Industrial Honing Oil* exotic material, use bronze mandrel or bronze shoes RANDOM SCRATCHES Decrease cutting Use finer grit stone Use softer stone If hard steel mandrel is Check oil to be (in bore) pressure (one with higher grit (one with lower being used, change to sure you are using
number) hardness number) soft steel mandrel. If Sunnen Industrial
{
{
ITEM
NO.
ORDER BY
PART
NUMBER
QTY.
DESCRIPTION
1
AN-670
1
....Heavy Duty Universal Joint Assembly
consists of:
2
AN-608A
1
...Drive Shaft Assembly
3
AN-665A
1
...Universal Joint
4
AN-640A
1
...Extension Coupler
5
ANR-1 10A
1
....Upper Feed Assembly
consists of:
6
ANR-156A
1
...Drive Head
7
ANR-1 17A
2
...Bearings (1" Diameter Nylon)(Pkg. of 2)
8
ANR-135A
1
...Sun Gear (with one Pin Item 9)
9
ANR-142C
1
...Shear Pin (1/8" Dia. Steel, .610" length)(Pkg. of 2)
10
ANR-144A
2
...Gears (.402 Thick, .189 bore diameter)(Pkg. of 2)
10A
ANR-143A
2
...Gears (.125 Thick, .251 bore diameter)(Pkg. of 2)
10B
ANR-141A
2
...Gears (.402 Thick, .251 bore diameter)(Pkg. of 2)
11
ANR-125A
1
...Feed Shaft Assembly
12
ANR-1 16A
1
...Carriage Assembly with Dowel Pins and Bearing
13
ANR-145A
1
...Hand Wheel Assembly with Gear
14
MSN-177A
4
...Screws (10-32 x 5/8" SHCS)(Pkg. of 4)
15
ANR-230A
1
....Feed Clutch
consists of:
16
ANR-231A
1
...Housing
14
MSN-177A
4
...Screws (10-32 x 5/8" SHCS)(Pkg. of 4)
17
ANR-235A
1
...Clutch Assembly with
17A
PHP-202A
1
...Pin (1/8" Dia. Steel)(Pkg. of 2)
18
PHS-132A
1
...Setscrew
N/S
KN-575A
1
...5/32" Hex Key Wrench (5/32'" Across Flats)
19
ANR-160A
1
....Hone Head Assembly
consists of:
20
ANR-207A
2
...Setscrews, Self-Locking (Pkg. of 2)
21
ANR-170A*
1
...Inner Feed Assembly consists of:
22
ANR-189A*
2
...Drive Pin (3/16" Dia. Steel)(Pkg. of 2)
23
ANR-195A*
1
...Feed Shaft End Assembly, Spring and Pin
24
ANR-176A*
1
...Coupling
25
ANR-187A*
1
...Ball Link Assembly
26
ANR-165A*
1
...Drive Housing Assembly
27
ANR-210A
1
...Pinion Adjustment Assembly
28
AN-620A
1
....Ring Set
consists of:
29
AN-621A
2
...Screws (Pkg. of 2)
30
AN-624A
2
...Screws (Pkg. of 2)
31
AN-623A
2
...Spacers (Pkg. of 2)
32
- - -
1
...Ring
33
AN-604
1
...Body Assembly
14
MSN-177A
4
...Screws (10-32 x 5/8" SHCS)(Pkg. of 4)
PARTS LIST
N/S indicates Not Shown
FOR HOLES
FOR HOLES
Approx.
WITHOUT
WITH
Surface
KEYWAYS
KEYWAYS
Finish
KEYWAY STONE SETS
in
Micro-GENERAL PURPOSE STONE SETS
MAXIMUM KEYWAY WIDTH
inches
(2 STONES AND 2 GUIDES)
GUIDELESS STONE SETS
.8in.
.9in.
1.2in.
1.4in.
HOLE DIAMETERS 2.5-2.7 in. 2.7-4.1 in. 3.5-5.5 in. 4.1-21*in. 2.5-3.3 in. 3.3-4.2 in. 4.0-5.6 in. 4.5-9.2*in. 2.5-3.3 in. 3.3-4.2 in. 4.0-5.6 in. 4.5-21.2*in.(64-69mm) (69-104mm) (89-140mm) (104533mm) (64-84mm) (84107mm) (102-142mm) (114-234mm) (64-80mm) (84-107mm) (102-142mm) (114-538mm) DEBURRING in Rough Holes
G25-A47 M27-A47 N37-A47 W47-A47 GG25-A47 MM33-A47 NN40-A47 WW51-A47 GY25-A47 MY33-A47 NY40-A47 WY51-A47 All Materials
FAST STOCK REMOVAL in Deburred Bored, Ground, or Reamed Holes
Aluminum G25-145 M27-J45 N37-J45 W47-J45 GG25-J45 MM33-J45 NN40-J45 WW51-J45 GY25-J45 MY33-J45 NY40-J45 WY51-J45 80 Brass, Soft G25-363 M27-J63 N37-J63 W47-J63 GG25-J45 MM33-J45 NN40-J45 WW51-J45 GY25-J45 MY33-J45 NY40-J45 WY51-J45 80 Bronze G25-J45 M27-J45 N37-J45 W47-J45 GG25-J45 MM33-J45 NN40-J45 WW51-J45 GY25-J45 MY33-J45 NY40-J45 WY51-J45 80
Carbide • • • • • • • • • • • •
Cast Iron G25-J45 M27-J45 N37-J45 W47-J45 GG25-J45 MM33-J45 NN40-J45 WW51-J45 GY25-J45 MY33-J45 NY40-J45 WY51-J45 32
Ceramic • • • • • • • • • • • •
Glass • • • • • • • • • • • •
Steel, Soft G25-A45 M27-A45 N37-A45 W47-A45 GG25-A45 MM33-A45 NN40-A45 WW51-A45 GY25-A45 MY33-A45 NY40-A45 WY51-A45 35 Steel, Hardened (try this stone first) G25-A45 M27-A45 N37-A45 W47-A45 GG25-A45 MM33-A45 NN40-A45 WW51-A45 GY25-A45 MY33-A45 NY40-A45 WY51-A45 20 Steel, Hardened (it A45 does not cut) G25-A43 M27-A43 N37-A43 W47-A43 GG25.A43 MM33-A43 NN40-A43 WW51-A43 GY25-A43 MY33-A43 NY40-A43 WY51-A43 20 Steel, Very Hard Tool (if A43 does not cut)ττ G25-J63 M27-J63 N37-J63 W47-J63 GG25-J45 MM33-J45 NN40-J45 WW51-J45 GY25-J45 MY33-J45 NY40-J45 WY51-J45 12 FINE FINISHING in Previously Honed Holes
Aluminum G25-J87 M27-J87 N37-J87 W47-J87 G025-J87 MM33-J87 NN40-J87 WW51-J87 GY25-J87 MY33-J87 NY40-J87 WY51-J87 15 Brass, Soft G25-J85 M27-J85 N37-J85 W47-J85 GG25-J85 MM33-J85 NN40-J85 WW51-J85 GY25-J85 MY33-J85 NY40-J85 WY51-J85 15 Bronze G25-J87 M27-J87 N37-J87 W47-J87 GG25-J87 MM33-J87 NN40-J87 WW51-J87 GY25-J87 MY33-J87 NY40-J87 WY51-J87 15
Carbide • • • • • • • • • • • •
Cast Iron G25-J87 M27-J87 N37-J87 W47-J87 GG25-J87 MM33-J87 NN40-J87 WW51-J87 GY25-J87 MY33-J87 NY40-J87 WY51-J87 6
Ceramic • • • • • •
Glass • • • • • • • • • • •
Steel, Hard G25-J85 M27-J85 N37-J85 W47-J85 GG25-J85 MM33-J85 NN40-J85 WW51-J85 GY25-J85 14Y33-J85 NY40-J85 WY51-J85 S Steel, Soft G25-J87 M27-J87 N37-J87 W47-J87 GG25-J87 MM33-J87 NN40-J87 WW51-J87 GY25-J87 MY33-J87 NY40-J87 WY51-J87 7
RECOMMENDED STONE SETS
ττDiamond and CBN/Borazon stones available on special order. * These stones require Master Holders
COMPLETE LISTING OF ALL STONES AVAILABLE FROM STOCK. (In some cases, stones other than those recommended above may hone faster or last longer. For long or repetitive production runs, it may be economical to choose a stone slightly harder or softer, coarser or finer. If the stone wears out too fast, use a harder stone; if it Goes not cut, use a softer stone.)
FOR HOLES
FOR HOLES
Approx.
WITHOUT
WITH
Surface
KEYWAYS
KEYWAYS
Finish
KEYWAY STONE SETS
in
Micro-GENERAL PURPOSE STONE SETS
MAXIMUM KEYWAY WIDTH
inches
(2 STONES AND 2 GUIDES)
GUIDELESS STONE SETS
.8in.
.9in.
1.2in.
1.4in.
HOLE DIAMETERS 2.5-2.7 in. 2.7-4.1 in. 3.5-5.5 in. 4.1-21*in. 2.5-3.3 in. 3.3-4.2 in. 4.0-5.6 in. 4.5-9.2*in. 2.5-3.3 in. 3.3-4.2 in. 4.0-5.6 in. 4.5-21.2*in.(64-69mm) (69-104mm) (89-140mm) (104533mm) (64-84mm) (84107mm) (102-142mm) (114-234mm) (64-80mm) (84-107mm) (102-142mm) (114-538mm)
Grit Size * * *
SOFT N37-A23 W47-A23 GG25-A23 MM33-423 NN40-A23 WW51-A23 80(2) M27-A25 N37-425 W47-A25 GG25-A25 MM33-A25 NN40-A25 WW51-A25 HARD M27-A27 N37-A27 W47-A27 GG25-A27 MM33-A27 NN40-A27 WW51-A27
Aluminum SOFT G25-A43 M27-A43 N37-A43 W47-A43 GG25-A43 MM33-A43 NN40-A43 WW51-A43 GY25-A43 MY33-A43 NY40-A43 WY51-A43 Oxide 150(4) G25-A45 M27-A45 N37-A45 W47-A45 GG25-A45 MM33-A45 NN40-A45 WW51-A45 GY25-A45 MY33-A45 NY40-A45 WY51-A45 ` G25-A47 M27-647 N37-A47 W47.A47 GG25-A47 MM33-A47 NN40-A47 WW51-A47 GY25-A47 MY33-A47 NY40-A47 WY51-A47
HARD G25-A49 M27-A49 N37-A49 W47-A49 SOFT G25-A63 M27-A63 N37-A63 W47-A63
G25-A65 M27-A65 N27-A65 W47-A65 GG25-A65 MM33-A65 NN40-A65 WW51-A65 GY25-A65 MY33-A65 NY40-A65 WY51-A65 280(6) G25-A67 M27-A67 N27-A67 W47-467 GY25-A67 MY33-A67 NY40-A67 WY51-A67
HARD M27-A69 W47-A69 SOFT M27-J11 N37-J11 W47-J11 G25-J13 M27-J13 N37-J13 W47-J13 GG25-J13 MM33-J13 NN40-J13 WW51-J13 70(1) G25-J15 M27-J15 N37-J15 W47-J15 GG25-J15 MM33-J15 NN40-J15 WW51-J15 WY51-J15 G25-J17 M27-J17 N37-J17 W47-J17 GG25-J17 MM33-J17 NN40-J17 WW51-J17 WY51-J17 HARD M27-J19 N37-J19 W47-J19 SOFT G25-J43 M27-J43 N37-J43 W47-J43 GG25-J43 MM33-J43 NN40-J43 WW51-J43 WY51-J43 G25-J45 M27-J45 N37-J45 W47-J45 GG25-J45 MM33-J45 NN40-J45 WW51-J45 GY25-J45 MY33-J45 NY40-J45 WY51-J45 150(4) G25-J47 M27-J47 N37-J47 W47-J47 NN40-J47 GY25-J47 MY33-J47 NY40-J47 WY51-J47
M27-J48
HARD M27-J49 N37-J49 W47-J49
Silicon SOFT G25-J63 M27-J63 N37-J63 W47-J63 MM33-J63
Carbide 280(6) G25-J65 M27-J65 N37-J65 W47-J65 MM33-J65 WW51-J65 GY25-J65 MY33-J65 NY40-J65 WY51-J65 HARD G25-J67 M27-J67 N37-J67 W47-J67 MM33-J67 WW51-J67 GY25-J67 MY33-J67 NY40-J67 WY51-J67 SOFT G25-J83 M27-J83 N37-J83 W47-J83 NN40-J83 WW51-J83
400(8) G25-J85 M27-J85 N37-J85 W47-J85 GG25-J85 MM33-J85 NN40-J85 WW51-J85 GY25-J85 MY33-J85 NY40-J85 WY51-185 G25-J87 M27-J87 N37-J87 W47-J87 GG25-J87 MM33-J87 NN40-J87 WW51-J87 GY25-J87 MY33-J87 NY40-J87 WY51-187 HARD M27-J89
500(9) G25-J95 M27-J95 N37-J95 W47-J95 GG25-J95 MM33-J95 WW51-J95 MY33-J95 G25-J97 M27-J97 N37-J97 W47-J97
600(0) GG25-C05 MM33-C05 NN40-C05 WW51-C05
COMPLETE LIST OF ALL AVAILABLE STONE SETS
ττDiamond and CBN/Borazon stones available on special order. * These stones require Master Holders
FRACTION / DECIMAL / MILLIMETER EQUIVALENTS CHART
INCH
FRACTION DECIMAL MILLIMETER
. . . .
.003937
0,1000
. . . .
.007874
0,2000
. . . .
.011811
0,3000
1/64
.015625
0,3969
. . . .
.015748
0,4000
. . . .
.019685
0,5000
. . . .
.023622
0,6000
. . . .
.027559
0,7000
1/32
.031250
0,7938
. . . .
.031496
0,8000
. . . .
.035433
0,9000
. . . .
.039370
1,0000
3/64
.046875
1,1906
1/16
.062500
1,5875
5/64
.078125
1,9844
. . . .
.078740
2,0000
3/32
.093750
2,3813
7/64
.109375
2,7781
. . . .
.118110
3,0000
1/8
.125000
3,1750
9/64
.140625
3,5719
5/32
.156250
3,9688
. . . .
.157480
4,0000
11/64
.171875
4,3656
3/16
.187500
4,7625
. . . .
.196850
5,0000
13/64
.203125
5,1594
7/32
.218750
5,5563
15/64
.234375
5,9531
. . . .
.236220
6,0000
1/4
.250000
6,3500
17/64
.265625
6,7469
. . . .
.275591
7,0000
INCHFRACTION DECIMAL MILLIMETER
9/32
.281250
7,1438
19/64
.296875
7,5406
5/16
.312500
7,9375
. . . .
.314961
8,0000
21/64
.328125
8,3344
11/32
.343750
8,7313
. . . .
.354331
9,0000
23/64
.359375
9,1281
3/8
.375000
9,5250
25/64
.390625
9,9219
. . . .
.393701
10,0000
13/32
.406250
10,3188
27/64
.421875
10,7156
. . . .
.433071
11,0000
7/16
.437500
11,1125
29/64
.453125
11,5094
15/32
.468750
11,9063
. . . .
.472441
12,0000
31/64
.484375
12,3031
1/2
.500000
12,7000
. . . .
.511811
13,0000
33/64
.515625
13,0969
17/32
.531250
13,4938
35/64
.546875
13,8906
. . . .
.551181
14,0000
9/16
.562500
14,2875
37/64
.578125
14,6844
. . . .
.590551
15,0000
19/32
.593750
15,0813
39/64
.609375
15,4781
5/8
.625000
15,8750
. . . .
.629921
16,0000
41/64
.640625
16,2719
INCHFRACTION DECIMAL MILLIMETER
21/32
.656250
16,6688
. . . .
.669291
17,0000
43/64
.671875
17,0656
11/16
.687500
17,4625
45/64
.703125
17,8594
. . . .
.708661
18,0000
23/32
.718750
18,2563
47/64
.734375
18,6531
. . . .
.748031
19,0000
3/4
.750000
19,0500
49/64
.765625
19,4469
25/32
.781250
19,8438
. . . .
.787402
20,0000
51/64
.796875
20,2406
13/16
.812500
20,6375
. . . .
.826772
21,0000
53/64
.828125
21,0344
27/32
.843750
21,4313
55/64
.859375
21,8281
. . . .
.866142
22,0000
7/8
.875000
22,2250
57/64
.890625
22,6219
. . . .
.905512
23,0000
29/32
.906250
23,0188
59/64
.921875
23,4156
15/16
.937500
23,8125
. . . .
.944882
24,0000
61/64
.953125
24,2094
31/32
.968750
24,6063
. . . .
.984252
25,0000
63/64
.984375
25,0031
1
1.000000
25,4000
1-1/16
1.062500
26,9880
FORMULAS:
MULTIPLY BY TO GET MULTIPLY BY TO GET
INCHES (in) x 25.4 = MILLIMETERS (mm) MILLIMETERS (mm) x 0.03937 = INCHES (in) FEET (ft) x 0.3048 = METERS (m) METERS (m) x 3.281 = FEET (ft)
SUNNEN PRODUCTS LIMITED
No. 1 Centro, Maxted Road
Hemel Hempstead, Herts HP2 7EF ENGLAND Phone: ++ 44 1442 39 39 39 Fax: ++ 44 1442 39 12 12 www.sunnen.co.uk e-mail: [email protected]
SUNNEN AG
