Corner Units

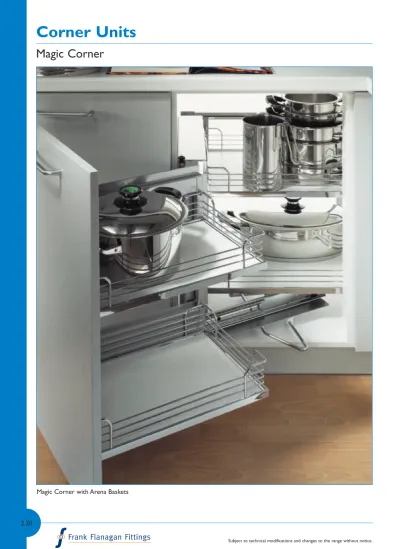

Magic Corner
Corner Units
Magic Corner
Magic Corner with Chrome Baskets Magic Corner left swivel with Chrome baskets
860 - 970mm
Corner Units
Magic Corner - Features
• New improved running system
• SoftStopp feature available
• Chrome or Arena baskets
• Adjustable frame 900 mm – 1000 mm
• New Pantry height option
• Minimum Door width: 445 mm
SOFTSTOPP
Description Art Nr
SoftStopp for Magic Corner K6211
Note: SoftStopp is not available on Magic Corner pantry unit
MAGIC CORNERS
Std Magic Corner Pantry Magic Corner
W = Inside width 860 - 970 mm 860 - 970 mm
D = Inside depth Min. 500 mm Min. 500 mm
E = Extension 450 mm 450 mm
Min. door width 445 mm 445 mm
Min. door height 550 mm 1225 mm
Load: Front pull out 14 kg 14kg
Back pull out 18 kg 18kg
Chrome Arena Chrome Arena
baskets baskets baskets baskets
To be swivelled right K6203C K6203A K6209C K6209A
To be swivelled left K6204C K6204A K6210C K6210A
Corner Units
Magic Corner - Order Codes
D
W
E
Right Swivel Left Swivel
E
W
Corner Units
Le Mans Carousel
Corner Units
Le Mans Carousel
Controlled and fluid movement…
…a smooth combination of turning
and swinging…
…brings the entire contents of the cabinet out
into the open..
…for easy access to both trays
or to each tray individually.
Corner Units
Le Mans Carousel
The door is opened…
…and moves completely out of the cabinet.
…the top or bottom tray swings out…
TECHNICAL INFORMATION FOR LE MANS CAROUSEL
450mm Unit 500mm Unit 600mm Unit
A 900mm 1000mm 1000mm B ≥500mm ≥500mm ≥500mm C 411-418mm 461-468mm 561-568mm D 16-19mm 16-19mm 16-19mm E ≥45mm 45mm ≥45mm F 450mm 500mm 600mm G ≤65mm ≤65mm ≤65mm H 600-900mm 600-900mm 600-900mm J ≤25mm ≤25mm ≤25mm K ≤70mm ≤70mm ≤70mm
Corner Units
Le Mans Carousel
LE MANS CAROUSEL 450MM
Swings Left Swings Right
Art. No. KLE450L KLE450R
LE MANS CAROUSEL 500MM
Swings Left Swings Right
Art. No. KLE500L KLE500R
LE MANS CAROUSEL 600MM
Swings Left Swings Right
Corner Units
TURNMOTION
Unit Base unit Base unit c/w Butchers Block Wall unit
Art. no. KTM KTMB KTMW
Corner Units
TurnMotion
The “TurnMotion” system is available for wall and base units. Corner base units have the option for a butchers block in beech as well as a special order option for a granite butchers block. The butchers block option allows you to join your worktop in standard 90 degree angle and the butchers block clips on to the worktop.
The door rotates inside the cabinet giving complete access.
600 mm 282 mm diameter 510 mm min. R 280 mm 288 mmmin. 383 - 386 mm 900 mm 420 mm diameter 810 mm min. R 420 mm 500 mmmin. 450 - 456 mm 420 mm
Corner Units
Carousel Units
The tried and tested solution for corner units is the practical carousel units. Now available for 900 x 900 mm units and also full 360° carousel for 45° corner base units.
FULL CAROUSEL KIT
A = cabinet dimensions 900 x 900 mm B = Axle centre position 460 mm C = min internal depth 500 mm
D = basket diameter 750 mm
Axle height 685 - 735 mm
Art. Nr. K6714SET
3/4 CAROUSEL KIT
A = cabinet dimensions 800 x 800 mm 900 x 900 mm B = Axle centre position 120 mm 90 mm C = min internal depth 480 mm 510 mm D = basket diameter 700 mm 820mm
Axle height 685 - 735 mm 685 - 735 mm Art. Nr. K6710SET K6711SET
Corner Units
Carousel Units
D B C A B B A D CREVO BI-FOLD CAROUSEL KIT
Art. No. Description
KREVO90D Complete with Stainless Steel Doors
KREVO90 No doors
REVO Bi-Fold Carousel
REVO BI-FOLD CAROUSEL
• 270 degree ARENA Style grey shelves • Integrated Soft-Stopp• Doors Bi-fold into the cabinet
• Height adjustable axle from 660 - 860 mm • Clip On front brackets
• 2nd shelf is height adjustable • Adjustable travel and closing speed • Supplied with or without doors • Doors in MDF / Stainless Steel available
900
412.5 412.5 2 x 315mm wide doors 810 diameter 560Corner Units
1/
2
Carousel Units
1/
2 CAROUSEL KIT
• Full chrome baskets
• Designed for blind corner units
• 2 height adjustable carousels
• Min door width
• Min door height
Art. no. 6420 = min. 900
27 mm
Diameter 750
min. 380 mm 27 mm
1/2
CAROUSEL UNIT CHROME
Corner Units
Twister
Diameter 500 mm min. 295 mm min. 270 mm 305 mm 600 mm 45 degrees diameter 8 mm min. R 260 mm 305 mmThe Twister system for corner wall units makes full use of the cabinet. The eccentric axle provides extra space on the shelves and is height adjustable from 659 - 769 mm.Twister comes with two Arena shelves, with the top shelf height adjustable ensuring practical storage.
