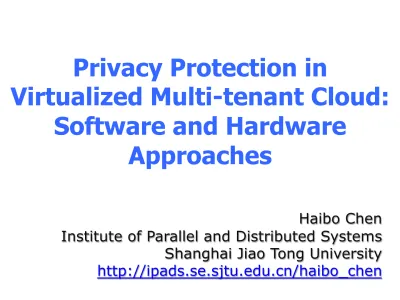

Privacy Protection in
Virtualized Multi-tenant Cloud:
Software and Hardware
Approaches
Haibo Chen
Institute of Parallel and Distributed Systems
Shanghai Jiao Tong University
A Review on a Keynote Speech by
Justin Ratter in ISCA 2008
This Talk
Identify security issues with current cloud platform
Describe two approaches to privacy protection of
VMs
Software approach: nested virtualization Hardware approach: secure processor
Security Issues with Current Cloud
Platform
Virtualization: enabling the cloud
VM Image User Auth. & Payment VMM Control VM User VM User VM User VMCan we simply believe in cloud?
Is this “bubble” trustworthy?
8
Security Concerns in Cloud
7 Threats of Cloud Security
[Gartner 08]
•
Privileged operator access
•
Regulatory compliance
•
Data location
•
Data segregation
•
Recovery
•
Investigative support
•
Long-term viability
9Why we cannot trivially believe in
multi-tenant cloud?
Reason#1: curious or malicious
operators
..., peeking in on emails, chats and Google
Talk call logs for several months …
Reason#2: huge TCB for cloud
0 1000 2000 3000 4000 5000 6000 7000 8000 9000VMM Dom0 Kernel Tools TCB
KLOCs
Xen Code Size
2.0 3.0
4.0
VMM
Trusted Compu-ng Base
Control VM
Tools Kernel
Guest VM
The TCB is growing to 9 Million LOCs by 2011
One point of penetraGon leads to full compromise
37 security issues are found in Xen and 53 in VMWare by Oct 2010. [CVE’12]
How Can You Break Virtualization
Layer?
Management VM Kernel G u e s t V M VMM Hardware G u e s t V M G u e s t V M Oper at or 1 at t ac k i ng s ur f ac e at t ac k 2MicrosoB Windows® Azure™ PlaJorm Privacy Statement, Mar 2011
Amazon AWS User Agreement, 2010
Result: Limited Security
Guarantees in Public Cloud
Outline
Overall Idea
Software-based Protection
CloudVisor: privacy protection of VMs in multi-tenant
cloud with nested virtualization (SOSP 2011)
Hardware-based Protection
HyperCoffer: processor-rooted trust for guest VM
A Design Principle
”Any problem in computer science can
be solved with another level of
indirection.”
–
David Wheeler in Butler Lampson’s
1992 ACM Turing Award speech
Functionality of
Virtualization-Layer
Major functionality
Resource management: manage memory, devices and CPU cores
Multi-tenancy: multiplexing hardware resources to tenants, i.e., creating/running multiple VMs
Cloud management: VM save, clone, migration
Minor functionality
Security protection (e.g., isolation, access control)
Unfortunately, they are intertwined together in the
same hypervisor-layer
Minimize TCB (Trusted Computing Base)
“Privileged operator access” is the top threat [Gartner’08]
The hypervisor layer is getting more complex and vulnerable
Add “
another layer of indirection
”
Separate security protection from other main functionalities
Software-based protection: nested virtualization
Add one thin layer below the hypervisor: CloudVisor
Hardware-based protection: reducing TCB to a secure
processor
Leverage a secure processor to do security and privacy protection
Main Idea
CloudVisor: Security Protection of
Virtual Machines Using a Nested
Goal of CloudVisor
Defend again curious or malicious cloud operators
Ensure privacy and integrity of a tenant’s VM
Transparent with existing cloud infrastructure
Little or no changes to virtualization stack (OS, VMM)
Minimized TCB for cloud
Easy to verify correctness (e.g., formal verification)
Non-goals
Side-channel attacks, exploiting a user-VM from network, Execution correctness of a VM
Observation and idea
Key observation: protection logics for VMs are
mostly fixed
Idea:
separate
resource management from security
protection
CloudVisor: another layer of indirection
Responsible for security protection of VMs
(Unmodified) VMM
VM multiplexing and management
Result
Minimized TCB
Architecture (logically) of
CloudVisor
Bootstrap Intel TXT for late launch CloudVisor Hash of CloudVisor is stored in TPM
CPU states Interpose control switches between VMM
and VM (i.e., VMExit)
Memory
Pages Interpose address translaGon from guest physical address to host physical address
I/O data Transparent whole VM image encrypGon
Decrypt/encrypt I/O data in CloudVisor
VM protection approach
Implementation
Xen VMM
Run unmodified Windows, Linux Virtual Machine 1 LOC change to Xen to late launch CloudVisor
100 LOCs patch to Xen to reduce VMExit (Optional)
Run on SMP and support SMP VMs
5500 LOCs
Performance
0 0.2 0.4 0.6 0.8 1 1.2KBuild apache SPECjbb memcached Average
6.0% 0.2% 2.6% 1.9% 2.7% Nor m aliz ed Slowdown C om par ed to Xe n Xen CV Average slowdown 2.7%
Remaining Issues
Physical Threats can be Real
Hardware Maintenance
Thousands of machine failures per year [Schroeder et al,
SIGMETRICS’09] in a datacenter
Replacement of memory and disk has becomes daily routine
Data Residual
Memory bus sniffer Non-volatile memory
Cold-boot attack [Halderman’09]
Surveillance camera is NOT Enough!
HyperCoffer
HyperCoffer: Processor-Rooted
Transparent Protection of VMs
Goal: Minimalize TCB to Processor
Sec-CPU Hypervisor VM-1 Memory Disk Bus Dom-0 NIC Other Software Hardware Untrusted Trusted VM-2 CPU Hypervisor VM-1 Memory Disk Bus Dom-0 NIC Other VM-2Traditional System HyperCoffer
Background: Secure Processor
Previous Work on Secure Processor
Data Privacy
Data is encrypted outside CPU Data is decrypted only in cache
Data Integrity
Update hash tree at every write from cache to memory Check hash tree at every read from memory to cache
Mainly used to protect application from Untrusted OS
Address-Independent Seed
Encryption
Data (PlainText) Counter
Address Encrypt VM-‐Key PAD Data (CypherText) XOR
Data Cache Counter Cache
Counters
Secure Processor
Secure Processor: Merkle Hash
Tree
Data (CypherText) Counters Hash
Root
Secure Processor
Secure Processor: Bonsai Merkle
Tree
Data (CypherText) Counters Hash
Root
Secure Processor
Prior Hardware Approaches
Not really considers systems issues
HyperWall (ASPLOS’12)
requires an OS to specify which pages should be protected Ignore complex interactions between hypervisor and guest VM Not compatible with existing VM operations
H-SVM (MICRO’11)
Use microprogram to do memory isolation, no defense against hardware attacks
Require OS to designate which memory is protected or not
Most others focus on fine-grained protection of
applications or app modules (e.g., SecureME,
Challenges
1. Interaction between hypervisor and VMs
Selectively expose fields of CPU context to the hypervisor Auxiliary info for instruction emulation (e.g. guest page table) I/O emulation for both disk and NIC
2. Backward compatibility with existing OS
Minimize the cost of deployment
3. Supporting VM operations
Not limited by data structure on the chip
HyperCoffer
Design Overview
36 Shim OS App Hypervisor Shim OS AppI/O Dev Memory Secure CPU
VM-1 VM-2 Shim Mode Host Mode Guest Mode Data Exchange Data Exchange
Design Overview
1. Complete Isolation
VM-Table to support multiple VMs Tagged cache for different VMs Dedicated EPT memory
2. Controlled Interaction
VM-Shim: Control Interposition
Shim mode
VM-Shim: Data Interaction
3 types of interactive data
STEP-1: COMPLETE ISOLATION
Leveraging Secure Processor
Data Privacy: AISE
All the data in VM is encrypted Different VM has different key VM-keys are saved in-chip
Malicious hypervisor/hardware cannot read VM data
Data Integrity: BMT
BMT (Bonsai Merkel Tree) Root hash is saved in-chip
Every memory read will check hash value Every memory write will update BMT
VM-Table
VM-Table Contents
Each running VM has one entry
Each entry contains a KVM and vm_vector
Kvm is used to encrypt VM, it is per-VM based
vm_vector contains VM info for secure processor, used to verify a VM image
E.g., the root hash of the BMT
VM-Table is saved in a preserved memory region in encrypted form
BMT & AISE are NOT Enough
1. Inter-VM Remapping Attack
Malicious hypervisor remaps VM-A’s page to VM-B If the data of the page is in cache, then VM-B gets it
Problem: data in cache is plaintext
Solution: tag cache-line with VMID 41
VM-‐A EPT VM-‐B EPT CPU
Cache-‐line
Memory HPA
BMT & AISE are NOT Enough
2. Intra-VM Remapping Attack
Malicious hypervisor remaps a VM’s page-A to page-B If the data is in cache, then two pages are switched
Solution: dedicated memory for EPT
Flush cache when EPT is changed
Optimization: lazy TLB flushing only at n-TLB missing
42
Y
X
A
B
Y
X
A
B
HPA GPASTEP-2: CONTROLLED INTERACTION
VM-Shim Mode
VM-Shim
A piece of code runs between hypervisor & VM
Exchange data for the two
Shim-Mode
Shim-Mode can access VM’s data VM cannot access Shim’s data
44 Shim VM Hypervisor VMExit ① ② ④ ③
VM-Shim: Data Interaction
Specification of Interactive Data
Describe the format of interactive data to store then Our implementation: use shim’s memory
Two New Instructions
raw_st: store data without encryption
raw_ld: load data without integrity check
45 VM’s Memory Shim’s Memory CPU Context InteracGve Data Encrypted Plaintext
VM-Shim: Interactive Data
Minimize Interactive Data
Different for different VMEXITs
Data Specification
Communication protocol between hypervisor and shim
46
CPU Context Register value of guest VMs Disk I/O Meta-‐data of I/O operaGons Network I/O Both meta-‐data and I/O data
Example: Trap & Emulate
I/O Instruction:
in %dx %eax
Read from I/O port %dx and put value into %eax
47 Shim VM Hypervisor I/O Dev %dx %dx % ea x %eax insn CPU Shim’s Memory
Example: DMA in Network I/O
DMA in Network I/O
Maintain states by interposition all I/O operations to device Use Shim’s own memory as shadow buffer for DMA
48 Shim VM Hypervisor I/O Dev Shim’s Memory VM’s Memory data data
Implementation
On Emulator
Based on Qemu
On Real Machine
Use hook of VMExit to implement VM-Shim
Components
User-level agent: 200 LOCs VM-Shim: 1100 LOCs
Xen: 180 LOCs
Evaluation on Simulator
Simulator
Dinero-IV
LLC: 8MB 8-way set-associative
Counter Cache: 64KB and 8-way set-associative Cache using LRU replacement, 64-byte block Memory: 512 MB, with latency 350 cycles
AES encryption: 80 cycles
Virtualization Software
Xen-4.0.1, domain-0 with Linux 2.6.31
Virtual Machine
One or more core, 1GB memory 20GB virtual disk, virtual NIC
Unmodified Debian with kernel 2.6.31, x64 Windows XP SP2, x64
Evaluation on Simulator
0 2 4 6 8 10 12 14 2.8 3.6 1 0.3 0.5 3.7 6.8 3.2 2.3 0.4 2.4 13.9 7.9 4.2 1.2 2.2 8.1 9 3.3 4 0.6 5.4 N or m al iz ed S lo w do w n w ith X en (%) AISL+BMT AISL+BMT+Shim 51Evaluation on Real-Machine
Software
Xen-4.0.1, domain-0 with Linux 2.6.31
Hardware
AMD quad-core CPU, 4GB memory 100Mb NIC, 320GB disk
Virtual Machine
One or more core, 1GB memory 20GB virtual disk, virtual NIC
Unmodified Debian with kernel 2.6.31, x64 Windows XP SP2, x64
Evaluation on Real-Machine
0 1 2 3 4 5 6 7kbuild dbench netperf memcached specjbb-‐xp 2.8 2.3 4.1 6.8 0.7 5.8 1.7 0.3 6.8 1.5 Pe rf or m an ce O ve rh ea d ov er X en (%) Single-‐core Qual-‐core 53
Summary
Lack security guarantee in multi-tenant cloud
A case on integrated approach to computer systems
Two software/hardware systems to secure cloud
CloudVisor: whole-VM protection with nested hypervisor HyperCoffer: hardware-rooted whole-system security See our papers for more detailed information
Thanks
Institute of Parallel and Distributed Systems
http://ipads.se.sjtu.edu.cn
Ques]ons?
CloudVisor/Hypercoffer
One (small) ring to Rule them
(cloud) all
