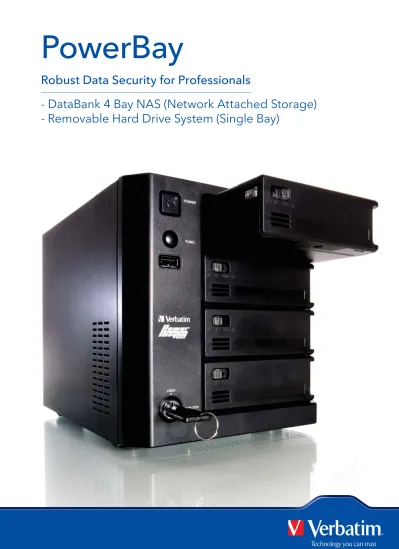

PowerBay
Robust Data Security for Professionals
- DataBank 4 Bay NAS (Network Attached Storage)
- Removable Hard Drive System (Single Bay)
Key features:
• Removable, enclosed hard drive cartridge system (hot swappable)
• RAID 6, the most redundant RAID setting (also RAID 0, 1+spare, 5, 5+spare)
• eSATA port for fast mirroring • LAN replication
• 256 bit AES encryption
• High quality, industrial build for maximised uptime • Acronis Backup Software: 5 licenses
Removable HDD Cartridge System
• Easily removable with no expertise required.eg: offi ces with no local IT staff • Hot Swap: replace failed drive
without turning off system power • Protects drive from dust and
damage during storage or transport • All cartridges contain 7200 rpm drive
- tested and warranted by Verbatim
• Available as an accessory item: you can purchase spare cartridge(s) for your NAS, RAID, or single drives systems
RAID 6
RAID 6 adds one more level of data redundancy to RAID 5. In RAID 5 setting, if one HDD fails, you can rebuild the RAID 5 data set by swapping the HDD. However, if another HDD fails during the rebuilding process, you would lose all of the data. In RAID 6 mode, even if a 2ND HDD fails during the rebuilding process, you can still save the data.
Wireless Gigabit Router / Switch PowerBay NAS
Laptop
Computer 1
Computer 2
Printer Additional Storage
Verbatim MediaStation HD DVR Wireless UPnP AV/DLNA Media Player TV POWER FUNC. LOCK UNLOCK Data Music Photos Movies
RAID 5 vs RAID 6
What is Network Attached Storage (NAS)?
• A NAS is a dedicated hardware device that allows fi les tobe stored and retrieved across a computer network. • NAS “server” authenticates clients and manages fi le
operations in much the same manner as traditional fi le servers, through well-established network protocols like NFS and CIFS/SMB.
• NAS devices generally run an embedded operating system on simplifi ed hardware. NAS boxes support hard drives, and sometimes tape drives, but lack peripherals like a monitor or keyboard. Designed specifi cally for network storage, a NAS tends to be easier to manage than a fi le server.
The Verbatim PowerBay DataBank 4 Bay NAS Hard Drive provides robust data
security for small and medium sized-businesses, allowing documents to be safely
shared across a network and on the Internet for employees to access.
PowerBay DataBank 4 Bay NAS Hard Drive
- Designed for maximum data security
RAID5
RAID5
RAID6
Problem happens
Problem happens
Problem happens But another issueRebuild RAID5 Rebuild RAID6 DATA Recovered Rebuild RAID5
Rebuild RAID5
But another issue All data is gone DATA Recovered HDD REPLACE HDD REPLACE HDD REPLACE HDDREPLACE FAILURE FAILURE FAILURE FAILED! REBUILDING FAILED! REBUILDING REBUILDING REBUILDING
What is Mirroring?
All data including the NAS settings and data fi les are copied to an HDD (such as a PowerBay Removable Hard Drive System or PowerBay DataSafe 4 Bay RAID Hard Drive) connected to the external eSATA port in real time.
If a problem occurs on the PowerBay DataBank 4 Bay NAS Hard Drive, the system can still work from the mirrored eSATA hard drive. The NAS volume can be rebuilt using the mirrored data on eSATA hard drive. Users can also access the data during the rebuilding process.
In what situation does it make sense to mirror?
Mirroring provides the redundancy for an enclosure problem, for example, if the fan fails and the system overheats. Since the NAS is shared by many users on-line, through mirroring, you can maintain the service and access the data even if the NAS enclosure is out of order.Encryption
The RAID volume can be encrypted by hardware encryption. All data recorded to the RAID volume will be encrypted. The encryption technology is based on AES 256 bit for securely protecting the recorded data. You can still mirror the encrypted volume through the external eSATA port. The mirrored volume is also encrypted.
The System Administrator can also lock the entire volume by setting the passwords in user interface (GUI). The locked volume can be unlocked by typing in the password.
A USB drive can be used as a “unlock key” for a locked volume. If the PowerBay DataBank 4 Bay NAS Hard Drive is turned on without the USB unlock key, the volume cannot be accessed, protecting against theft. After the volume starts up with the USB unlock key, you can take out the USB key.
What is Replication?
All fi les are copied (backup) to another NAS through the external LAN port. It is also possible to backup the data to a NAS placed in a different location using VPN routers. A LAN real time backup system should be employed when remote backup is preferred. In the case of a disaster (eg fi re or theft) you may lose all your data if you only mirror the NAS. However if you backup to another NAS at a different location through VPN routers, you can still save all of the data.
Industrial Construction for max up-time
• Metal enclosure.• Replaceable fan in the back panel for easy maintenance. • Optimised heat radiation design.
Enclosure and cartridge are design to optimise the air fl ow to cool down the HDDs. Also, the rotation speed of the cooling fan in the back of enclosure is automatically adjusted based on the temperature in the enclosure. With this optimised heat radiation design, PowerBay DataBank 4 Bay NAS Hard Drive can be used as a server without worrying about heat related problems.
FRONT
BACK
OUTFLOW
INFLOW
EXT LAN port
VPN Router Sub NAS Main NAS VPN Router
INTERNET
EXT LAN port
Supporting function as a server
Quota Function
Provides fl exible set up of capacity limitation User Base: limit the capacity/user by 0.1GB unit Group Base: limit the capacity/group by 0.1GB unit Folder Base: limit the shared folder capacity by 0.1GB unit (available only for Windows).
Access Right setting - Like a Windows server, detailed access rights (reading & writing) can be set to each user and group. Support “Active Directory 2003 & 2008”
Able to set up access rights through Active Directory. Wake on LAN
PowerBay DataBank 4 Bay NAS Hard Drive can be turned on remotely through the network.
Support UPS
In case of blackout, PowerBay DataBank 4 Bay NAS Hard Drive can communicate with the compatible UPS and safely shut it down. Also, when the UPS restarts, it also restarts automatically.
Anti theft security
- Compatible with Kensington PC lock for security
For anti-theft purpose, PowerBay has a key lock on the front panel to prevent cartridges being removed by unauthorised people. They also have the slot for Kensington lock on the back panel.
Compatible with Kensington lock
Apple support AFP 3.1 for Mac OS9/X
Macintosh Time Machine support FTP/HTTP Download/backup
The registered users can upload/download data through the Internet. PowerBay DataBank 4 Bay NAS Hard Drive can be used as FTP server. From Version 2.0, URL can be fl exibly edited.
Email Alert - By setting up the administrator’s email address, PowerBay DataBank 4 Bay NAS Hard Drive periodically informs the status of the unit (e.g the result of backup, empty space or error log). From Version 2.0, several email address can be registered.
Schedule Power on/off - To save the electric consumption, the schedule for power on/off can be programmed. With this function, PowerBay DataBank 4 Bay NAS Hard Drive automatically shuts down during the low access period and starts up when busy hours begin. From Version 2.0, you can set up multiple on/off schedule.
• Image based backup
– Much faster than other backup methodologies – Provides for true Disaster Recovery
(see “Bare Metal Restore”)
– Backup multiple partitions at the same time – Backs up OS, applications, data, settings ….
Everything … in one fast operation • Incremental backup
– Once fi rst full backup is made, only backup new and changed fi les for quicker backups
• Bare-Metal Restore
• In case of system failure (virus, system drive crash, etc.) can easily and quickly restore entire computing environment (OS, applications, data, settings, etc.) without having to reinstall any of the above.
• Bootable Recovery Media
– Allows user to create a recovery CD/DVD to restore their system (Bare-Metal Restore) in the event of a system software or system hard drive failure.
• Works on Windows XP, Vista and Windows 7
• Based on Acronis’ award winning True Image Home software
Bundled Software: Acronis
Acronis® True Image Software for PowerBay
Provides backup, restore, data protection and Disaster Recovery capabilities
USER PC POWERBAY NAS NETWORK CAMERA ROUTER INTERNET POWER FUNC. LOCK UNLOCK
Key features:
• Dual Interface - eSATA - USB
• High performance alternative for tape drives • High quality build, heat radiation design • Enclosed cartridges
• 7200 rpm drives
• Key lock, Kensington slot • Acronis Backup Software • 500GB, 1TB, 2TB capacities
PowerBay Removable Hard Drive System is a great high performance alternative to tape backup products. • Direct access HDD technology
• Better performance than tape
• Keep backup data sets at different time points (off-line)
Low noise cooling fan - Very quiet, low noise cooling fan is applied. Since the Power Bay cartridge itself is designed to have good heat radiation structure, with this low noise cooling fan, you can continuously use PowerBay Removable Hard Drive System without worrying about any issues from heating.
Automatic power on/off control from PC - If a PowerBay Removable Hard Drive System is connected to a PC, it is turned ON/OFF in conjunction with the PC. This would prevent users from forgetting to turn off the power of PowerBay Removable Hard Drive System when the connected PC is not in use. Very ECO friendly.
Anti theft security - Compatible with Kensington PC lock for security. For anti-theft purpose, PowerBay Removable Hard Drive System has the slot for Kensington lock and a hook for the wire in the back panel.
PowerBay Removable Hard Drive System
Specifi cations
POWERBAY DataBank 4 Bay NAS Hard Drive POWERBAY Removable Hard Drive System
Interface
Two 10/100/1000 Mbps Full/half-fuplex auto-MDIX Gigabit Ethernet ports. One USB2.0(Type A) for connecting an external USB, One USB2.0(Type A) for connecting to a printer
eSATA x 1
USB 2.0 x 1 (Type A) eSATA x 1
Internal Hard Drives
No of drives 4 1
Data interface SATA SATA
HDD Capacity 500GB / 1TB / 2.0TB
Total Capacity 2.0TB / 4.0TB / 8.0TB
1TB / 2.0TB
Supported RAID Levels and Capacity RAID 0 (2.0TB/4.0TB/8TB) RAID 1m+s (0.5TB/1.0TB/2TB) RAID 5 (1.5TB/3.0TB/4.5TB) RAID 5+s (1.0TB/2.0TB/4TB) RAID 6 (1.0TB/2.0TB/4TB) Other information Dimensions (WxHxD) 170mm × 183mm × 230mm 50mm × 170mm × 230mm
Weight (approx) 6.7Kg (dependant on capacity) 2.5Kg dependant on capacity)
Operating environment 5-35°C, 10-85% (non condensing) 5-35°C, 20-80% (non condensing)
OS Support Win 2000, XP, Vista, 7
Mac OS X 10.2 and higher, Linux
Win 7, Vista, XP, 2000, Win Server 2003/ 2008, Mac OS X 10.2, 10.5
Power Power Supply Internal AC 100-240V, 50/60Hz DC 12V
Part Numbers 47482 / 47483 / 47484 47486 / 47489 Mirror data 4 Jun.30.2009 Mirror data 3 Mar.31.2009 Mirror data 2 Dec.31.2008 Mirror data 1 Oct.31.2008
Additional Storage for PowerBay 4Bay drives.
Connect via eSATA and backup / archive your
data on removable cartridges.
Purchase multiple cartridges with drive as a backup
solution for small business
