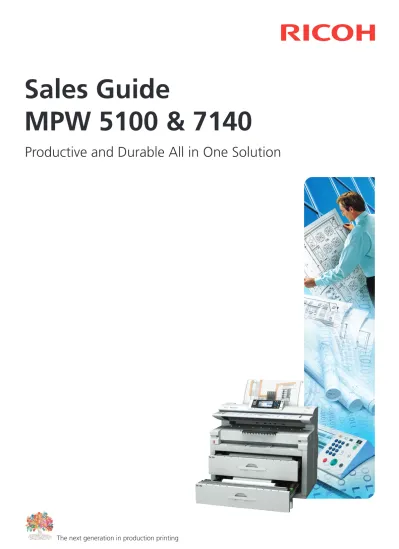

Sales Guide MPW 5100 & 7140

(1)

Sales Guide

MPW 5100 & 7140

The next generation in production printing

(2)

(3)

Contents

Number Description

Page

1 Introduction 5

Value Proposition

2 Key Product Features 7

Product Image, Operation Panel, Animated Guide, Stacking Capability, Colour Scanner, Folding, Improved One Dot Line, Improved Productivity

Controller, Comparisons, File Formats, Connectivity, Locked Print, Hold Print, Stored Print, Sample Print, PDF Direct Print, Vista Security

Scanner

Improved Image Quality

Value Added Options; Web ImageMonitor, DeskTop Binder, Web SmartDeviceMonitor, SmartDevice Monitor, SDK

3 Configuration & Option Interchangeability 29 Option Correlation, Mainframe Specification,

Basic Specification, Enhanced Features, Printer Specification, Scanner Specification, Peripheral Specification

4 Ratio (External) Controller 49 Concept, Ratio Platforms

5 Recommended Paper List 52

6 Productivity Data 54

7 Environmental Information 56 8 Target Supply Yield & Interchangeability 57 9 Storage & Transportation 57

10 Target Markets 58

Competition, Value Proposition, Target Reliability

11 Product & Licensing Options 65 Ricoh & Ratio Controllers, Dedication PC

Specification 12 Integration 67 13 EDP Codes 67 14 Product Documentation 70 15 Ricoh Showrooms 72 16 Configuration 73

17 Useful Web Sites 75

18 Appendix

Area Sizes / Requirements 76

(4)

This sales handbook is intended for internal use by company employees and dealer employees. It is not intended for customer consumption. Information is provided as a sales training aid. Whilst care has been taken to ensure that information is accurate, no liability will be accepted for errors and omissions.

(5)

1. INTRODUCTION

This document introduces and reviews the MP W5100 and 7140 Wide Format Mid / High end devices.

1.1

Value Proposition

The MP W 5100 / 7140 will be targeting the typical Computer Aided Design (CAD) marketplace with high productivity and durability that will support an increased Total Document Volume than previously offered via Ricoh.

Ricoh have made radical strides in the Wide / Large format arena since 2001 and now commands a strong place in the traditional CAD market with unique aesthetics and robust production capabilities. The Ricoh wide format range offers a concise footprint and a range of print controllers to meet a varying demand of Centralised or Decentralised production.

With the addition of the MP W5100 / 7140, the Ricoh portfolio comfortably delivers benefits such as:

Leading Product Design

• Compact, all in one footprint

• Embedded Ricoh controller

• Professional external Ratio controller

• Folder connectivity

• Copy stacker

• Rear stacker

High Production Capabilities • 10 ppm (5100)

• 14 ppm (7140)

• 15,000m

• 600 dpi resolution

User Friendly Operation

• Wide colour LCD operation

• Embedded Scan to Email / Folder / File

• Scan to Print (Inkjet plotters)

• Large Hard Disc capacity for document server

• Full front operation

• Rear collection trays

Total Cost of Ownership

• Renowned Service & Supply

(6)

Environmentally Friendly

• Minimal ozone, noise and heat emission levels

• Compact and quiet, these wide-format solutions can be placed in drawing offices or any other working area

Security

• PDF Rights Management

• Multi level authentication options

Integrates with current technology

• Integration with current or future business application via leading best of breed tools such as Equitrac, for cost recovery, or eCopy for advanced scanning and distribution.

1.2

Cautions

Ricoh carries out a constant and on going program of product development market analysis and product improvement. Therefore specifications, parts, code numbers and prices are subject to change without notice.

(7)

2. Key Product Features

The MP W 5100 / 7140 delivers all the above benefits by a rich product feature list that aids the drive in being the most attractive mono range in the CAD wide format market for operation and Total Cost of Ownership.

Showing a consistent design approach across the range, the 5100 / 7140 retains the market leading features of the MP W2400 / 3600 and adds significant additional tools that have resulted from subsequent R&D, centred around a lengthy primary and secondary research project within the EMEA region in 2006/07.

2.1

Product Image with four Rolls

2.2 Product Image with two Rolls and two A2

Cassettes

(8)

2.3

New Operation Panel

A new colour wide VGA LCD panel is used with the 5100 / 7140, giving greater usability and accessibility and conforms to the generic Ricoh range of office and production devices.

2.3.1 Simplified Display

The minimal function keys with larger font simplifies the display and allows users, especially visual impaired, to use the machine to maximum effect.

(9)

2.3.2 Animated Guidance

In the situation, when a basic service situation arises, such as a paper jam or toner end, the Animated Guidance display will be offered to help user resolution.

2.3.3 Installation Layout

Original output

Front copy output

The 5100 / 7140 benefits from a front operation installation but in addition to this, the end user can vary the output trays depending on final location and volume, for example.

(10)

2.3.4 Stacking Capability

In a Central Reprographics (CRD) or Pay for Print situation, end users typically have a limited area. To address this plus an enhanced production feature, the 5100 / 7140 will be able to be equipped with a variety of stackers that will aid input and output collection.

2.3.6 Colour Scanner

The 5100 / 7140 are the first devices in the Ricoh range to have an embedded colour scanning technology. There is a significant market demand (at the time of print) in the UK for colour scanning to meet the following needs:

• Archiving

– Document Management for current projects – Records Management for legacy documents

• Advanced document distribution to sub contractors

• Reduction in distribution costs and time

• Scan from Ricoh device to a separate colour inkjet device

2.3.6 Folding

Folding has become an important topic area in the wide format arena with the advancement of digital devices and expectations from end users. Folding can be a significant consideration in the workflow of both centralised and de centralised operations due to the possibilities of speed and accuracy of fold. Historically this has been a wholly manual process to meet international or local specific requirements. Online and offline folders must maintain these exacting standards, and increasingly suppliers of equipment have adopted a growing portfolio of folders to meet this demand. The two types of fold are understood as Fan and Cross.

Fan folding is the semi-automated scenario where the end user is still expected to

‘cross’ the already fan folded document manually.

Cross folding is the wholly automated situation where the document is finished in a

form known as a ‘packet’. A typical example would be an A1 original folded down into a A4 ‘packet’ for effective distribution in the post or in a tender document.

(11)

All folds should have the option on the controller to have a ‘margin’. This finishes the document with a small (adjustable) margin on the long edge for hole punching or binding. Not every fold will require this, so the user should be able to select either.

Fan Fold Cross Fold File

(12)

2.3.7 Improved one dot line

The MP W5100 / 7140 will have line accuracy improvement up to 105% due to the advancement of the developer units.

2.3.8 Improved Productivity

The MP W5100 / 7140 have been launched to address the high productivity and durability markets. To support this, the fuser rollers have undergone a significant upgrade.

For the 5100, the control heater parts have been refined to account for varying paper sizes, which would typically be found in a pay-for-print environment.

For the 7140, the heating pipe has been manufactured as one which accounts for a more predictable paper size, typically found in the InPlant AEC marketplace i.e. Car Manufacturers.

480w / A080 5100 / 7140

Heat Pipe

Heater

(13)

2.4 Controllers

The 5100 / 7140 will be able to cater for both the Decentralised and Centralised scenarios with two proficient print / scan controllers. Both these controllers are not recommended to be installed together, as they address the two different workflow requirements.

2.4.1 Ricoh Embedded Controller

First launched with the MP W2400 / 3600, the embedded controller drove the dominance of the two devices with the ease of use, familiarity and cost flexibility in using advanced file formats.

The 5100 / 7100 will also benefit from this proposition and is perfectly suited to a departmental situation, such as Architects, Engineering, Construction or Public Sector that tend to have wide format devices that are free from a dedicated operator(s). The benefits are also supported by a ‘one touch’ philosophy of scan to email / folder, including the large document server. These end users create CAD drawings, print the CAD data and scan legacy documents for archival.

2.4.2 Ratio External Controller

The Ratio controller has been ever present in the Ricoh wide format range and provides a professional option for centralised operations that tend to have dedicated personnel managing the production. In terms of wide format production, CAD drawings are still printed, but as work can be ad-hoc, the Ratio controller can process not only standard CAD file formats, but non standard also, allowing the centralised user to be as flexible as possible.

Another difference compared to the de-centralised arena is the need to check scans on the fly, at the point of scan itself and not in a batch file on a network drive, at a later stage. This is supported by the need to edit the scans on the fly on behalf of internal or external customers. An emerging demand is to not only scan hardcopy to PDF, but also CAD files themselves, such as DXF and DWG.

The Ratio also offers the capability to use a Web Interface that effectively acts as a dedicated Web to Print facility allowing clients to submit jobs remotely to the print provider.

With these needs in mind, the Ratio Print / Scan controller offers the facilities to meet the demands of an advanced workflow.

When using the Ratio controller, a dedicated PC is required to connect to the MP W5100 / 7140. Please see the minimum specifications to understand the local requirements.

(14)

2.4.3 Controller Comparisons

Ricoh Controller Ratio Controller

Copy/Printing Process Electro-photographic printing <-

Toner Black <-

Print Speed MP W 5100 10 PPM A1 <-

MP W 7140 14 PPM A1 <-

Print Resolution Up to 600 dpi <-

Supported Drivers RPCS, Postscript3, HDI Driver HDI driver, Windows Driver Supported File Formats HP-GL 1/2, HP-RTL, TIFF, CALS, PostScript3/PDF HP-GL, HP-GL2, HP-RTL, TIFF,

DWG,Calcomp906/907, WMF, BMP, CALS(1&2), T6X, CIT, PCX, RLC, JPG Supported File Formats options N/A True PostScript3/PDF

DWG/DXF/DWF CGM

VIC

Network Protocol TCP/IP, IPX/SPX, AppleTalk TCP/IP, IPX/SPX, lpr/lpq, HTML, SMB (as of Windows 2000) Utility WebPrintingTool,DeskTopBinder Clients software:

Scantool Plotclient Win Plotclient Web Plotlcinet HDI Plotclient MAC Plotclient LPR/FTP

Print Controller Features

• Auto Paper Select Y Y

• Pen Setting Y Y

• Media Selection Y Y

• Stamp Setting Y Y

• Roll Select Y Y

• Language Setting Y Y

• Limitless Paper Feed Y Y

• Set up Launcher Y Y

• Output Tray Select Y Y

• Online Help Menu Y Y

• Multiple Print Sets Y Y

• Combine Images Y Y

• Locked Print Y Y

• Document Server Y Y

• Sample Print Y Y

• Remote Print via Internet Y Y

• Magnification Y Y

• Border Setting Y Y

(15)

• Set X and Y Axis Y Y

• Transparency Mode Y Y

・Delete after printing Y Y

・Scan to Print Y Y

・Engine Status Monitor Y Y

• Data Overwrite Security Y N/A

• PDF BatchPrint Y*1 Y

• Copy Color Print N/A Y

• Priority/Account Printing N/A Y

• Image Rotation N/A Y

• Print Queue Management N/A Y

• Simulataneous Scanning and printing N/A Y

・Print job viewer N/A Y

・Printing status notification by e-mail N/A Y

・Print job management N/A Y

Y: Yes

N/A: Not available *1 :DesktopBinder

2.4.4 Ricoh Controller Outlook

User Needs Features/Utility Reason for recommendation

-Print in AutoCAD(dwg) HDI Driver Fast printing -Print Tiff(CALS) file

-Print HP-GL/2 and HP-RTL file

WebPrintingTool or

FTP

Print by adding print setting Without driver(web) -Print OFFICE File Format

-Print in CAD Applications RPCS Driver -Print pdf file

PDF Direct Print (DTB) or

FTP

(16)

2.4.5 File Formats & Drivers

File Format PDL Utility Driver

HPGL HP-GL2(HP-RTL) GL/2&TIFF WebPrintingTool - TIFF ↑ ↑ ↑ CALS ↑ ↑ ↑ PS PS3 - PS3 PDF ↑ DeskTopBinder PS/RPCS

OFFICE File Format RPCS ↑ ↑

DWG/DWF - - HDI

JPEG RPCS *2 - RPCS *2

PS3 / Adobe PostScript3

2.4.6 HDI Driver

The HDI Driver should be used when AutoCAD (later than 2000) is installed at the user site. It will give the best possible line quality and speed when printing.

2.4.7 Web Printing Tool

This allows users to print HP-GL, HP-GL2(HP-RTL), and TIFF(CALS) files formats directly through a web browser. It also provides a default setting availability either through the Web Printing Tool or through the main frame operation panel.

• Users enter the multiple files as a ‘job’, set the print settings and then submit directly thorough the web utility to the device.

(17)

2.4.8 PostScript (PS) Driver

The PS driver is installed on client PCs and it is the driver that sends print data with PostScript command/printing language to a printer device.

2.4.9 RPCS Driver

The 5100 / 7140 can utilise the unique Ricoh Printing Command Stream (RPCS) driver for printing from Windows environments.

(18)

2.5 Connectivity

The 5100 / 7140 have in built standard 10/100BaseT Network Interface Board (NIB) and USB2.0.

In addition, there are two slots for a Wireless LAN Interface (IEEE802.11b, WPA support), Gigabit Ethernet, Gigabit Interface for Ratio controller and a USB Host interface is available for third party vender IC CARD Authentication, such as Equitrac.

2.5.1 @Remote

The MPW 5100 / 7140 are fully compatible with the @Remote suite of services.

2.5.2 General Office Functions

Model Job Type Total Stored File Capacity Data Saved when Power off Password for Files Re-printing Sort Files by User ID Multiple File Print/Delete by Single Operation Shared Stored Files *2

Sample Print YES NO NO YES YES NO

Locked Print YES Must

(4-8 digits) NO YES YES NO

Hold Print YES NO NO YES YES NO

Stored Print YES Optional

(4-8 digits) YES YES YES NO

Stored Print

(Shared) YES

Optional

(4-8 digits) YES YES YES YES

Store and

Print YES

Optional

(4-8 digits) YES YES YES NO

MP W5100 / 7140 Store and Print (Shared) 100 *1 YES Optional

(4-8 digits) YES YES YES YES

NIB (Std) USB(Std)

IEEE1284/Cumin-M/IEEE802.11a/ｇ

Giga Ethernet/Interface for Ratio controller

USB HOST Slot Option Slot×2

USB Host

SD Card Slot×2

Printer/Scanner/HDD Overwrite HDD data EncryptionBrowser VM Card

(19)

These functions are excellent for general decentralised operations and reflect standard Ricoh facilities.

2.5.2 Locked Print

If the customer wishes to protect a document when printing, then a password protection can be enforced. The file will be released only after entering the correct password of the file and then the file will be deleted from the Document Server after printing.

2.5.3 Hold Print

The hold print is ideal if users wish to:

• Reduce outputs left on the output tray.

• Store the print files temporarily, which are sent to the machine at different times but will collect at a later stage

• Have their own “tray” to avoid confusion when printing.

• Refrain from using any passwords for outputs and do not want the files to be stored after printing-out from the machine.

2.5.4 Stored Print / Store and Print

This is ideal when users wish to print files repeatedly with a specific setting. When using the ‘Store and Print’ feature, users will see the benefits of storing the data on the HDD and simultaneously printing out.

(20)

2.5.5 Sample Print

This is used to avoid wasting paper and toner if the print layout or print setting does not meet the requirements. The machineprints one set of a sample copy automatically for checking. If the print output result is acceptable, then the remaining print set can be released manually or the user can change the number of sets.

2.5.6 Windows Vista

Vista compatible drivers are available for these devices

2.5.7 Wireless LAN

To meet the current trend of Wireless LAN, IEEE802.11a and IEEE802.11g standards are supported from these models as Wireless LAN options in addition to IEEE802.11b.

2.5.8 PDF Direct Print

PDF direct print enables users to print PDF files without a printer driver. By using PDF Direct Print, total throughput time will be faster compared to using a printer driver and the network traffic (load transmission) will be reduced and productivity will be increased.

2.5.9 Security

This model supports the following security standards:

• IEEE 802.11 WEP

• WPA/ WPA2 (IEEE 802.11i) Enterprise Mode

2.5.10 What is WPA / WPA 2

WPA/WPA2 (Wi-Fi Protected Access) is an interoperable Wi-Fi security specification introduced by Wi-Fi Alliance.

WPA/WPA2 addresses all known vulnerabilities in WEP. WPA/WPA2 also provides user authentication to complement lacking authentication in WEP. Designed to secure IEEE 802.11 devices, WPA/WPA2 is a subset of the IEEE 802.11i specification.

When correctly installed, WPA/WPA2 provides a high level of assurance to enterprises and small businesses, therefore their data will remain protected and only authorised users are able to access their networks.

(21)

For enterprises that have already deployed IEEE 802.1X authentication, WPA/WPA2 offers the advantage in leveraging existing authentication databases and infrastructure.

802.11 original WEP WPA/WPA2 Enterprise Mode Authentication Open System / Shared key PSK / IEEE802.1X-EAP *1

Encryption WEP TKIP/MIC *2 AES-CCMP*3

(*1) TKIP/MIC : Temporal Key Integrity Protocol (TKIP) with Message Integrity Check (MIC) (*2) AES-CCMP: Counter-Mode/CBC-MAC Protocol (CCMP) called the Advanced Encryption Standard (AES). AES satisfies U.S. government security requirements. It has been adopted as an official government standard by the U.S. Department of Commerce and the National Institute of Standards and Technology (NIST) (*3) Supported EAP type of Wireless LAN authentication: EAP-TLS, LEAP, EAP-TTLS, PEAP

2.5.11 Authentication

The MP W 5100 / 7140 has the following as standard:

• Kerberos authentication

• HDD data encryption

• S/MIME (Scan to e-mail)

• IPsec communication

2.5.12 Administrator Authentication

This function enables assignment of an administrator by its role such as:

• Machine Management

Admin can mainly manage the machine’s default settings

• Network Management

• Admin can manage the network settings

• File management

• Admin can manage the access authorisation of the stored files in the machine.

• User Management

• Admin can manage the registration and users’ personal information in the address book.

• Supervisor:

• Admin can delete an administrator’s password and specify a new one in the machine. The supervisor cannot specify machine settings or use any of the unauthorised functions. However, if any of the administrators forgets their password and cannot access the machine, the supervisor shall provide support. This can prevent unauthorised person change the machine setting.

Important Notice

• Administrator Authentication MUST be enabled when User authentication enabled.

• Administrator’s login name MUST be different from user accounts in the directory server.

• Supervisor’s login name and password should be managed by users’ responsibility. In case user forget its password. There is no way to restore any information.

(22)

2.5.13 User Authentication

This restricts the ability to use functions at the device. There are four types of authentication used:

Type of User Authentication

Windows LDAP BASIC User Code Authentication Type External*1 Internal*2

Authentication Method Kerberos*3 LDAP Not applicable

Not applicable Access Restriction Yes No Yes Yes

Selective Login by Function*4 Yes (SP mode) Yes (SP mode) Yes (SP mode) Yes Note:

*1: Based on the information at directory server *2: Based on the information at device

*3: Login at device only. No single sign on. NTLM is used for access to file server for Scan to folder. *4: Including B/W or Colour in copy function (Not in printer function)

2.5.14 Data Overwrite Security (DOS)

This function can overwrite copy, print and scan data that is stored on the internal hard drive by writing over the latent image with random sequences of 1’s and 0’s.

This prevents reconstruction of stored data.

2.5.15 HDD Encryption

This function can encrypt HDD data for data theft. Even if the HDD is stolen, data will not be disclosed.

2.5.16 S/MINE for Scan to E-Mail

S/MIME (Secure / Multipurpose Internet Mail Extensions) is a standard for public key encryption and signing of e-mail encapsulated in MIME. (MIME: Multipurpose Internet Mail Extensions is an Internet Standard that extends the format of e-mail to support text in character sets other than US-ASCII, non-text attachments, multi-part message bodies, and header information in non-ASCII character sets.)

This function can encrypt confidential data transmitted by scan to e-mail for data protection against wiretapping.

2.5.17 IPSec

IPsec (IP security) is a suite of protocols for securing Internet Protocol (IP) communications by authenticating and/or encrypting each IP packet in a data stream. IPsec also includes protocols for cryptographic key establishment.

Organisations that require high levels of security have networks with IPsec for data protection. Those organisations require printing devices with IPsec.

(23)

2.5.18 Locked Print Password Encryption

There is vulnerability in locked print as the password is in clear text.

With password encryption, the password is encrypted at this MFP and strengthens the security level for data transmission.

2.5.19 Encrypt Address Book

This function can encrypt the users’ data which is registered in the machine’s address book. This protects the address book data even if the built in HDD is removed, disposed or stolen.

2.5.20 SSL Communication

This function can establish encrypted communication by SSL to protect data from interception, analysis and tampering with:

• SSL printing (IPP over SSL)

• Connecting with MFP via Web Image Monitor

• Connecting with MFP by Scan Router/Smart Device Monitor for Admin/Desk Top Binder.

2.5.21 SNMPv3

This function can establish an encrypted communication environment via SNMPv3 when making machine settings by Smart Device Monitor for Admin.

2.5.22 Network Protocol On/Off

This function can close the specific network protocol such as SNMP and FTP through the mainframe or device management utilities (WebImageMonitor /

SmartDeviceMonitor) to prevent the following the threats;

• Destruction, corruption, and modification of the file system

• Possibility of acting as a server for relaying viruses

• Possibility of successful DoS (Denial of Service) Attack

• Theft of user name or password

2.5.23 Restriction of Destination Use

This function can restrict the direct entry of E-mail address to prevent from sending documents to destinations not registered in the address book.

[User management] of [Administrator Authentication] setting required.

2.5.24 Permit Adding of Destinations

This function can restrict the address book registration by direct entry under

(24)

2.6

Scanner

The scanning function is rapidly becoming critical in the wide format arena. The MP W 5100 / 7140 brings an advanced selection of ‘Scan-to’ functions to the market such as:

• Scan to Email

• Scan to Folder

• Scan to URL

• Network TWAIN scan

To support this, Ricoh will incorporate the following specifications of the embedded controller.

2.6.1 Preview Transmission

Previewing scanned documents before transmission will be provided with superb usability and improvement in data input accuracy. Confidential documents should be treated with special care when users send via scan to function and so the preview with the W VGA LCD will assist customers’ perform a final check before the transmission.

(25)

2.6.2 PDF Encryption

When transmitting files on the network, users are always facing a danger of spying or wiretapping. In recent years, the leakage of all kind of information has a possibility to give serious damage for company data integrity. As a solution for the protection of confidential information, the MP W5100 / 7140 can offer an “Encrypted PDF transmission” function.

Documents are scanned securely via PDF data with encryption, so that on distribution, the data is completely protected.

Users can send PDF data safety through the below actions:

• Data encryption and set password to open file

• Set master password to manage the permissions for the file

2.6.3 Automatic File Naming & Number Setting

This function enables users to set 4digit / 8digit # and attach into a scanned file name. When multiple pages are scanned, the reference # will be automatically attached. When the reference starts #, sequential file # are attached to the scanned page order.

• Digits 4digit (can change the digits via UP mode)

• File format Single Page TIFF/JPEG/PDF

• Valid Application Scan to E-mail/Scan to Folder

2.6.4 Scan to URL

Ricoh offers an efficient transmission workflow by utilising the HDD of MFP.

Instead of attaching the scanned document file with an e-mail, the MFP will store the scanned digital data in the HDD and send only the URL address of the data as E-mail attachment. Recipients shall view and download only the document(s) they need via a Web browser.

(26)

2.6.5 Scan to NCP

The 5100 / 7140 can scan in Netware environments via NCP.

2.6.6 Enhanced Scanning

The MP W 5100 / 7140 is targeted to be compatible with the latest version of Global Scan and eCopy ScanStation Suite (at the time of launch).

2.6.7 Improved Image Quality

To support the colour scanning facility, the two devices have been equipped with a one line colour sensor. This is to reduce the risk of image blur, uneven colour and

(27)

2.7

Value Added Options

2.7.1 Web Image Monitor

Web Image Monitor is a Ricoh application that is bundled with all supported devices. It provides excellent remote device diagnostics in addition to:

• Search Document Server

• Re-Print

• View / Edit print jobs

• Check configuration

• Obtain device data

• Administration management

Image shown here is not the MP W5100 / 7140.

2.7.2 DeskTopBinder Lite

This product is a client software that enables users to easily distribute, manage, and retrieve documents from Ricoh’s MFPs, Laser Printers, Scanners, Faxes, Digital Cameras and Document Management Servers.

Furthermore, users can combine documents created by different applications and print them out as a single document. Additional functions include the ability to monitor the status of devices, parallel printing, and print notification.

(28)

If the end user wishes to convert documents into PDF or converting scanned

documents into searchable text files then they must consider the Professional version.

2.7.3 Web SmartDevice Monitor (WSDM)

This product runs remotely, offering device management facilities to a medium to large organisation fleet. Ideally suited to an IT Helpdesk and end user, WDSM gives quick feedback as to fleet problems so resolutions can be speedy and proactive.

2.7.4 SmartDevice Monitor for Admin (SDM)

This software which runs on client PCs, manages a fewer number of devices than the web server based WSDM.

Compared to available functions with WSDM, SDM for Admin is suitable for a small number of devices, focusing on small to middle sized situations.

2.7.5 SDK

This is a Software Development Kit that provides the backbone for software developers to create bespoke / new flavours of the standard facilities of the device(s).

(29)

3.0 Configuration and Option

Interchangeability

This diagram shows the various options that can be delivered with both the MP W 5100 / 7140.

Please note that the Scanner separation unit is only available for the MP W7140. Roll Holder Unit

MP W5100 / 7140 Roll Feed (opt) + Bypass (std)

Cassette Unit A2 Universal ×2 Original Tray

2 Roll Feeder Unit

*1 *1

*1 Can not attach together Roll Feeder and Cassette *2 For MP W7140 only HDD(Std ) ★ ◆ ◆ External Option Folder(Fan) TBC ◆ Folder Cross TBC ◆ Original Hanger ◆ Scanner Unit (Ratio) Scanner Unit Embedded USB2.0 IEEE802.11b Internal Option MLB (Std) NIC (Std) ★ ★ Printer Unit (Embedded) ★ IEEE 1284 1000 base-T ★ Other Option

Data Overwrite Security _{HDD Encryption}

★

Bridge Unit for Folder

★

Scanner Separation Unit

★ Java VM Card Browser Unit DWG Option *2 Copy Stacker ★ Rear Stacker For Folder ★ ★New ◆

Common with A0 Model No mark common with A3

Printer Unit (Ratio)

(Std)

PS Option VIC Option

(30)

3.1 Option Correlation

2 R o ll F e e d e r P a p e r C a s s e tt e C o p y S ta c k e r A d d it io n a l S ta c k e r O ri g in a l H a n g e r O ri g in a l T ra y S c a n n e r S e p e ra ti o n U n it F a n F o ld e r B ri d g e U n it M a n u a l F e e d e r fo r F a n F o ld e r C ro s s F o ld e r A ( F a n P a rt ) C ro s s F o ld e r B ( C ro s s P a rt ) R e a r S ta c k e r (f o r F o ld e r) P ri n te r O p W 3 6 0 0 S c a n n e r O p W 3 6 0 0 1 G B M e m o ry R W -3 6 0 0 ( R A T IO ) R W -3 6 0 0 S c a n n e r( R A T IO ) R W -3 6 0 0 P S 3 ( R A T IO ) R W -3 6 0 0 C G M ( R A T IO ) R W 3 6 0 0 D W G ( R A T IO ) R W -3 6 0 0 V IC ( R A T IO ) G ig a E it h e rn e t W ir e le s s L A N D A T A O v e rw ri te S e c u ri ty U n it B ro w s e r U n it V M C a rd H D D E n c ry p ti o n IE E E 1 2 8 4 I n te rf a c e 2 Roll Feeder _N Paper Cassette N Copy Stacker _Y Additional Stacker _Y Original Hanger Original Tray

Scanner Seperation Unit

Fan Folder _Y _Y

Bridge Unit _Y

Manual Feeder for Fan Folder

Cross Folder A (Fan Part) _{Y Y} Cross Folder B (Cross Part) _Y _Y Rear Stacker (For Folder) Y Y Y Printer Option Type W7140

Scanner Option Type W7140 Y

1GB Memory _Y RW-3600 Printer (RATIO) _{Y Y Y Y Y} RW-3600 Scanner (RATIO) _Y RW-3600 PS3 (RATIO) _Y RW-3600 CGM (RATIO) _Y RW-3600 DWG (RATIO) _Y RW-3600 VIC (RATIO) _Y Giga Eithernet Wireless LAN

DATA overwrite Security Unit Browser Unit

VM card HDD Encryption IEEE 1284 Interface

Y: Must install Together

(31)

3.2 Mainframe Specification

Configuration Console

Copying/Printing Process Electro-photographic printing Photo-conductor OPC drum 970mm x φ80mm

Drum yield 40K copies(A1/D size LEF), or 24 months Charge system Scorotron (corona charge)

Imaging lens SELFOC lens

Development system Magnetic brush Dual component dry toner system Method Heat and pressure

Roller materials Heat roller : Teflon Pressure roller : Silicone rubber Fusing

Fuse oil Use little Cleaning system Counter blade

Memory Std: 2G byte＋160×2 byte(HDD) Op: 1G byte

(32)

3.3 Basic Specification

Resolution 600 dpi Scanning 256 levels Gray Scale Writing 2 levels feed Sheet

Set position Centre Scanning method CIS

Scanning speed 42.5- 340mm/s

Maximum Scan size 5100: (Metric) 914.4mm x 15,000mm (Inches) 36" x 590"

7140: (Metric) 914.4mm x 30,000mm (Inches) 36" x 1180"

Minimum Scan size (Metric) 210mm x 210mm (Inches) 8.5" x 8.5"

Original width (Metric) 210 / 257 / 297 / 364 / 420 / 440 / 490 / 515 / 594 / 620 / 625/ 680 / 707 / 728 / 841 / 880 /914.4mm

*Marking only for 490/680 mm *APS and Rotate Sort do not work for 440/490/620/625/680/707/880 mm. (Inches) 8.5" / 9" / 11" / 12" / 17"/ 18" Max. width Metric : Up to 914.4mmInches : Up to 36" Max Length 5100: Metric : Up to 15,000mm

Inches : Up to 590" (49.2ft) 7140: Metric : Up to 30,000mm Inches : Up to 1180" (98.4ft)

Paper output 3 ways: Original Rear Exit (Upper)/Original Rear Exit (Straight through)/Original Upper Exit

Top: Stack 50 Sheets (A1/D), AP：20 Sheets Stack Size：A4～A1LEF

Bottom: Stack：100 Sheets(A2LEF or less), 1 sheet(A1LEF or more)

Original

Original Stacker

(33)

Maximum sizes (Metrics) 5100: 914mmx 15,000mm (roll feeder) 7140: 914mmx 30,000mm (roll feeder) 5100 / 7140 :914mmx 2,000mm (Bypass) (Inches) MP W5100: 36" x 590" (roll feeder) MP W7140: 36" x 1180" (roll feeder)

Both Models: 36" x 78" (Paper cassette, bypass) Minimum sizes (Metrics)

180mm x 210mm (Roll feeder, Paper cassette) 210mm x 257mm (Bypass)

(Inches) 8.5" x 11" Paper width (Metrics)

210 / 257/ 297 / 364 / 420 / 440 / 490 / 515 /594 / 620 / 625 /660 680 /707 / 728 / 800 / 841 /880 / 914.4 mm

(Inches) 8.5" / 11" / 17" / 22" / 30" / 34" 9" / 12" / 18" / 24" / 30" / 36"

Speed 5100: 120mm/sec 10cpm/ppm @ A1/D LEF 7140: 170mm/sec 14cpm/ppm @ A1/D LEF

Paper feed 3 ways: Original Rear Exit (Upper)/Original Rear Exit (Straight through)/Original Upper Exit

Reproduction ratio 1:1 Reduce / Enlargement

Original Text, Drawing, Text/Photo, Photo, Background Lines, Patched Original, Generation Copy

Copy

Image density Auto 9 steps, Manual 9 steps

Engineer Architecture Reduce 25%, 32.4%, 50%, 64.7% 25%, 33.3%, 50%, 66.7% 25%, 35.4%, 50%, 70.7% 100% 100% 100% 100% Enlargement 129.4%, 200%, 133.3%, 200%, 141.4%, 200%, [Zoom] 25% to 400% by 0.1% step [Preset Reduce/Enlarg ement]

(34)

Warm up time Less than 120 seconds (23 degrees Celsius) 10 sec @ A1/D LEF (Roll Feeder)

First Copy Time

Number of repeat copy 1 to 99 (ten key input)

2 Roll Feeder (Standard) 2 roll papers Width : 210mm - 914mm

Max length: 150,000mm / Max diameter: φ175mm 2 Roll Feeder (Option) 2 roll Paper Width : 210mm - 914mm

Max length: 150,000mm / Max diameter: φ175mm Paper cassette (option) 250 sheets×2 (64 - 110g/m2)

Paper feeding capacity

Bypass feed (standard) 1 sheet

Top 99 sheets @ A1/D LEF (plain paper) (Larger than A1/D size cannot be stacked.)

10 sheet @ A1/D LEF (application paper) 1 sheet /film

Paper output capacity

Bottom 10 sheets @ A0/E SEF (plain paper)(Smaller than A2/C size cannot be stacked)

1sheet @ A0/E SEF (application paper) 1sheet @ film

Paper cut method Preset size cut / Synchronized cut / Variable cut Memory Capacity 1024MB (Copy, Printer) 2048MB(Scanner)

HDD 320GB (Shared with Copy/Printer/Scanner applications) 200V 15A 60HZ ：NA 5100 220V-240V/8A 50/60Hz：EMEA/AP/China 200V 15A 60HZ ：NA Power Source 7140 220V-240V/15A 50/60Hz：EMEA/AP/China NA 3kW 5100 EU 3kW Max. power Consumption 7140 NA, EU 3kW Dimensions 1250×755×1200mm (W×D×H) Weight 230kg

(35)

3.4 Enhanced Features

Copy mode Drawing mode (Default), Text mode, Text/Photo mode, Photo mode, Generation mode, Pasted Original mode, Background Line mode

Paper selection Auto Paper Selection(APS)

1st roll tray (Available when roll feeder option is installed)

2nd roll tray (only available when 2 roll feeder option is installed)

A2 cut sheet tray (option) Bypass Tray

Jog program Standard (10 jobs) Interrupt job Standard

Storage: 3,000 pages Document: 3,000 Document Box

(Max 1,000 page/document) Auto Reduce/Enlargement User Auto Reduce/Enlargement Preset Reduce/Enlargement Zoom

Size Magnification

Directional Magnification (%)

Directional Size Magnification (mm/inch) Reduce / Enlargement Fine Magnification Image Overlay Format Overlay Negative / Positive Mirroring Double Copy Image Editing Repeat Copy

Image shift Front / Rear / Left / Right : 0-+/-200mm by 1mm Margin adjustment 0 to +200mm (by 1mm step)

edge: 3-50mm

inside: 5 areas, A0 or less Erase

outside: 1 area, A0 or less Stamp Preset stamps: 8 stamps

Position: Upper Right, Upper Centre, Upper Left, Centre Right, Centre, Centre Left, Lower Right, Lower Centre, Lower Left

(36)

User preset stamps: Max 40 stamps

Position: Upper Right, Upper Center, Upper Left, Center Right, Center, Center Left, Lower Right, Lower Center, Lower Left

Date stamp

Position: Upper Right, Upper Center, Upper Left, Lower Right, Lower Center, Lower Left

Page stamp

Position: Upper Right, Upper Center, Upper Left, Lower Right, Lower Center, Lower Left

Standard Size # of pages available for preset job A0/E 100 or more A1/D 100 or more A2/C 200 or more A3/B 400 or more Preset job A4/A 400 or more

Empty Information Yes: Roll 5 degrees, Cassette 3 degrees Emergency Stop Standard : Key

Non-standard Size Input Yes Original Insertion Direction Yes Designated width scan Yes Half Speed Scan Yes

Sample copy 1st set of job out of multiple set of jobs will be printed. Partial copy 210mm to 30,000mm length can be defined as partial Additional copy NO. (Please use document server function for

additional copy.)

Combine Standard [2in1/4in1/8in1] up to A2/C size Clear Standard : Clear/Stop key

Copy Auto clear Standard

Auto off Standard

Energy saver Standard: Energy saver key Auto energy save mode Standard

Reset Standard: Reset key

Auto Start Standard

User code Standard : up to 500 users, 8 digits Key Operator code Standard : 4 digits

Limitless paper feeding Only Roll feeder. Not with cassette option. Display of Paper type Standard

# of pages available for preset job A0/E 100 or more

Electric Sort

(37)

A2/C 200 or more A3/B 400 or more A4/A 400 or more

*Electric sort is not available for custom sizes:880, 800, 707, 680, 660, 625, 620, 490, 440mm

Fan folding TBC

(38)

3.5 Printer Specifications

Printer Option MP W 7140 is the Ricoh embedded controller for both devices

Controller Board Embedded

Controller CPU Celeron-M(1.0GHz)

Print Speed 5100: 5ppm @A0/E SEF, 10ppm @A1/D LEF 7140: 7ppm @A0/E SEF, 14ppm @A1/D LEF RPCS 600dpi PS3/PDF 600/300dpi GL/GL2Tiff Filter 600dpi Print Resolution

RAM 1024MB(Copy/Printer) 2048MB(Scanner) HDD 160GBX2(Copy/Scanner/Printer)

IC card slot No

Option Slot 2 slots

IEEE802.11b / 1000base-T / Cumin-M/External CTL Interface slot

USB-Host Slot USB 2.0 host File Format Converter Standard

Supported printer language PostScript Level3(PDF), RPCS,

Emulation: HP-GL, HP-GL/2(HP-RTL), TIFF(CALS), PS European 136 fonts

Fonts

RPCS European 45 fonts Standard 100/10base-TX, USB2.0 Interface

Option IEEE802.11b(wireless), 1000base-T(Gigabit Ethernet) TCP/IP(IPv4, IPv6), IPX/SPX, Apple Talk

Network Protocol

Auto switching available MIB-II(RFC1213), HostResource(RFC1514), PrinterMib(RFC1759) Standard MIB SNMPv3 (RFC2574) MIB

Private MIB Ricoh private MIB

PS driver Windows95/98/Me/2000/XP/2003server/Vista

Mac OS (later than Mac OS8.6)Mac OS X (later than Mac OS X10.1)

Supported Operating Systems

RPCS driver Windows95/98/Me/2000/XP/2003server/Vista

Mac OS (later than Mac OS8.6)Mac OS X (later than Mac OS X10.1)

Supported Languages English, French, German, Italian, Dutch, Spanish, Portuguese, Russian, Simplified Chinese.

(39)

3.6 Scanner Specifications

Scanner Option MP W 7140 is the Ricoh embedded scanner option for both devices

Optical Resolution: Scan to email/folder: 150 / 200* / 300 / 400 / 600 dpi, *Default Twain: 150-1,200dpi

Scan Mode Drawing mode (Default) Text mode

Text/Photo mode Text/Drawing mode Photo mode

Scan Speed 42.5- 340mm/s (600dpi)

Scan detection Auto Detect, Preset Paper size, Custom size Network Interface: Standard: Ethernet 10/100BaseTX

Option: Wireless LAN (802.11b) Protocol Network: TCP/IP

Sending E-mail: SMTP, POP3 Scan to Folder: SMB, FTP, NCP Image Density Lighter to Darker: 9 Levels

Edit Erase boarder, Positive/Negative, Mirror Image Bundled Scanner driver Network Twain Driver

Scan to E-mail

1 bit MH,MR,MMR(default) It can be changed in SP mode JPEG YES (Compression default）

Compression Method

High

Compression No

Requirement SMTP (Mail Server) Gateway and TCP/IP

Authorization function SMTP authentication POP before SMTP authentication Resolution: 150dpi, 200dpi (Default), 300dpi, 400dpi, 600dpi MAX E-mail address# 150 addresses (Incl. 32 speed dials)

Register Group address: Standard: 10 groups (100 numbers per 1 group)

Maintain E-mail address: Direct input on operation panel, "Web Image Monitor", and "SmartDeviceMonitor for Admin" are available.

Mainframe Address Book

E-mail address search available Folder address search available

Address Search

LDAP E-mail Address search available Number of Destination TBA

Number of characters can be input for Destination

Max 20 Characters Number of characters can be input for

Address

(40)

Attention To, cc, bcc

Manual Input Max 128 Characters Subject

Pre-register by user

No Manual Input Yes Pre-register by user

No Body Message

Preset Message: "This e-mail included attached file sent from xxxx(machine model name)."

E-mail Size (with restriction): 128 -102,400KB, Default = 2,048KB File type Multi Page TIFF (Default)

Multi Page PDF Single Page TIFF Single Page PDF PDF Security Setting Yes

Program User Setting: Yes

Divide and send e-mail: Number of pages divided: 2 - 500 (default: 5)

*1: If the sent file size exceeded the maximum E-mail size, it would be divided to multiple sending. In addition, the sent files might not be accepted by the receiving side due to the limitation in the receiving capacity at the receiver SMTP server or E-mail software setting.

Scan to Folder

Protocol Support SMB (Server Message Block), FTP (File Transfer Protocol), NCP

Security Client folder log-in (log-in name and password)Encryption of log-in name and password during transmission

Resolution 150dpi, 200dpi (Default), 300dpi, 400dpi, 600dpi Register client folder address Max. 150 folders

Maintain client folder address Direct input on operation panel, WebImageMonitor, SmartDeviceMonitor for Admin

Destination client folder address input via operation panel:

Yes SMB: Network path -> Client folder -> Password FTB: Server -> Network path -> User account -> Password Search client folder SMB: Browsing directly to the designated folders

FTP: By client folder name

Max. client folder numbers per send Max. 32 client folders / PCs per send Destination Combination TBA

Group address Max. 132 destinations (To Folder: 32, To E-mail: 100) (*1)e.g. 100 destinations 32 folders included >>>OK 100

destinations 33 folders included>>>Failure

Input Subject No

(41)

File Size when combined Scan to Folder & Scan to E-mail:

128 - 45,389KB, Default = 2,048KB (With restriction) (Scan to E-mail file size applied).

File type Multi Page TIFF (Default), Multi Page PDF, Single Page TIFF, Single Page PDF

PDF Security Setting Yes Program User Setting Yes

Resend No

(*1) User can send to Max. 132 destinations in the same group. But the number of folders has to be less than 32, since Max. folder destinations are 32. If there are more than 32 folder destinations registered in the Group address, a message pops up.

Max. address numbers per sending (combination between E-mail and Folder)

Input via

Condition 1:Max.address can select or input

Condition 2:Max. address allow in single operation Condition 3:Combination of addresses: Max. Address book 500 Scan to E-mail

Manual input (incl.

LDAP search) 100 500 Address book 50 Scan to Folder Manual input 50 50 550

Network TWAIN Driver

Resolution 150 - 1200dpi by 1dpi step Scan size Please see mainframe spec Scan speed 42.5- 340mm/s (600dpi)

OS Windows 95/98/ME/2000/XP, Windows NT4.0, Windows2003server, Windows Vista

Memory Minimum required memory for OS + 8MB

CPU Pentium 150MHz or more, or minimum required CPU for OS HDD More than 100MB of disk space is required.

(42)

3.7 Peripheral Specifications

3.7.1 Roll Feeder Option Type 7140 (New)

The console mainframe has one roll tray (First Roll Tray) and within this, two (2) roll papers can be set as standard. The Second Roll tray (option) can store up to a further two rolls of media. In total, four rolls of media can be set in full tray configuration. No. of Roll paper 2 rolls

Roll Paper Size Maximum Metric: 914mm x 15,000mm (30,000 for MP W 7140) Inch: 36" x 590.5"(1181.1” for MP W 7140)

Minimum Metric: 210mm x 210mm, Inch : 8.3" x 8.3" Paper Widths Metric:

210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914mm

Inch:

8-1/2", 9", 11", 12", 17", 18", 22", 24", 30", 34", 36" Paper Position Centre

Paper Capacity 200m Roll Paper Diameter 175mm

Dimensions (W x H x D) 1,124 x 369 x 236mm, 44.3 x 14.6 x 9.3 inches Weight 36 kg, 79.2 lb.

3.7.2 Paper Cassette Type 7140 (New)

The Paper cassette has proved a useful option for end users requiring proofing after reduction.

Maximum Metric : A2 (420mm x 594mm) Inch : 18" x 24" Minimum Metric : A4 (210mm x 297mm) Inch : 8.5" x 11" Paper Size

Paper Weight Metric : 64 - 110g/m2 Inch : 17 - 29.3lbs

Paper Capacity 250 sheets (with the paper spec of 64 - 81g/m2, or 17 - 20lbs.)×2 Dimensions (W x H x D) 1,014 x 644 x 236mm, 40.0 x 25.4 x 9.3 inches

(43)

3.7.3 Scanner Separation Unit Type 7140 (New for MP W7140 only)

This option is required when the scanner is separated from the plotter. It contains the stand for the scanner, the cover on the top of plotter and cables.

The item is targeted for those environments who wish to manage outputs with a dedicated operator, who can print and scan simultaneously.

3.7.4 Multi Stacker Type 7140 (New)

The multi stacker is used in situations that require original or printed / copied outputs to be collected in mid / high volume environments.

Cover

(44)

3.7.5 Double Stacker Type 7140 (New)

Attach this unit to the rear of the machine to allow stacking of a large number of both originals and copies separately.

3.7.6 Rear Stacker Type 7140 (New)

This option is required to stack originals for straight rear output when attached to the Ricoh online folder option. (Folder availability to be confirmed)

(45)

3.7.7 Original Tray

Used when a large number of originals are fed for convenient stacking

3.7.8 Roll Holder

The Roll Holder option (two piece set) is utilised for end user ease of loading media (paper). There is not a requirement for a complete spindle and users further benefit from a lightweight mould.

(46)

3.7.9 Original Hanger

This option is used to hang originals at the front of the device before / during the copying / storing process.

3.7.10 1 GB Memory Type 7140 (New)

This item is mandatory to operate the external scanner.

3.7.11 Gigabit Ethernet Type B (Common with MP C7500)

Allows communication with 1000BASE-TX.

Interface Connector Ethernet (10Base-T, 100Base-TX, 1000Base-T) Data Transmission

Speed

Ethernet: 1000 Mbps, 100 Mbps, 10 Mbps Protocol TCP/IP, IPX/SPX, AppleTalk

Distance Between Devices

(47)

3.7.12 IEEE 802.11 A/G Interface Unit Type J (Common with MP C 7500)

Allows installation with a wireless LAN interface.

Transmission spec Based on IEEE 802.11a/b/g (wireless LAN) Protocol TCP/IP, IPX/SPX, AppleTalk

Data transfer speed Auto select from the following speed1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps

Frequency range Inch version: 2412 - 2462 MHz(1-11 channels) Metric version: 2412 - 2472 MHz(1-13 channels) Inch version:

Metric version: 5180-5320 MHz836, 40, 44, 48, 52, 56, 60, and 64 channels)

Transmittable distance 1 Mbps: 400m2 Mbps: 270m5.5 Mbps: 200m11 Mbps: 140m Transmission mode Ad hoc, and infrastructure mode

3.7.13 IEE 802.11G Interface Unit Type K (Common with MP C 7500)

Allows installation with a wireless LAN interface.

Transmission spec Based on IEEE 802.11b/g (wireless LAN) Protocol TCP/IP, IPX/SPX, AppleTalk

Data transfer speed Auto select from the following speed1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps

Frequency range Inch version: 2412 - 2462 MHz(1-11 channels) Metric version: 2412 - 2472 MHz(1-13 channels)

Transmittable distance 1 Mbps: 400m2 Mbps: 270m5.5 Mbps: 200m11 Mbps: 140m Transmission mode Ad hoc, and infrastructure mode

3.7.14 Data Overwrite Security Unit Type H (common with MP C

7500)

This function can overwrite copy, print and scan data that is stored on internal hard drive by writing over the latent image with random sequences of 1's and 0's.

Note:

(*) Excluding counter for charge, information of engine setting and product code.

3.7.15 Java VM Card Type F (Common with MP C 7500)

This option is to enable Java based applications to run on the device via the SD card. The VM Card is not applicable for the embedded controller; it is only applicable for Ratio controller only (Copier and Scanner).

(48)

3.7.16 HHD Encryption Unit Type A (Common with MP C 7500)

This function can encrypt HDD data.

3.7.17 IEEE 1284 Interface Board Type A (Common with Pro EX

Series)

Transmission spec IEEE1284

(49)

4.0

Ratio (External Controller)

4.1 Ratio Controller Concept

RW-7140 PLOTBASE is the perfect solution for the demanding AEC Market. It offers Scanning, Editing, Copying, Plot management and cost tracking. This powerful package is designed for the MP W5100/7140 copier in combination with an additional colour output device i.e. Hewlett Packard or Canon, typically found in this environment. The focus of RW-7140 PLOTBASE is to increase productivity, speed up internal processes, reduce output costs and save labour expense. These characteristics make the RW-7140 PLOTBASE controller the most sophisticated option for professionals in the large format industry.

4.1.1 Server (PLOTBASE)

Every print job should pass through server PC to the MP W5100/7140. The server PC must have PLOTBASE and the server software installed.

PLOTBASE is server software which handles all print jobs, monitor job status & printer status, edit and re-print jobs.

PLOTBASE has an “Auto mode” which passes print job automatically to the device and “Manual Mode” which holds the job at the server awaiting the user to submit to the engine.

4.1.2 Client

PLOTCLIENT WIN:

This is the main client software which enables users to print files without application software in which the files were designed. This client is designed to collect print files with different characteristics to appear as one job at PLOTBASE.

4.1.3 WINPRINT:

This is the Windows printer driver which is used to print through windows applications.

4.1.4 PLOTCLIENT HDI/ADI:

The AutoCAD printer driver which enables users to print directly from AutoCAD.

It is also possible to print from the HDI/ADI driver to PLOTCLIENT WIN to collect the files within one job.

(50)

4.1.5 PLOTCLIENT WEB:

Software installed on server PC to accept web enabled printing via an internet browser (MS Internet Explorer, Mozilla Firefox).

4.1.6 PLOTCLIENT MAC:

PPD file for printing from Macintosh client.

4.2 Ratio Platforms

Software Description Supported Platform

PLOTBASE Server PC software for printing and monitoring

WINXP Professional 32bit, MS-Vista 32bit

PLOTCIENT WIN

Client software for printing. Win2000 Professional SP2, Win2003 server 32/64bit, WINXP Professional 32/64bit, MS-Vista 32/64bit

PLOTCLIENT HDI/ADI

AutoCAD printer driver. AutoCAD 13/14 up to 2009 LT and Light versions and

derivates PLOTCLIENT

WEB

Enables web base printing. Mozilla Firefox 1.5 or higher and MS Internet Explorer 6.0 or higher

PLOTCLIENT MAC

PPD file for Macintosh clients

Mac OS9.x, 10.2, 10.3 and 10.4 and 10.5

WINPRINT Windows printer driver Win2000 Professional SP2, Win2003 server 32/64bit, WINXP Professional 32/64bit, MS-Vista 32/64bit

SCANTOOL Scanner software for server PC.

WINXP Professional 32bit, MS-Vista 32bit

(51)

The table shows the summary of updated specifications and functions from RW-3600 to RW-7140.

RW-7140 RW-3600

PLOTBASE

Version number 5.5 3.7

Colour device connection Yes No

Online Folder Yes:

Automatically detects a folder. Yes Additional finishing options(Cross Folding) Yes No

PS Option Adobe Adobe

DWG/DWF/DXF Option AutoDesk AutoDesk

VIC file (Option) Yes Yes

User Interface Layouts and designs are modified.

Accounting Subsystem Add new option “Feet” for the US users.

Document Server Support Yes

Combine (Aggregation) Support Yes

Security (Authentication) Yes Yes

Printer MIB Updated

SCANTOOL

User Interface Layouts and designs are modified.

Colour scanner Yes No

Integrated colour editor Yes No

Wait for START button Yes Yes

Scan to Folder Yes (SMB, FTP, NCP) Yes (SMB, FTP, NCP)

Scan to E-mail Yes Yes

Scan to DWG Yes Yes

WINPRINT Switch between

150dpi ,300dpi and 600

dpi by user (default 600dpi)

Yes Yes

PLOTCLIENT|HDI

Support ACAD 2009 Yes No

PLOTCLIENT|WIN

Preview in color Yes No

PLOTCLIENT|WEB

Device status Shows b&w and colour

device

(52)

5.0

A2SEF , B3SEF , A3SEF/LEF,

B4SEF/LEF , A4SEF/LEF 250 sheets

Cut paper tray Recycled paper A2SEF , B3SEF , A3SEF/LEF,

Cut paper tray (Supported by Tray 4

only)

Translucent paper (vellum)

A2SEF , B3SEF , A3SEF/LEF,

Bypass tray Plain paper 52.3 - 110 g/m2 (13.9 - 29.3 lb) A0SEF, A1SEF/LEF, A2SEF/LEF A3SEF/LEF, A4SEF/LEF, B1SEF B2SEF/LEF, B3SEF/LEF ,B4SEF/LEF Paper width: 210 - 914mm Paper length: 210 - 2000mm 1 sheet

(54)

6.0

Productivity Data

6.1 Pages Per Minute

1st Roll 3rd Roll A0SEF 5.6 5.6 A1SEF 7.7 6.3 7.7 6.3 A1LEF 10.4 8.7 9.5 8.1 A2SEF 10.4 8.7 9.5 8.1 A2LEF 12.5 10.7 8.3 10.2 A3SEF 12.5 10.7 8.3 10.2 A3LEF 14.4 13.9 9.6 8.9 A4SEF 14.4 13.9 9.6 8.9 5 1 0 0 A4LEF 16.5 17.2 11.1 10.4 1st Roll 3rd Roll A0SEF 7.9 7.9 A1SEF 10.8 9.0 10.9 9.0 A1LEF 14.5 12.2 13.5 11.5 A2SEF 14.5 12.2 13.5 11.5 A2LEF 17.6 15.2 11.3 13.9 A3SEF 17.6 15.2 11.3 13.9 7 1 4 0 A3LEF 19.1 19.5 13.0 11.9

(55)

A4SEF 19.1 19.5 13.0 11.9

A4LEF 21.5 22.8 14.8 13.7

6.2 First Copy

6.2.1 Roll Feeder

6.2.2 Cassette

Paper Tray 3

Paper Tray 4

5100

Front Output

A3SEF

12.7

13.7

A4SEF

11.6

12.6

Paper Tray 3

Paper Tray 4

7140

Front Output

A3SEF

9.5

10.1

A4SEF

8.5

9.2

A0SEF A1LEF

Paper Roll 3 Paper Roll 4 Front Output Front Output

19.3 19.5 14.9 15.0 B e lu g a -C 1 a

17.6 12.6 17.4 12.4 7 1 4 0 A0SEF A1LEF

Paper Roll 3 Paper Roll 4

B e lu g a -C 1 b

8.9 9.0

Front Output Front Output

12.4 12.5 13.9 13.9 10.7 10.7 5 1 0 0

(56)

7.0 Environmental Information

7.1 Sound Power Level (Target) LWA:dB(A)

5100 7140

Stand-by 55.7 dB (A) or less 55.0 dB (A) or less Copying 68.8dB dB(A) or less 70.1 dB (A) or less

7.2 Ozone / Dust / Styrene / TVOC / Benzene Emission

Level (Target)

Target

Ozone Emission (new filter) 0.0037 mg/m3 or less Dust Emission 0.022 mg/m3 or less Styrene Emission 0.0007 mg/m or less TVOC (Total Volatile Organic

Compounds) Emission

22.84 mg/h Benzene Emission 0.14 mg/h

7.3 ID of Plastic Components

All plastic components for the MP W 5100 / 7140, which weight more than 25g, are identified in accordance with DIN548490 and ISO11469.

7.4 Environmental Regulation

BAM Yes (Target)

Energy Star Yes

Nordic Swan Local solution

7.5 Power Consumption

Power Consumption Recovery Time Auto Off Timer –Off

Mode-

Less than 11 Wh/h Less than 120 sec. Energy Save Timer-Sleep

Mode-

Less than 30 Wh/h Less than 120 sec.

7.6 Reduction of Environmentally Sensitive Materials

(57)

8.0 Target Supply Yield and

Interchangeability

8.1 Yield

Toner Average 2.2K copies @ A1/D, Ricoh 6% chart/cartridge (800g)

Developer Average 50K copies @A1/D LEF Ricoh 6% chart /1.0kg x 2bags (2.0kg) (2 bags are necessary to set up.)

8.2 Interchangeability

5100 / 7140 480w / A080 2400 / 3600

Toner Yes No No

Developer Yes No Yes

Yes: Can be used for this model No: Cannot be used for this model

9.0

Storage & Transportation

Mainframe Temperature Humidity Storage Period

Conditions for Storage

-30 deg to 40deg *1

Under 80%RH *2

12 month from the production date *3

Conditions for Transportation

-30 deg to 40deg *1

15% to 95%RH *2

12 month from the production date *3

Remarks:

*1: When stored or transported under 0 deg, temperature conditions must be higher than outside air temperature. *2: Please avoid the direct sunlight when stored or transported.

*3: Under the unopened status

Transportation and Storage Conditions for Toner/Developer

Toner/ Temperature Storage Period

Developer Conditions for Storage & Transportation

under 40 deg

*1 24 month from the production date *2 Remarks:

*1: Do not store more than a month under the temperature between 35deg and 40deg. *2: Under the unopened status

(58)

10.0 Target Markets

Ricoh offers an impressive range of Wide Format mono devices. The portfolio is suited to the following market segments:

• AEC; known as Architectural, Engineering and Construction

• Government / Public Sector

• Pay for Print

Each area retains unique requirements on speed, volume capability, connectivity, application independence and finishing. To account for this, the below diagram positions the past and present digital portfolio.

The marketplace is constructed of two distinct segments, these being Walk Up and CRD / Pay for Print requirements, further split by low, mid and high volume uses.

N-P1 D-C2 N-C2b N-C2a

Walk-Up CRD/PFP

Mid volume High volume

Target Target Mid volume Target Low volume Installation Environment Main machine in Small office Walk-up machine in a section. Main machine in Small office Centralized Target 8CPM 8CPM 6CPM 6CPM 4CPM 4CPM 4PPM 4PPM x< 5ppm 5ppm<x<10ppm 5ppm<x<9ppm 10ppm<x 1) Outsourcing copy their job. 2) IJ users who need

higher Monochrome productivity. 3) A to D conversion 1) Already owns in house WF and considering down sizing. 1) CRD/PFP where mono and colour HV products are already installed

No Ricoh Model

1) Type of users PPM range - 10CPM10CPM - 14CPM14CPM Target Target Target Target 7140 5100 480w 3600 2400 2740 CRD/PFP where mono and colour HV products are already installed

(59)

Walk Up

This segment is categorised with a low and mid volume / speed need whereby such devices are either the main machine in the office space or they can be a convenience device on site open for all to access. Users in this decentralised environment are key decision makers in the wide format market and the typical trends that are seen here involve the outsourcing of the print / copy work, a greater demand for the benefits digital technology can bring (especially regarding line accuracy) and those situations that already have an inkjet plotter but also need to supplement this with a more productive and cost effective mono device.

The most effective device for this scenario is the MP W2400.

For the Mid end of the segment, trends have been towards a scaling down from a heavier duty device to a smaller, more compact solution that is more cost effective. With the improvement of embedded controllers and scanning techniques, the MP W3600 lends itself perfectly to this, supplemented by the MP W5100 / 7140 that can act as a very solid replacement device for those customers who are not looking to downsize or still require the longevity and colour scanning they offer.

CRD / Pay for Print

This centralised environment will traditionally have other high volume devices installed as part of a workflow. Demands of this arena are such that submission should be made simple, yet sophisticated, enough to account for abnormal formats, productivity should be fast and maintained over a significant volume and scanning (with editing) must be catered for.

The MP W 5100 and 7140 are ideally suited to this environment, where value added options such as online folding and colour scanning are sought.

10.1 Competition

Ricoh compete in the Mono Wide Format arena with Oce, Xerox and KIP.

Oce

Oce have boasted a domination of the Wide Format market since the late 1980’s and 1990’s. With a robust and strong brand / portfolio, Oce continue to show significant presence in the Wide Format areas (CAD and Graphics).

Oce, albeit, strong with branding and customer awareness, have failed to keep pace with the technical development, led by Ricoh. The proposition of having a separate unit for scanning and printing / plotting has proven unpopular in the decentralised environments within the UK. Now showing concentration in the colour sphere, Oce are moving further into the Graphic marketplace following a significant launch at DRUPA 2008 with the ColourWave product.

(60)

KIP

KIP are seen as Wide Format specialists in the manufacturing supply chain and have been very successful with their wide range spanning over two decades. The large portfolio has evolved to become very popular with the decentralised environments (KIP 3000) and still retain a strong presence in the Pay for Print / InPlant marketplace with the KIP 7000.

With embedded colour scanning and an all in one footprint, the KIP models are continuing to grow in popularity. Although when directly compared to the Ricoh engine, the KIP does fall down, the overall package is attractive from CPP through to toner efficiency. Now KIP are also attacking the Colour CAD / Graphic marketplace with the introduction of the KIP 80, which is a high end colour production device, launched in EMEA at DRUPA 2008.

Xerox

Traditionally very strong in the Wide Format arena, Xerox has rebuilt the portfolio since 2006 to reinvigorate the proposition. Spearheaded by the low volume 6204, the Xerox popularity has grown once again, based on the dominance held during the 1980’s. With a portfolio than spans the mono and colour marketplace, Xerox devices also benefit from an all in one footprint (as with Ricoh) with an appealing range of finishing options.

10.2 UK Market Focus

The UK market is well established in terms of wide format usage and purchasing. The increasing utilisation of CAD packages and the adoption of digital technology is continuing to drive a demand on manufacturing suppliers to produce leading and high v
