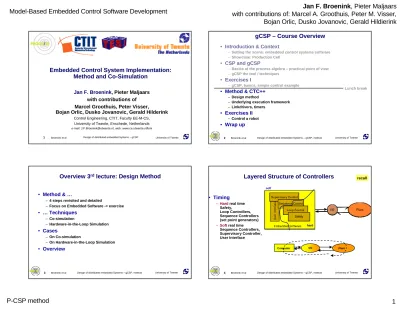

Broenink et al Design of distributed embedded Systems – gCSP
1 University of Twente
Embedded Control System Implementation:
Method and Co-Simulation
Jan F. Broenink
, Pieter Maljaars
with contributions of
Marcel Groothuis, Peter Visser,
Bojan Orlic, Dusko Jovanovic, Gerald Hilderink
Control Engineering, CTIT, Faculty EE-M-CS, University of Twente, Enschede, Netherlands
e-mail: [email protected], web: www.ce.utwente.nl/bnk
2 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
gCSP – Course Overview
•
Introduction & Context
–Setting the scene: embedded control systems software
–Showcase: Production Cell
•
CSP and gCSP
–Basics of the process algebra – practical point of view
–gCSP the tool / techniques
•
Exercises I
–gCSP, basics, simple control example
•
Method & CTC++
–Design method
–Underlying execution framework
–Linkdrivers, timers
•
Exercises II
–Control a robot
•
Wrap up
Lunch break
3 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Overview 3
rdlecture: Design Method
•
Method & …
–4 steps revisited and detailed
–Focus on Embedded Software -> exercise
•
… Techniques
–Co-simulation –Hardware-in-the-Loop Simulation•
Cases
–On Co-simulation –On Hardware-in-the-Loop Simulation•
Overview
4 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Layered Structure of Controllers
•
Timing
–Hardreal timeSafety,
Loop Controllers, Sequence Controllers (set point generators) –Softreal time
Sequence Controllers, Supervisory Controller, User Interface
Computer I/O Plant
hard soft
5 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Design Approach
•
Integrated Models
–Discipline-specific models connected
–Total system (embedded + embedding!)
•
Virtual Prototyping = Simulation
–Layered structure of controllers
–Continuous time & discrete event
•
Stepwise Refinement
–Physical Systems modeling
–Control law Design
–Embedded Control System Implementation
»Gradually enhance laws to code
–Realization (software)
•
Tools needed
–Extendable / updatable models & software
–Total system (embedded + embedding!)
Physical System Modeling Control Law Design Embedded Control System Implementation Verificationby Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation recall
6 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Embedded Control System Implementation – Approach
• Design method for ECS (software)
–Stepwise Refinement »intrinsically iterative
–Verification via
»Simulation / Co-Sim. / X-in-the-Loop Sim. (hardware / software) »Formal verification: model checking on deadlocks
–Design Space Exploration
»To support decisions on design choices
–Concurrent engineering / Mechatronic approach
–“Doing first time right” -> as little test time on target machine as possible • Stepwise Refinement
–Physical Systems modeling –Control law Design
–Embedded Control SoftwareImplementation »Gradually enhance laws to code
–Realization (software) Physical System Modeling Control Law Design Embedded Control System Implementation Verificationby Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation
ECS implementation
Design Trajectory
CTC++ 4C 20-Sim Matlab 20-Sim gCSP FDR POOSL•
Focus on ECS Software
–Model Based –Stepwise Refinement Physical System Modeling Control Law Design Embedded Control System Implementation Verificationby Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation recall
Physical Systems Modeling / Control law Design
•
Physical Systems Modeling
–Goals of Competent Model
»Understand dynamics »Derive control laws »Test system
–Generate detailed model »Library blocks
–Verifymodel by simulation »Model parts
»Tests suitable for validation
–Validateby measurements
•
Control Law Design
–Simplified Model » Model reduction » Model linearization
–Verify Simplified Model » Compare to detailed model
–Derive Control Law(s) » Use simplified model
–Verify Control Law(s) » Use detailed model
–Combine Control Laws
Controller I/O Plant
Physical System Modeling Control Law Design Embedded Control System Implementation Verification by Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation recall
9 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Embedded Control Software Implementation
•
Stepwise refinement
–Gradually enhance laws to code
–Gradually add implementation / realization details
•
Working order
–Integrate control laws / sequences
»Loop control laws + Sequencers + Supervisors »Power up / power down sequences
»Reaction to external commands
»Implementation assumed ideal –Safety, error & maintenance facilities
»External events on safety (emergency stops) »Central or component wise
–Capture non-ideal components »Non-idealness added:
»Relevantdynamic behavior »Signal processing: Estimators
–Non-idealness Computer hardware »HW + SW architecture, Timing aspects »Optimization, scheduling
Mix of
– Process Structures – Control Algorithms Physical System Modeling Control Law Design Embedded Control System Implementation Verification by Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation hard soft10 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Physical System Modeling Control Law Design Embedded Control System Implementation Verification by Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation
Embedded Control Software Implementation
Models & Method Steps
•
Models
– Controller (CSP) -> code on target
– Plant (bond graphs) -> simulation
•
Co-simulation
– Discrete Event & Continuous Time
•
Steps in the method
1. Physical Systems modeling 2. Control law Design
3. Embedded Control Software Implementation
A. Simulated Time B. Real Time
4. Realization
11 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Embedded Control Software Implementation
Some Details -> Exercise!
•
Step 3 in the method
–Plant model OK; Control laws OK
–Gradually enhance laws to code »Integrate control laws / sequences »Safety, error & maintenance facilities »Capture non-ideal components
Working Order
1. Internal checks2. Formal Check process logic
3. Include (control) algorithms
4. Check target code
ECS Structure Formal Check FDR2 Configure, Connect, Compile, Command CTC++ lib 1 2 3 CSPm gCSP CTC++ Control Algorithms 4 Step 1, 2
Step 3
Physical System Modeling Control Law Design Embedded Control System Implementation Verification by Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation12 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Co-Simulation
•
Co-Sim with
gCSP / 20sim
–Formal checks via FDR2
–Using CTC++ => can be combined with other code
–Synchronization via separatetimer channels / ddlcalls
•
Co-Sim with POOSL / 20sim (+TU/e EE)
–Abstract Syntax, CCS-like
–SheSim as DT simulator: good timing, but busy waiting – 100% CPU
–Synchronization between tools via ddlcalls
•
Co-Sim with
VDM++ / 20sim
(+RUN / Chess)–Distribution / load balancing can be checked
–Analysis of computer architectures
–Synchronization between tools via ddlcalls
•
Explicit simulation of the network
13 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Co-simulation gCSP – 20sim I
•
Test setup: plotter
–Testing Embedded Software
•
Experiments:
–Model based design
–Multiple Views »Dynamic model »Controller view »Mechanical model
»Fault-tolerant parallel CSP based software
–Code generation
»Controller to CPU (RTAI Linux) »Controller to FPGA
14 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Co-simulation gCSP – 20sim II
•
Software design
–Verification by co-simulation with 20-sim model
3D representation
Simulation plots (20-sim) HPGL file Plotter software (gCSP) Bearing2 FrictionRelative2 FixedWorld2 m Mass2 TimingBelt2
Plant model (20-sim)
PID SP MV s Controller1 Controller (20-sim) Code generation
Co-Simulation VDM++ 20sim I
•
VDM++
–object-oriented formal model-based specification language
–concurrency through threads
–round-trip engineering UML
–formal analysis of static and run-time (type) correctness
–model validation through prototyping & structured testing
–industrial grade tool support http://www.vdmtools.jp/en
–VICE extension*for real time, scheduling and deployment
* [ Verhoef, Larsen, Hooman, FM 2006, LNCS 4085, pp 145 - 162 ]
17 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Co-Simulation VDM++ 20sim II
18 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Non-ideal Network: Simulate it
•
CSP approach
–Remote Channels couple to Fieldbus
–Time increment via Timer Channel
–Packet Simulator based on TrueTime
•
Towards real-time
–Remote channel & SimTimer -> Real versions Process Process Channel Sim Channel Sim Network Simulator SimTimer Process Process Channel Channel Real Network Real Timer
19 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Network Simulator - Case
•
Simulator OK
– compared with traditional
•
Network parameters
– Influence behavior
– Optimal via simulation
20 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Towards Realization
•
Stepwise refinement
– Software-In-the-Loop Simulation
– Hardware-In-the-Loop Simulation » Real-Time Simulation
•
Working order
– Part wise towards realization » Others still simulated
– Treatment I/O essential
» Where, Grouping of functions
•
Useful for
– Concurrent engineering » Plant simulated
• SW in time, Plant late
» Code simulated
• SW in time, ASIC late
– Test setup » Plant simulated » For training purposes
Physical System Modeling Control Law Design Embedded Control System Implementation Verification by Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation
21 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
X
-
i
n-the-
L
oop Simulation
Physical System Modeling Control Law Design Embedded Control System Implementation Verification by Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation A D PWM Controller Plant Z-1 Delay1 Encoder Sample1
MIL
SIL
PIL
RHIL
HIL
Rapid
Prototyping
Simulation
Co–Simulation
Co
–Simulation
A D PWM Controller Plant Z-1 Delay1 Encoder Sample1Realization
1 2 3A 3A 3A 3B 3B 422 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Overview 3
rdlecture: Design Method
•
Method & …
–4 steps revisited and detailed
–Focus on Embedded Software -> exercise
•
… Techniques
–Co-simulation –Hardware-in-the-Loop Simulation•
Cases
–On Co-simulation –On Hardware-in-the-Loop Simulation•
Overview
Physical System Modeling Control Law Design Embedded Control System Implementation Verificationby Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by SimulationCase 1 – HILS setup
•
FPGAs as programmable I/O
– Design I/O functionality as if it were software
– Easy prototyping
– Enables Concurrent Engineering
•
Tool Chain
– Effectively download, run, control code
Anything
AnythingI/O FPGA boardI/O FPGA board
CAN board
CAN board
Seco
SecoPC/104+ CPU boardPC/104+ CPU board
RTOS
Embedded Linux, uClibC, RTAI 6 MB
Our Test Set Up
Signal
conditioning Controller
Embedded Control System
Hardware-In-the-Loop simulator
A/D, PWM, etc. D/A, encoder, etc.
Sensor simulation
Electrical interface Electrical interface
Output driver Model of the plant Actuator simulation FPGA PC104 PC
25 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Experiments
Controller Controller Quantize A D PWM Linix Plant20-sim
PID Controller PC/104 I/O FPGA Plant HIL-Sim PC I/O FPGA I/O FPGA Controller PC/104 Sim – Sim Real – RT-Sim Real – Real Code Generation Code Generation26 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Comparison
Real – RT-Sim I/O Plant HIL-Sim Controller PC/104 I/O27 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Conclusions Case 1 – HILS setup
•
FPGA as I/O is really versatile
– 1 board: 4 functions: PWM out; Encoder in; PWM in; Encoder out
•
HIL-Simulation supports Concurrent Engineering
•
Tests
– Check details
– Performance
•
Refine Design trajectory
– Optimally benefit from flexibility of FPGAs
•
Analogue extension to the FPGA board
28 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Case Study 2 – A/D converter
•
Refinement of A/D
–Essential behavior only » Time discretization
–Functional behavior
» Quantization (real -> integer)
–Add non-linearities » Windowing
» Nonlinear conversion
–Add conversion times
» A/D conversion time considerable
SetPoint Controller IO Scara steerIn DA DA1 Actuation Measurement A D AD1 DataOut
29 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Case 3 – Production Cell revisited
•
gCSP + 20-sim
–Event driven discrete behavior modeled in gCSP + CT library
•
20-sim
–6 Controllers & 12 Motion Profiles modeled & generated (c-code)
–Event based selection motion profiles
–Controllers run always
•
Manual coding
–Hardware interfacing; c-code in gCSP code blocks
30 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Production Cell in gCSP
•
Top level implementation in gCSP
–gCSP stress test
Conclusions – Case 3 – Production Cell
•
Prototype tool chain functions rather smoothly
•
Shortening design time not (yet) significant
•
Continue working on the tools
–(Try to) combine benefits of all three DT-CT combinations
•
Use larger cases in cooperation with Industry
•
MovieMinOCW
MoviePOOSL
33 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Production Cell with POOSL software
34 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Overview 3
rdlecture: Design Method
•
Method & …
–4 steps revisited and detailed
–Focus on Embedded Software -> exercise
•
… Techniques
–Co-simulation –Hardware-in-the-Loop Simulation•
Cases
–On Co-simulation –On Hardware-in-the-Loop Simulation•
Overview
Physical System Modeling Control Law Design Embedded Control System Implementation Verificationby Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation35 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Overview
•
Method & Techniques
– Use the structured design process: 4 steps »Stepwise refinement – Intrinsically Iterative »Design Space Exploration
»“Doing first time right” -> as little test time on target machine as possible
»Supports Concurrent Engineering
– Use integrated models
» Port-based parts, based on bond graphs and CSP
– Use Simulation as verification means »Co-simulation »Hardware-in-the-Loop Simulation
•
Cases
– On Co-simulation – On Hardware-in-the-Loop Simulation Physical System Modeling Control Law Design Embedded Control System Implementation Verificationby Simulation / Model Check Realization Validation and Testing Verification by Simulation Verification by Simulation36 Broenink et al Design of distributed embedded Systems – gCSP, method University of Twente
Topics Design ECS part
9
Use the structured design process
9
Use integrated models
– Port-based parts, based on bond graphs and CSP
9
Use Simulation as verification means
9
Use CSP / gCSP to design Embedded Control Software
•
Apply tools and methods on real setup
