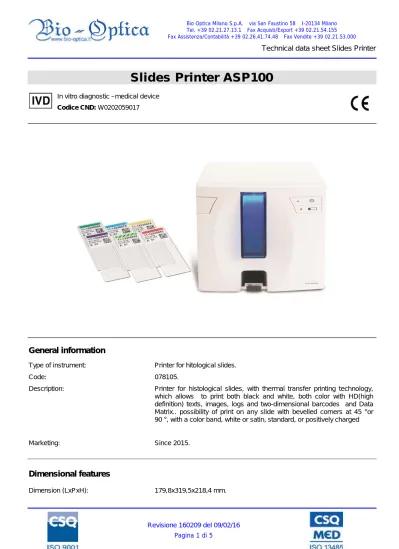

Slides Printer ASP100

(1)

Slides Printer ASP100

In vitro diagnostic –medical device

Codice CND: W0202059017

General information

Type of instrument: Printer for hitological slides.

Code: 078105.

Description: Printer for histological slides, with thermal transfer printing technology, which allows to print both black and white, both color with HD(high definition) texts, images, logs and two-dimensional barcodes and Data Matrix.. possibility of print on any slide with bevelled corners at 45 °or 90 °, with a color band, white or satin, standard, or positively charged

Marketing: Since 2015.

(2)

Weight: 7,62 Kg.

Electrical connections

Power supply: 100-240VAC, ~ 50/60Hz.

Power: 60 Watt.

Functional features

Printer of extremely small footprint. Thanks to its size it can be easily installed next to each microtomy location. It allows to print both black and white, both color with HD(high definition) text, images, logs and two-dimensional barcodes and Data Matrix. Solvent resistant and permanent in time.

• Slides capacity: Loading capacity of 100 slides, Charger with LED lighting, for visual check of the amount of remaining slides.

• Output capacity: 15 slides.

• Printing system: Thermal Transfer. • Printing resolution: 300 dpi.

• Print Speed: up to 7 slides per minute (monochrome). up to 5 slides per minute (color).

• Print colors: 8 colors,other colors available by color combination. • Type of ink: Resin for thermal transfer.

• Priting autonomy: Ribbon for color printing: 1000 prints.

Ribbon for white and black printing:5000 prints. • Barcodes: Two-dimensional Data Matrix.

• Port: USB 2.0.

• Drivers: Windowx XP/Vista/7.

• Slides compatibility: Bevelled slides with 90 ° corners with colored band. Dimension :76,2 x 25,4 mm (3”x1”) standard

(3)

Functional and control features

Software PTLab specially designed for the use with the printer compatible with windows XP/Vista/7.

Possibility of connection with two-dimensional barcode readers and/or 2D (datamatrix). Trasmission by laboratory reporting system (via LAN).

Print repeat mode or increase of any of the printing

scopes.

Use of PTLab Software

Software specially designed for use with printes ASP100.

• Print layout creation of slides • Multiple print of slides.

• Monitoring of remaining prints. • Live preview of the layout created.

Components included in the standard printer’s equipment cod 078105

Quantity DESCRIPTION

1 Power supply with cable

1 Connection cable USB

1 Slides charger with chip

1 Ribbon for color printing

1 Pen to clean the printer head

1 Softaware installation disc

1 User manual in Italian language

1 KIT 07 microscope slides Bio-Optica beveled 90 ° white stripe 50pc, microscope slides Bio-Optica positively charged bevelled 90 ° white stripe 50 Pc.

(4)

Optional Accessories

Quantity DESCRIPTION CODE

1 Two-dimensional barcode readers 2D datamatrix 078200

1 PC monitor 15.6” touchscreen, keyboard, mouse, scanner _{2D including software PTIlab PE} 078201

1 Container of 100 slides with Smart Chip 078251

1 software PTIlab PE 078209

(5)

Consumables Dedicated

Quantità DESCRIPTION CODE

1 Pack of n°6 monochrome indelible print ribbon (black) _{(Total printing capacity 30000 slides 5000 for each ribbon)} 058105

1 Pack of No. 1 print ribbon monochrome black indelible, _{(Print capacity total 5000 slides)} 058105-1

1 Pack of n°6 color indelible print ribbon. (Total printing _{capacity 6000 slides)} 058103

1 Pack of No. 1 tape color printing indelible. (Print capacity _{total 1000 slides)} 058103-1

1 Microscope slides with thermal transfer technology with bevelled white stripe 90 with rounded corners, packing 2500

pcs (50 boxes of 50 slides) 09-9430

1 Positively charged microscope slides with thermal transfer technology with white stripe bevelled 90 with rounded
