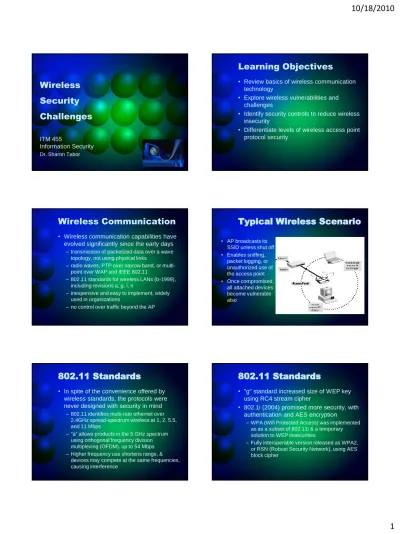

Wireless
Security
Challenges
ITM 455
Information Security
Dr. Sharon TaborLearning Objectives
• Review basics of wireless communication
technology
• Explore wireless vulnerabilities and
challenges
• Identify security controls to reduce wireless
insecurity
• Differentiate levels of wireless access point
protocol security
Wireless Communication
• Wireless communication capabilities have
evolved significantly since the early days
– transmission of packetized data over a wave topology, not using physical links
– radio waves, PTP over narrow band, or multi-point over WAP and IEEE 802.11
– 802.11 standards for wireless LANs (b-1999), including revisions a, g, i, n
– inexpensive and easy to implement, widely used in organizations
– no control over traffic beyond the AP
Typical Wireless Scenario
• AP broadcasts its SSID unless shut off • Enables sniffing,
packet logging, or unauthorized use of the access point • Once compromised,
all attached devices become vulnerable also
802.11 Standards
• In spite of the convenience offered by
wireless standards, the protocols were
never designed with security in mind
– 802.11 identifies multi-rate ethernet over 2.4GHz spread-spectrum wireless at 1, 2, 5.5, and 11 Mbps
– "a" allows products in the 5 GHz spectrum using orthogonal frequency division multiplexing (OFDM), up to 54 Mbps – Higher frequency use shortens range, &
devices may compete at the same frequencies, causing interference
802.11 Standards
• "g" standard increased size of WEP key
using RC4 stream cipher
• 802.1i (2004) promised more security, with
authentication and AES encryption
– WPA (Wifi Protected Access) was implemented as as a subset of 802.11i & a temporary solution to WEP insecurities
– Fully interoperable version released as WPA2, or RSN (Robust Security Network), using AES block cipher
802.11 Standards
• The 802.11i architecture includes
– 802.1X for authentication (entailing the use of EAP and an authentication server)
– RSN for keeping track of associations – AES-based CCMP (Cipher Block Chaining
Message Authentication CodeProtocol) to provide confidentiality, integrity, and origin authentication
• An important element of the authentication
process is the four-way handshake, & a new
key distribution method to overcome
weaknesses in earlier methods
802.11 Standards
• Use of TKIP - Temporal Key Integrity
Protocol (shared secret key w/MAC
address)
• Different implementations of EAP over
TLS, TTLS, MD5, and Cisco developed
LEAP
• Organizational alternative is a layered
approach, with an infrastructure
architecture & network segregation
Wireless Vulnerabilities
•
Accidental association
– A user turns on a computer and it latches on to a wireless access point from a neighboring company’s overlapping network
•
Malicious association
– Wireless devices connect to a company network through a cracking laptop instead of a company access point (AP)
•
Ad-hoc networks
– peer-to-peer networks between wireless computers without an access point
Wireless Vulnerabilities
•
Non-traditional networks
– personal network Bluetooth devices are not safe from cracking and should be regarded as a security risk
– even barcode readers, handheld PDAs, and wireless printers and copiers should be secured
•
Identity theft
(or MAC spoofing)
– occurs when a cracker is able to listen in on network traffic and identify the MAC address of a computer with network privileges
Wireless Vulnerabilities
•
Man-in-the-middle attacks
– attacker entices computers to log into a computer which is set up as a soft AP
•
Denial of service
– (DoS) occurs when an attacker continually bombards a targeted AP or network with bogus requests, premature successful connection messages, failure messages, and/or other commands
•
Network injection
– a cracker can make use of access points that are exposed to non-filtered network traffic
Wireless Vulnerabilities
•
Caffe Latte attack
- a way to defeat WEP
– not necessary for the attacker to be in the area of the network using this exploit
– by using a process that targets the Windows wireless stack, it is possible to obtain the WEP key from a remote client
– by sending a flood of encrypted ARP requests, the assailant takes advantage of the shared key authentication and the message modification flaws in 802.11 WEP
– the attacker uses the ARP responses to obtain the WEP key in less than 6 minutes
Wireless Quality &
Confidentiality Issues
• Weather - rain, snow, hail, sleet = "rain
fade“
– Lightning - momentary interference or permanent damage
– Man-made interference - radar, electromagnetic pulse (EMP)
– Eavesdropping - organization specific, or war-driving (receiver & directional antenna) & marking (war chalking)
Wireless Security Controls
• Proper AP configuration, better than no
security for home or small office wireless
where they are serve as deterrents &
increase the work factor:
– secure the AP - (cloak) make it invisible, with hidden power source (including power over ethernet)
– change the default password
– turn off SSID broadcasting (still available in frame header) (removes identifying signals) – use MAC access lists (may also be sniffed)
Controls for Larger
Organizations
• control wireless APs and devices • control AP layouts (stealthy), and plan the
geographic channel layouts to avoid extending transmission
• shut down APs after hours
• control signal strength & speed & deny logins from low power levels, implying they are off premise • require strong authentication
• use serious security, moving to WPA/WPA2, TKIP & AES encryption
• isolate wireless users on minimal risk VLANs • monitor activity
Large Organizations (cont)
• Organizations with many employees are
particularly vulnerable to security breaches
caused by rogue access points
– If an employee (trusted entity) in a location brings in an easily available wireless router, the entire network can be exposed to anyone within range of the signals
• Other technical options (still new)
– Wireless IDS (WIDS) - keeps track of APs within the organization boundaries; logs
– Wireless Intrusion Prevention System (WIPS) -the most robust way to counteract wireless security risks
WLAN Encryption
Methods
• The initial WEP (wired equivalent privacy)
protocol developed for wireless networks
provided minimal protection
• A network key is generated and shared
with each device, and unfortunately, can be
easily sniffed, cracked, and put into use by
a hacker or bandwidth bandit via war
driving or drive-by hacking
• Better alternatives are WPA (wireless
protected access) and 802.11i (WPA2)
WLAN Encryption
Methods
• WPA was an interim standard to address
security concerns before 802.11i
– uses TKIP (temporal key integrity protocol) to rekey devices frequently, but still uses RC4, a relatively weak encryption algorithm –802.11i has very strong security, using AES
encryption & TKIP (Temporal Key Integrity Protocol)
• therefore more resource intensive
• TKIP provides per-packet key mixing, a message integrity check and a re-keying mechanism, thus fixing the flaws of WEP
Dual Methods
• Organizations can choose between modes:
– PSK - pre-shared key for small office or home users
– 802.1X (enterprise) mode which will scale for larger organizations, definable to port level – Implementation will guide the ultimate security of
the standard; ie, a small PSK pass phrase (<20 characters) will generate a key weaker than WEP
• US government - TEMPEST - devices that
produce electromagnetic signals that can be
detected & decoded
EAP/TLS Authentication
Process
WTLS Still in Use
•
Wireless Transport Layer Security
(WTLS)
part of the Wireless Application
Protocol (WAP) stack
– WTLS is the only lightweight encryption for through-the-air transmission
– it sits between the WTPand WDPlayers in the WAP communications stack
– it has been superseded in the WAP 2.0 standard by the End-to-end Transport Layer Security Specification (Wikipedia, 2009)
Security Achieved
•
Confidentiality
– Modified version of TLS, uses DES, 3DES, RC5, IDEA (40 & 56-bit keys for the former, 40, 56, or 128 for the latter)
– Uses a shared key process, with several options for key exchange, including Diffie Hellman, Elliptic Curve DF, and RSA
•
Integrity -
implemented thru MACs
-message authentication codes, supporting
MD5 & SHA MAC
•
Authentication -
digital certificates, with
authentication optional
Mobile Device Security
Issues
• Small handhelds lack the memory &
processing power the TLS protocol was
designed to use
– Mobile devices should use the same standards as laptops, & should also support data encryption
• Other requirements include strong
passwords (not four-digit PINs such as on
the iPhone, which doesn't support
EAP-TTLS) that can be managed centrally by IT
Mobile Device Security Issues
• Handhelds are vulnerable with little data
encryption, optional authentication, and
several known attacks:
– chosen plaintext attack - predictable initialization vectors with known data and sequence numbering – PKCS #11 (Cryptographic Token Interface
Standard) - uses forced padding error inserted into the transmission stream
– alert message truncation - disruption of the connection by over-writing encrypted packets with plaintext alert message
– WAP GAP - transmissions are translated at the gateways, leaving data in clear as it passes
PCI-DSS
•
Payment Card Industry Data Security
Standard
– a worldwide information security standard assembled by the Payment Card Industry Security Standards Council to attempt to control
widespread credit card fraud
– this has been a particular problem as vendors moved to wireless technology
– standards include a long list of preventative controls on organizations using various types of scanners, with or without wireless LANs
RFID
• Radio Frequency Identification is a
compact wireless technology
– involves an inexpensive chip that's readable up to several meters away
– a next-generation barcode, RFID will automate inventory control, cutting costs for retailers and manufacturers
– while many consumer groups are concerned with privacy issues of being tracked, in reality quality problems and security are larger concerns, as well as adding a whole new dimension to corporate espionage
Instant Messaging
• Another interesting idea with no security
– Spread to other software & communication options accept file attachments, including Trojans or Worms (Goner, Choke)
• no encryption or virus checking
• process requires ID of available users, sends info in cleartext
• Solutions
– Organizations who allow should use local servers to keep traffic internal & proprietary
– New programs can encrypt - Trillian
Collaborative Communication
• Insider threat has a new meaning the Next
Gens going
– Favorite Web 2.0 applications are the type that present security concerns to the organization – By age of 21, average 20yr old has been
exposed to:
• 10,000 hours of video games • 200,000 e-mails
• 20,000 hours of TV
• 10,000 hours of cell phone conversation • Less than 5,000 hours reading books
• Organizations need logical policies, &
employee education
Bottom Line
• Wireless communication offers many
positive features that increase productivity
• Wireless communication is inherently
insecure
– All users need to be aware of wireless threats & take action
– Careful plan, logical policy, hardened APs – Knowledgeble application of secure methods
