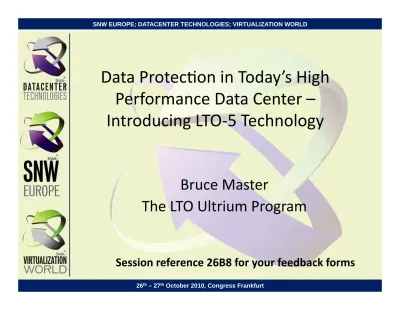

Data  Protec*on  in  Today’s  High

Performance  Data  Center  –

Introducing  LTO-­‐5  Technology

Bruce  Master

The  LTO  Ultrium  Program

(2)

Data Protection in Today’s

High Performance Data Center

Making the Best Use of Disk and Tape

Introducing LTO-5 Technology

Linear Tape-Open, LTO, LTO Logo, Ultrium and Ultrium Logo are registered trademarks of HP, IBM and Quantum in the US and other countries. Other symbols may be trademarks of other

companies.

Bruce Master

Sr. Program Manager

IBM Corporation

(3)
(4)
(5)
(6)

Theft

Operator

Error

System Error

Flood

Hurricane

Sabotage

Virus

Fire

(7)
(8)
(9)

*Source: Debbie Beech, Sylvatica Consulting / David Hill, Mesabi Group

Backup and Archive Best Practices – Protect Data

(10)

"You are out of your mind if you

think you can live without tape."

Dick Cosby, Systems Mgr.

"We installed our new LTO-5 library at our DR

site & started executing saves through a fibre

fabric in LESS THAN 30 MINUTES! I can save

more than 150TBs without any intervention."

(11)
(12)

Source: Government Computer News, July 1, 2008. “Most network data sits untouched” by Joab Jackson

Three month study of a businesses 22TB disk data access

Conducted by University of California, Santa Cruz

90% of the data was never accessed after being stored on disk

Another 6.5% of the data was accessed only once

U of C recommendation: move data to less expensive and less energy

consuming storage units

(13)

http://www.infoworld.com/d/data-explosion/tape-dead-long-live-tape-090

“tape is able to store a lot of data in a very small package”

“currently available tape drives can deliver

sequential transfer speeds that rival the fastest

hard disks available. ”

“tape media can be removed from its drive,

shipped, stored, and used years later”

(14)

2002 2004 2006 2008 2010 2012

Tape Cartridge Price/GB Estimates

Source: Estimates from Industry Market Research & Imation. Cartridge $/GB is an estimate based on average price and subject to change.

“A stored tape cartridge draws virtually no power.”

LTO-5 Cartridge

About 4 cents / GB

(15)

23X

5X

“Tape continues to provide the fiscal responsibility and functional value that enterprises require

in the twenty-first century.”

The Clipper Group

The Cost Ratio for a

Terabyte Stored

Long-Term

on SATA Disk versus

LTO-4 Tape is about

23:1

For energy cost,

it is about

290:1

*Source: The Clipper Group, “Disk and Tape Square Off Again” Report #TCG2008009LI, Feb 2008

(16)

Virtual Tape Library Tape Library

Application Servers

Backup Server

VTL

Tape Library

*Source: Fleishman-Hillard Research Dec. 2009

Blended Tiered Storage Example

“There is no other

medium that offers what

tape does for archiving.”

LTO tape technology continues to

evolve with LTO-5, Curtis Preston,

(17)
(18)
(19)

“LTO reliability is

incredible, retrieves

couldn’t be easier, and

almost zero training.”

Dick Cosby, System

Administrator, EDPS

(20)
(21)

A security breach can

cost up to $150 per

record.*

(22)
(23)

Tape Library

IP

Server

Encryption

Key

Software

Other OS

App

Server

LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 LTO 5 Fibre Channel

Mount Request

Request Data Key

(24)

EKM-1

EKM-2

LTO

LTO

LTO

(25)

*See white paper: Securing Sensitive Information -- with LTO-4 tape drive encryption. by Silverton Consulting at www.ultrium.com/whitepaper

“…it took only 1 to 2 days to implement encryption.” Mack Kigada,

Data Storage Manager, Providence Health and Services

(26)
(27)
(28)

Tape browsing on Linux

Files can be accessed on tape directly from any application

Device Directory

Tape Contents

"We think that LTFS could be one of

the most significant developments in

the tape drive space since the

introduction of LTO itself.“

George Crump, Analyst,

Storage Switzerland, May 2010

(29)
(30)

"I am shocked! This is exactly what we need!"

"You have made my dreams come true!"

"You can't see it, but I am dancing inside!"

"LTO-5 technology gives tape-less work-flow....with tape!"

"We are going to get this (LTO-5 tape and LTFS)."

"Now I can offer an LTO-5 archiving service to my movie clients."

"We have LTO-3 and are now going to go to 5 with the file system"

(31)

For:

Digital Video Surveillance (DVS)

Broadcast Production

Content Distribution

Digital Archive

NGN (Next Generation Networks)

Clients Require:

Cost effective and efficient ways to capture

and store digital content

Repurpose the content and make it available

for both traditional and new distribution outlets

Law Enforcement:

European city government stores video evidence from city park cameras to LTO tape

Large U.S. city PD stores squad car live action video surveillance to LTO tape library

Video Archive:

Major Asian broadcaster stores video to LTO archive to save cost and maintain longevity

Large US entertainment news show stores video content to LTO tape library

Major US TV broadcaster uses LTO system for high def archive and retrieval – lowers costs

NGN (VOD/IPTV)

DVS

Digital Archive Broadcast production Content Distribution

(32)

Over 3.3M LTO Tape

Drives Shipped

Over 150M LTO

Cartridges Shipped

*Source: Fleishman-Hillard Research Dec. 2009

Storage Manager Survey Results

*

(33)
(34)

Soar to New Heights

LTO-5 technology can help to reduce

storage costs and energy consumption,

improve data management

and protect data!

Visit the LTO booth, see the technology, get

a free gift, and plan to protect your data!

Go to Ultrium.com

for a copy of this presentation and lots more!

More info at TRUSTLTO.com

Linear Tape-Open, LTO, LTO Logo, Ultrium and Ultrium Logo are registered trademarks of HP, IBM and Quantum in the US and other countries. Other symbols may be trademarks of other

(35)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

THANK  YOU

Please  remember  to  fill  in  your

feedback  form:

(36)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

How  Estes  Express  Survived  a

data  center  flood  disaster  with

LTO  tape  data  Protec*on

Dick  Cosby

Estes  Express

(37)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Our System to Manage Performance, Data Growth, Data

Protection and Costs.

(38)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Challenge

Elimination of nightly backup window

Independent of data volume increases

Elimination of interruptions to production server jobs (24x7 availability)

Adopt reliable tape technology to eliminate night operator expense

Address mandatory requirement for daily point-in-time backups

Eliminate complex software replication

Adopt cost effective, fast, secure and reliable off-site long-term storage

Provide 100% reliable data recovery for unplanned outage or disaster

Solution

Virtualization with…

SAN Storage servers

LTO Tape Libraries

FlashCopy data snapshots

(39)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

(40)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Disaster Can Strike at Anytime in Many Forms

Hurricane Gaston August 30, 2004

14 inches of rain in 8 hours

Ground floor (Data Center) flooded with 4.5’

water for 12 hours

Total loss of hardware, networks, phone systems,

generator, utility power

Any Good News??

Yes!! We had a tape backup of 100% of our data off site, made the

night before on Tape Cartridges

(41)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Data Protection Backup Process

Components include a tiered storage environment:

• 

System Storage SAN Servers

• 

LTO Tape Libraries

• 

Tape management utility on data backup servers

• 

System Storage Copy Utilities

(42)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Data Protection Backup Process

Flush

IASP-A

SysBas

SAN Storage

SysBas

Steps:

Make point-in-time data

snapshot available to backup

serve

(43)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Data Protection Backup Process

Prod.

SAN

Server

Flush

IASP-A

SysBas

Multi-path

Fibre

SysBas

Point-in-Time

snapshot

Available on backup

server

Data saved to LTO

Library

(44)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Data Protection Backup Process

Prod.

SAN

Server

Flush

IASP-A

SysBas

Multi-path

Fibre

SysBas

Production

Server users

are unaware

of the backup

process

taking place

(45)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Data Protection Backup Process

Prod.

SAN

Server

FlashCopy Volumes Flush FlashCopy Volumes

IASP-A

IASP-A

SysBas

Multi-path

Fibre

SysBas

After the snapshot is

executed, a 100%

point-in-time copy of the Production

data is available to our

backup LPARs and backed

(46)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Data Protection Backup Process

FlashCopy Volumes Flush FlashCopy Volumes

IASP-A

IASP-A

SysBas

SAN Storage

SysBas

With our LTO

Library, 100% of

our production

data is saved

every night, 365

days a year,

without operator

intervention or

production

interruption

LTO

Library

(47)

26th – 27th October 2010, Congress Frankfurt

(48)

26th – 27th October 2010, Congress Frankfurt

(49)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

Lessons Learned

Need a strategic blend of technologies - don’t put all eggs in 1 basket

Have multiple copies of critical data so you can survive

Must use offline storage which is protected from attacks and disasters-

LTO tape is perfect:

Provides critical data protection

Highest reliability, lowest cost

Economically complements DeDuplication and data Snapshots by

completing data protection process

Simple to operate, low staff training

Tape drive encryption provided for data security

Tape storage, no power cost

Highly mobile/portable: safe for low-cost shipments and storage

LTO technology enhancements more than meet demands for data

(50)

26th – 27th October 2010, Congress Frankfurt

(51)

26th – 27th October 2010, Congress Frankfurt

SNW EUROPE; DATACENTER TECHNOLOGIES; VIRTUALIZATION WORLD

THANK  YOU

Please  remember  to  fill  in  your

feedback  form:
