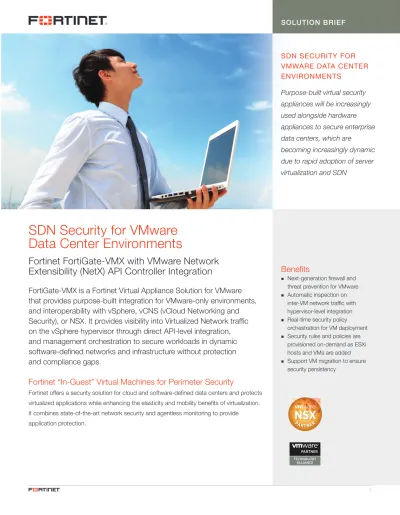

SDN SECURITY FOR
VMWARE DATA CENTER
ENVIRONMENTS
Purpose-built virtual security
appliances will be increasingly
used alongside hardware
appliances to secure enterprise
data centers, which are
becoming increasingly dynamic
due to rapid adoption of server
virtualization and SDN
SDN Security for VMware
Data Center Environments
Fortinet FortiGate-VMX with VMware Network
Extensibility (NetX) API Controller Integration
FortiGate-VMX is a Fortinet Virtual Appliance Solution for VMware
that provides purpose-built integration for VMware-only environments,
and interoperability with vSphere, vCNS (vCloud Networking and
Security), or NSX. It provides visibility into Virtualized Network traffi c
on the vSphere hypervisor through direct API-level integration,
and management orchestration to secure workloads in dynamic
software-defi ned networks and infrastructure without protection
and compliance gaps.
Fortinet “In-Guest” Virtual Machines for Perimeter Security
Fortinet offers a security solution for cloud and software-defi ned data centers and protects virtualized applications while enhancing the elasticity and mobility benefi ts of virtualization. It combines state-of-the-art network security and agentless monitoring to provide
application protection.
Benefi ts
n Next-generation fi rewall and threat prevention for VMware n Automatic inspection on inter-VM network traffi c with hypervisor-level integration n Real-time security policy orchestration for VM deployment n Security rules and policies are provisioned on-demand as ESXi hosts and VMs are added n Support VM migration to ensure security persistency
2 www.fortinet.com
Today’s Security Hardening Trend
of Virtualization
With virtualization and cloud computing technology, IT can provision Virtual Machines (VMs) to run a web application within minutes at a fraction of the cost of physical machines. Fortinet supports server virtualization platforms like VMware, Hyper-V, Xen, and KVM. There are a number of reasons why server virtualization has been so benefi cial, including hardware cost savings and decreased data center footprint.
Fortinet Security VM Products
Simply replacing hardware appliances with software ports running on VMs helps to improve cost and introduce data center agility. For more information on the current VM-centric security solution, download the solution brief http://www.fortinet.com/resource_center/solution_briefs/ fortinet_virtual_appliance_solutions.html.
Current Fortinet Virtual Appliances
Service Provider/ Cloud Provider
CLOUD
FortiWeb-VM
Web Application Firewall
FortiGate-VM
FortiGate-VM
FortiGate-VMX FortiClient
FortiGuard Services
FortiManager-VM
Centralized Management
FortiAnalyzer-VM
Logging and Reporting
FortiVoice-VM
Phone Systems
FortiRecorder-VM
Video Security Surveillance
FortiAuthenticator-VM
User Identity Management
FortiMail-VM
Messaging Security
FortiCache-VM
High-Performance Caching
FortiADC-VM
Application Delivery Controllers
Remote Office/ Branch Office
Headquarters
Software-Defi ned Networking (SDN) Security
Data Center Networking is going through a major overhaul driven by virtualization (server compute and storage) and convergence (data, I/O, and control network). Current work on network virtualization is focused on the Layer 2/3 infrastructure level, leaving advanced application features, such as content fi rewall and network IPS/IDS, to either hardware hair-pinning or software appliances complementing hardware-based services in the network.
Rigid infrastructure will soon become the bottleneck as a new generation of applications demands a fully elastic platform in the cloud, public, hybrid, or private.
FortiGate-VMX is a virtual appliance solution for VMware environments that provides purpose-built integration for VMware’s Software-Defi ned Data Center (SDDC) and interoperability with vSphere and vCloud Networking and Security.
Purpose Built for vSphere and
vCloud Networking and Security
FortiGate-VMX is based on the latest version of the Fortinet FortiOS, a security-hardened, purpose-built operating system, which delivers the advanced protection and
performance that standalone products simply cannot match. It supports all the advanced NGFW/UTM features of FortiOS. IT administrators set IPS/IDS, AV, web fi ltering, etc.,
policies just as they would in any FortiOS deployment. Fortinet services work together as a system to provide better visibility and mitigation of the latest network and application threats, stopping attacks before damage can occur. This ensures the product is deployed from all ESXi hypervisors.
1
1 Initiate communication with vCenter Server 2 Register Fortinet as security
service with vCNS Manager 3 Auto-deploy FortiGate-VMX to all hosts in security cluster 4 FortiGate-VMX connects with
FortiGate-VMX Service Manager 5 License verification and configuration
synchronization with FortiGate-VMX 6 Kernel agent creation and default
redirection rules for each host cluster 7 Real-time updates of object database 7
2
5
4 3
8
How Does it Work?
FortiGate-VMX Supported Security Features
Firewall Intrusion Prevention Web Filtering WAN Optimization Antivirus Email Filter Application Control Data Loss Prevention Explicit Proxy
4 www.fortinet.com
FortiGate-VMX offers seamless Intrusion
Prevention Service (IPS) for Enterprise,
Cloud, and Private Cloud:
Leveraging a shared object database with VMware vCenter for easy creation of security policies, FortiGate-VMX makes process-intensive deployment of security services and policy enforcement with greater agility. FortiGate-VMX also supports live migrations of applications within clustered environments. With the VMware NSX compatibility integration, any host added will embrace the security zone policy, and these updates are real-time and dynamic for newly created services without normal time lag in the paper trail requests. With NetX API providing backward compatibility to VMware NSX manager, FortiGate-VMX can provide network visibility and inspection on East-West network traffic among VMs instantly.
Secured by FortiGuard
Beyond the platform integration, FortiGuard can be implemented to provide a continuous protection model in the integration with real-time sandboxing detecting new malware variants. FortiGuard helps recognize suspect content exhibiting malicious attributes, and investigate accordingly.
The solution provides protection against network-level threats, detects and blocks attacks in real time, packet logging and attacker quarantine, and automated updates from the proven Fortinet Global Threat Research Team. Benefits
Antivirus / Anti-spyware (AV)
Protection against virus, spyware, worms, and other forms of malware “Set and forget” functionality to reduce security management overhead Automated content updates from FortiGuard virus, spyware, and heuristic detection engines
USE CASE
FortiGate-VMX inserts a virtual filter between vNIC of the protected VM and the virtual switch (i.e. hypervisor-based security) resulting in a fully automated deployment of secu-rity services and policies. It provides dynamic secusecu-rity policy updates to enforce policy on newly created VMs (services) without requiring notification of the security administrator. Benefits
Data loss prevention
Identification and control over data in motion RegEx-based matching engine
Common file format inspection Content archiving
Firewall
WAN optimization Web filtering Application control Email filter
GLOBAL HEADQUARTERS Fortinet Inc.
EMEA SALES OFFICE 120 rue Albert Caquot
APAC SALES OFFICE 300 Beach Road 20-01
LATIN AMERICA SALES OFFICE Prol. Paseo de la Reforma 115 Int. 702
The integrated solution provides full next-generation security functionality in one platform, accommodating different network and security functions. And the IT administrator does not need to guess how much network security is required. The joint integrated solution is the most cost-effective, simplified, and secure approach to apply security policies when any hypervisor is provisioned on-demand.
Virtual Appliance VMware Citrix Open Source Amazon Microsoft
vSphere
v4.0/4.1 vSphere v5.0 vSphere v5.1 vSphere v5.5 Xen Server v5.6 SP2
Xen
Xen KVM AWS Hyper-V 2008 R2 Hyper-V 2012
FortiGate-VM FortiManager-VM FortiAnalyzer-VM FortiWeb-VM FortiMail-VM FortiAuthenticator-VM FortiCache-VM FortiRecorder-VM FortiADC-VM
* Also available as pay-as-you-go licensing option.
✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ FortiGate-VMX ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
FortiVoice-VM ✔ ✔ ✔ ✔ ✔ ✔
FortiSandbox-VM ✔ ✔
Server v6.0
