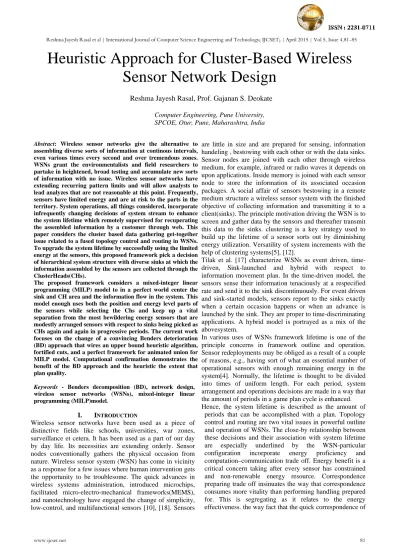

Heuristic Approach for Cluster-Based Wireless Sensor Network Design
Reshma Jayesh Rasal, Prof. Gajanan S. Deokate
Computer Engineering, Pune University, SPCOE, Otur, Pune, Maharashtra, India
Abstract: Wireless sensor networks give the alternative to assembling diverse sorts of information at continous intervals, even various times every second and over tremendous zones.
WSNs grant the environmentalists and field researchers to partake in heightened, broad testing and accumulate new sorts of information with no issue. Wireless sensor networks have extending recurring pattern limits and will allow analysts to lead analyzes that are not reasonable at this point. Frequently, sensors have limited energy and are at risk to the parts in the territory. System operations, all things considered, incorporate infrequently changing decisions of system stream to enhance the system lifetime which remotely supervised for recuperating the assembled information by a customer through web. This paper considers the cluster based data gathering get-together issue related to a fused topology control and routing in WSNs.
To upgrade the system lifetime by successfully using the limited energy at the sensors, this proposed framework pick a decision of hierarchical system structure with diverse sinks at which the information assembled by the sensors are collected through the ClusterHeads(CHs).
The proposed framework considers a mixed-integer linear programming (MILP) model to in a perfect world center the sink and CH area and the information flow in the system. This model enough uses both the position and energy level parts of the sensors while selecting the Chs and keep up a vital separation from the most bewildering energy sensors that are modestly arranged sensors with respect to sinks being picked as CHs again and again in progressive periods. The current work focuses on the change of a convincing Benders deterioration (BD) approach that wires an upper bound heuristic algorithm, fortified cuts, and a perfect framework for animated union for MILP model. Computational confirmation demonstrates the benefit of the BD approach and the heuristic the extent that plan quality.
Keywords - Benders decomposition (BD), network design, wireless sensor networks (WSNs), mixed-integer linear programming (MILP)model.
I. INTRODUCTION
Wireless sensor networks have been used as a piece of distinctive fields like schools, universities, war zones, surveillance et cetera. It has been used as a part of our day by day life. Its necessities are extending orderly. Sensor nodes conventionally gathers the physical occasion from nature. Wireless sensor system (WSN) has come in vicinity as a response for a few issues where human intervention gets the opportunity to be troublesome. The quick advances in wireless systems administration, introduced microchips, facilitated micro-electro-mechanical frameworks(MEMS), and nanotechnology have engaged the change of simplicity, low-control, and multifunctional sensors [10], [18].Sensors
are little in size and are prepared for sensing, information handeling , bestowing with each other or with the data sinks.
Sensor nodes are joined with each other through wireless medium, for example, infrared or radio waves it depends on upon applications. Inside memory is joined with each sensor node to store the information of its associated occasion packages. A social affair of sensors bestowing in a remote medium structure a wireless sensor system with the finished objective of collecting information and transmitting it to a client(sinks). The principle motivation driving the WSN is to screen and gather data by the sensors and thereafter transmit this data to the sinks. clustering is a key strategy used to build up the lifetime of a sensor sorts out by diminishing energy utilization. Versatility of system increments with the help of clustering systems[5], [12].
Tilak et al. [17] characterize WSNs as event driven, time- driven, Sink-launched and hybrid with respect to information movement plan. In the time-driven model, the sensors sense their information tenaciously at a respecified rate and send it to the sink discontinuously. For event driven and sink-started models, sensors report to the sinks exactly when a certain occasion happens or when an advance is launched by the sink. They are proper to time-discriminating applications. A hybrid model is portrayed as a mix of the abovesystem.
In various uses of WSNs framework lifetime is one of the principle concerns in framework outline and operation.
Sensor redeployments may be obliged as a result of a couple of reasons, e.g., having sort of what an essential number of operational sensors with enough remaining energy in the system[4]. Normally, the lifetime is thought to be divided into times of uniform length. For each period, system arrangement and operations decisions are made in a way that the amount of periods in a game plan cycle is enhanced.
Hence, the system lifetime is described as the amount of periods that can be accomplished with a plan. Topology control and routing are two vital issues in powerful outline and operation of WSNs. The close-by relationship between these decisions and their association with system lifetime are especially underlined by the WSN-particular configuration incorporate energy proficiency and computation–communication trade off. Energy benefit is a critical concern taking after every sensor has constrained and non-renewable energy resource. Correspondence preparing trade off insinuates the way that correspondence consumes more vitality than performing handling prepared for. This is segregating as it relates to the energy effectiveness. the way fact that the quick correspondence of
a sensor with a sink is suitable for the whole system, this is fundamentally unbelievable or may oblige amazing energy may the system lifetime get diminished. Thusly, routing plans where the information size is decreased by in- framework information gathering where energy is used for handling rather than correspondence along the courses from sensors to a sink (client) are commonly supported.
II. RELETED WORK
Clustering of sensors has been shown practicality in improving sensor system lifetime in the written work. The standard is to collect WSNs into an set of cluster, and inside every one cluster, sensors transmit the accumulated data to their CHs. Each CH assembles its gotten information and advances it to the sink either particularly or by method for exchanging through different CHs [16], [1]. This is advantageous in three courses the extent that energy profit, for example,
(i) Hierarchical structure offers office to discard the fast energy drainage at the sensors that are a long way from the sink by a multi bounce sensor-to-sink information exchange arrangement; (ii) The information gathering is performed at the CHs so that energy in trusts trades is made sense of it; (iii) At progressive interims reclustering can change the enrrgy use by reassigning the CHs and the sinks and changing the routing in the system.
This paper discusses the works that are more almost related to of framework topology and information routing.
Heinzelman et al. [19] make an information hoarding cluster-based routing protocol Low Energy Adaptive Clustering Hierarchy (LEACH). In LEACH, they acknowledge a hop CH-to-sink association and get the randomized insurgency of Chs to ensure balanced energy usage. In the meantime such suspicions may not guarantee network integration. Younis and Fahmy et al. [15] propose a hybrid energy-efficient distributed clustering routing(HEED) protocol where the CHs are probabilistically picked concentrated around their remaining energy and the sensors join clusters such that the correspondence cost is minimized. Respect expects a multihop relationship between the CHs and to the sink and acknowledges all nodes are of same fundamental.
Liu et al. [9] describe a distributed energy-efficient protocol EAP for the general setting. In EAP, each CH is probabilistically picked concentrated around its extent of the remaining energy to the ordinary remaining energy of all the adjacent sensors inside its cluster range. This is rather than HEED that just picks CHs concentrated around a sensors' own specific remaining vitality. For further change in system lifetime, EAP presents the considered
"intracluster scope" that permits a midway arrangement of sensors to be dynamic inside cluster while keeping up a normal scope.In a multihop cluster based WSN, the CHs closer to the sink may have fast waste because of their load in sending information to the sink [3]. It noted that most of the previously stated studies don't explicitly consider this element. To ensure balanced vitality utilization, there are a few studies, that consider an unequal cluster-based routing plan, i.e., Chs closer to the sink have more diminutive bunch sizes than those more remote from the sink [2].
Al-Karaki et al. [10] proposed a numerical arrangement by commonly considering the cluster-based routing issue with specific information aggregation. Al-Turjman et al. [6]
propose a mixed integer linear program(MILP) with the destination of minimizing the total system essentialness use while including requirment on deficiency strength in the meantime. In that study, sensors are relied upon to forward their information to the sink through specific hand-off nodes that are outfitted with higher vitality sources. In [15], a routing issue is considered for systems with level topologies.
In Linear programming is recommended to data stream for every period.In multi item stream methodology is furnished to boost lifetime with the utilization of different sinks in a WSN [13]. Luo and Nodeaux demonstrate a routing issue with sink versatility to enhance network lifetime.in the given studies level of routing structures without any CHs.
are considered [7][11].
This heuristic algorithm provides a good initial upper bound and facilitates the generation of initial Benders cuts, while the strengthened Benders cuts and an optimal framework accelerate the convergence of the BD algorithm.
III. IMPLEMENTATION DETAILS
We have proposed and executed the algorithm for data gathering in cluster based WSNs. In this system, we have given the system in such a way, that the sensors forward the data towards the sink utilizing the smallest path. In the sametime it likewise takes into the thought of energy of sensors. Decently situated sensors are taken consideration to not be chosen as the CHs continuously.
A. System Architecture:
The wireless sensor networks include long scope of applications. The sensors assemble the data, to which they are sent for. Later, the CH applicants are chosen. Next, the energy level for every competitor is checked by the system.
As per this energy check, the CHs are selected. Once the CHs are chosen, the last process is to forward the data towards the sink.
Fig.1 System Architecture
B. System Overview:
The actualized system is in light of three important aspects, network formation as indicated by the energy of sensors.
Note that, the connection are not changed by any means.
Just routing is changed at iteration, as the CHs are different each time. We are utilizing the Dijkstra's algorithm for the shortest path finding, to convey the data to the sink.
Algorithms 1: Dijkstra's algorithm:
Input – Network, source
Output – Shortest distance to each node from the source
Algorithm –
Step 1: Dist[source] = 0 // source to source is 0 Step 2: Prev[source] = undefined
Step 3: For each node vin network Step 4: If v is not source
Step 5: Dist[v] = infinity Step 6: Prev[v] = undefined Step 7: End if
Step 8: Add v to Q Step 9: End for
Step 10: While Q is not empty
Step 11: u = node in Q with minimum Dist[u]
Step 12: remove u from Q Step 13: For each neighbor v of u Step 14: alt = Dist[u] + length(u, v) Step 15: If alt < Dist[v]
Step 16: Dist[v] = alt Step 17: Prev[v] = u Step 18: End if Step 19: End for Step 20: End while
Step 21: Return Dist[v], Prev[v]
Algorithms 2: CH algorithm:
Input – CH candidates Output – CHs
Algorithm –
Step 1: If first iteration
Step 2: Select the CHs according to their positions Step 3: Else
Step 4: For each CH candidate ch
Step 5: If energy > min_energy &ch was not CH in previous iteration
Step 6: Select ch as CH Step 7: End if
Step 8: End for Step 9: End if-else
C. Data Flow Diagram:
The data flow diagram which describes the data is flow and processed inside a system. The data flow diagram (DFD) is a visual representation of data flow and processing of a system. the arrangement and timing process in the framework is spoken to by the succession graph and the control stream is spoken to by the stream outline. The DFD is focuses on data processing in a system (to be precise the input/output information or data which a system process).
The DFD is very important for systems, which communicates with multiple systems. It basically gives an overall view of the systems components.
Fig.2 DFD Level 1
D. Dynamic Programming and Serialization
Our system is partitioned into three different modules.
The modules are, data gathering, CH selection, and routing algorithm. In the data gathering module, wireless sensors in the system assemble the information from the encompassing environment and later forward it to the CHs after their choice. The CH choice is utilized to discover the CHs from the hopeful CHs. Note that, the applicant CHs are likewise the sensors node from the network . The CHs are chosen taking into account the energy staying in the node and the position of that node in the network. Later, the routing algorithm is utilized to discover the shorted path from every sensor node to the Sink. The way may be gone from one or multiple CHs.
E. Experimental Setup:
The system is manufactured utilizing Java framework (version JDK 8) on Windows platform. The Netbeans (version 8) is utilized as development tool. The framework doesn't require any particular hardware to run; any standard machine is equipped for running the application.
IV RESULT AND DISCUSSION:
Here we have discussed different types of our algorithms for data gathering cluster based wireless sensors networks with itself. The results are expected less memory to deliver data over network.
The above graph shows why our system is good in aspects of energy usage. Our system requires considerably less energy for iteration in network
Fig. (a) Iteration 1
Fig. (b) Iteration 2
The above figure shows the sample network configuration at different iterations.
CONCLUSION
This plan makes a MILP demonstrate by considering a fused topology control and routing issue in cluster-based WSNs. For selecting the CHs this plan propose another focus as the minimization of a weighted sum of average of the normal energy usage, the scope of remaining energy flow and the energy based modified cost. In this manner, this model keeps up a key separation from some tolerably arranged sensors being picked as CHs on and on in dynamic periods to secure low-vitality sensors from smart vitality depletion while empowering a uniform energy
utilization profile in the system.This arrangement makes an effective–optimal BD approach that joins an upper bound heuristic algorithm and fortified cuts. Especially, it devises a conceivable heuristic algorithmic plan to support the period of a beginning Benders cut. Computational confirmation demonstrates the execution of the system with respect to game plan quality and time.
This study can be upgraded in a few bearing. One growth of this work is to combine the scope issue into the facilitated topology control and routing issues with the high spatial abundance of sensors by simply allowing a subset of sensors dynamic for a given time of time, however all diverse sensors save energy being in dormant state. Since it starting now spotlights on time-driven sensor frameworks applications identifying with perseveringly observing ecological territories such creatures, plants, micro-life forms, an other intriguing enlargement later on is to reformulate the models to suit for the time-basic application.
ACKNOWLEDGEMENT
We thankful to Teacher, Friends and Department of Computer Engineering for their constant guidelines and support. We also thank the researchers as well as publishers for making their resources available and teachers for their guidance. We also thankful college authorities for providing the required infrastructure and support.
REFERENCES
[1]. H. Lin and H. Uster ,”Exact and Heuristic Algorithm for Data- Gathering Cluster-Based Wireless Sensor Network Design Problem ”,IEEE /ACMTrans.Netw., vol. 22, no.3, June 2014.
[2]. S. Vasudevan, M. Adler, D. Goeckel, and D. Towsley, “Efficient algorithms for neighbour discovery in wireless networks,”
IEEE/ACMTrans.Netw., vol. 21, no. 1, pp. 69–83, Feb. 2013.
[3]. [3] E. Ever, R. Luchmun, L. Mostarda, A. Navarra, and P. Shah,
“UHEED—An unequal clustering algorithm for wireless sensor networks,” in Proc. 1st SENSORNETS, Feb. 2012, pp. 185–193 [4]. H. Üster and H. Lin, “Integrated topology control and routing in
wireless sensor network design for prolonged network lifetime,”
Ad Hoc Newt., vol. 9, no. 5, pp. 835–851, 2011.
[5]. R. Cohen and B. Kapchits, “Continuous neighbour discovery in asynchronous sensor networks,” IEEE/ACM Trans. Netw., vol.
19, no. 1, pp. 69–79, Feb. 2011.
[6]. F. Al-Turjman, H. Hassanein, and M. Ibnkahla, “Optimized relay repositioning for wireless sensor networks applied in environmental applications,” in Proc. 7th IWCMC, Jul. 2011, pp.
1860–1864.
[7]. S. Misra, S. D. Hong, G. Xue, and J. Tang, “Constrained relay node placement in wireless sensor networks: Formulation and approximations,”IEEE /ACMTrans. Newt., vol. 18, no. 2, pp.
434–447,Apr. 2010.
[8]. F. Al-Turjman, H. Hassanein, and M. Ibnkahla, “Connectivity optimization for wireless sensor networks applied to forest monitoring, “in Proc. IEEE ICC, Jun. 2009, pp. 1–6.
[9]. M. Liu, J. Cao, G. Chen, and X.Wang, “An energy-aware routing protocol in wireless sensor networks,” Sensors, vol. 9, no. 1, pp.
445–462, 2009.
[10]. J. N. Al-Karaki, R. Ul-Mustafa, and A. E. Kamal, “Data agregation and routing in wireless sensor networks: Optimal and heuristic algorithms, Computer Netw” vol. 53, no. 7, pp. 945–960, 2009.
[11]. K. Sohraby, D. Minoli, and T. F. Znati, Wireless Sensor Networks: Technology, Protocols, and Applications. Hoboken, NJ, USA: Wiley, 2007.
[12]. Q.Wangand W.Yang, “Energy consumption model for power management in wireless sensor networks,” in Proc. 4th Annu.
IEEE SECON, Jun. 2007, pp. 142–151.
[13]. H. Kim, Y. Seok, N. Choi, Y. Choi, and T. Kwon, “Optimal multi-sink positioning and energy-efficient routing in wireless sensor networks, ”Inf. Netw. Inf. Netw., vol. 3391, pp. 264–274, 2005.
[14]. Y. Xue, Y. Cui, and K. Nahrstedt, “Maximizing lifetime for data aggregation in wireless sensor networks,” Mobile Netw.Appl., vol. 10, pp. 853–864, 2005.
[15]. O. Younis and S. Fahmy, “HEED: A hybrid, energy-efficient, distributed clustering approach for ad-hoc sensor networks,” IEEE Trans .Mobile Comput., vol. 3, no. 4, pp. 366–379, Oct.–Dec.
2004.
[16]. J. Chang and L. Tassiulas, “Maximum lifetime routing in wireless sensor networks,” IEEE/ACM Trans. Netw., vol. 12, no. 4, pp.
609–619, Aug. 2004.
[17]. C. Y. Chong and S. P. Kumar, “Sensor networks: Evolution, opportunities, and challenges,” Proc. IEEE, vol. 91, no. 8, pp.
1247–1256, Aug. 2003.
[18]. S. Tilak, N. B. Abu- Ghazaleh, and W. R. Heinzelman, “A taxonomy of wireless micro-sensor network models,” Mobile Comput .C ommun.Rev., vol. 6, no. 2, pp. 28–36, 2002.
[19]. [13]W. B. Heinzelman, A. Chandrakasan, and H. Balakrishnan,
“Energy efficient communication protocol for wireless micro- sensor networks,” in Proc. IEEE Hawaii Int. Conf. Syst. Sci., 2000, pp.174–185
