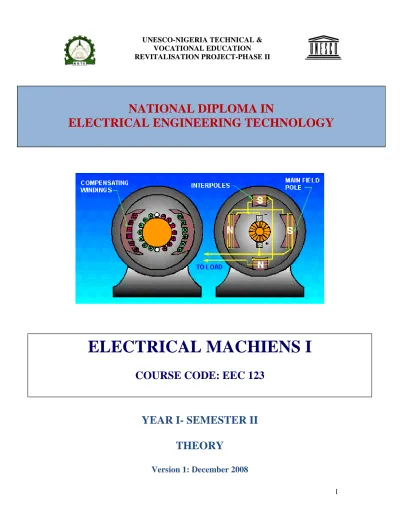

UNESCO-NIGERIA TECHNICAL & VOCATIONAL EDUCATION REVITALISATION PROJECT-PHASE II
YEAR I- SEMESTER II
THEORY
NATIONAL DIPLOMA IN
ELECTRICAL ENGINEERING TECHNOLOGY
ELECTRICAL MACHIENS I
TABLE OF CONTENT
Subject Electrical Machines I
Year 1
Semester 2 Course Code EEC123 Credit Hours 6 Theoretical 1 Practical 5
CHAPTER 1 : Magnetism
………...WEEK1 1.1 Introduction ... 11.2 Concepts of Magnetism ... 1
1.3 Types of magnets ... 2
1.3.1 Permanent Magnet ... 2
1.3.2 Temporary Magnet ... 3
1.4 Electromagnetic Fields ... 4
1.5 Magnetic Field Produced by a Coil ... 5
1.6 Induction ... 6
1.6.1 Induction Meaning ... 6
1.6.2 Self Inductance ... 7
1.6.3 Mutual Inductance ... 8
CHAPTER 2 : DC Generator
……….…………WEEK2 2.1 Introduction ... 22.2 The Basic Principle DC generator ... 2
2.2.1 The simplest AC generator ... 6
2.2.2 The simplest DC generator ... 7
2.3 Constructions of DC Generator ... 2
2.3.1 Magnetic field structure ... 6
2.3.2 Armature structure ... 7
2.3.3 Commutator structure ... 6
2.3.4 Brush structure ... 7
2.4 E.M.F Equation ... WEEK3 2 2.5 Armature Reaction ... 2
2.2.1 Shifting the Brushes ... 6
2.2.2 Compensating Windings and Interpoles ... 7
2.6 Classification Of Generators... 2
2.7 Voltage Regulation ... WEEK4 2 2.8 Generator Power Losses ... 2
2.8.1 Copper Losses Losses ... 6
2.8.2 Eddy Current Losses ... 7
2.8.3 Hysteresis Losses ... 7
CHAPTER 3 : DC Motor
………..………... ...WEEK5 3.1. Introduction ... 263.2. Constructions and Operation Principle of DC Generator ... 26
3.2.2 The dc motor torque ... 29
3.3.
Back E. M. F.
... 263.4. Types and characteristics of DC Motors ... 26
3.4.1 Series DC Motor ... 26
3.4.2 Shunt DC Motor ... 29
3.4.3 Compound DC Motor ... 26
3.4. Motor Nameplate ... WEEK6 37 3.4.1Nameplate Terms ... 37
3.4.2 Definition Nameplate ... 37
3.5. Power Losses and Efficiency ... 43
3.6. Starting Methods of DC Motor ... WEEK7 45 3.6.1 Face –plate Starter ... 46
3.6.2 Relay Starter ... 48
3.7. Reversing the Rotation of DC Motor ... WEEK8 51 3.7.1. Reversing the Rotation of DC Series Motor ... 51
3.7.2. Reversing the Rotation of DC Shunt Motor ... 53
3.7.2. Reversing the Rotation of DC Compound Motor ... 54
3.8. Inspection and Maintenance of DC Motors ... WEEK9 51
CHAPTER 4 : Single Phase Induction Motor
…….WEEK10 4.1. Introduction ... 264.2. Construction of A.C single-phase induction motor ... 26
4.3. Types and characteristics of DC Motors ... 26
4.2.1 Rotor ... 26
4.2.2. Stator ... 29
4.2.3. Frame enclosure ... 26
4.2.4.
Fan
... 264.2..5.
Terminal ( connection ) box
... 294.2.6
Centrifugal switch
... 264.3. How Electrical Motor Work ... 62
4.4. Operation Principle ... 64
4.5. Motor Speed ... WEEK11 67 4.5.1 Synchronous Speed ... 67
4.5.2 Rotor Speed ... 68
4.6. Types of Single Phase Induction Motor ... WEEK12 69 4.6.1 Split Phase Motors ... 69
4.6.2 Capacitor Motors ... 72
4.6.3 Capacitor Run Motors ... 73
4.6.4 Capacitor Start Motors ... 75
4.6.5 Capacitor Start Capacitor Run Motors ... WEEK13 77 4.6.6 Shadded Pole Induction Motors ... 78
4.6.7 Repulsion Motors ... WEEK14 80
4.6.8 Universal Motors ... 81
4.7. Speed-torque characteristics of single-phase induction motor ... 83
4.8. power, losses and efficiency ... WEEK15 84 4.8.1 Input power ... 84
4.8.2 Kw to Hp Conversion ... 84
4.8.3 Motor Losses ... 84
4.8.3.1 Core or Iron Losses... 86
4.8.3.2 Rotor Losses ... 86
4.8.3.3 Stator Losses ... 86
4.8.3.4 Friction and Windage Losses ... 87
4.8.3.5 Stray Losses ... 87
4.8.4 Efficiency ... 88
4.8.5 External speed control drives... 89
4.8.5.1 Direct drive ... 89
4.8.5.2 Belt and pulley drives ... 89
4.8.5.3 Gear motors ... 90 4.8.5.4 Gear drives ... 90
4.8.5.5 Chain and Sprocket ...91
4.9. Nameplate information ... 91
4.10. Reversing the direction of rotation ... 91
4.10.2 capacitor-run induction motor ... 92
4.10.3 Very small induction motors ... 92
4.10.4 shaded-pole induction motors ... 92
4.11. speed control ... 93
Week 1
IntroductionNow, before we discuss basic electrical machine operation a short review of magnetism might be helpful to many of us. We all know that a magnet will attract and hold metal objects when the object is near or in contact with the magnet.
1.2 Concepts of Magnetism
A magnetic field is a change in energy within a volume of space. The magnetic field surrounding a bar magnet can be seen in the magnetograph shown in fig.(1-1). A magnetograph can be created by placing a piece of paper over a magnet and sprinkling the paper with iron filings. The particles align themselves with the lines of magnetic force produced by the magnet. The magnetic lines of force show where the magnetic field exits the material at one pole and reenters the material at another pole along the length of the magnet. It should be noted that the magnetic lines of force exist in three-dimensions but are only seen in two three-dimensions in the image.
Figure(1-1) : The magnetic field surrounding a bar magnet
It can be seen in the magnetograph that there are poles all along the length of the magnet but that the poles are concentrated at the ends of the magnet. The area where the exit poles are concentrated is called the magnet's north pole and the area where the entrance poles are concentrated is called the magnet's south pole.
Magnets come in a variety of shapes and one of the more common is the horseshoe (U) magnet. The horseshoe magnet has north and south poles just like a bar magnet but the magnet is curved so the poles lie in the same plane, the magnetic field is concentrated between the poles as shown in figure (1-2).
The number of magnetic lines of force is a known as magnetic flux Φ. The flux has the weber (wb) as its unit, The number of magnetic lines of force cutting through a plane of a given area at a right angle is known as the magnetic flux density B. The flux density or magnetic induction has the tesla as its unit. One tesla is equal to 1 Newton/(A/m). From these units it can be seen that the flux density is a measure of the force applied to a particle by the magnetic field. T
Types of magnets
There are two kinds of magnets permanent and temporary magnets. 1.3.1 Permanent magnet
Permanent magnet will retain or keep their magnetic properties for a very long time. Permanent magnets are made by placing pieces of iron cobalt, and nickel into strong magnetic fields. Permanent magnets are mixtures of iron, nickel, or cobalt with
other elements. These are known as hard magnetic materials. The natural form of a magnet is called a lodestone as shown in fig.(1-3), it contains iron. When man mixed the pure metals together ( ie. iron, nickel and cobalt ) we created an even stronger magnet which are the ones we use most today.
1.3.2 Temporary magnets
Temporary magnets will loose all or most of their magnetic properties. Temporary magnets are made of such materials as iron and nickel. There are two essential methods for generating a magnetic field. Those two following methods:
Figure(1-2) : Horseshoe magnet
Electromagnetic Fields
Magnets are not the only source of magnetic fields. In 1820, Hans Christian Oersted discovered that the current in the wire was generating a magnetic field. He found that the magnetic field existed in circular form around the wire and that the intensity of the field was directly proportional to the amount of current carried by the wire as shown in fig.(1-6a) . A three-dimensional representation of the magnetic field is shown in fig.(1-6b).
1- Magnetic material methods Magnetic material by stroking a permanent magnet onto a pure metal in one direction many times, soon it will become temporarily magnetized as shown in fig.(1-4).
Figure(1-4) : Generating magnetic material
2- Electrical currents methods Electrical currents can be used to make a magnet by getting a bar of iron and wrapping it with wires then run a current through the wires as shown in fig.(1-5). This arrangement is called a
solenoid and can be used to generate a nearly uniform magnetic field similar to that of a bar magnet.
Figure(1-5) :Generating electromagnet (Solenoid)
(a)
(b
Figure(1-6): Magnetic field around the wire carried current
There is a simple rule for remembering the direction of the magnetic field around a conductor. It is called the right-hand rule. If a person grasps a conductor in ones right hand with the thumb pointing in the direction of the current, the fingers will circle the conductor in the direction of the magnetic field as
shown in fig. (1-7).
Magnetic Field Produced by a Coil
A loosely wound coil is illustrated in figure(1-8) below to show the interaction of the magnetic field. The
magnetic field is essentially uniform down the length of the coil when it is wound tighter.
Figure(1-8): Magnetic Field Produced by a Coil
The strength of a coil's magnetic field increases not only with increasing current but also with each loop that is added to the coil. Coiling a current-carrying conductor around a core material that can be easily magnetized, such as iron, can form an electromagnet. The magnetic field will be concentrated in the core. This arrangement is called a solenoid. The more turns we wrap on this core, the stronger the electromagnet and the stronger the magnetic lines of force become.
Inductance
Induction Meaning
Faraday noticed that the rate at which the magnetic field changed also had an effect on the amount of current or voltage that was induced. Faraday's Law for an uncoiled conductor states that the amount of induced voltage is proportional to the rate of change of flux lines cutting the conductor. Faraday's Law for a straight wire is shown below.
Induction is measured in unit of Henries (H) which reflects this dependence on the rate of change of the magnetic field. One henry is the amount of inductance that is required to generate one volt of induced voltage when the current is changing at the rate of one ampere per second. Note that current is used in the definition rather than magnetic field.
Self-inductance
When induction occurs in an electrical circuit and affects the flow of electricity it is called inductance, L. Self-inductance, or simply inductance is the property of a circuit whereby a change in current causes a change in voltage in the same circuit as shown in fig.(1-10).
The mmf required to produce the changing magnetic flux (Φ) must be supplied by a changing
current through the coil. Magnetomotive force generated by an electromagnet coil is equal to the amount of current through that coil (in amps) multiplied by the number of turns of that coil around the core (the unit for mmf is the amp-turn). Because the mathematical relationship between magnetic flux and mmf is directly proportional, and because the mathematical relationship between mmf and current is also directly proportional (no rates-of-change present in either equation), the current through the coil will be in-phase with the flux waveform as shown in fig.(1-11):
Figure(1-11): Current, flux and voltage waveform
Mutual-inductance
When one circuit induces current flow in a second nearby circuit, it is known as mutual-inductance. The image to the right shows an example of mutual-inductance as shown in fig.(1-12). When an AC current is
flowing through a piece of wire in a circuit, an electromagnetic field is produced that is constantly growing and shrinking and changing direction due to the constantly changing current in the wire. This changing magnetic field will induce electrical current in another wire or circuit that is brought close to the wire in the primary circuit. The current in the second wire will also be AC and in fact will
look very similar to the current flowing in the first wire. An electrical transformer uses inductance to change the voltage of electricity into a more useful level. In nondestructive testing, inductance is used to generate eddy currents in the test piece.
Figure(1-12): Mutual inductance
i1
Week 2
2.1 Introduction
A generator does not create energy. It changes mechanical energy into electrical energy. Every generator must be driven by a turbine, a diesel engine, or some other machine that produces mechanical energy. For example, the generator (alternator) in an automobile is driven by the same engine that runs the car.
Engineers often use the term prime mover for the mechanical device that drives a generator. To obtain more electrical energy from a generator, the prime mover must supply more mechanical energy. For example, if the prime mover is a steam turbine more steam must flow through the turbine in order to produce more electricity.
2.2 The Basic Principle DC generator
A generator is a machine that converts mechanical energy into electrical energy by using the principle of magnetic induction.
This principle is explained as follows: Whenever a conductor is moved within a magnetic field in such a way that the conductor cuts across magnetic lines of flux, voltage is generated in the conductor.
• The amount of voltage generated depends on: 1. The strength of the magnetic field
2. The angle at which the conductor cuts the magnetic field 3. The speed at which the conductor is moved
4. The length of the conductor within the magnetic field. • The polarity of the voltage depends on:
1. The direction of the magnetic lines of flux. 2. The direction of movement of the conductor.
To determine the direction of current in a given situation, the left-hand rule for
generators is used. This rule is
explained in the following manner. Extend the thumb, forefinger, and middle finger of your left hand at right angles to one another, as shown in fig.(2-1). Point your thumb in the direction the conductor is being moved. Point your forefinger in the direction of magnetic flux (from north to south). Your middle finger will then point in the direction of current flow in an external circuit to which the voltage is applied.
2.2.1 The simplest AC generator
The simplest generator that can be built is an ac generator. Basic generating principles are most easily explained through the use of the elementary ac generator. For this reason, the ac generator will be discussed first. The dc generator will be discussed later.
A simplest generator fig.(2-2) consists of a wire loop placed so that it can be rotated in a stationary magnetic field. This will produce an induced e.m.f (
electromotive force) in the loop. Sliding contacts (brushes) connect the loop to an
external circuit load in order to pick up or use the induced emf.
Figure (2-2): The simplest generator.
The pole pieces (marked N and S) provide the magnetic field. The pole pieces are shaped and positioned as shown to concentrate the magnetic field as close as possible to the wire loop. The loop of wire that rotates through the field is called the armature. The ends of the armature loop are connected to rings called slip rings. They rotate with the armature. The brushes, usually made of carbon, with wires attached to them, ride against the rings. The generated voltage appears across these brushes.
The simplest generator produces a voltage as shown in fig.(2-3)
2.2.2 The simplest DC generator
A single-loop generator with each terminal connected to a segment of a two-segment metal ring is shown in fig.(2-4). The two two-segments of the split metal ring are insulated from each other. This forms a simple commutator. The commutator in a dc generator replaces the slip rings of the ac generator. This is the main difference in their construction.
The commutator mechanically reverses the armature loop connections to the external circuit. This occurs at the same instant that the polarity of the voltage in the armature loop reverses.
Through this process the commutator changes the generated ac voltage to a pulsating dc voltage as shown in the graph of fig.(2-4). This action is known as commutation.
Figure (2-4) : Effects of commutation.
For the remainder of this discussion, refer to fig.(2-4), parts A through D. This will help you in following the step-by-step description of the operation of a dc generator. When the armature loop rotates clockwise from position A to position B, a voltage is induced in the armature loop which causes a current in a direction that deflects the meter to the right. Current flows through loop, out of the negative brush, through the meter and the load, and back through the positive brush to the loop. Voltage reaches its maximum value at point B on the graph for reasons explained
each brush makes contact with both segments of the commutator. As the armature loop rotates to position D, a voltage is again induced in the loop. In this case, however, the voltage is of opposite polarity.
2.3 Constructions of DC Generator
Fig.(2-6), views A through E, shows the main component parts of dc generators. (1) Magnetic field structure views A, B
(2) Armature structure views C (3) Commutator structure views D (4) Brushes structure views E.
\
2.3.1 Magnetic field structure A magnetic field structure acts like the simple generator's magnet. It sets up the magnetic lines of force. It is electromagnets poles to create the lines of force in most generators. The electromagnetic field poles consist of coils of insulated copper wire wound on soft iron cores, as shown in fig.(2-7). The number of field poles commonly are two or four poles, some small generators have permanent magnets.
2.3.2 Armature structure
The armature contains coils of wire in which the electricity is induced. It acts like the loop of wire in the simple generator. The coils for the armature and field structure are usually insulated copper wire wound around iron cores. The iron cores strengthen the magnetic fields
as shown in fig.(2-6) views C and in fig.(2-8)
Figure (2-7) : Four-pole generator
2.3.3 Commutator structure The commutator converts the AC into a DC voltage as discussed before It also serves as a means of connecting the brushes to the rotating coils. In a simple one-loop generator, the commutator is made up of two semicylindrical pieces of a smooth conducting material, usually copper, separated by mica insulation
material, as shown in fig.(2-6) views D and in fig.(2-9). Each half of the commutator segments is permanently attached to one end of the rotating loop, and the commutator rotates with the loop. The segments are insulated from each other.
2.3.4 Brush structure
The brushes structure is consist of brush holder, brush spring and brush as shown in figs.(2-6) views E and (2-10). The brushes usually made of carbon or graphite, rest against the commutator and slide along the commutator as it rotates. This is the means by which the brushes make contact with each end of the loop. Each brush slides along
one half of the commutator and then along the other half.
The purpose of the brushes is to connect the generated voltage to an external circuit. In order to do this, each brush must make contact with one of the
ends of the loop. Since the loop or armature rotates, a direct connection is impractical. Instead, the brushes are connected to the ends of the loop through the commutator. The brushes are positioned on opposite sides of the commutator; they
Figure (2-9) : Connection of commutation with the end of armature coils
Figure (2-10) : The brushes structure and its connection with commutation
will pass from one commutator half to the other at the instant the loop reaches the point of rotation, at which point the voltage that was induced reverses the polarity. Every time the ends of the loop reverse polarity, the brushes switch from one commutator segment to the next.
Fig.(2-11) shows the entire DC generator with the component parts installed. The cross sectional drawing helps you to see the physical relationship of the components to each other
Week 3
2.4 E.M.F Equation
The principle of DC generator is already been explained in 2.2 section. Whenever a conductor is moved within a magnetic
field as shown in fig.(2-12) that the conductor cuts across magnetic lines of flux, voltage is generated (e.m.f) in the conductor. The magnitude of voltage generated (e.m.f in volt) depends on The strength of the magnetic field (flux density β in Tesla or wb/m2), the angle at which the conductor cuts the magnetic field (angle of conductor θ relative to magnetic field), the speed (velocity) at
which the conductor is moved (V in m/s) , and the length of the conductor within the magnetic field(the effective length L in m).
e.m.f = β L V sin θ where,
e.m.f = Induced electromotive force (voltage generated) in V or (volts)
β = Flux density of the magnetic field in Tesla or wb/m2 L = Length of conductor
V = Velocity of conductor in magnetic field in meter per second(m/s) θ = The angle between the magnetic field direction and the conductor
2.5 Armature Reaction
From previous study, you know that all current-carrying conductors produce magnetic fields. The magnetic field produced by current in the armature of a dc generator affects the flux pattern and distorts the main field. This distortion causes a
Example 2-1
Calculate the e.m.f generated in a conductor of active length 20cm. When moves with a velocity of 15 m/s in the magnetic field of flux density 300mT at the following cases:
(a)Conductor perpendicular to magnetic field
(b)Conductor at angle of 30o relative to the magnetic field Solution
(a) e.m.f = β L V sin θ
e.m.f = (300×10-3) × (20×10-2) ×15× (sin 90o) = 0.9 volts (b) e.m.f = β L V sin θ
e.m.f = (0.3×10-3) × (20×10-2) ×15× (sin 30o) = 0.45 volts
Example 2-2
A conductor of length 50cm, is moved at 10 m/s at right angles to a magnetic field. If the flux density of the field is 0.3 wb/m2. Find the induced e.m.f in conductor
Solution
e.m.f = β L V sin θ
e.m.f = (0.3) × (50×10-2) ×10× (sin 90o) = 0.9 volts = 1.5 V
shift in the neutral plane, which affects commutation. This change in the neutral plane and the reaction of the magnetic field is called armature reaction.
You know that for proper commutation, the coil short-circuited by the brushes must be in the neutral plane. Consider the operation of a simple two-pole dc generator, shown in fig.(2-13). View A of the figure shows the field poles and the main magnetic field.
Figure (2-13) : Armature reaction.
The armature is shown in a simplified view in views B and C with the cross section of its coil represented as little circles. The symbols within the circles represent arrows. The dot represents the point of the arrow coming toward you, and the cross represents the tail, or feathered end, going away from you. When the armature rotates clockwise, the sides of the coil to the left will have current flowing toward you, as indicated by the dot.
The side of the coil to the right will have current flowing away from you, as indicated by the cross. The field generated around each side of the coil is shown in view B of fig.(2-13). This field increases in strength for each wire in the armature coil, and sets up a magnetic field almost perpendicular to the main field.
Now you have two fields - the main field, view A, and the field around the armature coil, view B. View C of fig.(2-13) shows how the armature field distorts the main field and how the neutral plane is shifted in the direction of rotation. If the brushes remain in the old neutral plane, they will be short-circuiting coils that have voltage induced in them. Consequently, there will be arcing between the brushes and commutator.
1) The brushes must be shifted to the new neutral plane. 2) Used compensating windings or interpoles
2.5.1 Shifting the Brushes
In small generators, the effects of armature reaction are reduced by actually mechanically shifting the position of the brushes. The practice of shifting the brush position for each current variation is not practiced except in small generators.
2.5.2 Compensating Windings and Interpoles
In larger generators, other means are taken to eliminate armature reaction. for this purpose fig.(2-14). The compensating windings consist of a series of coils embedded in slots in the pole faces.
These coils are connected in series with the armature. The series-connected compensating windings produce a magnetic field, which varies directly with armature current. Because the compensating windings are wound to produce a field that opposes the magnetic field of the armature, they tend to cancel the effects of the armature magnetic field. The neutral plane will remain stationary and in its original position for all values of armature current. Because of this, once the brushes have been set correctly, they do not have to be moved again.
Figure (2-14) : Compensating windings and interpoles.
Another way to reduce the effects of armature reaction is to place small auxiliary poles called "interpoles" between the main field poles. The interpoles have a few turns of large wire and are connected in series with the armature. Interpoles are wound and placed so that each interpole has the same magnetic polarity as the main pole ahead of it, in the direction of rotation. The field generated by the interpoles
the armature reaction for all values of load current by causing a shift in the neutral plane opposite to the shift caused by armature reaction. The amount of shift caused by the interpoles will equal the shift caused by armature reaction since both shifts are a result of armature current.
2.6
Classification Of Generators
When a dc voltage is applied to the field windings of a dc generator, current flows through the windings and sets up a steady magnetic field. This is called field
excitation. This excitation voltage can be produced by the generator itself (This is
called self-excited generator) or it can be supplied by an outside source, such as a battery(This is called separately-excited generator).
Self-excitation is possible only if the field pole pieces have retained a slight amount of permanent magnetism, called residual magnetism. When the generator starts rotating, the weak residual magnetism causes a small voltage to be generated in the armature. This small voltage applied to the field coils causes a small field current. Although small, this field current strengthens the magnetic field and allows the armature to generate a higher voltage. The higher voltage increases the field strength, and so on. This process continues until the output voltage reaches the rated output of the generator.
Self-excited generators are classed according to the type of field connection they use. There are three general types of field connections series-wound,
shunt-wound (parallel), and compound-shunt-wound. compound-shunt-wound generators are further
classified as cumulative-compound and differential-compound. these last two classifications are not discussed in this book.
Types of DC
Motors
compound-wound
shunt-wound
series-wound
Classification of DC
Generators
separately-excited DC
generator
Self-excited DC generator
Week 4
2.7 Voltage Regulation
The regulation of a generator refers to the voltage change that takes place when the load changes. It is usually expressed as the change in voltage from a no-load condition to a full-load condition, and is expressed as a percentage of full-load. It is expressed in the following formula:
where EnL is the no-load terminal voltage and EfL is the full-load terminal voltage of the generator.
NOTE: The lower the percent of regulation, the better the generator. In the above example, the 5% regulation represented a 22-volt change from no load to full load. A 1% change would represent a change of 4.4 volts, which, of course, would be better.
Example 2-3 Calculate the percent of regulation of a generator with a no- load voltage of 462 volts and a full-load voltage of 440 volts ?
Solution: No-load voltage EnL = 462 V Full-load voltage EfL= 440 V
2.8 Generator Power Losses
In dc generators, as in most electrical devices, certain forces act to decrease the efficiency. These forces, as they affect the armature, are considered as losses and may be defined as follows:
1) Copper loss, or I2R in the winding 2) Eddy current loss in the core
3) Hysteresis loss (a sort of magnetic friction) 2.8.1 Copper Losses
The power lost in the form of heat in the armature winding and field winding (if its found) is known as copper loss. Heat is generated any time current flows in a conductor. Copper loss is an I2R loss, which increases as current increases. The amount of heat generated is also proportional to the resistance of the conductor. The resistance of the conductor varies directly with its length and inversely with its cross-sectional area. Copper loss is minimized in armature and field windings by using large diameter wire.
2.8.2 Eddy Current Losses
The core of a generator armature is made from soft iron, which is a conducting material with desirable magnetic characteristics. Any conductor will have currents induced in it when it is rotated in a magnetic field. These currents that are induced in the generator armature core are called eddy currents. The power dissipated in the form of heat, as a result of the eddy currents, is considered a loss.
Eddy currents, just like any other electrical currents, are affected by the resistance of the material in which the currents flow. The resistance of any material is inversely proportional to its cross-sectional area. Fig.(2-15), view A, shows the eddy currents induced in an armature core that is a solid piece of soft iron. Fig.(2-15), view B, shows a soft iron core of the same size, but made up of several small pieces insulated from each other. This process is called lamination. The currents in each piece of the laminated core are considerably less than in the solid core because the resistance of the pieces is much higher. (Resistance is inversely proportional to
cross-so small that the sum of the individual currents is much less than the total of eddy currents in the solid iron core.
As you can see, eddy current losses are kept low when the core material is made up of many thin sheets of metal. Laminations in a small generator armature may be as thin as 1/64 inch. The laminations are insulated from each other by a
thin coat of lacquer or, in some instances, simply by the oxidation of the surfaces. Oxidation is caused by contact with the air while the laminations are being annealed. The insulation value need not be high because the voltages induced are very small. Most generators use armatures with laminated cores to reduce eddy current losses. 2.8.3 Hysteresis Losses
Hysteresis loss is a heat loss caused by the magnetic properties of the armature. When an armature core is in a magnetic field, the magnetic particles of the core tend to line up with the magnetic field. When the armature core is rotating, its magnetic field keeps changing direction. The continuous movement of the magnetic particles, as they try to align themselves with the magnetic field, produces molecular friction. This, in turn, produces heat. This heat is transmitted to the armature windings. The heat causes armature resistances to increase.
To compensate for hysteresis losses, heat-treated silicon steel laminations are used in most dc generator armatures. After the steel has been formed to the proper shape, the laminations are heated and allowed to cool. This annealing process reduces the hysteresis loss to a low value.
Figure (2-15) : Eddy currents in dc generator
Week 5
3.1 Introduction
Motors change electric energy into mechanical energy. Direct current motors and generators are constructed very similarly as explain in the previous chapter. They function almost oppositely at first because a generator creates voltage when conductors cut across the lines of force in a magnetic field, while motors result in torque-- a turning effort of mechanical rotation. Simple motors have a flat coil that carries current that rotates in a magnetic field. The motor acts as a generator since after starting, it produces an opposing current by rotating in a magnetic field, which in turn results in physical motion.
3.2 Constructions and Operation Principle of DC Generator
Motors change electric energy into mechanical energy. Direct current motors and generators are constructed very
similarly described earlier in the previous chapter. They function almost oppositely at first because a generator creates voltage when conductors cut across the lines of force in a magnetic field, while motors result in torque a turning effort of mechanical rotation. Simple motors have a flat coil that carries current that rotates in a
magnetic field as shown in fig.(3-1). The motor acts as a generator since after starting, it produces an opposing current by rotating in a magnetic field, which in turn results in physical motion.
This is accomplished as a conductor is passed through a magnetic field, then the opposing fields repel each other to cause physical motion. The left hand rule can be used to explain the way a simple motor works fig.(3-2). The pointer finger points in the direction of the magnetic field, the middle finger points in the direction of the
Figure(3-2): Left hand rules
DC motor has a rotating armature in the form of an electromagnet. A rotary switch called a commutator reverses the direction of the electric current twice every cycle, to flow through the armature so that the poles of the electromagnet push and pull against the permanent magnets on the outside of the motor. As the poles of the armature electromagnet pass the poles of the permanent magnets, the commutator reverses the polarity of the armature electromagnet. During that instant of switching polarity, inertia keeps the DC motor going in the proper direction. See the diagrams shown in fig.(3-3).
(a) (b) (c)
Figure(3-3) :Diagrams that explains the operation of a DC motor.
a) A simple DC electric motor. When the coil is powered, a magnetic field is generated around the armature. The left side of the armature is pushed away from the left magnet and drawn toward the right, causing rotation.
c) When the armature becomes horizontally aligned, the commutator reverses the direction of current through the coil, reversing the magnetic field. The process then repeats.
3.2.1 The dc motor torque
When the conductor is bent into a coil, the physical motion performs an up and down cycle. The more bends in a coil, the less pulsating the movement will be. This physical movement is called torque, and can be measured in the equation:
T = k
tФ I
awhere :
T = Torque in (Newton- meter)
kt = Constant depending on physical dimension of motor
Ф = Total number of lines of flux entering the armature from one N pole
in (wb/m2)
Ia = Armature current in (A)
3.2.2 Back E. M. F.
While a dc motor is running, it acts somewhat like a dc generator. There is a magnetic field from the field poles, and a loop of wire is turning and cutting this magnetic field. For the moment, disregard the fact that there is current flowing through the loop of wire from the battery. As the loop sides cut the magnetic field, a voltage is induced in them, the same as it was in the loop sides of the dc generator. This induced voltage causes current to flow in the loop. this current direction opposite to that of the battery current. Since this generator-action voltage is opposite that of the battery, it is called "Back emf." (The letters emf stand for electromotive force, which is another name for voltage.) The two currents are flowing in opposite directions. This proves that the battery voltage and the back emf are opposite in polarity. At the beginning of this discussion, we disregarded armature current while explaining how back emf was generated. Then, we showed that normal armature current flowed opposite to the current created by the back emf. We talked about two opposite currents that flow at the same time. However, this is a bit oversimplified, as you may already
large as the applied voltage, and because they are of opposite polarity as we have seen, the back emf effectively cancels part of the armature voltage. The single current that flows is armature current, but it is greatly reduced because of the counter emf. In a dc motor, there is always a counter emf developed. This counter emf cannot be equal to or greater than the applied battery voltage; if it were, the motor would not run. The back emf is always a little less. However, the back emf opposes the applied voltage enough to keep the armature current from the battery to a fairly low value. If there were no such thing as back emf, much more current would flow through the armature, and the motor would run much faster. However, there is no way to avoid the back emf.
3.3 Types and characteristics of DC Motors
There are three basic types of dc motors: (1) Series motors
(2) shunt motors (3) compound motors
They differ largely in the method in which their field and armature coils are connected.
3.3.1 Series DC Motor
In the series motor, the field windings, consisting of a relatively few turns of heavy wire, are connected in series with the armature winding. Both a diagrammatic and a schematic illustration of a series motor is shown in fig.(3-4). The same current flowing through the field winding also flows through the armature winding. Any increase in current, therefore, strengthens the magnetism of both the field and the armature.
Figure(3-4) :Series DC motor
Because of the low resistance in the windings, the series motor is able to draw a large current in starting. This starting current, in passing through both the field and
armature windings, produces a high starting torque, which is the series motor's principal advantage.
The speed of a series motor is dependent upon the load. Any change in load is accompanied by a substantial change in speed. A series motor will run at high speed when it has a light load and at low speed with a heavy load. If the load is removed entirely, the motor may operate at such a high speed that the armature will fly apart. If high starting torque is needed under heavy load conditions, series motors have many applications. Series motors are often used in aircraft as engine starters and for raising and lowering landing gears, cowl flaps, and wing flaps.
3.3.2 Shunt DC Motor
In the shunt motor the field winding is connected in parallel or in shunt with the armature winding. See fig.(3-5), The resistance in the field winding is high. Since the field winding is connected directly across the power supply, the current through the field is constant.
The field current does not vary with motor speed, as in the series motor and, therefore, the torque of the shunt motor will vary only with the current through the armature. The torque developed at starting is less than that developed by a series motor of equal size.
Figure(3-5) :Shunt DC motor
The speed of the shunt motor varies very little with changes in load. When all load is removed, it assumes a speed slightly higher than the loaded speed. This motor is particularly suitable for use when constant speed is desired and when high starting torque is not needed.
3.3.3 Compound DC Motor
The compound motor is a combination of the series and shunt motors. There are two windings in the field: a shunt winding and a series winding. A schematic of a compound motor is shown in fig.(3-6).
The shunt winding is composed of many turns of fine wire and is connected in parallel with the armature winding. The series winding consists of a few turns of large wire and is connected in series with the armature winding. The starting torque is higher than in the shunt motor but lower than in the series motor. Variation of speed with load is less than in a series wound motor but greater than in a shunt motor. The compound motor is used whenever the combined characteristics of the series and shunt motors are desired.
Figure(3-6) :Compound DC motor
Like the compound generator, the compound motor has both series and shunt field windings. The series winding may either aid the shunt wind (cumulative compound) or oppose the shunt winding (differential compound).
The starting and load characteristics of the cumulative compound motor are somewhere between those of the series and those of the shunt motor. Because of the series field, the cumulative compound motor has a higher starting torque than a shunt motor.
Cumulative compound motors are used in driving machines which are subject to sudden changes in load. They are also used where a high starting torque is desired, but a series motor cannot be used easily.
In the differential compound motor, an increase in load creates an increase in current and a decrease in total flux in this type of motor. These two tend to offset each other and the result is a practically constant speed. However, since an increase in load tends to decrease the field strength, the speed characteristic becomes unstable. Rarely is this type of motor used in aircraft systems.
A graph of the variation in speed with
changes of load of the various types of dc motors is shown in fig.(3-7).
Figure(3-7) : Composite of the characteristic curves for all of the DC motors.
Week 6
3.4 Motor Nameplate
Motor nameplates are provided by virtually all manufacturers to allow users to accurately identify the operating and dimensional characteristics of their motors years after installation.
3.4.1 Definition Nameplate
The nameplate is usually a metal plate, secured by a pair of screws or rivets, and is generally located on the side of the motor. (Expert maintenance technicians will tell you that the nameplate is always located on the side of the motor where the nameplate is most difficult to read!)
The following cryptic information will usually be stamped into the nameplate (stamping is used because it doesn't wear off as ink tends to do. Unfortunately, the lack of contrast can make it difficult to read. Sometimes, a little bit of dirty oil or grease applied to the nameplate and then wiped "smooth" puts the dark substance into the indentations of the stamped letters and allows for easier reading.).
3.4.2 Nameplate Terms
1) Motor Manufacturer
2) Mod. (Model), Tp. (Type), or Cat. (Catalog)
3) Ser. (Serial Number)
4) HP (Horsepower) or KW (kilowatts)
5) RPM (Revolutions per Minute)
6) V (Volts) 7) ARM. (Armature) 8) FLD. (Field) 9) A (Amps) 10) Fr (Frame) 11) Enc. (Enclosure)
1) Motor Manufacturer
This is the trade name of the company which manufactured the motor. If you are lucky, the company's home city, and perhaps even an address and/or telephone number will be on the nameplate.
2) Mod. (Model), Tp. (Type), or Cat. (Catalog)
Some companies distinguish between a Model number and a Type number. (I don't know why). In any event, this is the key number that you need if you want to contact the manufacturer.
3)Ser. (Serial Number)
Serial numbers are important because they often contain "date codes". This is information which helps the manufacturer determine when the motor was manufactured. Since many motors have multiple revisions through their lifecycle as the manufacturing process (hopefully) improves, this helps determine which set of drawings to use and lets the technical people at the manufacturer help you quicker and more accurately.
4)HP (Horsepower) or KW (kilowatts)
If you are using an American made motor or an older English or Canadian motor, it will probably be rated in Horsepower. European and Asian motors are usually rated in kilowatts -- unless they have been designed for export to the American market.
Rule to remember: 1 HP = 3/4 KW (more precisely 746 watts). Second rule to remember: Volts x Amps = Watts.
5)RPM (Revolutions per Minute)
The number of times each minute that the shaft turns on its axis. This is rated at the Hertz listed. Typical values are 1750, 1450, 3450, etc. If more than one speed is listed, this indicates a multi-speed motor. Note that AC inverter drives can change the speed of a motor from its rated speed.
6)V (Volts)
The operating voltage of the motor. DC motors will have numbers such as 24, 48, 90, 180, or other voltage, and will usually say "VDC".
7)ARM. (Armature)
This is the maximum voltage which can be applied to the armature of a DC motor. Typical values are 90 or 180 VDC. An amperage will often be listed.
8)FLD. (Field)
This is the voltage which should be applied to the field of a DC motor. Typical values are 100, 150, 200 VDC. An amperage will often be listed.
9)A (Amps)
The amount of current consumed by the motor. 10)Fr (Frame)
The physical dimensional standard to which the motor adheres. This is critical when it is necessary to locate a mechanical replacement for an old motor. NEMA motor frames have been established for decades to allow motors from various manufacturers to replace each other. For example, a foot-mount NEMA 56 frame motor has the same mounting dimensions no matter which manufacturer has built it.
NEMA refers to the National Electrical Manufacturers Association. NEMA is part of the IEC. The IEC is the International Electrotechnical Commission. Although the IEC includes Japan and the United States of America among its members, the IEC is essentially a European Community standards association. IEC standards are heavily influenced by VDE - the German electrical standards association.
11)Enc. (Enclosure)
This is the degree of protection offered by the enclosure. Common terms are TEFC, TEBC, TENV, ODP, TEAO, etc.
TEFC
A TEFC enclosure on a motor means "Totally Enclosed, Fan Cooled". This motor is probably the most commonly used motor in ordinary industrial environments. It costs only a few dollars more than the open motor, yet offers good protection against common hazards. The motor is constructed with a small fan on the rear shaft of the motor, usually covered by a housing. This fan draws air over the motor fins, removing excess heat and cooling the motor.
The enclosure is "Totally Enclosed". This ordinarily means that the motor is dust tight, and has a moderate water seal as well. Notice that TEFC motors are not secure against high pressure water. For these applications, consider the "wash down" motor, which is usually designed to withstand regular washing, such as found in a food processing facility. In addition, the TEFC motor is not "Explosion-proof", nor is it capable of operation in "Hazardous Environments".
TEBC
A TEBC enclosure on a motor means "Totally Enclosed, Blower Cooled". TEBC motors are most commonly used for variable speed motors combined with variable speed drives of some sort. Sometimes these motors are rated as "Inverter duty" or "Vector duty". They are considerably more expensive than similarly rated TEFC motors. The motor is constructed with a dust tight, moderately sealed enclosure which rejects a degree of water. A constant speed blower pulls air over the motor fins to keep the motor cool at all operating speeds. Notice that this motor is not suitable for used in "washdown" or "Hazardous" environments.
TENV
A TENV enclosure on a motor means "Totally Enclosed, Not Ventilated". TENV motors are used in a wide variety of smaller horsepower variable speed applications. It is particularly effective in environments where a fan would regularly clog with dust or lint. The motor is constructed with a dust-tight, moderately sealed enclosure which rejects a degree of water. The motor radiates its entire excess heat through the body of the motor: Hence, the TENV motor has extra metal and extra fins to allow radiation of this heat. The TENV motor is commonly built with special high temperature insulation, since the motor is designed to run hot. As such, care should be taken to avoid human contact with the body of the motor, as well as contact between inflammable objects and the motor. Notice that this motor is not suitable for use in "washdown" or "Hazardous" environments.
ODP
An ODP enclosure on a motor means "Open, Drip Proof". ODP motors are relatively inexpensive motors used in normal applications. The construction of an ODP motor consists of a sheet metal enclosure with vent stamped to allow good air flow. The vents are designed in such a way that water dripping on the motor will not normally flow into the motor. A fan is mounted on the motor's rear shaft to pull air through the motor to keep the motor cool. The ODP motor is relatively inexpensive, but care should be taken not to use the motor in applications where the TEFC motor is required.
TEAO
A TEAO enclosure on a motor means "Totally Enclosed, Air Over". TEAO motors are designed to be used solely in the airstream of the fan or blower which they are driving. As such, they are very low cost, but of limited application. TEAO motors are constructed with a dust-tight cover and an aerodynamic body. They rely upon the strong air flow of the fan or blower which they are driving to cool them. TEAO motors are not suitable for use in "Hazardous" environments.
NEMA Enclosure Standard 250
NEMA enclosure standards represent an enclosure's ability to protect against the external environment. The following represent brief summaries of the NEMA standard. some examples of NEMA Enclosure Standard 250
1- Type 1
Intended for indoor use primarily to provide a degree of protection against (hand) contact with the enclosed equipment. Sometimes known as a "finger-tight" enclosure. This is the least costly enclosure, but is suitable only for clean, dry environments.
2- Type 2
Intended for indoor use primarily to provide a degree of protection against limited amounts of falling dirt and water.
3- Type 3
Intended for outdoor use primarily to provide a degree of protection against windblown dust, rain, and sleet; undamaged by ice which forms on the enclosure.
4- Type 3R
Intended for outdoor use primarily to provide a degree of protection against falling rain and sleet; undamaged by ice which forms on the enclosure. This is the most common outdoors enclosure.
12)CW (Clockwise Rotation) or CCW (Counter-Clockwise Rotation)
When facing the motor from the shaft end, this is the direction of rotation of the motor (if the motor is unidirectional).
3.5 Power Losses and Efficiency
Losses occur when electrical energy is converted to mechanical energy (in the motor), or mechanical energy is converted to electrical energy (in the generator). For the machine to be efficient, these losses must be kept to a minimum. Some losses are electrical, others are mechanical. Electrical losses are classified as copper losses and iron losses; mechanical losses occur in overcoming the friction of various parts of the machine.
Copper losses occur when electrons are forced through the copper windings of the armature and the field. These losses are proportional to the square of the current. They are sometimes called I2R losses, since they are due to the power dissipated in the form of heat in the resistance of the field and armature windings.
Iron losses are subdivided in hysteresis and eddy current losses. Hysteresis losses are caused by the armature revolving in an alternating magnetic field. It, therefore, becomes magnetized first in one direction and then in the other. The residual magnetism of the iron or steel of which the armature is made causes these losses. Since the field magnets are always magnetized in one direction (dc field), they have no hysteresis losses.
Eddy current losses occur because the iron core of the armature is a conductor revolving in a magnetic field. This sets up an e.m.f. across portions of the core, causing currents to flow within the core. These currents heat the core and, if they become excessive, may damage the windings. As far as the output is concerned, the power consumed by eddy currents is a loss. To reduce eddy currents to a minimum, a laminated core usually is used. A laminated core is made of thin sheets of iron electrically insulated from each other. The insulation between laminations reduces eddy currents, because it is "transverse" to the direction in which these currents tend to flow. However, it has no effect on the magnetic circuit. The thinner the laminations, the more effectively this method reduces eddy current losses.
Week 7
3.6 Starting Methods of DC Motor
If we apply full voltage to a stationary DC motor, the starting current in the armature will be very high and we run the risk of
a. Burning out the armature;
b. Damaging the commutator and brushes, due to heavy sparking; c. Overloading the feeder;
d. Snapping off the shaft due to mechanical shock;
e. Damaging the driven equipment because of the sudden mechanical hammerblow.
All dc motors must, therefore, be provided with a means to limit the starting current to reasonable values, usually between 1.5 and twice full-load current. One solution is to connect a rheostat in series with the armature. The resistance is gradually reduced as the motor accelerates and is eventually eliminated entirely, when the machine has attained full speed.
3.6.1 Face-plate starter
Fig.(3-8) shows the schematic diagram of a manual face-plate starter for a shunt motor. Bare copper contacts are connected to current-limiting resistors R1, R2, R3, and R4. Conducting arm 1 sweeps across the contacts when it is pulled to the right by means of insulated handle 2. In the position shown, the arm touches dead copper contact M and the motor circuit is open. As we draw the handle to the right, the conducting arm first touches fixed contact N.
The supply voltage Es immediately causes full field current Ix to flow, but the armature current / is limited by the four resistors in the starter box. The motor begins to turn and, as the emf (Eo) builds up, the armature current gradually falls. When the motor speed ceases to rise any more, the arm is pulled to the next contact, thereby removing resistor R1 from the armature circuit. The current immediately jumps to a
speed again levels off, we move to the next contact, and so forth, until the arm finally touches the last contact. The arm is magnetically held in this position by a small electromagnet 4, which is in series with the shunt field.
Figure (3-8) : Manual face-plate starter for a shunt motor.
If the supply voltage is suddenly interrupted, or if the field excitation should accidentally be cut, the electromagnet releases the arm, allowing it to return to its dead position, under the pull of springing 3. This safety feature prevents the motor from restarting unexpectedly when the supply voltage is reestablished.
3.6.2 Relay starter
Today, electronic methods are often used to limit the starting current and to provide speed control as the following.
The most important component of a motor starter is the magnetic relay, or sometimes called a magnetic contactor (depending the size). The relay is an electro-mechanical device that contains a coil of wire, a electro-mechanical contactor, and a spring mechanism. The spring mechanism is used to hold the contactor in its "NORMAL" state, which is the state of the device when the coil is deenergized. When the coil is energized, the current flowing through it sets up a magnetic field. The magnetic field generated by the coil then pulls the contactor to its "ENERGIZED" state. When the coil is turned off, the spring pulls the contactor back to its normal state again.
The contacts on the contactor can either be open or closed when the coil is deenergized. If the contacts are closed when the coil is deenergized, they are called
normally closed contacts. If they are open when the coil is deenergized, they are called normally open contacts. When the coil is energized, the contacts change state. In other words, when the coil is energized, the normally closed contacts open, and the normally open contacts close.
Overload sensors have normally closed contacts associated with them. Overload devices can be either magnetic or thermal. Thermal overloads contain two parts, the heater strip and the contacts. The heater strip senses the armature current, and when the current becomes excessive, the heater actuates the contacts. The contacts in turn secure the motor to prevent damage. Magnetic overloads operate similarity, except the contacts are actuated magnetically due to an increase in magnetic flux when the current is excessive.
Timer relays can be one of two types, Time On (TON) or Time Off (TOF). A time on relay is one where the time delay is associated with the "ON" state, and a time off relay is one where the time delay is associated with the "OFF" state. For example, when a TON relay is energized, the timing mechanism starts. After the delay, the TON contacts change state. When a TON relay is deenergized, the contacts change state immediately. With a TOF relay, the opposite is true. When the TOF relay is energized, the contacts change state immediately. When the TOF relay is deenergized, the time delay mechanism starts. After the time delay, then the contacts change state. Most starters are of the TON variety, however, there is one TOF starter in this laboratory. The difference between TON and TOF are more important when programmable controllers are studied later in this course. A simple D-C motor starter is shown below in fig.(3-9).
The circuit consists of two major sections, the motor circuit and the control circuit. The control circuit is usually fused from the motor circuit (not shown) to protect from shorts. The motor circuit contains the power to the shunt field, and to the armature circuit. The armature circuits contains the main line contacts (labeled "M"), the starting resistor (labeled Rs), the overload sensor (labeled OL), and the motor armature. The motor circuit is the "high current" circuit that handles the current applied to the motor directly.
The control circuit consists of the start switch, stop switch, overload contacts, M-coil, and the timer (T-coil). The control circuit is the "low current" circuit that does not handle any power directly applied to the motor. The operation of the circuit follows what's called relay logic, or sequential logic.
When the motor is turned off, the four M contacts are open, the start switch (normally open) is open, the stop switch (normally closed) is closed, the overload contact is closed, and the T contact is open. With the T contact open, full starting resistance is inserted in the armature circuit.
To start the motor, the start button is pressed. This completes the circuit to the M-coil, and the M-coil energizes. When the M-coil energizes, the magnetic field generated by the coil changes the state of the M-contactor. When this occurs, all four M-contacts close. The two M-contacts in the armature circuit close which start the motor with full starting resistance applied. The M-contact across the start switch closes sealing the start switch, and the last M-contact closes energizing the timer.
The sealing M-contact is necessary to keep the motor running after the start push button is released. If the sealing contact was not there, as soon as the start push button was released the M-coil would deenergize, the M-contacts would all open, which would stop the motor. All motor starters using push buttons will have some kind of sealing circuit across the start switch.
The last M-contact energizes the timer. After the timer is energized, the time delay starts. After a certain amount of time is allowed for the motor to build up speed, and CEMF, the timer contacts change state. When this occurs, the T-contact closes, which shorts the starting resistance. After the T-contact closes, the motor is operating at base speed.
To stop the motor, the stop switch is pressed. When the stop switch is opened, the M-Coil deenergizes. When the M-coil deenergizes, all four M-contacts open. The two M-contacts in the armature circuit open removing power from the armature, stopping the motor. The M-contact around the start switch opens, resetting the sealing circuit. The fourth M-contact opens deenergizing the T-coil timer. The timer coil deenergizes and its contactor immediately changes state, opening the T-contact. Note there is no time delay associated with the timer when it's turned off. The time delay applies only when the timer coil is energized. When the T-contact opens, full starting resistance is reapplied to the armature circuit
Week 8
3.7 Reversing the Rotation of DC Motor
3.7.1 Reversing the Rotation of DC Series Motor
The direction of rotation of a series motor can be changed by changing the polarity of either the armature or field winding. It is important to remember that if you simply changed the polarity of the applied voltage, you would be changing the polarity of both field and armature windings and the motor's rotation would remain the same.
Figure (3-10) : DC series motor connected to forward and reverse motor starter.
Since only one of the windings needs to be reversed, the armature winding is typically used because its terminals are readily accessible at the brush rigging. Remember that the armature receives its current through the brushes, so that if their polarity is changed, the armature's polarity will also be changed. A reversing motor starter is used to change wiring to cause the direction of the motor's rotation to change by changing the polarity of the armature windings.
Fig.(3-10) shows a DC series motor that is connected to a reversing motor starter. In this diagram the armature's terminals are marked Al and A2 and the field terminals are marked Sl and S2.
