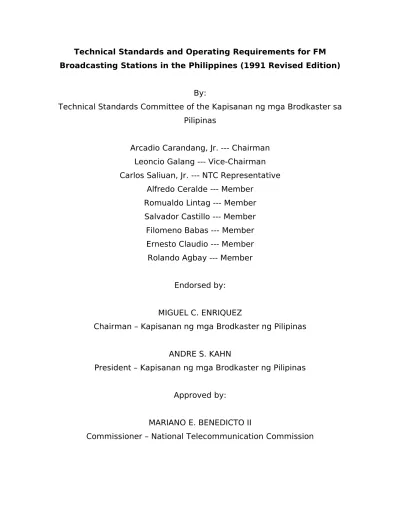

Technical Standards and Operating Requirements for FM Broadcasting Stations in the Philippines (1991 Revised Edition)
By:
Technical Standards Committee of the Kapisanan ng mga Brodkaster sa Pilipinas
Arcadio Carandang, Jr. --- Chairman Leoncio Galang --- Vice-Chairman Carlos Saliuan, Jr. --- NTC Representative
Alfredo Ceralde --- Member Romualdo Lintag --- Member Salvador Castillo --- Member Filomeno Babas --- Member Ernesto Claudio --- Member Rolando Agbay --- Member
Endorsed by:
MIGUEL C. ENRIQUEZ
Chairman – Kapisanan ng mga Brodkaster ng Pilipinas
ANDRE S. KAHN
President – Kapisanan ng mga Brodkaster ng Pilipinas
Approved by:
MARIANO E. BENEDICTO II
CONTENTS OF FM BROADCASTING Section
1. Introduction 2. Definition of Terms
3. Allocation of Frequencies for FM Broadcast Stations 4. Classes of FM Broadcast Stations
5. Technical Requirements 6. Broadcast Auxiliary Services
7. Operating Requirements
8. FM Broadcast Translators and Signal Boosters 9. Public Information File
10. Annexes
FM BROADCAST STANDARDS 1. INTRODUCTION
The increasing Importance of the role of FM broadcasting in the Philippines has encouraged broadcast engineers and the National Telecommunications Commission to pool their resources together and come up with technical standards and rules and regulations relating to FM broadcast.
These technical standards and regulations were derived from CCIR recommendations, relevant engineering data and rules and regulations of the Federal Communications Corn- mission, and other data supplied by manufacturers of radio equipment and by licensees of FM broadcast stations. These standards and regulations shall be revised from time to time to be effective and compatible with technical progress.
2. DEFINITION OF TERMS 2.1 FM broadcast band
That portion of the radio frequency spectrum from 88 MHz to 108 MHz. The band is divided into 100 channels.
2.2 FM broadcast channel
A band of frequencies 200 kilohertz wide and is designated by its center frequency. Channels for FM broadcast stations begin at 82.1 megahertz and continue in successive steps of 200 kilohertz to and including 107.9 megahertz.
2.3 FM broadcast station
A station employing frequency modulation in the FM broadcast band and intended to be received by the general public.
2.4 Frequency Modulation
A system of modulation where the instantaneous frequency varies in proportion to the instantaneous amplitude of the modulating signal, and the instantaneous radio frequency is independent of the frequency of the modulating signal.
2.5 Center frequency
2.6 Frequency Swing
The instantaneous departure of the frequency of the emitted wave from the center frequency resulting from modulation.
2.7 Antenna height above average terrain (HAAT) means
a. The height of the radiation center of the antenna above the terrain 3 to 16 kilometres from the antenna. (Generally, a different antenna height will be determined for each radial direction from the antenna. The average of these various heights is considered as the antenna height above average terrain).
b. Where circular or elliptical polarization is employed the antenna height above average terrain shall be based upon the height of the radiation center of the antenna which transmits the horizontal components of radiation.
2.8 Antenna field gain
The ratio of the effective free space field intensity produced at 1.6 kilometres in the horizontal plane expressed in millivolts per meter for one (1) kilowatt antenna input power, to 137.6 millivolts per meter.
2.9 Antenna power gain
The square of the ratio of the root- mean-square free space field strength produced at 1.6 kilometers in the horizontal plane, in millivolts per meter for one (1) kilowatt antenna power, to 137.6 millivolts per meter. This ratio should be expressed in decibels (dB). (If specified for a particular direction, antenna power gain is based on the field strength in that direction only).
2.10 Effective radiated power (ERP)
The product of the transmitter power (transmitter output power less transmission line loss) multiplied by (a) the antenna power gain or (b) the antenna field gain squared. Where circular or elliptical polarization is employed, the term “effective radiated power” is applied separately to the horizontal and vertical components of radiation.
“Field intensity” as used in these standards shall mean the electric field intensity in the horizontal direction.
2.12 Free space field intensity
The field intensity that would exist at a point, in the absence of waves reflected from the earth or other reflecting objects.
2.13 Service area
As applied to FM broadcasting, means the service resulting from an assigned effective radiated power and antenna height above average terrain. 2.14 Radio-frequency (R .F.) Protection Ratio
The value of the radio-frequency wanted-to-interfering signal ratio that enables, under specified conditions, the radio-frequency protection ratio to be obtained at the output of a receiver.
2.15 Percentage modulation
The ratio of the actual frequency swing to the frequency swing defined as 100 percent modulation, expressed in percentage. For FM broadcasting stations, a frequency swing of 75 kilohertz is defined as 100 percent modulation.
2.16 Multiplexing
In its simplest sense, multiplexing implies that two or more independent sources of information are combined for carriage over a single medium, namely, the radio frequency “carrier”, and then are separated at the receiving end. In stereophonic broadcasting, for example, program information consisting of left and right audio signals are multiplexed onto an FM carrier for transmission to receivers which subsequently recover the original audio signals.
2.17 FM Stereophonic Broadcast
The transmission of a stereophonic program by a single FM broadcast station utilizing the main channel and a stereophonic sub-channel.
2.18 Channel
A transmission path. The distinction between the concept of a “Channel” and a “signal” are not always clear. The usage herein
distinguishes between transmission channels; e.g., main channel, stereophonic subchannel, etc., and left and right audio “signals”.
2.19 Composite Baseband Signal
A signal which is the sum of all signals which frequency-modulates the main carrier. The signal can be represented by a formula which includes all signal components: the main channel signal, the modulated stereophonic subcarrier, the pilot subcarrier and the SCA subcarrier(s).
2.20 FM Baseband
The frequency band from 0 Hertz (Hz) to a specified upper frequency which contains the composite baseband signal.
2.21 Main Channel
The band of frequencies from 50 (or less) Hz to 15,000 Hz on the FM baseband which contains the main channel signal.
2.22 Main Channel Signal
A specified combination of the mono phonic or left and right audio signals which frequency-modulates the main carrier.
2.23 Stereophonic Sound
The audio information carried by plurality of channels arranged to afford the listener a sense of the spatial distribution of sound sources. Stereophonic sound includes, but is not limited to, biphonic (two channel), triphonic (three channel) and quadrophonic (four channel) services.
2.24 Stereophonic Sound Subcarrier
A subcarrier within the FM broadcast baseband used for transmitting signals for stereophonic sound reception of the main broadcast program service.
2.25 Stereophonic Sound Subchannel
The band of frequencies from 23 2.34 Cross-talk kHz to 99 KHz containing sound subcarriers and their associated sidebands.
A transmission path specified by a subchannel signal occupying a specified band of frequencies.
2.27 Subchannel Signal
Subcarrier(s) and associated sideband(s) which frequency-modulate the main carrier. It is synonymous with “subcarrier”, as in the stereophonic subcarrier or SCA subcarrier.
2.28 Pilot sub-carrier
A pilot sub-carrier serving as a control signal for use in the reception of FM stereophonic broadcast.
2.29 Left (or Right) signal
The electrical output of a microphone of a combination of microphones placed so as to convey the intensity, time, and location of sounds originating predominantly to the listener’s left (or right) of the center of the performing area.
2.30 Left (or Right) stereophonic channel
The left (or right) signal as electrically reproduced in the reception of an FM stereophonic broadcast.
2.31 Stereophonic separation
The ratio of the electrical signal caused in the right (or left) stereophonic channel, to the electrical signal caused in the left (or right) stereophonic channel, by the transmission of only a right (or left) signal.
2.32 Frequency Deviation
The peak difference between the instantaneous frequency of the modulated wave and the carrier frequency.
2.33 Injection Ratio
The ratio of the frequency swing of the FM carrier by a subchannel signal to the frequency swing defined as 100 percent modulation, expressed in percentage. The total injection of more than one subchannel signal is the arithmetic sum of each subchannel.
An undesired signal occuring in one channel caused by an electrical signal in another channel.
2.35 Linear Crosstalk
A form of “crosstalk” in which the undesired signal(s) is created by phase or gain inequalities in another channel or channels. Such crosstalk may be due to causes external to the stereophonic generator consequently it is sometimes referred to as “system crosstalk”.
2.36 Nonlinear Crosstalk
A form of crosstalk in which the undesired signal(s) is created by harmonic distortion or inter-modulation of electrical signal(s) in another channel or channels. Such crosstalk may be due to distribution within the stereophonic generator or FM transmitter consequently it is sometimes referred to as “transmitter crosstalk”.
2.37 SCA
The term SCA is an acronym for a “Subsidiary Communications Authorization.”
2.38 Index of cooperation
As applied to facsimile broadcasting, is the product of the number of lines per inch, the available length in inches, and the reciprocal of the line-use ratio (e.g. 105 x 8.2 x 8/7 = 984).
2.39 Line-use ratio
As applied to facsimile broadcasting is the ratio of the available line to the total length of scanning line.
2.40 Available line
Means the portion of the total length of scanning line that can be used specifically for picture signals.
The process of scanning an area in a predetermined sequence of narrow straight parallel strips.
2.42 Optical density
The logarithm (to the base 10) of the ratio of incident to transmitted or reflected light.
Table 1. ALLOCATION OFFREQUENCIES FOR FM BROADCAST STATIONS
Channel-designation of FM broadcast frequencies are shown in the table below. Channel No. Frequency (MHZ) Channel No. Frequency (MHZ) 201 88.1 251 98.1 202 88.3 252 98.3 203 88.5 253 98.5 204 88.7 254 98.7 205 88.9 255 98.9 206 89.1 256 99.1 207 89.3 257 99.3 208 89.5 258 99.5 209 89.7 259 99.7 210 89.9 260 99.9 211 90.1 261 100.1 212 90.3 262 100.3 213 90.5 263 100.5 214 90.7 264 100.7 215 90.9 265 100.9 216 91.1 266 101.1 217 91.3 267 101.3 218 91.5 268 101.5 219 91.7 269 101.7 220 91.9 270 101.9 221 92.1 271 102.1 222 92.3 272 102.3 223 92.5 273 102.5 224 92.7 274 102.7 225 92.9 275 102.9
226 93.1 276 103.1 227 93.3 277 103.3 228 93.5 278 103.5 229 93.7 279 103.7 230 93.9 280 103.9 231 94.1 281 104.1 232 94.3 282 104.3 233 94.5 283 104.5 234 94.7 284 104.7 235 94.9 285 104.9 236 95.1 286 105.1 237 95.3 287 105.3 238 95.5 288 105.5 239 95.7 289 105.7 240 95.9 290 105.9 241 96.1 291 106.1 242 96.3 292 106.3 243 96.5 293 106.5 244 96.7 294 106.7 245 96.9 295 106.9 246 97.1 296 107.1 247 97.3 297 107.3 248 97.5 298 107.5 249 97.7 299 107.7 250 97.9 300 107.9 2.43 Experimental Period
The period between 12 midnight to 5:00 a.m. local standard time (1600-2100 (MT). This period may be used for experimental purposes in testing and maintaining apparatus by the licensee of any FM broadcast station on its assigned frequency and not in excess of its authorized power, provided no interference is caused to other stations maintaining a regular operating schedule within such period.
2.44 Operating Power
This is the product of the plate voltage (Ep) and the plate current(Ip) of the last radio stage and efficiency factor, F, expressed: Operating Power = Ep x Ip x F. This is the indirect method of determining the operating power of
each FM station for the purpose of specifying the operating power range of FM transmitters. The factor F shall be established by the transmitter manufacturer for each type of transmitter and shall be specified in the instruction book (s) supplied to each customer with each transmitter.
2.45 Last radio stage
The oscillator or radio-frequency- power amplifier stage which supplies power to the antenna.
2.46 Qualified technician
As applied to FM broadcasting means a person who is a holder of any class of Radio Telephone Operator’s License or its equivalent except those mentioned in Section 7.4 as issued by the existing regulatory body.
3. ALLOCATION OF FREQUENCIES FOR FM BROADCAST STATIONS (See Table 1.)
4. CLASSES OF FM BROADCAST STATIONS
4.1 Class-A Stations
A Class-A station shall have an authorized transmitter power not exceeding 25 kilowatts and an Effective Radiated Power (ERP) not exceeding 125 kilowatts and limited in antenna height of 2,000 feet above average terrain. The minimum transmitter power shall be 10KW. Class A station shall only be allowed in Metro-Manila and Metro-Cebu. 4.2 Class-B station
A Class-B station shall have an authorized transmitter power not exceeding 10 kilowatts and an Effective Radiated Power not exceeding 30 kilowatts, and limited in antenna height of 500 feet above average terrain. The minimum transmitter power shall be I KW.
A Class-C station is a non-commercial, community station having an authorized radiated power not exceeding 1,000 watts (ERP).
4.4 Class—D Station
A class-D station shall have an authorized transmitter power not exceeding 10 watts.
Educational stations shall be allowed to operate with Class- D transmitter power.
4.5 All classes of FM stations shall be protected to the I mV/m contour or 60 dBu contour.
4.6 Table of Assignments
The frequency assignments for the cities of Manila, Laoag, Legaspi, Cebu, Davao, and Zamboanga shall be selected from table 2.
Table 2 Channel Frequency (MHz) 202 88.3 206 89.1 210 89.9 214 90.7 218 91.5 222 92.3 226 93.1 230 93.9 234 94.7 238 95.5 242 96.3 246 97.1 250 97.9 254 98.7 258 99.5 262 100.3 266 101.1 270 101.9
274 102.7 278 103.5 282 104.3 286 105.1 290 105.9 294 106.7 298 107.5
4.7 Radio Frequency Protection Ratios
4.7.1 The following radio frequency protection ratios (Table 3) provide for the minimum physical separation between stations and protection of stations from interference.
Table 3
RADIO-FREQUENCY PROTECTION RATIOS (dB) (based on the horizontal component of radiation)
Frequency Spacing (KHz) R.F. Signal Ratio
0 60dBu : 15dBu
200 60dBu : 53dBu
400 60dBu : 80dBu
4.7.2 Intermediate frequency amplifiers of most FM broadcast receivers are designed to operate on 10.7 mega Hertz. For this reason the assignment of two stations in the same area, one with a frequency 10.6 or 10.8 mega-Hertz removed from that of the other, should be avoided if possible.
4.7.3 FM Broadcast Stations shall not be authorized to operate in the same city or in nearby cities with a frequency separation of less than 800 kHz.
4.7.4 The nature and extent of the protection from interference accorded the FM broadcast stations is limited solely to that which
results from the application of the radio frequency protection ratio.
4.7.5 A commercial broadcast entity may establish only one primary FM radio station within the geographical boundaries of any province.
5. Technical Requirements 5.1 Safety Requirements
5.1.1 Conformity with Electrical Wiring Rules
All equipment using electrical power shall conform with the provisions of the Philippine Electrical Code and the Philippines Electronics Code so as to ensure the safety of property, equipment, personnel and the public in general.
5.1.2 All component parts shall be in accordance with generally accepted standards or those of the International Standards.
5.2 Transmitting Facilities
5.2.1 Location and Layout
a. Any site particularly suitable for FM broadcasting in an area, in the absence of other comparable sites, may be shared by and be made available to as many applicants as possible.
b. The transmitting site should be selected consistent with the purpose of the station, i.e., whether it is intended to serve a small city, a metropolitan area, or a large region. The location should be so chosen that line-of-sight can be obtained from the antenna over the principal city or cities to be served.
a. It shall be standard to employ horizontal polarization. However, circular or elliptical polarization of the clockwise or counter-clockwise rotation may be employed, if so desired.
b. The antenna must be constructed such that it is clear of surrounding buildings or objects that would cause shadow problems.
c. In the event a common tower is used by two or more licensees for antenna and/or antenna supporting purposes, the licensee who owns the tower shall assume full responsibility for the maintenance of the tower structure, its painting and lighting requirements. In case of shared ownership, only one licensee shall assume such responsibility.
For the protection of air navigation, the antenna and supporting structure shall be painted and illuminated in accordance with ATO regulations.
5.2.3 Transmitter and Associated Equipment a. Electrical Performance Standards
The general design of the FM broadcast transmitting system (from input terminal of microphone preamplifier, through audio facilities at the studio through lines or other circuits between studio and transmitter, through audio facilities at the transmitter, and through the transmitter, but excluding equalizers for the correction of deficiencies in microphone response) shall be in accordance with the following principles and specifications:
1) The transmitter shall operate satisfactorily in the operating power range with a frequency swing of ±75 kilohertz, which is defined as 100 percent modulation.
2) The transmitting system shall be capable of transmitting a band of frequencies from 50 to 15,000 Hertz. Pre-emphasis shall be employed in accordance
with the impedance-frequency characteristics of a series inductance-resistance network having a time constant of 75 microseconds (See Annex Fig. 2). The deviation of the system response from the standard pre emphasis curve shall lie between two limits. The upper of these limits shall be uniform: (no deviation) from 50 to 15,000 Hertz. The lower limit shall be uniform from 100 to 7,500 Hertz and 3 dB below the upper limit; from 50 to 100 Hertz and the lower limit shall fall from the 3 dB limit at a uniform rate of 1dB per octave (4dB at 50 Hertz); from 7,500 to15,000 Hertz, the lower limit shall fall from the 3 dB limit at a uniform rate of 2 dB per octave (5dB at 15,000 Hertz).
3) At any modulating frequency between 50 and 15,000 Hertz and at modulation percentages of 25, 50 and 100 percent, the combined audio frequency harmonics measured in the output of the system shall not exceed the root-mean- square values given in the following table:
Modulator Frequency Distortion
50 to 100 Hz 3.50%
100 to 7500 Hz 2.50% 7,500 to 15,000 Hz 3.00%
4) Measurements shall be made employing a 75- microsecond de-emphasis in the measuring equipment and 75-microsecond pre-emphasis in the transmitting equipment, and without compression, if
a compression amplifier is employed. Harmonics shall be included to 30,000 Hertz.
5) It is recommended that none of the three main divisions of the system (transmitter, studio to transmitter circuit, and audio facilities) contribute over one-half of these percentages since at some frequencies the total distortion may become the arithmetic sum of the distortion of the divisions.
6) The transmitting system output noise level (frequency modulation) in the band of 50 to 15,000 Hertz shall be at least 60 decibels below 100 percent modulation (frequency swing of ±75 kilohertz).
The measurement shall be made using 400 Hertz modulation as a reference. The noise measuring equipment shall be provided with a standard 75- microsecond de-emphasis; the ballistic characteristic of the instrument shall be similar to those of the standard VU meter.
7) The transmitting system output noise level (amplitude modulation) in the band of 50 to 16,000 Hertz shall be at least 50 decibels below the level representing 100 percent amplitude modulation. The noise-measuring equipment shall be provided with a standard 75 microsecond de-emphasis; and the ballistic characteristics of the instrument shall be similar to those of the standard VU meter.
8) Automatic means shall be provided in the transmitter to maintain the assigned center frequency within the allowable tolerance of (± 2000 Hertz).
9) The transmitter shall be equipped with suitable indicating instruments for the determination of operating power and with other instruments as are necessary for proper adjustments, operation, and maintenance of the equipment.
10) Adequate provision shall be made for varying the transmitter output power to compensate for excessive variations in line voltage or for other factors affecting the output power.
11) Allowances shall be provided in all component parts to avoid overheating at the rated maximum output power.
12) If a limiting or compression amplifier is employed, precaution should be maintained in its connection in the circuit due to the use of pre-emphasis in the transmitting system.
13) Any emission appearing on a frequency removed from the carrier by between 120 kHz, and 240 kHz, inclusive, shall be attenuated at least 25 decibels below the level of the un-modulated carrier.
14) Any emission appearing on a frequency removed from the carrier by more than 240 kHz and up to and including 600 kHz shall be attenuated at least 35 db below the level of the unmodulated carrier.
15) Any emission appearing on a frequency removed from the carrier by more than 600 kHz shall be attenuated at least 43+ 10 Log10 (Power, in watts) decibels below the level of the unmodulated carrier, or 80 decibels, whichever is the lesser attenuation.
b. Construction
In general, the transmitter shall be constructed either on racks and panels or in totally en-closed frames protected as required by the Philippine Electronics Code and the Philippine Electrical Code and those set forth below:
The transmitter shall comply with the following:
1) Enclosure. The transmitter shall be enclosed in a metal frame or grille, or separated from the operating space by a barrier or other equivalent means. All metallic parts shall be connected to ground.
2) Grounding of controls. All external metallic handles and controls accessible to the operating personnel shall be effectively grounded. No circuit in excess of 100 volts shall have any part exposed to direct contact. A complete dead front type of switchboard is preferred.
3) Interlocks on doors.
a) All access doors shall be provided with interlocks which will disconnect all voltages in excess of 350 volts when any access door is opened.
b) Means shall be provided for making all tuning adjustment, requiring voltages in excess of 350 volts to be applied to the circuit, from the front of the panels with all access doors closed.
c) Proper bleeder resistors or other automatic means shall be installed across all capacitor banks to lower any voltage which may remain accessible with access door open to less than 350 volts within 2 seconds after the access door is opened.
d) All plate supply and other high voltage equipment, including transformers, filters, rectifiers and motor
generators, shall be protected so as to prevent injury to operating personnel.
e) Power equipment and control panels of the transmitter shall meet the above requirements exposed 220 volts AC switching equipment on the front of the power control panels is not recommended
c. Wiring and Shielding
1) The transmitter panels or units shall be wired in accordance with standard switchboard practice, either with insulated leads properly cabled and supported or with rigid bus bar properly insulated and protected.
2) Wiring between units of the transmitter, with the exception of circuits carrying radio-frequency energy, shall be installed in conduits or approved fiber or metal raceways e. Indicating instruments for protection from mechanical injury.
3) Circuits carrying radio- frequency energy between units shall be coaxial, or two-wire balanced lines, or properly shielded.
4) All stages or units shall be adequately shielded and filtered to prevent interaction and radiation.
d. Metering equipment
1) All instruments having more than 1,000 volts potential to ground on the movements shall be protected by a cage or cover. (some instruments are designed by the manufacturer to operate safely with voltages in excess of 1,000 volts on the movement).
2) In case the plate voltmeter is located on the low potential side of the multiplier resistor with the potential of the high potential terminal to the instrument at or less than 1,000 volts above ground, no protective case is required. However, it is good practice to protect voltmeters subject to more than 5,000
volts with suitable over-voltage protective device(s) across the instrument terminal in case the winding opens.
3) Transmission line meters and any other radiofrequency instrument which may be necessary for the operator to read, shall be so installed as to be easily and accurately read without the operator having to risk contact with circuits carrying high potential radio-frequency energy.
e. Indicating Instruments
1) Each FM broadcast station shall be equipped with indicating instruments for measuring the direct plate voltage and current of the last radio stage and the transmission line radio frequency power.
2) In the event that the plate voltmeter or plate ammeter in the last radio stage is defective, the operating power shall be maintained by means of the radio-frequency power meter.
f. Installation
1) The installation shall be made in suitable quarters.
2) Since an operator must be on duty at the transmitter control during operation, suitable facilities for his welfare and comfort shall be provided at the control point.
g. Other technical data.
An accurate circuit diagram, as furnished by the manufacturer of the equipment, shall be retained at the transmitter location.
5.2.4 Monitoring Equipment a. Frequency Monitor
1) The licensee of each station shall have in operation, either at the transmitter or at the place where the transmitter is controlled, a frequency monitor of a type approved by the
Commission which shall be independent of the frequency control of the transmitter.
2) In the event that the frequency monitor becomes defective, the station may be operated without such equipment pending its repair or replacement for a period not in excess of 60 days without further authority of the Commission: Provided, That:
a) Appropriate entries shall be made in the operation log of the station to show the date and time the monitor was removed from and restored to service.
b) The Engineer in Charge of the Region in which the station is located shall be notified both immediately after the monitor is found to be defective and immediately after the repaired or replacement monitor has been installed and is functioning properly.
c) The frequency of the station shall be compared with an external frequency source of known accuracy at sufficiently frequent intervals to insure that the frequency is maintained within the tolerance. An entry shall be made in the station log as to the method used and the results thereof.
3) If conditions beyond the control of the licensee or permittee prevent the restoration of the monitor to service within the above allowed period, informal request may be filed with the Engineer in Charge of the Region in which the station is located for such additional time as may be required to complete re pairs of the defective instrument or equipment.
Modulation Monitor
The modulation monitor (deviation monitor) Is an optional requirement for an FM station. The FM station may refer to the monitoring section of the
Authority, to the Standards Authority of the KP or to other FM stations for modulation measurements.
5.3. Stereophonic Transmission Standards
a. The modulating signal for the main channel shall consist of the sum of the left and right signals.
b. A pilot subcarrier at 19,000 Hertz plus or minus 2 Hz, shall be transmitted that shall frequency-modulate the main carrier between the limits of 8 and 10 percent.
c. The stereophonic subcarrier shall be the second harmonic of the pilot subcarrier and shall cross the time axis with a positive slope simultaneously with each crossing of time axis by the pilot subcarrier. d. Amplitude modulation of the stereophonic subcarrier shall be used. e. The stereophonic subcarrier shall be suppressed to a level less than one percent modulation of the main carrier.
f. The stereophonic subcarrier shall be capable of accepting audio frequencies from 50 to 15,000 Hz.
g. The modulating signal for the stereophonic subcarrier shall be equal to the difference of the left and right signals.
h. The pre-emphasis characteristics of the stereophonic subchannel shall be identical with those of the main channel with respect to phase and amplitude at all frequencies.
i. The sum of the side bands resulting from amplitude modulation of the stereophonic subcarrier shall not cause a peak deviation of the main carrier in excess of 45 percent of total modulation (excluding SCA subcarriers) when only a left (or right) signal exists; simultaneously in the main channel, the deviation when only a left (or right) signal exists shall not exceed 45 percent of total modulation (excluding SCA subcarriers).
j. The maximum modulation of the main carrier by all SCA subcarriers shall be limited to 10 percent.
k. At the instant when only a positive left signal is applied, the main channel modulation shall cause an upward deviation of the main carrier frequency; and the stereophonic subcarrier and its sidebands signal shall cross the time axis simultaneously and in the same direction.
l. The ratio of peak main channel deviation to peak stereophonic subchannel deviation, when only a steady state left (or right) signal exists, shall be within plus or minus 3.5 percent of unity for all levels of this signal and all frequencies from 50 to 15,000 Hertz.
m. The phase difference between the zero points of the main channel signal and the stereophonic subcarrier sidebands envelope, when only a steady state left (or right) signal exists, shall not exceed plus or minus 3 degrees for audio modulating frequencies from 50 to 15,000 Hz.
Note: If the stereophonic separation between left and right stereophonic channels is better than 29.7 decibels at audio modulating frequencies between 50 to 15,000 Hz it will be assumed that (I) and (m) of this section have been complied with.
n. Cross- talk into the main channel caused by a signal in the stereophonic subchannel shall be attenuated at least 40 decibels below 90 percent modulation.
o. Cross-talk into the stereophonic subchannel caused by a signal inthe main channel shall be attenuated at least 40 decibels below 90 percent modulation.
p. For required transmitter performance the maximum modulation to be employed is 90 percent (excluding pilot subcarrier) rather than 100 percent.
q. For electrical performance standards of the transmitter and associated equipment, 100 percent modulation is referred to include the pilot subcarrier.
5.4.1 Permissible uses of the SCA must fall within one or both of the following categories:
a. Transmission of programs which are of a broadcast nature, but which are of interest primarily to limited segments of the public wishing to subscribe thereto. Illustrative services include: background music, storecasting, detailed weather forecasting; special time signals; and other material of a broadcast nature expressly designed and intended for business, professional, educational, religious, trade, labor, agricultural, or other groups engaged in any lawful activity.
b. Transmission of signals which are directly related to the operation of FM broadcast stations; for example: relaying of broadcast material to other FM and standard AM broadcast stations; remote cueing and order circuits; remote control telemetering functions associated with authorized STL operation, and similar uses.
5.4.2 An application for the SCA shall specify the particular nature and purpose of the proposed use. If visual transmission of program material is contemplated, the application shall include certain technical information concerning the visual system, on which the Authority shall rely in issuing an SCA. If any significant change is subsequently made in the system, revised information shall be submitted. The technical information to be submitted is as follows:
a. A full description of the visual transmission system.
b. A block diagram of the system, as installed at the station, with all components, including filters, identified as to make and type. Response curves of all composite filters shall be furnished.
5.4.3 SCA operations may be conducted without restriction as to time, so long the main channel is programmed simultaneously.
a. The SCA is of a subsidiary or secondary nature and shall not exist apart from the FM license or permit. No transfer or assignment of it shall be made separate from the FM broadcast license and failure to transfer the SCA with the FM license renders the SCA void. Any assignment or transfer of an SCA shall, if desired, be requested as part of the main station’s transfer or assignment application. The licensee or permittee must seek renewal of the SCA at the same time it applies for its renewal of FM license or permit; failure to renew the latter automatically terminates the SCA.
b. The grant or renewal of an FM license or permit shall not be furthered or promoted by the proposed or past operation under an SCA; the licensee must establish that his broadcast operation is in the public interest wholly apart from the SCA activities.
5.4.5 Multiplex Operations Engineering Standards
a. Frequency modulation of SCA subcarriers shall be used.
b. The instantaneous frequency of SCA subcarriers shall at all times be within the range 20 to 75 kHz; Provided, however, that when the station is engaged in stereophonic broadcasting, the instantaneous frequency of SCA subcarriers shall at all times be within the range 53 to 75 kHz.
c. The arithmetic sum of the modulation of the main carrier by SCA subcarriers shall not exceed 30 percent: Provided, however, that when the station is engaged in stereophonic broadcasting, the arithmetic sum of the modulation of the main carrier by the SCA subcarriers shall not exceed 10 percent.
d. The total modulation of the main carrier, including SCA subearriers, shall meet the requirements of 6.2.2.
e. Frequency modulation of the main carrier caused by the SCA subcarrier operation shall, in the frequency range 90 to 15,000 Hz, be at least 60 dB below 100 percent modulation: Provided, however, that when the station is engaged in
stereophonic broadcasting, frequency modulation of the main carrier by the SCA subcarrier operation shall, in the frequency range 50 to 53,000 Hz, beat least 60 dB below 100 percent modulation.
f. The center frequency of each SCA subcarrier shall be kept at all times within 500 hertz of the authorized frequency. 5.4.6 Facsimile engineering standards
The following standards apply to facsimile broadcasting under SCA operations.
a. Rectilinear scanning shall be employed, with scanning spot progressing from left to right and scanned lines progressing from top to bottom of subject copy.
b. The standard index of cooperation shall be 984.
c. The number of scanning lines per minute shall be 360. d. The line-use ratio shall be 7/8, or 315 degrees of the full scanning cycle.
e. The 1/8 cycle or 45 degrees not included in the available scanning line shall be divided into 3 equal parts, the first 15 degrees being used for transmission at approximately white level, the second 15 degrees for transmission at approximately black level, and the third 15 degrees for transmission at approximately white level.
f. An interval of not more than 12 seconds shall be available between two pages of subject copy, for the transmission of a page-separation signal and/or other services.
g. Amplitude or(frequency-shift) modulation of the subcarrier shall be used.
h. Subcarrier modulation shall normally vary approximately linearly with the optical density of the subject copy.
Negative modulation shall be used, i.e., for amplitude modulation of subcarrier, maximum subcarrier amplitude and maximum radio frequency swing on black; for frequency modulation of subcarrier, highest instantaneous frequency of subcarrier on black.
j. Subcarrier noise level shall be maintained at least 30 dB below maximum (black) picture modulation level, at the radio transmitter input.
k. The facsimile subcarrier transmission shall be conducted in the frequency range between 22 and 28 KHz. Should amplitude modulation of the subcarrier be employed the subcarrier frequency shall be 25 Khz with sidebands extending not more than 3 KHz in either direction from the subcarrier frequency. Should frequency modulation of the subcarrier be employed the total swing at the subcarrier shall be within the range from 22 to 28 kHz, with 22 kHz corresponding to white and 20 kHz corresponding to black on the transmitted copy. In multiplex operation, the modulation of the FM carrier by the modulated subcarrier shall not exceed 5 percent. In simplex operation, the modulation of the FM carrier by the modulated subcarrier shall not exceed 30 percent.
I. During periods of multiplex facsimile transmission, frequency modulation of the FM carrier caused by the aural signals shall, in the frequency range from 20 to 30 kHz, be at least 60dB below 100 percent modulation. Frequency modulation of the FM carrier caused by the facsimile signals shall, in the frequency range from 50 to 15,000 hertz, be at least 60 dB below 100 percent modulation. 5.5 Studio, Equipment & Allied Facilities
5.5.1 The studio being the recognized source of program materials and other forms of intelligence of various kinds and content, must be properly equipped to faithfully respond to these impressions and produce the same to the highest degree possible, up to the turnover point which is the transmitter input.
5.5.2 Studio Location and Layout
a. Each studio shall be associated with a control room from which the operational area of the studio may be viewed with. However, when the studio arid control rooms are integrated into one, an announcer shall perform simple front panel type functions like level adjustments and switchings during his/her board hours.
b. Studios and control rooms shall be so constructed that they are adequately insulated from sources of extraneous noise and vibration, and the acoustic treatment of such studios and control rooms shall be in accordance with good engineering practice.
5.6 Emergency Equipment & Facilities 5.6.1 Alternate Main Transmitter
a. The regular and the optional main transmitter shall be co-located in a single place.
b. The external effects from both regular and alternate main transmitters shall substantially be the same as to frequency and stability.
5.6.2 Auxiliary Transmitter
a. An auxiliary transmitter may be provided and may be installed in the same location as the regular main transmitter or in another location.
b. Its operating power shall not be less than 10% or never greater than the authorized operating power of the main transmitter.
c. A licensed operator shall be in control whenever an auxiliary transmitter is placed in operation.
d. When installed in a location different from that of the regular main transmitter, a type- approved modulation monitor and a frequency monitor are required to be installed with it.
5.7 Spare Component Parts
In order to cut down-times during scheduled on-air operations, a reasonable variety and number of spare components appropriate to the equipment installed at the site shall be kept on hand.
6. BROADCAST AUXILIARY SERVICES
6.1 Broadcast auxiliary services fall under these three categories:
a. Studio-to-Transmitter Link (STL) b. Remote Pick-up Broadcast Station
c. Communications, Coordination, and Control Link.
6.2 The frequency bands and transmitter power output authorized for the above services are as follows:
a. Studio-To-Transmitter Link Band A 300-315 MHz Band B 734-752 MHz Band C 942-952 MHz
The maximum power allowable for STL Bands A, B, and C shall 15 watts. b. Remote Pick-up Broadcast Station
Band A 315-325 MHz Band B 450-451 MHz Band C 455-456 MHz
The maximum power allowable for Remote Pick-up Bands A, C shall be 35 watts.
c. Communications, Coordination and Control Link Band A 4-12 MHz (non-exclusive)
Band B 25.67-26.1 MHz
Band C 162.235-162.615 MHz 166.250 and 170.150 MHz
Band D 432.5-433 MHz 437.5-438 MHz
The maximum power allowable for Communications, Coordination and Control Link shall be:
Band A - 100 watts (SBS) Band B - 160 watts (ERP) Band C - 160 watts (ERP)
Band D - 200 watts (for repeater)
6.3 The National Telecommunications Commission shall authorize the employment of any one or all of these broadcast transmission services to a station depending on the necessity and availability of frequencies for the purpose. Any AM or FM station authorized to operate is entitled to use any broadcast transmission services relevant to the efficient operation of the station where the use of physical lines or cables is not feasible.
7. OPERATING REQUIREMENTS 7.1 Hours of Operation
7.1.1 Minimum Operating Schedule - The licensee of each FM station shall maintain a minimum operating schedule of two thirds of the total hours that it is authorized to operate, except in emergencies when, due to causes beyond the control of the licensee, it becomes impossible to continue operating. The station may cease operations for a period not exceeding 10 days.
7.1.2 Broadcast outside of the authorized regular operating schedule (as before regular sign-on schedules and/or beyond the regular sign-off schedules) may be aired without prior authorization from the appropriate regulatory body provided the program falls under an emergency category or of very important relevance to the station’s existence. The information shall be entered in the program and operating logs at the time the broadcast was aired.
7.1.3 If a permanent discontinuance of operations is being contemplated, then the licensee shall notify the appropriate regulatory body in writing, at least two (2) days before the actual discontinuance is affected.
7.2 Other Operating Requirements
7.2.1 The center frequency of each FM broadcast station shall be maintained within 2000 Hertz of the assigned center frequency.
7.2.2 The percentage of modulation shall be maintained as high as possible consistent with good quality of transmission and good broadcast practice and in no case less than 85 percent nor more than 100 percent on peaks of frequent recurrence during any selection which normally is transmitted at the highest level of the program under consideration
7.2.3 The operating power of each Station shall be maintained as near as practicable to the authorized operating power, and shall not exceed the limits of 5 percent above and 10 percent below the authorized power, except that in an emergency when it becomes impossible to operate within the authorized power, the station may be operated with reduced power.
The operating power of each station shall be determined by the indirect method. This is the product of the plate voltage (Ep) and the plate current (Ip) of the last radio stage, and an efficiency factor, F; that is, Operating Power = Ep x Ip x F
The efficiency factor, F, shall be established by the transmitter manufacturer for each type of transmitter.
7.2.4 The station equipment shall be so operated, tuned and adjusted that emissions outside of the authorized channel do not cause harmful interference to the reception of other radio stations. FM broadcast stations shall maintain the bandwidth occupied by their emissions in accordance with the specifications set forth in this section. Stations shall achieve the highest degree of compliance
practicable with their existing equipment. In either case, should harmful interference to the reception of other radio stations occur, the licensee may be required to take such further steps as may be necessary to eliminate the interference.
7.2.5 If a limiting or compression amplifier is employed, care should be maintained in its use due to pre emphasis in the transmitting system.
7.3 Posting of Station and Operator Licenses
7.3.1 The station license and other instrument(s) of station authorization shall be posted in a conspicuous place and in such a manner that all terms are visible, at the place the licensee considers to be the principal control point of the transmitter. At all other control points listed on the station authorization, a photocopy of the station license and other instrument(s) of station authorization shall be posted.
7.4 Operators Requirements
7.4.1 Radio Operators holding a valid radiotelephone first class operator’s license, except as provided for in paragraph 7.4.2 of this section, shall be in actual charge of the transmitting apparatus and shall be on duty either at the transmitter location or remote control point.
7.4.2 A station which is authorized with a power of 10 kilowatts or less may be operated by persons holding commercial radio operator’s license of any class, except those with an aircraft radiotelephone operator authorization or a temporary limited radiotelephone operator class license, when the equipment is so designed that the stability of the frequency is maintained by the transmitter itself within the limits of tolerance specified, and none on the operations , except those specified in sub-paragraphs (a) through (d) or this paragraph, necessary to be performed during the course of normal operation, may cause off- frequency operation or result in any
unauthorized radiation. Adjustments of the transmitting equipment by such operators, except when under the immediate supervision of a radio-telephone first class operator, shall be limited to the following:
a. Those necessary to commence or terminate transmitter emissions as a routine matter.
b. Those external adjustments that may be required as a result of variations of primary power supply.
c. Those external adjustments which may be necessary to insure modulation within the limits required.
d. Those adjustments necessary to effect any change in operating power which may be required by the station’s instrument(s) of authorization. Should the transmitting apparatus be observed to be operating in a manner inconsistent with the station’s instrument of authorization and none of the above adjustments are effective in bringing it into proper operation, a person holding other than a radio telephone first class operator’s license and not acting under the immediate supervision of a radio-telephone first class operator, shall be required to terminate the station’s emissions.
7.4.3 A station shall employ at least one full-time first class radiotelephone operator whose primary duty shall be to effect and ensure the proper functioning of the transmitting equipment.
7.5 Log Requirement
The licensee or permittee of each FM broadcast station shall maintain separate program and operating logs and shall require entries to be made as follows:
7.5.1 In the program log
a. An entry of the time each station identification announcement (call letters, frequency and location) is made.
b. An entry briefly describing each program broadcast such as “music”, “drama’’, “speech” ,etc. together with the name at
the beginning and ending of the complete program. If a mechanical record is used, the entry shall show the exact nature thereof, such as “record”, “transcription”, etc. and the time it is announced as a mechanical record. If a speech i made by a political candidate, the name and political affiliation of such a speaker shall be entered.
c. An entry showing that each sponsored program broadcast has been announced as sponsored, paid for, or furnished by the sponsor.
d. An entry showing, each program of network origin, the name of the network originating the program.
7.5.2 In the Operating log
a. An entry of the time the station begins to supply power to the antenna, and the time it stops.
b. An entry of the time the program begins and ends.
c. An entry of each interruption to the carrier wave, its cause, and duration; or an interruption of program transmission.
d. An entry of the following every 30 minutes:
1) Operating constants of the last radio frequency stage (total plate current and plate voltage)
2) Any other entry required by the Instrument of Authorization.
7.6.3 If a maintenance log is kept aside from the operating log, the following entries are recommended:
a. An entry of the time and result of the test of auxiliary transmitter.
b. A notation of all frequency checks and measurements made independently of the frequency monitor and of the correlation of these measurements with frequency monitor indications.
c. A notation of the calibration check of automation recording devices. An entry of the data and time of removal from the restoration to service of any of the following equipment in the event it becomes defective:
1) Final R.F. stage plate voltmeter readings. 2) Final R.F. stage plate voltmeter readings.
3) Transmission line radio frequency voltage current, or power meter readings.
4) The entries required concerning quarterly inspections of the condition of the tower lights and associated control equipment and an entry when towers are cleaned and! or repainted.
5) Entries which describe fully any experimental operation of transmitter.
6) Any other entries required by the current Instrument of Authorization of the station and the provisions of this subpart.
7.5.4 A log must be kept of all operations during the experimental period. If the entries required above are not applicable thereto then the entries shall be made so as to fully describe the operation.
7.5.5 Logs of FM broadcast stations shall be retained by the licensee or permittee for a period of two (2) years: Provided, however, that logs involving communications incident to a disaster or which include communications incident to or involved in an investigation by the appropriate regulatory body and concerning which the licensee or permittee has been notified, shall be retained by the licensee or permittee until he is specifically authorized in writing by the appropriate regulatory body to destroy them: Provided further, that logs incident to or involved in any claim or complaints of the licensee or permittee has notice, shall be retained by the licensee or permittee
until such claim or complaint has been fully satisfied or until the same has been barred by the statute limiting the time for the filing of suits upon such claims.
7.5.6 Each log shall be kept by the person or persons competent to do so, having actual knowledge of the facts required, who shall sign the log when starting duty and again when going off duty. The logs shall be made available upon request by an authorized representative(s) of the appropriate regulatory body during reasonable hours of the day.
7.5.7 A log shall be kept in orderly manner in suitable form, and in such detail that the data required for the particular class of station concerned are readily available. Key letters or abbreviations may be used if proper meaning or explanation is contained elsewhere in the log.
7.5.8 No log or portions thereof shall be erased, obligated, or will fully destroyed within the period of retention provided by the rules. Any necessary correction may be made only by the person originating the entry who shall strike out the erroneous portion, initial the correction made, and indicate the date of correction. Rough log(s) may be transcribed into condensed form but in such cases the original rough or memoranda and all portion(s) thereof shall be preserved and made part of the complete log.
7.6 Operation under Subsidiary Communications Authorizations
7.6.1 Operations conducted under a Subsidiary Communications Authorization (SCA) shall conform to the uses and purposes authorized by the Authority in granting the SCA application. Prior permission to engage in any new or additional activity must be obtained from the Authority pursuant to application therefore.
7.6.2 Super audible and sub audible tones and pulses may, when authorized by the Authority, be employed by SCA holders to activate and deactivate subscribers’ multiplex receivers.
The use of these or any other control techniques to delete main channel material is specifically forbidden.
7.6.3 In all arrangements entered into with outside parties affecting SCA - operation, the licensee or permittee must retain control over all material transmitted over the station’s facilities, with the right to reject any material which it deems inappropriate or undesirable. Subchannel leasing agreement shall be reduced to writing, kept at the station, and made available for inspection upon request.
7.6.4 The logging announcements and other requirements imposed on logs and station identification are not applicable to material transmitted on authorized subcarrier frequencies.
7.6.5 To the extent that SCA circuits are used for transmission of program material, each licensee or permittee shall maintain a daily program log in which a general description of the material transmitted shall be entered once during each broadcast day; Provided however, that in the event of a change in the general description of the material transmitted, an entry shall be made in the SCA program log indicating the time of each such change and a description thereof.
7.6.6 Each licensee or permittee shall maintain a daily operating log of SCA operation in which the following entries shall be made (excluding subcarrier interruptions of five minutes or less):
a. Time subcarrier generator is turned on. b. Tine modulation is applied to subcarrier. c. Time modulation is removed from subcarrier. d. Time subcarrier generator is turned off.
7.6.7 The frequency of each SCA subcarrier shall be measured as often as necessary to ensure that it is kept at all times within 500 Hz of
the authorized frequency. However, in any event, the measure shall be made at least once each calendar month with not more than 40 days expiring between successive measurements.
7.6.8 Program and operating logs for SCA operation may be kept on special columns provided on the station’s regular program and operating log sheets.
7.6.9 Technical standards governing the SCA operation shall be observed by all FM broadcast stations engaging in such operation.
7.7 Operation During Emergency
When necessary to the safety of life and property and in response to dangerous conditions of a general nature, FM broadcast stations may, at the discretion of the licensee and without further Commission authority, transmit emergency weather warnings and other emergency information.
Examples of emergency situations which may warrant either an immediate or delayed response by the licensee are:
Tornadoes, typhoons, floods, tidal waves, earthquakes, extra-heavy rains, widespread fires, discharge of toxic gases, widespread power failures, industrial explosions, and civil disorders. Transmission of information concerning school closings and transportation problems is appropriate. In addition, and if requested by responsible public official, emergency point-to-point messages may be transmitted for the purpose of requesting or dispatching aid and assisting in rescue operations.
8. FM BROADCAST TRANSLATORS AND SIGNAL BOOSTERS 8.1 Definition of Terms
8.1.1. FM Broadcast Translator. A station in the broadcasting service operated for the purpose of retransmitting the signals of an FM radio broadcast station without significantly altering any characteristic of the incoming signal other than its frequency and power output, in order to provide FM broadcast service to the general public.
8.1.2. Commercial FM translator station. An FM broadcast translator station which rebroadcasts the signals of a commercial FM radio broadcast station.
8.1.3. Non-commercial FM translator station. An FM broadcast translator station which rebroadcasts the signals of a non- commercial FM radio broadcast station.
8.1.4 Primary FM station. The FM radio broadcast station radiating the signals which are retransmitted by an FM broadcast translator station or by an FM booster station.
8.1.5. FM broadcast booster station. A station in the broadcasting service utilizing a signal booster that operates on the same frequency as the primary FM station.
8.1.6. Rebroadcast. Means reception by radio of the program of a radio station, and the simultaneous or subsequent retransmission of such program by a broadcast station.
8.2 Licensing Policies
8.2.1 Purpose and Permissable Service - FM Translators provide a means whereby the signals of FM broadcast stations may be retransmitted to areas within the province in which direct reception of such FM broadcast stations is unsatisfactory due to distance or intervening terrain barriers. The FM translator shall be located within the province in which its primary station is located. The maximum translator power allowable is 100 watts. A maximum of 2 translator stations may be licensed for each primary station.
8.22. An FM translator may be used only for the purpose of retransmitting the signals of an FM broadcast station which is received directly through space, converted, and suitably amplified.
8.2.3. The transmissions of each FM translator shall be intended for direct reception by the general public and any other use shall be incidental thereto.
8.2.4. The technical characteristics of the retransmitted signals shall not be deliberately altered so as to hinder reception on conventional FM broadcast receivers.
8.2.5. An FM translator shall not deliberately retransmit the signals of any station other than the station it is authorized by license to retransmit. Precautions shall be taken to avoid unintentional retransmission of such other signals.
8.2.6. FM broadcast booster stations provide a means whereby an FM radio broadcast station may provide service to areas of low signal intensity in any region within the province. An FM broadcast booster station shall be located within the 1 millivolt per meter predicted flat terrain contour and within the province in which its primary station is located. An FM broadcast booster station is authorized to retransmit the signals of the primary station only. It shall not retransmit the signals of any other station nor make independent transmission, provided, however, that locally generated signals may be used to excite the booster apparatus for the purpose of conducting tests and measurements essential to the proper installation and maintenance of the apparatus. The maximum allowable power of a booster station is 100 watts. A maximum of 2 booster stations may be licensed for each primary station.
8.2.7 The transmission of an FM broadcast booster station shall be intended for direct reception by the general public. Such stations will not be authorized to establish a point-to-point FM radio relay system.
8.2.8 An FM broadcast translator station or an FM booster station with a power of 100 watts or less may be operated by a person designated by and under the control of the licensee and need not be a licensed operator.
8.2.9 An authorization for a commercial FM translator station or booster station shall not be granted if its signal shall interfere with any
existing principal station, FM booster station or FM translator station as provided for in the FM radio frequency protection ratio.
8.2.10 An authorization for FM translator station or booster station shall not be granted should the predicted 1 millivolt per meter field strength contour extend into the boundary of another province.
8.2.11 Each application for an FM broadcast booster station shall include a statement concerning the steps which have been taken in the design and location of the equipment to insure that the areas of service from the primary FM station will not be degraded by operation of the FM booster station.
8.3 Operational Requirements 8.3.1 Unattended Operation
A station authorized under this subpart may be operated without a licensed radio operator in attendance if the following requirements are met:
a. The translator shall be equipped with suitable automatic circuits which will place it in a non-radiating condition in the absence of a signal on the input channel.
b. The on-and-off control (if at a location other than the transmitter site) and the transmitting apparatus shall be adequately protected against tampering by unauthorized persons.
c. The Authority shall be supplied with the name, address and telephone number of a person or persons who may be contacted to secure suspension of operation of the translator promptly, should such action be deemed necessary by the Authority. Such information shall be kept by the licensee.
d. An application for authority to construct a new station pursuant to this subpart or to make changes in the facilities of such a station, which proposes unattended
operation, shall include an adequate showing as to the manner of compliance with this section.
8.3.2 Power Limitations
a. The power output of the final radio frequency amplifier of a station authorized under this subpart shall not exceed 100 watts.
1) Stations employing multiple radio frequency amplifiers will be licensed as a single station provided that the total power output shall not exceed 100 watts.
2) No limit is placed upon the effective radiated power which may be obtained by the use of horizontally and vertically polarized directive transmitting antennas. 8.3.3 Emissions and Bandwidth
a. The license of an FM translator or FM booster station authorizes the transmission of either F3 or F9 emission (frequency modulation).
b. Standard width FM channels
Will be assigned and the transmitting apparatus shall be operated so as to limit spurious emissions to the lowest practicable value. Any emission including intermodulation products and radio frequency harmonics which are not essential for the transmission of the desired aural information shall be considered to be spurious emissions.
c. The power of emissions appearing outside the assigned channel shall be attenuated below the total power of the emission as follows:
Distance of emission Minimum Attenuation
from center frequency
between unmodulated carrier
120 to 240 kHz 25 dB
over 600khz 60dB
d. Greater attenuation than that specified in paragraph c) of this sub-section may be required if interferences result outside the assigned channel.
8.3.4 Consideration should be given to accessibility of the site at all times of the year and to the availability of facilities for the maintenance and operation of the FM translator.
8.3.5 Equipment and Installation
a. Applications for new station or for changes in the facilities of existing stations will not be accepted for filing unless the transmitting apparatus to be employed is type-accepted.
b. Transmitting antennas, antennas used to receive signals to be rebroadcast, and transmission lines are not subject to the requirement for type-acceptance.
c. The following requirements must be met before the translator or booster equipment will be type-accepted by the Authority.
1) The frequency converter and associated amplifiers of an FM translator shall be so designed that the electrical characteristics of a standard FM signal, including stereophonic subchannel, introduced into the input terminals will not be significantly altered by passage through the apparatus except as to frequency and amplitude. The overall frequency response of the apparatus within its assigned channel when operating at its rated power output and measured at the output terminals, shall provide a smooth curve, varying within limits separated by no more than 3 decibels.
2) Radio frequency harmonics at the output terminals of the transmitter shall be attenuated at least 60
