SAN25 ( <00>)

002752.eps

Sanus Systems

2221 Hwy 36 West

Saint Paul, MN 55113 USA

Customer Service

Americas: 800-359-5520 • 651-484-7988 • [email protected]

Europe, Middle East, and Africa: 31 (0) 40 26 68 619 • [email protected]

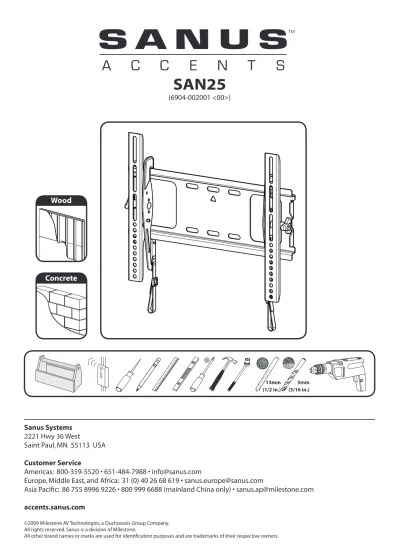

SAN25

(6904-002001 <00>)

Wood

Concrete

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS - PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT

Thank you for choosing the Accents SAN25 TV mount. Ù The SAN25 maximum weight capacity is 36 kg (80 lbs.). Ù The SAN25 is adjustable, allowing +5˚ / -10˚ of tilt.

CAUTION:

CAUTION: Avoid potential personal injuries and property damage!

Ù Do not use this product for any purpose not explicitly specified by Sanus Systems.

Ù The wall must be capable of supporting five times the weight of the monitor and mount combined. Ù This product is not designed for use in metal stud walls!

Ù If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Sanus Systems Customer Service or call a qualified contractor.

LEGEND

?

?

Wood stud walls Solid Concrete and

Concrete Block Walls Choose an Option Do Not

WARNING: This product contains small items that could

be a choking hazard.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Sanus Systems Customer Service. Never use damaged parts!

Supplied Parts and Hardware

M4 12mm M4 30mm 5/16 x 2.5 in. M5 12mm M5 30mm M6 20mm M6 12mm 1/3 in. M4/M5 M6 M4/M5 M6 M6 35mm

[02] x 1

[04] x 3

[06] x 4

[07] x 4

[08] x 4

[09] x 4

[10] x 4

[11] x 4

[12] x 4

[13] x 3

[14] x 8

[15] x 4

[16] x 4

[17] x 4

[05] x 3

[01] x 1

[03] x 1

1

Install Brackets

1. Determine the bolt diameter for your monitor or your TV type. Ù For TVs with a flat/unobstructed back, see 1-1.

Ù For TVs with an irregular/obstructed back, see 1-2.

If you need extra space to accommodate cables, recesses, or protrusions, see an installation option (1-2) that uses spacers. 2. Ensure that the brackets are level on the back of the TV.

Standard configurations are shown. For special applications, contact Customer Service.

CAUTION: Use the shortest screw and spacer combination needed to accommodate cables, recesses, or protrusions. Using hardware that is too long may dam- Using hardware that is too long may dam-age your TV’s internal components.

M4

M5

M6

M6

[02]

[02]

[02]

[02]

[08]

[11]

[06]

[10]

[14]

[14]

[15]

[15]

1-1

1-2

M4

M5

M6

[07]

[02]

[02]

[02]

[09]

[12]

[14]

[14]

[15]

[14]

[14]

[16]

[16]

[17]

2

Adjust the length of the straps.

?

CAUTION:

3

(3/16 in.)

WOOD STUD MOUNTING

1. NOTE: Use awl to verify stud location.

• Any material covering the wall must not exceed 16 mm (5/8 in.).

2. Mark locations for pilot holes using wall plate as a guide. 3. Drill pilot holes to a depth of 63.5mm (2.5 in.).

< 16 mm (5/8 in.)

1

2

3

4

5

63.5mm

2.5 in.

[01]

CAUTION:

4

(1/2 in.)

SOLID CONCRETE AND CONCRETE BLOCK MOUNTING 1. Mark locations for pilot holes using wall plate as a guide.

• CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks.

2. Drill pilot holes to a depth of 63.5mm (2.5 in.).

3. Make sure Concrete Anchor [04] is seated flush with surface. Any material covering the wall must not exceed 16 mm (5/8 in.).

1

2

3

4

[01]

[05]

[04]

[13]

4

CAUTION:

CAUTION:

Install the TV / Bracket assembly by fitting the top hook of the mounting bracket over the top edge of the wall mount. Swing the mounting bracket down

5

CAUTION:

A: Adjust up / down tilt tension

To remove TV from wall mount, pull down on bracket straps to release the locking tabs. Swing TV / bracket assembly forward from the bottom and lift the TV from the wall mount.

10°

5°
