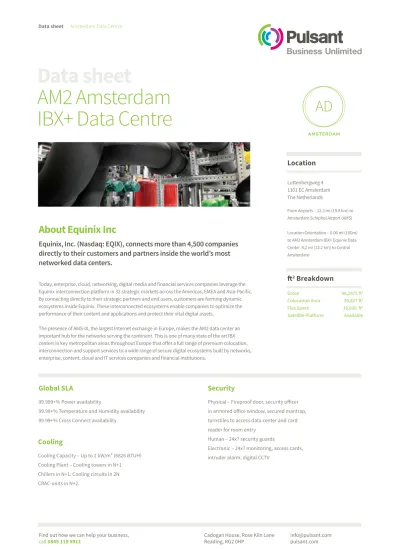

Data sheet Amsterdam Data Centre
About Equinix Inc
Equinix, Inc. (Nasdaq: EQIX), connects more than 4,500 companies
directly to their customers and partners inside the world’s most
networked data centers.
Today, enterprise, cloud, networking, digital media and financial services companies leverage the Equinix interconnection platform in 32 strategic markets across the Americas, EMEA and Asia-Pacific. By connecting directly to their strategic partners and end users, customers are forming dynamic ecosystems inside Equinix. These interconnected ecosystems enable companies to optimize the performance of their content and applications and protect their vital digital assets.
The presence of AMS-IX, the largest Internet exchange in Europe, makes the AM2 data center an important hub for the networks serving the continent. This is one of many state of the art IBX centers in key metropolitan areas throughout Europe that offer a full range of premium colocation, interconnection and support services to a wide range of secure digital ecosystems built by networks, enterprise, content, cloud and IT services companies and financial institutions.
Luttenbergweg 4 1101 EC Amsterdam The Netherlands
From Airports – 12.3 mi (19.8 km) to Amsterdam Schiphol Airport (AMS) Location Orientation – 0.06 mi (100m) to AM2 Amsterdam IBX+ Equinix Data Center. 8.2 mi (13.2 km) to Central Amsterdam
Gross 96,2875 ft2
Colocation Area 39,827 ft2
Flex Space 18,836 ft2
Satellite Platform Available
Location
ft
2Breakdown
Data sheet
AM2 Amsterdam
IBX+ Data Centre
Cooling
Cooling Capacity – Up to 2 kW/m² (6826 BTUH) Cooling Plant – Cooling towers in N+1 Chillers in N+1. Cooling circuits in 2N CRAC-units in N+2.
Security
Physical – Fireproof door, security officer in armored office window, secured mantrap, turnstiles to access data center and card reader for room entry
Human – 24x7 security guards
Electronic – 24x7 monitoring, access cards, intruder alarm, digital CCTV
Global SLA
99.999+% Power availability
99.99+% Temperature and Humidity availability 99.99+% Cross Connect availability
Data sheet
Technical specification
Power Options
Electrical Capacity – 2.0 kVA/m2 (4.5 kVA per cabinet average) UPS Configuration – AC supply: Static UPS System with up to 7x 275 kVA in N+1 per string. 6 strings available - 7 minutes of autonomy on full load
UPS Topology – N+1 # of Utility Feeders – 2
# of Power Transformers – Six transformers at 2.5 MVA per feed Utility Voltage – 10 kV
Power Feeds – 2x 20 MVA medium voltage 10 kV utility supply Power On-site – 230 V AC or 400 V three phase AC
Generators – Distributed redundancy configuration - 2.8 MVA each. 1 generator per feed. 6 feeds available. 36 hours on-site fuel autonomy (120 m3), refuelable during use
Standby Power – 6x 2.1 MVA
Standby Power Config. – N+1 conform distributed redundancy model Lighting – High frequency, minimal 300 Lux
Building
Building Type – Concrete structure, including concrete roofing with bulletproof glass
Floor Load Capacity – 600 psf (30 kN/m²)
Floor Type – Anti-static 600 x 600 mm tiles with a 4.5 kN point load capacity, floor void of 800 mm. Conduction 10-7 ohm Slab/Height to Ceiling – 4800 mm
Fire Protection
Fire Detection – Two stages of fire detection:
Aspiration System – VESDA - very early smoke detection system Point Detection – Addressable analogue point detection system using optical detectors operating a double knock protocol
Fire Suppression – High density fog, localized operation on a sprinkler per sprinkler basis
Certifications
ISO9001 ISO27001/NEN7510 compliant ISO14001ISO50001 OHSAS18001 PCI-DSS AoC SSAE16 / ISAE 3402Interconnection Options Available
System – Whale bone and overhead ladder racking
Cross Connects – Single-Mode fiber, Multi-Mode fiber (62.5 and 50 micron), CAT6
Metro Connect Managed Ethernet/Metro Connect Lambda – Extends choice and reach for carrier and network availability across metro areas offering Metro Connect Managed Ethernet National GigE and FastE, Metro Connect Managed Ethernet Metro GigE and FastE, Metro Connect Lambda
Equinix Internet Exchange™ – Central switch for public and private peering offering AMSIX (GigE, 10 GigE); NLIX GigE, 10GigE Equinix Carrier Ethernet Exchange – Enables Ethernet Service Providers to interconnect to CENs and expand the reach of Ethernet services offering 1 Gig and 10 Gig
Equinix Connect – Automated network provisioning, multi-homing and billing offering Single-Homed GigE and FastE, Multi-Homed GigE and FastE
Data sheet Boston Data Centre
About Internap Boston
As one of the most power-dense facilities in the region, the Boston
data center offers plenty of room to grow, utilizing a superior modular
design to allow for enhanced flexibility and increased reliability.
State-of-the-art technology provides high-density power and high-efficiency
cooling options, while advanced security features ensure that your data
is protected 100% of the time.
50 Innerbelt Road Somervillle MA 02143
Located in Somerville near downtown Boston and accessible via mass transit with convenient access to highways, airports and hotels.
Location
Data sheet
Internap
Boston Data Centre
Remote Management
View and manage your colocation environment remotely. Reboot servers, check power utilization and environmentals and monitor bandwidth all via a single interface.
Power Density
Modular UPS units and high-efficiency cooling options enable power density of up to 12kW per rack.
Resiliency
N+1 redundancy of generators, UPS and cooling modules maximize the uptime of your environment.
Carrier Diversity
Modular UPS units and high-efficiency cooling options enable power density of up to 12kW per rack.
Low-latency Connectivity
Internap’s multi-homed route optimized Performance IP™ provides links up to 10GB through multiple top-tier carriers.
Energy-efficient Design
Committed to providing a better working environment by consuming fewer fossil fuels, reducing greenhouse emissions, minimizing the impact on land.
Speed to Market
Grow as quickly as your business demands with modular power, space and connectivity elements.
On-site Personnel
Data center engineers and technical support staff are on-site 24/7, proactively monitoring facility vitals.
Data sheet
Technical specification
Location and Site Information
Total Space - 45,600 square feet Floor Type - Antistatic raised floor
Loading Dock - Easy access for all size trucks Roof Rights - Yes
Number of Entrance Vaults - 2
NPA / NXX - 617/591, 617/625, 617/627, 617/628, 617/629,
617/666, 617/776
Site Structure
DC Build Year / Year Started - Built in 2009; latest additions in 2013 Number of Floors - Two w/ mezzanine
Structure Type - Structural steel, reinforced concrete Exterior Type - Masonry
Seismic Rating - Zone 2 A Ceiling Clearance - 14 feet In Flood Plain - No
Fire Protection
Wet, Dry or Pre-action - Dry and Pre-action Number of Zones - 36
Smoke/Heat Detection - Yes Sub-Floor Detection - No Remotely Monitored - Yes
Environmental Control
Cooling Capacity - 1700 ton Cooling Type - RTU / chilled water Redundancy - N+1
Heating Type - N/A Humidification - Ultrasonic
Security
CCTV - Yes - 26 cameras CCTV Recorded - Up to 90 days Intrusion Detection - Yes On-site Guards - 24/7
Card Access - HID proximity card readers/ biometrics Access Control - Biometric and card reader
Power
Electric Utility - nStar
Power Feeds - 2 diverse feeds; 3 MW
Redundant Power Feed - Yes, direct buried to the power plant Generator - (3) Baldor
Generator Size(s) - 2 MW Generator Fuel - Diesel UPS - GE
UPS Size(s) - 5 Parallel 750 kVA
Battery Type - Lead Calcium (wet cell) & VRLA Battery Life at Full Load - 15 minutes Electrical Infrastructure Redundancy - N+1 Harmonic Filters - Yes
Remotely Monitored - Yes
Carrier-Neutral Meet-Me-Room
Verizon - Verizon Business
Lightower (Formerly Sidera/RCN/METRO Optical Networks) -
Genesis Fiber Communications
Lightower - Level 3 Communications
Internap IP Network Carriers
Cogent - CenturyLink Sprint - XO Communications Tiscali - Savvis
Data sheet Synergy Park
About Synergy Park
With over 50,851 square-feet of raised fl oor, the Synergy Park data
center, located in the Dallas, Texas metropolitan area, was built
with the single focus of protecting your mission-critical data and
applications.
The data center offers complete offi ce facilities and total disaster recovery services. This data center also has the latest UPS power equipment, the most powerful, yet energy effi cient cooling system and documented security measures that help customers achieve and sustain compliance. Synergy Park even utilizes dual diverse utility power feeds for the ultimate in redundancy. Our 24x7 local engineers and service staff are experts at running data centers. We built this data center around you, the customer, to give you a peaceful state of mind.
Centered Around You.
“A large customer of ours in Dallas said it best, ‘We’ve never seen a service DNA so ingrained into a culture before.” As the leading colocation service provider in North America, the real value ViaWest provides to customers is peace of mind. We provide a stable foundation for our customers to run their mission critical applications that drive their businesses. And we do this with a focus on the customer experience from pre-sales to implementation to on-going life cycle support.”
TOM MYERS, RVP OF SALES AND GM OF TEXAS
Data sheet
Synergy Park
The total package for
perfect data storage
Performance that raises the bar
We offer a 2(N+1) 9,900 kVA UPS system with multiple redundant power distribution paths, plus 3 times the static pressure of traditional cooling, to give you performance that raises the bar.
Your satisfaction is guaranteed
We have enough confi dence in everything we do to offer our customers a 100% satisfaction guarantee, as well as a 100% SLA for power, bandwidth and network services availability.
Superior network and cooling
Top network providers have diverse underground entry points into the data center. The facility’s fully redundant cooling system has 2,700 tons of capacity and 700+ Watt/SF high density pods availability.
Local teams deliver expert service.
Our dedicated, local staff of trained engineers help maintain uptime through remote hands capabilities, ticket tracking, event notification and more.
Data sheet
Technical specification
Space Options
50,851 square feet raised floor Private suites and cagesUnit level – available in full and half cabinet increments Customer office space
Security
24x7 access via dual factor authentication Monitored security cameras and intercom system
Power delivery, generator and diesel fuel infrastructure maintained and under 24x7 surveillance
ViaWest has a dual-standard SSAE 16 and ISAE 3402 Service Organization Control (SOC) 1 Type II, SOC 2 Type II, and SOC 3 reports covering each of ViaWest’s data centers to include Operations, physical and environmental security controls. ViaWest also has facility-specific PCI DSS and HIPAA Reports of Compliance for physical security, information security policies and managed firewall services. ViaWest enables businesses to become compliant in the Financial, Healthcare and Federal industries that require regulatory authority of PCI DSS, HIPAA, FISMA and NIST 800-53 Standards. Additionally, ViaWest annually registers its adherence to the US-EU Safe Harbor Privacy framework.
Fire Detection & Suppression
Certified data center smoke detection system VESDA incipient smoke detectionDual-Interlock pre-action dry pipe sprinkler system Clean agent fire extinguishers placed throughout the facility
Local Data Centre Support Teams
Certified data center smoke detection system On location - staffed 24x7x365 with Data Center Technicians (first responders & remote hands) All Physical entry, environmental, power & networks monitored real-time
Power
A and B source power circuit delivery capabilities
Dual redundant medium voltage power utility deliveries with onsite 25 kV substation
13 megawatt diesel power generation capacity Automatic power switching
9,900 kVA UPS installed capacity Redundant battery strings
Multiple redundant power distribution paths Branch Circuit Monitoring System
HVAC & Enviromental Design
2,700 tons of cooling capacityAnti-static raised flooring with designated cable runs and cold air delivery
Hot aisle/cold aisle configuration
Fully cabled for typical customer applications
Network
Multiple redundant fiber optic telecommunication networks delivered via Telcordia/Bellcore standards with diverse conduit and entrance facilities
Telecommunications services available with capacity ranging from T1 to multiple OC192
Ethernet services available from 5 Mbps to multiple 10 Gbps
Viawest’s Technical Assistance Centre (V-TAC)
Single Point of Contact for all technical support needs for all remote callsAvailable 24x7x365 by experienced TAC support engineers
Data sheet Gutleutstrasse, Frankfurt Data Centre
About Internap Boston
As one of the most power-dense facilities in the region, the Boston data
center offers plenty of room to grow, utilizing a superior modular design
to allow for enhanced flexibility and increased reliability.
State-of-the-art technology provides high-density power and high-efficiencycooling
options, while advanced security features ensure that your data is
protected 100% of the time.
TelecityGroup Gutleutstrasse 310 60327 Frankfurt/M. Germany
Location
Data sheet
Gutleutstrasse, Frankfurt
Highly connected, premium
data centre space
General
Gross Data Floor Area (m2) - 10000 Building type - Purpose-built datacentre Building tenure - Long term lease Number of data floors - 4 Number of IT zones - 12 High density capacity - Yes
Minimum floor load capacity (kg/m2) - 2000 Raised access floor height (mm) - 680 Raised floor to ceiling height (metres) - 4.5–11 Goods lift maximum load (tons) - 1.0 Separate delivery bay - Yes Build/unpacking room - Yes
Security
Type of security system - Proximity Access Card Staffed - 24/7/365
Fire Detection & Suppression
High sensitivity smoke detection system - Yes Type of fire suppression system - Inergen gas Smoke detection double knock - Yes
Air Conditioning & Cooling
Type of cooling system - Chilled water Number of chillers (if applicable) - 6 Maximum cooling capacity (MW) - 10.3
Cooling redundancy each independent system - N+1 CCUs or in-row cooling - CCU
Power
Number of independent supplies into site - 4 Total incoming feed capacity (MVA) - 14.4 Diverse power route - Yes
Generator fuel at full load (hours) - 24 UPS type - Hybrid Rotary
UPS autonomy (minutes) at full system load - 10 Maximum UPS capacity (kVA) - 12500
UPS redundancy - N+1, 2N optional Generator redundancy - N+1, 2N optional Maximum Generator capacity (MVA) - 19.2t
Data sheet Hong Kong Data Centre
About Equinix Inc
Equinix, Inc. (Nasdaq: EQIX), connects more than 4,500 companies
directly to their customers and partners inside the world’s most
networked data centers.
Today, enterprise, cloud, networking, digital media and financial services companies leverage the Equinix interconnection platform in 32 strategic markets acrossthe Americas, EMEA and Asia-Pacific. By connecting directly to their strategic partners and end users, customers are forming dynamic ecosystems inside Equinix. These interconnected ecosystems enable companies to optimize the performance of their content and applications and protect their vital digital assets.
Equinix Hong Kong data center (HK2) occupies multiple floors of the Kerry Warehouse, strategically located in an industrial area in between the Hong Kong International Airport and the Central Business District. This is one of many state of the art IBX centers in key metropolitan areas throughout Asia-Pacific that offers a full range of premium colocation, interconnection and support services to a wide range of secure digital ecosystems built by networks, enterprise, content, cloud and IT services companies and financial institutions.
1/F Kerry Warehouse 3 Shing Yiu Street Kwai Chung Hong Kong
From Airports – 16.3 miles (26 km) from Hong Kong International Airport Location Orientation – 9.3 miles (15 km) from Central Business District
Leased 159,207 ft2 Colocation Area 53,260 ft2 IBXflex Space Custom Request Satellite Platform Custom Request
Location
ft
2Breakdown
Data sheet
HK2 Hong Kong
IBX+ Data Centre
Cooling
Cooling Capacity – 3.6 kVA per cabinet Cooling Plant – Water-Cooled Centrifugal Chillers (N+1); Computer Room Air Conditioners (N + 20%); Phase 1: 3 x 315 RT; Phase 2: 3 x 1,000 RT
Security
Physical – Physical access control lists manage ingress and egress
Human – 24x7x365 security officers Electronic – 24x7x365 CCTV recordings, Access Control
Global SLA
99.999+% Power availability
99.99+% Temperature and Humidity availability 99.99+% Cross Connect availability
Data sheet
Technical specification
Power Options
Electrical Capacity (Critical Customer Load) – 3.6 kVA per cabinet
Electrical Capacity (Uninterruptible
Power System) – Phase 1: 4 x (2 x 500) kVA (N+N)
Phase 2: 3 x (2 x 400) kVA (N+1); 4 x (2 x 400) kVA (N+N)
Utility Feeders – Phase 1: 2 x 11 kV Phase 2: 3 x 11 kV
Power Transformers – Phase 1: 4 x 2 MVA + 2 x 1.6 MVA 11kV/380V
Phase 2: 9 x 2 MVA 11kV/380V
Standby Power – Diesel Generators Phase 1: 4 x 2.25 MVA (N+N)
Phase 2: 9 x 2.25 MVA (N+N)
Building
Construction Type – Reinforced concrete structure Building Type –18-story / raised floor
Floor Load – 15 kN/m² Slab-to-ceiling Height – 4.85 m
Fire Protection
Fire Detection – Very Early Smoke Detection Apparatus (VESDA);
smoke and heat detectors
Fire Suppression – FM200 for Fuel Tank Rooms Fire Rating – Minimum 1 hour rating
Certifications
ISO / IEC 27001: 2005Interconnection Options Available
System – Meet-me-room
Cross Connects – Cat5e/6, COAX and Fiber
Metro Connect – Extends choice and reach for carrier and network
availability across metro areas offering Metro Connect to HK1 and Mega iAdvantage
Equinix Internet Exchange™ – Central switch for public and private
peering offering Gigabit Ethernet and 10Gigabit Ethernet
Equinix Connect – Automated network provisioning, multi-homing
and billing offering Fast Ethernet and Gigabit Ethernet
Data sheet NYC1
About NYC1
NYC1 (60 Hudson St) is recognized as one of the most important
colocation and interconnection facilities in the US.
As the leading colocation and interconnection service provider in the premier carrier hotel in North America, Telx offers low-latency access to more than 400 carriers, financial exchanges, application providers, media and content providers, software-as-a-service providers and numerous enterprises with just a single connection. Telx occupies floors 5, 9, 11, and 23 with interconnectivity between all floors.
Customers at this location can directly access the wide range of services provided by Telx customers located at other Telx New York and Northern New Jersey locations including: NYC2 (111 8th Ave), NYC3 (32 Ave of the Americas), NJR1 (300 Boulevard East), NJR2 (100 Delawanna Ave) and NJR3 (100 Delawanna Ave). This facility also provides access to the Telx Internet ExchangeSM and multiple peering exchanges. This facility is the connection center for international communication and offers physical connection points to the world’s telecommunications networks and Internet backbones.
1 State Street 21st Floor New York NY 10004
Telx, Interconnection and Data Center Company
Location
Data sheet
NYC1 - 60 Hudson
Street, New York, NY
Why NYC1
Access to over 400 carriers, ISP’s and enterprise networks Access to over 60 financial networks via
Financial ecosystems at NYC2 (111 8th Ave) Cost effective connectivity to NYC2 (111 8th Ave), NYC3 (32 Ave of the Americas), NJR1 (300 Boulevard East), and the Clifton Campus (NJR2 and NJR3 at 100 Delawanna Ave) via Telx’s Metro ConnectSM
Direct access to SFTI Network via NYC2 (111 8th Ave) connectivity
At NYC1 you will have direct access to connect
with hundreds of leading providers and businesses within the Telx Global Ecosystem.
About Telx
Telx is a new kind of data center solution provider fueling infrastructure, interconnection and business progress. With an industry leading 100% uptime and 100% on-time service delivery SLAs, Telx helps companies build more agile businesses faster with reduced infrastructure complexity and broader reach to new markets. A privately held company headquartered in New York with west coast operations out of San Francisco, Telx serves a broad range of industries types from 20 data centers located across 13 US markets.
Capacity. Capabilities. Connections.SM
Data sheet
Technical specification
Facility Specs
Building - 24 stories; 1,800,000 (sq.ft.) Telx Leased - 148,000 (sq.ft.)
Flood Zone - Outside 100 year flood plain Seismic - Zone 2A
Utility Power Capacity - 6750 (kW) UPS Power Capacity - 3075 (kW) UPS Redundancy - N-2N Power Density - 80-125 (W/sq.ft.) DC Power Capacity - 500 (kW)
Generator Power Capacity - 10500 (kW) Generator Redundancy - N-N+1 Cooling Redundancy - N+1
Roof - Membrane and reinforced concrete
decking Roof right available
Floor Loading - 125 (lbs/sq.ft
Fiber and Building Entry - Diverse conduit entry points Security - 24x365 manned security Card key and biometric
access control Digital video monitoring and recording, SOC3 Compliant, HIPAA Compliant
Parking - Parking available
Connect with the Telx Global Ecosystem
At NYC1 you can connect directly to many leading providers and businesses. Below is a sample of the companies available.Asian Telecom Network France Telecom
Hewlett Packard Company Optimum Lightpath Sprint Communications - VX Time Warner Cable Verizon
For more information
To learn more about the NYC1 location and how it can help your business, please contact Telx at [email protected] or visit: www.telx.com/data-center/new-york/
