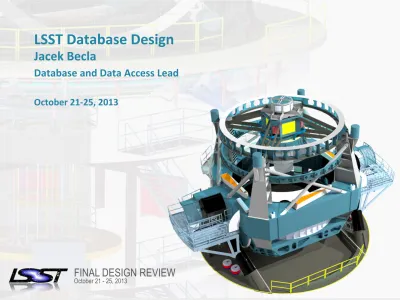

LSST Database Design

Jacek Becla

Database and Data Access Lead

October 21-‐25, 2013

FINAL DESIGN REVIEW

(2)

2

FINAL DESIGN REVIEW | TUCSON, AZ | OCTOBER 21-25, 2013

Outline

− 

Driving requirements

− 

Baseline architecture

−  Baseline schema highlights

− 

Prototype design

− 

Tes)ng results

− 

Summary

Docushare LDM-‐135 (LSST Database Design) WBS: 02C.06.02.03 (Query Services)

(3)

3

Driving Requirements – Database PerspecGve

Level 1

− 

(Almost) real )me

− 

Live updates

− 

… with reproducibility

− 

… and user queries

C 

Moderate data volume

C 

Moderate access paRerns

C 

No complex queries

Level 2

− 

Large data volume

− 

Large query volume

− 

Wide range of query types

C 

Immutable

C 

Reasonable response

)me expecta)ons

(4)

4

(5)

5

Level 1 Requirements – Database PerspecGve

−

(Almost) real )me

−

Live updates

−

… with reproducibility

−

… and user queries

C

Moderate data volume

C

Moderate access paRerns

C

No complex queries

"  

189 CCD-‐size queries every 39 sec

"  

~90K/visit

"  

Well understood update paRerns

"  

Low volume queries

"  

Core table up to 44 B rows, 75 TB

"  

Hot spots, no heavy I/O

"  

Small area, )me series for

(6)

6

Baseline Database Architecture for Level 1

− 

Oﬀ-‐the-‐shelf RDBMS

•  Horizontally par))oned and spa)ally sorted

− 

Live database for produc)on + replica for user query access

•  Real-‐)me master-‐slave replica)on

− 

Reproducibility

•  No-‐overwrite updates •  Validity )me ranges

− 

Fault tolerance

•  Hot stand-‐by replica

•  Plus, the user replica can be turned into live database

− 

Annual refresh – DR catalogs brought to L1

LDM-‐135, chapter 3.1

(7)

7

(8)

8

Level 2 Requirements – Database PerspecGve

−

Large data volume

−

Large query volume

−

Wide range of query types

C

Immutable

C

Reasonable response

)me expecta)ons

− 

Data volume

•  Correla)ons on mul)-‐billion-‐row tables •  Scans through petabytes

•  Mul)-‐billion to mul)-‐trillion table joins

− 

Query volume & types

•  Interac)ve queries

•  Concurrent scans/aggrega)ons/joins •  Spa)al correla)ons

•  Time series

•  Unpredictable, ad-‐hoc analysis

− 

Plus…

•  Mul)-‐decade data life)me •  Low cost

1.  Massively parallel, distributed 2.  Indices

3.  Shared scans

4.  Highly specialized indexing 5.  Eﬃcient joins

6.  Robust schema and catalog 7.  Commodity H/W, open source 1 2 5 3 3 4 6 7

(9)

9

Baseline Database Architecture for Level 2

− 

MPP* RDBMS on shared-‐nothing commodity cluster,

with incremental scaling, non-‐disrup)ve failure recovery

− 

Data clustered spa)ally and by )me, par))oned w/overlaps

•  Two-‐level par))oning

•  2nd_{level
materialized
on-‐the-‐ﬂy}

•  Transparent to end-‐users

− 

Selec)ve indices to speed up interac)ve queries,

spa)al searches, joins including )me series analysis

− 

Shared scans

•  Predictable I/O cost and response )me

− 

Custom somware based on open source

RDBMS (MySQL) + XRootD

*MPP – Massively Parallel Processing

LDM-‐135, chapter 3.3

(10)

10

FINAL DESIGN REVIEW | TUCSON, AZ | OCTOBER 21-25, 2013 FINAL DESIGN REVIEW | TUCSON, AZ | OCTOBER 21-25, 2013

(11)

11

Baseline Schema Highlights

− 

Object

•  ~330 columns, ~0.1 PB •  Most frequently used •  Advanced analy)cs

− 

Object_Extras

•  ~7,650 columns, ~1 PB •  Specialized analy)cs

− 

Source

•  ~50 columns, up to ~5 PB

•  Time series (high SNR) analysis

− 

ForcedSource

•  6 columns, up to ~2 PB

•  Time series (low SNR) analysis

class CoreTables Object_Periodic DiaObject DiaObject_To_Object_Match DiaSource ForcedDiaSource ForcedSource

Object Object_APMean Object_NonPeriodic Object_Extra SSObject Source_APMean Source Name: Package: Version: Author: CoreTables CoreTables 1.0 Jacek Becla Hourly scan 3 per day 2 per day 2 per day

(12)

12

Prototype ImplementaGon -‐ Qserv

Intercep)ng user queries

Worker dispatch, query fragmenta)on genera)on,

spa)al indexing, query recovery, op)miza)ons,

scheduling, aggrega)on

Communica)on, replica)on

Metadata, result cache

MySQL dispatch, shared scanning, op)miza)ons,

scheduling

Single node RDBMS

RDBMS-‐agnos)c

(13)

13

Fault Tolerance / Recoverability

− 

Spare nodes -‐ 3% of cluster

− 

20% space on each disk

reserved for serving chunks

from failed node(s)

− 

2 replicas

− 

Chunks appropriately

distributed

− 

Components replicated

− 

Failures isolated

− 

Narrow interfaces

− 

Every table checksumed

− 

Logic for handling errors

− 

Logic for recovering from

errors

− 

Most implemented and

demonstrated

LDM-‐135, chapter 8.13 AND 10.2

(14)

14

Tests & DemonstraGons

− 

Tests

− 

Demonstra)ons

•  Concurrency (up to 100K in-‐ﬂight segment-‐queries, on ~100 nodes) •  Fault tolerance (catching errors, transparent fail over to a replica)

•  Shared scanning (30-‐query scan: 5m27s, avg speed for a single query: 3m)

Scale _acGveInter-‐ Table scans Large joins Notes

The PDR test (2011)

150 nodes, 32TB, 2B objects,

55B sources 4-‐9 sec 3-‐8 min 10 min – 5 h

Problems with >4 concurrent queries (<20K segment-‐queries) JHU (2012) 20 nodes, 100TB, 2B objects,

80B sources ~5 sec < 7 min

Numerous problems with unstable hardware IN2P3

(2013)

300 nodes, 10TB, 0.4B objects,

14B sources 1.2-‐4 sec 10 sec – 10 min ~ 5 min

Showed good scaling and low dispatch overhead, proved concurrency

(15)

15

Qserv’s Development (R&D)

− 

Pre-‐construc)on

•  Improve automated tes)ng suite •  Develop unit tests

•  Refactor and op)mize low-‐level design details •  Revisit build system and packaging

•  Rewrite XRootD client •  Logging

FY’13 FY’09 FY’10 FY’11 FY’12

Scale/speed tes)ng:

FY’14

All major risks reGred

Design and development: Core func)ons _{Scalability
/
performance}

Usability /

stability Code refactoring Shared

(16)

16

Qserv’s Development (ConstrucGon)

FY’19 FY’15 FY’16 FY’17 FY’18

Scale/speed tes)ng:

FY’20

Scalability / fault tolerance Resource mgmt Shared scans Usability / stability Level 3 Administra)on Par)al results Query syntax Performance

(17)

17

(18)

18

Level 3

− 

“MyDB” – per-‐user database space

•  Storage near L2 (designated drives on db nodes)

− 

Op)ons for storage

•  Updatable, centralized

•  Immutable (post-‐crea)on), distributed

− 

Next-‐to-‐database analy)cs

•  Load user code into external daemons •  Issue special SELECT query in Qserv

•  Worker streams rows to external daemons •  User code processes rows arbitrarily

(19)

19

(20)

20

Summary of Post-‐PDR AcGviGes

− 

Level 1

•  Reﬁned baseline design based on more detailed requirements

− 

Level 2

•  Major redesign of query parser, analyzer, and dispatch •  Resolved concurrency problems

•  Implemented/demonstrated basic shared scans, fault tolerance, cluster consistency, installa)on and cluster mgmt tools, automated test suite, RDBMS-‐independence, improved query coverage and robustness. Numerous op)miza)ons

•  Scalability tests (100TB @JHU, 300-‐node @IN2P3)

(21)

21

Summary

− 

Baseline architecture: MPP RDBMS on shared-‐nothing cluster

•  With custom par))oning and indices, shared scans •  Architecture driven by volume, access paRerns,

query complexity, data life)me and low-‐cost

− 

Have baseline schema (see other talk)

− 

Have working, scalable Qserv prototype

•  Based on simple open source RDBMS and XRootD •  Will be turned into a produc)on system

We are conﬁdent we will deliver the LSST database &

query access system mee@ng the LSST requirements
