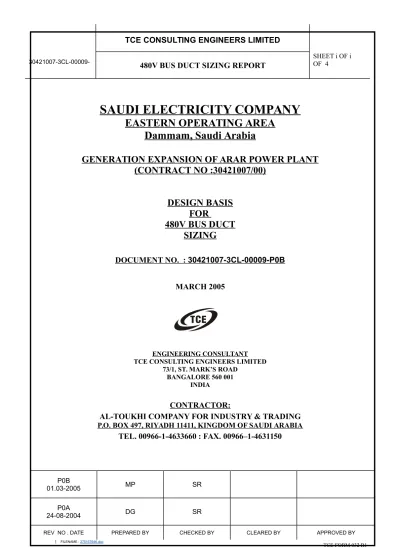

GENERATION EXPANSION OF ARAR POWER PLANT

(CONTRACT NO :30421007/00)

DESIGN BASIS

FOR

480V BUS DUCT

SIZING

DOCUMENT NO. : 30421007-3CL-00009-P0B MARCH 2005 ENGINEERING CONSULTANT TCE CONSULTING ENGINEERS LIMITED

73/1, ST. MARK’S ROAD BANGALORE 560 001

INDIA

CONTRACTOR:

AL-TOUKHI COMPANY FOR INDUSTRY & TRADING P.O. BOX 497, RIYADH 11411, KINGDOM OF SAUDI ARABIA

TEL. 00966-1-4633660 : FAX. 00966–1-4631150

P0B

01.03-2005 MP SR

P0A

24-08-2004 DG SR

REV NO . DATE PREPARED BY CHECKED BY CLEARED BY APPROVED BY

(2)

ISSUE P0B

CONTENTS

CLAUSE No. DESCRIPTION PAGE No.

1.0 INTRODUCTION 2

2.0 OBJECT 3

3.0 REFERENCES 4

4.0 ASSUMPTIONS / CONSIDERATIONS 5

(3)

ISSUE P0B

1.0 INTRODUCTION:

1.1 Al-Toukhi company for Industry & Trading has been awarded turnkey contract for Open Cycle Gas Turbine based CPS extension project at Arar of Saudi Electric Company-Eastern Operation Area (SEC-EOA), Saudi Arabia.

1.2 The project consists of design, engineering, procurement, installation, testing and commissioning of two (2) Nos. 60.16MW @ 50C, PG7121 (EA) model Gas Turbine Generator unit of GE make along with associated Generator Transformer and other balance of plant electro-mechanical equipment.

(4)

ISSUE P0B

2.0 OBJECT:

2.1 The object of this report is to determine the ratings of 480V Bus Duct from secondary of 4.16kV/480V Station Auxiliary Transformer to 480V Station Switchgear to be installed at Arar Central Power Station, Saudi Arabia.

2.2 The following parameters are established through this report:

 Continuous Current rating.

 Short circuit withstand and peak withstand current ratings of the Bus Duct.

(5)

ISSUE P0B

3.0 REFERENCES:

3.1 Cl.No.3.03 .8 (a), Page 39 of 336 of PTS-1022 which states that “Two (2) nos. 480V, 3 ph, 4 wire, 3500A, Non Segregated Phase Bus Duct runs connecting LV Auxiliary Transformers #201 & T-202 to the new 480V Station Switchgear”.

3.2 Cl.No.2.0, page 1 of 4 of Data Schedule for “Metal Enclosed Bus Duct 480V” vide which the Short time current withstand capability is defined as 50kA for 1 sec.

3.3 Cl.No.2.0, page 1 of 4 of Data Schedule for “Metal Enclosed Bus Duct 480V” vide which the Continuous current rating at site conditions is specified as 3500A.

3.4 Cl.No.3.0, Page 2 of 4 of Data Schedule for “Metal Enclosed Bus Duct: 480V” of SEC-EOA’s specification vide which the material of bus duct enclosure is specified as Steel.

3.5 Cl.No.3.0, Page 2 of 4 of Data Schedule for “Metal Enclosed Bus Duct: 480V” of SEC-EOA’s specification vide which the material of bus duct conductor is specified as Copper.

3.6 SEC-EOA’s Clarification Set No.04 dated 10th_{Dec 2003, A.53 vide}

which SEC-EOA has informed that Aluminium enclosure also is acceptable for Bus Duct.

3.7 Document No.30421007-3CL-00001-P0E: Unit Auxiliary & Station Auxiliary Transformer sizing report.

(6)

ISSUE P0B

4.0 ASSUMPTIONS/CONSIDERATIONS:

The following assumptions are made for purpose of 480V Bus Duct sizing calculations.

4.1 The 4.16kV/480V Station Auxiliary Transformer rating is considered as 3000kVA as per Document No.30421007-3CL-00001-P0E: Unit Auxiliary & station auxiliary Transformer Sizing report.

(7)

ISSUE P0B

5.0 SIZING CALCULATION :

5.1 Continuous Current rating of 480V Bus Duct: a) 4.16kV/480V Station Auxiliary Transformer

rating = 3000kVA. b) Rated secondary current of 4.16kV/480V

Station Auxiliary Transformer = 3609 Amps. c) Hence, the continuous current rating of

Bus Duct selected at 50 Deg C

& site conditions = 4000 Amps. 5.2 Other parameters of the 480V Non Segregated Phase Bus Duct are

tabulated below:

Sl.No. Parameter Unit 480V Bus

Duct

Reference

1 Type of Bus Duct

Non Segregated,

3 phase, 4 wire Bus Duct

As per Cl No.3.1 above

2 Nominal Voltage rating kV 0.480

As per Cl.No.2.0 of SEC-EOA’s data schedule for 480V Bus Duct 3 Continuous Current

rating at 50 Deg C Amps 4000

As per Cl No.5.1 above 4 Conductor material Copper As per Cl No.3.5_above 5 Enclosure material Aluminium As per Cl.No.3.6

above 6 Short circuit withstand

(Symmetrical) current for 1 sec kA (r.m.s) 65 (45.7kA as per Cl.No.4.12 of System study report for Arar) As per Cl.No3.8 above and as per System Study report for

(8)

ISSUE P0B

Sl.No. Parameter Unit 480V Bus_Duct Reference

7 Peak withstand current ₍_peakkA ₎

137 (113.6kA as per Cl.No.4.12 of System study report for Arar) As per System Study report for
