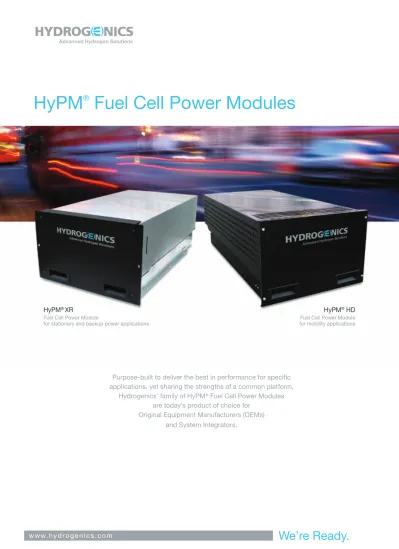

Purpose-built to deliver the best in performance for specific applications, yet sharing the strengths of a common platform,
Hydrogenics’ family of HyPM® Fuel Cell Power Modules are today’s product of choice for
Original Equipment Manufacturers (OEMs) and System Integrators.
HyPM® XR
Fuel Cell Power Module
for stationary and backup power applications
HyPM® HD
Fuel Cell Power Module for mobility applications
HyPM
®Fuel Cell Power Modules
Designed and built on a proven common platform, Hydrogenics’ HyPM
®HD and HyPM
®XR
Fuel Cell Power Modules are ‘tailored to purpose’ for a range of mobility and backup power
applications. Our customer-driven design differentiations ensure a cost-effective HyPM
product that meets the demanding criteria for your application.
...Powered with Purpose!
Hydrogenics HyPM XR Fuel Cell Power
Modules deliver the reliability that backup
power markets demand
When business relies on critical networks, such as database centers or telecom infrastructure, we know that customers demand the utmost in reliability. Reliability that ensures that there is always high quality power when needed, the very moment it is needed, and at the right cost.
Powered for purpose …the rack-mountable HyPM XR, suited for both AC and DC backup power applications, is built around Hydrogenics’ unhumidified PEM (proton exchange membrane) fuel cell stack technology. This innovative architecture makes it a simpler system with fewer parts, meaning fewer failure modes and lower life-cycle costs for extended run backup power applications.
HyPM XR is available in power outputs of 4 kW, 8 kW and 12 kW.
Hydrogenics HyPM HD Fuel Cell Power
Modules deliver the durability and power
density that mobility markets demand
When putting power on board a vehicle, a prime requirement is having a robust system that can log the hours in rugged conditions, within tight space and weight tolerances. Adding to the challenge, efficiency is paramount in order to manage fuel costs and maximize vehicle range.Powered for purpose… the HyPM HD is built around Hydrogenics’ proprietary PEM stack technology using high durability components designed for demanding dynamic conditions. This low profile module delivers world-leading efficiency from a low pressure design, all within a compact package. And integrating a fuel cell system with other powertrain components does not come any easier than it does with a HyPM product. HyPM HD is available in power outputs of 4 kW, 8 kW, 12 kW, 16 kW, 33 kW and 100 kW.
H2X® 506 Fuel Cell Stack
At Hydrogenics we started with leading fuel cell technology and put it on a robust platform
in an optimized operating environment. The result – a fusion of strengths and features that
HyPM
®customers experience across our full product offering of Fuel Cell Power Modules.
Whatever the application, customers benefit from HyPM’s extensive track record in on-bench testing and real-time deployments across a wide range of mobility and stationary power load profiles. Also they benefit from manufacturing cost efficiencies that Hydrogenics passes along to the customer.
Hydrogenics proven low pressure Proton Exchange Membrane (PEM) fuel cell stack architecture is at the core of HyPM’s superior product offering.
Common Platform
* based on HyPM® 12 Power Module
% 0 % 0 2 % 0 4 % 0 6 % 0 8 % 0 0 1 Efficiency [% ]
User Current [A] 0 10 20 30 40 50 60 0 50 100 150 200 250 300 350 0 50 100 150 200 250 300 350
Available Current [A]
Voltage [VDC ] 0 2 4 6 8 10 12 14 16 18 Power [kW]
Typical HyPM* Power Curve & Operating Characteristics Typical HyPM* Efficiency
DYNAMIC RESPONSE
• Full operating range from idle to full power in less than 7 seconds
• Rapid response to load changes
EFFICIENCY
• High peak operating efficiency > 50%
EASE OF INTEGRATION
• Simple electrical and mechanical interfaces • Liquid cooling for efficient heat removal • Fully compatible with hybrid configurations
HIGH RELIABILITY
• Unlimited start-stop cycles (patented) • Built-in advanced diagnostics and controls (patent pending)
COMPACT
• Industry leading gravimetric and volumetric power density
ENVIRONMENT FRIENDLY
• Zero emissions • Quiet operation
SCALABLE
• Scalable power outputs ranging from 4 kW to
100 kW
• Multiple modules configurable in series or parallel
BALANCE OF PLANT INCLUDED
• Air management • Hydrogen management
• Onboard module controller with CAN Bus interface
• Cell voltage and system monitoring
• Coolant pump (supplementary coolant control output signal also provided)
• Integration and operation manual • Warranty
HyPM
®Power Module Specifications
Module Specifications Max Power 2 (kW) Voltage Range (VDC) Maximum Operating Current (A) Dimensions (L x W x H) (mm) Mass (kgs) Peak Net Efficiency (%) Mounting Config. Installation Requirements HyPM® XR 4 4.5 20 to 40 225 701 x 446 x 302 76 51 RackMounted VentilationForced
HyPM® XR 8 8.5 20 to 40 380 701 x 446 x 302 76 51 Rack
Mounted VentilationForced
HyPM® XR 12 1 12.5 30 to 60 350 813 x 446 x 301 80 53 Rack
Mounted VentilationForced
HyPM® HD 4-200 4.5 40 to 80 95 850 x 360 x 255 60 50 N/A Vented
Covers
HyPM® HD 4-500 4.5 20 to 40 225 785 x 446 x 301 78 51 N/A Vented
Covers
HyPM® HD 8-200 8.5 40 to 80 190 850 x 360 x 255 60 50 N/A Vented
Covers
HyPM® HD 8-500 8.5 20 to 40 380 785 x 446 x 301 78 51 N/A Vented
Covers
HyPM® HD 12 12.5 30 to 60 380 847 x 446 x 301 85 53 N/A Vented
Covers
HyPM® HD 16 16.5 40 to 80 380 910 x 446 x 301 92 55 N/A Vented
Covers
HyPM® HD 33 33 80 to 160 380 1150 x 1050 x 450 325 54 N/A Vented
Covers
HyPM® HD 100 100 240 to 480 380 1150 x 1500 x 850 750 54 N/A Vented
Covers
(1) XR 12 UL Certified, others available on request (2) Beginning of life, continuous power
All Modules available with CE Certification Other module sizes available upon request
Built on the common platform of HyPM strengths, our HyPM XR modules
are designed in accordance with the UL and CE certifications and
are further tailored to deliver:
Built on the common platform of HyPM strengths, HyPM HD is specifically designed to deliver:
RELIABILITY
• Reduced parts count enabled by
proprietary unhumidified stack technology • Patent pending control technology
COST-EFFECTIVENESS
Further cost reductions through: • optimized BOP
• elimination of humidification sub-system
Designed for manufacturability: • low cost single frame platform • high volume components
ACCESSORIES
• power electronics (DC-DC Inverters) • rack (10, 20 & 30 kW)
• thermal management • diagnostic software
• contact [email protected] for a complete list
HyPM
®XR and HD Power Modules
DURABILITY AND RELIABILITY
• Longer life components
• Patent pending control technology • Robust design to withstand the demands of mobility applications • > 10,000 hour life
COMPACT POWER
• High volumetric and gravimetric power density • electrical terminals • coolant inlet • hydrogen inlet • hydrogen outlet • coolant outlet • air outlet • communication interface Integration Interface
Many of our Power Systems customers look to us, not only for world-leading fuel cell solutions, but also for innovative hydrogen supply and refueling solutions. One way we can do this is by working together with our OnSite Generation business group to propose a suitable hydrogen station to meet the needs of these customers, and then undertake the necessary collabora-tion to make it happen.
Hydrogenics OnSite Generation offers a full line of HySTAT™ hydrogen stations and turnkey hydrogen generation solutions for a wide range of hydrogen applications including industrial processes, vehicle
refueling and distributed power. Hydrogenics’ world-wide leadership in scalable electrolysis-based products and integrated reformer-based systems positions the company to offer a full array of hydrogen generation and refueling options. From a selection of versatile modular components, Hydrogenics can propose the optimum HySTAT™ hydrogen station configuration that precisely meets a customer’s specific operational criteria for hydrogen generation, storage, and dispensing. With its complete suite of hydrogen products and service solutions, Hydrogenics is committed to changing power and powering change.
HYDROGENICS: Delivering the Complete Package
...Powered with Purpose!
Hydrogenics Corporation is a recognized world leader in the development and manufacturing of hydrogen and fuel cell products for a full range of energy and industrial applications.
H YP M -P ow er M od ul es : 0 3-20 10 www.hydrogenics.com
