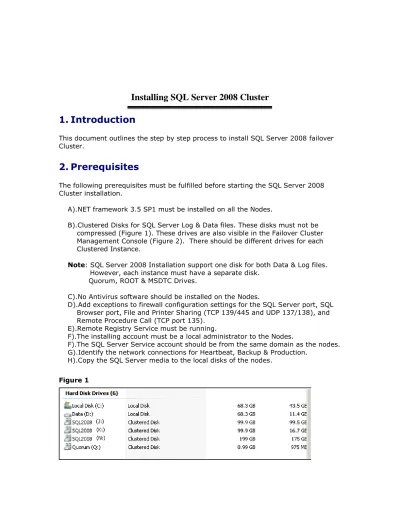

Installing SQL Server 2008 Cluster
1. Introduction
This document outlines the step by step process to install SQL Server 2008 failover Cluster.
2. Prerequisites
The following prerequisites must be fulfilled before starting the SQL Server 2008 Cluster installation.
A).NET framework 3.5 SP1 must be installed on all the Nodes.
B).Clustered Disks for SQL Server Log & Data files. These disks must not be compressed (Figure 1). These drives are also visible in the Failover Cluster Management Console (Figure 2). There should be different drives for each Clustered Instance.
Note: SQL Server 2008 Installation support one disk for both Data & Log files. However, each instance must have a separate disk.
Quorum, ROOT & MSDTC Drives.
C).No Antivirus software should be installed on the Nodes.
D).Add exceptions to firewall configuration settings for the SQL Server port, SQL Browser port, File and Printer Sharing (TCP 139/445 and UDP 137/138), and Remote Procedure Call (TCP port 135).
E).Remote Registry Service must be running.
F).The installing account must be a local administrator to the Nodes.
F).The SQL Server Service account should be from the same domain as the nodes. G).Identify the network connections for Heartbeat, Backup & Production.
H).Copy the SQL Server media to the local disks of the nodes.
Figure 2
The following information must be in your note book or NotePad before you start Installing SQL Server failover cluster.
1. SQL Server Service Account(s)/Password(s).
2. SQL Server Cluster Network Name(s) & Instance Name(s).
3. SQL Server Cluster Network IP Address(s) for each Network Name. 4. Subnet Mask.
Note: The SQL Server 2008 Cluster installations are to be performed on both the
3. Installing SQL Server 2008 Failover Cluster
Installing SQL Server 2008 Failover Cluster
It’s a best practice to restart the Cluster Nodes before starting the SQL Server Installation.
B).Select Installation on the left hand navigation and click on new SQL Server Failover Installation.
C).The Setup Support Rules will validate the requirements. There should not be any failure to proceed.
The next screen will prompt for the license for install. Select the license type and click on next.
D). The feature selections windows will appear. Select the required
E).The Instance configuration window will prompt for SQL Server Network Name, the Instance Name and the root directory for the instance. Click the next button to continue.
G).The Cluster Resource Group Windows Will display the names of the existing Instances (if any) created on the Cluster. The in the drop down combo box named SQL Server Cluster Resource Name you will be prompted to select the Cluster Resource name.
H).The Cluster Disk selection window will prompt to adopt the cluster disks involved in this instance of SQL Server.
Note: One disk is mandatory to be selected. However, you can have more
I). Cluster Network Configuration window will prompt for IP address for the failover cluster.
K). The next screen will prompt for SQL Server Service account setup.
Note: The SQL Server DB Engine and Agent must be on Manual for Clustered
L).The Database Engine configuration will appear with three tabs: Account Provisioning for Authentication Mode and Instance Administrator. Data
Directories will prompt for Drives and directories for Data/log files, tempdb
directory and Backup Directory. The Filestream will prompt for File stream
N).The Cluster Installation rules will validate any potential issues that might arise which executes the installation. Any issues must be resolved before the
Installation begins.
O). Ready To Install will summaries all the installation selection. The configuration file path will also show the Configuration file path.
Installing SQL Server 2008 Failover Cluster on Second Node
A. On the secondary node(s) launch the setup as in “A” of First Node installation. B. Click on the Installation on left side navigation panel and select Add Node to
Cluster.
C. Continue on Setup Support Rules, Product Key and License Terms. D. The Cluster Node configuration will prompt to select SQL Server Instance
Name from the Combo box. Select the SQL Server Cluster Name installed in
F. The Error & Usage reporting should not be checked in Production, and the Add Node Rules will be validated.
I). Now Installation of Second is completed and Ready with SQL Failover Cluster.
Note: Before putting it in production check the Manual and Automatic
