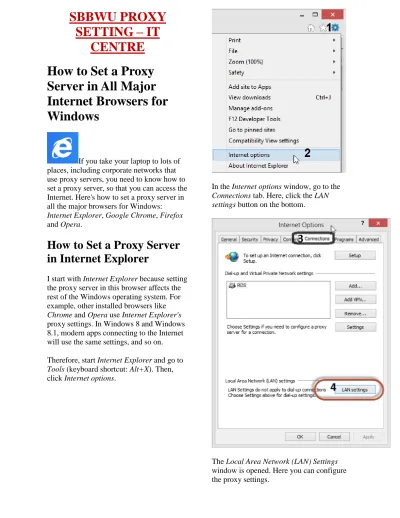

SBBWU PROXY
SETTING – IT
CENTRE
How to Set a Proxy
Server in All Major
Internet Browsers for
Windows
If you take your laptop to lots of places, including corporate networks that use proxy servers, you need to know how to set a proxy server, so that you can access the Internet. Here's how to set a proxy server in all the major browsers for Windows:
Internet Explorer, Google Chrome, Firefox
and Opera.
How to Set a Proxy Server
in Internet Explorer
I start with Internet Explorer because setting the proxy server in this browser affects the rest of the Windows operating system. For example, other installed browsers like
Chrome and Opera use Internet Explorer's
proxy settings. In Windows 8 and Windows 8.1, modern apps connecting to the Internet will use the same settings, and so on. Therefore, start Internet Explorer and go to
Tools (keyboard shortcut: Alt+X). Then,
click Internet options.
In the Internet options window, go to the
Connections tab. Here, click the LAN settings button on the bottom.
.
5.1 Use a proxy server with an IP address and a specific port, check the box that says
"Use a proxy server for your LAN". Then, in Address field below, type the IP address of
the the server i.e my.proxy.local 5.2 In the Port field type the port that is 3128.
5.3 Also check the box that says "Bypass
proxy server for local address"
5.4 When done setting things up, click OK to save your changes.
How to Set a Proxy Server
in Firefox
In Firefox, click the Firefox button on the top-left. Then, click Options.
The Options window is opened. Click the
Advanced section.
Here you will find several tabs. Click
The Connection Settings window is opened. Here you can set how Firefox connects to the Internet and whether it uses a proxy or not.
Check on "Manual proxy
configuration" - when enabled, you
can type the IP address
my.proxy.local and port of the proxy 3128 as shown in the figure below:
To save your settings, click OK.
How to Set a Proxy Server
in Google Chrome
Google Chrome doesn't offer any special
configuration options for setting a proxy server because it uses the proxy settings found in Internet Explorer. However, you can start the configuration process from
Google Chrome and it opens the Internet options window from Internet Explorer.
Here's how it works:
Click the "Customize and control Google
Chrome" button on the top-right. Then, click Settings.
The list of settings is extended. Scroll down until you find the Network section. Click
"Change proxy settings" and the Internet options window from Internet Explorer is
opened.
To configure your proxy settings, read the first section of this article.
How to Set a Proxy Server
in Opera
Like Google Chrome, Opera also doesn't offer any special configuration options for setting a proxy server. It uses the proxy settings existing in Internet Explorer.
Click the Opera button on the top-left. Then, click Settings.
In the list of Settings for Opera, scroll down to the Networks section.
Click "Change proxy settings" and the
Internet options window from Internet Explorer is opened. To configure your proxy
settings, read the first section of this guide.
Unlike Google Chrome, Opera provides a checkbox that says "Use proxy for local
servers". When enabled, Opera will use the
How to Turn Off the Use of
a Proxy Server
If you have taken your work laptop home or you have changed the network connection so that you no longer need a proxy server, you can easily disable it.
For Internet Explorer, Google Chrome and
Opera, go to the Internet options window, as
shown in the first section of this guide. Then, go to the Connections tab. Here, click the LAN settings button on the bottom. Uncheck "Use a proxy server for your
LAN", and click OK.
In Firefox, use the same procedure as for setting a proxy server. In the Connection
Settings window, check No proxy and click OK.
How to Set a Proxy Server
on Windows 8.1 Tablet or
Hybrid Device
One of the small but good improvements in Windows 8.1 is that it provides a touch-friendly way to set a proxy server. This proxy is then used by Internet
Explorer and modern apps from the
Windows Store that need to access the web.
In Windows 8, even if you had a tablet or a hybrid device like Microsoft Surface, you had to use the desktop version of Internet
Explorer to set a proxy server. Here's how to
set a proxy server in Windows 8.1, using touch.
First, Go to PC Settings
Then, click or tap Network.
Here you will find several sub-sections, including the one that interests us: Proxy. Click or tap on it.
On the right, you will find two sections that can be configured: Automatic proxy setup and Manual proxy setup.
Select “Manually Set a Proxy Server”
There, turn the "Use a proxy server" switch to On.
Then, in the Address field, type the IP address my.proxy.local and In the Port field, type the port i.e 3128.
How to Turn Off the Use of
a Proxy Server in Windows
8.1
If you have taken your device to a new location with a different Internet connection, you might need to turn off the use of the proxy server. To do this, follow the path described above, to PC Settings -> Network
-> Proxy.
If you have set a proxy with an automatic configuration script, then set the "Use
automatic configuration script" switch to Off.
If you have set a manual proxy, then set the
"Use a proxy server" switch to Off.
Your proxy settings are stored by Windows 8.1 by they are not used when turned off. When you get back to the network where you need to use the proxy server, you turn the same switch back to On.
How-To Configure a Proxy Server in
an Android Smartphone for Opera
browser:
Normally most of the Android smartphones have an option to configure proxy settings (i.e. Settings->Wireless & networks->Wi-Fi settings and press the menu button->Advanced). But few of the latest Android phones don’t have an option to configure the proxy settings. In such a case you can use “Opera Mobile” instead of the default browser. You can download “Opera Mobile” from the Google Play.Turn on your Wi-Fi and get connected to the desired Wi-Fi network. Then follow these steps
1. Type opera:config in the address bar and click go.
2. Type proxy in the Quick find box. 3. Under the Developer Tools tab
Uncheck the "Proxy Auto Connect” check box.
Type the proxy port in the Proxy Port text box.
Click on the Save button. 4. Under the proxy tab
Make sure that the “Enable HTTP 1.1 for proxy” and “Enable start with HTTP 1.1 for proxy” are unchecked.
Type in the proxy name in the “HTTP server” and “HTTPS server”text box(Format of the proxy name: “proxy.*.*:port” -without the quotes). For example
proxy.aaa.net:8080.
Click on Save button.
For Android Phone
1.
Go to mobile Settings↓
2.
Select Wi-Fi↓
3.
Select connected network ↓4.
Tap on it for 3 seconds ↓Show advanced options ↓
Proxy settings manual Address: My.proxy.local
Port: 3128
