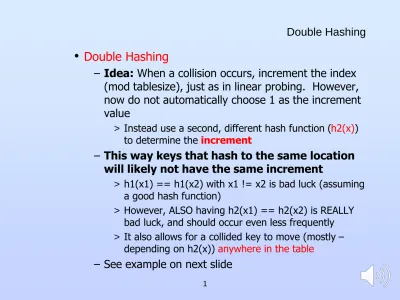

Double Hashing
• Double Hashing
– Idea: When a collision occurs, increment the index
(mod tablesize), just as in linear probing. However,
now do not automatically choose 1 as the increment
value
> Instead use a second, different hash function (h2(x)) to determine the increment
– This way keys that hash to the same location
will likely not have the same increment
> h1(x1) == h1(x2) with x1 != x2 is bad luck (assuming a good hash function)
> However, ALSO having h2(x1) == h2(x2) is REALLY bad luck, and should occur even less frequently
> It also allows for a collided key to move (mostly – depending on h2(x)) anywhere in the table
– See example on next slide
Double Hashing Example
Index Value Probes 0
1 2 3 4 5 6 7 8 9 10
14
17
25
37
34
16
h(x) = x mod 11
h (x) = (x mod 7) + 1
26
1
1
2
1
1
1
2
h(x) = 3
h(x) = 4
Compare to Slide 18 of Lecture 5
h2(x) = 5
h2(x) = 6
h(x) = 4
h(x) = 6
h(x) = 3
h(x) = 1
h(x) = 5
Double Hashing
• Note that we still get collisions with DH
– And even multiple collisions in one operation
– In this case we iterate just as we do with LP, using
the DH increment multiple times
• However, because h2(x) varies for different keys, it
allows us to spread the data throughout the table,
even after an initial collision
• But we must be careful to ensure that double
hashing always "works"
– Make sure increment is > 0
> Note the +1 in our h2(x): h2(x) = (x mod 7) + 1
> Our mod operator can result in 0, which is fine for an absolute address, but not for an increment!
Double Hashing
– Make sure no index is tried twice before
all are tried once
> Why? Think about this?
> Consider table to right and assume:
> h(Z) = 3 and h2(Z) = 2
> What would happen when we search the table?
> How can we fix this?
> Make M a prime number
– Note that these were not issues for
linear probing, since the increment is
clearly > 0 and if our increment is 1 we
will clearly try all indices once before
trying any twice
Index Value 0
1 V
2
3 W
4
5 X
6
7 Y
Collision Resolution
• As increases, double hashing shows a definite
improvement over linear probing
– Discuss
• However, as 1 (or as N M), both schemes
degrade to Theta(N) performance
– Since there are only M locations in the table, as it fills
there become fewer empty locations remaining
– Multiple collisions will occur even with double hashing
– This is especially true for inserts and unsuccessful finds
> Both of these continue until an empty location is found, and few of these exist
> Thus it could take close to M probes before the collision is resolved
> Since the table is almost full Theta(M) = Theta(N)
Open Addressing Issues
Open Addressing Issues
• We have just seen that performance degrades as N
approaches M
– Typically for open addressing we want to keep the table
partially empty
> For linear probing, = 1/2 is a good rule of thumb
> For double hashing, we can go a bit higher (3/4 or more)
– How can we do this?
> Monitor the logical size (number of entries) vs. physical size (array length) to calculate
> Resize the array and rehash all of the values when gets past the threshold
> Rehashing all of the data seems like a LOT of work!
> Is this better than leaving it as is?
> We will discuss
Open Addressing Issues
• What about delete?
– Why is this a problem?
– Consider the LP table on the right
and assume H(Z) == 2 but it was
placed in index 4 due to a
collision
– Search for Z would try 2, 3, 4,
finding Z at location 4
– Now delete(Y) and search for Z
again
> Search would stop at index 3 with not found even though Z is present
– Deleting Y broke the chain
• How can we fix this?
Index Value 0
1 W
2 X
3 Y
4 Z
5 6 7
Index Value 0
1 W
2 X
3 4 5 6 7
Open Addressing Issues
– One solution (see p. 471 of text)
> Rehash all keys from deleted key to end of cluster
> Note that in this case Z still hashes to 2 and will move to position 3 and once again be within the chain
> Will this be a lot of work?
> Discuss
– Will not work with double hashing
though – why?
– What can we do with double
hashing?
> Discuss
Y
Z
Open Addressing Issues
– Can we use hashing without delete?
> Yes, in some cases (ex: compiler using language keywords)
> We build a hash table, use it for searches, and then throw it away entirely
> We never delete individual items
Closed Addressing
• Closed Addressing
Recall that in this scheme, each location in the
hash table represents a collection of data
• If we have a collision we resolve it within the
collection, without changing hash addresses
Most common form is separate chaining
• Use a simple linked-list at each location in the table
– Look at example
> Using the same data that we previously used for linear probing and separate chaining
– Discuss placement of nodes in chain
Separate Chaining
Index Value 0
1 2 3 4 5 6 7 8 9 10
14
17
25
37
34
16
26
h(x) = 3
h(x) = 4
h(x) = 4
h(x) = 6
h(x) = 3
h(x) = 1
h(x) = 5
h(x) = x mod 11
Separate Chaining
Performance of separate chaining?
• Performance is dependent upon chain length
• Clearly a not found search must traverse entire chain
– Chain length is determined by the load factor,
> Ave chain length = (total # of nodes)/(M)
> But (total # of nodes) == N so
> Ave chain length == N/M =
– As long as is a small constant, performance is still
Theta(1)
> Ex: N = 150, M = 100 = 1.5
> This is still clearly Theta(1)
> Note also that N can now be greater than M
> More graceful degradation than open addressing schemes
Separate Chaining
– However, if N >> M, then it can still degrade to
Theta(N) performance
> Ex: N = 1000, M = 10 = 100
> Thus we may still need to resize the array when gets too big
– A poor hash function can also degrade this into
Theta(N)
> Think about what will happen in this case
> Discuss
• Can we develop a closed addressing scheme that
can mitigate the damage caused by a poor hash
function?
– Think about this!
Collision Resolution
What if we used "better" collections at each index?
• Sorted array?
– Space overhead if we make it large and copying overhead
if we need to resize it
– Inserts require shifting
• BST?
– Could work
> Now a poor hash function would lead to a large tree at one index – still Theta(logN) as long as tree is relatively
balanced
