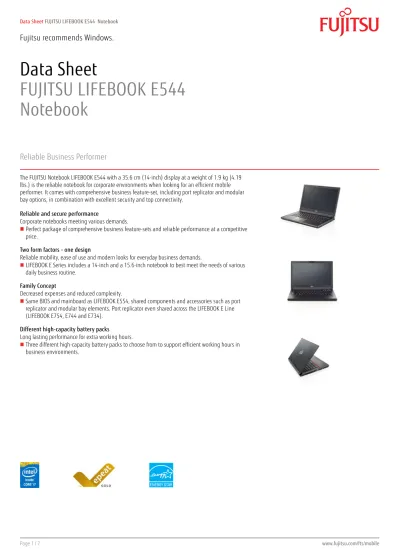

Data Sheet
FUJITSU LIFEBOOK E544
Notebook
Reliable Business Performer
The FUJITSU Notebook LIFEBOOK E544 with a 35.6 cm (14-inch) display at a weight of 1.9 kg (4.19 lbs.) is the reliable notebook for corporate environments when looking for an efficient mobile performer. It comes with comprehensive business feature-set, including port replicator and modular bay options, in combination with excellent security and top connectivity.
Reliable and secure performance
Corporate notebooks meeting various demands.
Perfect package of comprehensive business feature-sets and reliable performance at a competitive price.
Two form factors - one design
Reliable mobility, ease of use and modern looks for everyday business demands.
LIFEBOOK E Series includes a 14-inch and a 15.6-inch notebook to best meet the needs of various daily business routine.
Family Concept
Decreased expenses and reduced complexity.
Same BIOS and mainboard as LIFEBOOK E554, shared components and accessories such as port replicator and modular bay elements. Port replicator even shared across the LIFEBOOK E Line (LIFEBOOK E754, E744 and E734).
Different high-capacity battery packs
Long lasting performance for extra working hours.
Components
Processor Intel® Core™ i7-4712MQ processor (2.3 GHz, up to 3.3 GHz, 6 MB) * Intel® Core™ i5-4210M processor (2.6 GHz, up to 3.2 GHz, 3 MB) * Intel® Core™ i3-4100M processor (2.5 GHz, 3 MB) *
Intel® Core™ i3-4000M processor (2.4 GHz, 3 MB) *
Intel® Core™ i5-4310M processor (2.7 GHz, up to 3.4 GHz, 3 MB) *Processor only for retail, SMB, education and government
Operating systems
Operating system Windows 7 Professional 64-bit Windows 8.1 Pro 64-bit Windows 8.1 64-bit
Operating system compatible Windows 7 Professional 32-bit Windows 8 64-bit
Memory modules 2 GB (1 module(s) 2 GB) DDR3 L, 1,600 MHz, PC3-12800, SO DIMM 4 GB (1 module(s) 4 GB) DDR3 L, 1,600 MHz, PC3-12800, SO DIMM 8 GB (1 module(s) 8 GB) DDR3 L, 1,600 MHz, PC3-12800, SO DIMM
Hard disk drives (internal) SSHD, 5,400 rpm, 500 GB / 8 GB SSD Cache, 2.5-inch, S.M.A.R.T. SSD SATA III, 256 GB, 2.5-inch
SSD SATA III, 128 GB, 2.5-inch
SATA, 7,200 rpm, 500 GB, 2.5-inch, S.M.A.R.T. SATA, 5,400 rpm, 500 GB, 2.5-inch, S.M.A.R.T. SATA, 5,400 rpm, 320 GB, 2.5-inch, S.M.A.R.T.
Hard disk notes One Gigabyte equals one billion bytes, when referring to hard disk drive capacity. Accessible capacity may vary, also depending on used software.
Up to 20 GB of HDD space is reserved for system recovery Internal HDD interface: S-ATA III (6GBit/s)
2nd hard disk drive
Modular bay options DVD Super Multi Weight saver
Interface add on cards/components (optional)
3G/4G (optional) Sierra Wireless EM8805 (Downlink speed 42 Mbit/s, Uplink speed 5.76 Mbit/s)
LTE Sierra Wireless EM7305 (Downlink speed up to 100 Mbit/s, Uplink speed up to 50 Mbit/s) WLAN (optional) Intel® Wireless-N 7260 2x2 b/g/n with integrated Bluetooth 4.0
Intel® Dual Band Wireless-N7260NV ac with integrated Bluetooth 4.0
Display 35.6 cm (14-inch), LED backlight, (HD+), Anti-glare display, compound, 1,600 x 900 pixel, 400:1, 250 cd/m² 35.6 cm (14-inch), LED backlight, (HD), Anti-glare display, compound, 1,366 x 768 pixel, 350:1, 200 cd/m²
Multimedia
Camera Built-in webcam, HD (Microsoft® Lync™)
Base unit
Base unit LIFEBOOK E544 HM86
General system information
General system information
Memory slots 2 DIMM (DDR3L)
Supported capacity RAM (max.) 16 GB
Memory notes DDR3L – 1,600 MHz
LAN 10/100/1,000 MBit/s Realtek RTL8111G
BIOS features BIOS based on Phoenix SecureCore
Audio type On board
Audio codec Realtek ALC3233
Audio features Stereo speakers, DTS Boost™ - maximizes acoustic power of your notebook by boosting perceived overall level of the mix
Display
Display notes ISO 9241-307 - Pixel class II
Viewing angle: Left/Right 45°, Top 15°, Bottom 35°; Color Gammut: 45%
Graphics
Base unit LIFEBOOK E544 HM86
TFT resolution (DisplayPort) up to 2,560 x 1,600 TFT resolution (VGA) up to 1,920 x 1,200 TFT resolution (DVI on Port Replicator) up to 1,920 x 1,200 Graphics brand name Intel® HD Graphics 4600
Graphics notes Shared memory depending on main memory size and operating system
Interfaces
DC-in 1
Audio: line-out / headphone 1 Audio: line-in / microphone 1
Internal microphones 2x digital microphones (array)
USB 3.0 total 3 (1 with Anytime USB Charge functionality)
VGA 1
DisplayPort 1
Ethernet (RJ-45) 1
Memory card slots 1
SmartCard slot 1 (optional)
SIM card slot 1 (only for models with integrated 3G/UMTS or 4G/LTE module)
Port Replicator interfaces (optional)
DC-in 1 (19V)
Power on switch 1
Audio: headphone 1
Audio: microphone 1
USB 3.0 total 4
DisplayPort 2 (up to 2560 x 1600) - 1 DP (next to DVI) is shared with DVI, works when DVI not connected
VGA 1 (up to 1920 x 1200)
DVI 1 (up to 1920 x 1200) - shared with DP (next to DVI) - works when DP (next to DVI) not connected
Ethernet (RJ-45) 1 (10/100/1000)
Kensington Lock support 1 (Portrep & System)
eSATA 1
Notes Port replicator supports 0-Watts functionality
Keyboard and pointing devices
Spill-resistant standard keyboard w/o touchstick
Number of keyboard keys: 85, Keyboard pitch: 19.0 mm, Keyboard stroke: 1.7 mm Touchpad with two mouse buttons
Wireless technologies
Antennas 2 Dual band WLAN antennas, 2 UMTS/LTE antennas optional
Bluetooth v4.0
WLAN encryption WEP, WPA, WPA2
WLAN notes Import and usage according to country-specific regulations.
WiDi support Yes (with Intel W-LAN)
Power supply
AC Adapter 19 V / 65 W (3.42 A), 100 V - 240 V, 50 Hz - 60 Hz, Standard AC-Adapter, 0.250 kg, 108x46x30 mm 19 V / 80 W (4.22 A), 100 V - 240 V, 50 Hz - 60 Hz, 0-Watt AC Adapter technology, 0.340 kg, 140x56x28 mm 19 V / 90 W (4.74 A), 100 V - 240 V, 50 Hz - 60 Hz, (grounded) AC-Adapter
1st battery options Li-Ion battery 6-cell, 5,600/5,800 mAh, 63 Wh Li-Ion battery 6-cell, 6,400/6,700 mAh, 72 Wh Li-Ion battery 6-cell, 4,500 mAh, 49 Wh
Runtime 1st battery up to 11h 20 min, Bapco®MobileMark2007 Productivity Workload, Win7 OS
Noise emission
Noise emission Please refer to the Eco Declaration
Dimensions / Weight / Environmental
Dimensions (W x D x H) 338 x 231 x 25.1 - 31.4 mm
Weight from 1.9 kg (4.2 lbs)
Weight notes Incl. weight saver. Weight may vary depending on actual configuration. Operating ambient temperature 5 - 35 °C (41 - 95 °F)
Operating relative humidity 20 - 80 %
Compliance with standards
Europe CE
CB
Global RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronic equipment) ENERGY STAR® 6.0
EPEAT® Gold (dedicated regions)
Microsoft Operating Systems (HCT / HCL entry / WHQL) Compliance link http://globalsp.ts.fujitsu.com/sites/certificates
Additional Software
Additional software (preinstalled) Adobe® Reader® (pdf reader) Fujitsu LIFEBOOK Application Panel Fujitsu Display Manager
Power Saving Utility
Fujitsu Plugfree Network (network management utility) EasyGuide online user documentation
McAfee Multi Access Security (anti-virus and internet security software; 60 days trial version) Microsoft Office (buy license to activate the pre-installed Microsoft Office)
Win7: Fujitsu Recovery (hard disk based recovery)
Win8.1: Microsoft Push Button Recovery (hard disk based recovery) Additional software (optional) Drivers & Utilities DVD (DUDVD)
Connection manager (optional with 4G/LTE or 3G/UMTS) CyberLink PowerDVD DVD (playback software for DVD) CyberLink YouCam (webcam software)
Manageability
Manageability technology DeskUpdate Driver management PXE 2.1 Boot code
Wake-on-LAN
Wake up from S5 (off mode) Manageability software DeskView Client
DeskView Instant BIOS Management
Manageability
DeskView components BIOS Management
Alarm Management Driver Management Security Management Inventory Management
Supported standards WMI
PXE
BootP (made4you)
Security
Physical Security Kensington Lock support
System and BIOS Security Computrace® ready BIOS EraseDisk (optional)
Optional: Trusted platform module (TPM 1.2) Advanced Theft Protection (Computrace® only)
User Security Hard disk password
Access protection via internal SmartCard reader (optional) User and supervisor BIOS password
Workplace Protect (secure authentication solution) Embedded fingerprint sensor (optional)
Smartcard reader (optional)
Warranty
Standard Warranty 1 year (depending on country)
Service level Collect & Return Service / Bring-in Service (for countries within region FTS CEMEA&I, for all other countries depending on local regulations)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty
Product Support Services - the perfect extension
Recommended Service 9x5, Response Time: Next Business Day Spare Parts availability 5 years after end of product life Service Weblink htttp://ts.fujitsu.com/Supportservice
Recommended Accessories
Port Replicator for LIFEBOOK E Series (E753, E743, E733, E754, E744, E734, E554 and E544) and CELSIUS H730
Flexibility, expandability, desktop replacement, investment protection – to
name just a few benefits of Fujitsu’s docking options. Order Code: S26391-F1337-L100
Order Code: S26391-F1386-L510 Prestige Pro Backpack 14 The Fujitsu Prestige Pro Backpack 14 protects your belongings with a touch
of luxury. It features a roomy main compartment with a padded notebook slot 35.6 cm (14-inch) and pockets with separate areas for smaller items to keep you organized. Real leather straps keep you comfortable on the go, while making a great impression.
Order Code: S26391-F1244-L400 Order Code: S26391-F1244-L700 Wireless Notebook Mouse
WI610
The Wireless Notebook Mouse WI610 uses the latest wireless 2.4 GHz technology, and an ultra-high resolution switchable sensor to give you the precision and reliability you need (1000/1500/2000 dpi). Sporting a stylish silver-black finish, the WI610 wireless mouse is well suited to all environments.
