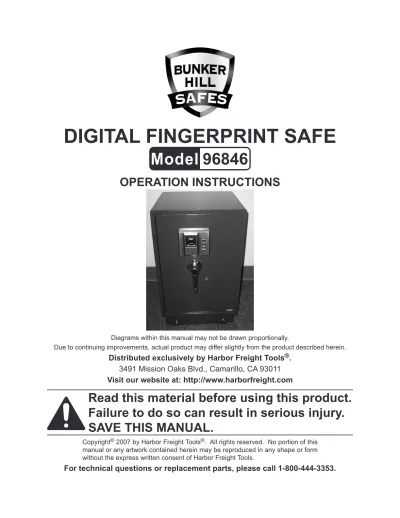

Digital Fingerprint saFe
Model
96846
OperatiOn instructiOns
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
read this material before using this product.
Failure to do so can result in serious injury.
saVe tHis Manual.
Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this
speciFicatiOns
Materials 11GA. Plate Steel Housing 4GA. Steel Door Frame 3GA. Steel Door
Door Mounting 9mm Diameter Dual Steel Hex Socket Pins (Screws) Door Lock Bolt Steel Throw 3/4” Dia. X 0.812”
Safe Opening Options Fingerprint Identification (Program up to 30 Fingerprints) Open Door Digital Coding (Requires 11 digits to open) 2 Steel Keys
Features Red & Green LEDs (with sound) Back-up Power Source (4 AA batteries included)
Included Items Two Keys, Four 1-1/4” x 3/8” Concrete Bolts, Felt Pad, Shelves
save this Manual
You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Write the product’s serial number in the back of the manual near the as-sembly diagram, or write month and year of purchase if product has no number. Keep this manual and invoice in a safe and dry place for future reference.
general saFetY rules
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Stay alert. Watch what you are doing, and use common sense when operating the Safe. Do not use while tired or under the influence of drugs, alcohol, or medi-cation.
Maintain a safe working environment. Make sure there is adequate surrounding workspace. Do not use this product in a damp or wet location.
Use safety equipment. Always wear ANSI approved eye protection when install-ing this product.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the product’s operation. If damaged, have the product serviced before using.
This is not a toy. Never allow children to play in or with the Safe.
OperatiOn
Remove the round plastic keyhole cover on the front of the Safe. (see Figure 1)
Use a key to unlock the Safe. The keys should be stored in a secure place, away from the lo-cation of the Safe. Do not store the keys in the Safe, since they may be needed to provide ac-cess to the Safe if the batteries fail.
Replace the cover firmly back onto the door of the Safe. Place shelves on braces inside the Safe, and place felt in the bottom of the Safe.
Remove the cover of the Battery
Compartment just inside the Safe door and, observing polarity, install four 1.5V AA-size Batteries. Replace cover. (see Figure 2)
Open Door code
The open door code is a series of 11 digits that can be typed on the Buttons to open the Safe. The factory default code is 1-2-3-1-2-3-1-2-3-1-2, this code should be changed immediately.
The new code cannot begin with a “0”. That aside, any combination with a total of 11 digits using 0, 1, 2, and 3 can be entered. Write the new 11 digit code down and keep it in a secure location.
To set a new Open Door Code, hold the Initialize Button, located on the inside of the Safe door near the battery compartment, down for 6 seconds. (See Figure 2) The Safe will beep twice to indicate that the Buttons are ready for input.
Input the new 11 digit code once without pausing. The Safe will beep and the green LEDs will flash to show acceptance of the new Open Door Code.
Battery compartment (shown without cover)
initialize Button
Figure 2
Fingerprints
registering Fingerprints
When the Safe door is open, press the small red Initialize Button located on the inside of the Safe door near the battery compartment.
The LEDs will flash green and the Safe will beep. The Scanner Window will flash for 5 seconds. While the Scanner Window is flashing, put the chosen finger on the Scanner Window. The Scanner Window will then record the fingerprint, this may take several seconds. There will be a long beep indicating that the finger-print has been stored. Remove the finger from the Scanner Window. After 1 second, the Scanner Window will flash red again, place the same finger on the Scanner Window and hold in place until the Safe beeps twice.
The fingerprint has been stored.
Repeat this process to record other digits for the same person or for any others who may require access to the Safe (up to 30 fingerprints).
to Open the safe using a Fingerprint:
Push the “0” button.
The Safe will beep, the green LEDs will flash, and the Scanning Window will acti-vate and flash red.
If the fingerprint has been saved correctly, the green LED will light up and the Safe will open automatically.
to close the safe Door:
Close the door firmly, turn the handle, and the Safe will lock automatically.
note: Always keep hands and any clothing items clear of Safe door when closing.
resetting the safe
Resetting the Safe will erase all stored fingerprints and set the open door code back to the factory default.
With the Safe door open, remove one battery to cut power. Press the “0” Button.
Press the red Initialize Button located on the inside of the Safe door near the bat-tery compartment, and hold while re-inserting the batbat-tery. The Safe will beep. After about 3 seconds, there will be a long beep tone and the green LED will flash to indicate that the Safe has been fully reset.
The open door code has been set back to the default setting of 1-2-3-1-2-3-1-2-3-1-2.
Battery Back-up
Store the Battery Back-up in a safe, dry location, out of the reach of children. If the batteries inside the Safe should fail, install four
1.5V AA Batteries in the Battery Back-up, according to the correct positive and negative polarity align-ment.
Plug the Battery Back-up into the connection under-neath the edge of the keypad, just above the oval plate.
This will supply enough power to open the Safe using the Scanner Window or the Open Door Code.
After Safe is open, replace the four 1.5V AA Batteries in the Safe. Remove the batteries from the Battery Back-up and return the Battery Back-up to it’s safe, dry storage location.
nOte: Dispose of any used batteries in a manner consistent with the handling of such
MOunting instructiOns
caution! Before drilling or driving nails, make sure there are no wires, cables or pipes
in the path.
Choose a location for the Safe that is easily accessible, yet hidden from casual view. Select a position for the Safe that allows it to be bolted to the wall.
To attach the Safe to a wood surface, measure the distance between the mount-ing holes to be used and hammer a nail (not included) to mark the hole place-ment. Drill an 1/8” diameter pilot hole into each mounting hole location. Place the Safe over the mounting holes and secure the Safe using four 1/4” diameter self-tapping screws (not included). Make sure that each fastener has a nut threaded flush with top of the Fastener to protect the thread during driving it into the wood. To use the concrete fasteners, drill a small pilot hole through the template to mark the hole placement. Next drill four holes in the correct location, using a carbide tip bit. Drill the holes the same diameter as the fasteners and 2” deep. Hammer the fastener in the hole with the flat side going into the hole first. Use a wood block between the bolt and the hammer to protect the threads.
Place the Safe over the bolts (with the nut removed from the bolts) and tighten a nut onto each bolt. As you tighten the nuts onto the bolts, the fasteners will expand inside the cement, securing the Safe in place.
inspectiOn, Maintenance, anD cleaning
Before each use, inspect the general condition of the Safe. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, dam-aged electrical wiring, and any other condition that may affect its safe operation. Have any problem corrected before further use. Do not use damaged equip-ment.
Keep the Scanner Window clean to ensure accurate fingerprint reading and scanning. Use a damp cloth and mild non-abrasive detergent to clean it regu-larly.
Clean the surfaces of the Safe with a damp cloth and mild detergent to remove dust.
please reaD tHe FOllOWing careFullY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIA-GRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS qUALI-FIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS qUALIqUALI-FIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
record product’s serial number Here:
note: If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not
avail-able individually as replacement parts.
parts list
part Description Qty
1 Shelf 2
2 Battery Case 1
3 Vertical Lock Pin 1
4 Door 1
5 Body 1
6 Fingerprint Scanner 1
7 Handle 1
8 Horizontal Lock Pin 1
9 Screw 4
10 Wheel Pin 4
11 Rubber Wheels 4
DiagraM
liMiteD 90 DaY WarrantY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materi-als and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IM-PLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the mer-chandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replace-ment. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
