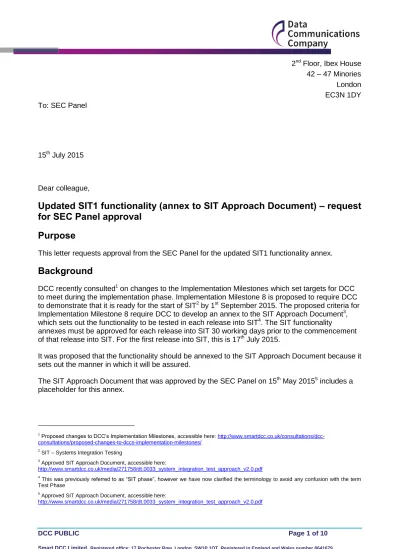

Updated SIT1 functionality (annex to SIT Approach Document) request for SEC Panel approval

(1)

DCC PUBLIC Page 1 of 10 Smart DCC Limited. Registered office: 17 Rochester Row, London, SW1P 1QT. Registered in England and Wales number 8641679

2nd Floor, Ibex House 42 – 47 Minories London EC3N 1DY To: SEC Panel

15th July 2015

Dear colleague,

Updated SIT1 functionality (annex to SIT Approach Document) – request

for SEC Panel approval

Purpose

This letter requests approval from the SEC Panel for the updated SIT1 functionality annex.

Background

DCC recently consulted1 on changes to the Implementation Milestones which set targets for DCC to meet during the implementation phase. Implementation Milestone 8 is proposed to require DCC to demonstrate that it is ready for the start of SIT2 by 1st September 2015. The proposed criteria for Implementation Milestone 8 require DCC to develop an annex to the SIT Approach Document3, which sets out the functionality to be tested in each release into SIT4. The SIT functionality

annexes must be approved for each release into SIT 30 working days prior to the commencement of that release into SIT. For the first release into SIT, this is 17th July 2015.

It was proposed that the functionality should be annexed to the SIT Approach Document because it sets out the manner in which it will be assured.

The SIT Approach Document that was approved by the SEC Panel on 15th May 20155 includes a placeholder for this annex.

1_{Proposed changes to DCC’s Implementation Milestones, accessible here:}

http://www.smartdcc.co.uk/consultations/dcc-consultations/proposed-changes-to-dccs-implementation-milestones/

2_{SIT – Systems Integration Testing}

3_{Approved SIT Approach Document, accessible here:}

http://www.smartdcc.co.uk/media/271758/dt.0033_system_integration_test_approach_v2.0.pdf

4_{This was previously referred to as “SIT phase”, however we have now clarified the terminology to avoid any confusion with the term}

Test Phase

5

Approved SIT Approach Document, accessible here:

(2)

SIT1 functionality annex consultation

On 26th June 2015, we issued a consultation6 seeking Registration Data Providers’ views on the proposed SIT1 functionality annex. That consultation closed on 3rd July 2015. We consulted for a short period of time on the basis that the content of the annex would not impact the test approach itself and the inclusion of the annex would not affect the testing that RDPs would need to

undertake. We received two responses to that consultation both of which had no comments on the proposed SIT1 functionality annex. In accordance with Section T2.8 of the SEC, copies of both of the responses are set out in Appendix B of this letter, and will also be published on the DCC website.

We initially submitted the request for approval to SEC Panel on 7th July 2015 and we understand that TAG reviewed the proposed annex. Following comments from SEC Panel on 9th July 20157, we have included further detail in relation to the subsequent releases into SIT below:

 The second release into SIT is scheduled to commence in November 2015. That release into SIT will address most of the remaining scope of Systems Integration Testing. We plan to have consulted on and sought approval of the functionality to be tested, 30 working days before that release into SIT begins, in another annex to the SIT Approach Document  The third release into SIT is scheduled to commence in January 2016 and will include a

number of changes which are still to be impact assessed and agreed. We plan to have consulted on and sought approval of the functionality to be tested, 30 working days before that release into SIT begins, in another annex to the SIT Approach Document.

In addition, we received some suggested clarifications from DECC8 on 13th July 20159. As a result of those suggestions we have made some amendments to further clarify the SIT1 functionality annex, they are:

 To clarify alignments to the SIT test baseline

 To correct a typographical error which stated that 39 of 112 Service Requests would be tested, which should have read 38 of 115 (this is explained below)

 To include a list of the Service Requests to be included in SIT1  To include a table of acronyms to aid the understanding of the annex.

The number of Service Requests we originally consulted on reflected the Service Request list before it was updated in the March 2015 version of DUIS10. In that version of DUIS, one Service request was made redundant (8.1.2) hence the number of Service Requests in the first release into SIT is actually 38 instead of 39. Furthermore another Service Request (8.14) was divided into four

6

SIT1 functionality consultation, accessible here: http://www.smartdcc.co.uk/consultations/dcc-consultations/sit-phase-1-functionality/

7

Discussed at SEC Panel Meeting 22 on 9th July 2015, meeting details accessible here:

https://www.smartenergycodecompany.co.uk/meetings/meetings-calender/all-meetings/meeting-details?Id=f7929fad-f26d-69b4-bb96-ff0000a6837f

8_{DECC – Department of Energy and Climate Change} 9

Comments received in an email from DECC to DCC on 13 July 2015 at 10:49 which suggested that three clarification/revisions were made prior to submission, and because they are clarifications only DECC did not believe it would be necessary to re-consult RDPs 10_{DUIS – DCC User Interface Specification}

(3)

separate Service Requests hence the total number of Service Requests for the entire SIT phase is in fact 115 instead of 112.

Request for approval

Following the results of the consultation, we do not propose to amend the SIT1 functionality annex further, although we have updated it for the clarifications points discussed above. We are now seeking approval from the SEC Panel on the SIT1 functionality annex, which is set out in Appendix A of this letter.

Next steps

Following SEC Panel approval we will incorporate the annex (in Appendix A) to the main SIT Approach Document and publish on the DCC website.

We plan to consult on, and request the relevant SEC Panel approval for, the remaining functionality ahead of the start of each of the subsequent releases into SIT.

Please accept my apologies for very tight timescales for approval and thank you for your willingness to consider this request in short order and ex-committee.

If you have any questions in relation to this request for approval, please contact Ekta Sareen on

[email protected].

Yours sincerely,

Paul Hawkins

(4)

SIT Approach Document

SIT1 functionality annex (for SEC Panel approval)

DCC PUBLIC Page 4 of 10

APPENDIX A - SIT1 functionality annex (for SEC Panel approval)

1.1 SIT1 test baseline

Table 1 below, sets out the functionality to be tested in the first release into SIT (referred to as “SIT1”). The SIT test baseline should be aligned to SMETS v1.58 and CHTS v1.46 (which align to GBCS v0.8.1 (November 2014)). For DUIS we have stated alignment to SEC 4.1 directly as this was the version extant in March 2015 when DUIS v0.8.1 was issued is to test against GBCS v0.8.1 (November 2014) and DUIS 0.8.1 ((May 2015). Meter stubs will be used for SIT1 testing in addition to GBCS 0.8.1 compliant meters when available. The Service User Simulator is being used; there will be no involvement from prospective Users in SIT.

Technical readiness SIT1

Aim of release into SIT

Link test of connection points between systems (DSP, CSP, TSP) Confirmation of load of registration data and test data check on all systems to ensure readiness for SIT start.

‘Smoke test’ communication between the DSP and a CSP.

Test the install and commission process.

Functionality Link testing of connections between DSP and: Service User Simulator, CSPs, TSP, DCC licensee. Mutual authentication will be tested using DCCKI signed certificates.

Test of load of Registration data files generated from St Clements and Xoserve and sent by encrypted email to DSP. The file format and DSP loader functionality will be tested.

Test of CSRs submitted by Service User Simulator to TSP and associated generation and issuing of device and organisational certificates.

A sample service request will be processed during technical readiness to prove connectivity between the DSP and CSP. All required static test data will be checked in DSP, CSP TSP and Service User Simulator systems and confirmed ready to start SIT

DSP (SIT1)

39 out of 112 38 out of 115 Service Requests and Service Request Variants. Please see below for a list of Service Requests included in SIT1

(5)

Technical readiness SIT1

testing.

Limitations File transport of registration files is via encrypted email and not using DUGN and file transfer protocols.

DCCKI processes for submission and distribution of certificates will need to be manual and have yet to be agreed.

ESI interfaces not available for technical readiness testing

Only small Service Requests (no use of General Block Transfer (GBT) messages as defined by GBCS), for example update tariff not supported.

Prepayment not supported.

Update and management of security credentials not supported. Read/Delete schedules by device ID not supported.

File transport of registration files is via encrypted email and not using DUGN and file transfer protocols.

(6)

1.2 Service Requests included in SIT1 [new section]

Service Request

Service Request Variant

Service Request Name Notes

1.1 1.1.1 Update Import Tariff Simple Gas Tariffs only in SIT1 - must fit inside small message (<1200 bytes)

1.2 1.2.1 Update Price Simple Gas Tariffs only in SIT1 - must fit inside small message (<1200 bytes)

1.5 1.5 Adjust Meter Balance

4.1 4.1.1 Read Instantaneous Import Registers 4.1 4.1.2 Read Instantaneous Import Registers (TOU) 4.1 4.1.3 Read Instantaneous Import Registers (TOU with

blocks)

4.1 4.1.4 Read Instantaneous Import Registers (Blocks) 4.2 4.2 Read Instantaneous Export Registers

4.8 4.8.1 Read Profile Data (Active Import) Limited date/time range in SIT1 - must fit inside small message (<1200 bytes)

4.8 4.8.2 Read Profile Data (Reactive Import) Limited date/time range in SIT1 - must fit inside small message (<1200 bytes)

4.8 4.8.3 Read Profile Data(export) Limited date/time range in SIT1 - must fit inside small message (<1200 bytes)

4.11 4.11.1 Read Tariff Simple Gas Tariffs only in SIT1 - must fit inside small message (<1200 bytes)

4.16 4.16 Read Active Power Import

(7)

5.2 5.2 Read Schedule

5.3 5.3 Delete Schedule

6.2 6.2.3 Read Device Configuration (Billing Calendar) 6.2 6.2.4 Read Device Configuration (CHF Identity, Identify

exc MPxN)

6.2 6.2.7 Read Device Configuration (MPxN)

6.4 6.4.1 Update Device Configuration (Load Limiting General Settings)

6.4 6.4.2 Update Device Configuration (Load Limiting Counter Reset)

6.8 6.8 Update Device Configuration (Billing Calendar) 6.11 6.11 Synchronise Clock

6.13 6.13 Read Event or Security Log (CHF) 8.1 8.1.1 Commission Device (Time)

8.2 8.2 Read Inventory

8.3 8.3 Decommission Device 8.4 8.4 Update Inventory

8.7 8.7.2 Join Non-Critical (GSME-GPF) 8.8 8.8.2 Unjoin Non-Critical (GPF-GSME) 8.9 8.9 Read Device Log

(8)

8.11 8.11 Update HAN Device Log

9.1 9.1 Request Customer Identification Number 11.1 11.1 Update Firmware

11.2 11.2 Read Firmware Version 11.3 11.3 Activate Firmware 12.1 12.1 Request WAN Matrix 12.2 12.2 Device Pre-Notification

1.3 Acronyms [new section]

Term Meaning

CHF Communications Hub Function CSP Communications Service Provider DCC Data Communications Company DCCKI DCC Key Infrastructure

DSP Data Service Provider

DUGN DCC User Gateway Network (also known as DCC Gateway) ESI Enterprise Systems Interface

ESME Electricity Smart Metering Equipment

(9)

Term Meaning

GSME Gas Smart Metering Equipment SIT Systems Integration Testing

SIT1 First release into Systems Integration Testing

Smoke Test The Smoke Test consists of a series of tests to verify connectivity between the DSP system and CSP systems via the DUGN. A sample Service Request will be processed as part of Smoke Testing to prove connectivity between the DSP and CSP. Smoke Testing will highlight any serious connectivity issues between the DSP and CSP systems, for example as a result of network layer configuration failures or syntactically invalid data formats sent in messages between the two systems.

(10)

DCC PUBLIC Page 10 of 10 7th July 2015 Page 10 of 10

APPENDIX B – CONSULTATION RESPONSES

Consultation response from ENWL

Sent: 29 June 2015 09:50

Subject: RE: Consultation on SIT1 functionality (annex to SIT Approach Document) Hi,

We have no comments to make regarding this consultation. Kind Regards,
