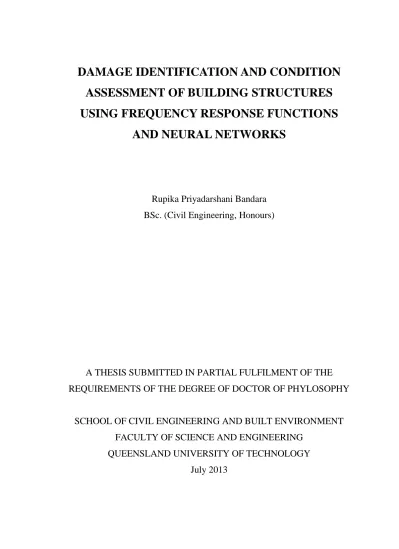

DAMAGE IDENTIFICATION AND CONDITION
ASSESSMENT OF BUILDING STRUCTURES
USING FREQUENCY RESPONSE FUNCTIONS
AND NEURAL NETWORKS
Rupika Priyadarshani Bandara
BSc. (Civil Engineering, Honours)
A THESIS SUBMITTED IN PARTIAL FULFILMENT OF THE
REQUIREMENTS OF THE DEGREE OF DOCTOR OF PHYLOSOPHY
SCHOOL OF CIVIL ENGINEERING AND BUILT ENVIRONMENT
FACULTY OF SCIENCE AND ENGINEERING
QUEENSLAND UNIVERSITY OF TECHNOLOGY
July 2013
DEDICATION
ABSTRACT
The different damage severities and the various damage locations change the amplitudes, shift peaks and alter shapes of the Frequency Response Functions (FRFs) following a more complicated relationship between damage cases and shapes of the FRFs. These FRFs changes vary in different ways for different damage cases. As a consequence, it is beneficial to use a pattern recognition technique, which looks for the discrimination between two or more measured time domain or frequency domain data categories, e.g. before and after a structure is damaged, or differences in damage levels or locations. Accordingly, this thesis investigates the viability of using FRFs in combination with Artificial Neural Network (ANN) techniques which are capable of patterns recognition, classification, signal processing and system identification. As a full-size of FRF data results in huge configuration of the ANN input layer, this brings about the problem of iteration divergence in training and computational inefficiency. Therefore, reducing FRFs data without losing much information is introduced by proposing a novel technique called “novelty damage index”, derived from FRFs. In order to compute the damage index, Principal Component Analysis, which is capable of data reduction and noise filtering, is utilized. With these characteristics, the proposed approach can help overcome some of the limitations associated with previously developed vibration based methods and assist in delivering more accurate and robust damage identification results.
The proposed technique is verified by four types of structures to cover simple to complicated structures. Different types of damage; structural connection damage and member damage of steel frame and reinforced concrete structures are considered. In order to prove the method theoretically, a two storey framed structure is utilized. In addition, the effect of modelling error, mass distribution of the structure and capability of noise filtering are examined by IASC-ASCE benchmark structure. Capability of withstanding operational conditions and environmental variables of accuracy of the proposed approach are investigated by a three storey framed structure at Los Alamos National Laboratory. Finally, a three-stage neural network method is introduced for reducing computational effort and hence low severity damage detection. The feasibility of a three-stage ANN method is investigated using a finite element model of a ten storey building structure. Excellent results are obtained for damage identification of
these four cases, proving that the proposed approach has been developed successfully for damage detection of building structures.
KEYWORDS:
Artificial Neural Network; Frequency Response Functions; Principal Component Analysis; Damage detection, Damage Location Identification, Damage Severity Quantification
