Mono Multi
Solutions
Trina Solar Limited
www.trinasolar.com
10 Year Product Warranty • 25 Year Linear Power Warranty
LINEAR PERFORMANCE WARRANTY
Additional valu
e from Trina S
olar’s linear w
arranty
Years G ua ra nt ee d P owe r 5 80% 90% 100% 10 15 20 25
As a leading global manufacturer
of next generation photovoltaic
products, we believe close
cooperation with our partners
is critical to success. With local
presence around the globe, Trina is
able to provide exceptional service
to each customer in each market
and supplement our innovative,
reliable products with the backing
of Trina as a strong, bankable
partner. We are committed
to building strategic, mutually
beneficial collaboration with
installers, developers, distributors
and other partners as the
backbone of our shared success in
driving Smart Energy Together.

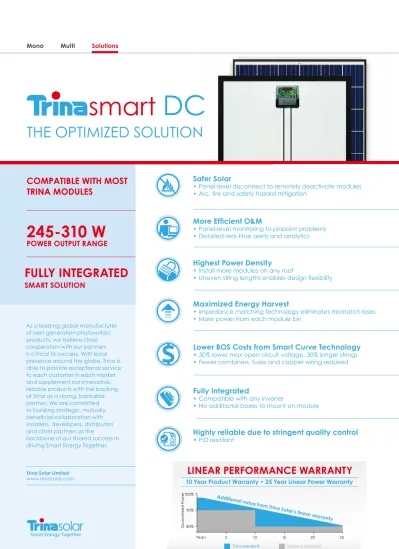

THE OPTIMIZED SOLUTION
245-310 W
POWER OUTPUT RANGE
FULLY INTEGRATED
SMART SOLUTION
COMPATIBLE WITH MOST
TRINA MODULES
Safer Solar
• Panel-level disconnect to remotely deactivate modules
• Arc, fire and safety hazard mitigation
More Efficient O&M
• Panel-level monitoring to pinpoint problems
• Detailed real-time alerts and analytics
Highest Power Density
• Install more modules on any roof
• Uneven string lengths enables design flexibility
Maximized Energy Harvest
• Impedance matching technology eliminates mismatch loses
• More power from each module bin
Lower BOS Costs from Smart Curve Technology
• 30% lower max open circuit voltage, 30% longer strings
• Fewer combiners, fuses and copper wiring required
Fully Integrated
• Compatible with any inverter
• No additional boxes to mount on module
Highly reliable due to stringent quality control
• PID resistant
Industry standard
Trinasmart modules incorporate innovative power electronics from Tigo
Energy to achieve module-level diagnostics, maximum energy harvest
through module level DC power optimization, and reduction of arc, fire and
safety hazards.
Integration of the module optimizer into the junction-box enables patented
Smart Curve technology, which allows up to 30% longer strings and
significant balance-of-system (BOS) savings.
SYSTEM ARCHITECTURE
Trinasmart system components work together with any inverter to maximize energy harvest. Trinasmart
modules communicate wirelessly through the gateway, allowing users to monitor system performance in
real time.
SMART CURVE TECHNOLOGY
Module-integrated Trinasmart technology reduces
the open circuit voltage range for each module
and allows longer strings to be designed. The
maximum voltage is programmed by Trina Solar in
the factory.
•
Hardware voltage clamp prevents over-voltage
•
Design up to 30% longer strings
•
Fewer combiner boxes, fuses and wiring
Cloud Data Center
Management Unit Power Conditioner Gateway Web Applications Optimizer PCB Modules Isc Imp
With Smart-Curve Without Smart-Curve
GATEWAY
The Gateway provides wireless communication with up to 120 Trinasmart modules
and the MMU. Up to seven Gateways can be connected to a single MMU.
GATEWAY SPECIFICATIONS
MMU Communications Wireless (802.15)
RS-485 cable connection; in series with other Gateways Mounting Location Center of array
Mounting Method Mounted to module frame or rack Clips included for frame mounting Wireless Range 15m line-of-sight
Maximum number of Trinasmart
modules per Gateway 120
Mechanical Specifications Dimensions 141.3 x 48.5x 33.3mm
(with bracket)
Weight 0.9kg
Operating temperature range -30°C +70°C Enclosure environmental rating IP 65
THE OPTIMIZED SOLUTION
FEATURES FREE PREMIUM
Reports Monthly Daily
1-min data granularity current&previous month Full History
Full history
•
•
Safety alerts
•
•
Dashboard showing
enviomental impact
•
•
Trending data charts
•
•
Performance analytics
•
Ability to download
•
Device Integration
•
Performance alerts
•
MAXIMIZER MANAGEMENT UNIT (MMU)
The management unit controls processes in real time and sends data to a remote
server for monitoring.
SPECIFICATIONS ONE UNIT SUPPORTS UP TO 360 TRINASMART MODULES
Communication Data Backhaul Ethernet (Cloud Connect to Data Center) On-Screen Prompts Module (power, voltage, signal), Internet
Check, basic troubleshooting
PV-Safe Button deactivates the array
(at the module-level)
Accessories Pull data from most meters that speak Modbus (i.e. AC Meters)
Inverter Data Can pull data from most inverters (SMA, Power One, Fronius, Kaco)
Power Compatibility 110 / 230V compatible converter
(comes with international plugs) Mechanical
Specifications Dimensions (L x W x H)Weight 159.5 x 90.2 x 57.5 mm1 kg Environmental Rating NEMA 3R
Operating Temperature 0˚ to +70˚ C
Cloud Connect
An internet connection is required for full monitoring functionality.
Gateway
The wireless communications system is FCC and CE Class 2 certified. Fixing hole comes with a M3.5X6 SST pan head screw.
MONITORING SERVICE
Trinasmart monitoring provides total insight into the
performance of any system. You can choose to
upgrade online once your system is installed.
Explore the
monitoring portal at
www.trinasmart.com
TEMPERATURE RATINGS Nominal Operating Cell
Temperature (NOCT) 44°C (±2°C) Temperature Coefficient of PMAX - 0.41%/°C
Temperature Coefficient of VOC 0%/°C
Temperature Coefficient of ISC 0.05%/°C
WARRANTY
10 year workmanship warranty 25 year linear performance warranty
(Please refer to product warranty for details)
PACKAGING CONFIGURATION Modules per box: 30 pieces
Modules per 40’ container: 840 pieces
CAUTION: READ SAFETY AND INSTALLATION INSTRUCTIONS BEFORE USING THE PRODUCT.
© 2015 Trina Solar Limited. All rights reserved. Specifications included in this datasheet are subject to change without notice.
Optimized TS M _E N _M ay _2 01 5_ A 16 50 (64 .9 5” ) 99 0(3 8.9 8” ) 15 0(5 .91 ”) 18 0(7 .0 9” ) 812(31.97”) 941(37.05”) 4-Ø 9×12 INSTALLING HOLE JUNCTION BOX NAMEPLATE G = 1 20 0(4 7.2 5” ) ± 1 0 6-Ø4.3 GROUNDING HOLE 12-DRAIN HOLE 180(7.09”) A A Back View CERTIFICATION A-A 35 (1 .3 7” ) 35(1.37”) 1.00 0.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 0.00 Voltage (V) C ur re nt (A ) 10.00 20.00 30.00 40.00 1000W/m² 800W/m² 200W/m² 400W/m² 600W/m² ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp) 245 250 255 260
Power Output Tolerance-PMAX (%) 0 ~ +3
Maximum Power Voltage-VMPP (V) 29.9 30.3 30.5 30.6
Maximum Power Current-IMPP (A) 8.20 8.27 8.37 8.50
Smart Curve-V_limit(V)* 33.0
Maximum Current-IM(A) 9.50
Module Efficiency ηm (%) 15.0 15.3 15.6 15.9
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3 Typical efficiency reduction of 4.5% at 200 W/m² according to EN 60904-1
* Trinasmart modules limit the open circuit voltage
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp) 182 186 190 193
Maximum Power Voltage-VMPP (V) 27.6 28.0 28.1 28.3
Maximum Power Current-IMPP (A) 6.59 6.65 6.74 6.84
Smart Curve-V_limit(V) 33.0
Maximum Current-IM(A) 9.50
NOCT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s.
DIMENSIONS OF PV MODULE
I-V CURVES OF PV MODULE (245W)
Recyclable packaging Unit:mm MAXIMUM RATINGS Operational Temperature -40~+85°C Maximum System
Voltage 1000V DC(UL)1000V DC(IEC) Max Series Fuse Rating 15A MECHANICAL DATA
Solar cells Multicrystalline 156 × 156 mm (6 inches) Cell orientation 60 cells (6 × 10)
Module dimensions 1650 × 992 × 35 mm (64.95 x 39.05 x 1.37 inches)
Weight 19 kg (41.9lb)
Glass 3.2 mm (0.13 inches),High Transmission, AR Coated Tempered Glass
Backsheet White
Frame Silver Anodized Aluminium Alloy (PD05.002), Black (PD05.082)
J-Box IP 65 rated
Cables Photovoltaic Technology cable 4.0 mm² (0.006 inches² ), 1200 mm (47.25” inches)
Connector (H4) Amphenol *MC4 upon special request
Fire Type Type 2
Trinasmart DC THE OPTIMIZED SOLUTION
TSM-PD05.002/PD05.082
EU-28 WEEE COMPLIANT
EU-28 WEEE COMPLIANT
TEMPERATURE RATINGS Nominal Operating Cell
Temperature (NOCT) 44°C (±2°C) Temperature Coefficient of PMAX -0.41%/°C
Temperature Coefficient of VOC 0%/°C
Temperature Coefficient of ISC 0.05%/°C
MAXIMUM RATINGS
Operational Temperature -40~+85°C Maximum System
Voltage 1000V DC(UL)1000V DC(IEC) Max Series Fuse Rating 15A
WARRANTY
10 year workmanship warranty 25 year linear performance warranty
(Please refer to product warranty for details)
PACKAGING CONFIGURATION Modules per box: 26 pieces
Modules per 40’ container: 572 pieces CERTIFICATION
CAUTION: READ SAFETY AND INSTALLATION INSTRUCTIONS BEFORE USING THE PRODUCT.
© 2015 Trina Solar Limited. All rights reserved. Specifications included in this datasheet are subject to change without notice.
Optimized A-A 35(1.37”) 40 (1. 57 ”) ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp) 295 300 305 310
Power Output Tolerance-PMAX (%) 0 ~ +3
Maximum Power Voltage-VMPP (V) 35.8 36.2 36.6 37.0
Maximum Power Current-IMPP (A) 8.25 8.28 8.33 8.38
Smart Curve-V_limit(V)* 39.4
Maximum Current-IM(A) 9.50
Module Efficiency ηm (%) 15.2 15.5 15.7 16.0
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3 Typical efficiency reduction of 4.5% at 200 W/m² according to EN 60904-1
* Trinasmart modules limit the open circuit voltage
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp) 220 223 227 231
Maximum Power Voltage-VMPP (V) 33.2 33.5 33.8 34.1
Maximum Power Current-IMPP (A) 6.61 6.66 6.72 6.77
Smart Curve -V_limit(V) 39.4
Maximum Current-IM(A) 9.50
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1 m/s.
TS M _E N _M ay _2 01 5_ A 6-Ø 4.3 GROUNDING HOLE 6-Ø9×12 INSTALLING HOLE JUNCTION BOX 1200(47.25”)±10 NAMEPLATE 941(37.05”) 1276(50.24” ) 340(13.39”) 340(13.39” ) 180(7.09”) 4-DRAIN HOLE 812(31.97”) 1956(77” ) A A Back View DIMENSIONS OF PV MODULE
I-V CURVES OF PV MODULE (295W) Unit:mm
Trinasmart DC THE OPTIMIZED SOLUTION
TSM-PD14.002
MECHANICAL DATA
Solar cells Multicrystalline 156 × 156 mm (6 inches) Cell orientation 72 cells (6 × 12)
Module dimensions 1956 × 992 × 40 mm (77 x 39.05 x 1.57 inches)
Weight 28 kg (61.7lb)
Glass 3.2 mm (0.13” inches),High Transmission, AR Coated Tempered Glass
Backsheet White
Frame Silver Anodized Aluminium Alloy
J-Box IP 65 rated
Cables Photovoltaic Technology cable 4.0 mm² (0.006 inches² ), 1200 mm (47.25” inches)
Connector (H4) Amphenol *
Fire Type Type 8
Recyclable packaging
EU-28 WEEE COMPLIANT
EU-28 WEEE COMPLIANT 1000W/m2 800W/m2 400W/m2 600W/m2 200W/m2 Voltage(V) C ur re nt (A ) 10 9 8 7 6 5 4 3 2 1 0 16 20 25 30 35 40
