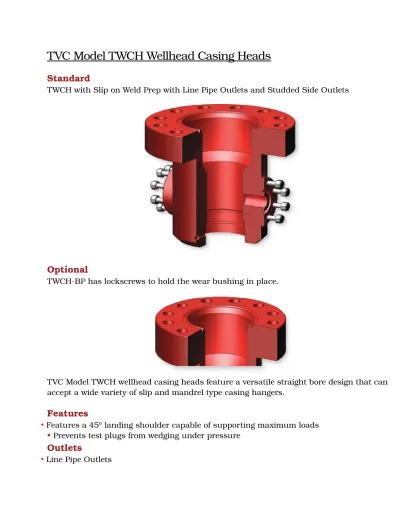

TVC Model TWCH Wellhead Casing Heads
Standard
TWCH with Slip on Weld Prep with Line Pipe Outlets and Studded Side Outlets
Optional
TWCH-BP has lockscrews to hold the wear bushing in place.
TVC Model TWCH wellhead casing heads feature a versatile straight bore design that can
accept a wide variety of slip and mandrel type casing hangers.
Features
•
Features a 45° landing shoulder capable of supporting maximum loads
•
Prevents test plugs from wedging under pressure
Outlets
• Studded Side Outlets
Casing Hanger Compatibility
•
C-21 and C-22 slip-type casing hangers
• Mandrel style casing hangers
Manufacturing Standard
•
API-6A, PSL-1, DD, L-U, PR-1
Availability
•
Additional sizes available upon request
• Available in C-29 profile (Available upon request)
Lock screws
•
C-22-BP casing heads are supplied with (2) lock screws for wear bushing retention
• C-22-L and C-29-L casing heads are supplied with a full set of lock screws for mandrel
casing hanger and packoff retention (Available upon request)
Bottom Connections
•
Slip-on weld
• Slip-on weld with O-ring
• Threaded
TVC Model TWCS Wellhead Casing
Spools
Standard
Optional
C-22-BP has lockscrews to hold the wear bushing
in place
TVC Model TWCS casing spools feature a versatile straight bore design that can accept a
wide variety of slip and mandrel type casing hangers.
Features
• Features a 45° landing shoulder capable of supporting maximum casing loads
• Prevents test plugs from wedging under pressure
Outlets
• Line Pipe Outlets
• Studded Side Outlets
Casing Hanger Compatibility
• C-21 and C-22 slip-type casing hangers
• Mandrel style casing hangers
Manufacturing Standard
• API-6A, PSL-1, DD, L-U, PR-1
Availability
• Additional sizes available upon request
• Available in C-29 profile (Available upon request)
Lock screws
• C-22-BP casing spools are supplied with (2) lock screws for wear bushing retention
• C-22-L and C-29-L casing spools are supplied with a full set of lock screws for mandrel
casing hanger and packoff retention (Available upon request)
Bottom Preparations
• PE/BG bottom, for use with PE secondary seal bushing (Standard)
• HPE bottom, for use with HPE secondary seal bushing for high pressure applications
(Available upon request)
TVC Model TWTS tubing heads feature a versatile straight bore design for single and
multiple completions.
This design accepts all TC series tubing hangers and easily converts from a single
completion to multiple completions with the addition and alignment pin(s).
Available Sizes
• Available with 7-1/16" nominal bowl
• Compatible with 7-5/8" production casing
Outlets
• Line Pipe Outlets
• Studded Side Outlets
Casing Hanger Compatibility
• C-21 and C-22 slip-type casing hangers
• Mandrel style casing hangers
Manufacturing Standard
• API-6A, PSL-1, DD, L-U, PR-1 (3M-5M)
• API-6A, PSL-2, DD, L-U, PR-1 (10M)
Tubing Hanger Compatibility
• TWTS tubing heads accept a wide variety of tubing hanger styles including mandrel and
wrap-around
Bottom Preparations
• HPE bottom, for use with HPE secondary seal bushing for high pressure applications
(Available upon request)
Availablility
• Additional sizes available upon request • Available with ET (Integral) style lock screws
• Flanged top Tubing Heads available with slip-on weld or threaded bottoms
Typical Surface Wellhead Systems
Components Assembly Inclusive of A-B-C
& D Sections
Casing Hangers/Secondary Seals
Tubing Hangers/Hanger Couplings
TC-1W Wrap-Around Tubing Hanger
TC-1A Mandrel Tubing Hangers
TC-1A-EN Extended Neck Tubing Hanger
BO-2 Coupling
TWH Tubing Head Adapters
B-1 Tubing Head Adapter
B2P Tubing Head Adapter
ASP Tubing Head Adapter
BO2 Tubing Head Adapter
TWH Tees/Crosses and Flanges
Flanges
TWH API 6A Wellhead Equipment
TVC Model TWH
MODEL TWH API 6A Wellhead Equipment
TVC
Wellhead and Christmas Tree
Wellhead and Christmas tree is used for well drilling and oil or gas production, water injection and downhole operation. wellhead and
christmas tree is installed on the top of a well to seal the annular space between casing and tubing, can control wellhead pressure and adjust well flow rate and transport oil from well to pipe line.
We design and manufacture the wellhead and christmas tree in according with API 6A standards totally, also can be supplied to meet the complete material class, temperature range and PSL& PR level requirements.
We have lots of type of wellhead for choice,such as conventional spool wellhead, ESP wellhead system, thermal wellhead ,water injection wellhead, time saving wellhead, dual tubing wellhead, integral wellhead,etc.
integral christmas tree
water injection wellhead & x-mas system
Dual Completion - Dual Tubing Wellhead&Christmas Tree
Dual Completion - Dual Tubing Wellhead & Christmas Tree is used for extracting two oil reservoir at the same time and also
independently. It allow put down two tubings into the same casing. Can seal the different two oil reservoir with dual packer and single packer.
CCSC has many sizes and pressure ratings Dual Completion Wellhead & Christmas Tree used for oil production.
CCSC's customizable Dual Completion Wellhead System allow customers to design their ideal equipments for reliable and consistent performance on their production system.
Time Saving Wellhead
Time Saving Wellhead System is often used in the oilfield when drilling, Time Savings Wellhead System is designed specifically to
save time and enhance safety.
API 6A Gate Valves
API 6A Gate Valves provided by CCSC are field proven valves which strictly designed and manufactured according to API 6A and API
Spec Q1 by forging or casting AISI 4130/4140 low alloy or AISI 410 SS steel. Some extreme materials for extreme service, such as Inconel or Duplex stainless steel are available as well.
CCSC Gate Valves' feature:
1. Forged or Cast Body & Bonnet,
2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
3. Bi-directional Sealing,
4. All internal parts can be inline changed.
6. Non-rising stem made by Alloy-nitrided or 17-4 stainless steel, the pressure in the body cavity will not increase during valve operation, can replace stem packing under pressure.
CAMERON Gate Valve 'FC' type - FC Gate Valve
CAMERON Gate Valve 'FC' type is a field-proven valve which provides reliability and interchangeability, bi-directional sealing and a
non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service,one piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops,Easily equipped with Hydraulic Actuators for Manifold or Subsea service.
CCSC Gate Valves' feature:
1. Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
3. Bi-directional Sealing,
5. Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.
CAMERON Gate Valve 'FC' type - FC Gate Valve
CAMERON Gate Valve 'FC' type is a field-proven valve which provides reliability and interchangeability, bi-directional sealing and a
non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service,one piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops,Easily equipped with Hydraulic Actuators for Manifold or Subsea service.
CCSC Gate Valves' feature:
1. Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
3. Bi-directional Sealing,
4. All internal parts can be inline changed,No special tools are needed to change gate and seat assembly.
API 6A Hydraulic Gate Valves
Hydraulic Gate Valves provided by CCSC are available in size from 1 13/16” to 7 1/16” and pressuring rating from 2,000psi to
15,000psi. the gate valves are strictly designed and manufactured according to API 6A and API Spec Q1 by forging or casting AISI 4130/4140 low alloy or AISI 410 SS steel, the actuators are designed with safety and suitable for all kind of gate valves.
CCSC Hydraulic Gate Valves' feature:
1. Forged or Cast Body & Bonnet,
2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
3. Bi-directional Sealing,
4. All internal parts can be inline changed.
5. Easy maintaining and disassembling.
Line Pressure Operated Surface Safety Valve
Line Pressure Operated Surface Safety Valve is often used in the oilfield when need to monitors pressure in a flow line system, the
system is compact and utilizes flow line pressure as the surface safety valve control medium. Utilizes well bore or pipeline pressure to operate actuator, if flowline pressure rise above or falls below set values, the system will sense the change and close the valve immediately
Casing Head is the very important equipment used in drilling process 。casing head can control the wellhead pressure，casing head
are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.
Casing Head has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied.
Casing Head provided by CCSC are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. Bottom connections can be furnished threaded or slip-on for welding.
Casing Head provided by CCSC can used for single completions and model of dual completions.
Feature:
1. Versatile straight-bore design,Uses a 45°landing shoulder.
2. Accepts a wide variety of slip and mandrel casing hangers.
3. Has a additional lockscrews for Bowl protection.
4. Allows use of lockscrews to retain hanger.
5. Three different types of outlets: Line pipe, Flanged (Studded) Extended flanged outlets.
Casing hanger
Casing hanger is a assembly which can supports the casing string when it is used in the wellhead. The casing hanger can assure the
casing string is correctly located and generally incorporates a sealing device or system to isolate the casing annulus from upper wellhead components.
Casing spool is the very important equipment used in drilling process,casing spool can control the wellhead pressure，casing spool
are often flange ended on the top of the casing head and connected with the bottom of the tubing head then become a part of the wellhead system of the oil well.
The casing spool has a straight bore bowl with 45°landing shoulder design which avoids damage to sealing areas by drilling tools and prevents test plug and bowl protector wedging problems when pressure is applied. CCSC's Casing spools are normally furnished with threaded outlets and studded outlets and also can be manufactured by request. they can be used for single completions and model of dual completions.
Features
• Versatile straight-bore design,uses a 45° landing shoulder;
• 3 different types of outlets: Line pipe, Flanged (Studded) Extended flanged outlets. • Allows use of lock screws to retain hanger.
• Has a additional lock screws for Bowl protecion..
• Accepts a wide variety of slip and mandrel casing hangers.
• Multiple bottom sealing type, such as: PE/BG bottom,OO bottom and double "P" seal bottom.
Tubing head and tubing spool
Tubing head is a body with two flange that can supports the tubing string on a oilwell, seals off the pressure between the casing and
Tubing Head &tubing spool are a straight bore bowl with 45° landing shoulder design which avoids damage to sealing areas by drilling tools, and provides wedging of the tubing hangers, bowl protectors and test plugs. the secondary seal for the last casing pipe can be an integrated "OO" seal type or the plastic injection type, but also accepts reducer bushings "4-O" and "PE" (Pressure Energized).The upper flange is supplied with lockdown screws for packoff tubing hanger retention. The lower flange includes a grease fitting and orifice for testing of the secondary seal.
Tubing Head provided by CCSC can used for single completions and model of dual completions.
Feature:
1. Versatile straight-bore design,Uses a 45° landing shoulder can safety support maximum loads.
2. Bodies can be made from materials suitable for many severe service environments.
3. Two different types of outlets: line pipe outlets and flanged padded (studded) outlets.
Tubing hanger is an assembly used in the oil or gas production wells. Tubing hanger is set in the tubing head and suspends the
production tubing,tubing hanger often own through ports to allow the communication ofhydraulic,electric and other downhole control functions, as well as chemical injection. Tubing hanger also serves to seal-in the annulus and production areas.
CCSC can supply many types of the tubing hangers and we can also design it as per the special requirement of the user.
Tubing head adapter is often used on the top of the tubing head, it can provides a connection between tubing head and Christmas
tree. The bottom flange of the adapter matches the tubing head, and the top flange of the adapter matches the X-MAS tree. Tubing head adapters are available for all types of single and multi-string completions, including those using ESP penetrator, packers, down hole control valves and gas lift valves.
Our adapters have threaded, flanged or studded-flange top connections. our tubing head adapters are available with hydraulic supply inlets for down hole control valve. CCSC can also supplies various types of adapters specially as requirements.
DSA - Double Studded Adapter flange
DSA - Double Studded Adapter flange is the part which is often used in the wellhead system, DSA is designed and manufactured in
accordance with API 6A standard,DSA usually has double studded flange connections. we have all sizes and pressure ratings DSA used for oilfield applications.
CCSC's customizable DSA allow customers to design their ideal DSA for reliable and consistent performance on their production system.
Double Packoff Flange - “DSPF” Packoff Flange
Double Packoff Flange - “DSPF” Packoff Flangeis often used in the oilfield when drilling, The double packoff flange provides double"
P" seal for sealing the casing.
The double packoff flange also used as an intermediate crossover flange when a restricted area ring gasket is used in the smaller diameter top groove. When a crossover is used, the top connection can be exposed to a higher pressure than the original rated working pressure. The double molded elastomer P seals are energized by injected the high pressure grease.
CCSC has many sizes and pressure ratings "DSPF" used for drilling applications.
TREE CAP-CHRISTMAS TREE CAP
Tree Cap is often installed on the top of the christmas tree, standard API-UPTBG(EUE) lift thread in the body. The top plug of the tree
cap has a thread for mounting a pressure gauge to measure well pressure.The Tree Caps provide access to wellhead for service and monitoring.
CCSC's customizable tree cap allow customers to design their ideal equipment for reliable and consistent performance on their drilling system.
BX and 6BX flange
BX and 6BX flanges (welding neck flanges, blind flanges, target flanges) provided by CCSC are field proven flanges which strictly designed and manufactured according to API 6A and API Spec Q1 forged or casted.
All kind of flanges are delimited by API 6A as below:
Welding neck flange is the flange with a neck on the side opposite the sealing face prepared with a bevel to weld to corresponding
pipe or transition pieces.
Threaded flange is the flange having a sealing face on one side and a female thread on the other for the purpose of joining flanged
connections to threaded connections.
Blind flange is the flange with no centre bore, used to close off completely a flanged end or outlet connection.
Target flange is a special configuration of blind flange used downstream, facing upstream, to cushion and reduce the erosive affect of
6B flanges are of the ring joint type and are not designed for face-to-face make-up. The connection make-up bolting force reacts on the
metallic ring gasket.
6BX flanges are of the ring joint type and designed with a raised face. Depending on the tolerances, the connection make-up bolting
force may react on the raised face of the flange when the gasket has been properly seated. This support prevents damage to the flange or gasket from excessive bolt torque.
Forged Crosses and tees
Forged Crosses and tees (studded crosses,studded tees,flanged crosses,flanged tees) provided by CCSC are field-proven which are strictly designed and manufactured according to API 6A and API Spec Q1 by forged or casted, AISI 4130/4140 low alloy or AISI 410 SS steel.
Forged studded tee
Forged studded cross
Spacer Spools - Riser Spool are the parts which are often used in the oilfield for wellhead extension,choke and kill manifold, etc.
appication, it is designed and manufactured in accordance with API 6A standard,it usually has the same nominal end connections. all the configurations as below are available:
CCSC’s customizable spacer spools allow customers to design their ideal spacer spools for reliable and consistent performance on their production system.
Flange Spacer Spool with hoist ring
Adapter spool
Adapter Spool is the part which is often used in the oilfield, adapter spool is designed and manufactured in accordance with API 6A
standard, the material is AISI 4130 or 410SS as per customer's requirement, adapter Spools usually have the different nominal end connections. CCSC Adapter Spools have all sizes and pressure ratings used for oilfield applications.
Drilling spool
Drilling Spools are the parts which are often used in the oilfield when drilling, Drilling spools are designed to allow safe circulation of
Bell Nipple - Bell Nipple Flange
Bell Nipple Flange is usually used on conventional land drilling rig and connected with the top of the blowout preventer (BOP stack).
Bell nipple flange usually does not hold well pressure, but acts as a fastening equipment to connect a vertical pipe, we name this vertical pipe as bell nipple, The top end of the bell nipple usually is flared, or belled, to guide drill tools into the hole and usually has side connections for the fill line and mud return line.
A short length of pipe (a nipple) installed on top of the blowout preventer or marine riser with a side outlet to direct the drilling fluid returns to the shale shaker or pit.
BOP TEST STUMP - BOP TEST STAND
Blow Out Preventer (BOP) test stumps are often used for manufacturers to test their BOP or drillers testing operations at off-shore
and on-shore drilling rig. BOP TEST STUMP is designed and manufactured in accordance with API 6A or API 16A standard.we provide all sizes and pressure ratings BOP TEST STUMP used for BOP test.
A BOP test stump may have base plate, side and bottom ports, and fixed or removable Test mandrel retaining threads.
CCSC's BOP TEST STUMP configurations:
Model A
• On base plate .
• With test ports &drain port. • Fixed mandrel retaining thread.
Model B
• On base plate .
• With test ports &drain port.
Model C
• On base plate .
• With test ports and view port. • Fixed mandrel retaining thread. • Fast lock connector and bop x-overs.
Basic material of construction is alloy steel. For corrosion resistance, we can overlay 316 SS or Inconel 625 on the ring groove to improve product life if required.CCSC's customizable BOP TEST STUMP allow customers to design their ideal product for reliable and consistent performance.
Back Pressure Valve is the equipment which is often used in the wellhead and Christmas tree and installed inside the tubing hanger
for blocking the fluid, Back pressure valve always have a BPV thread for connecting with the tubing hanger. Both single way and two way back pressure valves are available
CCSC's customizable back pressure valve allow customers to design their ideal BPV for reliable and consistent performance on their production system.
API 16A Clamps are the parts which are often used in the wellhead system, manifold system and BOP system for hub connection. API
16A Clamp is designed and manufactured in accordance with API standard,we have all sizes and pressure ratings clamps used for oilfield applications.
CCSC clamps' feture:
1. Reduce rig time.
2. Decreasing makeup time.
3. Savings to the operator.
4. Easy to install.
Diverter system - offshore diverter
Diverter system is the equipment often used in the offshore oilfield on platforms and jackup rigs to protect against shallow gas kicks
during drilling operations. Diverter system is mostly to control the direction of drilling fluid from wellhead to surface platform, control the well kick and shallow gas kick.
In the event of a shallow gas kick, the diverter is energized to seal around the drill pipe and divert the gas safely overboard. Diverter system must be equipped with hydraulic control system during operation. And it can seal different size of drill pipe.
Model B (49"-500PSI Diverter)
Lift Check Valve
Lift check valve is often used in the oilfield when drilling, lift check valve is designed and manufactured in accordance with API 6A and
API 16C standard. They are specifically made for mud, cement, fracturing and water service and are easy to operation and simple to maintain.
Cement head - Casing cement head
Cement head – casing cement head is widely used in the oilfield for cementing application, typically for pumping slurry and releasing
plug, our cement head includes single plug type, double plugs type, Multi-Plugs type, drill pipe type, etc.
We can offer reliable cement heads in various sizes and pressure ratings for superior performance in cementing operations.
Features
● Indicates when the top plug passes into the casing. ● Having manifold with lo-torque plug valve.
● Provides continuous operation.
● The plug container holds one or two plugs, the top plug and the bottom plug. The double plug container has a three in-torque valve manifold and two plunger assembly
● The length of plug containers are made to accommodate the standard length of plugs. ● The cap is available with ACME thread and with lifting chain for lifting the plug container. ● Single or Double Plug chamber is available
Kill Manifold
Kill manifolds are often used in the oilfield when drilling, Kill manifolds are designed and manufactured in accordance with API 6A&API
16C standards. They are specifically made for injecting heavy mud, water and extinguishant during drilling
Surface Well Testing
Surface Test Tree - Flowhead
Flowhead - surface test tree consists of four gate valves: a master valve, two wing valves, and a swab valve. The outlet wing valve is
opened and closed using an hydraulic actuator. Above the swab valve is a lifting subassembly (sub) with a threaded connection. The threaded connection is often called a quick union. The quick union is used to connect auxiliary pressure equipment which is needed if tools are to be run downhole. Some flowheads have a protection frame bolted to the main block to prevent damage to the valves during handling. Beneath the optional swivel are the master valve assembly and the bottom sub. In order to raise and lower a drill stem test (DST) string, elevators (clamps) are attached to the flowhead.
Basic to the operation of the flowhead is the opening and closing of valves in a particular sequence or order depending on what operation needs to be done. The following list describes several common operations and provides figures that show the typical status of the valves for these operations. The valve settings may change depending on whether other operations must be performed
The handling sub also provides an interface to the surface wireline or coiled tubing equipment. A dynamic swivel is located between the main valve block and the lower master valve, allowing rotation of the string without rotating the flowhead, and preventing any rig movement from transferring torque into the riser or landing string.
Swivel
The flowhead swivel is inserted between the master valve and the main valve block. It allows the subsurface equipment to be rotated with respect to the main flowhead block. Using a swivel, it is possible to rotate the subsurface equipment without disconnecting the flow line or the kill line. An example of this is using the swivel to set the drill stem test (DST) packer downhole. Another example is to re-latch the subsurface connection used with floating rigs.
The swivel is designed to allow rotation of the subsurface string while supporting the weight of the whole subsurface string. Roller bearings are used to support the significant weight of the test string and the downhole tools. Ball bearings are used to support the lighter weight of the flowhead and the equipment above the flowhead.
The swivel should not be rotated under pressure which means that it is not designed to hold the pressure when submitted to a continuous rotating movement like in drilling operations. The most common applications (as mentioned earlier) are done with the
pressure close or equal to zero at a very low rotating speed . During a well test, the pressure can be close to the swivel working pressure but the swivel either does not move (onshore) or oscillates a little due to the heave (offshore).
Hydraulic Surface Safety Valve - SSV
Hydraulic Surface Safety Valve - SSV is designed to quick closure due to a pipe leak or burst, equipment malfunction, fire, or similar
emergency.The Surface safety valve (ssv) is normally closed,pressure needs to be applied to the actuator to compress the spring and open the valve.
Hydraulic Surface Safety Valve feature:
1. Visual position indicator.
2. Optional fire protection (fusible loop).
4. Has a compoud-springs designing to improve its stability.
The pressure needed to keep the valve open can be provided with a simple hand pump which, in an emergency, is bled off on the rig floor. However, a more sophisticated system called an emergency shut down (ESD) is recommended because it allows the actuator to be activated remotely.
Emergency shutdown system - ESD Control Panel
Emergency shutdown system - ESD Control Panel is designed for quick closure due to a pipe leak or burst, fire, or some other
similar emergency, the ESD system allows a safety valve to be closed from remote stations or from the console. In well testing operations, the ESD controls the flow line valve on the flowhead and the surface safety valve which is located upstream of the choke manifold and the sub-surface safety valve.
ESD system consists of ESD control panel with air-driven hydraulic pump, hydraulic tank, air hoses, and hydraulic hoses, ESD remote stations,High- and low-pressure pilots, and the storage reels for hoses.
Choke Manifold - Well Testing Choke Manifold
Choke manifold is a system of valves and chokes for controlling the flow from the well usually has two flow paths, one adjustable
choke used primarily for cleaning the well up and facilities to install and change choke of fixed sizes for a more accurate flow control during main well flow periods.
Each flow path has two closing gate valves which are used to direct the flow through either of the chokes or the chokes or the bypass and to provide isolation from pressure when changing the fixed choke. A dual isolation, double block and bleed valve arrangement is recommended for high pressure, sour gas and sand frac clean ups.
Choke manifold is used during well testing,. The positive choke has a fixed diameter and the size of the orifice on the adjustable choke
can be varied. In addition the adjustable choke allows fixed chokes to be switched out as needed without stopping the well, increasing the flexibility of the overall system.
Choke Manifold has these principle functions:
• It allows wellhead pressure to be controlled, improving safety.
• It maintains a certain flow rate, as required for testing. A test can require different flow rates over several time periods, requiring the use of different choke sizes.
• It prevents formation sand from entering the well by limiting the flow rate. Limiting the flow rate reduces the speed of the fluid, which in turn, minimizes the amount of sand entering the well.
• It also prevents water and gas coning by limiting the flow rate.
• It is also used to ensure that the flow is critical, meaning that the pressure fluctuations downstream of the choke manifold do not affect downhole pressure and flow rate of the well.
Our Choke manifolds are available in 5,000; 10,000; and 15,000 psi, all bore sizes.
Choke bean is often used in the positive choke valve for controlling the flow, our positive choke beans are similar as Cameron type H2
big john, Body Material: 410SS, lined with Tungsten Carbide or ceramic.
On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-inch, and is screwed into the choke box. These are the most common sizes (in inches) of choke beans used: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1, 1-1/4, and 1-1/2. Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches.
Feature:
1. Choke bean size: 4/64" ~ 192/64" increment with 1/64".
2. Both ceramic liner and tungsten carbide liner are all available.
3. Medium: oil and gas water, sand.
4. Customizable size.
5. Tungsten carbide and ceramic choke bean are all available.
Adjustable choke valves are often used in the oilfield when drilling，testing，production, our adjustable choke valve is designed and
manufactured in accordance with API 6A and API 16C standard and improved from Cameron H2 series adjustable choke valves. They are easy for operation and simple to maintain.
Our adjustable choke valves have many sizes and pressure ratings used for oil field application
Feature:
1. Manufactured and tested in accordance with API 6A.
2. Carbide alloy is embedded into stem needle of valve, seat.
3. Flow adjustment is indicated on a measuring scale.
4. composite rubber-plastic stem lip packing reduces operating torque.
5. Max orifice:1"-3".
Avalaible Specication
Bore Size
2-4 inch
Working Pressure
2,000psi – 20,000ps
Material Class
AA-EE
Connection type
flange,union, thread
Adjustable Choke inquiry information
Customers may customize their purchase through the following data: • Working Pressure
• Size & Max. Orifice • Material Class
Cage and sleeve choke
Cage and sleeve choke is often used for control flow in severe condition instead of triditional needle and seat choke, the cage and
sleeve choke is designed and manufactured in accordance with API 6A and API 16C standard, the cage and sleeve are completely made by Tungsten Carbide alloy, and the size is adjustable by increment of 1/64".
We have all range sizes and pressure ratings cage and sleeve choke for clients' demend.
Cage and sleeve choke Feature:
1. Manufactured and tested in accordance with API 6A.
2. Carbide alloy is embedded into cage and sleeve..
4. Control sleeve and seat sealing surfaces are not directly exposed to the high velocity flow.
5. Max orifice:1"-3".
