www.lista.com © 2011 996
Using the advanced labelling system Lista Script all Lista products and many partition materials can be simply and clearly labelled. The labelling software can be downloaded easily from the Lista website free of charge. The labels adapted for the software are available as A4 sheets of paper and can be used in any commercially available printer. There are almost no limits to the ways you can design labels.

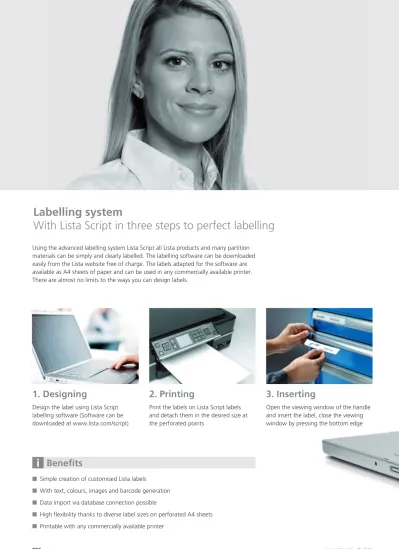

Labelling system
With Lista Script in three steps to perfect labelling
1. Designing
Design the label using Lista Script labelling software (Software can be downloaded at www.lista.com/script)
2. Printing
Print the labels on Lista Script labels and detach them in the desired size at the perforated points
3. Inserting
Open the viewing window of the handle and insert the label, close the viewing window by pressing the bottom edge
Benefits
n Simple creation of customised Lista labels
n With text, colours, images and barcode generation
n Data import via database connection possible
n High flexibility thanks to diverse label sizes on perforated A4 sheets
© 2011 www.lista.com 997
“
„
The standardised labelling simplifies our entire
workflow. Now it is much easier to find parts and
return them to their proper place after use.
You can download
this software
free-of-charge online
www.lista.com/script
www.lista.com © 2011 998 70x22 mm 140x22 mm 210x22 mm
Labelling system
The free Lista Script software not only makes it easier to find, manage and distribute inventory items, but also makes replacing and marking the labels a snap. With a variety of label sizes, the drawers can be labelled professionally and neatly with text, barcodes, pictograms, images and colours on the outside or inside, from the handle to the metal separators and plastic boxes.
Labels
Multifunctional and simple
The labels are available in various sizes on perforated A4 sheets of paper.
The A4 sheets for the Lista Script labels can be used very flexibly for the drawer handle and cabinet labelling.
© 2011 www.lista.com 999
210 x
22mm
27 x
12mm
47 x
12mm
70 x
22mm
47 x
18mm
70 x
22mm
Labels for cabinet labelling
A4 sheet, perforated, in size 70 x 22 mm, 140 x 22 mm and 210 x 22 mm
Labels for partition material
A4 sheet, perforated, available in size 27 x 12 mm, 47 x 12 m and 47 x 18 mm
Housing labelling, label size 70 x 22 mm Drawer labelling, label size 210 x 22 mm
Plastic box labelling, label size 47 x 12 mm Trough labelling, label size 27 x 12 mm
Drawer labelling, label size 70 x 22 mm Divider labelling, label size 47 x 18 mm
www.lista.com © 2011 1000 210 x 22 / 70 x 22 ● ● 18.784.000 27 x 12 ● ● ● - ● 18.787.000 47 x 12 - ● ● ● ● 18.786.000 47 x 18 - - ● - - 18.785.000
*
Lista Script
Labelling accessories
Lista Script labels for drawer handle and cabinet labelling
Label size
mm Number Art. no.
5 A4 sheets each with 10 / 30 labels
Lista Script labels for drawer partition material
Label size
mm Number Art. no.
2 A4 sheets each with 133 labels
2 A4 sheets each with 76 labels
2 A4 sheets each with 52 labels
*
Labelling system
Free label sheet with every cabinet order
Every new Lista drawer cabinet is supplied with matching Lista Script label sheets, to enable neat labelling from the start. More sheets can be ordered on the Lista website. The labels adapted for the labelling software are available as A4 sheets of paper and can be used in any commercially available printer.
Free labelling software available on the internet at www.lista.com/script
Tip
Free
label sheets with every cabinet order* Snap on label holder
To hold clip-on label holders, for fitting into the slots inside the drawer fronts, see partition material page 990 ff.
© 2011 www.lista.com 1001 52,5 x 18 18.932.000 105 22 14 18.926.000 210 22 14 18.927.000 1000 22 14 18.929.000 105 22 14 18.930.000 210 22 14 18.931.000 210 x 36 / 105 x 36 90.929.000 18 344 18.777.000 27 497 18.778.000 36 650 18.779.000 45 803 18.780.000 54 956 18.781.000 64 1126 18.782.000 78 1364 18.783.000 18.789.000
Self-adhesive labels
For labelling shelving, clothes lockers, etc. Specification: plastic, with hinged transparent protector, self-adhesive.
Width
mm Heightmm Max. letter heightmm Art. no.
Width
mm Heightmm Max. letter heightmm Art. no.
Self-adhesive labels including label strips
For labelling shelving, clothes lockers, etc. Specification: plastic, with hinged transparent protector, self-adhesive. Packaging unit: 10 pieces.
Label size mm Number Art. no. 2 A4 sheets
each with 52 labels
Lista Script label strips for self-adhesive labels
Lista Script labels for drawers in the metric system
For drawer labelling on tool trolleys and drawer cabinets 20/35.
Label size mm Number Art. no. 2 A4 sheets
each with 6 / 12 labels
Drawer handles for retrofitting
Drawer cabinets from year of construction 1985 onwards can easily be retrofitted with the new drawer handle. The handle is available in all standard widths. Specification: PVC, colour: aluminium silver.
Cabinet width units (U) Handle length (mm) Art. no.
Specification Art. no. for drawer handle
