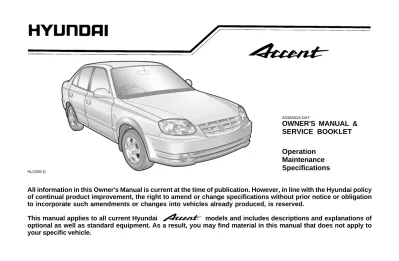

OWNER'S MANUAL & SERVICE BOOKLET
Operation Maintenance Specifications
All information in this Owner's Manual is current at the time of publication. However, in line with the Hyundai policy of continual product improvement, the right to amend or change specifications without prior notice or obligation to incorporate such amendments or changes into vehicles already produced, is reserved.
This manual applies to all current Hyundai models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.
A050A04A-DAT
HYUNDAI MOTOR INDIA
Note: If for any reason in the future you should sell your Hyundai, please leave this manual in the
vehicle for the new owner's use.
CAUTION:
Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 12-2 in the Vehicle Specifications section of the Owner's Manual.
Copyright 2009 Hyundai Motor India. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor India.
FOREWORD
Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discerning people who drive Hyundai. The advanced engineering and high-quality construction of each Hyundai we build is something of which we're very proud.
Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.
The manufacturer also recommends that all service and maintenance on your car be performed by an authorised Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may be required.
RESPONSIBILITY FOR MAINTENANCE
The maintenance requirements for your new Hyundai will be found in Section 8. It is the responsibility of the owner/driver to ensure that all of the maintenance operations specified by the manufacturer are carried out at the appropriate intervals. When the vehicle is used in severe driving conditions, more frequent maintenance is required for some items. Maintenance requirements for severe usage conditions are also included in section 8.
NOTICE
A080A01A-DAT
!
CAUTION: MODIFICATIONS TO YOUR HYUNDAI
Your Hyundai should not be modified in any way without the approval of Hyundai. Any modifications may adversely affect the safety, durability and performance of your Hyundai. In addition, those components which are subjected to modification or are added to the vehicle specification, and any resultant consequential damage will not be covered by the vehicle manufacturer's warranty.
TWO-WAY RADIO INSTALLATION CAUTION
Your vehicle is equipped with electronic fuel injection and other electronic compo-nents. It is possible for an improperly installed/adjusted two-way radio to adversely affect electronic systems. For this reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai dealer for precautionary measures or special instructions.
!
!
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following:
WARNING:
This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded. Follow the advice provided with the warning.
CAUTION:
This indicates that a condition may result in damage to your vehicle or its equipment if the caution is not heeded. Follow the advice provided with the caution.
NOTE:
TABLE OF CONTENTS
SECTION
PAGE
1. MAINTENANCE RECORD SHEET ...
1
2. WARRANTY POLICY ...
2
3. YOUR VEHICLE AT A GLANCE ...
3
4. FEATURES OF YOUR HYUNDAI ...
4
5. DRIVING YOUR HYUNDAI ...
5
6. WHAT TO DO IN AN EMERGENCY ...
6
7. CORROSION PREVENTION & APPEARANCE CARE ...
7
8. VEHICLE MAINTENANCE REQUIREMENTS ...
8
9. DO-IT-YOURSELF MAINTENANCE ...
9
10. EMISSION CONTROL SYSTEMS ...
10
11. CONSUMER INFORMATION ...
11
12. VEHICLE SPECIFICATIONS ...
12
1. MAINTENANCE RECORD SHEET
Maintenance Record Sheet ... 1-2Hyundai New Vehicle Warranty . . .2-2 Replacement Parts Warranty . . . . .2-3 Emission Warranty . . . .2-5 Hyundai Extended Warranty . . . . .2-7
Pre delivery inspection & Warranty Registration Card
1st Free Service Coupon 2nd Free Service Coupon 3rd Free Service Coupon
2
Hyundai Motor India Limited hereinafter called "HMIL", warrants that each new Hyundai vehicle sold shall be free from any defects in material and workman-ship, under normal use and mainte-nance, subject to the following terms and conditions.
1. Warranty period
This warranty shall exist for a period of 24 months from the date of delivery to the first purchaser irrespective of the mileage. However, the warranty for being used for commercial pur-pose such as Taxi/Tourist operation is 24 months/40,000 kilometers from the date of delivery which soever is earlier.This warranty is transferable to subsequent owner for the remaining warranty period. 2. What is covered
Except as provided in paragraph 3 here-of, our Authorized Dealers shall either repair or replace, any Hyundai genuine part that is acknowledged by HMIL to be defective in material or workmanship
within the warranty period stipulated above, at no cost to the owner of the Hyundai vehicle for parts or labour. Such defective parts which have been replaced will become the property of HMIL.
3. What is not covered This warranty shall not apply to:
o Normal maintenance services other than the three free services, including without limitation, cleaning and pol-ishing, minor adjustments, engine tuning, oil/fluid changes, filters replenishment, fastener retightening, wheel balancing, wheel alignment and tyre rotation etc.
o Replacement of parts as a result of normal wear and tear such as spark plugs, belts, brake pads and linings, clutch disc/facing, filters, wiper blades, bulbs, fuses, etc.
o Damage or failure resulting from: Negligence of proper maintenance
as required in this Owner's Manual and Service Booklet.
Misuse, abuse, accident, theft, flooding or fire.
Use of improper or insufficient fuel, fluids or lubricants.
Use of parts other than Hyundai Genuine Parts.
Any device and/or accessories not supplied by HMIL.
Modifications, alterations, tamper-ing or improper repair.
Parts used in applications of which they were not designed or not approved by HMIL.
Slight irregularities not recog-nised as affecting quality or func-tion of the vehicle or parts, such as slight noise or vibrations, or items considered characteristic of the vehicle.
Airborne "fallout", Industrial fall out, acid rain, hail and wind storms, or other Acts of God. Paint scratches, dents or similar
paint or body damage.
Action of road elements (sand, gravel, dust or road debris) which results in stone chipping of paint or glass.
HYUNDAI NEW VEHICLE WARRANTY
NOTE : Warranty repair jobs can be undertaken by Hyundai Authorized Dealers and their branches. However, Authorized Service Centers are not authorized to undertake warranty repair jobs.
o Incidental or consequential damages, including without limitation, loss of time, inconvenience, loss of use of vehicle or commercial loss.
This warranty is the entire warranty given by HMIL for Hyundai vehicles and no dealer or its or his agent or employee is authorized to extend or enlarge this war-ranty and no dealer or its or his agent or employee is authorized to make any oral warranty on HMIL's behalf.
HMIL reserves the right to make any change in design or make any improve-ment on the vehicle at any time without any obligation to make the same change on vehicles previously sold.
HMIL reserves the right for the final deci-sion in all warranty matters.
Owner's Responsibilities
o Proper use, maintenance and care of vehicle in accordance with the instructions contained in this Owner's Manual and Service Booklet. If the vehicle is subject to severe usage conditions, such as operation in extremely dusty, rough, more repeat-ed short distance driving or heavy city traffic during hot weather, mainte-nance of vehicle should be done more frequently as mentioned in this Owner's Manual and Service Booklet.
o Retention of maintenance service records. It may be necessary for the customer to show that the required maintenance has been performed, as specified in this Owner's Manual and Service Booklet.
o Delivery of the vehicle during regular service business hours to any author-ized Hyundai Dealer to obtain war-ranty service.
Hyundai Motor India Limited hereinafter called "HMIL", warrants that each new Hyundai Genuine replacement part pur-chased from and installed by Hyundai Authorized Dealer shall be free from any defects in material or workmanship, under normal use and maintenance, sub-ject to the following terms and conditions. 1. Warranty period
This warranty shall exist for a period of 6 months or until the vehicle has been driv-en for a distance of 10,000 Kilometers from the date of installation of replace-ment part by Hyundai Authorized Dealer, whichever occurs first.
2. What is covered
Except as provided in paragraph 3 here-of, our Authorized Dealer who had sold and installed the replacement part earlier shall either repair or replace the said Hyundai genuine part that is acknowl-edged by HMIL to be defective in materi-al or workmanship within the warranty period stipulated above, at no cost to the owner of the Hyundai vehicle for parts or labour.
PARTS REPLACEMENT WARRANTY
NOTE : Warranty repair jobs can be undertaken by Hyundai Authorized Dealers and their branches. However, Authorized Service Centers are not authorized to undertake warranty repair jobs.
Batteries, Audio Systems, Tyres and Tubes originally equipped on Hyundai vehicles are warranted directly by the respective manufacturers and not by HMIL.
3. What is not covered This warranty shall not apply to:
o Normal maintenance services of parts such as cleaning, adjustment or replacement (i.e. spark plugs that are oil fouled, lead fouled, or which fail due to the use of low grade fuel). o Parts that fail due to abuse, misuse,
neglect, alteration or accident or which have been improperly lubricat-ed or repairlubricat-ed.
o Parts used in applications for which they were not designed or approved by HMIL.
o Failure due to normal wear of parts. o Direct or indirect failures caused by
misuse and improper maintenance of vehicle and installation of non-Hyundai parts on the vehicle. o Any vehicle on which the odometer
reading has been altered so that mileage cannot be accurately deter-mined.
o Incidental or consequential damages, including without limitation, loss of time, inconvenience, loss of use of
vehicle or commercial loss.
This warranty is the entire warranty given by HMIL for Hyundai replacement parts and no dealer or its or his agent or employee is authorized to extend or enlarge this warranty and no dealer or its or his agent or employee is authorized to make any oral warranty on HMIL's behalf.
HMIL reserves the right for the final deci-sion in all warranty matters.
Owner's Responsibilities
o Proper use, maintenance and care of the vehicle in accordance with the instructions contained in the Owner's Manual and Service Booklet. o Retention of maintenance service
records. It may be necessary for the customer to show that the required maintenance has been performed, as specified in this Owner's Manual and Service Booklet.
o Retention of the customer's copy of the original repair order and its invoice/bill against which the part was replaced.
o Delivery of the vehicle during regular service business hours to the same Hyundai Authorized Dealer who had sold and installed the replacement part.
NOTE : Warranty repair jobs can be undertaken by Hyundai Authorized Dealers and their branches. However, Authorized Service Centers are not authorized to undertake warranty repair jobs.
EMISSION WARRANTY (Applicable for vehicles sold from 01/07/2001 in Delhi-NCR, Mumbai, Kolkata and Chennai only)
Subject to other terms of the warranty policy and the conditions and obligations laid down hereunder, Hyundai Motor India Limited hereinafter called “HMIL”, certifies that the components liable to affect the emission of the gaseous pollu-tants in the vehicle in normal use despite the use to which it may be subjected, comply with the provisions of Rule 115(2) of the Central Motor Vehicle Rules, 1989 hereinafter referred to as the “In-use emission standard”, and further warrants that if on examination by a dealer duly authorized by HMIL, the vehicle is dis-covered to be failing to meet the In-use emission standard as specified in the said rule, our Authorized Dealer shall take such corrective measures as may be necessary and shall at its sole discre-tion either repair or replace free of charge, such components of emission control system as are specified in para-graph 3 hereof.
1. Warranty period
This warranty will be in addition to and run parallel to the New Vehicle Warranty and shall exist for a period of 36 months or until the vehicle has been driven for a distance of 80,000 kilometers from the date of delivery to the first purchaser, whichever occurs first. This warranty is transferable to subsequent owner for the remaining warranty period.
2. What is covered
Our Authorized Dealers shall either repair or replace, any Hyundai genuine part listed in paragraph 3 hereof, that is acknowledged by HMIL to be defective in material or workmanship within the war-ranty period stipulated above, after examinations carried out to confirm that none of the original settings have been tampered with, at no cost to the owner of the Hyundai vehicle for parts or labour. Such defective parts which have been replaced will become the property of HMIL.
3. Emission Warranty Parts List 3.1 Engine Control Module System
• Engine Control Module
• Crankshaft Position Sensor, Camshaft Position Sensor, Throttle Position Sensor, MAP Sensor, O2 Sensor, IAT & ECT Sensor
3.2 Fuel Metering System • Fuel injectors • Fuel Pumps 3.3 Air Induction System
• Air Cleaner Housing Assembly • Throttle Body
• Intake Manifold
• Idle Speed Control Actuator 3.4 Ignition System
• H.T. Cable Set • Ignition Coil • Power Transistor
• Distributor and internal parts
NOTE : Warranty repair jobs can be undertaken by Hyundai Authorized Dealers and their branches. However, Authorized Service Centers are not authorized to undertake warranty repair jobs.
3.5 Evaporative Emission Control System
• Vapour Storage Canister • Fuel Tank
• Fuel Filler Tube and Fuel filler Cap
• Purge Control Solenoid Valve • Canister Close Valve
3.6 PCV System • PCV Valve. • PCV Hoses • Oil Filler Cap
3.7 Catalytic Converter System • Exhaust Manifold • Exhaust Pipe Assembly • Catalytic Converter 3.8 Exhaust Gas Recirculation
(EGR) System (Diesel Engines) • EGR Control System 3.9 Miscellaneous items used in
above Systems
• Vacuum hoses, clamps, fittings, tubing or mounting hardware used with the above systems. Valves, Switches and Solenoids.
4. What is not covered
This Emission Warranty shall not apply to:
o Normal maintenance services includ-ing without limitation, engine tuninclud-ing, oil/fluid changes, filters replenish-ment, etc.
o Replacement of parts as a result of normal wear and tear such as spark plugs, filters, etc.
o The vehicle reported without valid ‘Pollution Under Control’ certificate for the period immediately preceding the test during which the failure is dis-covered.
o The vehicle which has been run on adulterated fuel or lubricant or fuel/lubricants other than those spec-ified by HMIL.
o Damage or failure resulting from: Negligence of proper
mainte-nance as required in this Owner’s Manual and Service Booklet. Misuse, abuse, accident, theft,
flooding or fire.
Use of improper or insufficient fuel, fluids or lubricants.
Any repair carried out other than by Hyundai Authorized Dealer/ Service Centre.
Use of parts other than Hyundai Genuine Parts.
Any device and/or accessories not supplied by HMIL.
Modifications, alterations, tamper-ing or improper repair.
Parts used in applications for which they were not designed or not approved by HMIL.
Any penalties that may be charged by statutory authorities on account of failure to comply with the In-use emission stan-dards.
The vehicle in which the odome-ter has been tampered with, changed or been disconnected. o Any consequential repairs or
replace-ment of parts which may be found necessary to establish compliance to In-use emission standards, in addi-tion to the replacement of the compo-nents covered under Emission Warranty, will not be made free of
NOTE : Warranty repair jobs can be undertaken by Hyundai Authorized Dealers and their branches. However, Authorized Service Centers are not authorized to undertake warranty repair jobs.
cost unless such parts are also found to be in warrantable condition within the scope and limit of the New Vehicle Warranty.
o Incidental or consequential damages, including without limitation, loss of time, inconvenience, loss of use of vehicle or commercial loss.
This warranty is the entire warranty given by HMIL for Hyundai vehicles and no dealer or its or his agent or employee is authorized to extend or enlarge this war-ranty and no dealer or its or his agent or employee is authorized to make any oral warranty on HMIL’s behalf.
HMIL reserves the right to make any change in design or make any improve-ment on the vehicle at any time without any obligation to make the same change on vehicles previously sold.
HMIL reserves the right for the final deci-sion in all warranty matters.
OWNER'S RESPONSIBILITIES o Proper use, maintenance and care of
vehicle in accordance with the instructions contained in this Owner’s Manual and Service Booklet. If the vehicle is subject to severe usage conditions, such as operation in extremely dusty, rough, more repeat-ed short distance driving or heavy city traffic during hot weather, mainte-nance of vehicle should be done more frequently as mentioned in this Owner’s Manual and Service Booklet. o In order to maintain the validity of this Emission Warranty, the vehicle must be serviced by Hyundai Authorized Dealer or Service Centre in accor-dance to the Owner’s Manual and Service Booklet.
o Retention of maintenance service records. It may be necessary for the customer to show that the required maintenance has been performed, as specified in this Owner’s Manual and Service Booklet.
o Immediate Delivery of the vehicle to any authorized Hyundai Dealer upon
discovery of failure to comply with the In-use emission standard inspite of proper use, maintenance and care of vehicle in accordance with the instructions contained in this Owner’s Manual and Service Booklet. o Production of “Pollution Under
Control" (PUC) certificate valid for the period immediately preceding the test during which the failure is discovered, the test having been carried out either for obtaining a new certificate, or pursuant upon being directed by an officer as referred to in sub-rule (2) of Rule 116 of the Central Motor Vehicles Rules.
HYUNDAI EXTENDED WARRANTY*
HMIL offers optional paid extended warranty on selected models, in addi-tion to the basic new vehicle warranty. For more details on Hyundai Extended Warranty please call the nearest dealer or our toll free number 1-800-11-4645
*Conditions apply NOTE : Warranty repair jobs can be undertaken by Hyundai Authorized Dealers and their branches.
3. YOUR VEHICLE AT A GLANCE
Instruments and Controls ... 3-2B250B01A-DAT
INSTRUMENTS AND CONTROLS
HLC003-E 1 2 3 4 5 6 7 8 9 10 1112 13 14
1. Passenger's Airbag (If Installed) 2. Glove Box
3. Heating/Air Conditioning Control Panel (If Installed)
4. Rear Fog Light Switch
5. Rear Window Demister Switch (If Installed) 6. Hazard Warning Light Switch
7. Front Fog Light Switch (If Installed) 8. Digital Clock
9. Windshield Wiper/Washer Switch 10.Horn and Driver's Airbag (If Installed)
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.
11.Instrument Cluster
12.Multi-Function Light Switch
13.Instrument Panel Light Control switch (Rheostat) 14.Rear Wiper/Washer Switch (If Installed)
15.Rear Drink Holder 16.Hand Brake Lever 17.Shift Lever
18.Front Drink Holder 19.Ashtray
20.Cigarette Lighter 21.Bonnet Release Lever
G255A01A-DAT
INDICATOR SYMBOLS ON THE INSTRUMENT PANEL
* More detailed explanations of these items will be found begining on page 4-32. SRS (Airbag) Service Reminder
Indicator
ABS Service Reminder Indicator (If Installed)
Turn Signal Indicator Lights High Beam Indicator Light
Low Oil Pressure Warning Light Hand Brake/Low Brake Fluid Level Warning Light
Charging System Warning Light Door Ajar Warning Light
Low Fuel Level Warning Light Malfunction Indicator Light Seat Belt Reminder Light
4. FEATURES OF YOUR VEHICLE
Fuel Recommendations ... 4-2 Running in Your New Hyundai ... 4-3 Immobiliser System ... 4-4 Door Locks (Theft-Alarm System) ... 4-6, 4-8 Window Glass (Power Windows) ... 4-11 Seat ... 4-12 Seat Belt ... 4-17 Child Restraint System ... 4-21 Supplemental Restraint (AIRBAG) System ... 4-25 Instrument Cluster and Indicator Lights ... 4-32 Warning Light and Indicator ... 4-34 Multi-Function Light Switch ... 4-38 Windshield Wiper/Washer Switch ... 4-39 Mirror ... 4-46 Bonnet Release ... 4-49 Heating and Cooling Control ... 4-55 Stereo Sound System ... 4-64 Antenna ... 4-67B010F01A-AAT
Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to: o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
Unleaded petrol with a Pump Oc-tane Rating of 87 (Research OcOc-tane Number 91) or higher must be used in your Hyundai.
If leaded petrol is used, it will cause the catalytic converter to become ineffec-tive and the emission control system to malfunction. This can also result in increased maintenance expense. To avoid accidental use of leaded fuel, the larger nozzle used with leaded petrol at service stations cannot be inserted into the fuel tank opening of your Hyundai.
B010A01A-DAT
FUEL RECOMMENDATIONS Use Unleaded Petrol
B010E01A-DAT
Petrol for Cleaner Air
To help contribute to cleaner air, Hyundai recommends that you use petrol treated with detergent additives, which help prevent deposit formation in the engine. This petrol will help the engine run cleaner and enhance per-formance of the Emission Control Sys-tem.
B010D01A-DAT
Do not Use Methanol
Fuels containing methanol (wood al-cohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage com-ponents of the fuel system.
!
CAUTION:Hyundai Warranty Policy will not cover the damage of the fuel sys-tem and performance problems that are caused by the use of methanol or fuels containing methanol. B010B01A-AAT
What About Gasohol [E-10]? Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be used in your Hyundai. However, if your engine develops drive ability problems, the use of 100% un-leaded gasoline is recommended. Fu-els with unspecified quantities of alco-hol, or alcohols other than ethanol, should not be used.
UNLEADED FUEL ONLY
B020A01S-DAT
RUNNING IN YOUR NEW HYUNDAI
During the First 2,000 km No formal running in period is required with your new Hyundai. However, you can contribute to the economical op-eration and durability of your Hyundai by observing the following recommen-dations during the first 2,000 km. o Don't drive faster than 88 km/h. o While driving, keep your engine
speed or revolutions per minute between 2,000 and 4,000 rpm. o Use moderate acceleration. Don't
use full-throttle starts.
o For the first 300 km, try to avoid hard stops.
o Don't labour the engine (in other words, don't drive so slowly in too high a gear that the engine hesi-tates : shift to a lower gear). o Whether going fast or slow, vary
your speed from time to time. o Don't let the engine idle longer than
3 minutes.
o Do not tow a trailer during the first 2,000 km of operation.
B030A01A-AAT KEYS
For greater convenience, the same key operates all the locks in your Hyundai. However, because the doors can be locked without a key, carrying a spare key is recommended in case you accidentally lock one key inside the car.
!
B880A01A-DATIMMOBILISER SYSTEM
The immobiliser system is an anti-theft device, designed to deter automobile theft.
B880B03A-GAT Keys
All of the locks fitted to the vehicle are operated by the same key. However, since it is possible to lock the doors without the use of the key, care should be exercised to ensure that the key does not become locked inside the vehicle by mistake.
NOTE:
If you make your own duplicate key, you will not be able to cancel the immobiliser system or start the en-gine.
CAUTION:
o The password should be recorded and kept in a safe place in case the need to order further keys arises. o If you forget the password, con-sult your authorized Hyundai dealer.
o When starting the engine, do not use the key with other immobi-lizer keys around. Otherwise the engine may not start or may stop soon after it starts.
Keep each keys separately not to have any malfunction after you receive your new vehicle.
NOTE:
You can get the limp home pass-word when the vehicle is first deliv-ered to you. If you do not have the password, consult your authorised Hyundai dealer.
1. To set the password you may turn the ignition key "ON" and then turn it "OFF" according to the digit num-bers, then the immobiliser indicator will blink along with the operation of the ignition key. For example, turn the ignition key once for digit num-ber "1", and twice for "2", and so on. However, for the digit number "0", you must turn the ignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same pro-cedures 1 and 2.
4. If all of four digits have been tried successfully, turn the ignition key "ON" and check that the immobiliser indicator illuminates. From this time, you have to start your engine within 30 seconds. If you start your engine after 30 seconds, your engine will not start.
B880D02A-DAT
Limp home procedures
In case the immobiliser warning indi-cator blinks for five seconds when the ignition key is turned to "ON" position, this indicates that the immobiliser sys-tem is out of order. You cannot start the engine without the limp home pro-cedures with ignition key.
The following procedure is how to start the engine with the function of the limp home. (0, 1, 2, 3 as a sample pass-word).
!
NOTE:
If the engine dies while driving after limp home procedure, you can start your engine within 8 seconds with-out limp home procedure again.
5. If the immobiliser indicator blinks for five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure, you have to consult with your authorised Hyundai dealer as soon as possible.
CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, you have to wait for a minimum of one hour before attempting the limp home proce-dure again.
o If you cannot start your engine in spite of limp home procedure, have your vehicle towed by an authorised Hyundai dealer. B880D03A
B040B01A-AAT
Locking and Unlocking Front Doors With a Key
!
o The door can be locked or unlocked with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.
B040A02Y-AAT DOOR LOCKS
WARNING:
o Unlocked doors can be danger-ous. Before you drive away (es-pecially if there are children in the car), be sure that all the doors are securely closed and locked so that the doors cannot be inad-vertently opened from the inside. This helps ensure that the doors will not be opened accidentally. Also, when combined with the proper use of seat belts, locking the doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always look for and avoid oncoming traf-fic.
o In case of accident, the door is unlocked automatically (If In-stalled).
UNLOCK
LOCK
B040D01FC-GAT
Locking From the Inside
To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outside nor the inside door handle can be used.
B040E04A-AAT
CHILD-PROTECTOR REAR DOOR LOCK (If Installed)
Your Hyundai is equipped with a "child-protector" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat.
o To protect against theft, always remove the ignition key, close all windows, and lock all doors and the trunk lid(4Door)/tail gate(3/5 Door) when leaving your vehicle unattended.
NOTE:
When the door is locked, the red mark on the switch is not visible and the character "LOCK" on the switch is visible.
B040C03A-GAT
Locking From the Outside
The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is not visible, then close the door.
The door will not lock if the key is left in the ignition switch when the front doors close. This is normal. (If Installed) NOTE:
o When locking the door this way, be careful not to lock the door with the ignition key left in the vehicle. HLC2008-D HLC2004-D LOCK UNLOCK HLC2005-D
To engage the child-protector feature so the door cannot be opened from the inside, move the child-protector lever to the " " position and close the door. Move the lever to the opposite direc-tion of the " " posidirec-tion when normal door operation is desired.
If you wish to be able to open the door from the outside, the outside door handle will function normally.
B040G02A-GAT
Central Door Lock (If Installed)
The central door locking is operated by pushing the driver's door lock switch toward the front or rear of the vehicle. If the passenger and rear doors are open when the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward the rear, all doors will unlock. When pushing the switch toward the front, all doors will lock. o When the door is unlocked, the
red mark on the switch is visible and the character "LOCK" on the switch is not visible.
o The central door locking is oper-ated by turning the key (with theft-alarm system: driver's door and passenger's door, without theft-alarm system: driver's door only) toward the front or rear of the vehicle.
B070A01A-DAT
THEFT-ALARM SYSTEM (If Installed)
This system is designed to provide protection from unauthorised entry into the car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the turn signal lights.
B070B03A-DAT Armed Stage
B040G01A-D
B070D02A-DAT
Disarmed Stage
B070C04A-GAT Alarm Stage
The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A door or tail gate (3/5 Door) is opened without using the transmit-ter.
2) The trunk lid (4 Door) is opened without using the ignition key. 3) The engine bonnet is opened. The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds. To turn off the system, unlock the door or tail gate with the transmitter.
The system will be disarmed when the driver's or passenger's door is un-locked by depressing the button on the transmitter after the system was armed. After completion of the step above, the turn signal lights will blink twice to indicate that the system is disarmed. If any door, trunk lid(4 Door)/tail gate(3/ 5 Door) or engine bonnet is not opened within 30 seconds, the system will be rearmed.
Park the car and stop the engine. Arm the system as described below. 1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine bonnet and trunk lid(4 Door)/ tail gate (3/5 Door) are locked.
3) Lock the doors using the transmitter of the keyless entry system. After completion of the steps above, the turn signal light will blink once to indicate that the system is armed. NOTE:
1) If any door, trunk lid (4 Door)/ tail gate (3/5 Door) or engine bonnet remains open, the system will not be armed.
If this happens, rearm the system as described above.
2) Once the system is armed, only the trunk lid (4 Door) may be unlocked using the key without disarming the system.
!
CAUTION:Do not arm the system until all passengers have left the car. If the system is armed while a passenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leaves the car.
D070D01A
CAUTION:
Avoid trying to start the engine while the system is armed.
CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter does not disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" position.
3. Wait for 30 seconds.
After completing the steps above, the system will be disarmed.
!
B070E01TB-AAT
Replacing the battery
When the transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will not light. Re-place the battery as soon as possible. Battery type : CR1220
Replacement instructions:
1. Remove the screw with a phillips screwdriver.
2. Separate the case with a flat-head screwdriver as shown in the illustra-tion.
NOTE:
When the system is disarmed with the interior light switched to "DR" or "
·
", the interior light will illumi-nate for 30 seconds.HLC053 B070F02A-GAT
Keyless Entry System (If Installed)
Locking doors 1. Close all doors.
2. Push the button on the transmitter. 3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed. Unlocking doors
1. Push the button on the transmitter once more after all doors were locked.
2. At the same time all doors unlock, the turn signal light will blink twice to indicate that the system is disarmed.
B050A01A-AAT
WINDOW GLASS
To raise or lower the window, turn the window regulator handle clockwise or counterclockwise.
B060A01E-AAT
POWER WINDOWS (If Installed)
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate window switch and closed by pulling up the switch. To open the window on the driver's side, press the switch(1) down. The window moves as long as the switch is operated.
WARNING:
When opening or closing the win-dows, make sure your passenger's arms, hands and body are safely out of the way.
!
3. Remove the four screws from the back side of the built-in circuit.
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same (+side facing up), then
(1) HLC054 HLC055 Battery (1) 4/5 Door 3 Door insert it in the transmitter.
Reas-semble the built-in circuit into the key case.
B050A01A-D
To move the seat toward the front or rear, pull the lock release lever up-ward. This will release the seat on its track so you can move it forward or rearward to the desired position. When you find the position you want, release the lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot be moved further.
In order to prevent operation of the passenger front and rear windows, a window lock switch is provided on the armrest of the driver's door. To disable the power windows, press the window lock switch.
To revert to normal operation, press the window lock switch a second time. Auto-Down Window
(Driver's Side) (If Installed) The Auto-Down window is moved to its fully open position by pushing the switch. To stop at the desired position push the switch again.
B080A01FC-GAT
ADJUSTABLE SEATS
B080B02FC-GAT FRONT SEATS
Adjusting Seat Forward and Rearward
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door and the individual door window switch in opposing directions at the same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignition key for their safety.
!
!
WARNING:Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage. HLC2014-D
!
To recline the seatback, lean forwardto take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever.B080D02JM-AAT
Adjustable Headrests
WARNING:
To minimise risk of severe injury in the event of a collision or a sudden stop, both the driver and passenger seatbacks should always be in an upright position while the vehicle is in motion. The protection provided by the seat belts and airbags in a frontal collision may be reduced sig-nificantly when the seatbacks are reclined. There is greater risk that the driver and passenger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protec-tion to an occupant if the seatback is reclined.
!
B080C01A-AAT
Adjusting Seatback Angle
Lock knob
WARNING:
To ensure the seat is locked se-curely, attempt to move the seat forward or rearward without using the lock release lever.
Headrests are designed to help reduce the risk of neck injuries.
To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob. To remove the headrest, raise it as far as it can go then press the lock knob while pulling upward.
HLC2027-D
B080E01O-AAT
Lumbar Support Control
(Driver's Seat Only) (If Installed)
To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount of lumbar support, pull the lever forward. To decrease it, push the lever toward the rear.
B080F01S-AAT
Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat cushion, turn the front knob for-ward or rearfor-ward. To raise or lower the rear part of the seat cushion, turn the rear knob forward or rearward. HLC2029-D
HLC2028-D
!
WARNING:o For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occupant's eyes. The use of a cushion that holds the body away from the seatback is not recommended.
o Do not operate the vehicle with the headrests removed as severe in-jury to an occupant may occur in the event of an accident. Head-rests may provide protection against severe neck injuries when properly adjusted.
o Do not adjust the headrest height while the vehicle is in motion.
WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top of the headrest is at the same height as the top of the occupant's ears. The use of a cushion that holds the body away from the seatback is not recommended.
o Do not operate vehicle with the headrests removed as severe in-jury to an occupant may occur in the event of an accident. Head-rests may provide protection against severe neck injuries when properly adjusted.
!
B110A04A-EAT
Folding Rear Seatbacks (If Installed)
WARNING:
The purpose of the fold-down rear seatbacks is to allow you to carry longer objects than could other-wise be accommodated. Never al-low passengers to sit on top of the folded-down seatback while the car is moving as this is not a proper seating position and no seat belts are available for use when the seatbacks are folded down. This could result in serious injury or death in case of an accident or a
!
Lock Knob B090A01A-GAT REAR SEAT Adjustable Headrests (If Installed)Headrests are designed to help re-duce the risk of neck injuries.
To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob.
B090A01A
sudden stop. Objects carried on the folded-down seatback should not extend higher than the top of the front seats. This could allow cargo to slide forward and cause injury or damage during sudden stops.
For greater convenience, the seat backs
may be folded down individually. o To unlock the seatback, pull up the
seatback locking knob, then push forward on the seatback panel. o When you return the seatback to its
upright position, always be sure it
B140A01A B140A01S-AAT
REAR SEAT WARNING
For the safety of all passengers, lug-gage or other cargo should not be piled higher than the top of the seatback. In addition, do not place objects on the rear shelf as they may move forward during braking or in an accident and strike vehicle passengers.
has locked into position by pulling and pushing on the top of the seatback.
WARNING:
o When you return the rear seatback to its upright position after being
!
folded down, be careful not to damage the seat belt webbing or buckle. In addition, do not allow the seat belt webbing or buckle to get caught or pinched in the rear seat.
o When you return the rear seatback to its upright position, be sure it is locked into position to attempt move it.
o Never attempt to fold or return seat while the vehicle is moving. o Make sure that the headrests are properly fixed in place to mini-mize the risk of severs injury in case of an accident.
B150B01A-DAT
Maintenance of Seat Belts When cleaning the seat belts, as recommended, avoid getting solutions into the buckle where they may attack the lubricant or cause corrosion. Do not attempt to bleach or re-dye belts, as this may affect the webbing strength. NOTE:
Do not attempt any form of modifi-cations or repairs to seat belt com-ponents. If the retractor or other components do not operate cor-rectly, call an authorised Hyundai Dealer, who will take the necessary corrective action. Your authorised dealer will inspect all seat belt com-ponents at regular intervals and advise if replacement is required. Between these inspections you should make regular checks to en-sure that foreign objects are not preventing complete buckle en-gagement.
A slack belt will greatly reduce the protection afforded to wearer. Care should be taken to avoid con-tamination of the webbing with polishes, oils and chemicals and particularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged. It is essential to replace the entire assembly after it has been worn in a severe impact even if damage to the assembly is not obvious. Belts should not be worn with straps twisted. Each seat belt assembly must only be used by one occu-pant; it is dangerous to put a belt around a child being carried on the occupant's lap.
No modifications or additions should be made by the user which will either prevent the seat belt ad-justing devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.
B150A01A-DAT SEAT BELTS
The use of seat belts reduces the risk of accident injury by avoiding collision with the interior of the car and by preventing the occupants from being thrown out of the car. This makes them the most important safety feature avail-able for you and your passengers. Adequate protection is afforded only when the belt is worn correctly. You should always fasten and adjust your belts before the car is put in motion and encourage your passengers to do the same.
!
WARNING:Seat belts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis, or the pelvis, chest and shoulders, as applicable; wear-ing the lap section of the belt across the abdominal area must be avoided.
Seat belts should be adjusted as firmly as possible, consistent with comfort, to provide the protection for which they have been designed.
B160B01A-AAT
Periodic Inspection
It is recommended that all seat belts be inspected periodically for wear or damage of any kind. Parts of the sys-tem that are damaged should be re-placed as soon as possible.
B160C01A-AAT
Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabric.
B160D01A-DAT
When to Replace Seat Belts Complete seat belt assembly or as-semblies should be replaced if the vehicle has been involved in an acci-dent. This should be done even if no damage is visible. Additional ques-tions concerning seat belt operation should be directed to your Hyundai Dealer.
B200A01S-GAT
Adjusting Your Seat Belt
B210A01A-AAT
To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt should automatically draw back into the re-tractor.
If this does not happen, check the belt to be sure it is not twisted, then try again.
the belt is properly locked and that the belt is not twisted.
You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high on your body, you could slide under it in case of accident or a sudden stop. This could result of death, serious in-jury or property damage. Both arms should not be under or over the belt. Rather, one should be over and the other under, as shown in the illustra-tion.
Never wear the seat belt under the arm nearest the door.
B180A02A-GAT SEAT BELTS
To Fasten Your Belt
To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle.
The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, how-ever, the belt will lock into position. It will also lock if you try to lean forward too quickly. Check to make sure that B180A01A-D
B200A01A-D
B220A01A-DAT
SEAT BELTS (Rear Seat Centre) To Fasten Your Seat Belt
To fasten a 2-point static type belt, insert the metal tab into the locking buckle. There will be an audible "click" when the tab locks into the buckle. Check to make sure the belt is properly locked and that the belt is not twisted. B220A01A
B220C01A-DAT
To Release the Seat Belt
When you want to release the seat belt, press the button in the locking buckle.
B220C01A-A
WARNING:
The centre lap belt latching mecha-nism is different from those for the rear seat shoulder belts. When fas-tening the rear seat shoulder belts or the centre lap belt, make sure they are inserted into the correct buckles to obtain maximum protec-tion from the seat belt system and assure proper operation.
!
B220B01A Correct Shorten Too high B220B01A-AATAdjusting Your Seat Belt
With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly around your body. Fasten the belt and pull on the loose end to tighten. The belt should be placed as low as possible on your hips, not on your waist. If the belt is too high, it could increase the possibility of your being injured in an accident.
o A child restraint system should be placed in the vehicle's rear seat since this can make an im-portant contribution to safety. o Unrestrained children should not
be carried in the car. Holding a child in your arms is not a satis-factory substitute for a child re-straint system. A child held in this manner can be crushed be-tween your body and the interior of the car.
o Never allow a child to be held in a person's arms while they are in a moving vehicle.
This could result in serious in-jury or death to the child in the event of an accident or sudden stop. Holding a child in a moving vehicle does not offer protection during an accident, even if the person holding the child is wear-ing a seat belt.
o Never use an infant carrier or child safety seat that "hooks" over a seatback; it may not pro-vide adequate security in an ac-cident.
o Under all circumstances the at-taching bolt must be engaged at least 5 full threads in the anchor-age. If you are in doubt with any aspect of this installation please contact an authorised Hyundai dealer.
B230A02A-DAT
CHILD RESTRAINT SYSTEM If the child is old enough to sit alone and the car is not equipped with a proper child or infant seat, the child should be placed in the rear seat and restained with a lap/sash belt.
WARNING:
o Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted child restraints. Under no circum-stances are they to be used for adult seat belts harnesses or for attaching other items or equip-ment to the vehicle.
o Since a safety belt or child re-straint system can become very hot if it is left in a closed vehicle, be sure and check the seat cover and buckles before placing a child there.
o When the child restraint system is not in use, store it in the trunk or fasten it with a safety belt so that it will not be thrown forward in the case of a sudden stop or accident.
B230B01E-AAT
Using a Child Restraint System
For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions. It is further required that the seat be placed in the vehicle's rear seat since this can make an important contribution to safety. Your vehicle is provided with three child restraint hook holders for installing the child seat or infant seat.
Spacer (4Door : 6mm or 3/5Door : 10mm), Child Restraint Hook Holder
B230B01TB Attachment Bolt (5/16"-30 mm)
Washer, Conical Spring
Holder, Child Restraint Hook
Retainer Washer
2. Route the child restraint seat strap over the back of the seat.
For vehicles with adjustable head-rests, route the tether strap under the headrest and between the head-rest posts, otherwise route the tether strap over the top of the seatback. B230C02A-E
Front of Vehicle Attaching Clip
Child Restraint Anchorage Fitting Packages
B230C04A-DAT
INSTALLING A CHILD RE-STRAINT SEAT
Three Child Restraint Anchorage Fit-ting Packages are located on the rear seat package tray.
B230C01A 1. Open the tether anchor cover on the
rear seat package tray.
Tether Anchor Cover
Child Restraint Anchorage Fitting Package
!
3. Connect the attaching clip to the Child Restraint Anchorage Fitting Package and tighten to secure the seat.
WARNING:
Do not mount more than one child restraint to a single tether or to a child restraint lower anchorage point. The improper increased load may cause the anchorage points or tether anchor to break, causing se-rious injury or death.
NOTE:
o Before installing the child re-straint system, read the instruc-tions supplied by the child re-straint system manufacturer. o If the seat belt does not operate
as described, have the system checked immediately by your authorised Hyundai dealer.
B180B01A-DAT
Pre-Tensioner Seat Belt
Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal col-lisions.
The pre-tensioner seat belts can be activated with the airbags.
The pre-tensioner seat belt operates in a similar way as an Emergency Locking Retractor (ELR) type of seat belt. When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position. In certain frontal B180B02A-D
!
WARNING:Do not install any child restraint sys-tem in the front passenger seat. Should an accident occur and cause the passenger side airbag to deploy, it could severely injure or kill an infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rear seat of your vehicle.
o Although it is harmless, the fine dust may cause skin irritation and should not be inhaled for prolonged periods. Wash your hands and face thoroughly after an accident in which the pre-tensioner seat belts were acti-vated.
CAUTION:
o Because the sensor that activates the SRS airbag is connected with the pre-tensioner seat belt, the SRS airbag warning light on the instrument panel will blink for approximately 6 seconds af-ter the ignition key has been turned to the "ON" position, and then it should turn off.
o If the pre-tensioner seat belt is not working properly, this warn-ing light will illuminate even if there is no malfunction of the SRS airbag system.
If the SRS airbag warning light does not illuminate when the ig-nition key is turned to "ON", or if it remains illuminated after blink-ing for approximately 6 seconds,
!
WARNING:To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor-rectly.
2. The seat belt must be adjusted to the correct position.
!
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certain frontal collisions. The pre-tensioner seat belts can be acti-vated with the airbags. The pre-tensioners will be activated even if the seat belts are not being worn at the time of the collision. o When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compart-ment. These are normal operat-ing conditions and are not haz-ardous.
collisions, the pre-tensioner will acti-vate and pull the seat belt into tighter contact against the occupant's body.
The seat belt pre-tensioner system consists mainly of the following com-ponents.
Their locations are shown in the illus-tration.
1. SRS airbag warning light.
2. Seat belt pre-tensioner assembly. 3. SRS control module B180D01A-D Driver's airbag 1 2 3 Passenger's airbag
!
WARNING:o Pre-tensioners are designed to operate only one time. After acti-vation, pre-tensioner seat belts must be replaced. All seat belts, of any type, should always be replaced after they have been worn during a collision.
o The pre-tensioner seat belt as-sembly mechanisms become hot during activation. Do not touch the pre-tensioner seat belt as-semblies for several minutes af-ter they have been activated. o Do not attempt to inspect or
re-place the pre-tensioner seat belts yourself. This must be done by an authorised Hyundai dealer. o Do not strike the pre-tensioner
seat belt assemblies.
or if it illuminates while the ve-hicle is being driven, please have an authorised Hyundai dealer inspect the pre-tensioner seat belts and SRS airbag system as soon as possible.
Your Hyundai is equipped with a Supplemental Restraint (Airbag) Sys-tem. The indications of the system's presence are the letters "SRS AIR BAG" embossed on the airbag pad cover in the steering wheel and on the passenger's side front panel pad above the glove box.
The Hyundai SRS consists of airbags installed under the pad covers in the centre of the steering wheel and the passenger's side front panel above the glove box. The purpose of the SRS is B240A04F-DAT
SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM
Driver's Airbag o Do not attempt to service or repair
the pre-tensioner seat belt system in any manner.
o Improper handling of the pre-tensioner seat belt assemblies, and failure to heed the warnings to not strike, modify, inspect, re-place, service or repair the pre-tensioner seat belt assemblies may lead to improper operation or inadvertent activation and se-rious injury.
o Always wear seat belts when
o Front airbags are not intended to deploy in side-impact, rear-im-pact or rollover crashes. In addi-tion, airbags will not deploy in frontal crashes below the deploy-ment threshold speed.
Rear impact
Side Impact
Rollover o The SRS is designed to deploy
the airbags only when the impact is sufficiently severe and when the impact is in the front or fron-tal angle of the vehicle, and will not deploy in side, rear or rollover impacts. Additionally, the airbags will only deploy once. Thus, seat belts must be worn at all times.
o For maximum safety protection in all types of crashes, all occu-pants including the driver should always wear their seat belts whether or not an airbag is also provided at their seating posi-tion to minimise the risk of se-vere injury or death in the event of a crash. Do not sit or lean unnecessarily close to the airbag while the vehicle is in motion. o The SRS airbag system must
de-ploy very rapidly to provide pro-tection in a crash. If an occupant is out of position because of not wearing a seat belt, the airbag may forcefully contact the occu-pant causing serious or fatal in-juries.
WARNING:
o As its name implies, the SRS is designed to work with, and be supplemental to, the driver's and the passenger's three point seat belt systems and is not a substi-tute for them. Therefore your seat belts must be worn at all times while the vehicle is in motion. In addition, the airbags deploy only in certain frontal impact condi-tions severe enough to likely cause significant injury to the vehicle occupants.
!
to provide the vehicle's driver and/or the front passenger with additional pro-tection than that offered by the seat belt alone, in case of a frontal impact of sufficient severity.
NOTE:
Be sure to read information about the SRS on the labels provided on the backside of the sun visor and in the glove box.
The SRS consists of the following com-ponents:
- Driver's Airbag Module - Passenger's Airbag Module - SRS Service Reminder Indicator
(SRI)
- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontal impact is severe enough to require airbag deployment.
B240B02A-DAT
SRS Components and Functions
B240B02A-D The airbag modules are located both
in the centre of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM de-tects a considerable impact to the front of the vehicle, it will automatically de-ploy the airbags.
Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the airbags. Further opening of the cov-ers then allows full inflation of the airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward motion, thus reducing the risk of head or chest injury.
B240B04A-D The SRS service reminder indicator
(SRI) on the instrument panel will blink for about 6 seconds after the ignition key is turned to the "ON" position or after the engine is started, after which the SRI should go out.
!
WARNING:o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are normal and are not hazardous. However, the fine dust generated during airbag deployment may cause skin irritation. Wash your hands and face thoroughly with lukewarm water and a mild soap after an accident in which the airbags were deployed.
After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility.
o The SRS can function only when the ignition key is in the "ON" position. If the SRS SRI does not come on, or continuously re-mains on after flashing for about 6 seconds when the ignition key is turned to the "ON" position, or after the engine is started, or comes on while driving, the SRS is not working properly. If this occurs, have your vehicle imme-diately inspected by your Hyundai dealer.
o Before you replace a fuse or dis-connect a battery terminal, turn the ignition key to the "LOCK" position or remove the ignition key. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi-nate.
!
CAUTION:When installing a container of liq-uid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instrument panel or air ventilator), it may dam-age these parts. If the liquid from the air freshener does leak onto these areas, wash them with water immediately.
B240B01A-D
Passenger's Airbag
B240B05A-D
B990B04Y-AAT
Side Impact Airbag (If Installed)
Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front pas-senger with additional protection than that offered by the seatbelt alone. The side impact airbags are designed to deploy only during certain side impact collisions, depending on the crash se-verity, angle, speed and point of im-pact. The side impact airbags are not designed to deploy in all side impact situations.
B990B01A-D
o For best protection from the side impact airbag system and to avoid being injured by the de-ploying side impact airbag, both front seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's arms and hands should be placed on their laps. o Do not use any accessory seat
covers.
o Use of seat covers could reduce or prevent the effectiveness of the system.
o Do not install any accessories on the side or near the side impact airbag.
o Do not use excessive force on the side of the seat.
o Do not place any objects over the airbag or between the airbag and yourself.
Side airbag sensor
!
WARNING:o The side impact airbag is supple-mental to the driver's and the passenger's seat belt systems and is not a substitute for them. Therefore your seat belts must be worn at all times while the vehicle is in motion. The airbags deploy only in certain side im-pact conditions severe enough to cause significant injury to the vehicle occupants.
