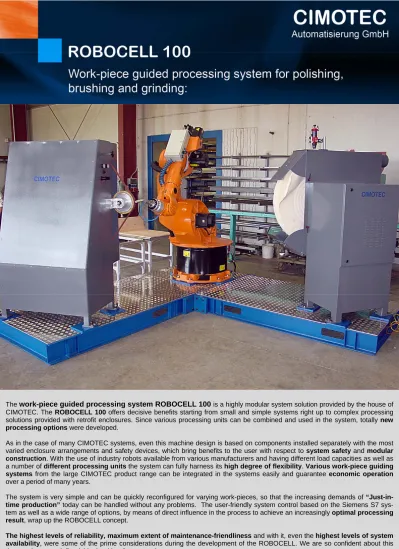

work-piece guided processing system ROBOCELL 100 ROBOCELL 100 new processing options system safety modular construction

The work-piece guided processing system ROBOCELL 100 is a highly modular system solution provided by the house of CIMOTEC. The ROBOCELL 100 offers decisive benefits starting from small and simple systems right up to complex processing solutions provided with retrofit enclosures. Since various processing units can be combined and used in the system, totally new

processing options were developed.

As in the case of many CIMOTEC systems, even this machine design is based on components installed separately with the most varied enclosure arrangements and safety devices, which bring benefits to the user with respect to system safety and modular

construction. With the use of industry robots available from various manufacturers and having different load capacities as well as

a number of different processing units the system can fully harness its high degree of flexibility. Various work-piece guiding

systems from the large CIMOTEC product range can be integrated in the systems easily and guarantee economic operation

over a period of many years.

The system is very simple and can be quickly reconfigured for varying work-pieces, so that the increasing demands of

“Just-in-time production” today can be handled without any problems. The user-friendly system control based on the Siemens S7

sys-tem as well as a wide range of options, by means of direct influence in the process to achieve an increasingly optimal processing

result, wrap up the ROBOCELL concept.

The highest levels of reliability, maximum extent of maintenance-friendliness and with it, even the highest levels of system availability, were some of the prime considerations during the development of the ROBOCELL. We are so confident about this

that we document it flourishingly with a 2-year product guarantee. 1.10

The classical, work-piece guided product range

ROBOCELL 100

has been constantly adapted, with the help of subsequent extensions, to increasingly meet the needs of modern grinding, polishing and brushing. New processing units and the use of

constantly more heavy-duty robots enable economic, flexible and rational handling with almost all types of work-pieces. This

includes sanitary fittings to die-cast and steel / stainless steel work-pieces, motor vehicle interior / exterior work-pieces right up to processing multiple work-pieces clamped together such as motor vehicle ornamental strips, for example.

The ROBOCELL 100 processing systems are available in various designs, exactly as the specific processing needs demand. All stationary processing units from the CIMOTEC range of products can be used, and combined processing tasks such as

grind-ing/polishing or polishing/buffing can be performed with ease. This option opens up completely new perspectives in the context

of even more rational handling. The proportion of manual work was, in turn, reduced with development work done subsequently by CIMOTEC.

The modular construction of the systems makes it easy to bring the system components even to those locations that are difficult to reach. The safety systems that can be supplied especially for the ROBOCELL 100 underline the modular concept with which the customer can select the system that best fits his needs. Amongst others, protective and fenced enclosures, complete

enclo-sures as retrofit with light construction and heavy duty complete encloenclo-sures as retrofit with many features of our complete

ROBOCELL enclosures with respect to noise and emission protection can be supplied. On request, from the viewpoint of

bet-ter transportability of the machine components, all modules can be mounted on stable steel base plates and even consisting of multiple parts.

Series of systems consisting of many ROBOCELL 100 systems or even combined complete systems consisting of ROBOCELL

100, ROBOCELL 400, ROBOCELL 500 and CNC polishing systems from the CIMOTEC product range have an ever-increasing demand owing to the production and cost pressure. If a single component requires multiple processing steps and that too in large numbers, then enormous performance capability can be achieved at low cost with the use of a series of systems. The most varied of plant chains, adapted uniquely to the work-piece and customer requirements, have been implemented by CI-MOTEC over the last 16 years of the company's history and they are in satisfactory operation to this day. Your satisfaction is

The customer can select from various ROBOCELL 100

system enclosures from the comprehensive CIMOTEC

product range to suit his desires and requirements.

Safety enclosures with a safety fence offer enhanced

opera-tional safety with good accessibility even when they are difficult to place and mount at the installation site.

The new, lighter and complete enclosure with integrated

steel construction base plate represents a meaningful

trade-off between utility and cost. For comparable feature of system

transportability such as our large ROBOCELL integrated

en-closures there is an interesting alternative with respect to the procurement cost. At present, we can supply this type of enclo-sure only as a one-piece encloenclo-sure.

The heavy retrofit enclosure is designed as a stable steel con-struction and offers clear advantages with respect to system

safety as well as noise and emission protection. They

com-ply with the latest work-place directives in totality. Should the processing demand it, then the heavy retrofit enclosure can be supplied in an explosion-proof design in conformance to the

ATEX Guidelines.

We can supply the complete enclosures, as is the case with ROBOCELL complete enclosures, in the colour desired by the

customer and we can comply with the request for almost any

colour.

The light retrofit integrated enclosure has as an aluminium profile construction. It is a cheaper alternative to the heavier variant, which, however, we construct in-house in the

Stable

steel constructed base plates wrap up the

elaborate product range from CIMOTEC. The system compo-nents are mounted on base plates so that in the case of failures the system offers a high degree of system transportability. Similar to our completely enclosed ROBOCELL systems, the system can easily be shifted from one location to another. The work programs also are shifted virtually. The highly modular CI-MOTEC building block system can be combined in a number of ways so that its benefits can be completely harnessed to provide flexible solutions.

The work-piece feeding systems adapted to the require-ments of the specific processing offer the flexibility required by the system:

The dual fixed table stocking system is used to place work-piece specific work-work-piece pallets, which are then withdrawn by the robot separately, processed and kept back again.

The pallet circulatory stocking system, in which, again, single work-piece pallets are fed in any quantity for processing. This system offers very high stocking quantity in the least possible space.

With the pallet entry stocking system also as many work-piece pallets as required can be stocked and fed. This system is the basis for customer-specific series of systems or system chains.

Other feeding systems from the CIMOTEC product range right

up to system chains with successive processing are possible, for which, please get in touch with us.

CP 50

The CIMOTEC processing units can be supplied for the most varied of tasks:

CP 40

- The small polishing unit for problematic areas can

be supplied in various sizes. Drive power up to 3 KW and polish-ing wheel diameter from 50 mm to 200 mm permit a flexible ap-plication spectrum.

CP 50

- Powerful polishing unit having a 1,000 mm

pol-ishing wheel diameter and up to 15 KW drive power, a maximum polishing wheel width of 200 mm and the polishing wheel abra-sion as well as the feeding of paste are adjusted automatically. On request, the CP 50 can be supplied with an in-built

pneu-matic oscillation movement.

CP 52

- Large polishing unit having a 1,000 mm polishing wheel diameter and up to 22 KW drive power, a maximum pol-ishing wheel width of 500mm, a counter bearing for supporting the polishing shaft. On request, the CP 52 can be supplied with an in-built motor-driven oscillation movement.

CP 80

- Powerful polishing unit having a 500 mm polishing wheel diameter and up to 7.5 KW drive power and a maximum polishing wheel width of 150 mm. The CP80 can also be sup-plied as a dual polishing unit CP80/2P, as a pure belt

grind-ing unit CP 80/S or as a combined grindgrind-ing/polishgrind-ing unit CP80/SP.

CP 100

- Double Large polishing unit having a 1,000 mm

polishing wheel diameter and up to 15 KW drive power, a maxi-mum polishing wheel width of 250mm. Compact design by a new drive concept. On request, the CP 100 can be supplied with a free-position turn unit for more flexibility.

CS 55

- Our most powerful dual grinding unit: Contact roll-ers having a diameter of 250 mm over which the work-piece can traverse cater to the required free space for processing. Contact disc diameters from 30 mm to 500 mm and the optional use of a second, upper contact roller further enhance the flexibility. The grinding belt, grinding shoe, up to 15 different belt geometries by simple tilting of the grinding belt cater to optimal processing re-sults. The dual grinding unit CS55 can also be supplied as a

single machine CS 50 or as a dual unit CS 60 with the units

being arranged one above the other owing to space constraints.

CS 65/66

- This is a 5-roller contact disc grinding unit with pneumatic contact roller alignment. On request, the unit can

also be supplied as a dual grinding unit CS66 and both in

Wet-Grinding-Design.

CP 80

CS 55

CP 40

CP 80/S

CS 66

CP 100

CP 52

Unique processing options impressively underline the

performance capability and universal application of the

ROBO-CELL 500 system concept. Please contact us with your specific

processing requirements and we will find the right solution for you.

The

system control of the ROBOCELL is a very

spe-cial subject:

A touch-screen operating panel TP277, and, on request, even a mobile one, from the house of Siemens permits specific control of all required processing parameters. A user administration

system having multiple levels of authorsation permits targeted

adaptation of the authorisations to meet the customer’s needs. Using the work-piece administration the user can create and manage up to 250 different pieces, and for each work-piece a separate parameter data record, consisting of the

cut-ting speeds, pressing forces, polishing paste cycles etc.

can be stored and retrieved. Other parameters such as our

cut-ting speed increase for grinding belt wear or polishing wheel

grinding, the number of work-pieces and batch counter or the

automatic pulse time display allow flexibility of processing like

never before.

All basic components of the processing system are networked to one another with the help of Profibus. Thus, all operating condi-tions can be recorded at any time and displayed as

indica-tions. A modem for remote diagnostics can be integrated

op-tionally, which facilitates quick assistance from our specialists in caser of failures.

Customer-specific

polishing and grinding equipment

wrap up the CIMOTEC range of products. CIMOTEC also sup-plies the tools necessary for the optimal functioning of the sys-tem for single and multiple tensioning devices for sanitary fittings, metallic fitting work-pieces, medical equipment, wooden or painted work-pieces, plastic components, ornamental strips etc.

The precise gripping and holding of the component during the processing is a guarantee for successful and correct processing. The gripping tools constructed and manufactured with higher precision from the house of CIMOTEC will be supplied to you even in future for new work-pieces to be produced. Everything is available under one roof.

Various systems are available for the polishing paste feed of the CIMOTEC polishing units depending on the particular task.

• High-pressure paste pistols with pressure query

• Low-pressure pistols

• Devices for solid paste

The various paste feeding systems are used in accordance with the processing task in order to achieve an optimal processing

result at all times.

CIMOTEC can also contribute towards supply of the

pol-ishing paste for you: Be it a pressurised container,

single-shot paste pump or central supply of polishing paste, we

offer you everything under one roof. Moreover, if you already have the appropriate supply of paste, then we simply connect the new system to it without any problem.

Other accessories such as, for example, polishing wheel

pull-out mechanisms for automatic periodic cleaning of the

polish-ing wheels, precision measurement equipment for exact de-termination of the polishing wheel abrasion, polishing wheel

quick change holders for quick and easy replacement of the

polishing wheel packet etc. already prepared, wrap up the CI-MOTEC range of products.

Almost every need can be catered to, since we already have it in our range of products or else we would develop it for you. The

continuous meaningful enhancement of our products with the help of our satisfied customers is of prime importance to us.

ROBOCELL 100, 16 KG Roboter, CS 55 double beltgrinding unit, CP 80 brushing unit , special feeding system
