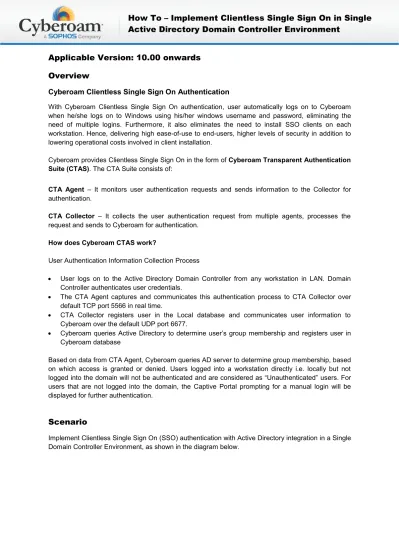

How To - Implement Clientless Single Sign On Authentication with Active Directory

How To - Implement Clientless Single Sign On Authentication with Active Directory

Applicable Version: 10.00 onwards

Overview

Cyberoam Clientless Single Sign On Authentication

With Cyberoam Clientless Single Sign On authentication, user automatically logs on to Cyberoam when he/she logs on to Windows using his/her windows username and password, eliminating the need of multiple logins. Furthermore, it also eliminates the need to install SSO clients on each workstation. Hence, delivering high ease-of-use to end-users, higher levels of security in addition to lowering operational costs involved in client installation.

Cyberoam provides Clientless Single Sign On in the form of Cyberoam Transparent Authentication

Suite (CTAS). The CTA Suite consists of:

CTA Agent – It monitors user authentication requests and sends information to the Collector for

authentication.

CTA Collector – It collects the user authentication request from multiple agents, processes the

request and sends to Cyberoam for authentication.

How does Cyberoam CTAS work?

User Authentication Information Collection Process

 User logs on to the Active Directory Domain Controller from any workstation in LAN. Domain Controller authenticates user credentials.

 The CTA Agent captures and communicates this authentication process to CTA Collector over default TCP port 5566 in real time.

 CTA Collector registers user in the Local database and communicates user information to Cyberoam over the default UDP port 6677.

 Cyberoam queries Active Directory to determine user’s group membership and registers user in Cyberoam database

Based on data from CTA Agent, Cyberoam queries AD server to determine group membership, based on which access is granted or denied. Users logged into a workstation directly i.e. locally but not logged into the domain will not be authenticated and are considered as “Unauthenticated” users. For users that are not logged into the domain, the Captive Portal prompting for a manual login will be displayed for further authentication.

Scenario

Implement Clientless Single Sign On (SSO) authentication with Active Directory integration in a Single Domain Controller Environment, as shown in the diagram below.

ADS Configuration

Login to your AD Server using Administrator profile and follow the steps below to install and configure CTAS.

Step 1: Download and Install CTAS

Download CTAS from http://www.cyberoam.com/cyberoamclients.html and install it in your AD Server.

Step 2: Configure CTAS in ADS

Once CTAS is installed, launch it from Start > All Programs > CTAS > Cyberoam Transparent

Authentication Suite or Desktop shortcut.

Configure CTA Collector

Switch to CTA Collector tab and configure parameters as given below.

Parameter Value Description

Cyberoam Appliances 192.168.1.121 Specify Cyberoam IP Address to which CTA

Collector has to forward user information.

Workstation Polling Settings WMI

Specify User Information Polling method. Available options:

WMI

Registry Read Access

Logoff Detection Settings Disabled

Enable if you want to monitor user logoff. If enabled, specify the Detection Method (Pinging the workstation or Polling through WMI or Registry Read Access)

Dead Entry Timeout 2

Specify if you want a user to be logged off from Cyberoam, after the mentioned time, even when the Logoff Detection for the users is disabled.

Listening to the Cyberoam Appliances on Port 6677

Specify the UDP port on which the CTA collector is to listen for requests from Cyberoam Appliance. Listening to the remote CTA

Agents (if any) on Port 5566

Note:

- Make sure that the AD Server has UDP port 6677 and TCP port 5566 open for communication between CTAS and Cyberoam, and CTA Collector and CTA Agent respectively.

- If you enable Logoff Detection Settings, ensure that firewall on all workstations are configured such that they allow traffic to and from the Domain Controller.

o If ping is selected as log off detection method, ensure that workstation firewall allows ping packets.

Configure CTA Agent

Switch to CTA Agent tab and configure parameters as given below.

Parameter Value Description

CTA Agent Mode EVENTLOG Select Workstation Communication Method

Monitored Networks 192.168.1.0/24 Specify the networks to be monitored for user

General Settings

Switch to the General tab and start the CTA Agent service.

Step 3: Enable Security Event Logging

Go to Start > Administrative Tools > Local Security Policy to view Security Settings. Traverse to

Security Settings > Local Policies > Audit Policy and double click on Audit account logon events

to view the Audit account logon events Properties window.

Cyberoam Configuration

After implementing CTAS on the AD Server, you can integrate it with Cyberoam by following the steps below.

Step 1: Configure Cyberoam to use Active Directory as Authentication Server.

Refer to the article How To – Integrate with Active Directory for details.

Step 2: Configure Collector Port and Group in Cyberoam

Logon to Cyberoam CLI Console using Administrator password. Go to Option 4. Cyberoam Console.

Execute the following commands to add collector IP and collector port, and create a collector group. console> cyberoam auth cta collector add collector-ip <ip-address> collector-port <port>

create-new-collector-group

Note:

For Cyberoam firmware version below 10.02.0 Build 473, add the collector IP and collector port

using the following command.

console> cyberoam auth cta collector add collector-ip <ipaddress> collector-port<port number>

This completes the configuration of Clientless SSO on your ADS and Cyberoam.
