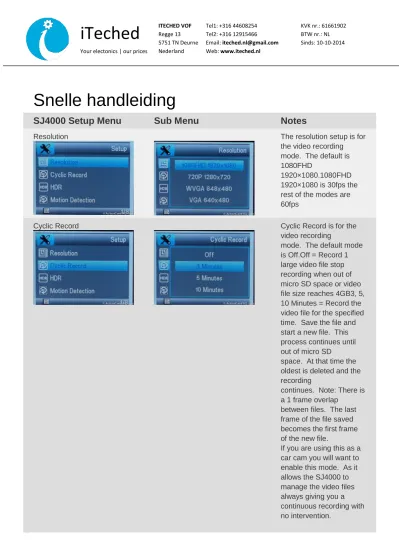

Snelle handleiding
SJ4000 Setup Menu
Sub Menu
Notes
Resolution The resolution setup is for
the video recording mode. The default is 1080FHD
1920×1080.1080FHD 1920×1080 is 30fps the rest of the modes are 60fps
Cyclic Record Cyclic Record is for the
video recording
mode. The default mode is Off.Off = Record 1 large video file stop recording when out of micro SD space or video file size reaches 4GB3, 5, 10 Minutes = Record the video file for the specified time. Save the file and start a new file. This process continues until out of micro SD
space. At that time the oldest is deleted and the recording
continues. Note: There is a 1 frame overlap
between files. The last frame of the file saved becomes the first frame of the new file.
HDR HDR is for the video recording mode. The default is Off.
Motion Detection Motion detection is for video recording
mode. The default is Off.
Recording (audio) Audio recording is for video recording mode. This turns the microphone on or off. The default is On.
your photos even when you have Date Stamp (20) On. Please check Date Stamp (7) and make sure it is set to date or date/time and not set Off.Read my rant about this horrible GUI
design here.
Photo Size Photo size is the
resolution for the photo mode. The default is 12M 4032×3024.
Sequence Sequence is for the photo
mode. When Sequence is set On pressing the OK button to take a photo will cause the SJ4000 to take continuous photos until the OK button is pressed again. This mode takes 1 photo every 3 seconds. The default is Off.
Quality Quality is for the photo
mode. The default is Normal.
photo mode. The default is Auto.
White Balance The default is Auto.
Color The default is Color.I
could not get B&W or Sepia to work for photos or video on version 20131209.
ISO The default is Auto.
Exposure Exposure settings are for
from -2 to +2 in 1/3 increments. The default is 0.
Anti-Shaking The default is off.
Quick Review Quick review is for the
photo mode. Quick review sets the amount of time the photo will be displayed after it is taken. The default is off.
Date Stamp (7) Date Stamp (7) is for the
photo mode. This is the second Date Stamp in the menu. This allows you to turn off the date stamp or choose the date stamp format. However the other Date Stamp (20) menu setting must be On for the date stamps to show up.Rant: This is just
horrible GUI
stamp. If you want to turn on a date stamp just choose one of the other two options Date or Date/Time. Done deal. Delete the other Date Stamp (20) from GUI.
Lanugage The default language is
English.
Date Time Enter the current date
and time. You can also change the display format. The default display format is YY/MM/DD. There are two other
this screen.
If you pull out the battery you will need to reset the date time.
Auto Power Off The default is Off.
Beep Sound The default is
On. Turning this off not only stops the beeps but also silences the shutter sound when taking photos.
screensavers The default is 1 Minute. I
was hoping for flying toasters but these options just power down the screen to conserve battery life.
Frequency The default is 60 Hz.
Car Mode The default is Off. When
recording when the car starts up and shutdown when the car is turned off. Please enable Cyclic Record
Delete Delete allows you to
delete the current file or all files.
Format The default is cancel.Bug:
You might of noticed the GUI skin changed color. The GUI skin text is white on blue until you format the micro SD card. Once formatted the GUI skin text is white on black. The GIU will stay this way until the SJ4000 is power cycled.
Default Setting The default setting is
defaults.
Version Version numbers are just
