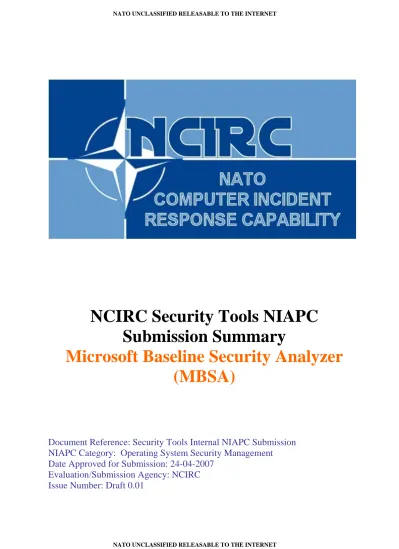

NCIRC Security Tools NIAPC
Submission Summary
Microsoft Baseline Security Analyzer
(MBSA)
Document Reference: Security Tools Internal NIAPC Submission
NIAPC Category: Operating System Security Management
1 Product
Microsoft Baseline Security Analyzer (MBSA) versions 1.2.1 and 2.0.
2 Category
Operating System Security Management.
3 Role
Vulnerability audit and patch reporting.
4 Overview
Microsoft Baseline Security Analyzer (MBSA) is an easy-to-use tool designed to determine the security state of MS operating system based computers in accordance with Microsoft security recommendations and offers specific remediation guidance.
5 Certification
This product has not undergone certification.
6 Company
Microsoft Inc.7 Country of Origin
USA.8 Web Link
http://www.microsoft.com/technet/security/tools/mbsahome.mspx.9 Product Description
MBSA 2.0.1 is compatible with Microsoft Update and Windows Server Update Services and the SMS Inventory Tool for Microsoft Update (ITMU). MBSA 2.0.1 offers customers improved Windows component support, expanded platform support for XP Embedded and 64-bit Windows, as well as more consistent and less complex security update management experience.
Any update published on Microsoft Update as a security update, update rollup, or service pack can be scanned using MBSA 2.0. These updates have been defined by Microsoft as follows:
Update rollup—A tested, cumulative set of hot fixes, security updates, critical updates, and updates packaged together for easy deployment. A rollup generally targets a specific area, such as security, or a component of a product, such as Internet Information Services (IIS).
Service pack—A tested, cumulative set of all hot fixes, security updates, critical updates, and updates, as well as additional fixes for problems found internally since the release of the product. Service packs may also contain a limited number of customer-requested design changes or features.
If you have corporate hotfixes installed on the scanned computer, detection will observe those updates based on file version as determined by Microsoft. Typically files with a newer than expected version would be accepted, unless Microsoft had determined that a higher versioned file was not secure, in which case the update would be offered in the report.
Because clients can be scanned using an online source (Microsoft Update or an assigned Update Services server) in addition to the offline catalogue, the report can include a specific heading called "Catalogue synchronization date". If the offline catalogue was used, the time that catalogue was generated is displayed in the report and can be used to determine if the latest catalogue was used. To check the version of the offline catalogue, follow these procedures:
Step 1: If you do not have the file, download it from
http://go.microsoft.com/fwlink/?LinkId=76054 and save it to C:\Documents and
Settings\<username>\Local Settings\Application Data\Microsoft\MBSA\2.0\Cache\wsusscn2.cab (default location).
Step 2: Open C:\Documents and Settings\<username>\Local Settings\Application
Data\Microsoft\MBSA\2.0\Cache\wsusscn2.cab using any program able to view an archive file type of *.cab.
Step 3: Open package.cab from the wsusscn2.cab file, and then the package.xml file inside it. Step 4: View the OfflineSyncPackage header element for the CreationDate. It should be set to a value such as "2005-06-01T18:42:49Z" (for example). Use the value you find to determine when the file was generated by Microsoft.
10 Product Requirements
Requirements include Remote Registry service, Server service, Workstation service, File and Printer Sharing service, and Automatic Updates service. The wsusscn2.cab file is downloaded from the Microsoft Web site over HTTP based on your Internet Explorer settings. Remote
computer scans are performed by using TCP ports 135, 139, and 445. Where a firewall or filtering router separates two networks, TCP ports 135, 139, and 445 and UDP ports 137 and 138 must be open in order for MBSA to connect and authenticate to the remote computer being scanned.
11 Limitations
Installs on Microsoft Windows 2000; Windows XP and Windows Server 2003.
Scanning for administrative vulnerabilities is supported for Microsoft Windows 2000; Windows XP; Windows Server 2003; Microsoft Internet Information Services (IIS) 5.0, 5.1, and 6.0; Microsoft Internet Explorer 5.01, 5.5, and 6.0 (including Internet Explorer 6.0 for Windows XP SP2 and Internet Explorer 6.0 for Windows Server 2003); Microsoft SQL Server 7.0 and SQL Server 2000; and Microsoft Office 2000, Office XP, and Office 2003.
Scanning for security updates is based on the Microsoft Update catalogue.
However, there are several products supported by MBSA 1.2.1 that will not be immediately available in Microsoft Update so MBSA 2.0 cannot scan for them:
c) Microsoft Content Management Server 2001 and 2002
d) Microsoft Host Integration Server 2000, 2004 and SNA Server 4.0 e) Microsoft Office 2000
