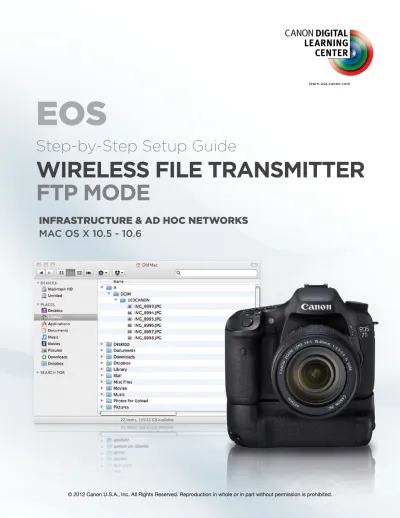

EOS
Step-by-Step Setup Guide
Wireless File TransmiTTer
FTP mode
InfraStructurE & ad HOc nEtwOrkS
Mac OS X 10.5 - 10.6
FTP Mode
Infrastructure Network Setup
Initial Setup
1
If you are using your own router, begin by switching it on and setting it up.Activate your computer’s Airport card and select the name of wireless network you want to access.
Overview
This section will describe how to set up a WFT FTP Mode infrastructure network on an Apple Macintosh running OS X 10.5-10.6. FTP Mode allows you to wirelessly transfer captured images to a computer that is set up as a remote FTP server. Image files can be transferred from the camera automatically or manually selected from the FTP server directory.
This setup allows you to assign a login name
and password. It assumes that the router has been set up for DHCP with WEP security enabled. It therefore requires a WEP login and will not work without one. You will also need a wireless network router to serve as the access point. Do not attempt to change the settings on any computer or network without the explicit permission of the owner or administrator.
2
Click the System Preferences icon on3
On the System Preferences window, click the Network icon located on the Internet &Network row.
4
Select your Airport connection, then click the Advanced button.5
Take note of the IP address the router has assigned to your computer. Do not change it. Simply write it down so you can enter it into your camera settings later. (Note: If this address is dynamically assigned it may change daily. Always confirm the IP address when reconnecting to your wireless network.6
Return to the System Preferences window.Click the Sharing folder.
7
Click the checkbox to the left of File Shar- ing, then click the Options button.8
Click the checkboxes to the left of Share files and folders using AFP and Share files and folders using FTP.WFT Setup
1
Turn on the camera and WFT unit.Press the MENU button on the camera.
Navigate to the Tool menu that contains WFT Settings. Select [WFT Settings].
2
Select [Connection wizard].4
Select [Wireless].Select [OK].
3
Select [FTP trans.].Select [OK].
5
Select [Connect with wizard].Select [OK].
6
select the name or SSID assigned to your wire- less network router. Select [OK].7
Select [Auto setting].Select [OK].
8
Select [Address setting].Select [OK].
9
Enter the exact IP address you wrote down in Step 5 of the Initial Computer Setup. Press the Menu button on your camera to select [OK].10
The address on the FTP Server screen should be identical to the address you wrote down in Step 5 of the Initial Com- puter Setup. Leave the port set to 00021.Select [OK].
11
Select Passive mode [Disable].Select [OK].
12
On Proxy server select [Disable].Select [OK].
13
On Login method select [Login password].Select [OK].
14
On Login name, enter the name of your Mac. The name is located on any Finder window under Places and to the right of the house icon. When you have finished entering the login name, press the Menu button on your camera to select OK.15
On your camera’s Password screen, enter the password you use to log onto your Mac. You must enter a login password for this setup to work. Press the Menu button on your camera to select OK.16
For Target folder select [Root folder], then select [OK].17
The camera and WFT will now connect to your computer/FTP server. Select [OK].18
Assign your settings to a Set for later retrieval. You can assign any number from 1 - 4.1
Go to the WFT settings menu.Select [Set up].
Optional Automatic File Transfer Settings
When you have finished using FTP mode, return to the WFT settings menu to select [Discon- nect.]
How to Disconnect
1. Repeat Initial Setup steps 1 through 5.
2. Compare the IP address to the IP address you previously wrote down. If it is the same then change the WFT mode in camera from disconnect to reconnect. If not, write down
How to Reconnect
2
On the Set up menu enable [Automatic transfer].Press the Menu button on your camera to confirm settings.
3
Image files from your camera will automatically be transferred to a “house folder” identified on your computer as folder A.FTP Mode
Ad Hoc Network Setup
Initial Computer Setup
Overview
This section will describe how to set up a WFT FTP Mode / Ad Hoc network on an Apple Macintosh running OS X 10.5-10.6. FTP Mode allows you to wirelessly transfer captured images to a computer that is set up as a remote FTP server. Image files can be transferred from the camera automatically
or manually selected from the FTP server directory.
Note: This setup allows you to assign a login name and password but is otherwise unsecured and not encrypted. It requires that you have a password that you use to log onto your computer and will not work without such a password.
1
Click the Airport icon on your top menu bar.Scroll down and select Create Network... on the resulting drop-down menu.
2
A. Enter a name in the Name field (for example“AD HOC WFT SERVER”).
B. Set Channel to Automatic.
C. Check the Require Password box.
3
Click the System Preferences icon on the Applications Dock at the bottom of your screen.4
On the System Preferences window, click the Network icon located on the Internet &Network row.
5
Click the Airport tab on the right side of the dialog box, then click the Advanced button at the lower right corner.6
Select the TCP/IP tab. On the drop-down Configure IPv4 menu select Manually.Directly below that, enter “192.168.1.100” in the IPv4 Address field. Once the dialog box is configured as shown, click OK, then Apply Now, then Quit. You can now move on to WFT Setup.
7
Return to the System Preferences window.Click the Sharing folder located on the Internet & Network row.
8
On the list of sharing options, click File Sharing, then click the Options... button.9
Click the checkbox to the left of Share files and folders using FTP.1
Turn on your camera with the WFT attached.(The WFT requires its own battery.) Navigate to the first Tool menu and select [WFT Settings].
Camera/WFT Setup
2
Under WFT Settings select [Connection wizard].3
4
Under LAN type select [Wireless].Select [OK].
5
Under Wireless LAN setup method select [Connect with wizard]. Select [OK].6
Under Select wireless network select the name or SSID assigned to your wireless net- work router. Select [OK].7
Under Key Index select [1].Select [OK].
8
Under Key format select [Enter 5 ASCII characters].Select [OK].
9
Under Enter 5 ASCII characters enter the password you created in Step 2 of the Initial Setup. Press the Menu button on your camera to select [OK].10
Under Network select [Manual setting].Select [OK].
11
Under IP address setting select [Manual setting]. Select [OK].12
Enter an IP address for the WFT unit. The first six digits must be “192.168.” Either one of the last two must be different from the digits you assigned to the computer. Write this number down; you will need it later.Select [OK].
15
Under FTP server select [Address setting], then select [OK].13
Under Gateway leave the gateway set to [Disable]. Select [OK}.14
Under DNS address select Disable, then select [OK].16
Under FTP Server address enter the IP address address you created during the computer setup. Select [OK].17
The FTP server screen will display the IP address and port numbering setting. The port number should be 00021. The IP ad- dress should match what you entered in Step 16. If so, select [OK].18
Under Passive Mode select [Disable].Select [OK].
19
Under Proxy server select [Disable].20
Under Login method select [Login pass- word]. Select [OK].21
Under Login name enter the name of your Mac. The name is located on any Finder window under Places and to the right of the house icon. When you have finished entering the login name, press the Menu button on your camera to select [OK].22
Under Password enter the password you use to log onto your Mac. You must enter a login password for this setup to work. Press the Menu button on your camera to select OK.23
Under Target folder select [Root folder], then select [OK].24
The camera and WFT will now connect to your computer’s FTP server. Select [OK].25
Assign your settings to a Set for later retrieval. You can assign any number from 1-5.1
Go to the WFT settings menu.Optional Automatic File Transfer Settings
2
Under Set up enable [Automatic transfer]. Press the Menu button on your camera to confirm set- tings.3
Image files from your camera will automatically be transferred to a “house folder” identified on your computer as folder A.When you have finished using FTP mode, return to the WFT settings menu to select [Discon- nect.]
How to Disconnect
To reconnect:
1. Return the WFT settings menu to [FTP trans.]
2. Select the FTP Airport account you previ- ously set-up on your Mac.
How to Reconnect
