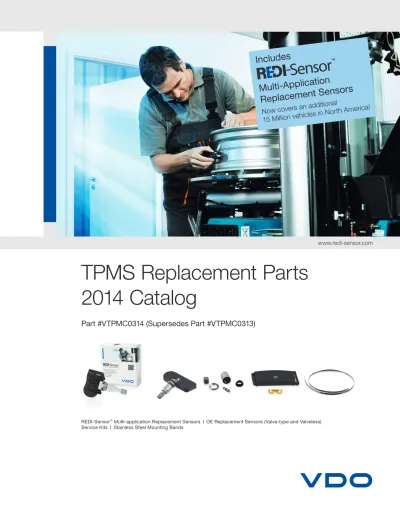

TPMS Replacement Parts 2014 Catalog

(1)

TPMS Replacement Parts

2014 Catalog

Part #VTPMC0314 (Supersedes Part #VTPMC0313)

REDI-Sensor™_{Multi-application Replacement Sensors I OE Replacement Sensors (Valve-type and Valveless)} Service Kits I Stainless Steel Mounting Bands

http://usa.vdo.com

Multi-Applic

Replaceme

nt Sensors

Now covers a

n additional

15 Million ve

hicles in No

rth America

!

(2)

VDO REDI-Sensor provides multi-application coverage for a broad range of cars, vans, SUVs, crossovers and light trucks from 2002 - 2014.

The VDO REDI-Sensor program now covers an additional 15 Million vehicles in North America with additional sensor

applications added daily and replaces over 200 OE sensors… and counting.

The hundreds of new vehicle applications covered by REDI-Sensor have been added to the already broad and deep coverage of the VDO TPMS replacement parts program.

The seamless, multi-application

service solution for TPMS.

• Ready out of the box!

• Pre-programmed and designed

to follow OE vehicle relearn procedures

• Works with all major TPMS scan tools

• Reduces inventory and eliminates

service delays

• OE designed and validated

The REDI-Sensor TPMS service solution now includes Pulse Width Modulation (PWM) capabilities

for GM truck applications, plus newly expanded Asian and European vehicle coverage.

Now covers a

n additional

15 Million v

ehicles in

North Ame

rica!

To learn more, view our videos or take the online quiz for a chance to win a REDI-Sensor baseball cap, scan the QR code here using your smartphone or visit:

www.redi-sensor.com

Less inventory for parts providers.

VDO REDI-Sensor replaces a host of OE sensors, including banded, snap-in and clamp-in types from Beru, Continental, Lear, Pacific, Schrader, Siemens VDO and TRW.

With REDI-Sensor, parts stores can substantially reduce the number of SKUs required to provide full TPMS coverage.

Works with all major TPMS scan tools.

If a shop has the TPMS scan tools to handle OE sensors, it’s ready for REDI-Sensor. Unlike other sensors that require the purchase of specialized sensor programming/cloning tools and software upgrades, no additional purchases, training or investments are needed to get started with REDI-Sensor because it is designed to follow OE vehicle relearn procedures.

Parts stores can also deliver REDI-Sensor without

worrying whether their customers have the TPMS scan tools necessary to work with it, because all major TPMS scan tools are compatible!

Eliminates lost service opportunities.

Service shops only need to keep a small supply of

REDI-Sensors on hand to be ready to service practically any vehicle that comes in. No waiting for a part delivery, and no lost sales to drivers that can’t leave their vehicle.

(3)

Introduction Section

How To Use The Catalog . . . .

II

REDI-Sensor Information. . .

III

Overview / Installation Service Tips. . . .

V

TPMS Service Kit Guide . . . .

VII

IX

Part Number Update . . .

IX

Make / Model Index . . .

XI

Application Section

Tire Pressure Sensors. . . .

1

Illustrated Buyers Guide

Tire Pressure Sensors . . .

A1

Service Kits . . .

A7

Wheel Bands . . .

A11

Cross Reference

OE Cross Reference . . .

B1

REDI-Sensor™ Cross Reference . . . .

B5

Abbreviations. . . .

(4)

For complete VDO catalog information, please visit: www.vdo.com/usa

To order the

correct part:

Use the application listings found in the catalog.

Determine. . .

1) Make 2) Model 3) Year 4) Application 5) Part number

Other:

6) Torque Specifications 7) Footnotes

Use the numerical

listings for general

information only

Provided for

Identification…

1) Illustration

Listed by…

2) Part Number

Refer to the Application Listing located in the front of this catalog for specific application by year, make, and model.

Sample Buyers Guide Page

(5)

*

REDI-Sensor multi-application sensors transmit tire pressure and temperature data regularly while

the vehicle is in motion above a predetermined vehicle speed threshold (approx. 15 mph (25 kph)),

or at the time of triggering by a TPMS scan tool. In accordance with OE specifications, REDI-Sensor

multi-application sensors also transmit periodically when the vehicle is parked on some vehicle

applications.

www.redi-sensor.com

Technical Support Hotline: 800-265-1818

REDI-Sensor multi-application sensors meet/exceed all US Federal Motor Vehicle Safety Standards

(FMVSS) TPMS Ruling No. 138 requirements as part of the OE TPM system, and are OE-designed and

REDI-Sensor multi-application sensors are pre-programmed with vehicle protocols (software) and

ready to install right of the box, just like OE sensors. And, just like an OE sensor, REDI-Sensor

multi-application sensors require that the appropriate vehicle manufacturer’s relearn process be

followed. See online catalog lookup at www.redi-sensor.com to verify your application and specific

validated.

vehicle relearn instructions, or call 800-265-1818 for the technical support hotline.

As per the OE vehicle relearn procedure, in most instances a TPMS scan tool is required for both

REDI-Sensor multi-application sensors and OE sensors. However, for limited sensor and vehicle

combinations, OE auto-learn by driving or delta pressure (temporarily adjusting tire air pressure

+/- 2 psi, be sure to never exceed maximum inflation pressure on tire sidewall) methods may be used

instead.

Verify all tires are aired to proper placard pressure prior to beginning OE vehicle relearn process,

and re-verify again upon vehicle relearn completion (particularly for delta pressure method).

REDI-Sensor multi-application sensors do not respond to magnet triggering, however REDI-Sensor

multi-application sensors can be used in combination with OE magnet trigger sensors or as

replacement for all the OE magnet trigger sensors on a vehicle. For vehicles using OE magnet trigger

sensors, continue to use a magnet for the OE sensors and use a TPMS scan tool for REDI-Sensor

multi-application sensors. Note that limited OE magnet trigger sensors will also dual trigger with

not intended for high pressure truck applications and have a maximum potential pressure reading

of approximately 50 psi to 65 psi, but can vary by application.

some TPMS scan tools.

REDI-Sensor multi-application sensors may be used exclusively on a vehicle, or in combination with

other OE or aftermarket sensors on a vehicle, including clamp-in, snap-in and valveless (banded)

styles.

(6)

for the most up-to-date information

Continental is adding REDI-Sensor™ multi-application

sensor vehicle applications, cross references, vehicle

relearns, and other installation and sales-related

information daily. Please check with your Continental

Sales Representative or at www.redi-sensor.com

(7)

1.

2.

3.

4.

5.

6.

7.

8.

is direct TPMS-equipped, diagnose problems, and to trigger replacement sensors/perform relearns.

9.

10.

11.

12.

13.

Once a TPMS service kit part has had torque applied, do not loosen and reuse these parts. Service kit parts

that have been previously torqued must be replaced with new parts.

Do not use plain brass valve cores with TPMS sensor valves, as the valve core can easily corrode inside the

valve stem leading to frozen/seized parts.

Direct TPMS sensors only need replacement if the battery fails or if the sensor is damaged.

Replace the TPMS sensor seal, hex nut, valve core, cap, and washer (service kit) during tire service.

Depending on the application, these serviceable parts can vary. However, the idea remains the same -

replacing these parts is preventive maintenance for the TPM System, and the profits help recoup those lost from

standard tire valve/stem sales that typically no longer come on direct TPMS- equipped vehicles.

direct TPMS/verify system functionality status. If the system is not working properly, identify this to your

customer before beginning service on a vehicle to avoid potentially being blamed for damage.

Purchase a quality electronic TPMS scan tool that offers wide application coverage to help identify if a vehicle

Be sure to check the spare tire for a direct TPMS sensor. Many vehicles with direct TPMS have a sensor in full

size spares.

TPMS equipped vehicle by the exposed valve stem alone can be misleading due to these sensor varieties.

Valve-type sensors are mounted to the valve stem hole of the wheel. Valveless (specifically banded) sensors

are mounted 180 degrees from the valve stem hole of the wheel.

Identify if a vehicle is or is not equipped with direct TPMS, and if the system is working properly prior to

bringing the vehicle into your shop. Check the dash telltale lights and use an electronic TPMS scan tool to verify

there is never a requirement to perform sensor programming or configuration by the service technician.

All VDO sensors are designed to follow the standard OE vehicle relearn process with no added steps.

Be aware that there are many varieties of direct TPM Systems. Valve-type includes clamp-in sensors (threaded

metal valve stem with hex nut) and snap-in sensors (rubber valve stem with sensor). Valveless sensors are

typically banded (metal wheel band), but other styles are being developed. Attempting to visually identify a

Some competitive brand aftermarket sensors require an added step for sensor programming by the service

technician prior to installation on a vehicle. These aftermarket sensors arrive blank and must have the

vehicle protocol (software) loaded or configured by using a specialized sensor programming tool. VDO

exclusively sells pre-programmed sensors, which includes the VDO OE TPMS sensor line and the VDO

REDI-Sensor TPMS line. Because all VDO sensors already have the vehicle protocols loaded at the factory,

other sensor or tire service work. The TPMS vehicle relearn procedure is a specific set of steps established

by the vehicle manufacturer to activate and confirm proper TPMS communication between the vehicle and the

wheel/tire mounted sensors. Some vehicles relearn automatically when you drive them, while others require a

TPMS scan tool to complete the vehicle relearn. For vehicle relearn details, please visit our online cataloging

resource at www.vdo.com/usa or www.redi-sensor.com.

diameter and therefore rotate faster). Indirect TPMS does not contain tire pressure sensors inside the tires.

Direct TPMS contains tire pressure sensors inside the tires, and offers many service opportunities for the

automotive technician. This catalog only covers direct TPMS replacement parts.

Regardless of what type of direct TPMS sensor you use -- VDO OE sensors, VDO REDI-Sensor sensors, or

competitive brand sensors -- a TPMS vehicle relearn is always required during sensor replacement as well as

In combination with electronic stability control and/or anti-lock brake systems, indirect TPMS works by

monitoring tire/wheel rotation speeds (versus properly inflated tires, lower pressure tires have a smaller

(8)

14.

15.

16.

17.

18.

19.

20.

21.

22.

pressure warning lamp. Always be sure to maintain the recommended tire pressure in a vehicle year-round.

23.

24.

25.

26.

help avoid hydroplaning.

the non-OE wheels and/or tires, is working properly.

Most TPMS sensors have lithium perchlorate or lithium manganese-based batteries and should be properly

disposed of when the usable life has expired.

Some types of window film (tinting) can cause interference with the TPMS.

Proper tire inflation can help to maximize tire life and MPG, improve handling, reduce stopping distance and

Colder temperatures will reduce the pressure in a vehicle's tires, thereby potentially triggering the TPMS low tire

Changing to non-OE wheels and/or tires that have a different recommended inflation pressure will not change

the low tire inflation warning threshold of the TPMS. If OE wheels and/or tires are not used, refer to the OE

manufacturer's vehicle service guide for instructions including the warning threshold reset procedure and seek

the assistance of an authorized vehicle dealer to ensure the TPM System, including system compatibility with

opaque hard plastic side of the sensor, and is different from the inflating hole). A cleaning instrument should

never be inserted directly into the tire air pressure inlet hole for risk of damage.

Pure nitrogen inflation is not required; however it is perfectly acceptable for use with TPMS sensors.

TPMS is a supplemental tire safety system, and is not a replacement for regularly-scheduled tire pressure

checks and maintenance.

replacement parts and online at www.vdo.com/usa or www.redi-sensor.com

Some tire sealants and balancing compounds may interfere with the performance or reduce the longevity of

TPMS sensors.

If necessary, most TPMS sensors can be cleaned in water.

When cleaning a TPMS sensor, be careful to not clog or damage the tire air pressure inlet hole (typically on the

and your business.

Use a torque tool to verify that the proper torque has been applied when installing the TPMS sensor attachment

nut, valve core, and other torqued parts. The guesswork without a torque tool can lead to serious problems,

including tire air loss and damaged TPMS parts.

For items in this TPMS Catalog, be sure to follow all instructions and relearn procedures included with the

It is highly recommended to only use OE-validated TPMS parts. TPMS is a mandated safety system in the USA

and should not be compromised with copy-cat parts. The use of OE-validated parts helps protect your customer

(9)

This is only a general reference guide – not to be used as final part selection

criteria. This guide only covers parts available through the VDO TPMS

Replacement Parts Program.

"TG1B" image:

"TG1C" image:

"TG1B-ND" image:

If your vehicle has a Siemens "TG1B" style sensor (see "TG1B" image, below), the appropriate service kit will be part number SE54187, SE54188, SE54510, or SE54520 (see application detail online at

www.vdo.com/usa or in appropriate section of the current VDO TPMS print catalog).

service kit will be part number SE54540 or SE54550 (see application detail online at www.vdo.com/usa or in appropriate section of the current VDO TPMS print catalog).

If your vehicle has a Continental "TG1C" style sensor (see "TG1C" image, below), the appropriate service kit will be part number SE54189, SE54190, SE54193, SE54194 or replacement valve stem SE54191 (see application detail online at www.vdo.com/usa or in appropriate section of the current VDO TPMS print catalog). This style sensor includes REDI-Sensor™ multi-application sensors.

(10)

"TG1B-VL" banded image:

"TRW-A" image:

(short valve stem version shown, longer valve stem version also offered)

***applies only to vehicle coverage available through VDO TPMS Replacement Parts Program.

"TRW-B" image:

***applies only to vehicle coverage available through VDO TPMS Replacement Parts Program. appropriate wheel band will be part number SE57714, SE57715, SE57716, SE57717, SE57718, SE57719, SE57720, SE57721, SE57722, SE57723, or SE57724 (check vehicle wheel size and see application detail online at www.vdo.com/usa or in appropriate section of the current VDO TPMS

appropriate section of the current VDO TPMS print catalog).

If your vehicle has a TRW “TRW-B” style sensor (see “TRW-B” image, below), the appropriate service kit*** will be part number SE54525 or SE54526 (see application detail online at www.vdo.com/usa or in appropriate section of the current VDO TPMS print catalog).

print catalog). Wheel bands are offered in 1-inch increments from 14” - 24” to match vehicle wheel size. The final 2 digits in the wheel band part number designate wheel size, i.e. SE57718 = 18 inch wheel size. For ½” sized wheels, i.e. 19-½”, generally order the closest whole size down (19").

If your vehicle has a TRW “TRW-A” style sensor (see “TRW-A” image, below), the appropriate service kit*** will be part number SE54830 or SE54740 (see application detail online at www.vdo.com/usa or in

(11)

Exc.

Except

OE

Original

Equipment

FMVSS

(US) Federal Motor Vehicle

Safety Standards

SRW

Single Rear Wheel

in-lbs.

Inch-pounds

Std.

Standard

MHz

Megahertz

TPMS

Tire Pressure

Monitoring System

NHTSA

(US) National Highway

Traffic Safety Administration

w/

With

N-m

Newton Meter

Whl.

Wheel

No.

Number

SE54195 - NEW

SE54184 - NEW

Part Number Update

Sensor Assemblies

SE10001 - sell down and reorder SE10001HP

Follow the application cataloging for each respective part number

SE10004 - sell down and reorder SE10004A

Follow the application cataloging for each respective part number

SE53002 - sell down and reorder SE53000

SE52056 - NEW

SE53015 - NEW

SE53016 - NEW

SE55558 - NEW

SE55910 - NEW

SE54186 - NEW

Service Kits

SE54185 - NEW

(12)

to part numbers, vehicle manufacturers, interchanges models, and other catalog data content should be used for comparison purposes only. The use of such information on invoices to the vehicle owner is not admissible. Due to the vast number of car models and spare parts from numerous vehicle manufacturers, the exact application of parts is not always feasible. Therefore, please be aware of the corresponding remarks and spare part descriptions

Exclusión de responsabilidad

Se pueden obtener copias de extractos de este catálogo mediante autorización escrita de Continental. No se considerarán

reclamaciones por daños basadas en los datos del catálogo. Continental se reserva el derecho de modificar el diseño o el contenido de este catálogo. Cualquier referencia a números de parte, fabricantes de los vehículos, intercambios, modelos y demás datos incluidos en este catálogo deberá usarse para fines comparativos únicamente. No se permite el uso de tal información en facturas al dueño del vehículo. Debido al gran número de modelos de automóvil y repuestos de numerosos fabricantes, no siempre es posible describir el uso exacto de los repuestos. Por este motivo, remítase a las descripciones de los repuestos y a las observaciones correspondientes.

Clause de non-responsabilité

La seule façon d’obtenir des exemplaires ou des extraits de ce catalogue est en obtenant la permission écrite de Continental. Les demandes d’indemnisation en lien avec les données publiées dans ce catalogue ne seront pas prises en considération. Continental se réserve le droit de modifier le design ou le contenu de ce catalogue. Toute référence à des numéros de pièce, constructeurs de véhicules, interchangeabilités, modèles et autres données du catalogue ne doit être utilisée qu’à des fins de comparaison. Il est interdit d’inscrire de tels renseignements sur les factures du propriétaire du véhicule. Étant donné le nombre élevé de modèles de véhicules et de pièces de rechange provenant des nombreux constructeurs de véhicules, il n’est pas toujours possible de déterminer l’application exacte des pièces. Par conséquent, veuillez tenir compte des remarques correspondantes et des descriptions des pièces de rechange.

(13)

ACURA Page No.

CSX 1

ILX 1

RL 1

TL 1

ACURA TRUCK Page No.

MDX 1

RDX 1

ZDX 1

AUDI Page No.

A3 1 A3 QUATTRO 1 A4 1 A4 QUATTRO 1 A5 1 A5 QUATTRO 2 A6 2 A6 QUATTRO 2 R8 2 S4 2 S5 2 S6 2 TT 2 TT QUATTRO 2

AUDI TRUCK Page No.

Q5 2 Q7 2 BMW Page No. 1 SERIES M 3 128i 3 135i 3 135is 3 320i 3 320i xDRIVE 3 323i 3 328d 3 328d xDRIVE 3 328i 3 328i GT xDRIVE 3 328i xDRIVE 3 335d 3 335i 3 335i GT xDRIVE 3 335i xDRIVE 3 335is 3 528i 3 528i xDRIVE 3 535i 3 535i GT 3 535i GT xDRIVE 3 535i xDRIVE 3 550i 3 550i GT 4 550i GT xDRIVE 4 550i xDRIVE 4 640i 4

640i GRAN COUPE 4

640i xDRIVE 4

650Ci 4

650i 4

650i GRAN COUPE 4

650i xDRIVE 4 740Li 4 740Li xDRIVE 4 740i 4 750Li 4 750Li xDRIVE 4 750i 4 750i xDRIVE 4 760Li 4 Alpina B7 4 Alpina B7L 4 M3 5 M5 5 M6 5 M6 Gran Coupe 5 Z4 5

BMW TRUCK Page No.

X1 5

X3 5

X5 5

X6 5

BUICK Page No.

ALLURE 5

LACROSSE 5

LUCERNE 5

REGAL 5

VERANO 5

BUICK TRUCK Page No.

ENCLAVE 6

ENCORE 6

RAINIER 6

CADILLAC Page No.

ATS 6 CTS 6 DTS 6 STS 6 XLR 6 XTS 6

CADILLAC TRUCK Page No.

ESCALADE 7

SRX 7

CHEVROLET Page No.

CAMARO 7 CAPRICE 7 COBALT 7 CORVETTE 7 CRUZE 7 HHR 7 IMPALA 7 MALIBU 7 MONTE CARLO 7 ORLANDO 8 SONIC 8 SPARK 8 VOLT 8

CHEVROLET TRUCK Page No.

AVALANCHE 8 CAPTIVA SPORT 8 COLORADO 8 EQUINOX 8 EXPRESS 1500 9 EXPRESS 2500 9 EXPRESS 3500 9 SILVERADO 1500 9 SSR 10 SUBURBAN 1500 10 SUBURBAN 2500 10 TAHOE 10 TRAILBLAZER 10 TRAVERSE 10 UPLANDER 10

CHRYSLER Page No.

200 10 300 10 300M 11 CONCORDE 11 CROSSFIRE 11 INTREPID 11

(14)

PT CRUISER 11

SEBRING 11

CHRYSLER TRUCK Page No.

ASPEN 12

PACIFICA 12

TOWN & COUNTRY 12

VOYAGER 13

DODGE Page No.

AVENGER 13 CALIBER 13 CHARGER 13 DART 14 INTREPID 14 MAGNUM 14 VIPER 14

DODGE TRUCK Page No.

CARAVAN 15 DAKOTA 15 DURANGO 15 GRAND CARAVAN 15 JOURNEY 15 NITRO 16 RAM 1500 PICKUP 16 RAM 2500 PICKUP 16 SPRINTER 2500 16 SPRINTER 3500 16

FORD Page No.

C-MAX 16 CROWN VICTORIA 16 FIESTA 17 FIVE HUNDRED 17 FOCUS 17 FUSION 17 MUSTANG 18

POLICE INTERCEPTOR SEDAN 18

TAURUS 18

TAURUS X 19

FORD TRUCK Page No.

E-150 19

E-250 19

E-350 SUPER DUTY 19

EDGE 19

ESCAPE 20

EXPEDITION 20

EXPLORER 20

EXPLORER SPORT TRAC 21

F-150 21 F-250 SUPER DUTY 22 F-350 SUPER DUTY 22 F-450 SUPER DUTY 22 FLEX 23 FREESTAR 23 RANGER 23 TRANSIT CONNECT 24

FREIGHTLINER Page No.

SPRINTER 2500 24

SPRINTER 3500 24

GMC TRUCK Page No.

ACADIA 24 CANYON 24 ENVOY 24 SAVANA 1500 24 SAVANA 2500 24 SAVANA 3500 24 SIERRA 1500 25 SIERRA 2500 HD 25 SIERRA 3500 25 TERRAIN 25 YUKON 25 YUKON XL 1500 25 YUKON XL 2500 25

HONDA Page No.

ACCORD 26 ACCORD CROSSTOUR 26 CIVIC 26 CR-Z 26 CROSSTOUR 26 FIT 26 INSIGHT 26 S2000 26

HONDA TRUCK Page No.

CR-V 27

ELEMENT 27

ODYSSEY 27

PILOT 27

RIDGELINE 27

HUMMER Page No.

H2 27

H3 27

H3T 27

HYUNDAI Page No.

ACCENT 28 AZERA 28 ELANTRA 28 ELANTRA GT 28 EQUUS 28 GENESIS 28 GENESIS COUPE 28 SONATA 28 TIBURON 29

HYUNDAI TRUCK Page No.

ENTOURAGE 29

SANTA FE 29

TUCSON 29

VERACRUZ 29

INFINITI Page No.

G25 30 G35 30 G37 30 M35 30 M35h 30 M37 30 M45 30 M56 30 Q45 30 Q60 30 Q70 31

INFINITI TRUCK Page No.

EX35 31 EX37 31 FX35 31 FX37 31 FX45 31 FX50 31 JX35 31 QX4 31 QX50 31 QX56 32 QX60 32 QX70 32 QX80 32

ISUZU TRUCK Page No.

ASCENDER 32

RODEO 32

(15)

S-TYPE 32 SUPER V8 32 VANDEN PLAS 33 X-TYPE 33 XF 33 XFR 33 XJ 33 XJ8 34 XJR 34 XK 34 XK8 34 XKR 34 XKR-S 35

JEEP TRUCK Page No.

COMMANDER 35 COMPASS 35 GRAND CHEROKEE 35 LIBERTY 36 PATRIOT 36 WRANGLER 36

KIA Page No.

AMANTI 37 CADENZA 37 FORTE 37 FORTE KOUP 37 MAGENTIS 37 OPTIMA 37 RIO 37 RIO5 37 RONDO 37 SOUL 38 SPECTRA 38 SPECTRA5 38

KIA TRUCK Page No.

BORREGO 38

SEDONA 38

SORENTO 38

SPORTAGE 38

LAND ROVER TRUCK Page No.

LR2 39

LR3 39

LR4 39

RANGE ROVER 39

LEXUS Page No.

CT200H 40 ES300H 40 ES350 40 GS300 40 GS350 40 GS430 40 GS450H 40 GS460 40 HS250H 40 IS F 41 IS250 41 IS350 41 LFA 41 LS460 41 LS600H 41 SC430 41

LEXUS TRUCK Page No.

GX460 42 GX470 42 LX470 42 LX570 42 RX330 42 RX350 42 RX400H 42 RX450H 42 MKS 42 MKZ 43 TOWN CAR 43

LINCOLN TRUCK Page No.

AVIATOR 43

MARK LT 43

MKT 44

MKX 44

NAVIGATOR 44

MAZDA Page No.

2 45 3 45 6 45 CX-7 46 CX-9 46 MX-5 MIATA 46 RX-8 46

MAZDA TRUCK Page No.

5 47

B2300 47

B3000 47

B4000 48

TRIBUTE 48

MERCEDES-BENZ Page No.

CL550 49 CL600 49 CL63 AMG 49 CL65 AMG 49 CLS500 49 CLS55 AMG 49 CLS550 49 CLS63 AMG 50 E300 50 E320 50 E350 50 E500 50 E55 AMG 50 E550 50 E63 AMG 51 GL320 51 GL450 51 GL550 51 R320 51 R350 51 R500 51 R63 AMG 51 S400 51 S450 52 S550 52 S600 52 S63 AMG 52 S65 AMG 52 SL500 52 SL55 AMG 52 SL550 53 SL600 53 SL63 AMG 53 SL65 AMG 53 SLK300 53 SLK350 53 SLK55 AMG 54 SLR MCLAREN 54

MERCEDES-BENZ TRUCK Page No.

ML320 54 ML350 54 ML450 54 ML500 54 ML550 54 ML63 AMG 54 SPRINTER 2500 54 SPRINTER 3500 54

(16)

GRAND MARQUIS 55

MILAN 55

MONTEGO 55

SABLE 55

MERCURY TRUCK Page No.

MARINER 56

MONTEREY 56

MOUNTAINEER 56

MINI Page No.

COOPER 57

MITSUBISHI Page No.

ECLIPSE 57

GALANT 57

LANCER 57

i-MiEV 57

MITSUBISHI TRUCK Page No.

ENDEAVOR 57

MONTERO SPORT 57

OUTLANDER 58

RAIDER 58

NISSAN Page No.

350Z 58 370Z 58 ALTIMA 58 CUBE 59 GT-R 59 LEAF 59 MAXIMA 59 SENTRA 59 VERSA 59 VERSA NOTE 59

NISSAN TRUCK Page No.

ARMADA 60 FRONTIER 60 JUKE 60 MURANO 60 NV200 60 PATHFINDER 60 QUEST 60 ROGUE 60 TITAN 60 XTERRA 61

PONTIAC Page No.

G5 61 G6 61 G8 61 GRAND PRIX 61 SOLSTICE 61 VIBE 61

PONTIAC TRUCK Page No.

MONTANA 61

TORRENT 61

PORSCHE Page No.

911 62

PORSCHE TRUCK Page No.

CAYENNE 62

RAM TRUCK Page No.

DAKOTA 62

9-5 62

SAAB TRUCK Page No.

9-4X 62

9-7X 62

SATURN Page No.

ASTRA 62

AURA 62

SKY 62

SATURN TRUCK Page No.

OUTLOOK 63

SCION Page No.

IQ 63

TC 63

XB 63

XD 63

SUBARU Page No.

FORESTER 63

IMPREZA 63

LEGACY 63

OUTBACK 63

XV CROSSTREK 64

SUBARU TRUCK Page No.

B9 TRIBECA 64

TRIBECA 64

SUZUKI Page No.

FORENZA 64

KIZASHI 64

RENO 64

SUZUKI TRUCK Page No.

EQUATOR 64

XL-7 64

TOYOTA Page No.

AVALON 65 CAMRY 65 COROLLA 65 MATRIX 65 PRIUS 65 PRIUS V 65 SOLARA 65 VENZA 65 YARIS 65

TOYOTA TRUCK Page No.

4RUNNER 66 FJ CRUISER 66 HIGHLANDER 66 LAND CRUISER 66 RAV4 66 SEQUOIA 66 SIENNA 66 TACOMA 66 TUNDRA 66

VOLKSWAGEN Page No.

BEETLE 67 CC 67 EOS 67 GOLF 67 GTI 67 JETTA 67 PASSAT 67 R32 68 RABBIT 68

VOLKSWAGEN TRUCK Page No.

ROUTAN 68

(17)

TIGUAN 68

TOUAREG 68

VOLVO Page No.

C30 68 C70 69 S40 69 S60 69 S80 69 V50 70 V70 70 XC70 70

VOLVO TRUCK Page No.

XC60 71

(18)

VDO - A T

rademark of the Continental Corporation

www.vdo.com/usa

As TPMS is a safety system, failure to

properly and safely maintain it puts your

customers’ safety at risk – and puts you

in danger of legal action that could ruin

your shop.

Unlike many competitors, all VDO TPMS

products use only OE-validated parts that

meet the functional requirements set by

NHTSA in FMVSS No. 138. From the valve

cores to the full sensor assemblies, all VDO

TPMS Replacement Parts go through the

stringent OE-validation procedures that

apply to all parts we sell to both automakers

and the aftermarket.

Being an originator in TPMS technology,

we’ve designed and developed sensors for

OEMs since 1998. All of our TPMS parts

have always been manufactured in the same

ISO-certified facilities to the same quality

standards for trustworthy performance, ease

of installation, and safety.

Don’t jeopardize your customers’ safety and

your own bottom line – choose VDO.

For additional information, contact:

[email protected]

Here’s why you should avoid TPMS parts that haven’t been OE

engineered and validated to meet the requirements set by NHTSA.

TPMS parts

are a ticking

time bomb.

(19)

ACURA

CSX

09-08 SE54190 8 N-m, 71 in-lbs.

09-08 315 MHz SE55922 SE54526 4 N-m, 35 in-lbs.

09-08 315 MHz; Multi-application SE10002 _{8 N-m, 71 in-lbs.}

Sensor

09-08 Replacement Stem SE54191 +

ILX

13 SE54190 8 N-m, 71 in-lbs.

13 315 MHz SE55913 8 N-m, 71 in-lbs.

13 315 MHz; Multi-application SE10002 _{8 N-m, 71 in-lbs.}

Sensor

13 Replacement Stem SE54191 +

RL

12-05 315 MHz SE55901 SE54830 # _{4 N-m, 35 in-lbs.}

TL

13-09 Use With TRW Sensor Only SE54526 4 N-m, 35 in-lbs.

08-05 315 MHz SE55901 SE54830 # _{4 N-m, 35 in-lbs.}

ACURA TRUCK

MDX

06-04 315 MHz SE55901 SE54830 # _{4 N-m, 35 in-lbs.}

RDX

14-13 315 MHz SE55912 8 N-m, 71 in-lbs.

ZDX

13-10 Use With TRW Sensor Only SE54526 4 N-m, 35 in-lbs.

AUDI

A3

12-08 SE54190 8 N-m, 71 in-lbs.

Sensor

12-06 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

A3 QUATTRO

12-08 SE54190 8 N-m, 71 in-lbs.

Sensor

12-06 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

A4

12-09 SE54190 8 N-m, 71 in-lbs.

12-09 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

A4 QUATTRO

12-09 SE54190 8 N-m, 71 in-lbs.

12-09 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

A5

12-10 SE54190 8 N-m, 71 in-lbs.

12-10 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

_{See info page III. TPMS scan tool generally req'd. Follow OE relearn process, available online by application: www.redi-sensor.com} +_{47mm metal valve stem;}

Silver color; Must be used in combination with service kit #_{The hex nut contains an internal flange that breaks away between 2-3 N-m (18-27 in-lbs.). Continue}

(20)

AUDI (cont'd)

A5

( c o n t ' d )

A5 QUATTRO

12-08 SE54190 8 N-m, 71 in-lbs.

12-08 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

A6

12-10 SE54830 # _{4 N-m, 35 in-lbs.}

A6 QUATTRO

12-10 SE54830 # _{4 N-m, 35 in-lbs.}

R8

12-10 SE54830 # _{4 N-m, 35 in-lbs.}

S4

12-10 SE54190 8 N-m, 71 in-lbs.

12-10 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

S5

12-08 SE54190 8 N-m, 71 in-lbs.

12-08 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

S6

11-10 SE54830 # _{4 N-m, 35 in-lbs.}

TT

09-08 SE54190 8 N-m, 71 in-lbs.

09-08 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

TT QUATTRO

12-08 SE54190 8 N-m, 71 in-lbs.

12-08 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

AUDI TRUCK

Q5

12-09 SE54190 8 N-m, 71 in-lbs.

12-09 315 MHz SE55001 SE54510 8 N-m, 71 in-lbs.

Sensor

Q7

12-10 SE54830 # _{4 N-m, 35 in-lbs.}

+_{47mm metal valve stem; Silver color; Must be used in combination with service kit}_{See info page III. TPMS scan tool generally req'd. Follow OE relearn}

process, available online by application: www.redi-sensor.com #_{The hex nut contains an internal flange that breaks away between 2-3 N-m (18-27 in-lbs.). Continue}

tightening the hex nut to the final torque value specified to properly secure the sensor assembly onto the wheel *_{Torque specifications apply only to parts in this}

catalog

2014 Continental Corporation

(21)

BMW

1 SERIES M

11 SE54830 # _{4 N-m, 35 in-lbs.}

128i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

135i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

135is

13 SE54830 # _{4 N-m, 35 in-lbs.}

320i

14-12 SE54830 # _{4 N-m, 35 in-lbs.}

320i xDRIVE

14-13 SE54830 # _{4 N-m, 35 in-lbs.}

323i

11-10 SE54830 # _{4 N-m, 35 in-lbs.}

328d

14 SE54830 # _{4 N-m, 35 in-lbs.}

328d xDRIVE

14 SE54830 # _{4 N-m, 35 in-lbs.}

328i

14-10 SE54830 # _{4 N-m, 35 in-lbs.}

328i GT xDRIVE

14 SE54830 # _{4 N-m, 35 in-lbs.}

328i xDRIVE

14-10 SE54830 # _{4 N-m, 35 in-lbs.}

335d

11-10 SE54830 # _{4 N-m, 35 in-lbs.}

335i

14-10 SE54830 # _{4 N-m, 35 in-lbs.}

335i GT xDRIVE

14 SE54830 # _{4 N-m, 35 in-lbs.}

335i xDRIVE

14-10 SE54830 # _{4 N-m, 35 in-lbs.}

335is

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

528i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

528i xDRIVE

13-12 SE54830 # _{4 N-m, 35 in-lbs.}

535i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

535i GT

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

535i GT xDRIVE

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

535i xDRIVE

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

550i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

#_{The hex nut contains an internal flange that breaks away between 2-3 N-m (18-27 in-lbs.). Continue tightening the hex nut to the final torque value specified to}

(22)

BMW (cont'd)

550i GT

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

550i GT xDRIVE

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

550i xDRIVE

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

640i

14-12 SE54830 # _{4 N-m, 35 in-lbs.}

640i GRAN COUPE

14-13 SE54830 # _{4 N-m, 35 in-lbs.}

640i xDRIVE

14 SE54830 # _{4 N-m, 35 in-lbs.}

640i xDRIVE GRAN

COUPE

14 SE54830 # _{4 N-m, 35 in-lbs.}

650Ci

11 SE54830 # _{4 N-m, 35 in-lbs.}

650i

14-12 SE54830 # _{4 N-m, 35 in-lbs.}

650i GRAN COUPE

14-13 SE54830 # _{4 N-m, 35 in-lbs.}

650i xDRIVE

14-12 SE54830 # _{4 N-m, 35 in-lbs.}

650i xDRIVE GRAN

COUPE

14-13 SE54830 # _{4 N-m, 35 in-lbs.}

740Li

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

740Li xDRIVE

13 SE54830 # _{4 N-m, 35 in-lbs.}

740i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

750Li

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

750Li xDRIVE

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

750i

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

750i xDRIVE

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

760Li

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

Alpina B7

13-12 SE54830 # _{4 N-m, 35 in-lbs.}

Alpina B7 xDRIVE

13-12 SE54830 # _{4 N-m, 35 in-lbs.}

Alpina B7L

13-12 SE54830 # _{4 N-m, 35 in-lbs.}

properly secure the sensor assembly onto the wheel *_{Torque specifications apply only to parts in this catalog}

(23)

BMW (cont'd)

Alpina B7L xDRIVE

13-12 SE54830 # _{4 N-m, 35 in-lbs.}

M3

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

M5

14-12 SE54830 # _{4 N-m, 35 in-lbs.}

M6

14-11 SE54830 # _{4 N-m, 35 in-lbs.}

M6 Gran Coupe

14 SE54830 # _{4 N-m, 35 in-lbs.}

Z4

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

BMW TRUCK

X1

14-12 SE54830 # _{4 N-m, 35 in-lbs.}

X3

14-11 SE54830 # _{4 N-m, 35 in-lbs.}

X5

14 433.92 MHz SE52056 SE54184 8 N-m, 71 in-lbs.

14 Replacement Stem SE54195M

13-11 SE54830 # _{4 N-m, 35 in-lbs.}

X6

14-11 SE54830 # _{4 N-m, 35 in-lbs.}

BUICK

ALLURE

10-07 SE54190 8 N-m, 71 in-lbs. 10-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.} Multi-application Sensor

08-07 Use With Siemens Sensor SE54187 8 N-m, 71 in-lbs.

Only

LACROSSE

13-07 SE54190 8 N-m, 71 in-lbs.

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Multi-application Sensor

Only

LUCERNE

11-07 SE54190 8 N-m, 71 in-lbs.

11-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

REGAL

13-11 SE54190 8 N-m, 71 in-lbs.

13-11 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

VERANO

12 SE54190 8 N-m, 71 in-lbs.

12 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

properly secure the sensor assembly onto the wheel M_{43mm metal valve stem; Silver color; Must be used in combination with service kit}_{See info page III.}

TPMS scan tool generally req'd. Follow OE relearn process, available online by application: www.redi-sensor.com +_{47mm metal valve stem; Silver color; Must be}

(24)

BUICK (cont'd)

VERANO

( c o n t ' d )

BUICK TRUCK

ENCLAVE

13-08 SE54190 8 N-m, 71 in-lbs.

13-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

ENCORE

13 SE54190 8 N-m, 71 in-lbs.

13 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

RAINIER

07-06 SE54190 8 N-m, 71 in-lbs.

07-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CADILLAC

ATS

13 SE54190 8 N-m, 71 in-lbs.

13 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

13 Replacement Stem; Snap-In SE54192 ~

CTS

13-04 SE54190 8 N-m, 71 in-lbs.

13-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

DTS

11-06 SE54190 8 N-m, 71 in-lbs.

11-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

STS

11-05 SE54190 8 N-m, 71 in-lbs.

11-05 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

XLR

09-04 SE54190 8 N-m, 71 in-lbs.

09-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

XTS

13 SE54190 8 N-m, 71 in-lbs.

13 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

process, available online by application: www.redi-sensor.com ~_{Black rubber snap-in stem} *_{Torque specifications apply only to parts in this catalog}

(25)

CADILLAC TRUCK

ESCALADE

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

13-05 SE54190 8 N-m, 71 in-lbs.

Sensor

SRX

13-04 SE54190 8 N-m, 71 in-lbs.

13-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CHEVROLET

CAMARO

13-10 SE54190 8 N-m, 71 in-lbs.

13-10 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CAPRICE

13-11 SE54190 8 N-m, 71 in-lbs.

13-11 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

COBALT

10-08 SE54190 8 N-m, 71 in-lbs.

10-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CORVETTE

13-05 SE54190 8 N-m, 71 in-lbs.

13-05 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CRUZE

13-11 SE54190 8 N-m, 71 in-lbs.

13-11 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

HHR

11-08 SE54190 8 N-m, 71 in-lbs.

11-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

IMPALA

13-06 SE54190 8 N-m, 71 in-lbs.

13-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

MALIBU

13-08 SE54190 8 N-m, 71 in-lbs.

13-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

MONTE CARLO

07-06 SE54190 8 N-m, 71 in-lbs.

07-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

(26)

CHEVROLET (cont'd)

MONTE CARLO

( c o n t ' d )

ORLANDO

12 SE54190 8 N-m, 71 in-lbs.

12 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

SONIC

13-12 SE54190 8 N-m, 71 in-lbs.

13-12 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

SPARK

13 SE54190 8 N-m, 71 in-lbs.

13 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

VOLT

13-11 SE54190 8 N-m, 71 in-lbs.

13-11 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CHEVROLET TRUCK

AVALANCHE

13-07 SE54190 8 N-m, 71 in-lbs.

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

AVALANCHE 1500

06-05 SE54190 8 N-m, 71 in-lbs.

Sensor

AVALANCHE 2500

06-05 SE54190 8 N-m, 71 in-lbs.

Sensor

CAPTIVA SPORT

13-12 SE54190 8 N-m, 71 in-lbs.

13-12 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

COLORADO

12-07 SE54190 8 N-m, 71 in-lbs.

Sensor

EQUINOX

13-07 SE54190 8 N-m, 71 in-lbs.

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

process, available online by application: www.redi-sensor.com *_{Torque specifications apply only to parts in this catalog}

(27)

CHEVROLET TRUCK (cont'd)

EXPRESS 1500

13-08 SE54190 8 N-m, 71 in-lbs.

13-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

EXPRESS 2500

13-08 SE54190 8 N-m, 71 in-lbs.

13-08 315/314.9 MHz; SE10001HP d _{8 N-m, 71 in-lbs.}

Only

EXPRESS 3500

13-08 SE54190 8 N-m, 71 in-lbs.

Only

SILVERADO 1500

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

13-05 SE54190 8 N-m, 71 in-lbs.

Sensor

SILVERADO 1500 HD

07 315/314.9 MHz; SE10001HP d _{8 N-m, 71 in-lbs.}

07-05 SE54190 8 N-m, 71 in-lbs.

Sensor

SILVERADO 2500 HD

13-07 SE54190 8 N-m, 71 in-lbs.

05 SE54190 8 N-m, 71 in-lbs.

Sensor

SILVERADO 3500

07 SE54190 8 N-m, 71 in-lbs.

07 315/314.9 MHz; SE10001HP d _{8 N-m, 71 in-lbs.}

05 SE54190 8 N-m, 71 in-lbs.

Sensor

SILVERADO 3500 HD

13-07 SE54190 8 N-m, 71 in-lbs.

Silver color; Must be used in combination with service kit d_{Air all tires to placard pressure prior to vehicle relearn.} *_{Torque specifications apply only to parts in}

(28)

CHEVROLET TRUCK (cont'd)

SSR

06 SE54190 8 N-m, 71 in-lbs.

06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

SUBURBAN 1500

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

13-05 SE54190 8 N-m, 71 in-lbs.

Sensor

SUBURBAN 2500

13-05 SE54190 8 N-m, 71 in-lbs.

Sensor

TAHOE

13-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

13-05 SE54190 8 N-m, 71 in-lbs.

Sensor

TRAILBLAZER

09-06 SE54190 8 N-m, 71 in-lbs.

09-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

TRAVERSE

13-09 SE54190 8 N-m, 71 in-lbs.

13-09 315/314.9 MHz; SE10001HP 8 N-m, 71 in-lbs.

UPLANDER

09-08 SE54190 8 N-m, 71 in-lbs.

09-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CHRYSLER

200

14-11 SE54190 8 N-m, 71 in-lbs.

14-11 315 MHz; w/Silver Valve Cap SE57772 SE54189 8 N-m, 71 in-lbs.

14-11 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

14-11 Replacement Stem SE54191 + _SE54191 +

300

08 433.92 MHz; Multi-application SE10004A _{8 N-m, 71 in-lbs.}

Sensor

08 433.92 MHz; w/Black Valve SE57773 8 N-m, 71 in-lbs.

Cap; Continental; Replaces Siemens Sensor

08 Replacement Stem; Use With SE54191 +

Continental Sensor Only

08 Use With Continental Sensor SE54189 8 N-m, 71 in-lbs.

Only

Silver color; Must be used in combination with service kit d_{Air all tires to placard pressure prior to vehicle relearn.} *_{Torque specifications apply only to parts in}

this catalog

(29)

CHRYSLER (cont'd)

300

( c o n t ' d )

08 Use With Siemens Sensor SE54188 8 N-m, 71 in-lbs.

Only

08-05 SE54190 8 N-m, 71 in-lbs.

07-05 315 MHz; w/Silver Valve Cap; SE57772 8 N-m, 71 in-lbs. Continental; Replaces

Siemens Sensor

07-05 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

07-05 Replacement Stem; Use With SE54191 +

07-05 Use With Continental Sensor SE54189 8 N-m, 71 in-lbs. Only

Only

300M

04-02 SE54190 8 N-m, 71 in-lbs.

04-02 433.92 MHz; Multi-application SE10004A _{8 N-m, 71 in-lbs.}

Sensor

CONCORDE

04-02 SE54190 8 N-m, 71 in-lbs.

Sensor

CROSSFIRE

08-05 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

08-04 SE54190 8 N-m, 71 in-lbs.

Sensor

INTREPID

04-02 SE54190 8 N-m, 71 in-lbs.

04-02 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

PT CRUISER

10 315 MHz; w/Silver Valve Cap; SE57772 SE54189 8 N-m, 71 in-lbs. Continental

10-08 SE54190 8 N-m, 71 in-lbs.

10-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

Siemens Sensor

SEBRING

10-07 SE54190 8 N-m, 71 in-lbs.

Siemens Sensor

process, available online by application: www.redi-sensor.com _{No magnetic triggering, use of electronic TPMS scan tool required} *_{Torque specifications}

(30)

CHRYSLER (cont'd)

SEBRING

( c o n t ' d )

10-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

09-08 433.92 MHz; Continental SE57773 8 N-m, 71 in-lbs.

Sensor. Replaces Siemens Sensor

Sensor

CHRYSLER TRUCK

ASPEN

09-07 SE54190 8 N-m, 71 in-lbs. 09-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.} Multi-application Sensor

PACIFICA

Siemens Sensor

Only

08-04 SE54190 8 N-m, 71 in-lbs.

08-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

05 315 MHz; w/Silver Valve Cap SE57243 SE54187 8 N-m, 71 in-lbs. 04 315 MHz; Replaces Siemens SE57243 SE54187 8 N-m, 71 in-lbs.

OE Sensor Only; See OE Sensor Marking

Sensor

TOWN & COUNTRY

10 433.92 MHz; w/Black Valve SE57773 SE54189 8 N-m, 71 in-lbs. Cap; Continental

Sensor

Only

10-02 SE54190 8 N-m, 71 in-lbs.

09-08 433.92 MHz; w/Black Valve SE57773 SE54189 8 N-m, 71 in-lbs. Cap; Continental; Replaces

Siemens Sensor

Silver color; Must be used in combination with service kit _{No magnetic triggering, use of electronic TPMS scan tool required} *_{Torque specifications apply only}

to parts in this catalog

(31)

CHRYSLER TRUCK (cont'd)

TOWN & COUNTRY

Only

07-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

05-04 315 MHz; w/Silver Valve Cap SE57243 SE54187 8 N-m, 71 in-lbs. 03-02 433.92 MHz; Multi-application SE10004A _{8 N-m, 71 in-lbs.}

Sensor

VOYAGER

03-02 SE54190 8 N-m, 71 in-lbs.

Sensor

DODGE

AVENGER

14-11 315 MHz; w/Silver Valve Cap SE57772 SE54189 8 N-m, 71 in-lbs. 14-11 Replacement Stem SE54191 +

14-08 SE54190 8 N-m, 71 in-lbs.

14-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Siemens Sensor

Only

CALIBER

Sensor

12-10 315 MHz; w/Silver Valve Cap SE57772 SE54189 8 N-m, 71 in-lbs. 12-10 Replacement Stem SE54191 +

12-07 SE54190 8 N-m, 71 in-lbs.

12-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

Siemens Sensor

CHARGER

Sensor

Only

_{See info page III. TPMS scan tool generally req'd. Follow OE relearn process, available online by application: www.redi-sensor.com}_{No magnetic triggering,}

use of electronic TPMS scan tool required +_{47mm metal valve stem; Silver color; Must be used in combination with service kit} *_{Torque specifications apply}

only to parts in this catalog

FRQWG

(32)

DODGE (cont'd)

CHARGER

( c o n t ' d )

Only

08-06 SE54190 8 N-m, 71 in-lbs.

Siemens Sensor

07-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

DART

13 Replacement Stem; Snap-In SE54192 ~

INTREPID

04-02 SE54190 8 N-m, 71 in-lbs.

Sensor

MAGNUM

Sensor

Only

08-05 SE54190 8 N-m, 71 in-lbs.

Siemens Sensor

07-05 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Only

VIPER

10-08 SE54190 8 N-m, 71 in-lbs.

Sensor

06-03 SE54190 8 N-m, 71 in-lbs.

Sensor

process, available online by application: www.redi-sensor.com ~_{Black rubber snap-in stem}_{No magnetic triggering, use of electronic TPMS scan tool required}

*_{Torque specifications apply only to parts in this catalog}

(33)

DODGE TRUCK

CARAVAN

Siemens Sensor

Only

07-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

07-02 SE54190 8 N-m, 71 in-lbs.

Sensor

DAKOTA

10-08 SE54190 8 N-m, 71 in-lbs.

10-08 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

DURANGO

09-07 SE54190 8 N-m, 71 in-lbs.

09-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

GRAND CARAVAN

Sensor

Only

10-02 SE54190 8 N-m, 71 in-lbs.

09-08 433.92 MHz; w/Black Valve SE57773 8 N-m, 71 in-lbs. Cap; Continental; Replaces

Siemens Sensor

Only

07-04 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Sensor

JOURNEY

Sensor

process, available online by application: www.redi-sensor.com _{No magnetic triggering, use of electronic TPMS scan tool required} *_{Torque specifications}

(34)

DODGE TRUCK (cont'd)

JOURNEY

( c o n t ' d )

10-09 SE54190 8 N-m, 71 in-lbs.

Only

Sensor

Only

NITRO

11-07 SE54190 8 N-m, 71 in-lbs.

11-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

RAM 1500 PICKUP

09 SE54190 8 N-m, 71 in-lbs.

Sensor; Replaces OE No. 56029359

RAM 2500 PICKUP

09-08 SE54190 8 N-m, 71 in-lbs.

Multi-application Sensor; Replaces OE No. 56029319

SPRINTER 2500

09-07 SE54190 8 N-m, 71 in-lbs.

09-07 315 MHz SE58003 SE54550 # _{6 N-m, 54 in-lbs.}

Sensor

SPRINTER 3500

09-07 SE54190 8 N-m, 71 in-lbs.

09-07 315 MHz SE58003 SE54550 # _{6 N-m, 54 in-lbs.}

Sensor

FORD

C-MAX

14-13 SE54190 8 N-m, 71 in-lbs.

14-13 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

CROWN VICTORIA

11-07 SE54190 8 N-m, 71 in-lbs.

11-07 315 MHz SE57635 8 N-m, 71 in-lbs.

11-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Multi-application Sensor; Replaces Banded Sensor And Band/Strap

process, available online by application: www.redi-sensor.com d _{Air all tires to placard pressure prior to vehicle relearn.} #_{The hex nut contains an internal}

flange that breaks away between 2-3 N-m (18-27 in-lbs.). Continue tightening the hex nut to the final torque value specified to properly secure the sensor assembly onto th w h e e l *_{Torque specifications apply only to parts in this catalog}

(35)

FORD (cont'd)

CROWN VICTORIA

( c o n t ' d )

11-07 w/14" Whl.; Band Only SE57714 3.5 N-m, 31 in-lbs. 11-07 w/15" Whl.; Band Only SE57715 3.5 N-m, 31 in-lbs. 11-07 w/16" Whl.; Band Only SE57716 3.5 N-m, 31 in-lbs. 11-07 w/17" Whl.; Band Only SE57717 3.5 N-m, 31 in-lbs. 11-07 w/18" Whl.; Band Only SE57718 3.5 N-m, 31 in-lbs.

FIESTA

14-11 SE54190 8 N-m, 71 in-lbs.

14-11 315/314.9 MHz; SE10001HP y _{8 N-m, 71 in-lbs.}

FIVE HUNDRED

07-06 SE54190 8 N-m, 71 in-lbs.

07-06 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

07-06 w/14" Whl.; Band Only SE57714 3.5 N-m, 31 in-lbs. 07-06 w/15" Whl.; Band Only SE57715 3.5 N-m, 31 in-lbs. 07-06 w/16" Whl.; Band Only SE57716 3.5 N-m, 31 in-lbs. 07-06 w/17" Whl.; Band Only SE57717 3.5 N-m, 31 in-lbs. 07-06 w/18" Whl.; Band Only SE57718 3.5 N-m, 31 in-lbs. 07-06 w/19" Whl.; Band Only SE57719 3.5 N-m, 31 in-lbs. 07-06 w/20" Whl.; Band Only SE57720 3.5 N-m, 31 in-lbs.

FOCUS

14-07 SE54190 8 N-m, 71 in-lbs.

10-07 315/314.9 MHz; SE10001HP _{8 N-m, 71 in-lbs.}

Multi-application Sensor; Replaces Banded Sensor And Band/Strap

09-07 315 MHz SE57635 8 N-m, 71 in-lbs.

09-07 w/14" Whl.; Band Only SE57714 3.5 N-m, 31 in-lbs. 09-07 w/15" Whl.; Band Only SE57715 3.5 N-m, 31 in-lbs. 09-07 w/16" Whl.; Band Only SE57716 3.5 N-m, 31 in-lbs. 09-07 w/17" Whl.; Band Only SE57717 3.5 N-m, 31 in-lbs. 09-07 w/18" Whl.; Band Only SE57718 3.5 N-m, 31 in-lbs.

FUSION

14-13 433.92 MHz; Multi-application SE10004A y _{8 N-m, 71 in-lbs.}

Sensor

14-07 SE54190 8 N
