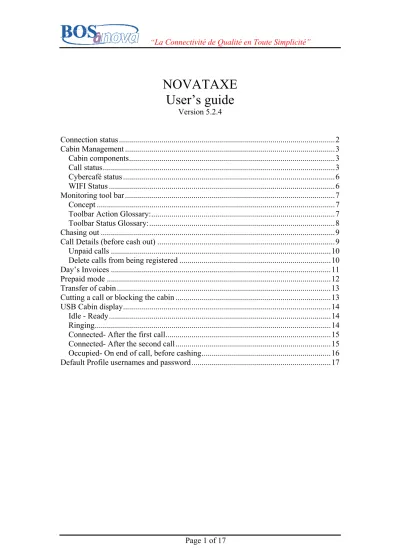

Page 1 of 17
NOVATAXE
User’s guide
Version 5.2.4 Connection status ...2 Cabin Management ...3 Cabin components...3 Call status...3 Cybercafé status ...6 WIFI Status ...6Monitoring tool bar ...7
Concept ...7
Toolbar Action Glossary:...7
Toolbar Status Glossary:...8
Chasing out ...9
Call Details (before cash out) ...9
Unpaid calls ...10
Delete calls from being registered ...10
Day’s Invoices ...11
Prepaid mode ...12
Transfer of cabin ...13
Cutting a call or blocking the cabin ...13
USB Cabin display...14
Idle - Ready...14
Ringing...14
Connected- After the first call...15
Connected- After the second call...15
Occupied- On end of call, before cashing...16
Page 2 of 17
Connection status
Icons index
- Waiting for finish tests (Connection and License) - Connection error
- Problem with the license - Connection and License is OK
Page 3 of 17
Cabin Management
Cabin components
Call status
1. Idle- Not occupied
Page 4 of 17 3. Ringing
4. Connected
Page 5 of 17 5. Idle- Occupied, not cashed yet
Page 6 of 17
Cybercafé status
Station is off
Station is on and stopped Station is on and idle Station is on and connected
Station is on and bypassed manually Station not configured
Station is not licensed
WIFI Status
No WIFI Connection
- In Login Phase
Page 7 of 17
Monitoring tool bar
Concept
Novataxe enables to monitor in real time status of: Connections, Internet, and Gateways.
Putting the cursor on the icon, will give more details.
Toolbar Action Glossary:
1. - Give remote access to the service provider and share the desktop with him..
2. - System report status: Local and external IP, SN of USB keys, Date, Screen size, Installation directory, Operating system.
3. - Linksys Gateway information: IP, MAC, Model.
4. - AudioCodes Gateway Information: IP, MAC, Version (SNMP), Telnet.
5. - Asterisk report.
6. - Jusan CL10 displays status.
7. - Status of Cybercafé stations
8. - Status of PABX
9. Status of Printouts and Printers
10. Status of Subscription and Packages.
11. - USB cabin Displays status
Page 8 of 17
Toolbar Status Glossary:
1. - Internet connection is ON. 2. - Internet connection is OFF.
3. - Linksys Gateway is accessible.
4. - Linksys Gateway is NOT accessible.
5. - AudioCodes Gateway is accessible.
6. - AudioCodes Gateway is NOT accessible. 7. - Asterisk is OFF.
8. - Asterisk is ON.
9. - Jusan CL10 cabin display 1 is active
10. - Jusan CL10 cabin display 1 is off
11. - PABX is monitored
12. - PABX connection is off.
13. - No pending printouts
14. - Pending Printouts
15. - Connection to WIFI router established
Page 9 of 17
Chasing out
Pressing on button cash out, will pop the following dialog box:
You can enter the amount given and it will calculate the rest to be return. Checking out the receipt, will show the invoice PDF to be printed.
Call Details (before cash out)
1. Select “Detail appels”
Page 10 of 17
Unpaid calls
By un-checking the check box on the left of the call, the call cost will be deducted from the sum and the call will be registered as unpaid.
Delete calls from being registered
Selecting the call and pressing the mouse right click will enable the possibility to delete the call from the list and nothing will be registered.
Page 11 of 17
Day’s Invoices
1. Select “Factures”
Page 12 of 17
Prepaid mode
1. Selecting Pre-paid
2. Putting the amount of prepaid
Page 13 of 17
Transfer of cabin
NovaTaxe enable the possibility to transfer the last calls done before cashing out to another cabin.
Right click on the cabin you want to transfer, and choose “Cabin Transfer”, the following dialog box appears:
Put the number of the cabin to where you want to transfer the calls.
Cutting a call or blocking the cabin
When call is in progress, you can cut the call by pressing the block button.
When no call is in progress, pressing the block button will disable the possibility to make a call fro this cabin.
Cutting and blocking is not possible with certain connections, see the following table for details:
Type Cabin blocking Call cutting Tax Info
AudioCodes version 5.2+ Yes Yes No
AudioCodes version 5.0- No Yes No
Linksys No No No
IP Phones No No No
Page 14 of 17
USB Cabin display
Idle - Ready
Page 15 of 17
Connected- After the first call
Page 16 of 17
Page 17 of 17
Default Profile usernames and password
Profile Username Password
